ARTRAY ARTCAM-640P-THERMO User manual

- 1 -
March 12, 2019
Ver1.01
Thermal Infrared Camera
ARTCAM-640P-THERMO
INSTRUCTION BOOKLET
ARTRAY CO., LTD.

- 2 -
Contents
1. Attention................................................................................. - 3 -
2. Introduction............................................................................ - 6 -
3. Features.................................................................................. - 6 -
4. The Product ............................................................................ - 6 -
5. Connections ............................................................................ - 7 -
6. Specifications.......................................................................... - 8 -
6.1. Detailed specifications ...................................................... - 8 -
6.2. Dimensional outline .......................................................... - 9 -
7. Systems Requirements ........................................................ - 10 -

- 3 -
1. Attention
■About this manual
1．Before using the camera, please read this manual thoroughly.
2．Please keep this manual reachable and always refer to the contents when needed.
3．Please contact us if the manual is lost or damaged. We will provide a replacement.
4．We cannot guarantee the safety of improper uses of the camera.
5．For your safety, please follow the directions of this manual.
6．All contents are subject to change.
7．Images in this manual may have been simplified to be easier comprehended.
8．Please contact us if you find any unclear points or mistakes in this manual.
9．Quoting, copying or altering some or all parts of the manual without our permission is prohibited.
10．We are not responsible for any lost or damages on your profits due to the use of our products.
11．Please understand that our oversea branches do not provide maintenance or repair services.
■About the Icons
To keep the safety of the user, other people and their properties, please pay attention to the following icons.
Warning
If the user fails to follow the instruction, serious injury or death may occur.
Caution
If the user fails to follow the instruction, physical injury on human or damages on hardware may occur.

- 4 -
■For Safe Use
Warning
●In following circumstances, please stop using the product and turn off the power immediately to prevent
the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange.
For your safety, please do not disassemble, modify or repair the camera on your own.
Please stop using the product and turn off the power immediately when:
・The product becomes smoky or gets extremely hot on the surface, or makes unusual smells or sounds.
・Foreign material or water gets into the product.
・The product falls and becomes damaged.
●Do not place the product on unstable surfaces. The product may be fallen and people may get hurt.
Caution
●Do not expose the product to steam or fumes to avoid electric shocks and fires.
●Do not leave the product in high temperature places such as inside of vehicles or under direct sunlight.
High temperature may cause damages to the camera, or even cause fires.
●Do not cover the product with cloth or other materials. The product may get extremely hot and the heat
may cause deformations on the parts or even cause fires.
●Please avoid dropping or shocking the product as the product may be damaged.
●Do not touch the cable with a wet hand. Such action may cause electric shocks.
●Please avoid continuously contacting the surface of the camera to your skin when the camera is being
used. The surface temperature of the camera may cause burns.
■Other Notices
●Please do not use the camera under strong lights such as sun light for a long period. Also please do not
expose the camera under strong lights even when the product is not being used because the sensor might
be damaged.
Maintenance
●Wipe the dirt on surface with soft cloth or tissue paper. Do not use alcohol, thinner or benzene to avoid
damaging the surface paints.
Electro Magnetic Interference
●The camera may interference with electronic devices such as TV and radio. Please do not place the
camera next to such equipment.

- 5 -
■Export Control
This product is a List Control item subject to the Foreign Exchange and Foreign Trade Act and its relevant
legislations No.1 10 (2) and (4). To export this product from Japan, obtaining export licenses from the
Ministry of Economy, Trade and Industry is required. It is also necessary for our company to manage the
information of users and the purposes of use. If the end users or purposes of use change after the purchase
and thus cause the need to apply export licenses from Ministry of Economy, Trade and Industry, please
contact the sales representative in advance.
■Guarantee
To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty
periods, delivery dates and the customer information are well kept in our system.
For more details, please refer to the sites below:
Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf
■Dispose
To dispose this product, please return the camera to us. If you decide to dispose the camera without
returning it us, please follow related regulations and have the camera disposed as an industrial waste.
Please always keep records of the dispose, and make sure the disposed camera cannot be accessed or
used by any 3rd party.
■Limited Responsibility
We do not guarantee the functions of this product or the descriptions on this manual to be completely
adapted to the users’ end applications or marketing purposes. We are also not held responsible for any
direct or indirect damages caused by our products under any circumstances.
Please do not use this product on applications that require high reliability. This product is not manufactured
to be used as medical, nuclear, aerospace, transportation equipment or equipment that is highly related to
human safety. We are not held responsible for any damages on the users’ property, equipment or personal
safety caused by this product.

- 6 -
2. Introduction
ARTCAM-640P-THERMO is a thermal infrared camera, which adopts microbolometer and sensitive to FIR
wavelength between 8～14μm.
The resolution of this camera is 640 x 480 pixels.
Adopting USB2.0 interface, thus enables direct data transfer to PC without a capture board or a host
adapter card.
Specially designed Viewer software ART-THERMO included, which makes it easier to acquire thermal
images.
3. Features
FIR (Far infrared) sensitivity
Adopting uncooled microbolometer as an infrared detector, sensitive to standard FIR wavelength (8～
14μm).
High Resolution
Possible to output images with a resolution up to 640 x 480 pixels. The data (14 bits) obtained from the
infrared detector can be transfer to a PC without compressing.
USB2.0 Interface
Adopting USB2.0 interface, thus enables direct data transfer to PC without a capture board or a host
adapter card.
Viewer software ART-THERMO is attached
Viewer Software ART-THERMO, which is designed especially for Thermal Infrared Cameras and
compatible with Windows 7/8/10, is attached as standard.
Functions such as previewing, various settings, still/ moving image savings, graph creating and alarming
are included.
4. The Product
1) Camera
2) 3m USB2.0 cable
3) Viewer Software（including temperature calibration data）
4) AC Adapter (DC12V 5A)

- 7 -

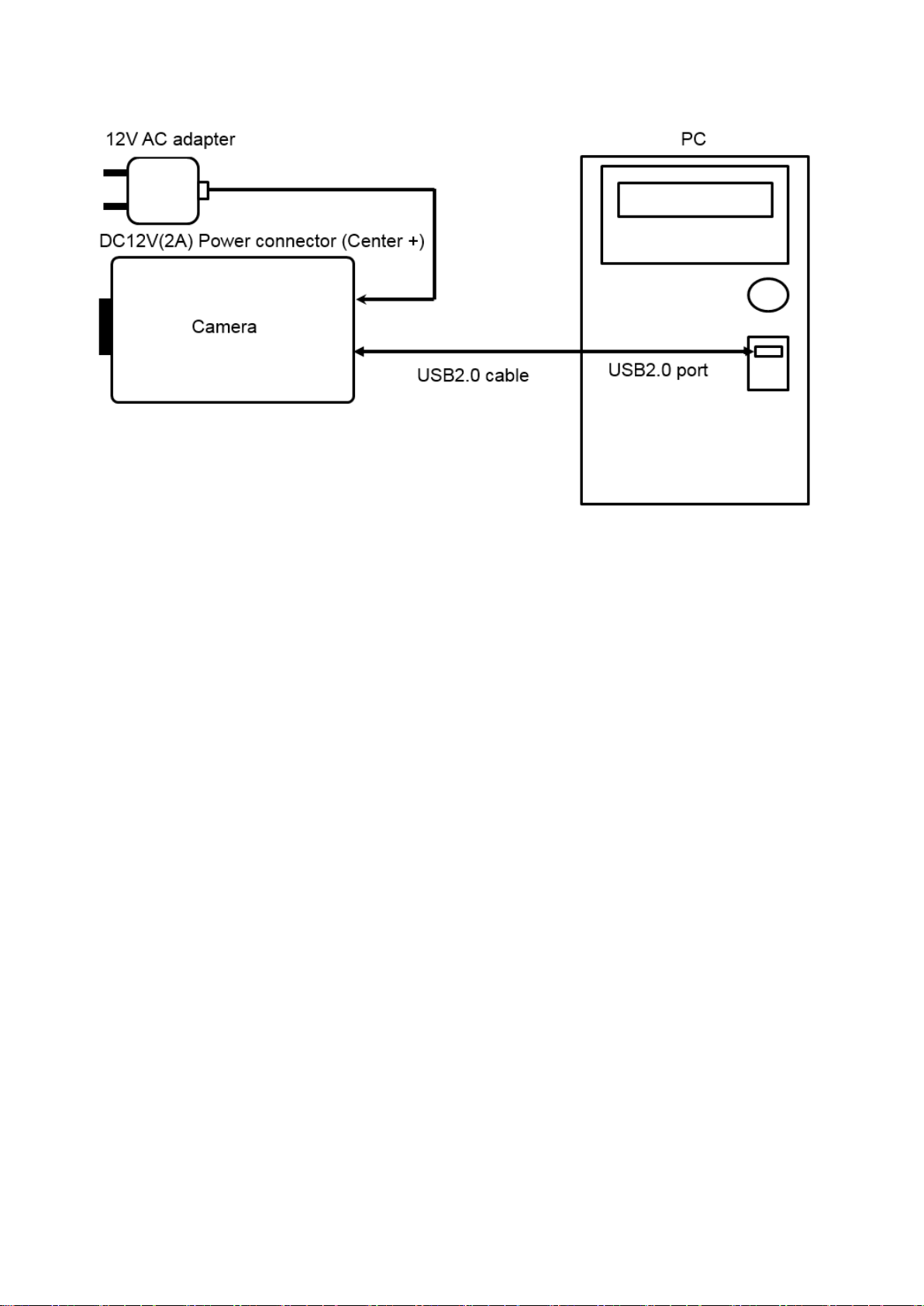

5. Connections
※Attention:
Although images can immediately be seen by connecting to a PC, in order to stably acquire
temperature data, please using the device after connecting the 12V AC adapter for over 30 minutes.

- 8 -
6. Specifications
6.1. Detailed specifications
Items
Sensor Type Uncooled Micro bolometer (carrying Peltier element)
Interface USB2.0
Output Bits 14bit
Frame Rate 30fps
Operability > 99.5 %
Shutter Speed About 0.394 microseconds
Pixel Pitch 17μm
Temperature
Measurement Range Normally 0～150℃
Temperature Resolution Normally ＜75mK
Temperature Accuracy ±5％（ambient temperature 25℃）
Thermal Time Constant 12msec typ.
Synchronization Method Internal Synchronization
Lens Mount M34 x 0.75mm
Power Supply DC12V (External input)
DC5V (USB bus power input)
Power Consumption Approx. 4 Weeks (under normal operation)
Ambient Conditions 15~30℃
Dimension 71.6(W)×71.6(H)×69.5(D)mm
※Lens and tripod’s length are not included
Weight Approx. 440g
※Lens and tripod included
※Attention:
In case of any discrepancy, the actual specifications of the product should be considered as final.

- 9 -
6.2. Dimensional outline

- 10 -
7. Systems Requirements
7.1 Recommended Specifications
●Intel Chipset ICH series (6 or later version)
●CPU: Intel Core2duo 2.4GHz or higher
●Memory：≧512MB
●Operating System: Windows XP(SP2) or later version
7.2 Minimum Specifications
●USB2.0 Enhanced Host Controller
●CPU: Intel Pentium4 1.7GHz or higher
●Memory：≧256MB
●Operating System: Windows XP or later version
Caution
■Please refer the restrictions below when you use ARTCAM.
(1) Recommended System Requirements
If the system specifications do not meet the requirements recommended above, it may be difficult to run at
the maximum frame rate, especially at 48MHz high-speed mode.
(2) Connection of Multiple USB Devices
Please be aware that depending on the specifications of the user's PC, it may be difficult to supply the
power to the USB devices when multiple USB devices are connected.
(3) USB2.0 cable Extension
We cannot guarantee the functionality of the USB2 camera if the user adopts USB2.0 extension cables or
repeaters which are not confirmed by us. With the extension cables or repeaters, the bandwidth of transfer
may differ, and thus caused malfunctions such as a low frame rate or recognition failure on the camera.
What may cause the problem is that the regulation of the power lines becomes not enough, and so causes
impudence mismatch on data signals.
*For the recommended extension cable, please contact our sales department. (TEL: [phone])
ARTRAY CO., LTD.
1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan
Tel: [phone] Fax: [phone]
Email: [e-mail] URL: www.artray. us
