Congratulations on your purchase of the
VacMaster®VP321 Chamber Machine!
Thank you for purchasing the VacMaster®VP321 Chamber Machine. The
VP321 is designed as a commercial grade vacuum packaging system
and can be used for a wide variety of products. With the VP321 you can
extend food life, maintain food quality, reduce freezer burn and reduce
food waste and costs.
The VacMaster®VP321 is a chamber vacuum system, which offers two
distinct advantages over non-chamber, external bag type units. First, a
much higher level of vacuum can be achieved which means a longer shelf
life for foods that you package. Secondly, liquids and liquid-rich foods
can be effectively vacuum packaged. Food products like fresh meats,
sh, soups, stews, etc. are no longer a problem to vacuum package.
Marinated vegetables and meats are packaged quickly with ease, and no
mess.
The VP321 Chamber Machine uses commercial technology. Simply
place the pouch to be sealed inside the chamber and close the lid. This
activates the vacuum pump and the vacuum and sealing process begins!
First, the air is removed from the entire chamber and the vacuum pouch.
Once the preset vacuum level is achieved, the pouch is sealed. Upon
completion of the sealing cycle, the air ows back into the chamber and
the lid opens automatically.
Use the VP321 to:
• Vacuum package soups, stews and other liquid foods.
• Keep sh and game meat fresh longer and free of freezer burn.
• Store meat and sh scent-free.
• Take advantage of bulk buys. Simply portion and package.
• Perfect for marinating meat and vegetables.
• Vacuum package pre-made meals.
• Prevent oxidation and damage to rare coins, silverware and important
documents.
Read and follow all directions for usage and maintenance carefully
and you’ll benet from years of trouble-free and cost effective vacuum
packaging.
Call us at 800.821.7849 for questions regarding the machines or
vacuum pouches.
STOP!!
Read and complete the following to prevent any damage.
Oil must be added to the vacuum pump before using.
VacMaster®model VP321 uses an oil vacuum pump.
For shipping purposes there is no oil in the pump. Oil must be added.
Adding Oil to Vacuum Pump
Turn off and unplug machine to prevent electrocution.

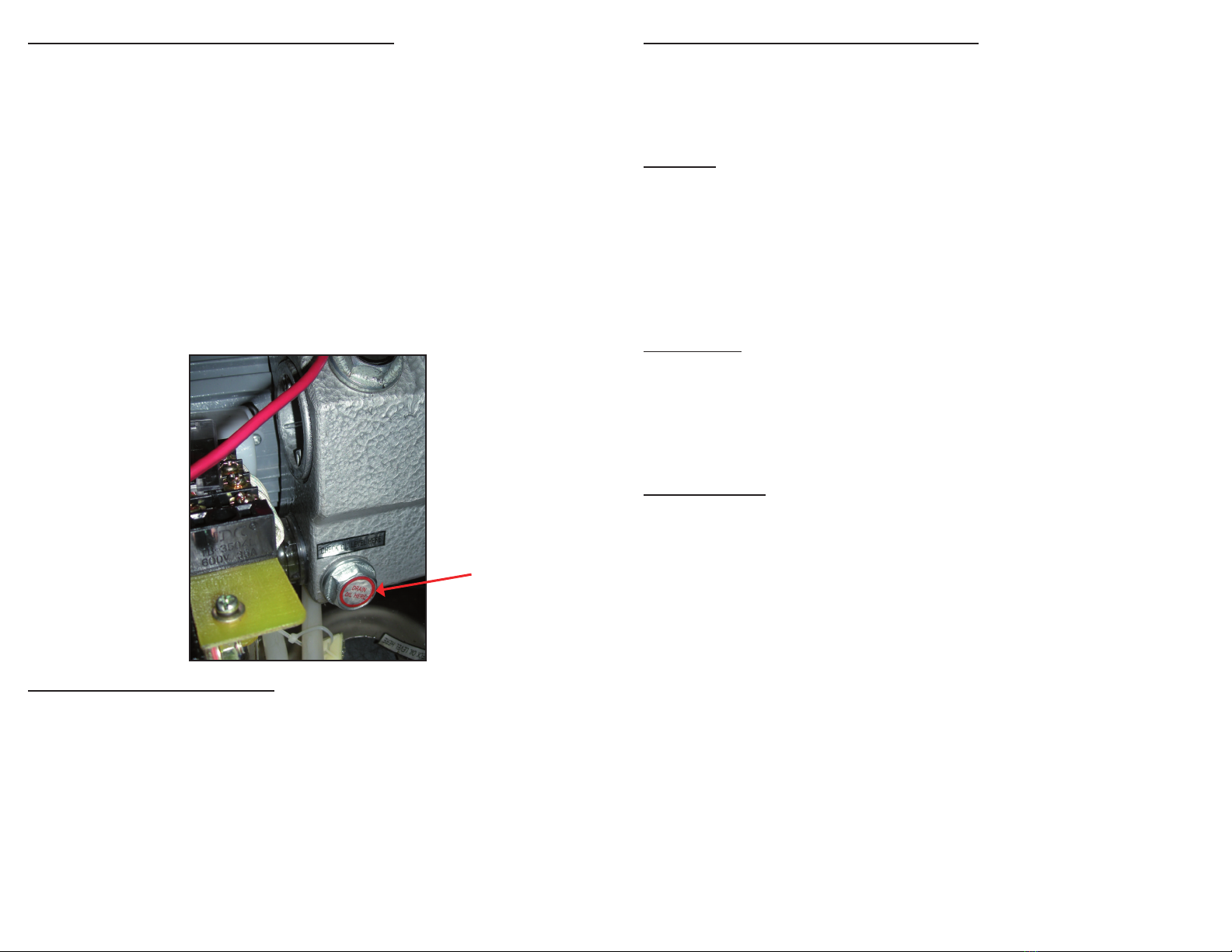

1. Using the included ARY approved oil, ll the enclosed plastic oil bottle.
2. With a phillips screwdriver, remove the 4 screws to open the back of the
cabinet.
3. Locate the oil ll bolt on the top of the vacuum pump.
4. Remove oil ll bolt.
5. Watching site glass, insert end of oil bottle into hole.
6. Fill oil level between 1/2 to 3/4 of site glass.
Do not overll. Overll can cause damage to the vacuum pump.
7. Replace and tighten bolt to vacuum pump.
8. Reattach back cover.
NOTE: Pump requires approximately 8 uid ounces of oil (approx. 1 cup).
Use only approved VacMaster® vacuum oil.
Back of Housing Cabinet Oil Fill Oil Site Glass

With the VP321, you can easily package a wide variety of sizes and
shapes. You can also prep and store smaller individual serving portions
as well as bulk items.
• Keeps food fresh up to 5 times longer than conventional
storage bags.
• Several sizes available to meet your packaging needs.
• Terric for hundreds of applications in and out of the kitchen
• Safe for freezer, refrigeration, and microwave use. Cook in bags
can be boiled.
• Bag thickness available in standard 3mil or heavy duty 4mil.
• Bags are economically priced, giving you a better value.
Packaging Information
If you are part of the food processing or food service industry, there
is a good chance that you already know the advantages of vacuum
packaging. It has been used with success for many years as a safe and
cost effective method for extending shelf life and maintaining the quality
of food products. If vacuum packaging is new to your home or business,
you will soon wonder how you lived without it!
Whether you are a beginner or expert, there are certain basic guidelines
that should always be followed in order to package foods safe to eat.
Neglecting these basic guidelines can result in food spoilage, and in some
cases, illness or death.
Once you familiarize yourself with the VP321 and the procedures, you will
feel at ease using the VacMaster®Chamber Machine and enjoy a higher
quality of stored foods.
▪ Package only fresh foods. Do not package old or rancid foods. An
already bad product does not improve with vacuum packaging.
▪ Fresh foods (Meats, vegetables, cheeses, etc.) should be refrigerated
at 34˚F or below or frozen after vacuum packaging.
▪ Vacuum packaging removes a high percentage of air (which is 21%
oxygen). This slows the growth of most living microorganisms, which
degrade food, such as aerobic bacteria and molds. However, some
forms of bacteria such as clostridium botulinum (responsible for
botulism) are anaerobic and grow in the absence of oxygen.
▪ The foods susceptible to botulinum should be refrigerated for a short
term and frozen for long-term storage. Consume immediately after
heating.
▪ Vegetables such as cauliower, broccoli and cabbage will emit gasses
when vacuum sealed. To prepare these foods for vacuum packaging,
you must blanch them rst.
▪ All perishable foods must be refrigerated or frozen to prevent
spoilage.
▪ Vacuum packaging is not a substitute for heat canning.
Getting Started with Vacuum Packaging
For the best results, use our VACMASTER®Vacuum Chamber Pouches
with your VP321. The VACMASTER®Vacuum Chamber Pouches are
constructed of a heavy-duty poly/nylon combination. This durable pouch
provides increased puncture and abrasion resistance. These pouches
are transparent, offering clearly visible product for easy identication.
The pouches work well in conjunction with the VP321 Vacuum Packaging
Machine, creating a secure vacuum and a tight seal, making it a great
asset for Sous Vide cooking. The VACMASTER®Vacuum Chamber
Pouches are high quality, larger quantity and incredibly affordable!
Go to www.MyVacMaster.com for our entire selection of
Chamber Pouches.
VACMASTER®Pouches

Safety Precautions
For your safety, follow these precautions when using your
VacMaster®VP321:
▪ Read Operator’s Guide carefully before using the machine for
the rst time.
▪ Do not use the VP321 on wet or hot surfaces, or near a heat source.
▪ Do not immerse machine or power cord in water or any other liquid.
▪ Plug VP321 into grounded power sources only.
Do not use extension cord.
▪ To disconnect, unplug directly from power source. Do not disconnect
by pulling cord.
▪ Do not operate machine with damaged power cord.
▪ Only use VacMaster®vacuum pouches and accessories.
▪ Do not allow to be used as a toy. Close supervision is necessary
when used by or near children.
▪ Only use VP321 for its intended use.
Features of VP321

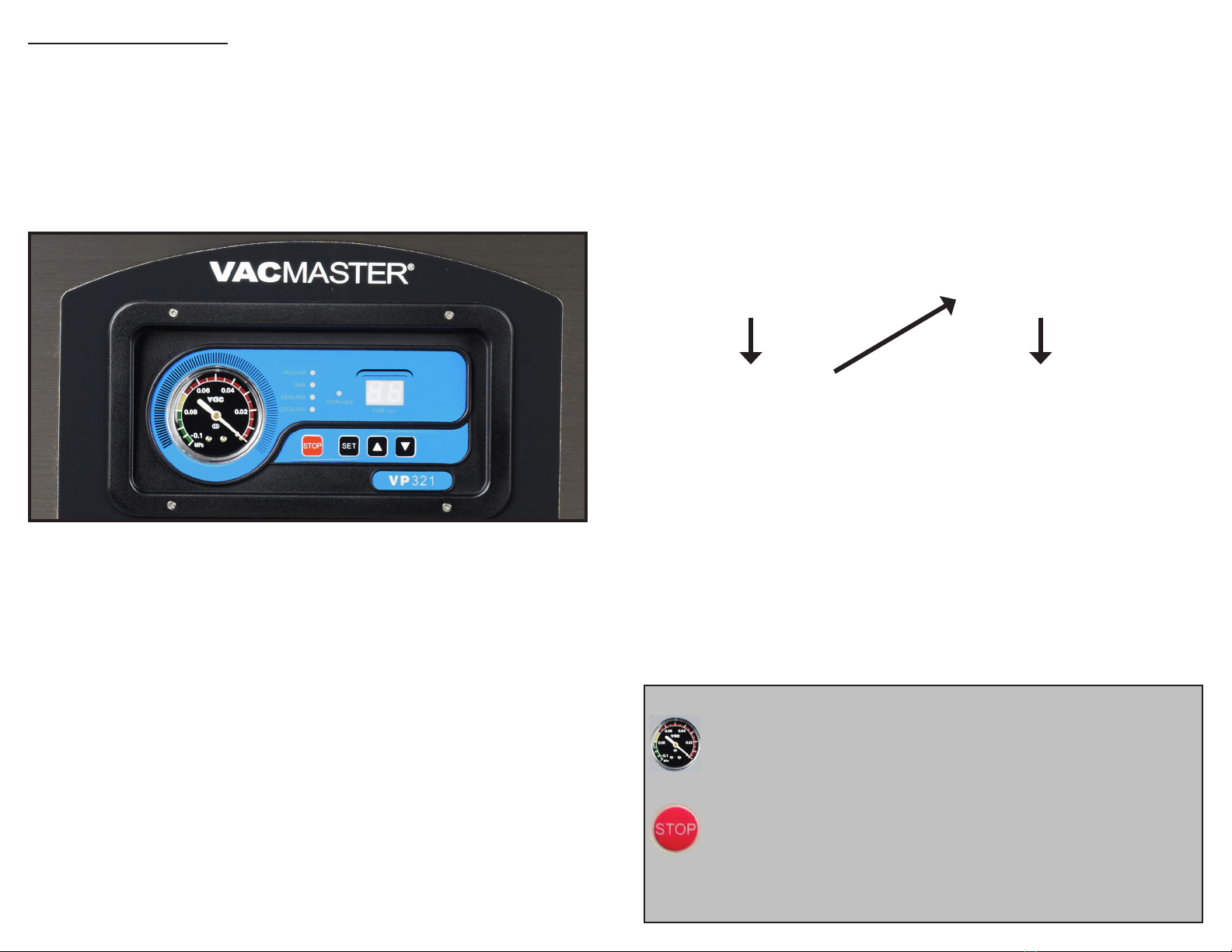

Power Switch
Control Panel
*Filler Plate
Seal Bars
*Lid Lock
Silicone Bar
*Lid Lock Feature: not to be used during the vacuuming cycle. Used to keep lid closed
when machine is not in use or while machine is in storage.
*Filler Plates: used to “take up space” in the vacuum chamber. Using the plates will result
in a faster vacuum time since there is less air to be removed from chamber. Can also be
used to keep product centered on the seal bar and preventing liquids from escaping.

Operating Instructions
1. Select the Pouch
Select the proper size VacMaster®barrier vacuum pouch. Allow a minimum
of 1” to 2” of extra headspace at the top of the pouch to ensure a quality,
positive seal.
2. Plug in machine and switch power “ON”
The “WORKING” indicator light on the control panel will illuminate when the
power is on.
3. Adjust / Set Timing Controls
All adjustments must be made with lid in the OPEN position.
~ Vacuum Time: Press the “SET” button once and you will notice the
“VACUUM” indicator will light. Adjust the vacuum time “up” or “down” by
using the “+” or “-” buttons. For initial test set the vacuum time to 40
seconds. Adjust vacuum accordingly to achieve the vacuum required.
~ Gas Flush: This model does not offer the gas ush option, Press “SET”
button and leave at 0.0 seconds.
~ Sealing Time: Press the “SET” button until the “SEALING” indicator lights.
Adjust the sealing time “up” or “down” using the “+” or “-” buttons. For
initial test set the sealing time to 1.2 seconds. Adjust sealing time
accordingly to achieve a positive seal.
~ Cooling Time: Press the “SET” button until the “COOLING” indicator
lights. Adjust the cooling time “up” or “down” using the “+” or “-” buttons.
For initial test set the cooling time to 2.0 seconds.
~ Press “SET” until all setting lights are clear and the machine is ready to
work. “Ed” will appear on display.
4. Fill pouch and place in Chamber
◦ Remove or replace ller plate to accommodate the product to be vacuumed.
◦ Always use as many ller plates as possible. Lay the pouch at in the
chamber with the opening of the pouch across the seal bar.
◦ Pouch opening should extend across the seal bar by ½” to 1”. Make sure
the opening is at and wrinkle-free.
Note: the entire pouch must remain inside the chamber.
5. Close lid
Hold down rmly until vacuum engages.
6. Process
Closing the lid begins the vacuum cycle.
7. Remove pouch & inspect
Vacuum – check the quality of the vacuum by looking at the tightness of the
pouch and the product. If you notice “air pockets” increase the vacuum time
by a few seconds, test again. This may take up to 60 seconds depending on
pouch size and the volume of product being packaged.
Seal – Inspect the pouch seal.
Note: A positive seal will look “clear” upon inspection. If the seal is “spotty
or incomplete” increase the sealing time by 0.2 seconds.
If the seal is “white or milky” decrease seal time by 0.2 seconds.
Additional Controls:
Vacuum Gauge
Represents the vacuum level inside the chamber.
STOP Button
Stops the vacuum cycle and the pouch will be sealed immediately.
This feature can be used to eliminate or minimize product from escaping
the pouch during the vacuum cycle. It can also be used to control the
vacuum level when packaging softer, fragile items.
Vacuum Cycle
(counts down to zero)
Sealing Cycle
(counts down to zero)
Cooling Cycle
(counts down to zero)
Vacuum Devac
(air is let back into the chamber)
Lid will open automatically when cycle
is complete.
*Keep face and body clear of opening lid.*

Oil Drain Bolt
Changing/Replacing Oil in Vacuum Pump
1. Run vacuum process a couple of times to “warm up” the oil.
2. Turn off machine and unplug to prevent electrocution.
3. With a phillips screwdriver, remove the 4 screws to open the back
of the cabinet.
4. Locate drain bolt on underneath side of vacuum pump.
5. For access and ease of draining the oil, position machine so the drain
bolt is “clear” and the dirty oil can be captured.
6. Oil will ow immediately when bolt is removed. Place catch cup
underneath before removing drain bolt.
7. Capture oil from pump. When oil is completely drained, replace and
tighten bolt. (Dispose of old oil properly, according to your local and
state regulations.)
8. Follow the “Adding Oil to Vacuum Pump” instructions at beginning of
manual. Do not use machine until oil has been added.
Vacuum Pump Maintenance
The VP321 vacuum pump requires periodic oil changes. Required oil
change schedule:
◦ First oil change: after 25 hours of VP321 usage.
◦ Future oil changes: change oil after every 60 hours of machine usage.
Using pump site glass, check the oil level and color frequently.
◦ Oil must remain between 1/2 and 3/4 of site glass.
◦ With use, the pump oil will become cloudy, dark or even “milky”.
Once oil becomes discolored, change oil replacing with new VacMaster®
vacuum oil.
Care, Maintenance & Troubleshooting
The VacMaster®VP321 has been designed with ease of use and low
maintenance in mind. Follow these few points for years of trouble-free
operation:
Cleaning
◦ UNPLUG your VP321 before cleaning.
◦ Regularly clean machine with damp cloth removing any food debris.
◦ Use only a mild soap or stainless steel cleaner.
◦ DO NOT use any acetone-based or abrasive cleaner on the lid or
other plastic parts. Parts will scratch and discolor.
◦ Wipe the seal bar with damp cloth only. NOTE: Seal bar is removable
for safe cleaning.
Maintenance
Periodically inspect the following items:
◦ Seal bar – inspect the brown Teon tape covering the seal wire. If the
tape becomes burnt or torn, replace.
◦ Lid gasket - make sure gasket and the top of the chamber remains
clean and free of debris.
Troubleshooting
Nothing happens when lid is closed:
1. Make sure power cord is rmly plugged into the electrical outlet.
2. Make sure the power switch is turned “ON”.
3. Make sure the power switch is not damaged in any way.
4. Plug in a different appliance to verify outlet is good.
Low vacuum (vacuum gauge not reading in the “green”):
1. Make sure the open end of the pouch is inside the chamber.
2. Conrm that the lid gasket and sealing area are clean and free of
debris.
3. Increase the vacuum cycle time.
Please read the Operator’s Guide carefully for a full
understanding of your appliance.
Call 800.821.7849 for questions and troubleshooting.

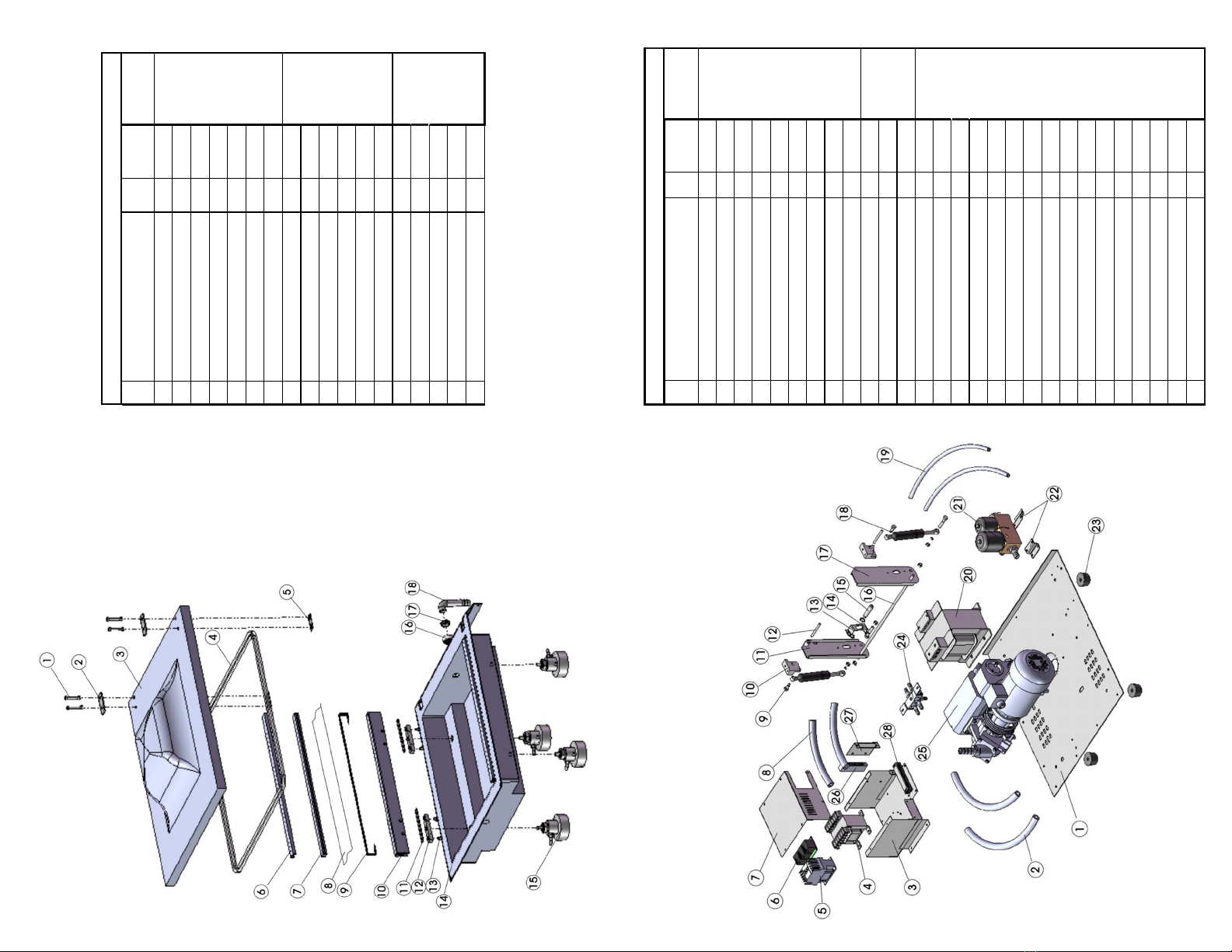

Fig. 1
Fig. 2
Figure 1
Name Qty.
Part
Number
Assembly
Part Number
1 Hexagon Socket Cap Screw 4 2 Upper Platen for Lid 2 3 Chamber Lid 1 979301 4 Lid Gasket 1 979426 5 Lower Platen for Lid 2 6 Top Bar 2 979310 7 Seal Pad 2 979418 8Teon Tape 2 979421
Seal Bar
Assembly
(979321)
9 Seal Wire 54” 979109
10 Seal Bar 2
11 Brass Contacts 4
12 Seal Bar Tension Blocks 4 13 Tension Block Screws 8 14 Vacuum Chamber 1 15 Piston Assembly 4 979380 16 Inlet Ring* 1 17 Inner Inlet Ring* 1 18 Exhaust Tube* 1
Figure 2
Name Qty
Part
Number
Assembly
Part Number
1 Bottom Plate 1 2Large Silicone Tube 979158 3 Housing of Electric Box 1 4Control Transformer 1 979139 5 Intermediate Relay 1 979136 6Timer Relay 1 979135 7 Cover for Electrical Box 1 8Large Silicone Tube 979158 9 Screw & Nut Upper 1 979358
10 Lid Hinge 1 Lid Hinge
Assembly -
(979352)
11 Lid Hinge Shaft 1
12 Lid Hinge Support 1 13 Proximity Switch Bracket 1 979354 14 Screw & Nut Lower 1 979357 15 Proximity Switch 1 979355 16 Pull Rod 1 17 Lid Hinge Support 1 18 Gas Shock 2 979356 19 Small Silicone Tube 979156 20 Sealing Transformer 1 979341 21 Solenoid Combined Valve 1 979360 22 Solenoid Valve Support 1 23 Rubber Foot 4 979159 24 Distribution Air Block 1 25 Vacuum Pump* 1 979320 26 Circuit Board Port 1 27 Frame for Wire Holder 1 28 Wiring Port 1

Notes
12

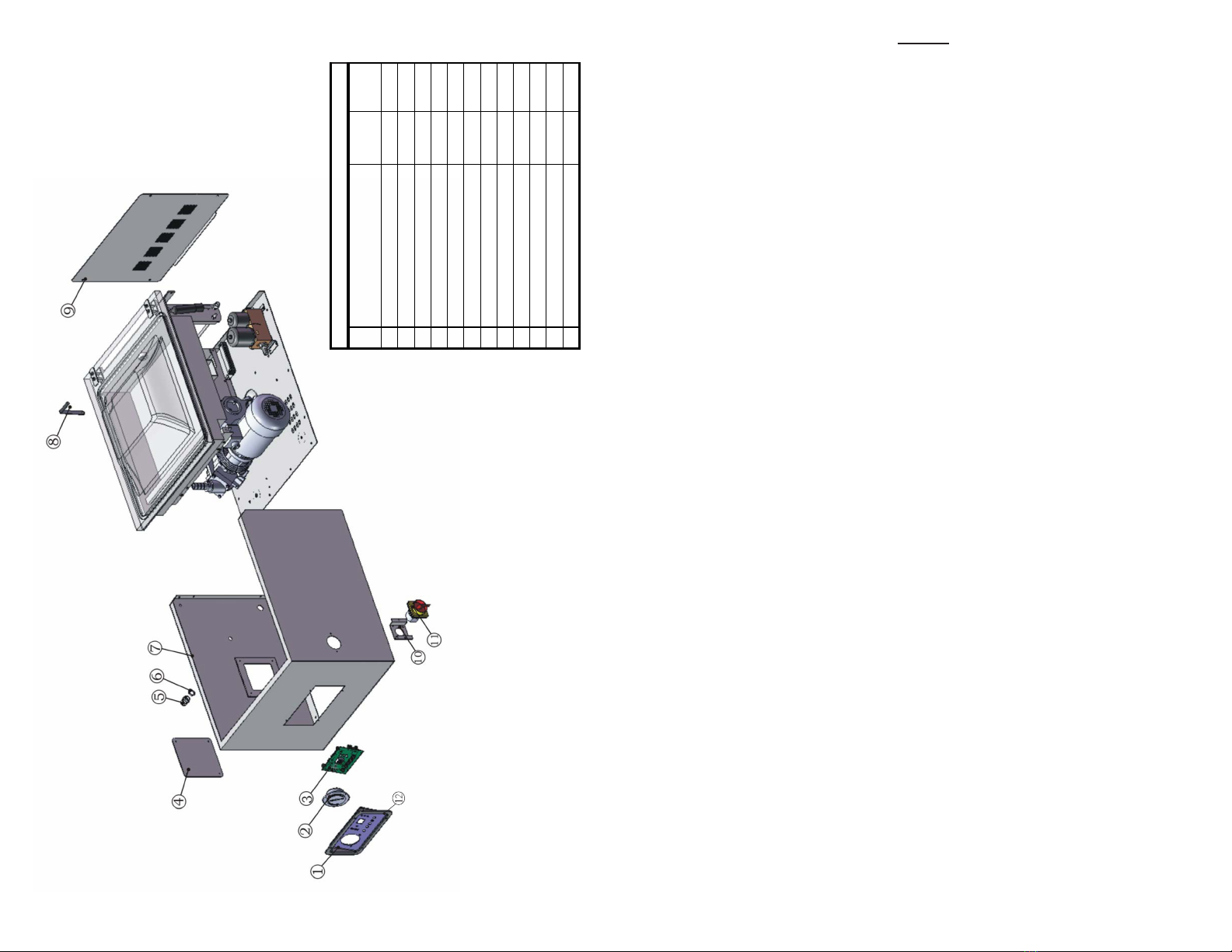

Fig. 3
Figure 3
Name Quantity
Part
Number
1 Instrument Panel 1 979125 2 Vacuum Gauge 1 979126 3 Circuit Board 1 979129 4 Cover Plate 1 5 Cable Sheath 1 6 Screw 1 7 Housing Case 1 8 Buckle on Cover 1 9 Rear Cover 1
10 Power Switch Bracket 1 979137
11 Power Switch 1 979138
12 Decal, Instrument Panel 1 979122
