MACHINE INTRODUCTION
1.1 INTRODUCTION TO MACHINE& MODELS
All equipment manufactured by ASBER is for use with the type of gas specified on the rating plate
and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1 (latest edition)
Instruction to be followed in the event the user smells gas shall be posted in a prominent location.
This information shall be obtained by consulting the local gas supplier.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCES.
This equipment is design engineered for commercial use only
1.2 IMPORTANT SAFETY INFORMATION & USAGE
WARNING:
Installing, Opertaing and Service Personel:
Intallation of the equipment should be performed by qualified, certified, licensed
and/or authorized personnel who are familiar with and experienced in state/local
installation codes.
Operation of the equipment should be performed by qualified or authorized
personnel who have read this manual and are familiar with the function of the
equipment. Service of the equipment should be performed by qualified personnel
who are knowledgeable with ASBER equipment.
WARNING: Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the installation, operating and
maintenance instructions thoroughly before installing or servicing this
equipment.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
WARNING:
•Do not touch any hot surface or basket case the fryer with hands.
These surfaces can be extremely hot and will cause severe burns.
•There is a risk of death from suffocation if a child puts the packing
materials on his or her head.
•Do not allow children to play or touch with the appliance.
-Do not stand or lean on the base panel, pull-out parts, or doors.
1.3 SPECIFICATION CHART
MODEL
BTU’S LP AT 10’’
W.C.
ORIFICE
SIZE LP
BTU’S NG AT
5’’ W.C.
ORIFICE
SIZE NG
BURNERS
FRYER
AEF 40-50
30,000
52
35,000
36
3

2asberprofessional.com
asberprofessional.com
INSTALLATION
2.1 Transport, handling, unpacking, location.
2.2 Manufacturer’s identification label description.
2.3 Installation and assembly.
2.4 Gas Connections
2.1 Transport, handling, unpacking, location
Upon receiving your new ASBER Equipment, check the package and the machine for any damages that
may have occurred during transportation. Visually inspect the exterior of the package. If damaged, open
and inspect the contents with the carrier. Any damage should be noted and reported on the delivering
carrier’s receipt.
In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the
equipment notify the carrier immediately. Notification should be made verbally as well as in written form.
Request an inspection by the shipping company of the damaged equipment. Retain all crating material
until inspection has been made. Finally, contact the dealer through which you purchased the unit.
2.2 Manufacturer’s identification label description

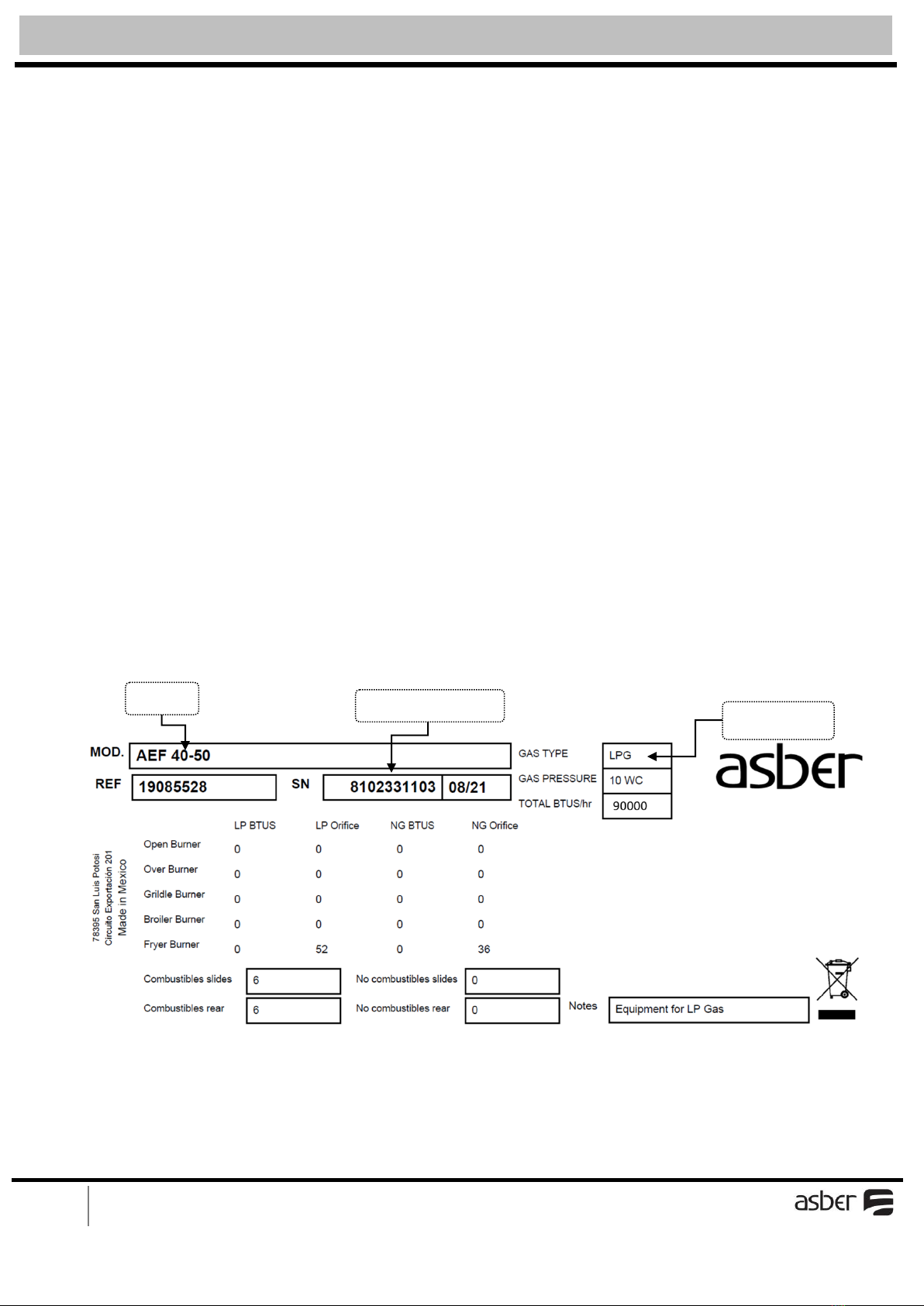

Information on this plate includes the model, serial number, BTU / hour input of the burners operating
gas pressure in inches WC, and whether the appliance is orifices for natural or propane gas.
When communicating with factory about a unit or requesting for special parts or information,
Rating plate data is essential for proper identification.
ASBER COOKING APPLIANCES MUST BE CONNECTED ONLY TO THE TYPE OF GAS
IDENTIFIED ON THE RATING PLATE
Model
Gas Type
Serial Number

3asberprofessional.com
asberprofessional.com
2.3 Installation and assembly
SHIPPING DAMAGE CLAIM PROCEDURE
The equipment is inspected and crated by skilled personnel before leaving our factory. The
transportation company assumes full responsibility for safe delivery upon acceptance of this equipment.
If shipment arrives damaged:
Visible loss or damage: Note on freight bill or express delivery and signed by person making
delivery.
File claim for damages immediately: Regardless of extent of damages.
Concealed loss or damage: If damage is noticed after unpacking, notify transportation
company immediately and file “Concealed Damage“ claim with them. This should be done within
(15) days from date of delivery made to you. Retain container for inspection.
2.3.1 UNCRATING
Cut and remove the outer packaging. Cut the (4) clamps that hold the equipment to the skid lift the unit
off the skid.
2.3.2 INSTALLATION OF LEGS

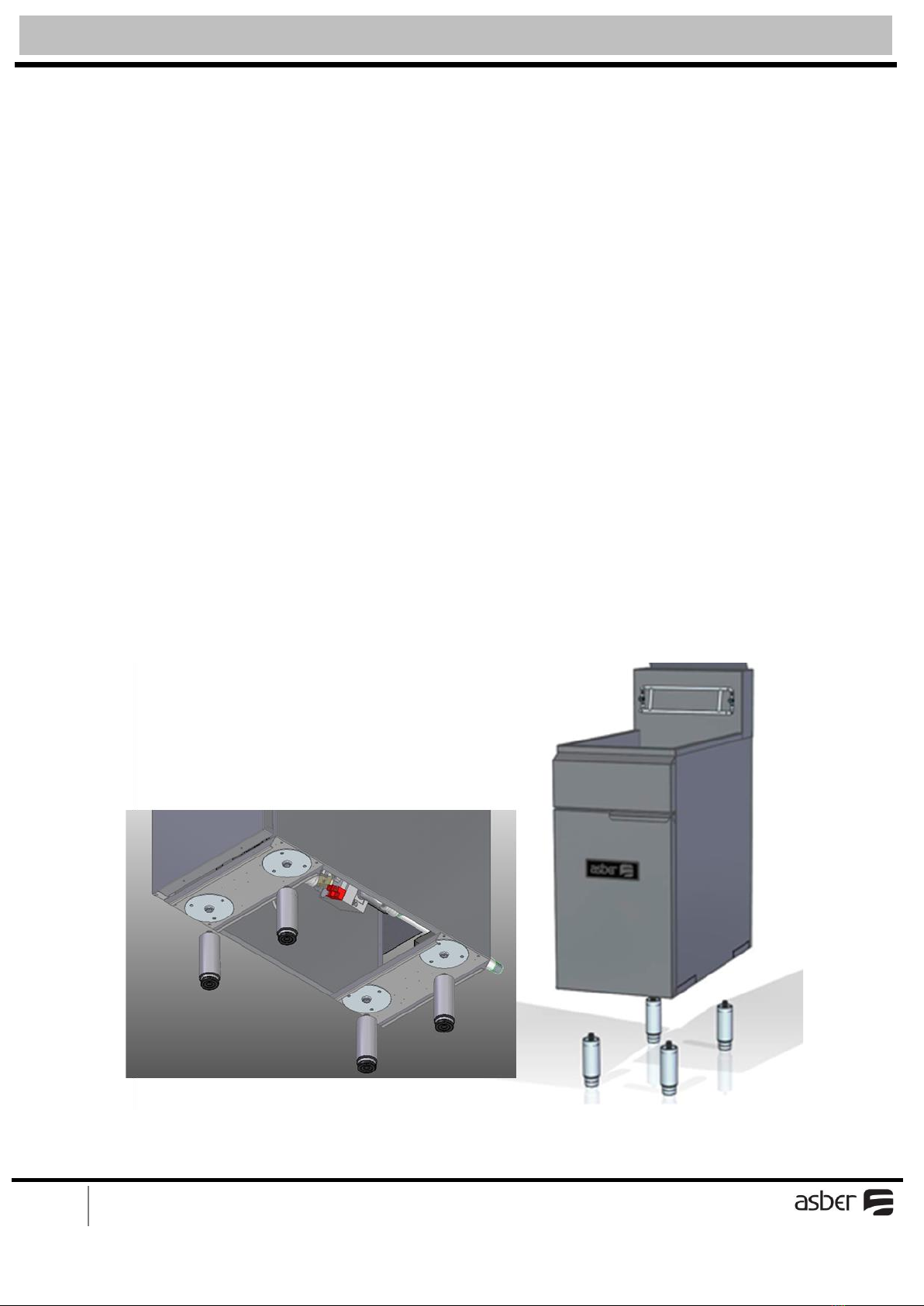

LEGS ASSEMBLY:
•Mount Legs on bottom of product, the appliance may be further leveled with adjustment in
the foot of the leg.

4asberprofessional.com
asberprofessional.com
2.4 How to install caster on Asber fryer.
BRAKE LEVER
STEP 1:
Turn furnishing in order to see fryer bottom.
STEP 2:
This is how the base frame must see.
STEP 3:
Insert and twist caster shaft in the biggest hole.
Inside there is a welded nut to hold caster
shaft.
STEP 4:
Repeat step 3 for each caster and verify the
base of caster abuts the base frame.
Important. You will have 2 wheels with
brake and 2 wheels no brake. Identify
wheels with brake and place them in front
of the fryer in order to avoid moving of
fryer, once reverse your fryer.
STEP 5:
Reverse your fryer to normal position.

5asberprofessional.com
asberprofessional.com

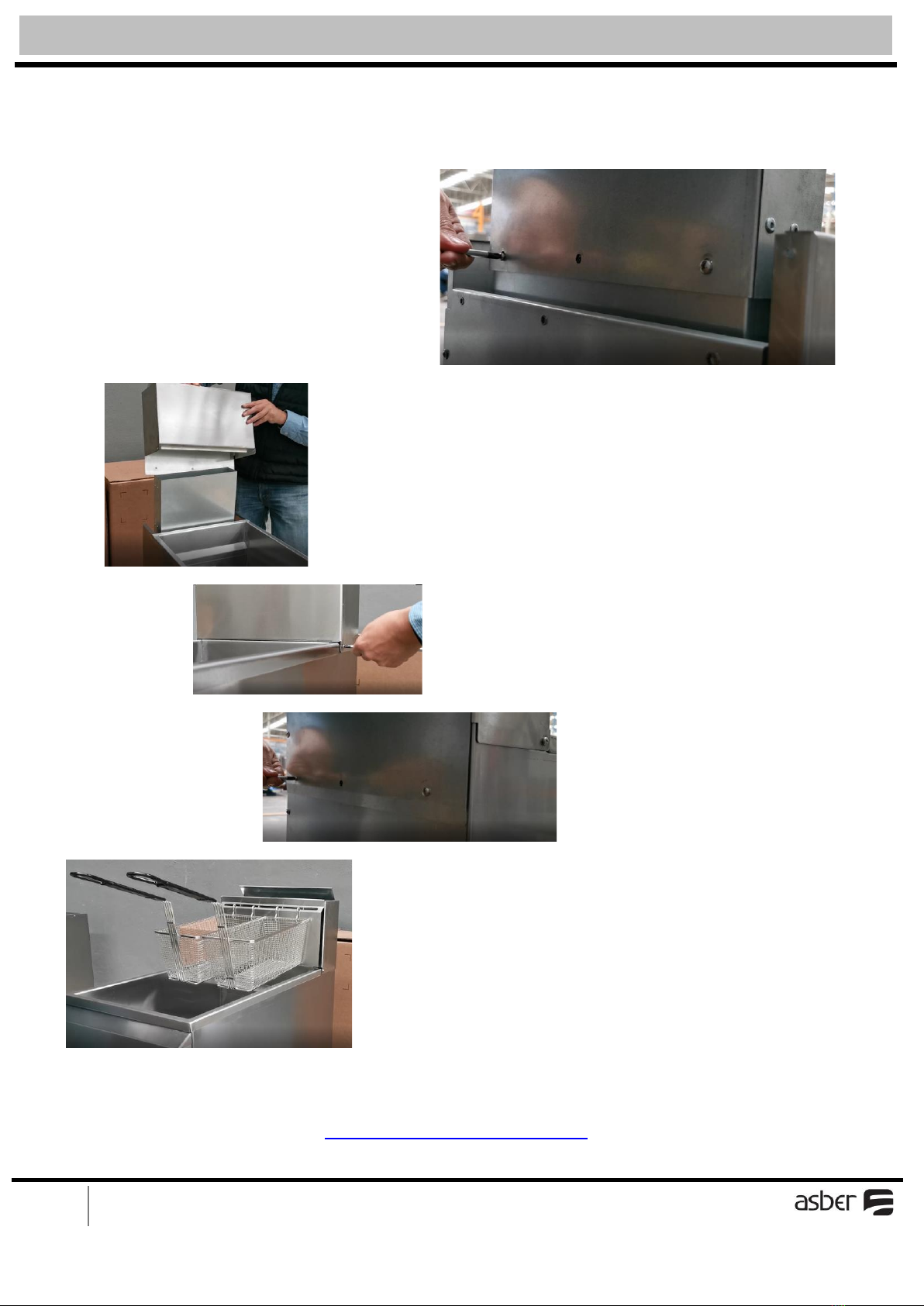

2.5 How to install Upper Flue Assembly
View Fryer Mounting Video: https://youtu.be/khLlkqrHu-o
Step 1:
Turn furnishing in order to see
fryer back.
Step 2:
Insert upper flue and Install Screws
into locations shown at bottom of
back upper flue to secure.
Step 3:
Place the Back Panel.
Step 4:
Tighten lateral connecting screws.
Step 5:
Tighten back connecting screws.
Step 6:
Place accesories and baskets.

6asberprofessional.com
asberprofessional.com
2.6 Gas Connections
The gas supply (service) line must be the same size or greater than the inlet line of the appliance.
ASBER appliances use a ¾” NPT inlet.
Pipe joint compound must be resistive to Natural or LP gas.
For equipment using propane gas do not install supply lines with a diameter less than ½ under any
circumstances.
All connections must be tested with a soapy water solution before lighting any pilots.
The appliance shall be connected to the fuel gas for which it was designed. No attempt shall be made to
convert the appliance from the gas specified on the rating plate for use with a different gas without
consulting the installation instructions, the serving gas supplier, or the appliance manufacturer for
complete instructions.
2.6.1 MANUAL SHUT OFF VALVE
This installer supplied valve must be in the gas service line ahead of the appliance regulator in
the gas stream and in a position accessible in the event of an emergency.
2.6.2 PRESSURE REGULATOR
Commercial cooking equipment must have a pressure regulator on the incoming service line for
safe and efficient operation; the gas pressure regulator supplied by ASBER must be installed at
the gas inlet of each piece of equipment.
The regulators supplied along with ASBER appliances, will have 3/4”inlet/outlet openings and
are adjusted at the factory for 5” WC (natural gas) or 10” WC (propane gas) depending on
customer’s ordering instructions.
Prior to connecting the regulator, check the incoming line pressure, as these regulators can only
withstand a maximum pressure of ½” PSI (14”WC). If the line pressure is beyond this limit, a
step down regulator will be required.
The arrow shown on the bottom of the regulator body shows the gas flow direction, it should
point downstream to the appliance. The BLUE air vent cap on the top is part of the regulator
and should not be removed.
Any adjustments to the regulator should be made by qualified service personnel only with the
proper equipment.
2.6.3 THIS APPLIANCE IS EQUIPPED FOR NATURAL GAS.
This appliance is equipped with orifices sized (# 36) for operation with natural gas.
For conversion to LP (PROPANE) gas see instruction plate in the appliance. Gas conversion
must be performed by qualified or authorized personnel. Orifices (#52) necessary for LP
(PROPANE) and regulator for conversion are provided on accessory box.

7asberprofessional.com
asberprofessional.com
2.6.4 PRESSURE REGULATOR CONVERSION
Failure to install the pressure regulator will void the appliance warranty
The fryer needs to be restrained to prevent tipping when installed in order to avoid the
splashing of hot liquid. Install the fryer connection to a battery of appliances or installing the
fryer in an alcove, or by separate means, such as adequate ties
2.7 Location
• Installation of the equipment should be performed by qualified, certified, and authorized personnel
who are familiar and experienced with local installation codes.
• Before Installation please read instructions completely and carefully.
• Do not remove permanently affixed labels, warnings or plates from the product.
• Please observe all local and national codes and ordinances
• Installation must conform with local codes, or in the absence of local codes, the National
Fuel Gas Code, ANSI Z223.1 (latest edition)
• The appliance must be isolated from gas supply piping system, by closing its individualmanual shut off
valve during any pressure testing of the gas supply piping system at test pressure equal to or less than
½ psi (3.45kpa)

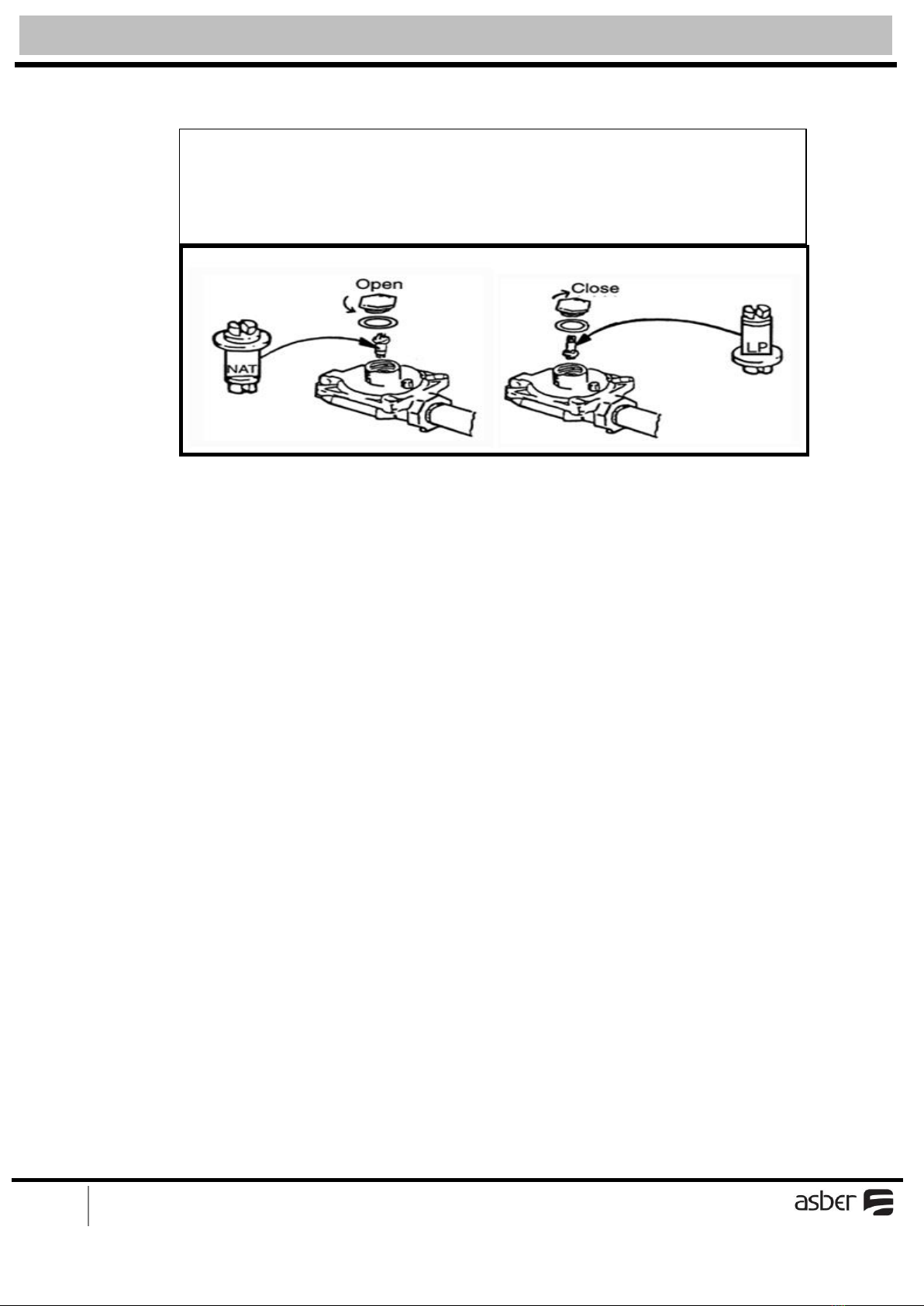

A. Remove cap and snap out plastic plunger from bottom of cap.
B. Turn plunger over and snap back in original location.
C. Re-insert the cap assembly into the regulator and tighten.

8asberprofessional.com
asberprofessional.com
OPERATION
3.1 General information.
3.2 Lighting Instructions.
3.3Daily Shut-Down.
3.1 General information.
Operation of this equipment must be performed by qualified or authorized personnel who have read and
are familiar with the functions of the equipment.
3.2 LIGHTING INSTRUCTIONS
1. Set the thermostat and the gas tap dial on the combination gas valve to the “OFF” position.
2. Wait for five minutes.
3. Turn gas tap dial on the combination gas valve to “Pilot” position.
4. Depress the gas tap dial and apply a lighted match or taper to the pilot.
5. Hold the gas tap dial depressed for about 30 seconds or until pilot stays lit before releasing.
6. If the pilot does not stay lit, repeat step 4 and 5.
7. Turn gas tap dial on the combination gas valve to “on” position.
8. Turn the thermostat to the desired temperature.
3.3 DAILY SHUT-DOWN
At the end of the day, turn the gas tap dial on the combination gas valve and the thermostat to OFF
position. Where applicable turn the power switch to OFF position. Filter the oil in all fryers.
WARINING
Hot oil and hot surfaces can cause severe burns. Use caution when operating the fryer.
Do not attempt to move the fryer filled whit hot oil or shortening.
Do not go near the area directly above the flue when fryer is operation.
Severe burns may be caused.
Drain hot oil in metal containers, do not use plastic buckets or glass containers.
