ASCOM TPS R User manual

PRODUCT SHEET
Product: Tactical Power Supply Unit TPS R
Segment : Defense
Division: Security Communication
The Tactical Power Supply Unit TPS R provides electrical power for
communication equipment with 24VDC nominal voltage. It is optimized for
operation of sensitive radio receivers and gets supplied by different sources
such as AC mains, generator or vehicle power. An additional system battery
covers peak demands and supplies uninterrupted power. Internal control
circuits protect the equipment. An integrated display informs the local user
of relevant data such as source voltage or load current. The Tactical Power
Supply Unit TPS R offers five different protected connections and allows for
parallel operation in order to increase the available power.
The Tactical Power Supply Unit TPS R
Block diagram and wiring of the TPS R.
°CControl
LCD
230 VAC 24VDC [Power Distributor] Display
Ventilator
Communication
Interface
Vehicle Battery
[Vehicle Accu] System Battery
[System Accu]
The Ascom Tactical Power Supply Unit TPS R
enables the uninterruptable and emission free
supply of communication equipment in vehicles,
remote stations and containers.
TPS R enableS mobile communicaTion

conSTRucTion

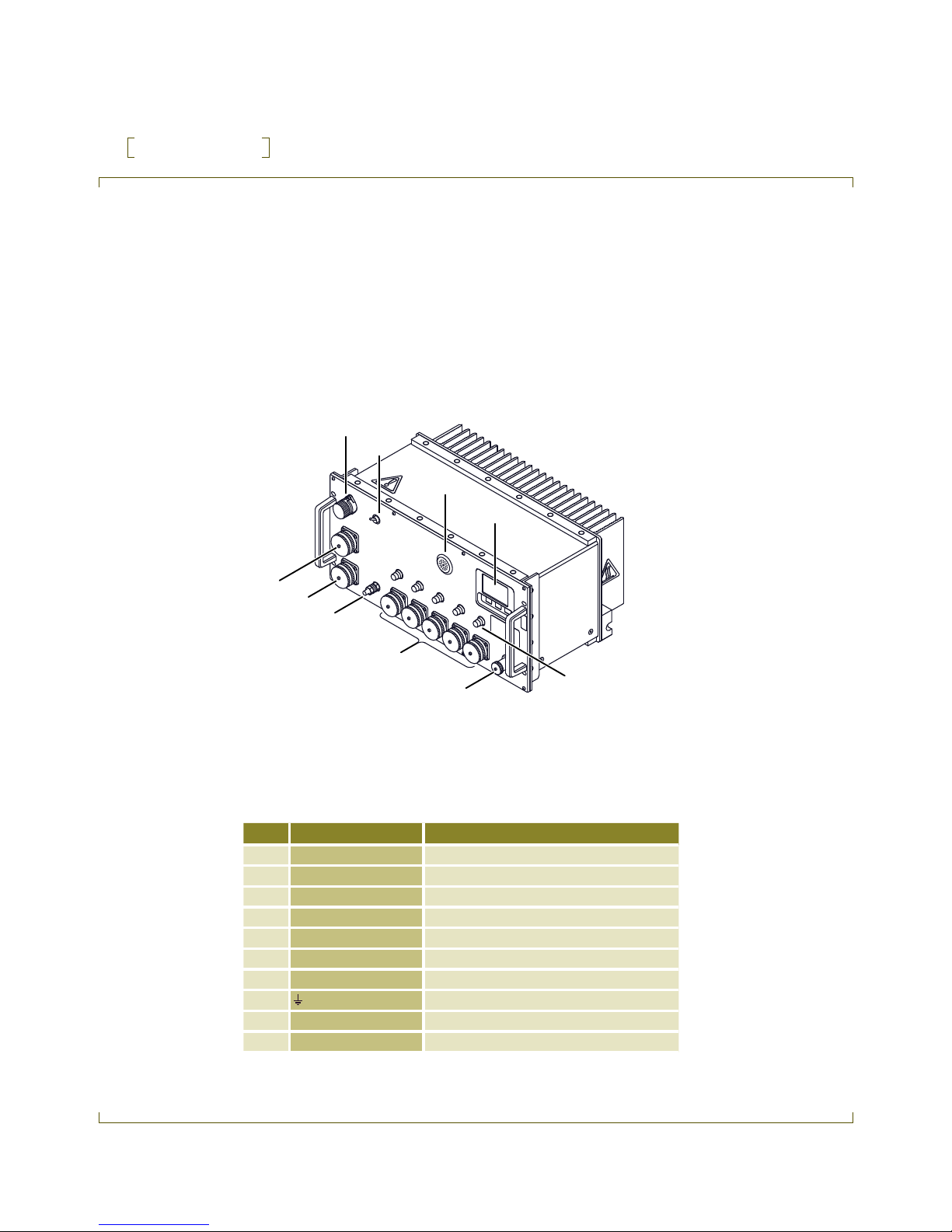

User and connection elements of the Ascom Tactical Power Supply Unit TPS R
PRODUCT SHEET: TPS R
Position Label Explanation
1 230 V Connector for 230VAC power input
2 O On/Off switch for 230VAC
3 Acoustic alarm
4 Display and three keys for menu operation
5 Power Distributor 1..5 Over-current circuit breaker 30A
6 Communication Interface Multi functional connector (reserved for future use)
7 Power Distributor 1..5 Connector for 24VDC power out
8 Ground screw
9 System Accu Connector for 24VDC power input from system battery
10 Vehicle Accu Connector for 24VDC power input from vehicle power
10
1
2
3
4
5
9
8
7
6
2

PRODUCT SHEET: TPS R
FuncTionS
The Ascom Tactical Power Supply Unit TPS R supports the following modes
of operation:
Mobile Operation
If the vehicle motor is running the loads are fed from the vehicle alternator
via the TPS R. At the same time the system battery is charged via the TPS R. If
the vehicle motor is not running, the flow of energy is inverted: vehicle battery
and system battery supply the TPS R and the connected loads. The protection
circuit of the TPS R avoids a total discharge of the vehicle battery.
Stationary Operation
The TPS R is supplied by a 230VAC source such as AC mains or a generator
and – if existing – is supported by the system battery. The system battery is
charged and the other loads are fed via TPS R.
Charging of Vehicle Battery
If the vehicle battery is connected to 9 [System Accu] the vehicle battery
is charged. Charging current is automatically limited to 20A max.
Housing, Cooling, Ventilation
The Supply Unit TPS R is available in a 19’’ housing. It is intended for use in
a wheeled vehicle. The housing is made of aluminium and complies with IP55.
Internal cooling is realised using a passive cooling system. If required,
external ventilation of the cooling element can be achieved through an optional
external fan. Operation of the external fan is controlled by TPS R.
Cables connected to TPS R do not require shielding.
3

08.2010 © Ascom (Switzerland) Ltd.
PRODUCT SHEET: TPS R
Mechanical Data
Size (WxHxD)/mm 470x220x270
Weight approx. 17kg
Supply
In 230VAC 230VAC/50Hz +10/-15%, max. 8A
In ‘Vehicle Accu’ (vehicle power) 24 - 33VDC, 20A max.
Remark: fuse / switch provided at source side
Switching point vehicle power >24VDC or
>23VDC selectable
Tripping point vehicle power <22VDC or
<21VDC selectable
In ‘System Accu 80A max.
Remark: fuse / switch provided at source side
Out ‘Power Distributor’ 5x24VDC nominal, 30A max. per line, over-
load protected
Max. output power
at input ‘230 V’“: 1kW
at input ‘Vehicle Accu’: 300W
at combined input ‘System Accu’ and ‘230 V’: 
ca. 3.2kW
at combined input ‘Vehicle Accu’ and ‘System 
Accu’: ca. 2.5 kW
Protection
Overload and reverse-polarity electronic protection against overload and
reverse-polarity
In ‘Vehicle Accu’ 20A, protection provided by vehicle battery
In ‘System Accu’ 80A, protection provided by system battery
Out 5 identical lines protected by 30A each
Isolation 230V - side: 1.5kV
24V - side: 100V
Residual current protection protection provided by supply side
Charge power
Output charge current at
‘System Accu’
at input ‘230 V’: < 11A
at input ‘Vehicle Accu’: < 45A
when connecting the vehicle battery to
‘System Accu’ (operational mode ’Loading
of Vehicle Batteries’): < 20A
Management Features
Management Protocol SNMP V3 on request
Environment
Operational temperature -20..+50°C
Storage temperature -30..+60°C
Humidity Guideline 201.1 method I (95 % rF)
Shock Guideline 302.1, 5.3 (15g half sinus)
Vibration Guideline 301.1, method I, modified
MIL-STD-810E, 514.4, Fig. 514.4-1, -2, -3
EMC
Emission
IEC 61000-3-2 : 2004
MIL-STD-461E:
CE102, 10 kHz-10 MHz
RE102, 2 MHz-1 GHz
Immunity
IEC 61000-6-2:2005
IEC 61000-4-2:2000
IEC 61000-4-3:2002
IEC 61000-4-4:2004
IEC 61000-4-5:2001
IEC 61000-4-6:2004
IEC 61000-4-8:2001
IEC 61000-4-11:2004
Security
EN 60950-1 (2006)
Ordering Information
TPS R 193302-21000
Option: external fan (alternative
to option metal cover sheet) 193302-21208
Option: metal cover sheet
(alternative to option external
fan)
193302-21209
Technical Specification
