Asf Easy-line System manual

Laundry Chutes

Installation Handbook

2

INTRODUCTION

SAFETY INSTRUCTIONS

Dear valued customer,

We would like to congratulate you on your purchase of your Easy-Line laundry chute. You have

chosen a high quality product “Made in Germany”.

Modern production facilities in Germany, selected materials and examined quality are the basis

for the 5-year-guarantee issued from the original purchase date.

Enjoy your new “home help”.

Please read your Installation Instructions manual carefully

and follow the instructions. Please keep your manual

in a safe place. You may need it in the future for other useful

information.

The Easy-Line laundry chute is intended solely for private and not for industrial use.

The Easy-Line laundry chute is intended solely for laundry. We discourage for other use.

Please notice the minimum heights of the laundry chute doors (1 m above ﬁnished ﬂoor level).

3

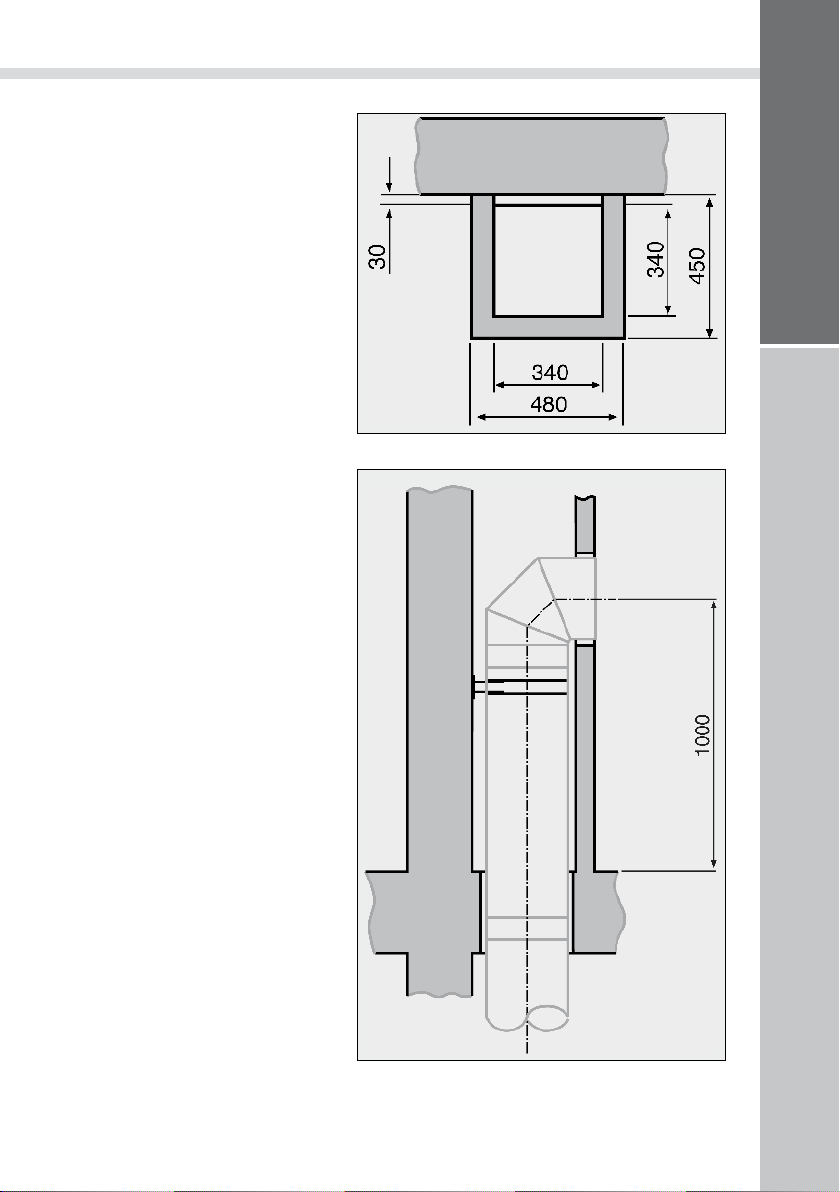

INSTALLATION INSTRUCTIONS

The outer paneling of the laundry chute

is not included in the scope of delivery

and must be provided on site.

4

INSTALLATION STAINLESS STEEL SYSTEM Ø 250 & Ø 300 MM

Start with the upper laundry chute

door.

1. Mount the ﬁrst wall bracket ap-

prox. 60 cm above the ﬂoor onto

the wall.

2. Place the 90° elbow into the pipe.

3. Align the pipe and elbow with

the wall bracket and fasten it. 1

m distance must be between the

ﬁnished ﬂoor and the middle of the

elbow (see picture

on page 3).

5

INSTALLATION STAINLESS STEEL SYSTEM Ø 250 & Ø 300 MM

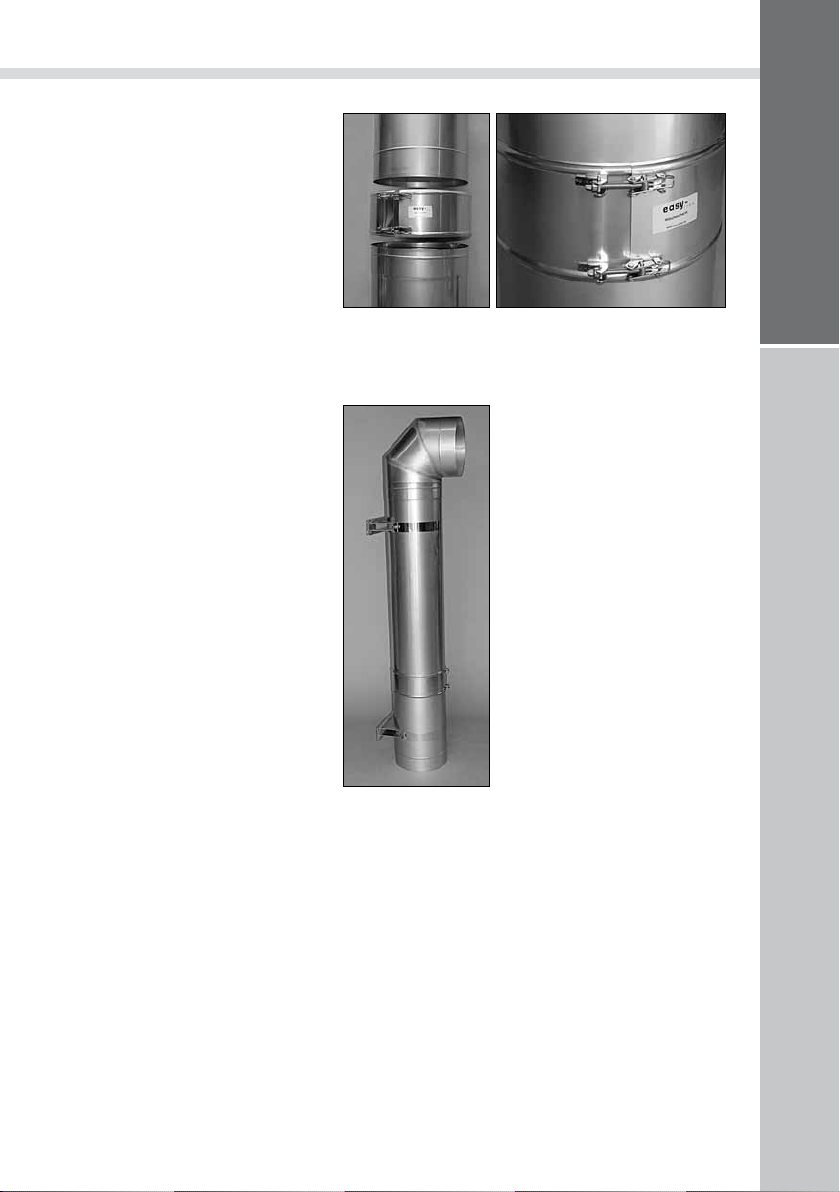

4. Now you can connect the pipe

system and fasten them with the

locking bands.

5. Make sure to mount another wall

bracket and fasten the pipe by a

possible second celling.

6

INSTALLATION PLASTIC SYSTEM Ø 280 MM

Start with the upper laundry chute

door.

1. Mount the ﬁrst wall bracket

approx. 60 cm above the ﬂoor

onto the wall.

2. Put the t-piece onto the extension

piece and agglutinate* both items

at the contact surface. Afterwards

put the cap on the t-piece and

agglutinate* both items.

3. Fasten the extension piece with

the agglutinated t-piece and cap

at the wall bracket and adjust the

direction. The distance from the

middle of the t-piece to the ﬂoor

should be at least 1 meter

(compare schematics at page 3).

7

INSTALLATION PLASTIC SYSTEM Ø 280 MM

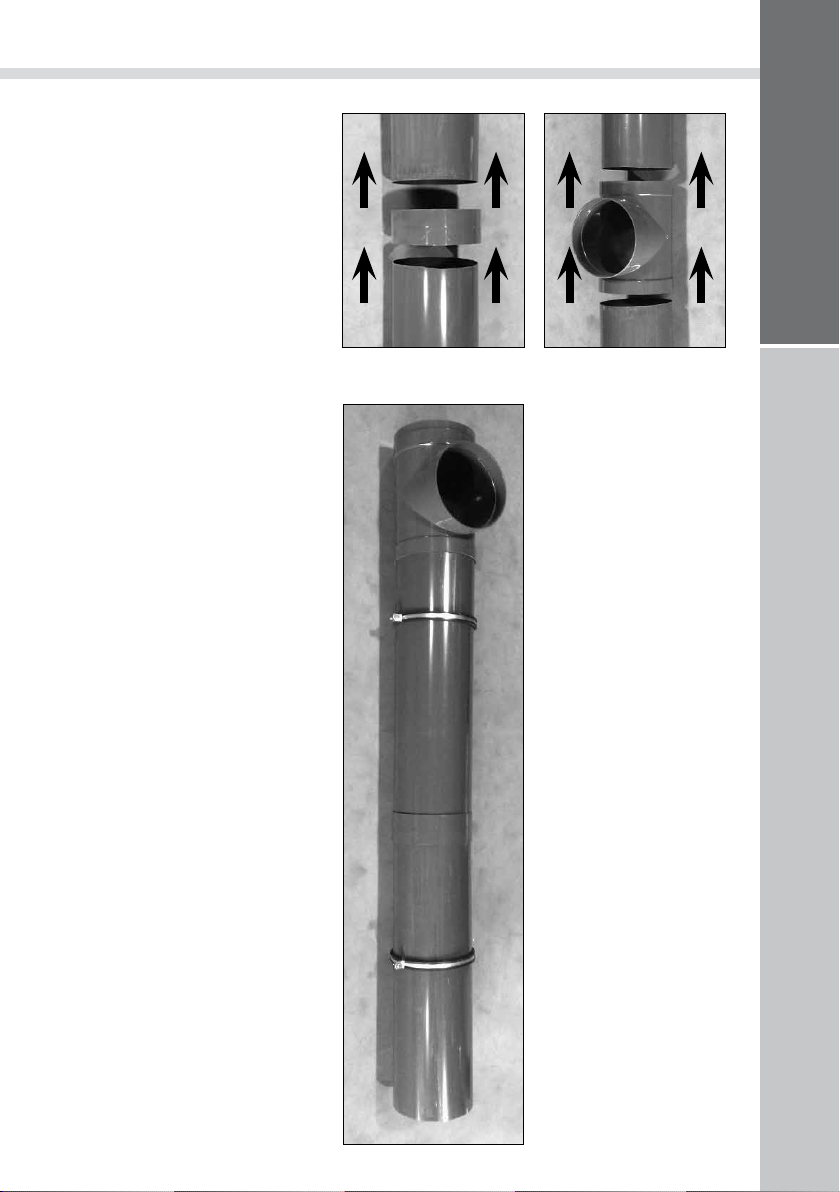

4. Now you can integrate further

extension pieces into the laundry

chute. Use the couplings to

agglutinate* new extension pieces

with the already installed ones.

T-pieces for additional chute doors

don't need couplings. They are

agglutinated* directly to the

extension pieces.

5. If you reach another ﬂoor, please

mount another wall bracket and

fasten the installation.

*Please note: The glue takes a few

minutes to dry. Please hold the items

in position until the glue establishes a

ﬁrm bond between the pieces.

8

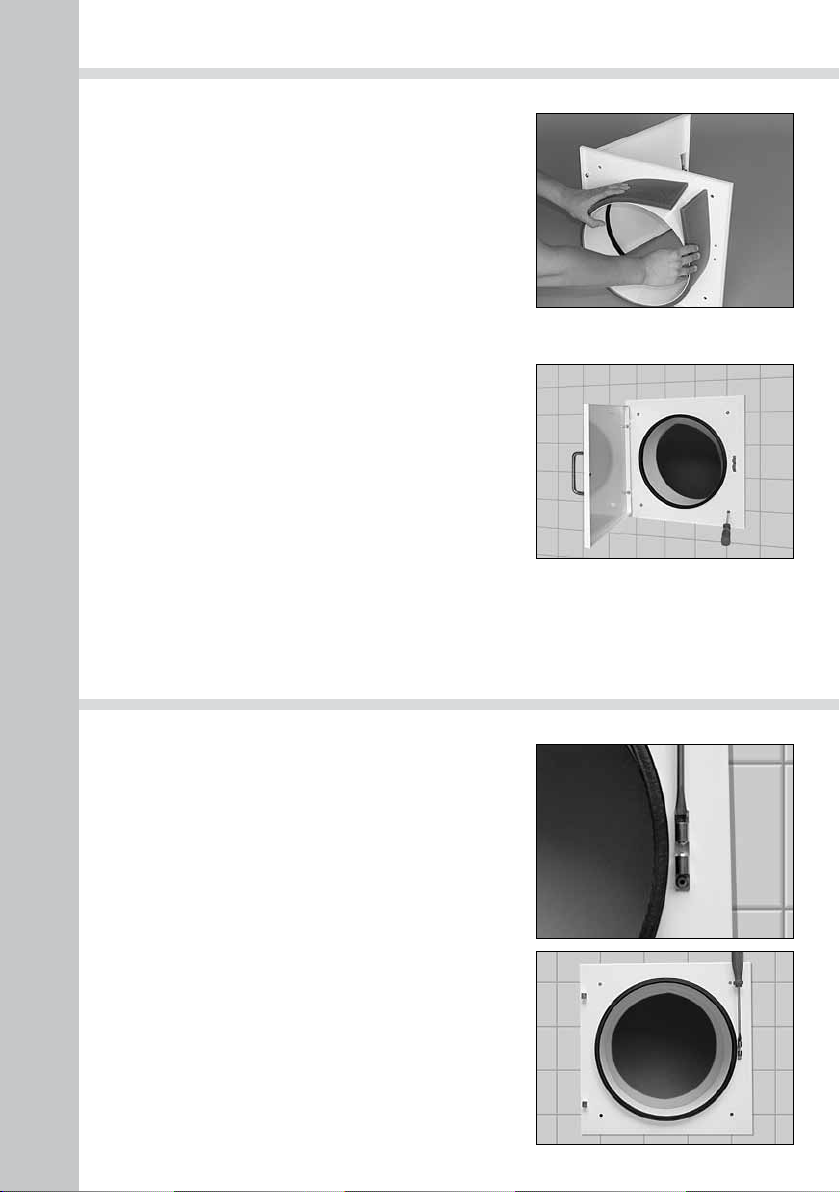

INSTALLING THE LAUNDRY CHUTE DOOR

The laundry chute doors can be

mounted after the laundry chute has

been enclosed.

1. Attach the noise insulation onto

the laundry chute door.

2. Slide in the chute door and fasten

it on the frame with 4 screws.

The laundry chute door can be

installed in all directions.

ADJUSTING THE CHILD

PROTECTION SYSTEM

All of our laundry chute doors are ﬁtted with a child

protection system.

The snap closures allow the closing force of the

laundry chute door to be adjusted with a screwdriver

to prevent children from opening the laundry chute

doors.

9

NOTES

.....................................................................................................................................................

10

NOTES

.....................................................................................................................................................

11

REGISTRATION FORM

First Name:

Last Name:

Address:

City:

State:

Zip:

Phone:

Fax:

E-mail Address:

Date of Purchase:

Please complete, copy and fax form back to us at ++49 (0) 63 48 – 9 59 61 -11

EL BA EN 2009

All technical specifications are data, provided by the manufacturer.

The manufacturer reserves the right to change the specifications if necessary.

Name of Supplier:
