The unit shall be a six input stereo mixer having separate
balanced outputs for both left and right channels. There shall
be a transformer balanced mono-summed output with separate
front panel level control. Each input channel shall have level and
stereo-balance controls on one concentric pot. An Aux send shall
be on each channel factory wired pre-fader /EQ. The Aux send
shall be configurable for Pre/Post EQ via circuit board jumper
connection. Each input channel shall have a two-band equaliza-
tion control on one concentric pot located on the front panel. The
equalization shall consist of high and low shelving points being
fixed at 70Hz and 8KHz with a cut/boost range of +/- 12dB. Each
input channel shall have 40dB of available attenuation on the
front panel, as well as a 20dB mic input pad on the rear panel.
Each input channel shall have an in/out insert point on a single
TRS 1/4” phone connection, and a combination 1/4”-- XLR con-
nector for balanced microphone and line input sources. Phantom
power of +48VDC for each input must be available via a single
rear panel switch. There shall be one Master Aux Output control
provided on the front panel. A 1/4” TRS Aux Master Output Jack
shall be located on the rear panel. There shall be an additional
stereo CD/Tape input on RCA jacks with level control. Separate
stereo RCA tape outputs must also be provided. A TRS 1/4”
Headphone Output and Level Control to monitor both Left and
Right must be provided on the front panel. Overall gain available
from Mic Input to Master Output shall be 84dB, and the Mono
Output level shall be +23dBu into 600 ohms. There shall be an
eleven stage LED ladder output VU meter located on the front
panel indicating signal levels from -21VU to +6VU and clip when
the signal level is 3dB below actual clipping. Each individual
channel shall have a clip indicator as well. The mixer unit shall be
no higher than two rack spaces and must be fully covered under
a five year warranty. The mixer shall have an internal power sup-
ply with the power switch located on the rear panel. The mixer
must be manufactured in The United States of America, with a
shipping weight of 15 pounds.
The mixer shall be the model MX-406, manufactured by Ashly
Audio, Inc. No other unit shall be acceptable unless data submit-
ted from an independent test laboratory verifies that the above
size/performance specifications are met.
Features:
• Six Balanced 1/4” - XLR Inputs
• Low-Noise Mic Preamp Circuitry
• High Gain (92dB Channel Input to
Program Output) Ensures Full Output
with Low Level or Distant Mics
• Two-Band EQ on Each Input
• Input Level and Pan Controls on Each
Input
• Clip LED’s on Each Input
• Eleven-Step LED Output Level
Metering
• 48V Phantom Power for Condenser
Mics
• Six Channel Inserts
• Aux Send Controls
• Balanced 1/4” Stereo Outputs
• Transformer Balanced XLR Mono
Output
• Stereo Headphone Jack with Level
Control
• Auxiliary Tape/CD Inputs and Outputs
• Three Position Input Gain Switch
• 20dB Microphone Pad Switch
• Stereo Aux Input Control
• Aux Master Output Control
• Internal Power Supply
• Safety/Compliance: cTUVus/CE, RoHS
Technical Notes & Specifications
MX-406 Six Input Stereo Mic/Line Mixer
Architects Specications

Ashly manufactures a complete and comprehensive line of Analog and Digital Signal Processors, Power
Amplifiers, Mixers, and Amplifier Input Options. Please call, write or visit our web site for information on
any of these Ashly Products.
Applications:
Live Sound Reinforcement, Field Broadcast Production, Club Installations, Public Address Systems, Restaurants, Boardrooms,
Houses of Worship, Lecture Halls, Auditoriums
Specifications MX-406
TOTAL HARMONIC DISTORTION:
< 0.05 % @ +4dBu
<0.05% @ +12dBu
INTERMODULATION DISTORTION (SMPTE IM)
<0.05% @ +12dBu
HUM & NOISE (20 Hz-20 KHz noise bandwidth):
< -127 dBu equivalent input hum and noise, TRS Output
< -100dBu residual output noise; TRS outputs, all level controls at min.
< -98 dBu residual output noise; XLR outputs, all controls at min
< -80 dBu Aux Out; Master Level and all Channel Levels at nom.
MAXIMUM VOLTAGE GAIN:
MASTER
+84 ± 2dB—Mic/Line to Mono Output
+84 ± 2dB—Mic/Line Input to Master Output.
AUX SENDS
84 ± 2dB—Mic/Line Input to Aux Master Output, pre Channel Level
99 ± 2dB—Mic/Line Input to Aux Output, post Channel Level
TAPE/CD IN
32 ± 2dB—Stereo/Aux Input to Master Output
FREQUENCY RESPONSE:
+0.5/-1.0 dB 20 Hz to 20 KHz.
EQUALIZATION:
LOW ± 12dB at 70Hz, shelving.
HIGH ± 12dB at 8KHz, shelving.
CROSSTALK:
< -65 dB, adjacent inputs, 20 Hz--20 KHz.
VU METERS:
Two 10-segment LED meters, L/R, 0 VU = + 4 dBu.
PEAK INDICATORS:
Peak CLIP indicator on each input channel and left and right outputs,
illuminates 3 dB below clipping.
PHANTOM POWER:
+ 48 VDC applied to all Mic Inputs, switchable on front panel
80mA maximum total current draw
14mA maximum single channel current draw
Gradual power-up and down to eliminate “pops.”
DIMENSIONS:
19” wide x 3.5” high x 8.0” deep.
SHIPPING WEIGHT:
15lbs.
POWER REQUIREMENTS:
100 - 240VAC, 50-60 Hz, 30 watts

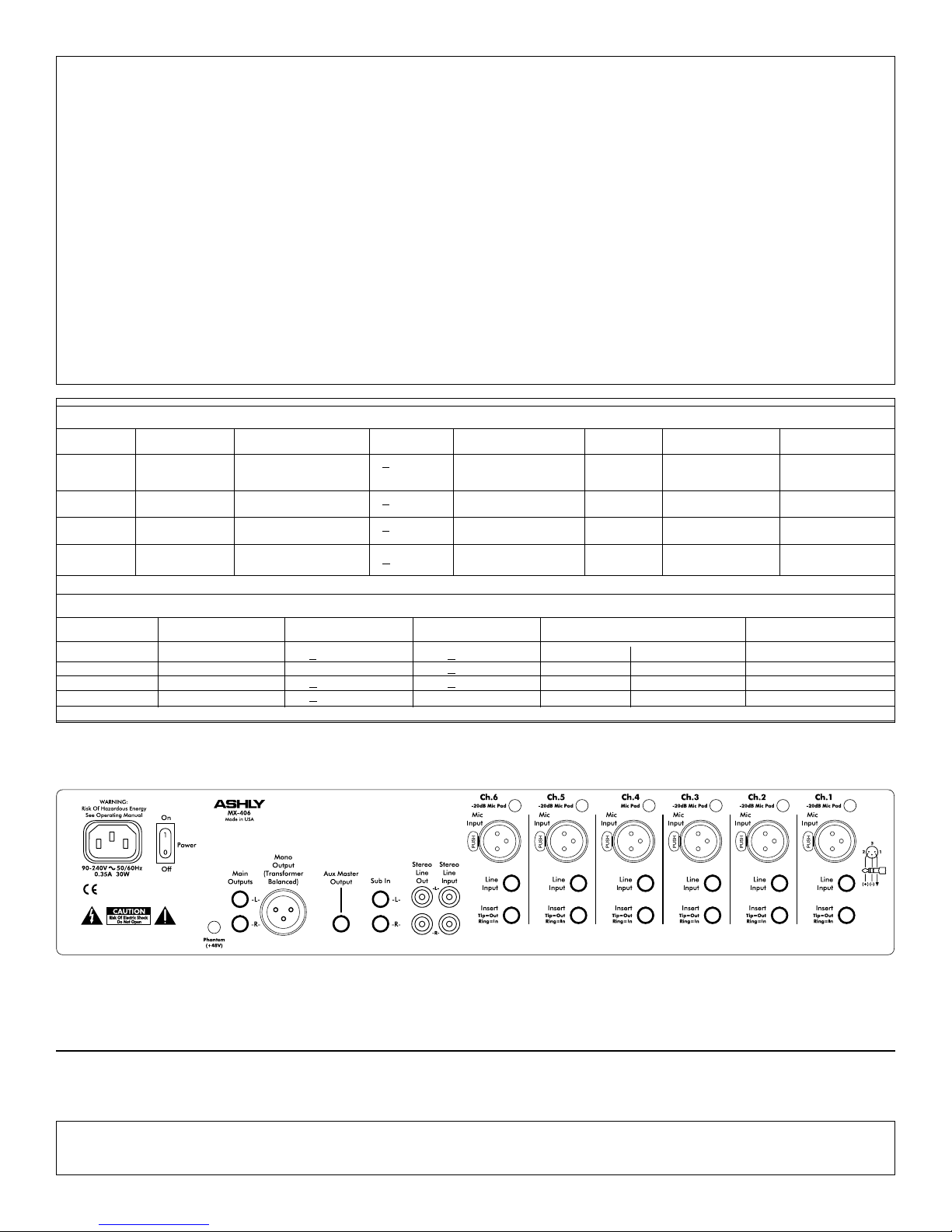

MX-406 Rear Panel
Input Specifications:
INPUT BALANCED/ INPUT LEVEL LOAD FOR USE WITH SENSITIVITY MAX. INPUT LEVEL CONNECTOR
UNBALANCED & PAD IMPEDANCE NOMINAL BEFORE CLIP
MIC INPUTS Balanced, Input level @ -60, pad out > 1K ohm 50 ohm to 600 ohm mics -80dBu -42dBu Female XLR--1/4” TRS
(1-6) Input level @ -20, pad out -40dBu 0dBu Combo Jack
Input level @ -20, pad in -20dBu +20dBu
LINE INPUTS Balanced Input level @ -24 > 10K ohm 600 ohm lines -38dBu -2dBu Female XLR--1/4” TRS
(1-6) Input level @ +22 NA +23dBu Combo Jack
AUX Unbalanced NA > 10K ohm 600 ohm lines -26dBu +23dBu 1/4”
RETURN
TAPE/CD IN Unbalanced NA > 10K ohm 600 ohm lines -30dBu +15dBu RCA Jacks
Notes: 1. 0 dBu = .775 Vrms. 2. Sensitivity is input signal level which will produce +4 dBu out with all levels maximum.
Output Specifications:
OUTPUT BALANCED/ SOURCE IMPEDANCE FOR USE WITH OUTPUT LEVEL CONNECTOR
UNBALANCED NOMINAL NOMINAL MAX BEFORE CLIP
STEREO OUT (L,R) Pseudo Balanced < 200 ohm > 600 ohm lines +4 dBu +24 dBu 1/4” TRS Phone Jack
MONO OUT, Transformer Balanced 600 ohm > 600 ohm lines +4 dBu +24 dBu Female XLR
AUX OUT Pseudo Balanced < 200 ohm > 600 ohm lines +4 dBu +24 dBu 1/4” Phone Jack
TAPE OUT (L,R) Unbalanced < 680 ohm 10K ohm lines -6 dBu +12 dBu RCA Phono Jack
