Graphic Equalizers - MQX Series
At Ashly, we believe that engineers should never have to
compromise their standards for the sake of miniaturization.
So we proudly offer the MQX Series equalizers, which
feature all the performance and great sound of our
legendary GQX models in uniquely compact packages.
The MQX Series uses the same precision filter design
and summing circuitry as the GQX Series, with each filter
exhibiting true constant “Q” response. The center-detented
position of each fader acts as an on/off switch for its filter,
ensuring absolutely flat response and high signal-to-noise
ratios. The faders themselves put these equalizers into a
class all their own. A full 25 mm throw makes use of
every last bit of panel space so that small panel size
doesn’t compromise resolution. The additional range and
incredible accuracy of this fader allow us to offer ±15dB
of amplitude adjustment on each individual filter (an Ashly
exclusive in this class of product). Housed in a rugged
steel chassis, each model features multiple input and
output connectors. For engineers looking to avoid those
cumbersome “wall warts,” Ashly features internal power
supplies on all our products. And, of course, each MQX
Series equalizer is covered by our exclusive Five Year
Worry-Free Warranty.
FEATURES:
• Low Noise Design
• Balanced XLR, 1/4” TRS & Barrier Strip Screw Terminals
on Inputs and Outputs (except on 2150)
• Silent In/Out Switching
• Signal Present and Clip LEDs
• Precision Wein Bridge Filters
• 25 mm Fader with Center-Off Position
• Constant “Q” Design
• Switchable Low Cut Filter on 31-band models
• Selectable 15dB or 6dB Range

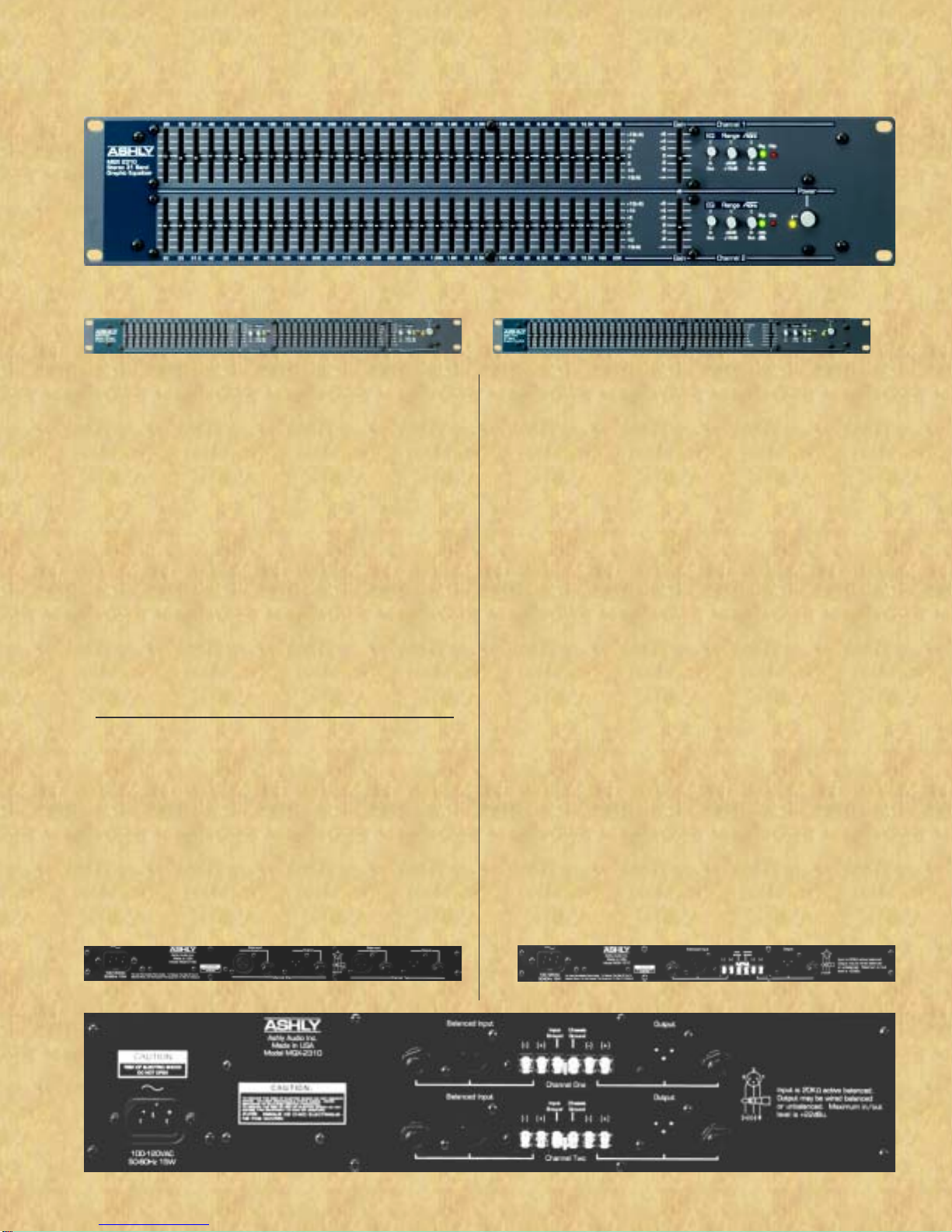

MQX-2150 TWO CHANNEL 15-BAND
MQX SPECIFICATIONS:
Input type: Active balanced
Input impedance: 20kOhms
Max. input level: +23dBu
Output type: Quasi-balanced
Min. output load impedance: 600ohms
Max. output level: +23dBu
Connectors: 1/4” phone jack, XLR,
and barrier strip (except on 2150)
Frequency response: 20Hz–20kHz, ±.25dB
Total harmonic distortion: <.01% @ +20dBu
IM distortion (SMPTE): <.01% @ +20dBu
Output hum and noise: <–92dBu (unweighted)
Channel separation:
MQX-2150: >85dB @ 1kHz
MQX-1310/2310: >95dB @ 1kHz
Gain control: –∞to +6dB
Filter type: Constant Q/Wein Bridge
Bandwidth: MQX-2150: 2/3 octave
MQX-1310/2310: 1/3 octave
Tolerance: ±3%
Range: ±6 or ±15dB
Subsonic Filter:
MQX-2150: 18dB/octave @ 20Hz
MQX-1310/2310: 18dB/octave, 40Hz
Power requirements: 120VAC, 50–60Hz (240VAC available)
Power: MQX 2150/1310: 10W
MQX 2310: 13W
Shipping weight:
MQX-2150/1310: 9lbs
MQX-2310: 11lbs
Dimensions:
MQX-2150/1310: 19” L x 1.75” H x 6” D
MQX-2310: 19” L x 3.5” H x 6” D
(EQ in, all faders flat 20Hz–20kHz unless otherwise noted)
MQX-1310 SINGLE CHANNEL 31-BAND
MQX-2310 TWO CHANNEL 31-BAND
