W ELCOME T O 3DME
T
HREE D IMENSIONAL M USIC E NHANCEMENT
3DME is a unique in-ear listening
system that combines patented
Active Ambient™ audio
technology from Sensaphonics®
with a powerful smartphone app
to enhance listening and promote
long-term hearing health.
The system includes:
3DME Active Ambient™
Earphones – Universal-fit, dual
driver in-ear monitors (IEMs) with
embedded binaural microphones
capture the ambient sound around
you with full 3D directionality and
three sizes of eartips to isolate your
ears and deliver superb sound.
3DME Bodypack Mixer/Amplifier
Connects and combines your
sound source with the ambient mic
feed to add 3D stage mic level to
your monitor mix. The bodypack
also houses powerful limiter and EQ
functions. (When used without a
direct monitor mix, you can still hear
and control your customized
ambient feed with full 3D
directionality.) Note: The Power
switch is on the bottom.
ASI Audio Smartphone App
Program the bodypack and tailor
your sound mix, levels, mic level,
EQ and sound limiting, save
custom presets, and performs an
Audio Seal Test for proper IEM fit.
2
For more complete instructions and important information, please refer to the
owners manual on the ASI Audio website at www.asiaudio.com/pages/support

3DME Ambient Earphones
• Universal fit earphones with 3
sizes of ear tips
• Universal-fit dual-driver design
•Embedded binaural ambient
microphone system
•3DME Bodypack with lithium
ion battery
3DME Accessories
•Stereo jumper cable
•USB bodypack charging cable
•Earpiece cleaning tool
•Shirt clip
•Carrying case
•3-pairs ear tips, S,M,L
HARDWARE AND FEATURES
Earphone with tip
3
USB bodypack charging cable

Top and right of bodypack Bottom and left of bodypack
2
3
44
5
7
8
3DME Bodypack Mixer // Amplifier
1 - Ambient volume control switches
(+/-)(top panel)
2 - Battery status LEDs (4 LEDs) (top
panel)
3 - Dual earphone jacks (right side)
4- Cable management/strain relief
(right and left sides)
5 - Monitor input mini-jack (left panel);
tip-left, ring-right
6 - Micro-USB charging port
1
7 - USB power/charging status LEDs
(bottom)
8 - Power switch (bottom)
9 - Monitor output mini-jack (bottom);
tip-left, ring-right. The output signal
directly reflects the total signal
reaching your ears, including both the
microphone and monitor input
signals modified by the Mic Level, EQ
and Limiter. This output signal is
useful for monitoring your listening
level and for binaural recording.
9
6
4

relief (right and left sides)
5 - Monitor input mini-jack (left
panel)
6- Micro-USB charging/data port
(bottom)
7- USB power/charging status
LEDs (bottom)
8- Power switch (bottom)
5
GETTING STARTED:
CONNECTING YOUR 3DME AND ATTACHING
EARTIPS
Your 3DME universal-fit IEMs
have embedded Active Ambient
microphones to capture the
ambient sound around you and
deliver accurate 3D directionality.
5

For rich, full sound, the earpieces
must be fully inserted to achieve
a full, tight seal. Three sizes of
ear tips are included. NOTE: The
earpiece cables are designed to
run up, over and behind the ears,
meeting behind the head.
2. Place the sound port (nozzle)
into the core of the tip at a slight
angle. As they join, straighten out
the tip and push the tip as far back
as it will go.
Inserting In-Ears
1. Before inserting into the ear
canal, observe left/right marking
on the earpiece.

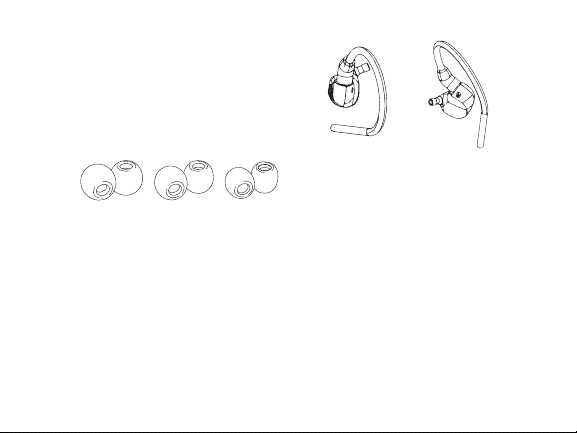

Memory foam ear tips, 3 sizes
Ear buds without tips
Installing Ear Tips
1. Select an ear tip, holding
it rmly between thumb and
forenger.
6

2. Place the sound port (nozzle)
into the core of the tip at a sligh
angle. As they join, straighte
the tip and push the tip as far b
as it will go.
Inserting In-Ears
1. Before inserting into the ear
canal, observe left/right marki
on the earpiece.
Step 1 Step 2
Proper t
2. Roll the tip between your ngers
to compress the foam into a thin
cylinder.
3. Insert the tip as deep as
possible without irritating the ear,
positioning the cable to run up,
over and behind the ear.
4. Hold the earpiece in place for
15-30 seconds, allowing the tip to
expand and conform to your ear
canal. This will create a custom
t and perfect seal - providing an
optimal audio experience.
7

If the eartips are not fully sealed, a brief feedback squeal may occur. A
safety limiter is engaged when the 3DME bodypack is turned on to limit
the level of any feedback. If you have any doubts about your fit, use the
Audio Seal Test. For additional details on the Audio Seal Test and Safety
Limiter, please refer to the 3DME owners manual on the ASI Audio
website at www.asiaudio.com/pages/support
Note:
:
Turn the bodypack on prior to connecting your earphone cable
to the bodypack.
Warning:
:
Listening at a high volume for a long time may damage your
hearing.
8
If the eartips are not fully sealed, a brief feedback squeal may occur. A
safety limiter is engaged when the 3DME bodypack is turned on to limit
the level of any feedback. If you have any doubts about your fit, use the
Audio Seal Test. For additional details on the Audio Seal Test and Safety
Limiter, please refer to the 3DME owners manual on the ASI Audio
website at www.asiaudio.com/pages/support
Note::Turn the bodypack on prior to connecting your earphone cable
to the bodypack.
Warning::Listening at a high volume for a long time may damage your
hearing.
8

THE ASI AUDIO APP
The ASI Audio app is the control center
for Music Enhancement, with access to a
suite of sound tools that let you customize
the sound of your 3DME.
Download from the ASI Audio website,
Google Play Store, Amazon Appstore or
Apple App Store (When Available).
After installing the app, pair your
smartphone or tablet to the 3DME
bodypack. Restart the app and power up
the bodypack. Connect earphone cable to
the bodypack.
For additional details on the ASI Audio
app, please refer the 3DME owners
manual or ASI Audio App instructional
video at asiaudio.com/pages/support
Note: Turn the bodypack on prior to
inserting the earpieces and connecting
your earphone cable to the bodypack.
Pairing the 3DME with ASI
Audio App
1. Download the ASI Audio App
2. Turn on the 3DME Bodypack
3. Touch the Bluetooth icon on the
upper left corner
4. Touch the Bluetooth device on
the list you want to connect to.
5. Connection status will display
"Connected".
6. Touch "<ASI Audio" on the upper
left corner
7. The Bluetooth icon on the upper
left corner will have 2 dots on it
indicating the devices are paired.
9

Congratulations, your system is now ready for you to use to enhance
your listening experience.
•Explore the app on your device to change the volume, equalization and
other features.
•The 3DME bodypack is powered by a rechargeable Li-Ion (lithium ion)
battery. The system is shipped with a partial charge, but you should fully
charge the battery before your first gig. Use the supplied cable to connect
the bodypack's micro-USB connector (located on the bottom of the pack)
to a stable power source.
•For more complete instructions and important information, please refer to
the 3DME owners manual asiaudio.com/pages/support.
Register your 3DME through the ASI Audio app Help menu or visit
asiaudio.com/pages/support
10
Congratulations, your system is now ready for you to use to enhance
your listening experience.
•Explore the app on your device to change the volume, equalization and
other features.
•The 3DME bodypack is powered by a rechargeable Li-Ion (lithium ion)
battery. The system is shipped with a partial charge, but you should fully
charge the battery before your first gig. Use the supplied cable to connect
the bodypack's micro-USB connector (located on the bottom of the pack)
to a stable power source.
•For more complete instructions and important information, please refer to
the 3DME owners manual asiaudio.com/pages/support.
Register your 3DME through the ASI Audio app Help menu or visit
asiaudio.com/pages/support
