Ask Proxima C2 COMPACT User manual

www.askproxima.com
C2 COMPACT /C6 COMPACT
USERGUIDE
English
Deutsch
Français
Español
Italiano
Norsk

TABLE OF CONTENTS
INHALTSVERZEICHNIS TABLE DES METIÈRES INDICE INDICE INNHOLDSFORTEGNELSE
www.askproxima.com
A.SUPPLIED MATERIAL...................................3
 LIEFERUMFANG
 EQUIPEMENT FOURNI
 MATERIAL SUMINISTRADO
 MATERIALE FORNITO
 VEDLAGT MATERIELL

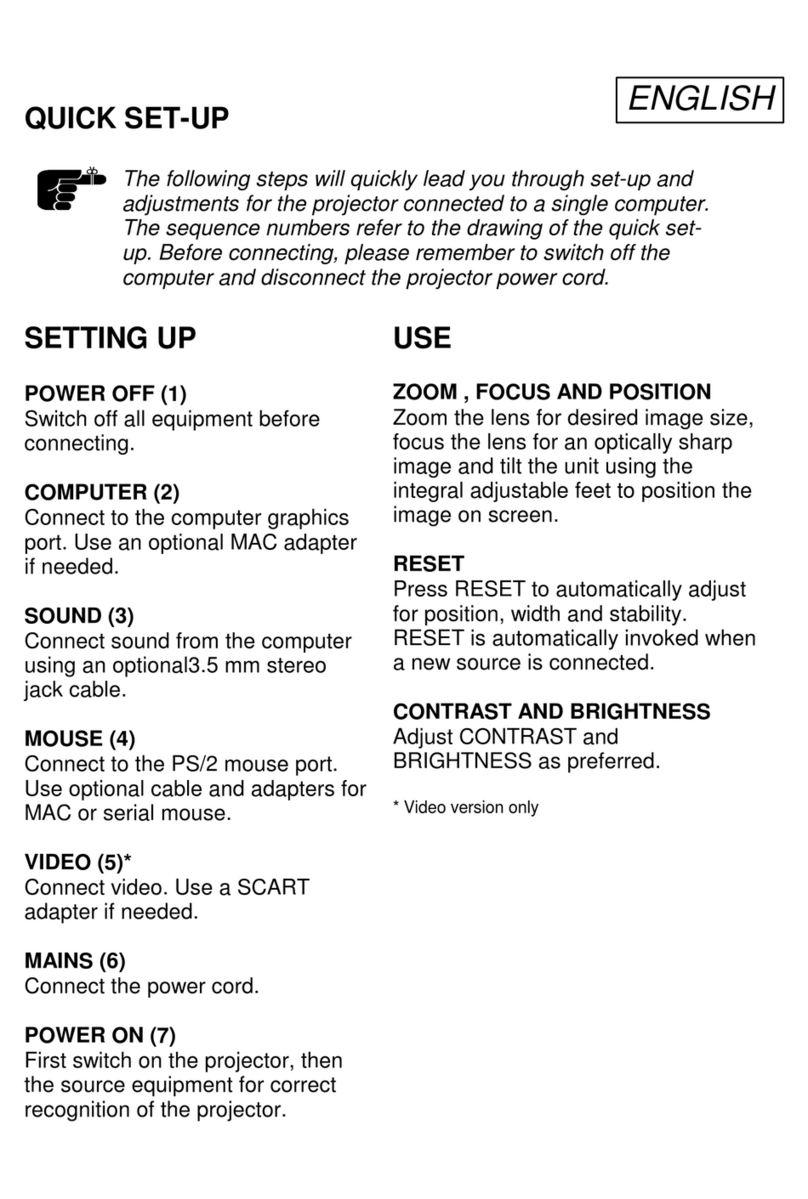

B.SETTING UP PROCEDURE...........................4
 ANSCHLUSS
 INSTALLATION
 PROCEDIMIENTO DE CONEXIÓN
 PROCEDIMENTO DI IMPOSTAZIONE
 OPPSETT
C.START - STOP................................................5
 START - STOP
 MISE EN/HORS SERVICE
 ENCENDIDO - APAGADO
 AVVIO - ARRESTO
 START - STOPP
D.IMAGE ADJUSTMENTS.................................6
 BILDEINSTELLUNGEN
 MISE AU POINT DE L'IMAGE
 AJUSTE DE LA IMAGEN
 REGOLAZIONE DELL'IMMAGINE
 JUSTERE BILDET
E.REMOTE CONTROL & KEYBOARD.............7
 FERNBEDIENUNG UND BEDIENFELD
 TELECOMMANDE ET CLAVIER
 CONTROL REMOTO Y TECLADO
 TELECOMANDO E TASTIERA
 FJERNKONTROLL OG TASTATUR
F.MENU ADJUSTMENTS..................................9
 MENÜEINSTELLUNGEN
 OPTIONS DE MENU
 MENÚ DE AJUSTES
 IMPOSTAZIONI DAL MENU
 MENYINNSTILLINGER
G.OVERVIEW......................................................11
 ÜBERSICHT
 PRESENTATION
 VISTA GENERAL
 PROSPETTO
 OVERSIKT
H.MAINTENANCE...............................................12
 PFLEGE
 MAINTENANCE
 LIMPIEZA
 MANUTENZIONE
 VEDLIKEHOLD
I. LAMP REPLACEMENT....................................13
 AUSTAUSCH DER LAMPE
 REMPLACEMENT DE LA LAMPE
 SUSTITUCIÓN DE LA LÁMPARA
 SOSTITUZIONE DELLA LAMPADINA
 SKIFTE LAMPEN
J.SAFETY INSTRUCTIONS................................14
SICHERHEITSHINWEISE
 INSTRUCTIONS DE SECURITE
INSTRUCCIONES DE SEGURIDAD
 ISTRUZIONI SULLA SICUREZZA
 SIKKERHETSFORSKRIFTER
K.TECHNICAL DATA...........................................18
TECHNISCHE DATEN
 CARACTERISTIQUES TECHNIQUES
 DATOS TÉCNICOS
 DATI TECNICI
 TEKNISKE DATA
L.FCC STATEMENT.............................................20
M.SERVICE INFORMATION.................................21
2
C2 COMPACT /C6 COMPACT

POWER
Install batteries
Batterien einlegen
Mettre des piles en place
Colocar las baterías
Inserimento pile
Sett inn batteriene
CSTART - STOP START - STOP MISE EN/HORS SERVICE ENCENDIDO - APAGADO AVVIO - ARRESTO START - STOPP
!
POWER
www.askproxima.com
5
C2 COMPACT /C6 COMPACT
Switch ON to
operate remote
control

IMAGE ADJUSTMENT
BILDEINSTELLUNG MISE AU POINT DE L'IMAGE AJUSTE DE LA IMAGEN REGOLAZIONE DELL'IMMAGINE JUSTERE BILDET
D
www.askproxima.com
6
C2 COMPACT /C6 COMPACT
Zoom: adjusts picture size 
Focus: adjusts picture clearness
Release projector feet to adjust display angle (1) or manually adjust feet (2)
12

VOLUME
SOURCE
RESET
MENU
SELECT
ALARM
POWER
EREMOTE CONTROL & KEYBOARD
   FERNBEDIENUNG UND BEDIENFELD
TELECOMMANDE ET CLAVIER CONTROL REMOTO Y TECLADO TELECOMANDO E TASTIERA FJERNKONTROLL OG TASTATUR
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
Wavelength 670 nm.
Max. output <1 mW.
EN60825-1, Am. 11.
!
ALARM
!
ALARM
!
RED FLASHING when the projector is overheated. Power off and let cool down
ROTES BLINKLICHT zeigt Überhitzung des Projektors an. Ausschalten und abkühlen lassen
Un CLIGNOTEMENT ROUGE signale la surchauffe du projecteur. Débrancher l'alimentation et laisser refroidir
LUZ ROJA PARPADEANTE cuando el proyector está sobrecalentado. Desconectar la alimentación y dejar enfriar
La luce ROSSA INTERMITTENTE indica che il proiettore si è surriscaldato. Scollegare l'alimentazione e lasciare raffreddare
RØDT BLINKENDE når projektoren er overopphetet. Slå av og la projektoren avkjøle seg.
www.askproxima.com
7
C2 COMPACT /C6 COMPACT
RED light indicates lamp replacement required. Ref. I (LAMP REPLACEMENT)
Das ROTE Licht zeigt an, daß die Lampe ausgewechselt werden muß. Ref. I (AUSTAUSCH DER LAMPE)
La lumière ROUGE indique que la lampe doit être remplacée. Ref. I (REMPLACEMENT DE LA LAMPE)
La luz ROJA indica que se debe de reemplazar la bombilla. Ref. I (SUSTITUCIÓN DE LA LÁMPARA)
La luce ROSA indica che bisogna sostituire la lampadina. Ref. I (SOSTITUZIONE DELLA LAMPADINA)
RØDT lys angir at lampen må byttes ut. Ref. I (SKIFTE LAMPEN)
Active when RED light blinks

POWER
ON/OFF
SOURCE
VOLUME
RESET
MENU
MENU
BLACK
MAGNIFY
+-
LASER
- Activate by pressing actual key(s).    - Activar pulsando la(s) tecla(s) indicativa(s).
- Zum Aktivieren jeweilige Taste(n) drücken.   - Attivare premendo il / i tasto / i attivi.
- Activer en pressant la (les) touches correspondante(s).  - Aktiver ved å trykke på aktuell(e) tast(er).
www.askproxima.com
8
C2 COMPACT /C6 COMPACT
MAGNIFY
1:1
REMOTE CONTROL & KEYBOARD
   FERNBEDIENUNG UND BEDIENFELD
TELECOMMANDE ET CLAVIER CONTROL REMOTO Y TECLADO TELECOMANDO E TASTIERA FJERNKONTROLL OG TASTATUR
Turn the projector ON/OFF Adjust volume Blackens the projected image
Switch between connected
sources Synchronizes the projector settings to the active source Activates/deactivates on screen menu
Choose area to magnify Use trackball/arrows to magnify Reset picture to full size
Mouse control Laser pointer
SELECT
MENU
SELECT
SELECT
+
+
Scroll menu and select on-screen
menu function
+
(1) (2) (3)
MAGNIFY
+

Activate/deactivate by:
Aktivieren/Deaktivieren mit:
Activer et désactiver à l'aide:
Activar/desactivar pulsando:
Attivare/disattivare premendo:
Aktiver/deaktiver med:
FMENU ADJUSTMENTS
MENÜEINSTELLUNGEN OPTIONS DE MENU MENÚ DE AJUSTES IMPOSTAZIONI DAL MENU MENYINNSTILLINGER
Navigate by:
Steuern mit:
Pour naviguer:
Navegar pulsando:
Spostarsi premendo:
Naviger med:
Choose function with:
Funktion wählen mit:
Choisissez la fonction avec:
Seleccionar función con:
Scegliere la funzione con:
Velg funksjon med:
MENU SELECT
SELECT
BASIC
CONTRAST
ADVANCED
WIDTH
POSITION
COLOR TEMP
TINT
16:9
SHARPNESS
BASIC
CONTRAST
BRIGHTNESS
COLOR
RESET
ADVANCED
HELP
RESET
BASIC
CONTRAST
BRIGHTNESS
COLOR
RESET
ADVANCED
HELP
COLOR
BASIC
CONTRAST
BRIGHTNESS
COLOR
RESET
ADVANCED
HELP
BRIGHTNESS
BASIC
CONTRAST
BRIGHTNESS
COLOR
RESET
ADVANCED
HELP
CONTRAST
TUNE
BASIC
CONTRAST
ADVANCED
TUNE
WIDTH
POSITION
COLOR TEMP
TINT
16:9
SHARPNESS
WIDTH
BASIC
CONTRAST
ADVANCED
TUNE
WIDTH
POSITION
COLOR TEMP
TINT
16:9
SHARPNESS
POSITION
50%
50%
50%
50%
?
BASIC
CONTRAST
BRIGHTNESS
COLOR
RESET
ADVANCED
HELP
HELP
BASIC
CONTRAST
ADVANCED
TUNE
WIDTH
POSITION
COLOR TEMP
TINT
16:9
SHARPNESS
COLOR TEMP
50%
www.askproxima.com
9
C2 COMPACT /C6 COMPACT
BASIC
CONTRAST
ADVANCED
TUNE
WIDTH
POSITION
COLOR TEMP
TINT
16:9
SHARPNESS
TINT
50%
+
_
Adjusts contrast range
from 0 to 100
Adjusts brightness range
from 0 to 100
Adjusts colour intensity
Synchronizes the
projector settings to the
active source
Indicates information
about active source
Adjusts horizontal
phase/fine tunes image
Adjusts width to image
size
Adjusts position to
image size
Modifies colour
temperature balance
Varies the hue in
video images

16 : 9
?
BASIC
CONTRAST
ADVANCED
TUNE
WIDTH
POSITION
COLOR TEMP
TINT
16:9
SHARPNESS
16:9
BASIC
CONTRAST
ADVANCED
TUNE
WIDTH
POSITION
COLOR TEMP
TINT
16:9
SHARPNESS
BASIC
CONTRAST
ADVANCED
SETUP
REAR
CEILING
HIDE OSD
SOURCE SEARCH
BASIC
CONTRAST
ADVANCED
BASIC
CONTRAST
ADVANCED
SERVICE
INFO
LAMP TIMER
FACTORY RESET
BASIC
CONTRAST
ADVANCED
SERVICE
FACTORY RESET
LAMP TIMER
INFO
50%
BASIC
CONTRAST
ADVANCED
INFO
SERVICE
FACTORY RESET
LAMP TIMER
BASIC
CONTRAST
ADVANCED
SETUP
REAR
CEILING
HIDE OSD
SOURCE SEARCH
www.askproxima.com
10
C2 COMPACT /C6 COMPACT
HIDE OSD
REAR
SETUP
REAR
CG
HIDE OSD
SOURCE SEARCH
CEILING
BASIC
CONTRAST
ADVANCED
LANGUAGE
DEUTSCH
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
NORSK
PORTUGUÊS
SIMPL. CHINESE
TRAD. CHINESE
JAPANESE
KOREAN
BASIC
CONTRAST
ADVANCED
SETUP
REAR
CEILING
HIDE OSD
SOURCE SEARCH
SOURCE SEARCH
?
MENU ADJUSTMENTS
MENÜEINSTELLUNGEN OPTIONS DE MENU MENÚ DE AJUSTES IMPOSTAZIONI DAL MENU MENYINNSTILLINGER
Select 16:9 image
format
Adjust sharpness
Select language
Select for rear
projection
Select for ceiling
mounted projection
Select to hide
On-Sreen Display
Select to activate/
deactivate automatic
source search
Select to reset all
options to factory
settings
Select to display
service information
Select to reset lamp
timer after lamp
replacement (Ref. I)
