Introduction
Congratulations on the purchase of this cooker. This product is designed to offer optimum user-
friendliness. The cooker has a wide range of settings, so you can always select the
correct cooking method.
Read this manual to learn how to get the most out of your cooker. In addition to information
about operating the oven, you will also find background information that may be useful when
using the appliance.
Please read the separate safety instructions carefully
before using the appliance!
Because this manual may be written for different appliances some parts and functions described
in this user manual may not apply to your cooker.
Read this manual before using the appliance and keep it in a safe place for future use.
YOUR COOKER

EN 5
YOUR COOKER

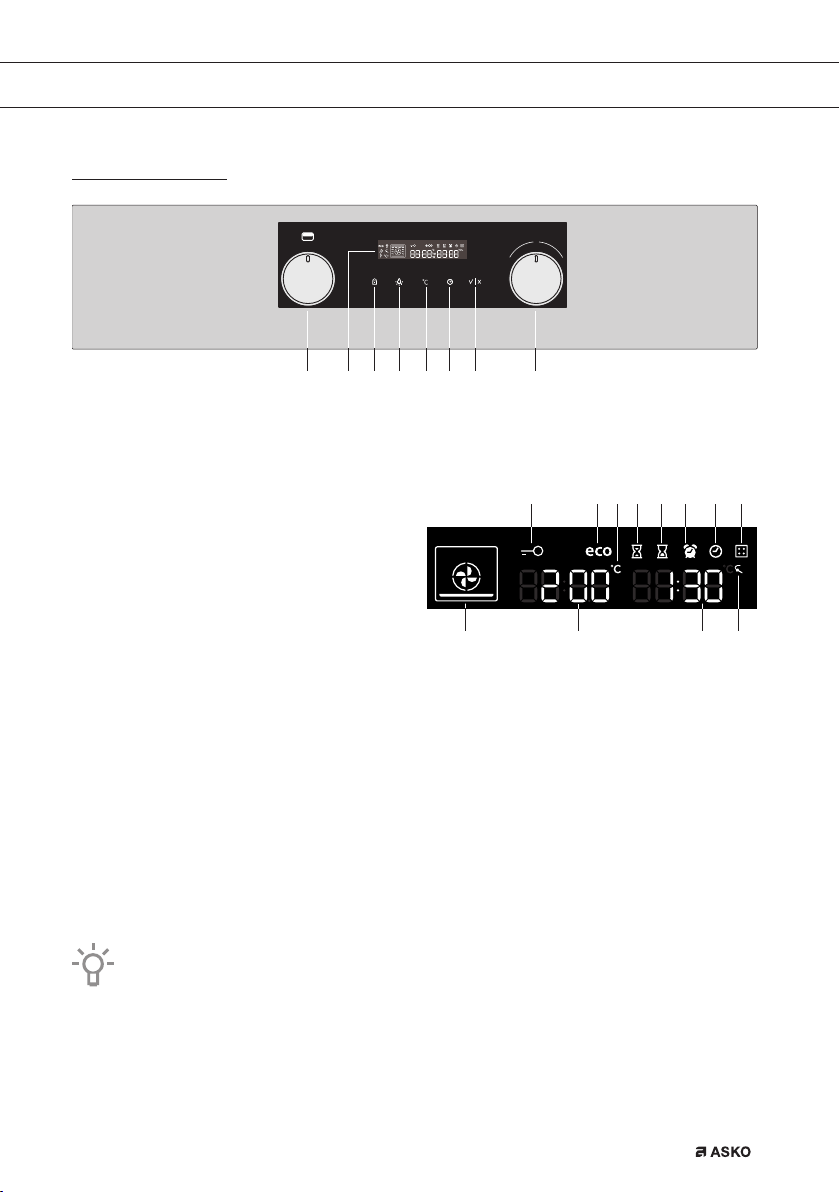

Control panel
1. Oven function knob
2. Display (cooking information and timer)
A. Child lock symbol
B. ECO oven function
C. Oven thermostat symbol
D. Cooking time symbol
E. End time symbol
F. Kitchen timer symbol
G. Clock symbol
H. Cooker symbol (depending on model)
I. Oven function symbol
J. Oven temperature display
K. Timer display
L. Meat probe symbol (depending on model)
3. Child lock (for the oven) key
4. Oven light key
5. Temperature key
6. Timer key
7. Start/Stop key
8. Settings knob
For the best touch response, touch the keys with the main part of your fingertip.
Every time you touch a key during use, a short signal will sound.
0
81 32 4 5 6 7
K L
GFEDCA
JI
BH

EN 6
Induction hob description
3 4
1 2
5 5 A
E F G H I J
B C D
1. Bridge induction cooking zone left rear (1.5 kW/2.0 kW / Ø 180 mm)
2. Induction cooking zone right rear (1.5 kW/2.0 kW / Ø 210 mm)
3. Bridge induction cooking zone left front (1.5 kW/2.0 kW / Ø 180 mm)
4. Induction cooking zone right front (1.2 kW/1.6 kW / Ø 145 mm)
5. Control panel:
A. Cooking zone left front selection key
B. Cooking zone right front selection key
C. Minus (-) key
D. Cooking hob On/Off key
E. Cooking zone left rear selection key
F. Timer active indication
G. Cooking zone right rear selection key
H. Plus (+) key
I. Lock active indication
J. Lock key
A. + E. Simultaneously to connect the Bridge induction cooking zones
YOUR COOKER

EN 7
Oven description
6
01
3
Level 1
Level 2
Level 3
Level 4
2
4
5
Guide rails/Telescopic guide rails
• The oven has four or five guide rails (Level 1 to 4/5), depending on the model. Level 1 is
mainly used in combination with bottom heat. The two upper levels are mainly used for the
grill function.
• Place the oven rack, baking tray or steam dish in the gap between the guide rail sliders.
• A number of shelf levels can have fully-retractable telescopic guide rails, depending on the model.
• Pull the telescopic guide rails out of the oven cavity completely and place the oven rack /
baking tray / steam dish on them. Then slide the oven rack / baking tray / steam dish on the
telescopic guide rails, back into the oven cavity.
• Only close the oven door when the telescopic guide rails have been returned completely
back into the oven cavity.
Cooling fan
• The appliance is fitted with a cooling fan that cools the housing, door and the appliance
control panel.
• After the oven is switched Off, the cooling fan continues to operate for a short while in order
to cool the oven.
YOUR COOKER
1. Control panel
2. Rack levels
3. Oven door
4. Handle
5. Storage drawer/flap door
(depending on model)
6. Leveling feet

EN 8
Accessories
Your appliance is accompanied by a range of accessories, depending on the model. Only use
original accessories; they are specially suited to your appliance.
Not all accessories are suitable/available for every appliance (it may also differ by
country). All the accessories that are being used must be able to withstand the highest
temperature of the appliance. When purchasing, always provide the exact identification
number of your appliance. Please see the sales brochures or check online for more
details about optional accessories.
Accessories that can be supplied with your appliance (depending on the model)
Enamelled baking tray; to be used for pastries and cakes.
Oven rack; mainly used for grilling. A steam dish or pan with food
can also be placed on the oven rack. The oven rack is equipped
with a safety peg. Lift the rack slightly at the front to slide it out of
the oven.
Deep enamelled baking tray; to be used for roasting meat and baking
moist pastry. Never place the deep baking tray in the first level during
the cooking process, except when grilling food or using the roasting spit
and you are only using the deep tray as a drip tray.
Consult the cooking guidelines in this user manual to select the correct accessory
for your dishes.
As baking accessories heat up, their form may change. This does not affect
their functionality and their original form will be restored when they cool down.
• The grid or the tray should always be inserted into the groove between the two wire profiles.
• Insert the grid so that the small railing is in the oven interior (toward the back of the oven).
2
3
4
YOUR COOKER
2
3
4

EN 9
Door
• The door switches interrupt the operation of the oven when the door is opened during use.
The oven continues operating when the door is closed.
• Some cookers have a ‘Soft close door system’ (depending on the model). When closing the
oven door, this system dampens the movement, from a certain angle, and silently closes the
oven door.
Push-pull knob
Some models can have push-pull knobs.
• Slightly push the knob until it pops out. The knob can be used now.
• After each use, rotate the knob back to the “Off” position and push it back in.
• The push-pull knob can only be pushed back when it is in the “Off” position.
Drawer
Your appliance has a drawer to store accessories like trays, shelves, grids, small pots and pans.
Warning! The inside surface of the drawer may become hot during use.
Do not store any food, plastic or inflammable materials in the drawer.
Door lock
Some models can have a door lock. This avoids children to open the door unwanted.
• When the door lock is activated:
▷Open the door slightly and move the latch in the middle top site of the door to the right.
▷Open the door fully.
90°
click
A B
YOUR COOKER

EN 10
Deactivate the door lock
1. Open the oven door.
2. Push the latch to the right by 90º until you feel a click (A).
▷The door lock is deactivated.
Activate the door lock
1. Open the oven door.
2. Pull the latch towards you (B).
▷The door lock is activated.
90°
click
A B
Initial use
Set the current time
When you connect the appliance to the mains electricity for the first time, the display lights up.
After three seconds the clock symbol lights up and ‘12:00’ will flash on the display.
1. Turn the settings knob to set the current time.
▷After three seconds, the settings will be saved.
▷You can set the values in the display faster by keeping the settings knob longer in the
maximal right or left position.
▷The settings will be saved automatically after 5 seconds.
You can always set the current time by pressing the ‘timer key’ twice (oven function knob
must be in the Off (0) position). The clock symbol lights up and the time indication will
flash on the display. Then set the current time using the settings knob. The settings will
be saved automatically after 5 seconds.
When the appliance is connected to the power mains or re-connected after a
power supply failure, the hob is locked. Press 1 second the hob lock key until you
hear a beep to unlock the hob. Consult chapter ‘Locking the induction hob’.
YOUR COOKER

EN 11
Before using the oven
• Remove all accessories from the inside of the oven and clean them with warm soapy water.
Do not use any abrasive cleaning materials.
• Set the oven at its highest setting for one hour with top and bottom heat (see ‘Operating the
oven’). This will remove any protective grease used during manufacture.
• When heating the oven for the first time you will notice a ‘new-oven smell’. Do not worry,
this is normal. If necessary, switch on the cooker hood.
• After cool down, clean the oven with warm water.
• Only preheat the oven if it is required in the recipe.
Before using the induction hob
• Clean the glass ceramic surface with a damp cloth and some washing up liquid.
• Do not use aggressive cleaners, such as abrasive cleaners that could cause scratches,
abrasive dishwashing sponges, or stain removers.
YOUR COOKER

EN 12
USE
Using the oven
Energy-conscious use of the oven
• Open the oven door as little as possible.
• Prepare dishes with the same cooking temperature simultaneously (e.g., an apple pie and an
oven dish) on the same grid, or above each other using hot air. You can also let meat stew
at the same time.
• Prepare more meals after each other, for example an oven meal after a cake. Often, the
preparation time of the second dish will be 10 minutes shorter because the oven is still hot.
• Because the oven is insulated, the residual heat from the oven will continue to cook dishes
with longer cooking times (from 1 hour). Turn the oven Off 10 minutes earlier than indicated,
but leave the door closed.
• Pre-heating is generally not necessary, with the exception of dishes with cooking times of
less than 30 minutes, or when indicated by a recipe.
• Remove everything you don’t need for the dish from the oven.
• Turn the oven Off before taking out the cooked dish.
Ovenware
• In principle, you can use any type of heat-resistant ovenware.
• Do not rinse glass ovenware with cold water immediately after use. The sudden temperature
difference can cause the glass to crack.
• Use black or dark baking tins. These conduct heat better and allow the food to cook
more evenly.
Do not cover the oven floor
• Covering the oven bottom with, for example, aluminium foil or a baking tray can lead to
overheating and damage to the enamel.
• It is possible to prevent spring forms from leaking onto the oven floor by folding a container
out of aluminium foil and placing it on the grid under the form or by laying baking paper
under it.
Roasting meat
• Large pieces of meat, from 1 kg, are the most suitable. The meat will get a regularly shaped,
crispy crust, with virtually no weight loss.
• Rub the meat with salt and spices fifteen minutes beforehand. Use 80 to 100 g of butter or
fat (or a mixture of the two) per 500 g of meat for roasting.

EN 13
Cooking times
• Flat, thin pieces require approximately 5 minutes less cooking time than thick or rolled
pieces of meat. When cooking larger pieces of meat, cook for 15 to 20 minutes longer per
500 grams extra.
• Put the meat in a roasting pan and douse in hot butter or fat. Place the meat in the roasting
pan with the fatty side facing up. Make sure to baste meat without a fatty side every
15 minutes.
• Meat with a fatty side should be basted every 30 minutes.
• If the gravy is too dark, add a few spoonfuls of water now and then during roasting.
• Cover the meat loosely with foil and let it stand for 10 minutes before serving.
Oven functions table
Your appliance is accompanied by a range of oven functions, depending on the model.
Consult the table to select the preferred function. Also, consult the instructions for preparation on
the dish packaging.
Oven functions (symbols are on the oven function knob)
Symbol Description
ECO
Fast preheat
• Use this function if you wish to heat the oven to the desired temperature as quickly as possible.
• This function is not appropriate for cooking food. When the oven heats up to the desired
temperature, the heating process is completed.
ECO
Top Heat + Bottom Heat
• Heating by means of the upper and lower heating elements.
• This mode can be used for traditional baking and roasting.
• Place the baking tray or oven rack on level 2.
• Preheating is recommended.
ECO
Grill
• Maximum allowed temperature: 230 °C
• Heating by means of the grill element.
• This mode can be used for grilling a smaller amount of open sandwiches, beer sausages,
and for toasting bread.
• Place the oven rack on level 4 and the baking tray on level 3.
• Monitor the cooking process at all times. The dish may burn quickly due to the high
temperature.
ECO
Large Grill
• Maximum allowed temperature: 230 °C
• Heating by means of the upper element and grill element.
• This mode can be used with dishes and baked goods that require a distinctive bottom crust
or browning. Use just before the end of the baking or roasting time.
• Place the oven rack on level 4 and the baking tray on level 3.
• Monitor the cooking process at all times. The dish may burn quickly due to the high
temperature.
USE

EN 14
ECO
Large grill + Fan
• Heating by means of the top heating elements. The fan distributes the heat.
• This mode can be used for grilling meat, fish and vegetables.
• Place the baking tray or oven rack on level 2.
• Monitor the cooking process at all times. The dish may burn quickly due to the high
temperature.
ECO
Hot Air + Fan + Bottom heat
• The bottom heater and the hot air fan will operate.
• This is used to bake pizza, moist pastry, fruitcakes, leavened dough and shortcrust.
• Place the baking tray or oven rack on level 2.
ECO
Hot Air + Fan
• The fan in the back wall distributes the hot air in the oven.
• You can bake on multiple levels simultaneously, which will save energy.
• The convection fan system is excellent for baking cakes, cookies and apple pies.
• Place the baking tray or oven rack on level 2.
• Preheating is recommended.
ECO ECO
• Heating by means of hot air. ECO hot air uses less energy but gives the same result as the
hot air setting. Cooking takes a few minutes longer.
• This mode can be used for roasting meat and baking pastry.
• Place the tray on level 2.
• This setting makes use of the residual heat (heating is not on the whole time) to achieve low
energy consumption (in accordance with energy class EN 60350-1).
ECO
Bottom Heat + fan
• This is used for baking leavened but low-rising pastry and for preserving fruit and vegetables.
• Place the baking tray or oven rack on level 2.
Plate warming
• Use this function to reheat your dinnerware (plates, cups) before serving food in it to keep the
food warm longer.
ECO
Defrost
• With this function, the air circulates by means of the fan. Use this function to defrost frozen
dishes.
• Place the baking tray or oven rack on level 3.
ECO
Aqua clean
• Only the bottom heater will radiate heat. Use this function to remove stains and food
residues from the oven. The program takes 30 minutes.
USE

EN 15
Using the induction hob
Hob functions table
Function Key(s) to use Description
On/Off Press the On/Off key to switch the induction hob On or Off.
Timer Press a cooking zone selection key and set a power level. Then
again press the cooking zone selection key to activate the timer
function. The timer can be set separately for each cooking zone.
Cooking times of up to 99 minutes can be programmed.
The timer stops as soon as the pan is removed and resumes
when the pan is put back. The timer alarm beeps after the set
time has passed. The cooking zone automatically switches Off
when the set time has elapsed.
Power
boost
Select power level 9 and then press the plus (+) key to activate
the boost level.
For rapid cooking, power boost can be activated for any cooking
zone. This will allow you to rapidly heat large amounts of food
using extra power.
Lock Press the lock key to activating the safety lock function. The hob
is then protected against accidental activation and operation of
the cooking zones. This way the safety lock is also a function for
the protection of children.
Cooking-time limiter
The cooking-time limiter is a safety function of your cooking appliance. It will operate
if you forget to switch Off your hob. Depending on the setting you have chosen, the
cooking time will be limited as follows:
Power setting Hours elapse prior:
1, 2, 3, 4, 5, 6, 7 and 8 10 hours
9 3 hours
P 10 minutes
USE

EN 16
USE
Indications in the hob display
In display Status
Power setting cooking zone; 1 = low setting / 9 = high setting
Boost function active.
No (suitable) pan on cooking zone (pan detection symbol).
Bridge cooking zones are connected
Timer function selected
The power level available for the selected cooking zone has been exceeded.
Consult chapter ‘Power level setting’.
Residual heat indicator; The hob has a residual heat indicator for each cooking
zone to show those which are still hot. Although the hob is switched Off, the
indicator ‘H’ will remain on for as long as the cooking zone is hot!
Avoid touching them when this indicator is lit. Danger! Risk of burns.
Fault codes; See ‘Troubleshooting table’.
Induction noises
A ticking sound
This is caused by the capacity limiter on the left and right zones. Ticking can also occur at
lower settings.
Pans are making noise
Pans can make some noise during cooking. This is caused by the energy flowing from the hob
to the saucepan. At high settings this is perfectly normal for some pans. It will not damage either
the pans or the hob.
The fan is making noise
To enlarge the lifespan of the electronics, the appliance is equipped with a fan. If you use the
appliance intense, the fan is activated to cool down the appliance and you will hear a buzzing
sound. The fan runs on for several minutes after the hob has been switched Off.

EN 17
USE
Pans
• Always place a pan in the middle of a cooking zone.
• Induction cooking requires a particular quality of pan.
Pans that have already been used for cooking on a gas hob are no longer suitable
for use on an induction hob.
• Only use pans that are suitable for electric and induction cooking with:
▷a thick base (minimum 2.25 mm);
▷a flat base.
• The best are pans with the ‘Class Induction’ quality mark.
You can check for yourself whether your pans are suitable using a magnet. A pan is suitable
if the base of the pan is attracted by the magnet.
Suitable Unsuitable
Special stainless steel pans Earthenware
Class Induction Stainless steel
Hard-wearing enamelled pans Porcelain
Enamelled cast-iron pans Copper / Aluminium
Plastic
Be careful with enamelled sheet-steel pans! The enamel may chip (the enamel comes
loose from the steel), if you switch the hob on at a high setting when the pan is (too) dry;
the base of the pan may warp - due, for example, to overheating or to the use of too
high a power level.
Never use pans with a misshapen base. A hollow or rounded base can interfere with the
operation of the overheating protection, so that the appliance becomes too hot. This may lead to
the glass top cracking and the pan base melting. Damage arising from the use of unsuitable pans
or from boiling dry is excluded from the guarantee.
Minimum pan diameter
Cooking zone Minimum pan bottom diameter
Rear left Ø 110 mm
Front left Ø 110 mm
Rear right Ø 130 mm
Front right Ø 90 mm

EN 18
Pressure cookers
Induction cooking is very suitable for cooking in pressure cookers. The cooking zone reacts very
quickly, and so the pressure cooker is quickly up to pressure. As soon as you switch a cooking
zone Off, the cooking process stops immediately.
Power level setting
The power can be set to 9 different levels. The hob also has a ‘boost’ setting which is indicated
by a ‘P’ on the display. The table lists some examples of use for each level.
Level Purpose
0Switched Off, using the residual heat
1 - 2 Keeping the food warm, slow cooking of smaller amounts (lowest setting)
3Slow cooking (follow-up cooking after the initial power boost)
4 - 5 Slow cooking (follow-up cooking) of large amounts, pan-roasting of larger chunks
6Searing and browning
7 - 8 Searing
9Cooking of large amounts, searing
PPower boost setting for start of the cooking process; also suitable for very large
amounts of food
Power distribution cooking zones
• Maximum hob power available is depending on the power connection of the appliance.
Consult chapter Installation ‘Setting the maximum total hob power‘.
• When the power limiter is set at <7.4 then the cooking zones influence each other.
The power is automatically distributed when these cooking zones are used at the same
time. Depending on the power connection they cannot set on a high-power level at the
same time.
▷An acoustic signal and symbol ‘r’ on the display will indicate that the total power level
has been exceeded.
Pan detection
If the hob does not detect a (ferrous) pan after the cooking power has been set, the pan
detection symbol and the selected power setting will flash alternately in the display and the hob
will remain cold. If a (ferrous) pan is not placed on the cooking zone within 1 minute, the cooking
zone will automatically switch Off (see also chapter ‘Pans’).
USE

EN 19
OPERATION
Operating the oven
1. Turn the ‘oven function knob’ to select an oven function.
▷Consult the table in chapter ‘Oven functions table ‘to select the preferred function.
Also consult the instructions for preparation on the dish packaging.
2. Turn the ‘settings knob’ to set an oven temperature (between 30 and 275 ºC).
▷As long as the temperature indication is flashing you can change it using the settings knob.
▷When the temperature indication is not flashing then press the temperature key.
▷Temperature indication starts flashing again.
0 0
3. Press the ‘start/stop key’ for a few seconds to start the cooking process.
The oven thermostat symbol will light up.
0 0
If necessary, first preheat the oven before placing the recipe in the oven.
Timer
0 0
Setting the day time
1. Press the ‘timer key’ twice (oven function knob must be in de Off (0) position.
▷The clock symbol lights up and the time indication will flash on the display.
2. Turn the settings knob to set the current time.
▷The settings will be saved automatically after 5 seconds.

EN 20
Setting the ‘cooking time’
In this setting you can set how long the oven needs to operate (cooking time).
1. Select an oven function using the oven function knob and set the temperature with the
settings knob.
2. Press the ‘timer key’ to select the ‘cooking time’ function.
▷The pictogram for the ‘cooking time’ lights up.
3. Turn the ‘settings knob’ to set the preparation time.
▷The settings will be saved automatically after 5 seconds.
0 0
4. Press the ‘start/stop key’ for a few seconds to start the cooking process.
▷The elapsed preparation time will be displayed.
▷An acoustic signal will be heard which you may turn Off by pressing any key.
▷After one minute, the acoustic signal will be switched Off automatically.
Setting a cooking time and end time
1. Select an oven function using the ‘oven function knob’ and set the temperature.
2. Press the ‘timer key’ to select the ‘cooking time’ function.
▷The pictogram for the ‘cooking time’ lights up on the display.
3. Turn the ‘settings knob’ to set the cooking time.
4. Press the ‘timer key’ to save the set time.
5. Press the ‘timer key’ again twice.
▷The pictogram for the ‘end time’ lights up on the display.
6. Turn the ‘settings knob’ to set the end time.
0 0
OPERATION
