Asko D5896 XXL User manual

Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to
come. Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most from your new dishwasher, we recommend that you read the
operating instructions before using the dishwasher. The operating instructions
also include information on how you can help protect the environment.
Operating Instructions
Dishwasher
ASKO D5896 XXL

Contents
2Front panel
3Safety instructions
4Before washing for the first time
4Loading the dishwasher
7Using the dishwasher
11Settings
13Care and cleaning
15Troubleshooting
18Technical information
20Installation
24Service
25Program chart
26Your notes

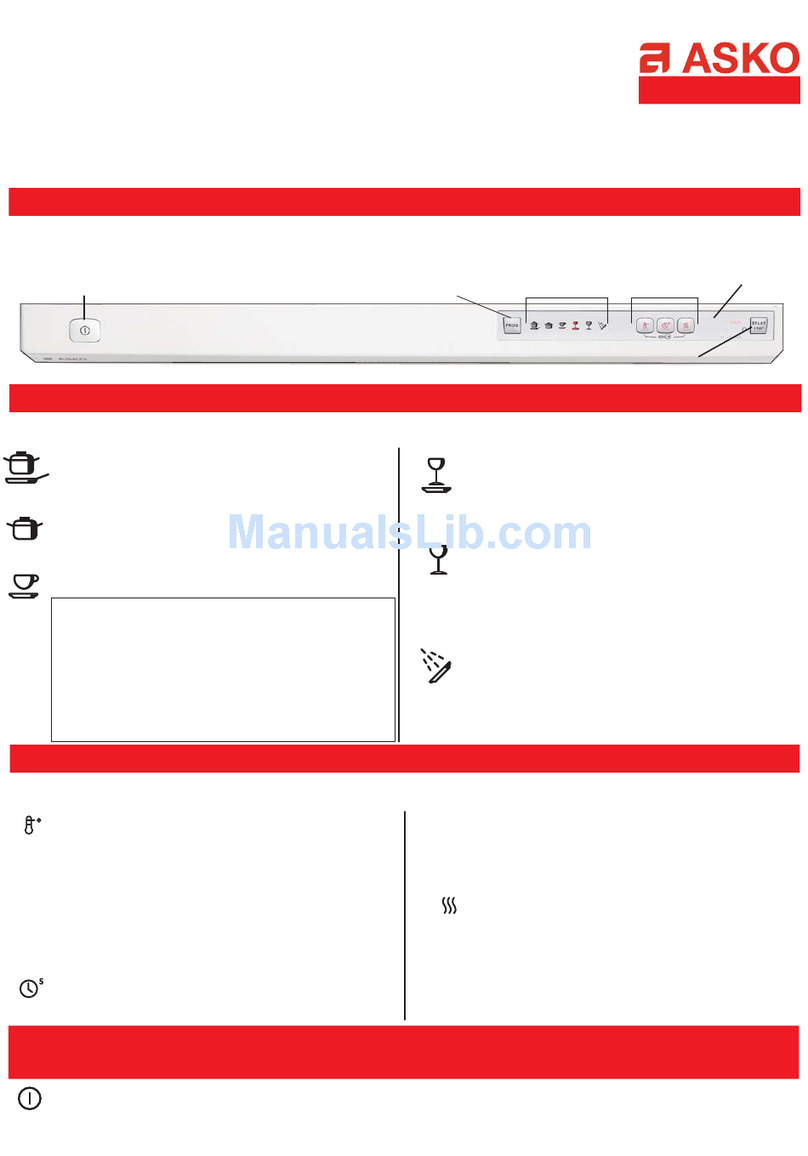

Front panel
To start the machine, press and hold the main power switch until the display lights up.
0:25
31 4 52 6 7
1 Navigation button <(left)
2 Navigation button >(right)
3 Option/Set (Option/Save setting)
4 Display
5 Rinse aid indicator
6 Start/Stop (Start/Stop)
The panel is fitted with touch buttons with audible feedback (see the chapter Settings).
2

Safety instructions
General
•Read the operating instructions and keep them in a safe place!
•Never use the dishwasher for any purpose other than that
specified in these operating instructions.
•Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
•Never leave the dishwasher door open as someone may trip
on it.
•Use only dishwasher detergent!
•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appli-
ance by a person responsible for their safety.
•Damaged mains cables must only be replaced by a qualified
electrician.
•This dishwasher is for household or similar use, such as:
- staff kitchens in shops, offices and other workplaces.
- farms.
- for guests at hotels, motels and other types of accommo-
dation.
- bed & breakfast hotels.
•Never place dishes with solvent residues in the dishwasher
due to the risk of explosion. Nor may dishes that contain ash,
wax or lubricants be washed in the dishwasher.
WARNING!
Knives and other pointed items must be placed with the points
down in the cutlery basket or horizontally in other baskets.
Installation
See the section Installation.
Child safety
•Always close the door and start the program immediately after
you have added the detergent.
•Keep children away from the dishwasher when the door is
open. Some detergent may remain inside!
•Do not allow children to use or play with the dishwasher. Be
especially vigilant when the door is open.
WARNING!
Dishwasher detergents are strongly alkaline. They can be ex-
tremely dangerous if swallowed. Avoid contact with skin and
eyes and keep children away from the dishwasher when the
door is open.
Check that the detergent compartment is empty after comple-
tion of the wash cycle.
Activate the child safety lock (Kid Lock™)
(only certain models)
A child safety lock is fitted to prevent children from opening the
dishwasher door. To activate the child safety lock, press in the
door latch and use a screwdriver to turn the screw slot (top left-
hand corner) to a vertical position. To open the door, you must
press the white plastic catch (illustrated below) to the left while
pressing the door latch up. Reset by turning the screw slot back
to a horizontal position.
Locked
Open
Activate child lock (Kid Safe™)
You can activate the child lock (button lock) to prevent children
from starting the dishwasher (see the section Settings).
Winter storage/Transport
•Store the dishwasher where the temperature remains above
freezing.
•Avoid long transport distances in very cold weather.
•Transport the dishwasher upright or laying on its back.
Overflow guard function
The overflow protection starts pumping out the machine and turns
off the water supply if the water level in the dishwasher exceeds
the normal level. If the overflow protection is triggered, turn off
the water supply and call the service division.
Cleaning
When cleaning the edge around the door, use only a slightly
damp cloth. Do not spray water around the edge! Moisture can
make its way into the lock, which contains electrical components.
Packing material
Sort waste materials in accordance with local guidelines.
Disposal
•When the dishwasher has reached the end of its service life
and is to be disposed of, it should immediately be made un-
usable. Pull out the power cable and cut it as short as possi-
ble.
•The dishwasher is manufactured and labelled for recycling.
•Contact your local authority for information about where and
how your dishwasher should be correctly recycled.
3

Before washing for the
first time
Program key
Some dishwashers include program keys in different languages.
Attach the program key in the desired language to the top of the
door.
Checking water hardness
Contact the local water utility to check the water hardness in your
area. This is important with regard to how much detergent and
rinse aid to use.

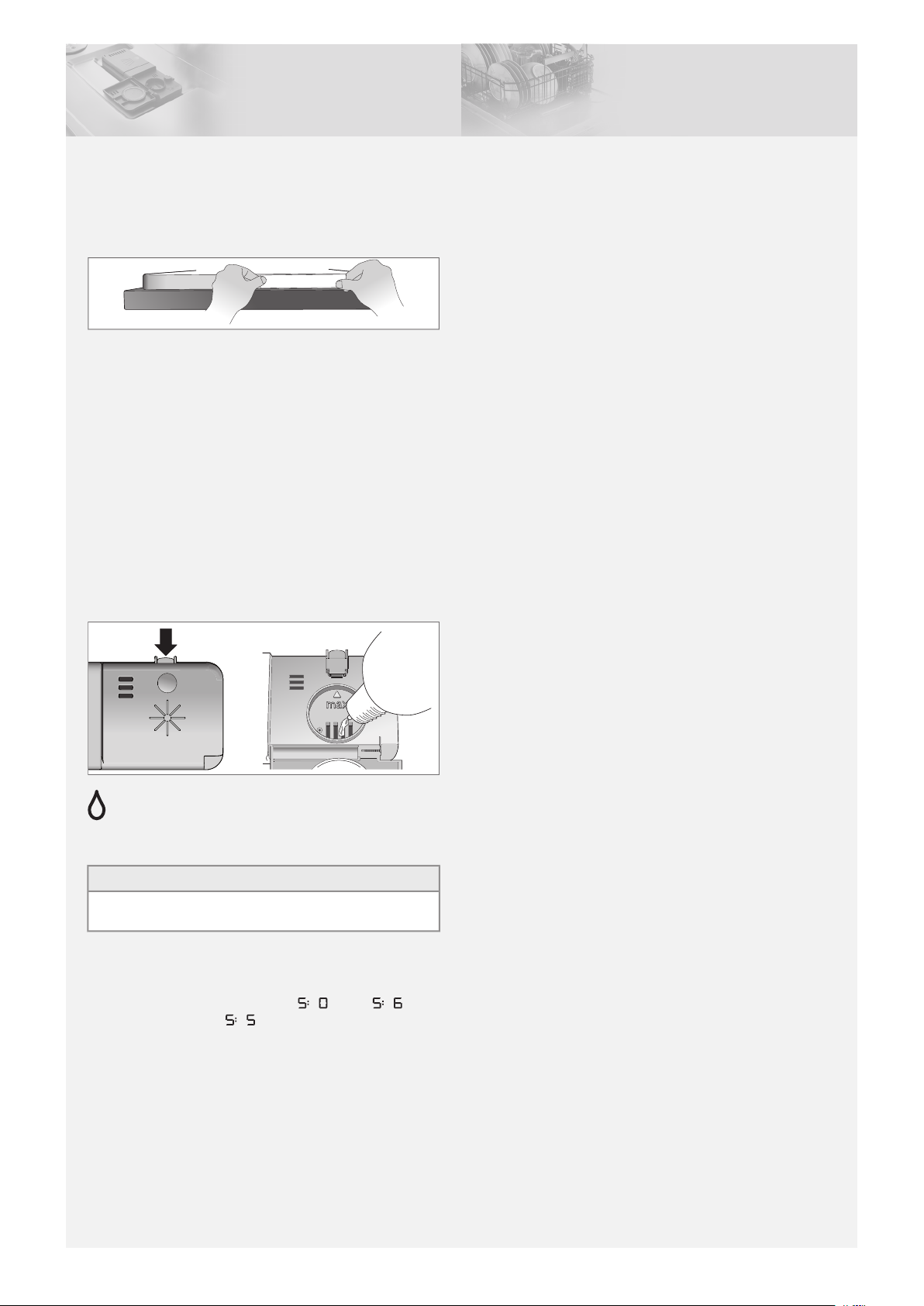

Top up with rinse aid
By using rinse aid you will improve your drying result. You will
also achieve a better dishwashing result with glassware and
dishes.
1 Open the rinse aid compartment lid.
2 Carefully top up with rinse aid. Only add rinse aid to the level
marked max.
3 Wipe up any splashes of rinse aid around the compartment.
4 Close the lid firmly.
Refill rinse aid indicator
When the rinse aid needs topping up, the above symbol lights
on the display.
NOTE!
After topping up, it may take a while before the symbol goes
out.
Setting the rinse aid dosage
The section Settings describes how to set the rinse aid dosage.
Rinse aid dispensing can be set from (Off) to (High
dose). (Factory settings: )
Increase the rinse aid dosage:
•If the dishes have water marks.
Decrease the rinse aid dosage:
•If the dishes have a sticky white/blue film.
•If the dishes are streaked.
•Build-up of foam. If you have very soft water, the rinse aid can
be diluted 50:50 with water.
For water with a hardness greater than 10–12 °dH, you ought to
use rinse aid with citric acid (known as acid rinse aid).
Loading the dishwasher
Economic dishwashing
Run programs only with a full load
Wait to run a program until the dishwasher is full. This way you
save energy. Use the Rinse program to rinse the dishes if there
are any unpleasant odours while you wait for the dishwasher to
become fully loaded.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with
a low temperature.
Select a program with the option Drying: Short
To save energy, use Drying: Short. The drying result will be better
if, once the program is finished, you leave the door slightly open.
Do not rinse under running water
Simply scrape off large food particles before loading the dish-
washer.
Choose a green detergent
Read the environmental declaration on the packaging!
Connect to cold water...
If you use oil or electricity to heat your home.
Connect to hot water (max. 70 °C)...
If you use district heating, solar power or geothermal power to
heat your home. Choosing a hot water connection cuts program
times and reduces the dishwasher's electricity consumption.
Fragile dishes
Some cookware is not dishwasher safe. This can be for several
reasons. Some materials cannot withstand strong heat, others
can be damaged by dishwashing detergent.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel
rough) should not be washed in a dishwasher.
Crystal/Glass
Place items so that they do not touch each other during the wash.
Use a short program with the lowest possible wash temperature.
Select Drying: Short. Delicate and very fragile items should not
be washed in a dishwasher.
Glassware washed in a dishwasher at high temperatures can
gradually develop a grey film that cannot be removed. Wash fine
glassware at a low temperature and with a small amount of deter-
gent.
Silver
Silver and stainless steel items should not come into contact, as
the silver can become discoloured.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the
handles may loosen.
Wood
Wooden items should only be washed in a dishwasher if marked
dishwasher safe.
Aluminium
Aluminium can lose its shine if washed in a dishwasher. However,
good quality aluminium pans can be washed in a dishwasher,
even if some of the shine will be lost.
Plastic items
Avoid washing plastic items that cannot withstand high tempera-
tures.
4

Your machine is equipped with a turbo drying function (Turbo
Drying Express+™), which improves the drying of plastic objects
and other items.
NOTE!
Plastic items should not be placed in the circled area of the
lower basket as they can be damaged by the heat.
The dishwasher's baskets
The dishwasher is equipped with a top cutlery tray, an upper
basket, a middle basket and a lower basket with cutlery basket.
The appearance of the baskets may differ depending on the
dishwasher setup.
Top cutlery tray
The top cutlery tray has space for cutlery, ladles, whisks, serving
cutlery and similar items.
Raising the top cutlery tray
1 Pull out the top cutlery tray.
2 Pull the two locking handles on either side forward to raise
the top cutlery tray.
Lowering the top cutlery tray
1 Make sure the upper basket is in the lowest position.
2 Pull out the top cutlery tray.
3 Slide the two locking handles on either side downwards and
backwards to lower the top cutlery tray.
Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper
basket. All dirty surfaces should face inwards and downwards!
Wine glasses are placed on the wine glass shelf and knives are
placed in the knife stand on the right (if fitted).
Foldable tines
The foldable tines can be folded up or down to make it easier to
load pots, bowls and glasses. Release the foldable tines by
pressing the catch inwards before adjusting their position.
Raising the upper basket
1 Pull out the upper basket.
2 Grab the sides of the upper basket with both hands and lift it
up.
Lowering the upper basket
1 Pull out the upper basket.
2 Pull out the two locking handles on either side to lower the
upper basket.
5

Middle basket
The middle basket's wire basket with spray pipes is suitable for
low objects. The middle basket's utensils basket has space for
ladles, whisks, serving cutlery and similar items.
Wire basket
Utensils basket
Washing larger items
The two baskets in the middle basket can be removed, or the
entire middle basket can be removed to create more space be-
tween the upper and lower baskets if larger items are being
washed.
Lower basket
Place plates, side plates, serving dishes, pots and cutlery (in the
cutlery basket) in the lower basket.
Place pots and pans in the rear right part of the lower basket to
achieve the best dishwashing results from the rear of the two
spray nozzles (WideSpray™), which are intended for these types
of dishes.
Foldable tines
Lower the foldable tines (plate supports) when washing pots and
pans. Release the foldable tines by pressing the catch inwards
before adjusting their position. In the right-hand rear part of the
lower basket, half the foldable tines can be lowered for washing
stoneware or a deep pan, for example.
Vase and bottle holder
Wine glass shelf

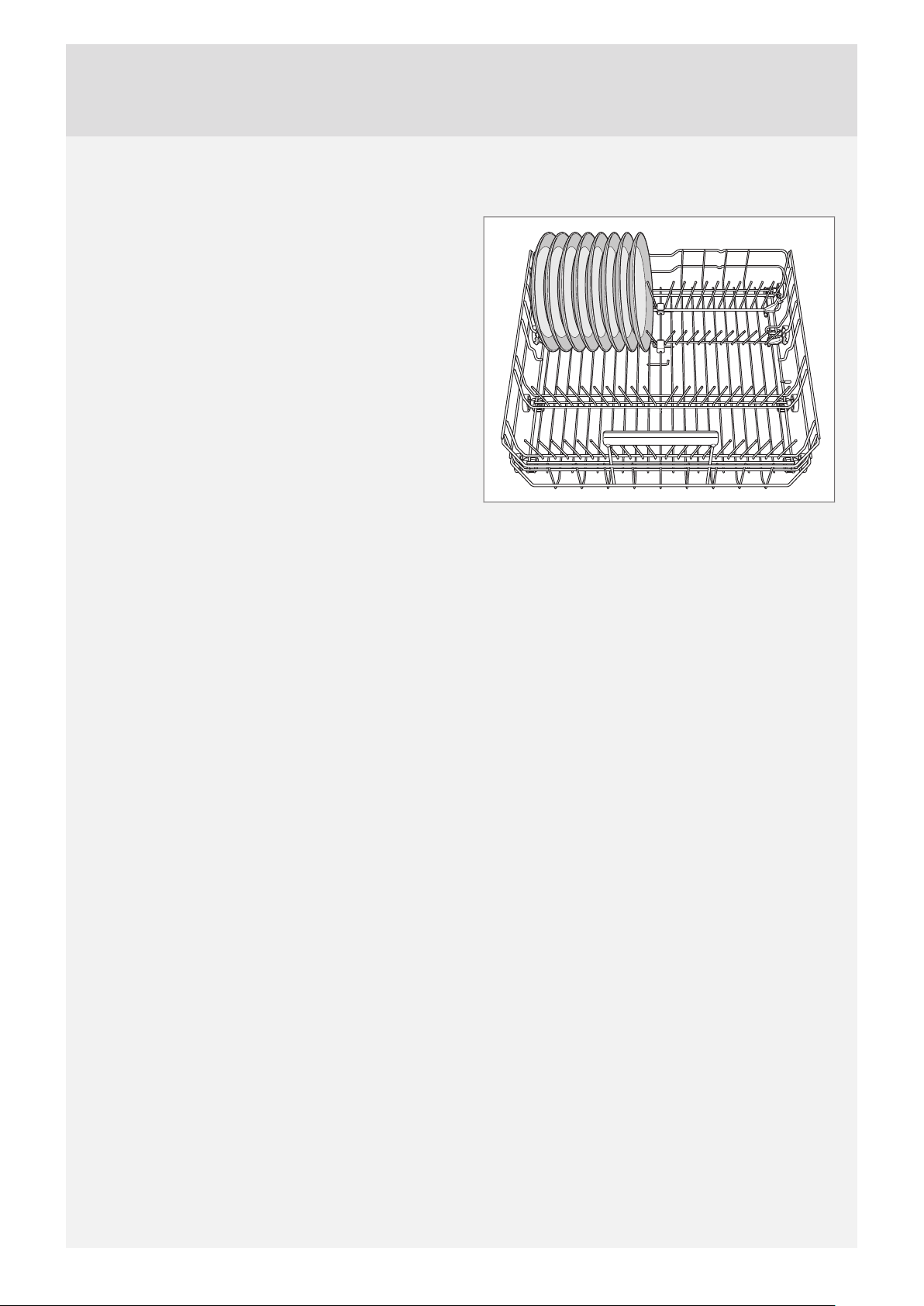

Washing large plates
Move the foldable tines and their mounts to widen the distance
between the tine rows to adapt the lower basket to plates with a
diameter greater than 25 cm.
Cutlery basket
Place cutlery with the handles facing down, except for knives,
and spread them out as much as possible. Ensure that spoons
do not stack inside each other.
The cutlery basket is best placed in the middle at the front of the
lower basket to best utilise dishwashing performance from the
unique spray nozzle (Power Zone Cutlery™), which is intended
for the cutlery basket.
WARNING!
Knives and other pointed items must be placed with the points
down in the cutlery basket or horizontally in other baskets.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small
items, or small shafts, such as electric whisk attachments.
ac
b
6

Cutlery basket with lid
ac
b
Positioning of cutlery basket lid (in upper basket)
The cutlery basket lid can be removed and used, for example,
as an extra cutlery basket in the upper basket (see below).
ab
NOTE!
Check that the spray arms can rotate freely.
Using the dishwasher
Add detergent
1 Prewash detergent compartment
2 Main wash detergent compartment
Detergent is added according to water hardness.
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and
also entails greater environmental impact.
Add the detergent to the detergent compartment. There is a
compartment for the prewash and one for the main wash. If
powder and liquid dishwasher detergents are used, add a small
amount of the detergent to the prewash compartment. Contact
the detergent manufacturer if you have any questions about the
detergent.
WARNING!
Children must be supervised –dishwasher detergent is corro-
sive!
NOTE!
Use only dishwasher detergent! Washing up liquid must not
be used as the foam that forms prevents the dishwasher from
operating effectively.
Dishwasher tablets
Halve the tablet if it is difficult to close the dispenser lid. There is
a risk that the detergent will not be released properly if the lid is
tight and will not open correctly.
NOTE!
Dishwasher tablets are not recommended for short programs
(less than 75 minutes). Use powder or liquid dishwasher deter-
gent instead.
3–in–1/All-in-one detergent
Read through the directions for these products carefully. If any-
thing is unclear, contact the detergent manufacturer.
Main power switch
Press and hold the main power switch until the display lights up.
7

Program selection
Press the navigation button <or >until the desired program ap-
pears on the display.
Auto wash
The dishwasher can measure how dirty the dishes are and adjust
water consumption and temperature accordingly. When newly
installed, the program needs to be run five times before it is fully
adapted and can provide the best results.
Time program
The program adapts to the specified running time or finish time.
With this program it is important to choose a time suited to how
dirty the dishes are.
Slightly dirty dishes0:15-0:45
Normally dirty dishes1:00-1:30
Very dirty dishes2:00-2:30
Heavy wash
Program for very dirty dishes, such as pans, casserole dishes
and oven dishes. If these dishes do not completely fill the dish-
washer, you can add plates and the like.
Normal
Use to wash normally soiled load, such as plates, serving dishes,
cups, glasses and so on.
Daily wash
A program suitable for day-to-day dishwashing. This program
can also clean dried leftovers, but is not intended for burnt food,
such as on oven dishes.
Eco wash
Use when you want to save water. For normally dirty dishes.
Quick wash
This program is used for glasses and porcelain that is slightly
dirty, such as coffee cups.
Plastic wash
A program intended for washing plastic items that are dishwasher
safe. This program has an extra long drying cycle. Porcelain and
glasses can also be washed.
Delicate wash
If the dishes are not very dirty, you can select Delicate wash. This
program is intended for glasses and porcelain that have just been
used and as such do not require such a powerful program.
This program can be used for delicate dishes. Select Drying:
Short if you want to be especially cautious. See also the section
Fragile dishes in Chapter Loading the dishwasher.
Lower half wash
You can use this program when you only want to wash plates
and cutlery in the lower basket. Slightly dirty dishes can also be
placed in the upper basket.
Upper half wash
You can use this program if you only have cups and glasses that
need washing in the upper basket. Slightly dirty dishes can also
be placed in the lower basket.
Hygiene wash
This program is designed to meet strict hygiene demands.
Crockery warming
Used to warm plates. See below for how to place the plates.
Rinse
Used to rinse dishes while you wait for the dishwasher to become
fully loaded.
8

Selecting Options
Press Option/Set and then the navigation button <or >to select
an option. Confirm your selection by pressing Option/Set.
The available options depend on the selected program. (Exit the
menu by pressing the navigation button <or >until Exit? appears
on the display. Confirm your selection by pressing Option/Set.)
Drying: Short/Long
A higher temperature in the final rinse and a longer drying phase
improves the drying result if you activate this option. This slightly
increases the energy consumption. When you start a program,
the option selected is saved for the next time you turn on the
dishwasher. To save energy, select Drying: Short.
This option can be selected in the following programs: Heavy
wash, Daily wash, Eco wash, Normal, Quick wash, Lower half
wash, Upper half wash, Hygiene wash.
Set time (Time program)
You can choose a program time between 15 minutes and 2 hours
30 minutes.
Time saver: On/Off
This option shortens the program time, but uses more energy
and water.
This option can be selected in the following programs: Heavy
wash, Upper half wash, Lower half wash.
Delayed start: 1-24 hours
When you select Delayed start, the dishwasher will start 1–24
hours after you press the Start/Stop button.
1 Press the navigation button <or >to set the desired number
of hours.
2 Press Start/Stop and the dishwasher counts down 1 hour at
a time and starts after the selected delay.
Press and hold Start/Stop for three seconds if you want to cancel
the Delayed start option.
Start the dishwasher
Press and hold Start/Stop until the display shows “Program
started”. This indicates that the dishwasher is ready to start. Close
the door properly, or the dishwasher will not start.
NOTE!
If the machine does not start within 2 minutes of the last button
press, the display returns to showing the last program run.
Time remaining
Once you have selected a program and options, the display indi-
cates how long the program took the last time it was used.
This may differ somewhat from time to time depending on the
temperature of the water supply, the amount of dishes, the ambi-
ent temperature and other factors.
NOTE!
During the first run of each program, the remaining time dis-
played can be slightly misleading, as the dishwasher is estimat-
ing the time. When you run the program a second time, the
dishwasher will calculate the remaining time based on the
previous duration of the program.
Status light™
The status light at the bottom on the dishwasher provides infor-
mation by means of 3 different colours.
Status light
Blue
Load more. The program has started, but you can still load more
dishes.
Red
Do not load. You should not load more dishes (risk of poorer
dishwashing result).
Green
Unload. The dishwashing program is finished. Standby light for
60 minutes.
Stopping or changing a program
If you want to change program after starting the dishwasher,
open the door then press and hold Start/Stop for three seconds.
Add more detergent if the lid of the detergent dispenser has
opened. Then choose a new program, press Start/Stop and close
the door.
Do you want to add more dishes?
Open the door. The dishwasher stops automatically. Add the
dishes, close the door and the dishwasher continues the program.
If the dishwasher is turned off using
the main power switch or due to a
power failure
If the dishwashing program was not finished, the interrupted
program continues when power is restored.
NOTE!
During drying, the program is interrupted if the power is cut or
the door is open for more than 2 minutes.
9

Once the program has finished
Once the program has finished and the door is opened "END"
appears on the display.
At the end of the program, you will hear a short beep. Chapter
Settings describes how to change this function.
A status light also indicates the end of the program. See the
section Status light™in the chapter Using the dishwasher.
The dishwasher switches off when the door is opened. If the door
does not open within 60 minutes, the dishwasher will switch off
automatically. Shut off the water tap after every use.
Drying
For additional drying the door should be opened 35 mm upon
completion of the drying cycle. For more information, see page
18 in the chapter Technical information.
10

Settings
1. Function Menu
Open the Function Menu:
DescriptionButton press
Turn off the machine.
Open the door.
Press and hold the main power switch until the display lights up.
1.
Within 20 seconds;
- press the navigation button >(right), 5 times.
- press the button Option/Set, 5 times.
x 5
2.
x 5
The display shows Function Menu. Confirm your selection by pressing Option/Set.3.
(Exit the menu by pressing the navigation button <or >until Exit? appears on the display. Confirm your
selection by pressing Option/Set.)
Navigate the Function Menu:
DescriptionButton press
Press the navigation button <or >to select from among the settings.
Press Option/Set to save the setting and continue to the next menu stage.
(Exit the menu by pressing the navigation button <or >until Exit? appears on the display. Confirm your
selection by pressing Option/Set.)
11

You can change the following settings in the Function Menu:
OptionsSettings
You can choose the language used for the display.English/Svenska/Dansk/Norsk/
Suomi/Français/Deutsch/Italiano/
Español/Nederlands/Русский
1. Language
You can activate the child lock (button lock) to prevent chil-
dren from starting the dishwasher.
On/Off2. Child lock
To temporarily deactivate and activate the childproof lock,
press and hold in the button Option/Set for five seconds. (The
childproof lock activates automatically again after two min-
utes.)
Temperatures can be displayed in °C (Celsius) or °F
(Fahrenheit).
Celsius/Fahrenheit3. Temperature unit
The dishwasher uses a buzzer to indicate when a program is
finished or when a fault has occurred.
Off/Low/Mid/High4. Signal volume
This sound is used to confirm each button press.Off/Low/Mid/High5. Button volume
For adjusting the contrast in the displays.1/2/3/46. LCD contrast
Rinse aid dosage setting.1/2/3/4/5/07. Rinse aid
Adjusting the water softener. Read off the appropriate setting
from the water hardness table below.
°dH
0-5
6-8
9-11
12-14
15-19
20-24
25-29
30-39
40-49
50+
0-9
10-14
15-20
21-25
26-34
35-43
44-52
53-70
71-88
89+
°fH °dH °fH
0-98. Water hardness
Super rinse adds two extra rinses.On/Off9. Super rinse
Is activated in the following programs: Eco wash, Heavy wash,
Plastic wash, Delicate wash, Lower half wash, Upper half
wash, Hygiene wash.
You can activate this setting when using 3-in-1/All-in-one de-
tergent. The dishwashing programs automatically adapt to
provide the best possible dishwashing and drying results
every time. If this setting is activated, there is no need to add
rinse aid since this option disables rinse aid dispensing.
On/Off10. Tab 3-in-1
NOTE!
In order to achieve good dishwashing results, it is essential
to check which type of detergent or all-in-one product best
suits your needs! Read the detergent packaging carefully
for information on proper use. Always follow the directions
for use or information on the detergent packaging!
Programs can be shown or hidden in the menu. Choose be-
tween On and Off.
Auto wash / Time program / Heavy wash
/ Daily wash / Eco wash / Normal / Quick
wash / Plastic wash / Delicate wash /
Lower half wash / Upper half wash / Hy-
giene wash / Crockery warming / Rinse
11. Select programs
If all programs are set at Off, the program Eco wash will be
shown on the display.
12

Care and cleaning
Coarse filter
The coarse filter traps larger food particles, which cannot get
past the drainage pump. Empty the coarse filter as necessary.
1 Lift the coarse filter by the handle.
2 Empty the coarse filter. Remember to replace it!
Coarse filter
Fine filter
Debris that collects on the fine filter is automatically rinsed away
during each wash. However, the fine filter and its pipe section
should be cleaned a couple of times a year.
1 Turn the handle anticlockwise once.
1x
Fine filter
2Lift the pipe section straight up by the handle. Free the coarse
filter to clean the pipe section.
3 Remove and clean the fine filter.
4 Replace in reverse order. Check that the edges seal properly
when replacing the fine filter.
Pipe section
5 Lock the filter in place by turning the handle clockwise to the
stop position. The handle should point straight out from the
dishwasher.
1x
NOTE!
The dishwasher must not be used without the filter in place!
Diswashing efficiency can be affected if the course filter is in-
correctly fitted. After cleaning ensure that filter handle is fully
locked with the handle pointing out of the dishwasher.
Drainage pump
The pump can be accessed from inside the dishwasher.
1 Cut the power to the dishwasher by pulling out the plug from
the wall socket!
2 Remove the coarse filter and pipe section.
3 Remove the small yellow fitted piece at the left of the bottom
drain (see illustration below).
4 By inserting your finger into the hole you can turn the pump
blade to release anything blocking it.
5 Reinstall the fitted piece and filters.
6 Plug the machine in again.
If the dishwasher still does not start and a whirring sound is
heard, the overflow protection has been activated.
•Shut off the water.
•Remove the plug from the wall socket.
•Call the service division.
NOTE!
Do not forget to reinstall the fitted piece.

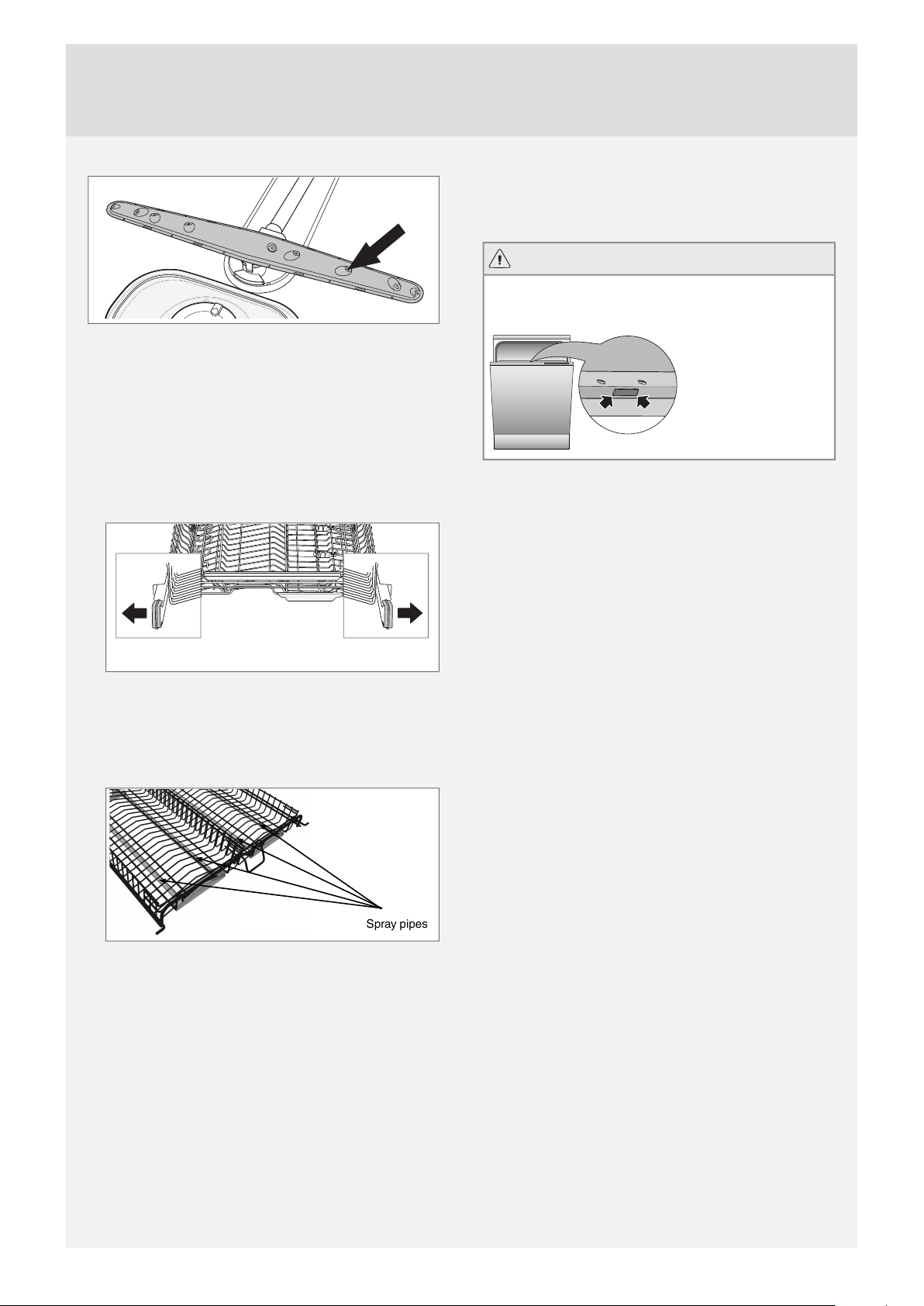

Spray arms and spray zones
Holes and bearings can sometimes become blocked. Remove
any debris using a pin or something similar. The spray arms also
have holes on their undersides.
To facilitate cleaning, you can remove the spray arms. Remember
to screw them firmly back into place afterwards.
13

Lower spray arm
•Pull the lower spray arm straight up to release it.
Upper spray arm
•Pull out the upper basket.
•Unscrew the spray arm bearings counterclockwise to remove
the spray arm from the upper basket.
Top spray arm
•The upper basket must be removed before the top spray arm
can be released. Pull out the upper basket and turn the basket
catch on each runner outwards (see illustration). The basket
can now be removed.
•Pull out the top cutlery tray. Press the top spray arm up and
unscrew the spray arm bearings counter-clockwise to remove
the spray arm.
The middle basket's spray zones
•Pull out the middle basket.
•Check the holes in the spray zones.
Spray pipes
Door
When cleaning the edge around the door, use only a slightly
damp cloth (with a little cleaner if necessary).
WARNING!
Do not use a spray bottle or the like around the door lock. This
is to ensure that water does not penetrate the door catch and
come into contact with the electrical components.
Limescale deposits
The dishwasher tub is made of stainless steel and is kept clean
through normal use. However, if you have hard water, limescale
deposits may form in the dishwasher. If this happens, run the
Heavy wash program with two tablespoons of citric acid in the
detergent compartment (with no dishes in the machine).
Front panel
Keep the touch buttons clean and free from grease. Wipe them
clean with a dry or slightly damp cloth. Never use cleaners –they
can scratch the surface. Use the On/Left-on mode button to turn
off the dishwasher before cleaning the touch buttons to avoid
activating any buttons unintentionally.
14

Troubleshooting
ActionType of fault on the
display
Front display
Clear the drainage pump. See the section Care and cleaning. If the problem persists, call
the service department.
Overfilling 1F10
See “Water remains in the dishwasher”in the table “Problem”below. If the problem persists,
call the service department.
Water outlet faultF11
Check whether dishwasher inlet hose is connected to a pressure limiting valve (some
pressure limiting valves may restrict the supply of water to the dishwasher).
Water inlet faultF12
Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked.
If the problem persists, call the service department.
Turn off the water tap and call the service division.Inlet valve leakageF40
Check plugs/fuses. If the problem persists, cut the power using the building’s main power
switch and call the service department.
Temp. stop fault 3F41
Call the service division.Thermistor fault 1F42
Call the service division.Pressure sensor fault
1
F43
Call the service division.Temp. stop fault 1F49
Check plugs/fuses. If the problem persists, cut the power using the building’s main power
switch and call the service department.
Temp. stop fault 4F51
Turn off the water tap and call the service division.Overfilling 2F54
(UIC is an abbreviation of "User Interface Control"). Call the service department.Communication fault
UIC
F58
(UIC is an abbreviation of "User Interface Control"). Call the service department.Version UIC faultF59
Call the service division.Unknown faultF60
Press any button to clear the error message.
ActionPossible causesProblem
Remove the arms and clean them.The spray arms do not rotate.The dishes are not clean.
Check that the dishes are not blocking the
spray arms.
Avoid large packages.Old detergent. Detergent is a perishable
product.
Dose according to water hardness. Far too
much or far too little detergent results in
poorer dishwashing results.
Incorrect detergent dosage.
Select a more powerful program.Dishwashing program too weak.
Do not cover porcelain with large bowls or
the like. Avoid placing very tall glasses in the
corners of the baskets.
Dishes loaded incorrectly.
Place dishes to sit steady.Glasses and cups have toppled over during
the program.
Screw the filter firmly into place. See the
section Care and cleaning.
The filter is not correctly fitted.
15

ActionPossible causesProblem
See the sections Before washing for the first
time and Settings.
Incorrect rinse aid dosage setting.Spots or films on the dishes.
Wash crystal at a low temperature and with
a conservative amount of detergent. Contact
the detergent manufacturer.
Too high temperature and/or too much deter-
gent can cause etching on crystal. Unfortu-
nately, this cannot be repaired, only prevent-
ed.
Reduce the amount. See the sections Before
washing for the first time and Settings. If you
have very soft water, you may want to dilute
the rinse aid 50:50 with water.
Rinse aid dosage setting too high.The dishes have a sticky white/blue film.
Rinse off these types of foodstuffs if not
starting the dishwasher immediately. Why
not use the Rinse program.
Some foodstuffs, such as mustard, mayon-
naise, lemon, vinegar, salt and dressings,
can mark stainless steel if left for too long.
Spots on stainless steel or silver.
Silver and stainless steel items should not
come into contact during dishwashing.
All stainless steel can cause spots on silver
if they come into contact during dishwashing.
Aluminium can also cause spots on dishes.
Use a detergent with a bleaching agent.Lipstick and tea can be difficult to wash off.Spots left after washing.
Check that the dishes are placed securely.
Spin the spray arms to make sure they can
rotate.
The dishes are not correctly placed or the
spray arms are not rotating.
Rattling sound when dishwashing.
Press and hold Start/Stop until the display
shows "Program started".
The Start/Stop start button has not been
pressed for long enough.
The dishwasher does not start.
Check.The door is not properly closed.
Check.A fuse/circuit breaker has been tripped.
Check.The plug is not plugged into the wall socket.
Check.The water tap is turned off.
Check.Overflow/leaks
Turn off the water tap. Pull out the plug and
call the service division.
A whirring sound (the drainage pump) is
heard from the dishwasher and does not stop
when the main power switch is turned off.
Press and hold Start/Stop for three seconds
if you want to cancel the Delayed start option.
Check that the Delayed start option has not
been selected.
Loosen the drainage hose where it connects
to the sink unit's water trap. Check that no
debris has fastened. Is the cone-shaped part
of the pipe cut to an inner diameter of at least
14 mm?
Blocked drainage hose.Water remains in the dishwasher.
Check that the hose is free from kinks and
sharp bends.
Kink in drainage hose.
Clean the coarse and fine filters.The filters are blocked.
Ensure filter is completely locked with handle
pointing towards the door.
The filter is not locked in completely.
Clean the drainage pump. See the section
Care and cleaning.
Debris in the drainage pump.
16

ActionPossible causesProblem
Clean with washing-up brush and low foam-
ing cleaner.
Dirt around the seals and in corners.Bad odour in dishwasher.
Run a program with a higher temperature
about once a month.
Low temperature programs have been select-
ed for a prolonged period.
Activate the Drying: Long option.Drying power too low.The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully loaded.
Top up with rinse aid or increase the rinse
aid dosage. See the sections Before washing
for the first time and Settings.
Rinse aid needs topping up or dosage is set
too low.
Open the door a little once the program has
finished.
Check that the baskets are correctly posi-
tioned horizontally, and that the middle bas-
ket's water connector is in line with its spray
pipe.
The baskets are not correctly positioned.Cannot close door.
Check that the dishes are not blocking the
baskets from sliding properly into place.
Wait a moment then try again.You have pressed the touch buttons too soon
after opening the door.
The touch buttons do not react when
pressed.
Clean with a dry or slightly damp cloth.Dirt on the touch buttons.
Open the door. The touch buttons only react
to use when the door is open.
The door is closed.
See the section Settings.Child lock (button lock) activated.
17

Technical information
Information for test institute
Energy labelling
AS/NZS 2007Australian standard:
16Number of place settings:
Normal, Drying: ShortDishwashing programs:
The door should be opened upon completion of the drying cycle a distance of 35 mm at V.
V
2:40 hours:minutesProgram time:
Cold water 20 °CConnection:
IEC 60704-2-3Test method for noise measurement:
Dosages during testing
In accordance with AS/NZS 2007Detergent:
In accordance with AS/NZS 2007Rinse aid:
5Rinse aid dosage:
Loading the dishwasher
Remove the wine glass shelf from the lower basket.
Make sure the upper basket is in the lowest position. See the
section Upper basket in the chapter Loading the dishwasher.
18

1 Teaspoons
2 Dessertspoons
3 Soupspoons
4 Forks
5 Knives
1
5
4
3
1
1
4
2
Remove the top cutlery tray.
Technical data
857-912 mmHeight:
596 mmWidth:
559 mmDepth:
50 kg1) Weight:
16 Place settings2) Capacity:
0.03–1.0 MPaWater pressure:
0.3–10 kp/cm2
3–100 N/cm2
See type plate.Electrical connection:
See type plate.Rated power:
1) Weight can vary due to different specifications.
2) In accordance with standard, AS/NZS 2007.
19

Installation
519
30
710
49
740
596
717
30 - 94
133-183
861*-912
9
559
1238
[mm]
*Remove locking nuts for an installed height of 860-861 mm.
Safety instructions
•Connections to electricity, water and drainage must be per-
formed by a qualified professional.
•Always follow applicable regulations for water, drainage and
electricity.
•An incorrect or flawed installation can result in higher consump-
tion of energy, water and detergent, which can result in in-
creased costs and poor dishwashing results. In order to min-
imise noise it is important that you follow the instructions.
•Take care during installation! Wear protective gloves! There
must always be two people!
•Before screwing the dishwasher into place, test the dishwasher
by running the Rinse program. Check that the dishwasher fills
with water and drains. Check also that none of the connections
leak.
WARNING!
The ventilation opening in the lower part of the door must not
be blocked by a rug, carpet or similar furnishing.
WARNING!
Turn off the water supply when installing the dishwasher!
WARNING!
The plug must be disconnected or power to the socket turned
off while the work is carried out!
Transport protection for the door
Do not forget to remove the transport protection for the door when
unpacking the dishwasher.
2x
20
