Asko T884XLHPW User manual
Operating Instructions
Tumble dryer
T884XL
WARNING: Read the instructions before using the machine.
Dear Customer,
Thank you for choosing this quality product from ASKO. We hope it will
Scandinavian design combines clean lines, everyday functionality and high
quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most out of your new machine, we recommend that you read the
operating instructions before using the machine.The operating instructions
also include information on how you can help protect the environment.
2
Customer Care Center, 1-800-898-1879, www.askona.com
Original instruction
CONTENTS
SAFETY INSTRUCTIONS 3
Grounding instructions 3
Installation 4
Packing material 4
Recycling 4
Child safety 4
child-safe start 4
Activating/deactivating Child-safe start 4
To deactivate child-safe start temporarily: 4
DESCRIPTION OF THE TUMBLE DRYER 5
DRY 6
Have the clothes been spun? 6
Materials that can be tumble-dried 6
Materials that must not be tumble-dried 6
Static electricity 6
TUMBLE DRYING 7
Sort your fabrics 7
Select the programme 7
Selecting Options 8
Press the start button 8
Programme chart 9
SETTINGS 10
You can alter the following settings: 10
Language 10
KidSafe™ Child-safe 10
CARE AND CLEANING 11
TROUBLESHOOTING 12
The machine will not start 12
The machine loses all power during a program 12
Drying takes too long 12
Error messages 12
TECHNICAL INFORAMTION 13
SERVICE AND GUARANTEE 14
Limited Warranty – Residential Appliances 14
Items excluded from warranty 14
Dislcaimer of implied warranties 14
Before contacting the Customer Care Center 15
INSTALLATION 16
Installation 16
Electrical installation 16
Connection on delivery 16
Switch-over 16
Positioning the tumble dryer 16
Air exhaust 18
Electrical installation 19
REVERSING THE DOOR 22
QUICK GUIDE 24
3
Customer Care Center, 1-800-898-1879, www.askona.com
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
WARNING!
or injury to persons when using your appliance, follow
basic precautions, including the following:
Read all instructions before using the appliance.
Do not wash or dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with gaso-
-
that could ignite or explode.
Do not allow children to play on or in the appliance.
Children should be closely supervised when near the
appliance.
Before the appliance is removed from service or dis-
carded, remove the door to the drying compartment.
Do not reach into the appliance if the drum is moving.
Do not install or store this appliance where it will be
exposed to the weather.
Do not tamper with controls.
Do not attempt to repair or replace any part of the
recommended in this guide.
Do not use fabric softeners or dryer sheets unless the
manufacturer gives written assurance that the product
will not damage a tumble dryer.
Do not heat dry items containing vinyl, plastic, foam
-
glass, or wool unless the label
Keep the area around the exhaust opening and adja-
cent surrounding areas free from the accumulation of
lint, dust and dirt.
The interior of the machine should be cleaned periodi-
cally by an authorized ASKO service agent.
Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may con-
tribute to a chemical reaction that could cause a load
Electrical installation, if required, must be done by a
licensed electrician.
Do not operate appliance while away from the home.
Do not heat dry items that have been dry-cleaned.
The dryer is made and marked to facilitate recycling.
When it is no longer useful, contact your local refuse
collection service for advice on how to properly dis-
pose of the dryer for purposes of recycling.
Damaged power cables should only be replaced by a
fuels can be drawn into the room.
CAUTION! HOT SURFACE!
During the program, the back of the dryer will get very
hot. Let the machine cool completely before touching
the back.
WARNING!
This appliance must be properly grounded.
GROUNDING INSTRUCTIONS
A) Grounding instructions for a grounded, cord-
connected appliance
In the event of malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path
of least resistance for electric current. This appliance
(Canadian market only) is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all
local codes and ordinances.
WARNING!
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
or personnel if you are in doubt as to whether the
appliance is properly grounded. Do not modify the plug
provided with the appliance (Canadian market only). If
exhausted outdoors or the equivalent. Do not exhaust
into a chimney, wall, ceiling or concealed space in a
building.
B) Grounding instructions for a permanently
connected appliance:
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead
on the appliance.
NOTE!
This manual does not cover every possible condition
and situation that may occur. Use common sense and
caution when installing, operating, and maintaining any
appliance.
4
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
See the separate installation instructions.
PACKING MATERIAL
Please sort waste materials in accordance with local
guidelines..
RECYCLING
This machine is manufactured and labelled for recycling.
In order to prevent personal injury, the machine must be
made inoperable after deciding to take it out of service.
Contact your local authority for information about where
and how your machine should be correctly recycled.
CHILD SAFETY
WARNING!
DO NOT ALLOW CHILDREN TO PLAY
WITH THE TUMBLE DRYER.
If the door is opened when a programme is running
the garments may be very hot, with a risk of burn
injuries.
The tumble dryer does not start automatically when
the door is closed (if a child pulls the door shut from
the inside, for example).
By activating the child-safe start function you can prevent
children from starting the tumble dryer or changing the current
programme.
SAFE START
1. Turn off the machine using the main power switch.
2. Press and hold the + button and the temperature selection
button and turn on the main power switch.
3. Turn the programme selector and choose ”Child-safe start
off” or ”Child-safe start on”.
4. Press the Start button to save.
TEMPORARILY:
You can temporarily deactivate Child-safe start for three minutes
by pressing the temperature button and the minus button under
Delayed Start at the same time.
SAFETY INSTRUCTIONS
5
Customer Care Center, 1-800-898-1879, www.askona.com

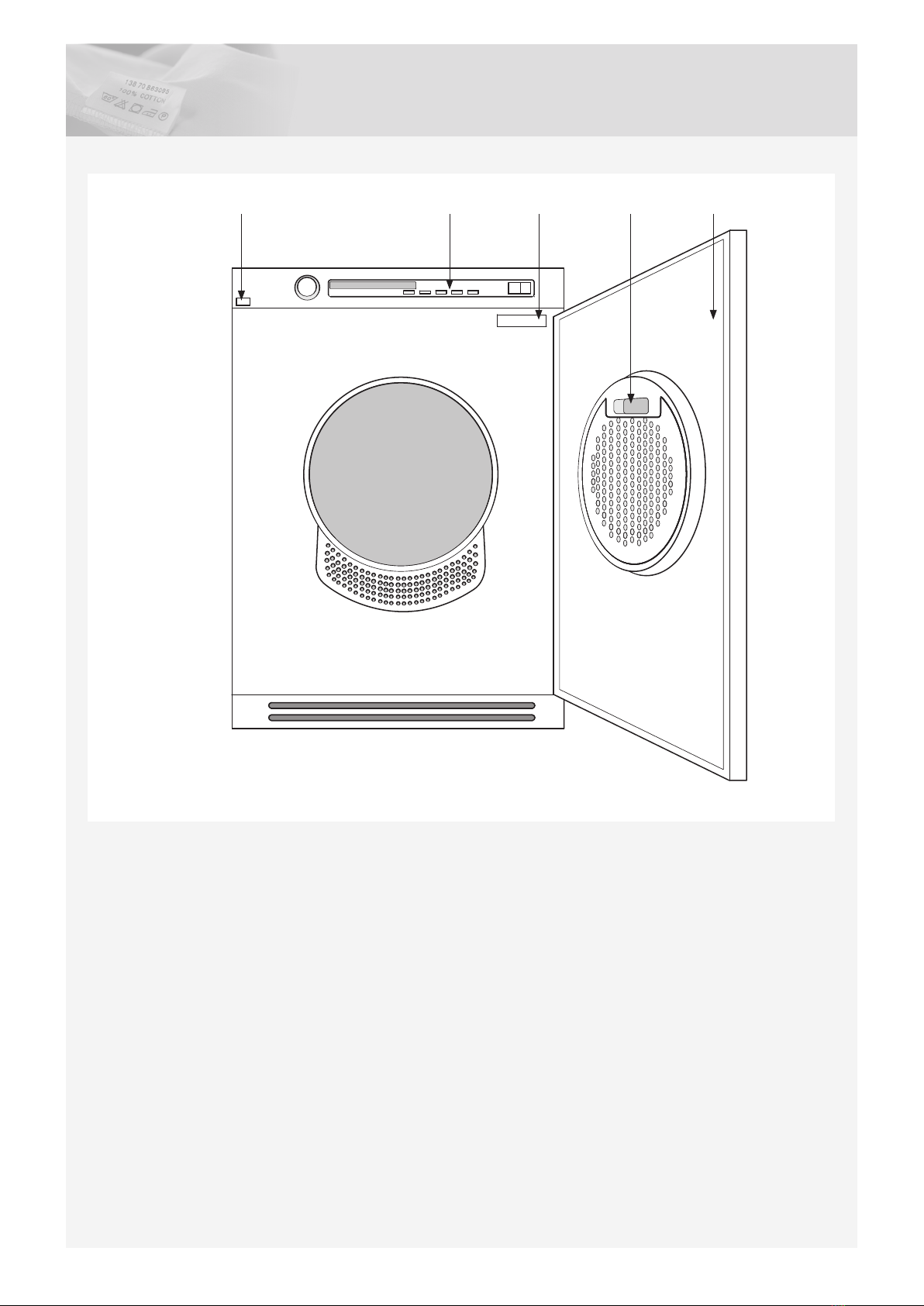

DESCRIPTION OF THE TUMBLE DRYER
1. Main power switch
2. Panel
3. Serial number tag and rating plate
4.
5. Outer door
1 2 3 54
6
Customer Care Center, 1-800-898-1879, www.askona.com
Here are some tips that may help you before you begin
tumble-drying.
HAVE THE CLOTHES BEEN SPUN?
Items to be tumble-dried should be spun at 1000 rpm or
faster. Higher spin speeds save energy and reduce drying
time.
DRIED
This symbol means that the material is suitable for
tumble-drying. Fabrics best suited to tumble-drying are
will be softer and lighter when tumbled than when hung
out to dry.
NOTE!
used.
MATERIALS THAT MUST NOT BE
This symbol means that the material is not suitable
for tumble-drying. Certain materials may melt or become
shape or shrink.
And do not tumble-dry:
materials labelled ”Do not dry near heat”.
garments that have been dry-cleaned at home.
plastic foam.
wool must not be tumble-dried because of the risk of
felting.
STATIC ELECTRICITY
To reduce the risk of static electricity in the laundry after
tumble drying you can:
Use fabric softener when washing.
opening the door and removing the laundry from the
dryer.
NOTE!
You can stop the tumble dryer by pressing the Stop
button for three seconds or by opening the door. In both
cases the programme is stopped and starts from the
beginning if restarted. If you do not want to restart the
programme then immediately remove all laundry and
spread it out to allow the heat to dissipate.
7
Customer Care Center, 1-800-898-1879, www.askona.com
TUMBLE DRYING
WARNING!
To reduce the risk of electric shock or injury to persons,
read the”Important Safety Instructions” section before
operating this appliance.
Below are step-by-step instructions to help you achieve
the best possible tumble-drying results.
Auto Heavy
Program with the maximum temperature.This program is for
NOTE!
Knitted fabrics in particular are prone to shrinkage.
Use the Auto Normal, Auto Delicate, or Auto Iron Dry
programs for these items. Stretch clothes back into
shape immediately after drying.
Auto Normal and Auto Delicate
These programs end automatically when the load is dry.The
Auto Normal program leaves the laundry slightly more dry
than Auto Delicate.
Auto Iron Dry
enough for ironing or pressing.
Jeans
Program for jeans and clothing with very thick seams.
Synthetic
Gentle program for synthetics.
Terry cloth
Program intended for large and small loads of thick terry
cloth, such as towels and bathrobes.
Down
Gentle program that dries down items completely. Can be
used to dry up to three pillows or one quilt.
Timed Dry
The most suitable program time depends on what you
intend to do with the items after tumble drying them. Use
Timed Dry to tumble dry a load of mixed fabrics, some of
the garments may remain damp. Tumble dry any damp
garments for a further 30 minutes or so using the Timed Dry
program. Select the program time by pressing the + and -
buttons. A program time between 30 minutes and 3 hours
can be selected and each button press changes the time by
15 minutes.
NOTE!
When using the Timed Dry program with a program
time that is too long, the garments can become “over-
dry”. This can cause items to shrink or wrinkle and
feel rough to the touch. Synthetic materials can also
become charged with static electricity.
Air Flu
air out, or soften up items.
Select the program time by pressing the + and - buttons.
A program time between 15 minutes and 3 hours can be
selected and each button press changes the time by 15
minutes.
Select a programme by turning the programme selector. The selected programme is shown in the display window. Use the
option buttons to select any options.
SORT YOUR FABRICS
You will achieve the most uniform drying results if the
items are made of the same type of material. Do up zips
and buttons, fasten belts, sort the items and adjust the
load and temperature.
Press the main power switch until the display lights. Open
the door, load the items and then close the door.
SELECT THE PROGRAMME
Programme selector Display window
Main power switch Start StopOptions buttons
8
Customer Care Center, 1-800-898-1879, www.askona.com
TUMBLE DRYING
SELECTING OPTIONS
By selecting options, you can tailor a drying program to
suit your requirements.The available options depend
on the selected program. Once you have started the
program, the options you selected are saved for the
next time you use the same program. The exception is
Delayed Start, which is not saved for the next time.
Temperature Low
You can select Temperature Low with all programs except
Select Temperature Low by pressing the button under
the symbol.
The symbol lights when Temperature Low is selected.
Buzzer Volume
You can choose to have the machine notify you when a
Select Buzzer Volume by pressing the button under the
symbol.
The symbol lights when Buzzer Volume is selected.
Time saver
You can select Time saver with all programs except Air
Press the button under the symbol.
The symbol lights when Time Saver is selected.
Anti Wrinkle
This option means that the drum will rotate for three
seconds every minute for two hours after the drying
option prevents the garments from remaining in the same
position and becoming wrinkled. Cannot be selected
has also been activated, an audible signal will sound
each time the drum rotates as a reminder that the drying
Select Anti Wrinkle by pressing the button under the
symbol.
The symbol lights when Anti Wrinkle is selected.
Delayed Start
First select which program you want to use and then
select Delayed Start by pressing the + button. The display
shows Delayed Start in whole hours. Press the + / - button
to select a delayed start of 1 to 24 hours.The symbol for
Delayed Start lights next to the number of hours. Press
the Start button and the machine will count down 1 hour
at a time and start after the selected delay. This option
PRESS THE START BUTTON
Remaining drying time
An estimate of the remaining drying time will be shown on
the display a few minutes after the drying program starts.
1:35 means that it will take approximately 1 hour and 35
minutes for the load to dry. If the Anti Wrinkle option has
been selected, the drum will rotate for three seconds
The actual remaining time may be longer than the
estimated time shown on the display. The remaining time
If you selected Time saver, the display will show 0:05
instead.
You can stop the tumble dryer by pressing the Stop
button or by opening the door. In both cases the program
is stopped and starts from the beginning if restarted.
NOTE!
program selector after the program has started.
DRYING PROGRAMME FINISHED
The text End appears on the display when the program is
drum will rotate for three seconds every minute for two
Backlighting
backlighting on the display and option buttons enters
energy saving mode.
NOTE!
See the Care and maintenance instructions chapter.
WARNING!
automatic overheating cut-out may be triggered. Clean
starting it. If it still does not start: Call the Customer
Care Center.
Once drying has nished
close the door to prevent small children from climbing into
the machine.
9
Customer Care Center, 1-800-898-1879, www.askona.com
TUMBLE DRYING
PROGRAMME CHART
variations in the power supply and selected options.
For the consumption values given below, the requirements are as follows:
Temperature of intake air: 73 °F
Moisture content of intake air: 55%
Drying temperature: Normal
Heater output: 3000W
Programme Material Load Spin speed
(rpm)
Energy consumption
approx. (kWh)
Programme time
approx.
(min)
Auto Heavy Cotton, linen 1/1 600 9,9 248
1000 9,4 240
1200 8,2 213
1400 7,0 184
Auto Normal Cotton, linen 1/1 600 8,1 171
1000 7,6 165
1200 6,6 145
1400 5,6 123
Easy care,
polyester/cotton
1/2 1000 1,8 38
Auto Delicate Cotton, linen 1/1 600 7,8 161
1000* 7,0 148
1200 6,1 131
1400 5,2 113
Cotton, linen 1/2 1000* 3,4 69
Easy care,
polyester/cotton
1/2 600 2,5 50
Auto Iron dry Cotton, linen 1/1 600 4,6 129
1000 4,0 113
1200 3,7 92
1400 3,4 71
*Test program according to EN61121. The machine shall be tested at 16A and option “Time save” shall be active.
10
Customer Care Center, 1-800-898-1879, www.askona.com
SETTINGS
YOU CAN ALTER THE FOLLOWING
SETTINGS:
Language
KidSafe™ Child-safe
LANGUAGE
Follow these instructions:
2. Press and hold the Start button and then press the
main power switch.
3. Turn the program selector to choose from: US English,
English, Svenska, Dansk, Norsk, Suomi, Français,
4. Press the Start button to save.
Activating/deactivating Child-safe Start
2. Press and hold the + button and the Temperature Low
button and turn on the main power switch.
3. Turn the program selector and choose Child-safe On
4. Press the Start button to save.
You can temporarily deactivate Child-safe Start for three
minutes by pressing the Temperature Low button and the
minus button under Delayed Start at the same time.
11
Customer Care Center, 1-800-898-1879, www.askona.com
CARE AND CLEANING
CLEANING THE LINT FILTER
illustrated and pull it out.
3. Use your hand or a soft cloth to remove the lint from
and a small amount of washing-up liquid to remove
12
Customer Care Center, 1-800-898-1879, www.askona.com
TROUBLESHOOTING
NOTE!
after a long period without use, you may notice a slight
thumping noise.This noise is completely normal and
will disappear after a few loads.
THE MACHINE WILL NOT START
Check:
that the door is properly closed.
that the main power switch is on.
that the Delayed Start option has not been selected. To
cancel Delayed Start, press the Stop button for three
seconds.
that the plug is connected.
that the main fuses have not blown.
that the overheating cut-out has not been triggered.
WARNING!
automatic overheating cut-out may be triggered
because of to high temperature. The heaters in the
to spin to cool down the machine.
Call the service division if:
Heating fault appears on the display.
Max program time is shown frequently in the display
and the laundry does not get dry. (Overheating pro-
tection may have been tripped.)
THE MACHINE LOSES ALL POWER
DURING A PROGRAM
temperature is too high, e.g. because dust is clogging the
Wait until the machine has cooled then try starting it. If
it still does not start: Call the service division.
DRYING TAKES TOO LONG
and cleaning chapter).
ERROR MESSAGES
Read Drying takes too long in this chapter if Max pro-
gram time appears on the display.
If Clean Lint Filter appears on the display, clean the lint
Call the service division if Thermistor fault appears on
the display.
Press the Stop button to close any error messages.
13
Customer Care Center, 1-800-898-1879, www.askona.com
TECHNICAL INFORAMTION
Height: 33 1/2” (850 mm)
Width: 23 1/2” (595 mm)
Depth: 29 1/3” (745 mm)
Weight (net): 99 lb (45 kg)
Cylinder volume: 38,3gal (145 l)
Max. drying capacity: 24 lb (11 kg)
Speed: 50-55 rpm
Sound pressure level: The sound pressure level is below 66 dB(A)
Rated power: See type plate.
Drum material: Stainless steel
Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel
Setup: Stacking or freestanding
14
Customer Care Center, 1-800-898-1879, www.askona.com
SERVICE AND GUARANTEE
APPLIANCES
ASKO Distribution North America, LLC. (hereinafter
“ASKO”) warrants the original purchaser (the “ASKO
Customer”) of the ASKO product (the “ASKO Product”),
who purchased the appliance from a distributor, dealer,
manufactures representative or other seller who has
been authorized by ASKO (“Authorized ASKO Dealer”),
that this ASKO Product is free of defects in material and
workmanship, subject to the terms and conditions set
forth herein.The limited warranty covers parts and labor,
except as set forth in this Limited Warranty. Service must
be provided by an ASKO designated service company.
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR
AS PROVIDED HEREIN. The limited warranty is valid
only in the United States or Canada and applies only
when the appliance is used in the country in which it was
purchased. Proof of original purchase date is required to
obtain service under this limited warranty.
Residential ASKO Products Used Exclusively
for Household/Personal Purposes:
Two (2) Years limited Warranty – Any warranty service
ASKO within two (2) years from date of purchase.
Residential ASKO Products Not Used
Exclusively for House Hold Purposes, used
Commercially or Use in marine, Mobile or
Aeronautical Applications:
One (1) Year limited Warranty – Any warranty service
claims for ASKO Products not used exclusively for
household and personal use, used commercially or
used in marine, mobile, or aeronautical application must
purchase.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Replacement parts or repair labor if this appliance
is used in a manner that is inconsistent to published
user or operator instructions and or/or installation
instructions.
2. Service calls to correct the installation of your
appliance, to instruct you on how to use your
appliance, to replace or repair house fuses, or to
correct house wiring or plumbing.
3. Consumable parts are excluded from warranty
coverage.
4. Damage resulting from accident, alteration, misuse,
installation not in accordance with electrical or
plumbing codes, or use of products not approved by
ASKO.
5. Cosmetic damage, including scratches, dents, chips
unless such damage results from defects in material
or workmanship and is reported to ASKO within 5
days from date of purchase.
6. Pickup and delivery. This appliance is intended to be
repaired in your home.
7. Repairs to parts or systems resulting from
8. Expenses for travel and transportation for product
service if your appliance is located in a remote area
where service by an authorized ASKO servicer is not
available.
9. The removal and reinstallation of your appliance if it is
installed in an inaccessible location or is not installed
instructions.
10. Replacement parts or repair labor on appliances
with original model/serial numbers that have been
removed, altered or cannot be easily determined.
DISLCAIMER OF IMPLIED WARRANTIES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR
AS PROVIDED HEREIN. ASKO SHALL NOT BE LIABLE
FOR INCIDENTIAL OR CONSEQUENTIAL DAMAGES.
Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so
these limitations and exclusion may not apply to you.This
have other rights that vary from state to state or province
to province.
Shooting” section of the Use & Care Guide.
If you are unable to resolve after checking “Trouble
Shooting” additional help can be found by calling ASKO
Customer Care at 1-800-898-1879
15
Customer Care Center, 1-800-898-1879, www.askona.com
SERVICE AND GUARANTEE
BEFORE CONTACTING THE CUSTOMER
CARE CENTER
Before you contact the Customer Care Center, make sure
you know the model designation, type designation, and
serial number.
of the operating instructions and on the machine panel.
The type designation (2) and serial number (3) can be
found on the type plate, which is found on the front of the
tumble dryer inside the outer door.
1
TYPE
3
2
Should you need further assistance, you can write to
ASKO Appliances with any questions or concerns at the
address below:
ASKO Distribution North America, LLC.
Customer Care Center
PO Box 44848
MADISON WI 53744
16
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
See the separate installation instructions included in the
set of documents.
ELECTRICAL INSTALLATION
Connect the machine by plugging it into an earthed wall
socket.The electrical wall socket must be placed outside
of the installation area to be easily accessible.
CONNECTION ON DELIVERY
208-240 V, 1-phase, 15 A
60 Hz
Heat output 3000 W
Use a type A residual-current device.
electrician.
electrician.
2. Press and hold the Temperature selection button and
then press the main power switch.
3. Turn the programme selector and choose between:
W/10 A).
4. Press the Start button once to save your selection.
WARNING !
Risk of re.
instructions and local codes.
the applience manufacturer that is UL approved for
use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint.
To reduce the risk of of severe injury or death, follow all
installation instructions.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE.

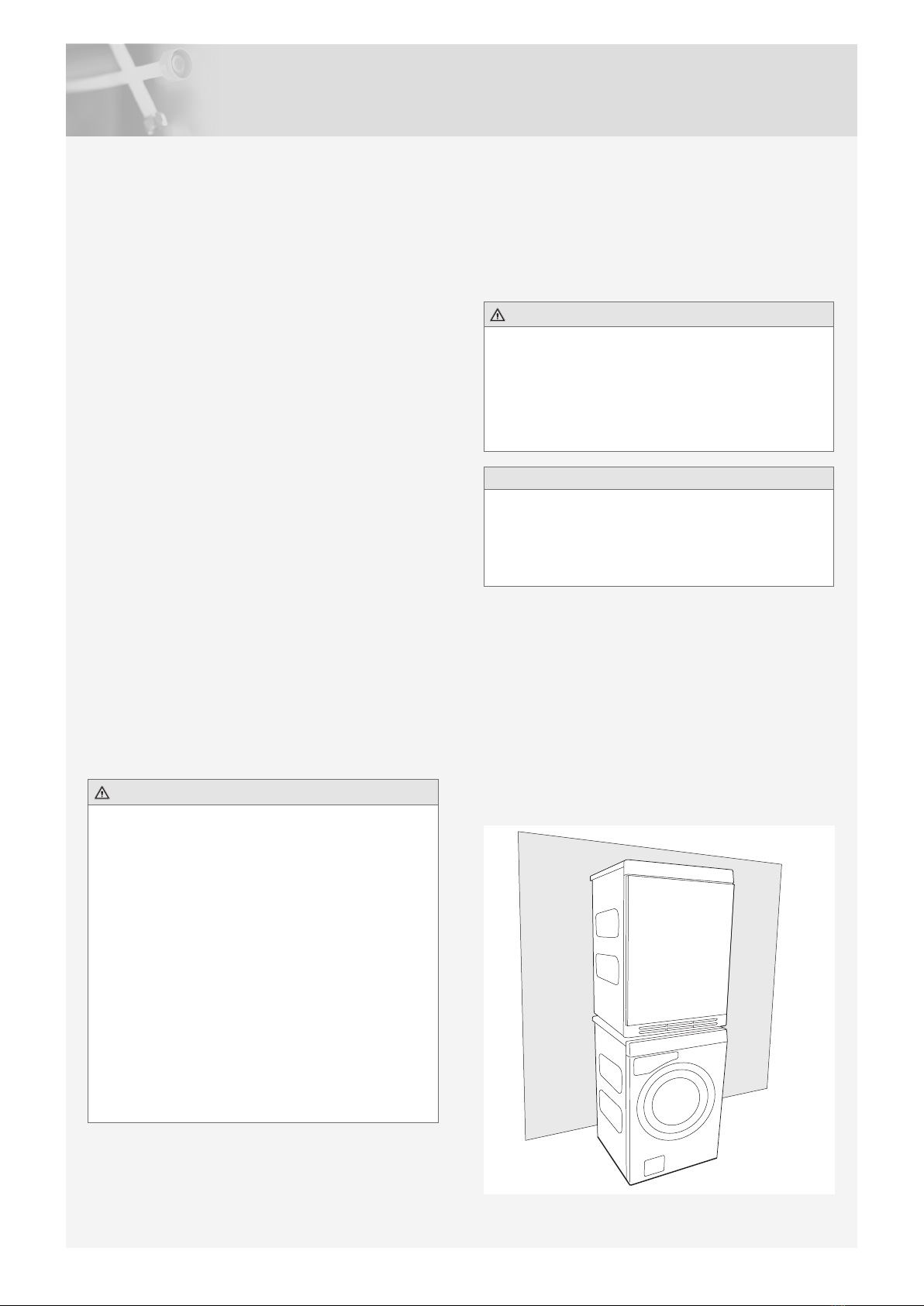

POSITIONING THE TUMBLE DRYER
The tumble dryer can be freestanding or stacked.
Remember that the tumble dryer produces heat and
should therefore not be located in a room that is too small.
If the room is very small, drying will take longer due to the
limited quantity of air.
WARNING !
Clothes dryer installation must be performed by a
For proper ventilation, the machine should not be
installed behind a door.
blocked by a rug or the like.
NOTE!
If the unit must be installed behind a door, the door
should be louvered. (please see door ventilation
requirements in the Built-in chapter).To improve
ventilation, the door where the tumble dryer is located
should be left open when the dryer is in use.
Freestanding
The tumble dryer can be positioned beside the washing
machine.
Stacking
The tumble dryer can be placed on top of a ASKO
washing machine. In this case you use the stacking
attachments (foot cups and anti-tilt devices) that come
with the machine.Two rubber feet and two anti-tipping
brackets are supplied in the bag found in the drum of the
dryer.
INSTALLATION
17
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
How to assemble the stack:
1. Undo the screw on the back of the ASKO washing
2. Secure the anti-tilt device using the screws as shown
in the picture.
3. Take the other anti-tipping bracket from the bag and
attach it on the dryer with two screws as shown in the
4. Place the two rubber feet on the front feet of the dryer.
5. Fasten or undo the rear feet of the appliance until
machine.
6. Slide the dryer backward until it reaches the anti-
tipping bracket. Make sure the front of the appliance is
raised by 50 to 150 mm as you slide it back.
ADJUSTING THE FEET
Screw the feet in or out so that the tumble dryer is steady
18
Customer Care Center, 1-800-898-1879, www.askona.com

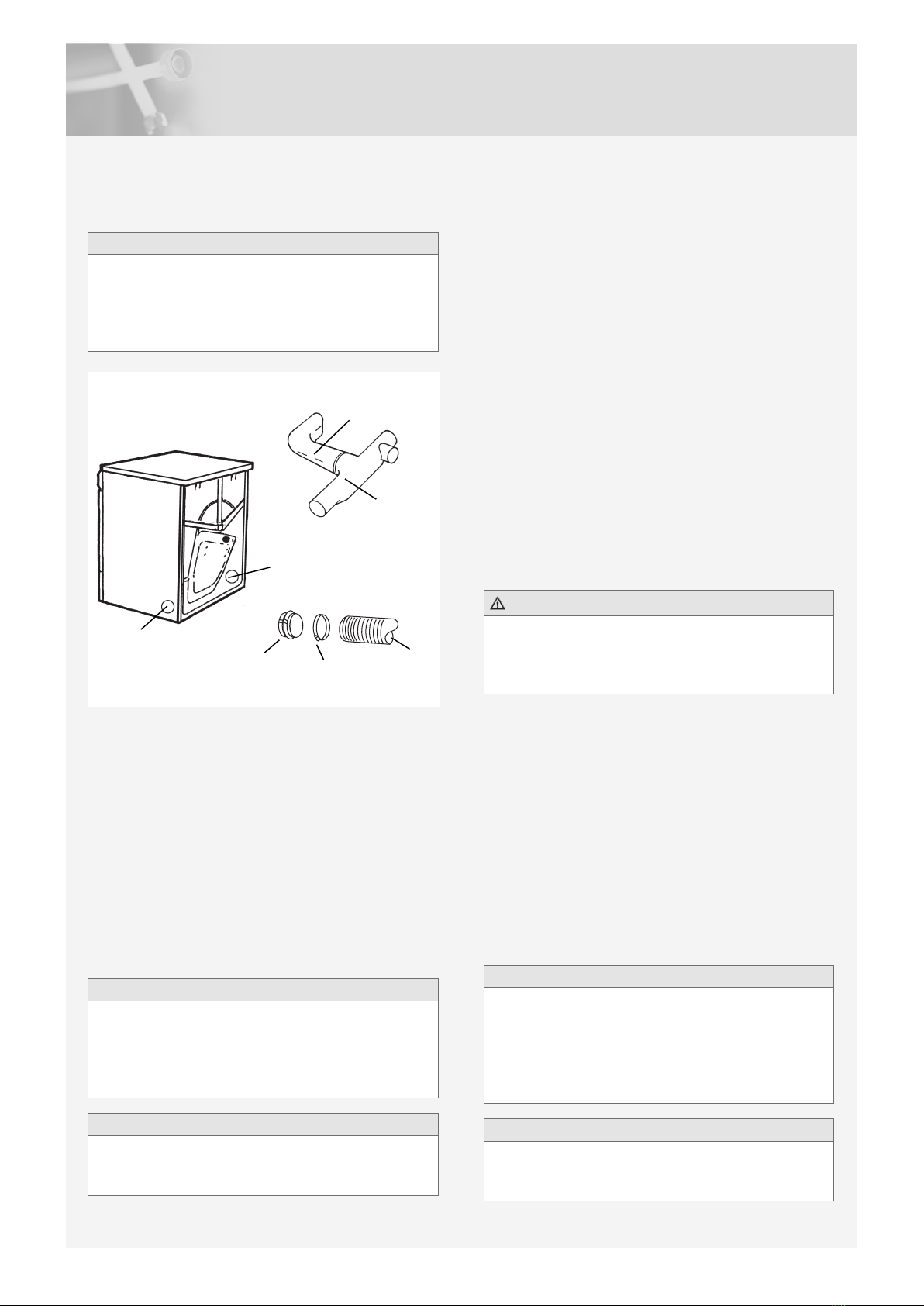

INSTALLATION
AIR EXHAUST
Connecting the exhaust duct to the dryer
NOTE!
You will need to purchase a UL-CSA-approved 4”
ridged metal exhaust duct. The dryer is delivered
with the stub pipe attached to the rear exhaust outlet,
though the exhaust duct can be attached to either the
left or the right exhaust outlet.
Vent
T-tube
Rear Exhaust
Outlet
Side Exhaost
Outlet Duct
Clamp
(not supplied)
Stub
Asko dryers have a "T-style"
exhaust vent that allows you to
connect the duct on the rear, on
the left, or on the right side
The duct must not be assembled with screws or other
fasteners that extend into the duct and catch lint.
To connect the exhaust duct to the rear outlet
To connect the exhaust duct to the rear outlet, follow the
steps below:.
1. Push the duct onto the stub pipe and secure it with a
clamp
2. With the duct attached, insert the stub pipe into the
hole. It should snap into place.
3. After you push the dryer into place, check for kinks in
the duct.
NOTE!
Excessive duct length and too many bends can impede
any excess exhaust duct and run the duct with as few
bends as possible. Make any necessary bends as
gentle as possible.
NOTE!
Maximum duct length of 60 feet. A maximum of 4
elbows may be used, but 4 feet of duct must subtracted
from the total vent length for every 90° elbow used.
CONNECTING THE EXHAUST DUCT TO
THE LEFT OR RIGHT SIDE OUTLET
To connect the exhaust duct to the left or right side outlet,
follow the steps below:
cover you plan to use to the right or left to align the
tabs holding the cover in place.
2. Remove the exhaust outlet cover.
3. Remove the stub pipe from the rear exhaust outlet
and place it in the outlet you plan to use.
4. Push the duct onto the stub pipe and secure it with a
clamp.
5. With the duct attached, insert the stub pipe into the
hole. It should snap into place.
6. After you push the dryer into place, check for kinks in
the duct.
7. Use the exhaust outlet cover you removed from the to
cover the rear exhaust outlet.
WARNING !
exhausted OUTDOORS or the equivalent. Never cover
the end of the dryer stub or exhaust duct with anything
to catch lint, except for UL approved vent basket.
Connexion à une gaine de ventilation Utilisez une gaine
Directive « Outline for Clothes Dryer Transition Duct ».
Sujet 2158A, avec une longueur maximale de 2,4 m (8
pieds).
CONNECTING TO A VENTILATION DUCT
You will need a UL-CSA-approved, 4-inch ridged metal
with the Outline for Clothes Dryer Transition Duct. Subject
2158A and maximum length of 2.4 m (8 feet).
NOTE!
The more bends and the longer the duct, the less air
will circulate through the machine, which will impede
any excess exhaust duct and run the duct with as few
bends as possible. And make any necessary bends as
gentle as possible.
NOTE!
Maximum duct length of 60 feet. A maximum of 4
elbows may be used, but 4 feet of duct must subtracted
from the total vent length for every 90° elbow used.
19
Customer Care Center, 1-800-898-1879, www.askona.com

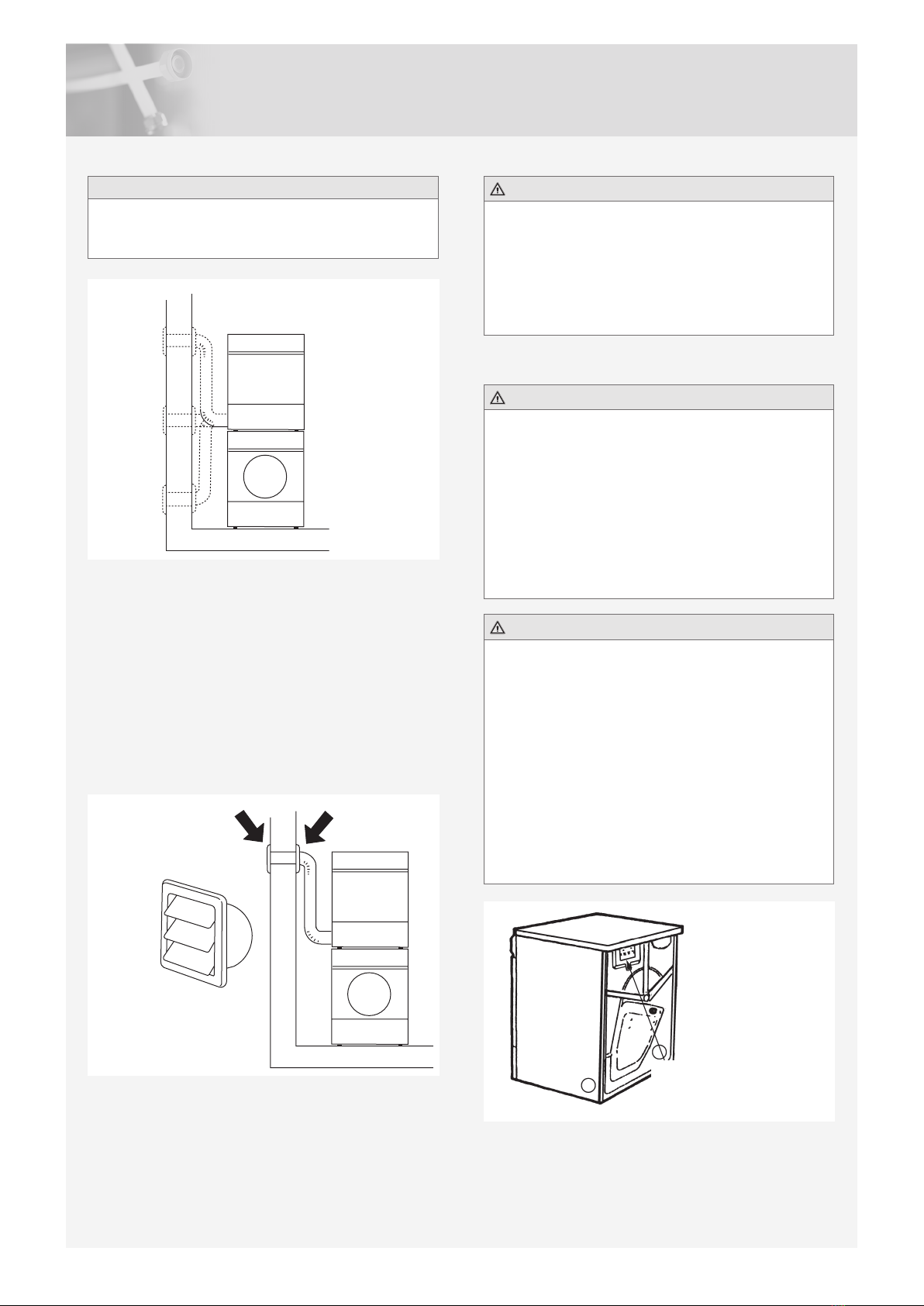

INSTALLATION
NOTE!
When installing in warm climates (77° F and above)
with high humidity levels, do not route the air exhaust
duct upwards.
subtract 4 feet for
every 90°elbow
Examples of
installations
TO CONNECT THE EXHAUST DUCT TO
A VENTILATION OUTLET, FOLLOW THE
STEPS BELOW:
1. Connect the exhaust duct to a ventilation exhaust
2. Secure the duct joint to the outlet stub on the
machine.
3. Run the duct with as few bends as possible to the
point of discharge.
subtract 4 feet for
every 90°elbow
WARNING !
This appliance shall not be exhausted into a chimney,
a wall, a ceiling, an attic, a crawl space or a concealed
shall be used for exhausting. Only a metal ventilation
grill shall be used. If the duct is taken to a wall outlet, a
cold air. Fit the ventilation grill to the outside of the wall.
ELECTRICAL INSTALLATION
WARNING !
The receptacle on the rear of the machine is designed
to accommodate ASKO washers ONLY (rated 208–240
V.) To use this receptacle, you must use the ready-
equivalent.
ASKO washers rated 208–240 V have two internal
fuses of 15 A each.
The machine should only be connected to a grounded
wall socket.
WARNING !
This appliance must be properly grounded. Refer
to the “Important Safety Instructions” for grounding
instructions.
The power supply cord must be grounded. If the
machine is to be used in a wet area, the supply must be
protected by a residual current device.
Connection to a permanently wired supply point must
Single-phase, 230 V, 60 Hz, 3000W heater rating 30 A
circuit required - only a power-supply cord kit rated 230
V min, 30 A, and marked for use with clothes dryers
shall be used.
Remove cover to access
teminal box. (Requires- Torx
screwdriver.)
20
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
Electrical Connections !
WARNING !
Read the Electrical requirements and grounding
instructions before connecting the tumble dryer.
Electric models of the dryer are manufactured for a
3-wire connection system. The dryer frame is grounded
by a link to the neutral conductor on the dryer terminal
block. If local codes do not permit grounding through the
neutral, the grounding link from the terminal block must
be removed and a separate ground wire must be used.
Only a 4-conductor cord shall be used when the
appliance is installed in a location where grounding
through the neutral conductor is prohibited. Grounding
through the neutral conductor is prohibited for new
branch-circuit installations, mobile homes, recreational
vehicles, and areas where local codes prohibit grounding
through the neutral conductors. The grounding link on the
dryer must be removed for all 4-wire installations.
These Electrical Connection instructions provide for
installing the dryer in the following situations:
3-wire connection where local codes permit grounding
through the neutral. 3-wire connection plus separate
grounding connector where local codes do not permit
grounding through the neutral.
4-wire connection.
Each of the above connections can be made with an
approved power supply cord or by direct wiring. Each
Supply Cord and covers requirements for direct wiring.
NOTE!
four-prong plug intended for connection to a single-
phase supply.
Connecting a 3-wire Power Cord
WARNING !
Before starting this procedure, be sure the power is
Ground
Ground
(center)
Power Supply Cord
You will need a 3-wire power supply cord with three No.
10 copper wires and a matching 3-wire receptacle of
NEMA Type 10-30R, as illustrated below:
To connect a 3-wire power cord to the dryer, follow the
steps below.
NOTE!
The numbers in the illustration correlate to the step
numbers.
2. Remove terminal block cover.
3. Use the strain relief attached below the terminal block
opening.
4. Loosen or remove center terminal block screw.
4
5
6
5. Connect ground (center) wire of power supply cord
to the center, silver-colored terminal screw. Tighten
screw.
6. Connect the other wires to outer screws.
7. Tighten the strain relief screws.
8. Replace terminal box cover on back of dryer.
This manual suits for next models
2
Table of contents
Other Asko Dryer manuals
Asko
Asko T711 Quick start guide
Asko
Asko T702 Assembly instructions
Asko
Asko TLS752GXXL Instruction Manual
Asko
Asko T884XLCHP User manual
Asko
Asko PEL D80 HP User manual
Asko
Asko T754HP User manual
Asko
Asko 7304 Operating instructions
Asko
Asko 7705 - User manual
Asko
Asko T783C User manual
Asko
Asko T208H.W.AU User manual
Popular Dryer manuals by other brands
Whirlpool
Whirlpool WED7800XB0 installation instructions
DAN DRYER
DAN DRYER BJORK 3000 user manual
Rinnai
Rinnai Dry-Soft 9 Operation & installation manual
Alliance Laundry Systems
Alliance Laundry Systems DRY684C Installation & operation
GE
GE DuraDrum GTDP300EM Dimensions and installation information
Beper
Beper RI.423 use instructions
