Asoni SVR440 User manual

4CH Network Video Server
SVR440 / SVR440W
User’s Manual
Date: 6/05/2009
Firmware Version: V2.2.16

1
Content
1. Preface .................................................................................................................................2
2. Product Specifications...........................................................................................................2
3. Product Installation ...............................................................................................................4
A. Hardware Installation.........................................................................................................4
B. Monitor Setting..................................................................................................................8
C. IP Assignment ...................................................................................................................9
D. Install ActiveX Control .....................................................................................................11
4. Live Video...........................................................................................................................13
5. Configuration ......................................................................................................................17
A. System............................................................................................................................17
B. A/V Setting......................................................................................................................22
C. Network...........................................................................................................................25
D. Event Handling................................................................................................................31
6. Network Configuration ........................................................................................................38
A. Intranet Only....................................................................................................................38
B. Internet Only....................................................................................................................40
C. Intranet + Internet............................................................................................................42
7. Factory Default ...................................................................................................................45
Compatible List of SD Card........................................................................................................46

2
1. Preface
This device is a 4 channel video server. It builds in web server. User views real-time video
via IE browser.
This device encodes analogue signals of traditional cameras to digital signals, it supports
MPEG-4 and MJPEG video compression which provides smooth and high quality video.
Also, it supports SD backup, the event video can be stored in the inserted SD Card, and
can be playback remotely. The 2-way audio provides the user to have a video conference.
In addition, the user can control this device with an easy-control user interface via IE
browser to build a home surveillance.
2. Product Specifications
MPEG-4 / MJPEG compression formats.
Self-Contained HTTP Web Server providing Internet capability for remote access
RS-485 connection for remote Pan/Tilt/Zoom control
Wireless network connection (Wireless model)
Supports SD Card for local event recording
2-way audio
Online firmware upgrade
Compatible with Microsoft Windows Media Player
Hardware
CPU ARM 9, 32 bit RISC
RAM 64MB
ROM 8MB
Video Input 4 Analog video input (BNC connectors)
Video Loop Back 4 Analog video output (BNC connectors)
Audio In / Out 1 Line in / 1 Line out (RCA connectors)
Digital Input 4 In
Relay Output 4 Out
RS-485 1, for PTZ control
Power Supply DC 12V, 1A
Dimensions W218 x H44 x D202 mm

3
Network
Ethernet 10/ 100 Base-T
Wireless (Wireless model) 802.11b/g, supports WPA-PSK, WEP 64/ 128 bit
Network Protocol HTTP, TCP/IP, NTP, SMTP, FTP, PPPoE, DHCP, DDNS
System
Video Resolution VGA(640x480), CIF (352x240), QCIF (176x120)
Compression Format MPEG-4, MJPEG
Frame Rate Up to 30 FPS (4CH total)
Video Bitrate Adjustment CBR, VBR
Video Adjust Brightness, Contrast, Saturation, Hue
Image Snapshot Yes
Motion Detection Yes, 4 areas (1 area per channel)
Triggered Action Send Email, Send to FTP, Save to SD Card, Relay Out
Remote PTZ Control Yes, via RS-485
Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Connection Up to 5 clients/ 20 channels simultaneously
Audio Yes, 2-way
SD Card Management
Recording Trigger Motion Detection, Sensor In, IP Check
Video Format AVI (without audio)
Video Playback Yes
File Management Yes, can be deleted or overwrite
Web Browsing Requirement
Operating System Windows 2000, XP, 2003, IE 6 or above
Suggested Hardware Intel-C 2.0G, RAM: 512MB, Graphic card: 64MB
* Specifications are subject to change without notice

4
3. Product Installation
A. Hardware Installation
Cable Connections
Network Connector: The RJ-45 connector allows connect the Ethernet cable.

Power Jack:
To connect the included power adapter.
Video Out: The BNC connector allows connect to the analog display to
output analog video for locally monitoring.
Video In: The BNC connector allows connect to the video signal of an
analog camera.
Audio Out: The RCAconnector allows connect to an amplified speaker,
you can hear the voice of the remote site from the speaker.
Audio In: The RCAconnector allows connect to a microphone or audio
source, the voice will be transferred to the remote site via
network.

I/O Connector:
The terminal blocks allow connect to a PTZ device, and I/O.
Antenna Connector: Available for Wireless model. To connect the included wireless
antenna.










5
SD Card Slot: Insert a SD card if you want to do the event recording in the
video server.
1. Connect the video and audio outputs of analog camera to the video server. If the
analog camera is a PTZ device, connect the RS-485 for the remote PTZ control.
2. Connect the cables of Digital I/O, Video output andAudio output if you want to use
these functionalities.
3. Connect the wireless antenna for Wireless model.
4. Connect Ethernet cable for network connection.
5. Connect power adapter to turn on the video server.
6. Set up the network configurations according to the network environment. For further
explanation, please refer to Network Configuration chapter.
7. After finish the configuration for the very first time, if you want to use wireless network,
plug out the Ethernet cable.
I/O Connections
I/O terminal connector – used in application, for e.g., motion detection, event triggering,
alarm notifications. It provides the interface to:
4 sets of Digital Input (Alarm In + GND) – The digital inputs for connecting devices
that can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
4 sets of Relay Output (N.O. + COM or N.C. + COM) –The output to Relay switch
of the alarm device such as LEDs, Sirens, etc.

6

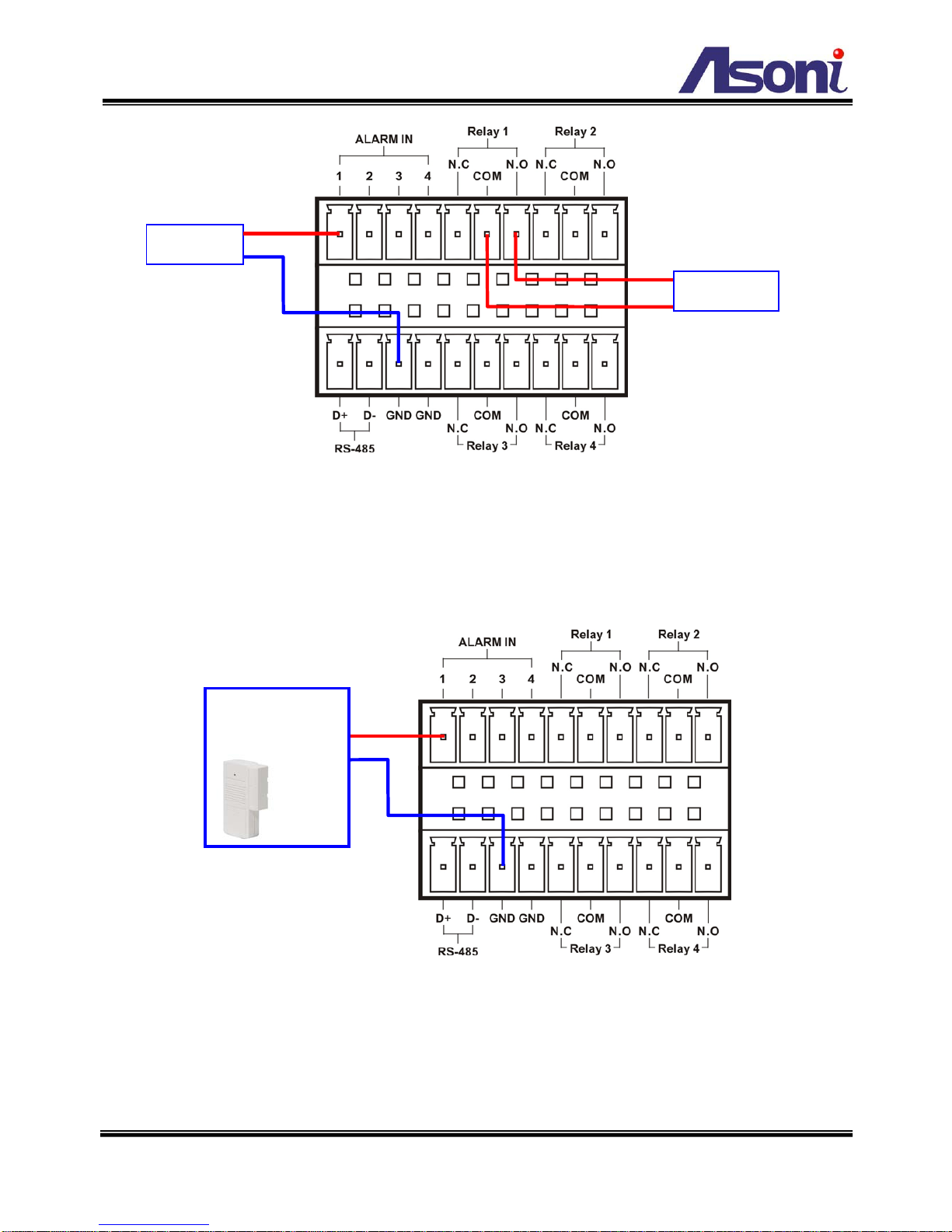

Digital Input (Alarm Input)
GND (Ground): Initial status is LOW.
Alarm: Max. 50mA, 12VDC.
Relay output
COM: Common pin.
N.O. (Normally Open): Max. 1A/ 24VDC or 0.5A / 125VAC.
N.C. (Normally Close): Max. 1A / 24VDC or 0.5A / 125VAC.
Door/Window
Contacts
Alarm In
Relay Out

7

8
B. Monitor Setting
1. Right-Click on the desktop. Select [Properties]
2. Change color quality to “Highest (32bit)”.

9
C. IP Assignment
Always consult your network administrator before assigning an IP address to your
video server in order to avoid using a previously assigned IP address.
MAC Address: Each network video server has a unique Ethernet address (MAC
address) shown on the sticker of the device.
One final note, although the IP Search is able to find and configure any network
device on the LAN except those that are behind a router, it is a good idea to set the
host PC to the same subnet. In order to connect to the Web-based user interface of
the network video server, the host PC must be in the same subnet. For more
information about subnets, please consult your network administrator.
There are 3 kinds of IP configuration:
Fixed IP (Public IP or Virtual IP)
DHCP (Dynamic IP)
Dial-up (PPPoE)
IP Search is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the network camera in Local Network (LAN). It even
provides a convenient way to set the network settings for multiple devices simultaneously.
Moreover, IP Search can save the network settings for all devices as a backup and
restore them when necessary.
The software can be installed from the attached software CD.
1. Once IP Search has been successfully installed on the computer, double click the
“IP Search” icon on the desktop.








10
2. IP Search searches all the network devices which connect to the intranet and lists
on the window. Click [Search] button to search again.
3. From the list, select the device with the MACAddress that corresponds to the
device that is to be configured.
4. Click and select one of the network devices, the network configuration of this device
will show on the bottom, filling in the IPAddress, Subnet Mask, Gateway and the
others.
5. Click [Set] button to complete the configuration settings and save into the device.
6. Wait for 1 minute to let the device update the settings, and then click [Search]
button again to re-search the network devices.
7. Click and select the network device listed on the window and click [Open Web]
button. It will open an IE browser and connect to this device directly.
8. You can assign a name to identify the device. Type the name in “Device Name” field,
click [Save] and then click [Search] button, the name will be displayed in the list.

11

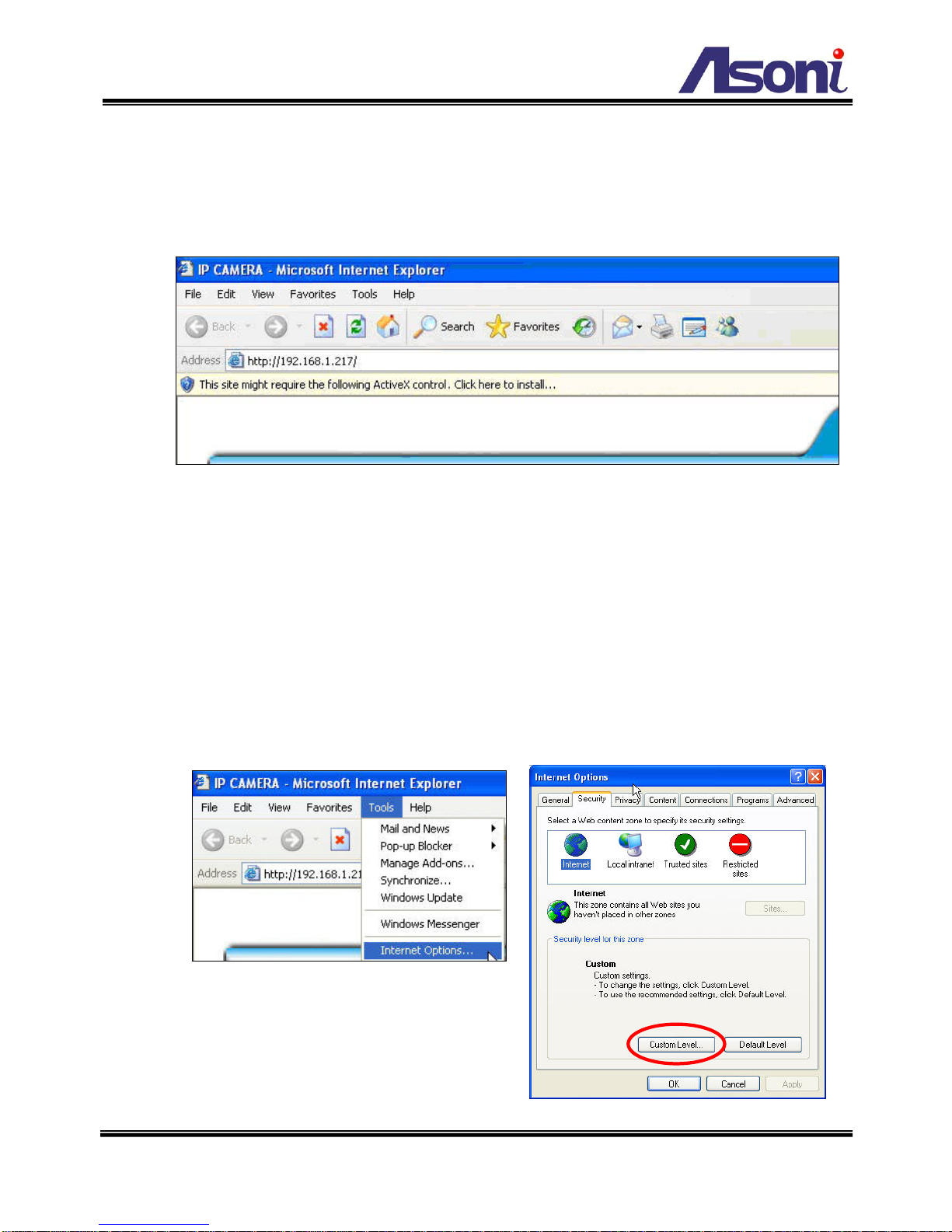

D. Install ActiveX Control
For the first time to view the video of this device via IE, it will ask you to install the ActiveX
component.
If the installation failed, please check the security setting for the IE browser.
1. In IE, click on [Tools] [Internet Options…]
2. Click on [Security] Tab [Custom Level…]
3. In Security Settings, under [Download unsigned ActiveX controls], select
“Enable” or “Prompt”.
4. In Security Settings, under [Initialize and script ActiveX controls not marked as
safe], select “Enable” or “Prompt”.
5. When pop-up window with warning message, click [Yes] to save the settings.
1 2

12
3 4
5
When popup the following dialogue box, click [Yes].

13
4. Live Video

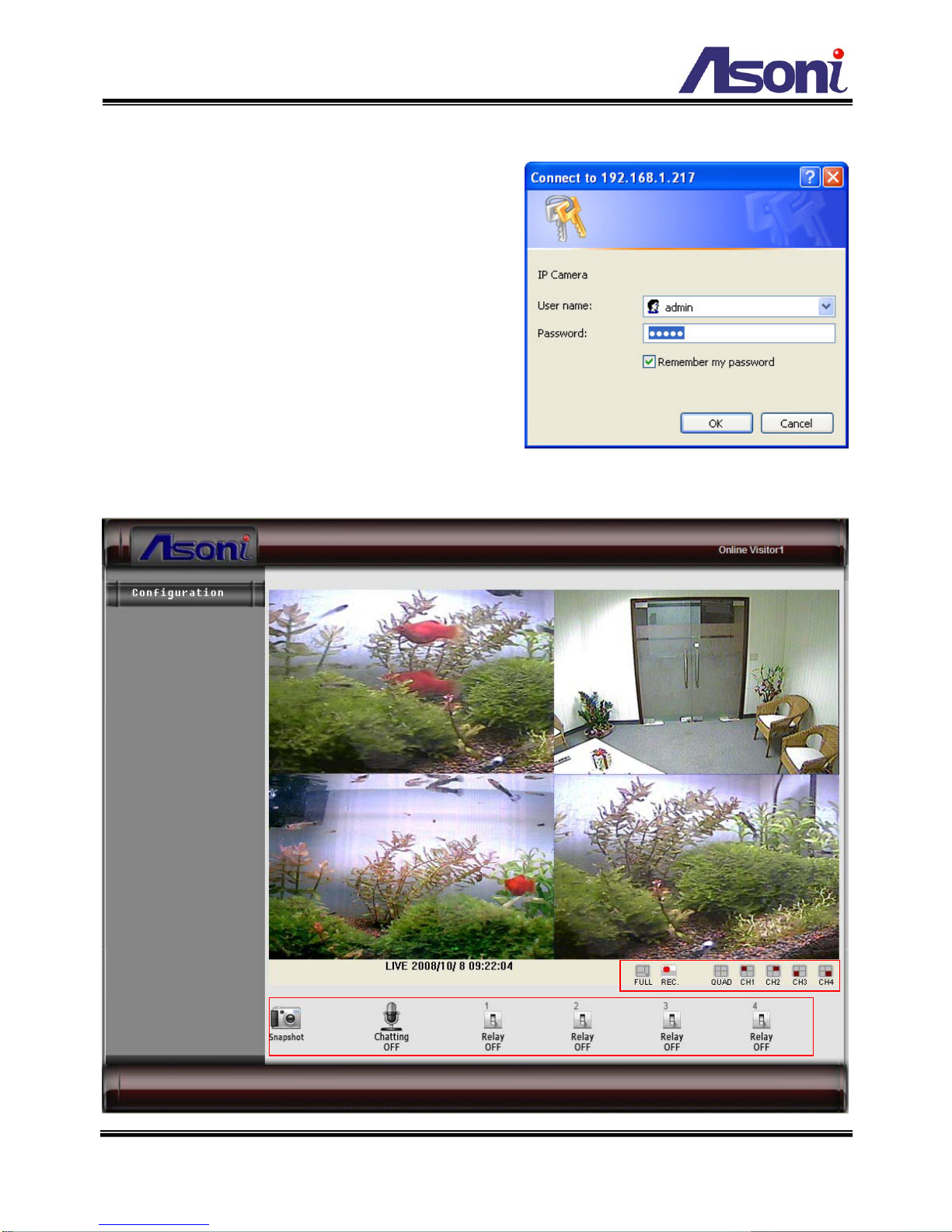

Start the IE browser, type the IP address of the
network video server in the address field. It will
show a dialogue box. Key-in the user name
and password.
The default user name and password are
“admin” and “admin”.
When connect to the device, the following GUI shows.
⑤
④
②
①
③

14
Configuration : Go into the configuration page to set the parameters if necessary.
Online Visitor : Shows how many users connect to this network video server.
Shows system date/time.
Screen and Channel Buttons :
Full Screen : Click this button or double-click the video, the video will
change to full screen mode.
Double-click the video again, it will back to normal mode.
Record : Click this button to record the video into the local PC. It will ask
you where to save the video. To stop recording, click this button again.
The saved video format isAVI. The recorded file can be played by
Microsoft Media Player. Note, MPEG4 decoder must be installed to play
the recorded file. You can install “FFdshow” from the included CD for the
decoder.
Quad : Display all channels simultaneously.
CH1~CH4 : Select each channel to display and control.
Function Buttons : Click these buttons will perform the following functions.
Snapshot : Click this button to take snapshot of the video. The image will be
displayed in a pop-up window, right-click on the image and click [Save AS…]
in the context window, select a location to save the image.
Chatting : The video server supports 2-way audio. Click this button, then you
can use microphone which connected to the PC to talk to the video server
side.
Relay Out (ON/OFF Switch) : Click the button to manually turn on / off the
Relay via the built-in Digital Out.

15
Relay Out (Time Switch) : Click the button to manually turn on the Relay via
the built-in Digital Out, after the interval time is passed, the Relay will be
turned off automatically. The interval time can be set up in Configuration 
Event Handling I/O.
Click the button to monitor single channel will display the PTZ control panel:
PTZ Model : If a PTZ device is connected to the video server via RS-485, click this
button to select the model, camera ID and baudrate of the PTZ device. The PTZ
control panel will be displayed. The PTZ function will be slightly different depends on
which protocol to use.
⑥
⑦

16
PTZ Control Panel :
Pan/Tilt
Control
Pan / Tilt the camera: Click the direction buttons.
Move camera back to
the home position: Click button.
Auto Pan
Automatic pan the
camera from right to left
and left to right: Click button beside “Auto Pan”.
Stop “Auto Pan”: Click button beside “Auto Pan”.
Zoom
Focus
Iris
Adjust the Zoom, Focus
and Iris: Click or button to adjust the
camera.
Speed Adjust the speed of the
camera movement: Select the speed from the pull-down list, higher value is faster.
Preset
Point
Set / Change Preset
Point:
Select the preset point from the pull-down list,
move the camera to the position as your wish,
input a name in the “Name” box, and then click
button. 9 preset points can be set.
Go to Preset Point: Select the preset point from the pull-down list
and the camera will go to the position
Remove Preset Point: Select the preset point from the pull-down list
and then click button.

17
5. Configuration
Click [Configuration] button to get into the configuration page. Click [Live View]
button to back to the live video page.
A. System

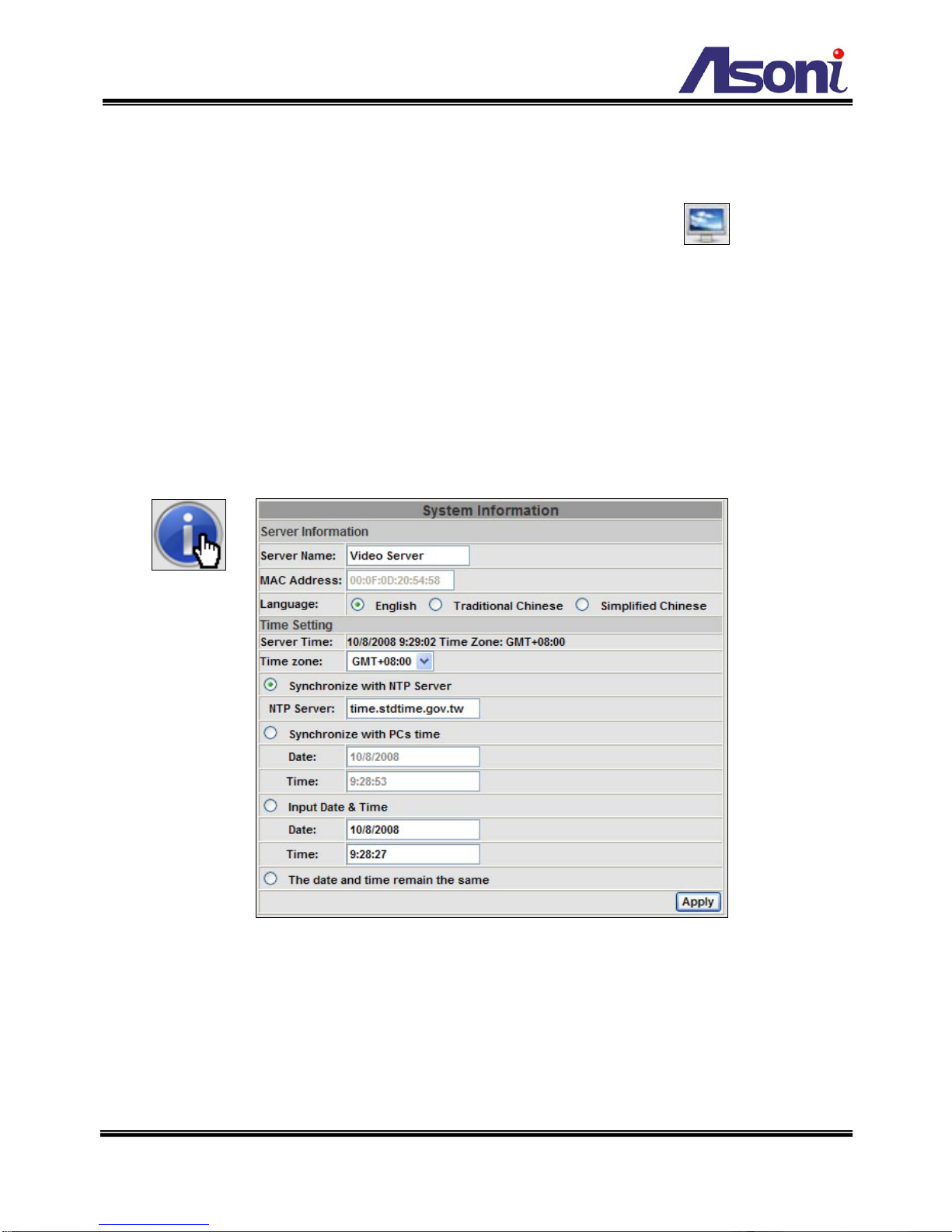

System Information
Set up the server name, select language, and set up the server time.
Server Name
This is the video server name.
Language
Select the language for the user interface.
Time Setting
Information

18
Time Zone: Select the GMT to match your time zone.
Synchronize with NTP Server: Select this option will synchronize the video server
time with the NTP server via network.
Synchronize with PC’s time: Select this option will synchronize the video server time
with the PC’s time.
Input Date & Time: Manually input the date and time.
The date and time remain the same: Keep the current date and time without change.
After set up, click [Apply] to save the settings.

19
User Management
This device supports 3 different user groups: administrator, PTZ user, and general user.
You can add, remove and manage the users in this page.
Add User
To add a new user, type the user name and password, select the user group, then
click [Add/Set] to save the user.
User List
Edit:To change the username and
password, click [Edit] and modify the user
in the pop-up window.
Remove:To remove the user, click
[Remove].
User
