Asotel Dynamix DW-0101/H User manual

D
Dy yn na am mi ix x D DW W- -0 01 10 01 1/ /H H
D
Dy yn na am mi ix x D DW W- -0 02 20 02 2/ /H H
F
FX XS S/ /F FX XO O G GA AT TE EW WA AY Y
U
Us se er r M Ma an nu ua al l

STEPS IN CONFIGURATION..........................................................................................................................3
1. START UP............................................................................................................................................................4
1.1INTRODUCTION...............................................................................................................................................4
1.2FEATURES AND SPECIFICATION.....................................................................................................................5
1.3ACCESSORIES AND EQUIPMENT....................................................................................................................6
1.4APPEARANCE..................................................................................................................................................6
1.4.1 1 FXS/1 FXO.........................................................................................................................................6
1.4.2 2 FXS/2 FXO.........................................................................................................................................7
2. HOW TO SETUP ANDCONNECT BASICALLY................................................................................10
2.1SYSTEM REQUIREMENT ..............................................................................................................................10
2.2IP ENVIRONMENT SETTING........................................................................................................................11

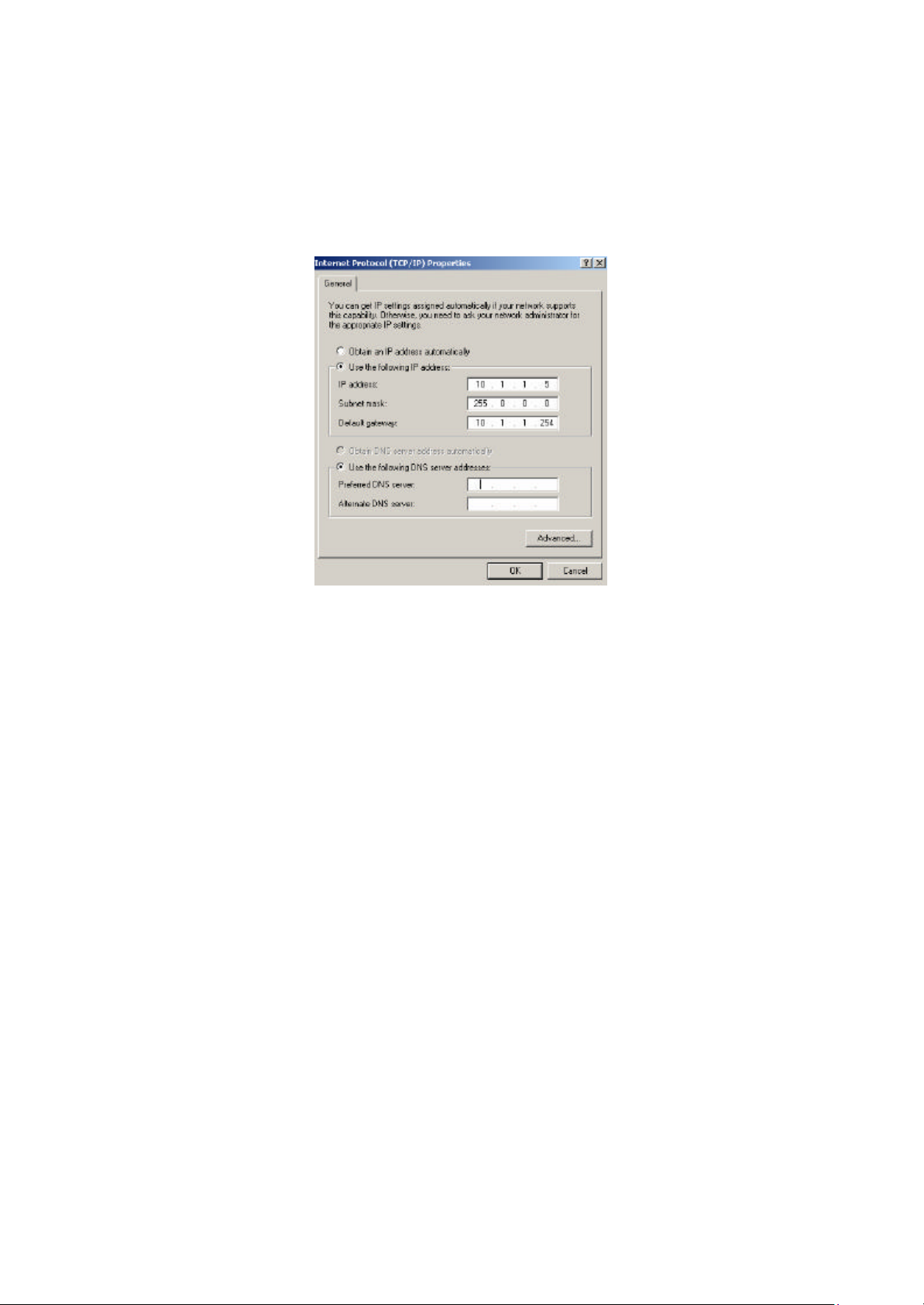

2.2.1 For Windows 2000/NT.......................................................................................................................11
2.3NETWORK CONFIGURATIONS IN YOUR GATEWAY.....................................................................................13

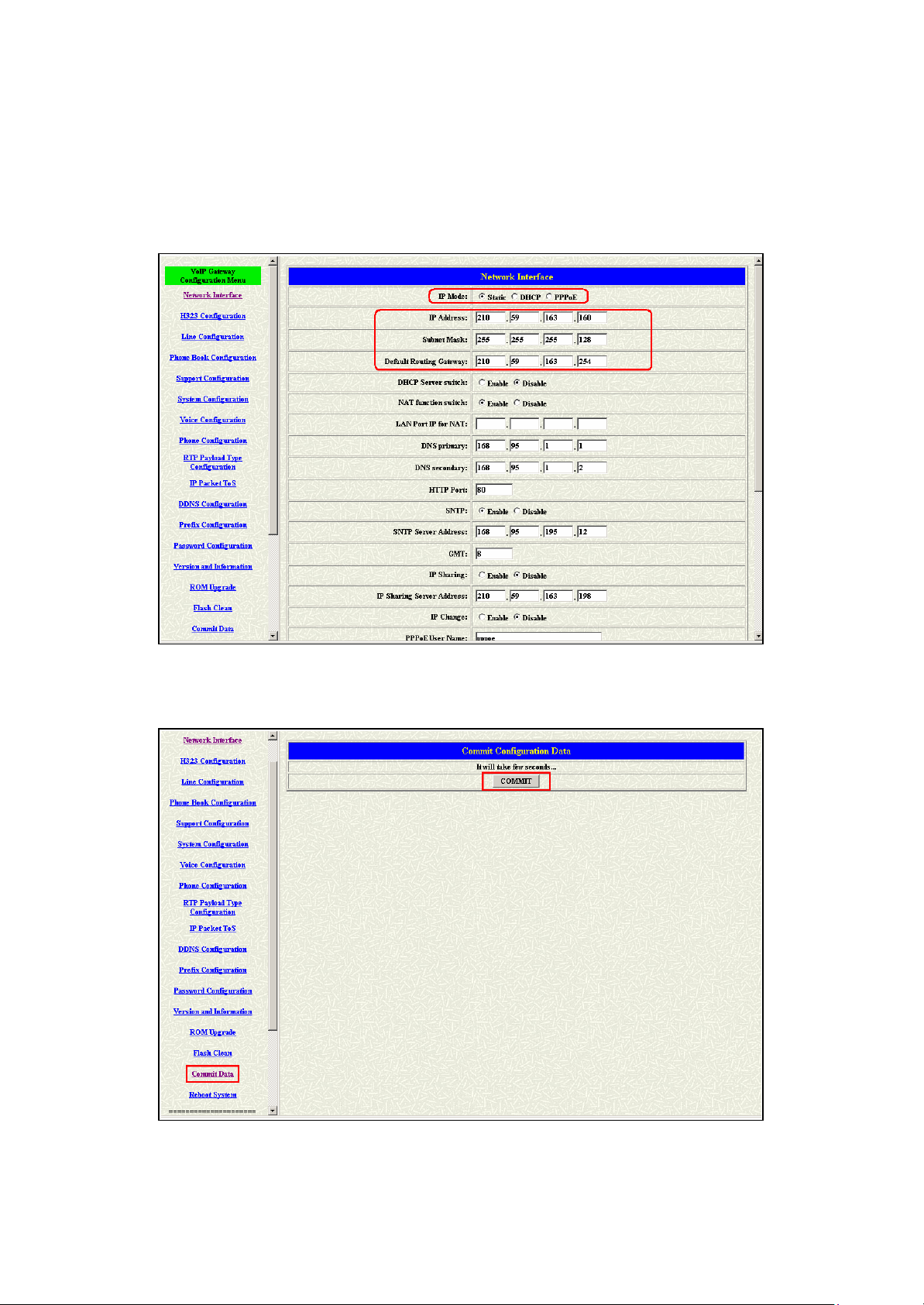

2.3.1 Static ip address.................................................................................................................................15

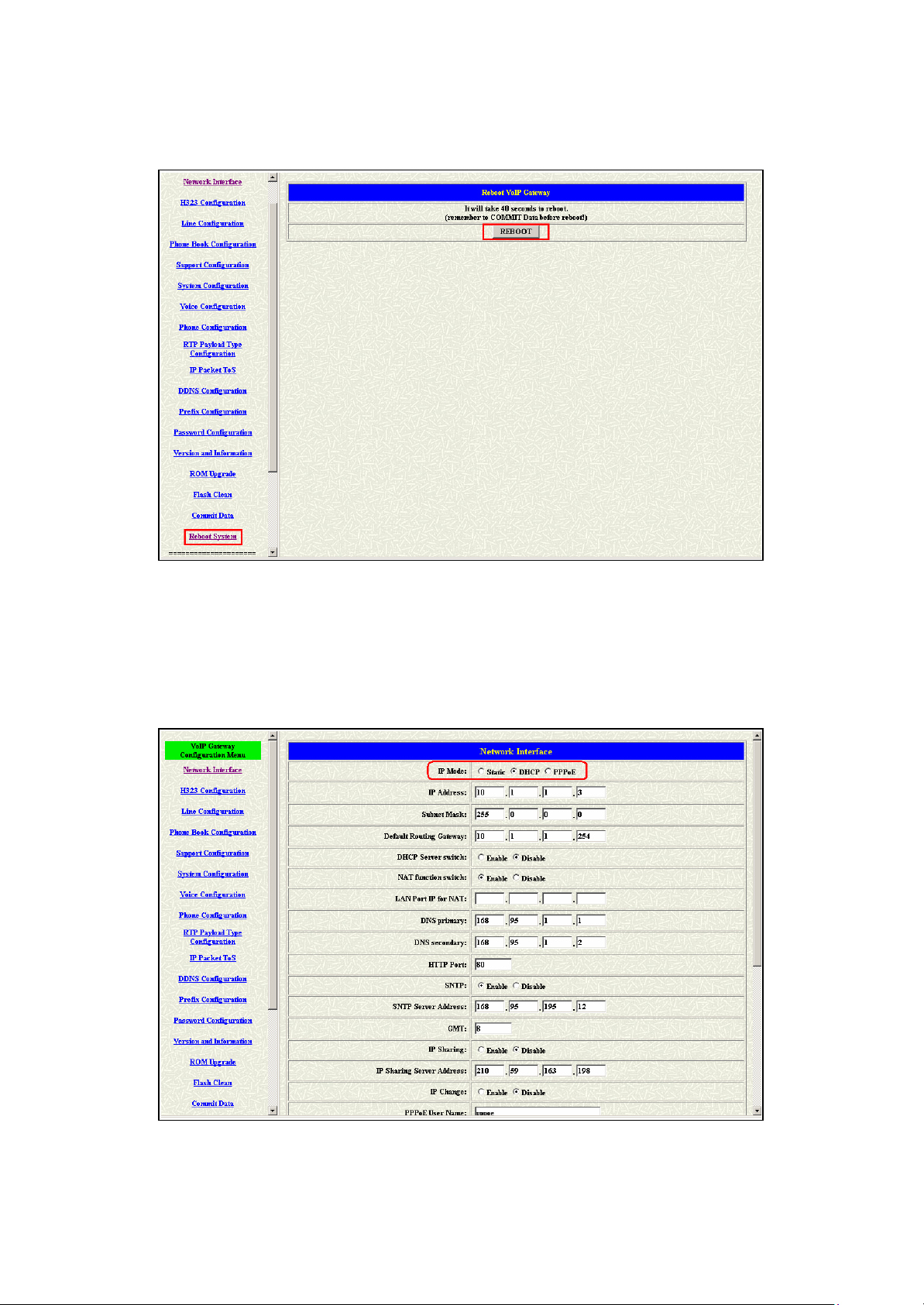

2.3.2 DHCP mode.......................................................................................................................................16

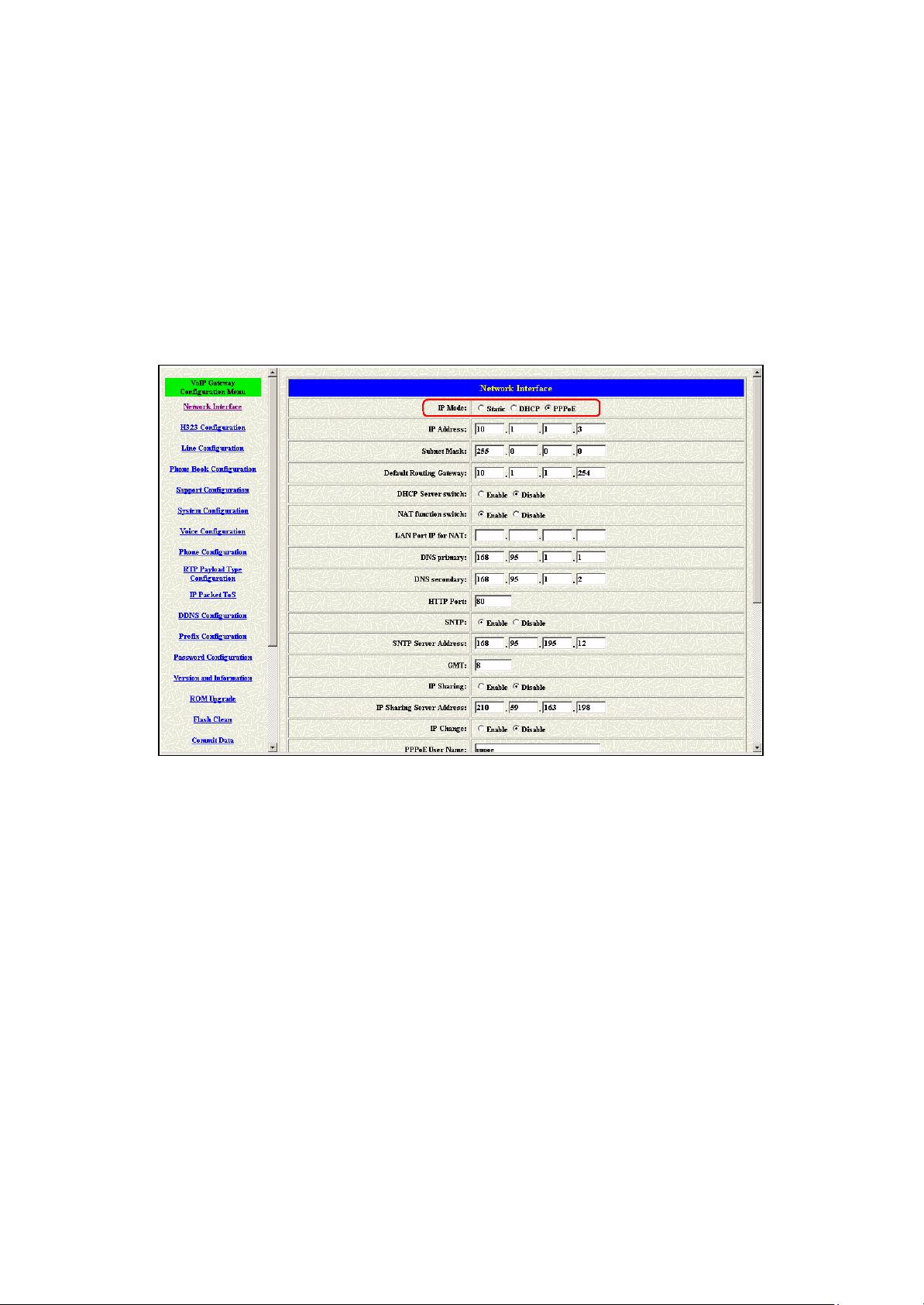

2.3.3 PPPoE mode......................................................................................................................................17
2.4MAKINGA VOIP CALL................................................................................................................................18
2.4.1 Configure the gateway into the Peer-to-Peer mode....................................................................18
2.4.2 Configure the gateway into the GK routed mode........................................................................21
2.4.2.1 The type in GK routed mode........................................................................................................23
3. ADVANCE CONFIGURATIONS...............................................................................................................24
3.1IP SHARING...................................................................................................................................................24
3.2NETWORK INTERFACE.................................................................................................................................28
3.3H323INFORMATION....................................................................................................................................31
3.4LINE CONFIGURATION.................................................................................................................................34
3.5PHONE BOOK CONFIGURATION..................................................................................................................35
3.6SUPPORT CONFIGURATION..........................................................................................................................37
3.6.1 How to enable the H450 function...................................................................................................38
3.7SYSTEM CONFIGURATION...........................................................................................................................39
3.8 VOICE CONFIGURATION..............................................................................................................................42
3.9PHONE CONFIGURATION.............................................................................................................................44
3.10 RTP PAY LOAD TYPE CONFIGURATION..................................................................................................45
3.11IP PACKET TOS...........................................................................................................................................46
3.12 DDNS CONFIGURATION...........................................................................................................................47
3.13 PREFIX CONFIGURATION...........................................................................................................................48
3.14 PASSWORD CONFIGURATION....................................................................................................................51

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
1
3.15 VERSION AND INFORMATION....................................................................................................................52
3.16 ROM UPGRADE.........................................................................................................................................53
3.17 FLASH CLEAN.............................................................................................................................................57
3.18 COMMIT ......................................................................................................................................................58
3.19 REBOOT SYSTEM.......................................................................................................................................59
3.20 TONE CONFIGURATION.............................................................................................................................60
3.21 ROUTING TABLE.........................................................................................................................................61
3.21.1 Change the default routing............................................................................................................62
3.21.2 Add a new Routing Table...............................................................................................................64
3.22 FXOPASSWORD........................................................................................................................................66
4. COMMAND LIST..........................................................................................................................................67
4.1HYPER TERMINAL SETTING........................................................................................................................67
4.2COMMAND LIST ...........................................................................................................................................70
4.2.1 [help]...................................................................................................................................................70
4.2.2 [quit]....................................................................................................................................................71
4.2.3 [debug]................................................................................................................................................71
4.2.4 [reboot]...............................................................................................................................................72
4.2.5 [flash]..................................................................................................................................................72
4.2.6 [commit] .............................................................................................................................................73
4.2.7 [ifaddr]................................................................................................................................................73
4.2.8 [time]...................................................................................................................................................75
4.2.9 [ping]...................................................................................................................................................76
4.2.10 [sysconf] ...........................................................................................................................................76
4.2.11 [h323]................................................................................................................................................79
4.2.12 [line]..................................................................................................................................................83
4.2.13 [prefix]..............................................................................................................................................85
4.2.14 [pbook].............................................................................................................................................86
4.2.15 [voice]...............................................................................................................................................88
4.2.16 [support]...........................................................................................................................................91
4.2.17 [sysinfo]............................................................................................................................................93
4.2.18 [route]...............................................................................................................................................93
4.2.19 [tone].................................................................................................................................................95
4.2.20 [fxopwd]...........................................................................................................................................97
4.2.21 [record].............................................................................................................................................98
4.2.22 [tos].................................................................................................................................................106
4.2.23[ddns]...............................................................................................................................................106

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
2
4.2.24 [pt]...................................................................................................................................................107
4.2.25 [rom]...............................................................................................................................................108
4.2.26 [passwd].........................................................................................................................................110

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
3
Steps in configuration
STEP 1
Start Up
To check out the peripheral equipments and
understand the feature of this gateway. Please
read this step very carefully before starting the
configuring.
Connecting the gateway and computer to start
configuring by WEB GUI.
STEP 2
How to
Setup and
Connect
basically
Setting the ip address for this gateway to make
sure that it could connect with the internet.
Setting the configurations of dialing, including
the
Peer-To -Peer, GK mode and how to set these
tables to make calls by this gateway easily.
The other configurations of make call will be
discussed in this step.
STEP 4
Command
List
STEP 3
Advanced
To explain the meaning of the command in the
command line interface and example the usage of
the command.
To get more usages or configuration in this step
and study about the command line configuration.
Advanced configurations and special functions of
this gateway. Using the WEB GUI to show how to
set this table and explain the meaning of these
tables.

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
4
1. Start Up
1.1 Introduction
TheFXSO gateway provides voice/fax service over IP network with H.323
v3 protocol. By connectingto your existing ADSL or cable modem service,
which allows the use of a single, network for voice and fax services with
consequent saving in network infrastructure and greatly reduced
telephone charges. Ideal solution for providing low cost communications
between headquarters and branch offices in the world, as well as for
SOHO and office telephony applications.
FXSO Gateways provides analog linesto connect local PSTN/PBX
interface (FXO), and converts voice/fax signal onto IP network. The
management feature is via RS-232C COM port and TELNET.
ApplicationArchitecture
lFXO ports can connect with the PSTN or Extension Line of PBX
lFXS ports can connect with the Analog phone set or Trunk line
I
P
Network
FXSO
FXSO
PBX
Extension
Extension side
FXS
IP
Network
IP
Network
PBX
FXSO
FXO
Trunk

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
5
of the PBX
1.2 Features and specification
Features
-ITU-T H.323 v4 compliance
-Automatically Gatekeeper Discovery
-Secondary GK support
-Peer-to-Peer mode (non-Gatekeeper)
-Support auto-attendant (2nddial Tone / Voice greeting)
-Dimensions : 221mm(W)*42mm(H)*217mm(L)
-Line hunting
-1/2 RJ-11 FXS and FXO ports
-DTMF detection/generation
-TFTP software upgrade
-Remote configuration/reset via Telnet
-LED indication for system status
-LAN interface : One RJ-45 connector of 10Base-T
-Support static IP and DHCP
-QoS by ToS (Type Of Service)
-SNTP (Simple Network Time Protocol)
-Security: Password setting
Audio feature
-Codec -- G.711 a/μlaw, G.723.1 (6.3K/bps), G.729A(Optional)
-VAD (Voice Activity Detection), CNG (Comfort Noise Generate)
-G.168/165-compliant adaptive echo cancellation
-Dynamic Jitter Buffer
-Bad Frame Interpolation
-Call Transfer
-Call Forward
-Call Hold
-Gain Settings
-Provide Call Progress Tone: Dial tone, busy tone, call-holding tone and
ring-back tone

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
6
Management Features:
Two easy ways for system configuration
-Console port: RS-232C port
-TELNET
-HTTP Brower (e.g. Internet Explorer)
1.3 Accessories and equipment
uThe voice gateway in FXSO ports models and only one RJ-45 connector
(WAN).
uThe AC adapter.
uThe CD of user manual.
uThe connection cable in RS-232 interface.
1.4Appearance
1.4.1 1 FXS/1 FXO

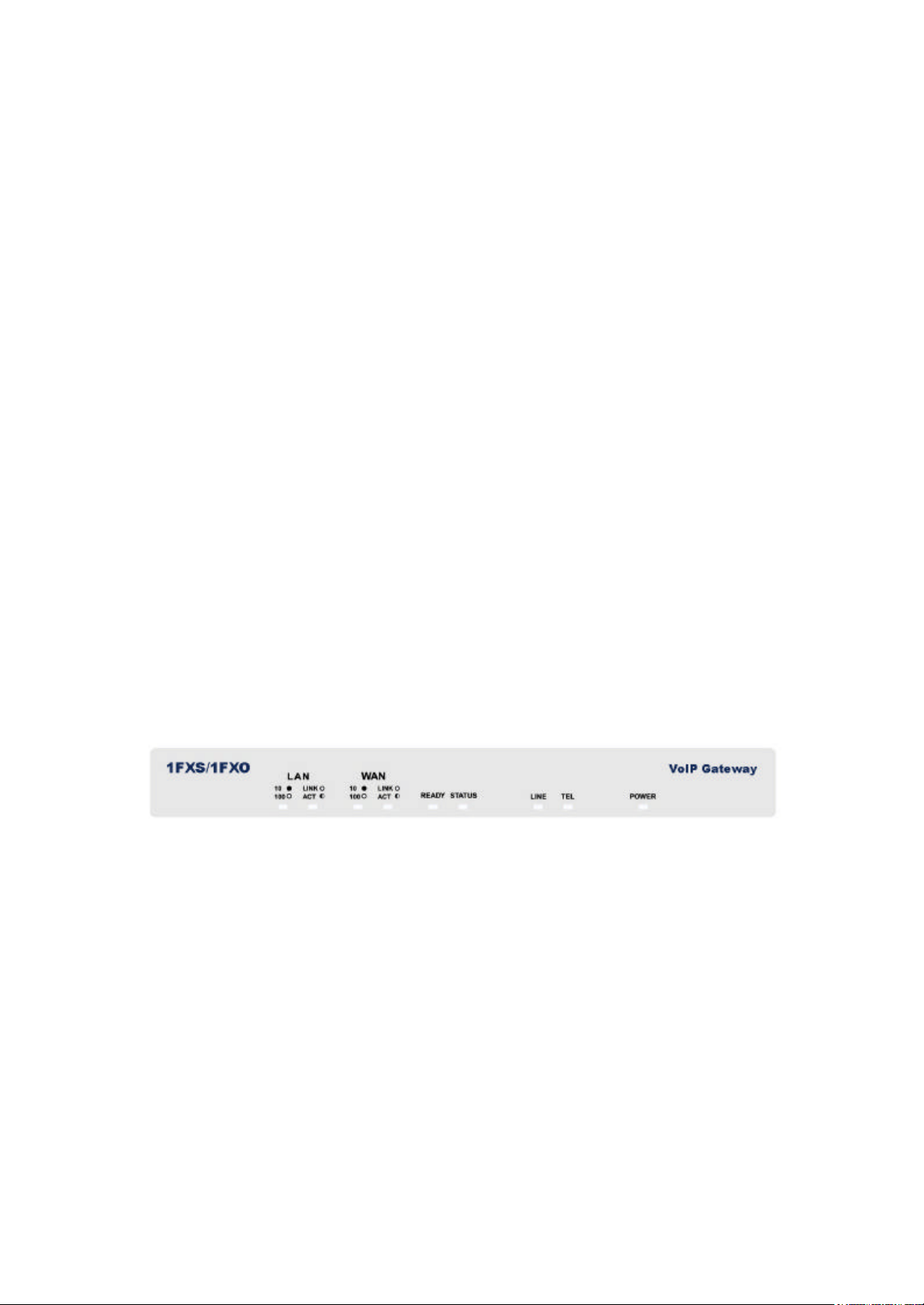

Front panel: The LED light provides system message ofFXSO GateWay.
Power : Light on means FXS/FXO is power on.
L1-L2: Light on means the line is in use.
Link : Light on means FXS/FXO is connected to the network correctly.
Act : LED should be light on and in flash display when data is
transmitting.
Ready : 1. Light on and in slow flash means FXS/FXO is in operation
mode.
Status : 1. Light on means FXS/FXO successfully registered to
Gatekeeper when it is set as Gatekeeper Mode.
2. LED flash means FXS/FXO is not registered to Gatekeeper

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
7
when it is set as Gatekeeper Mode.
3. Or when FXS/FXO is in downloading mode, LED should be
flash as well.
4. Light off means FXS/FXO is in Peer-to-Peer Mode.

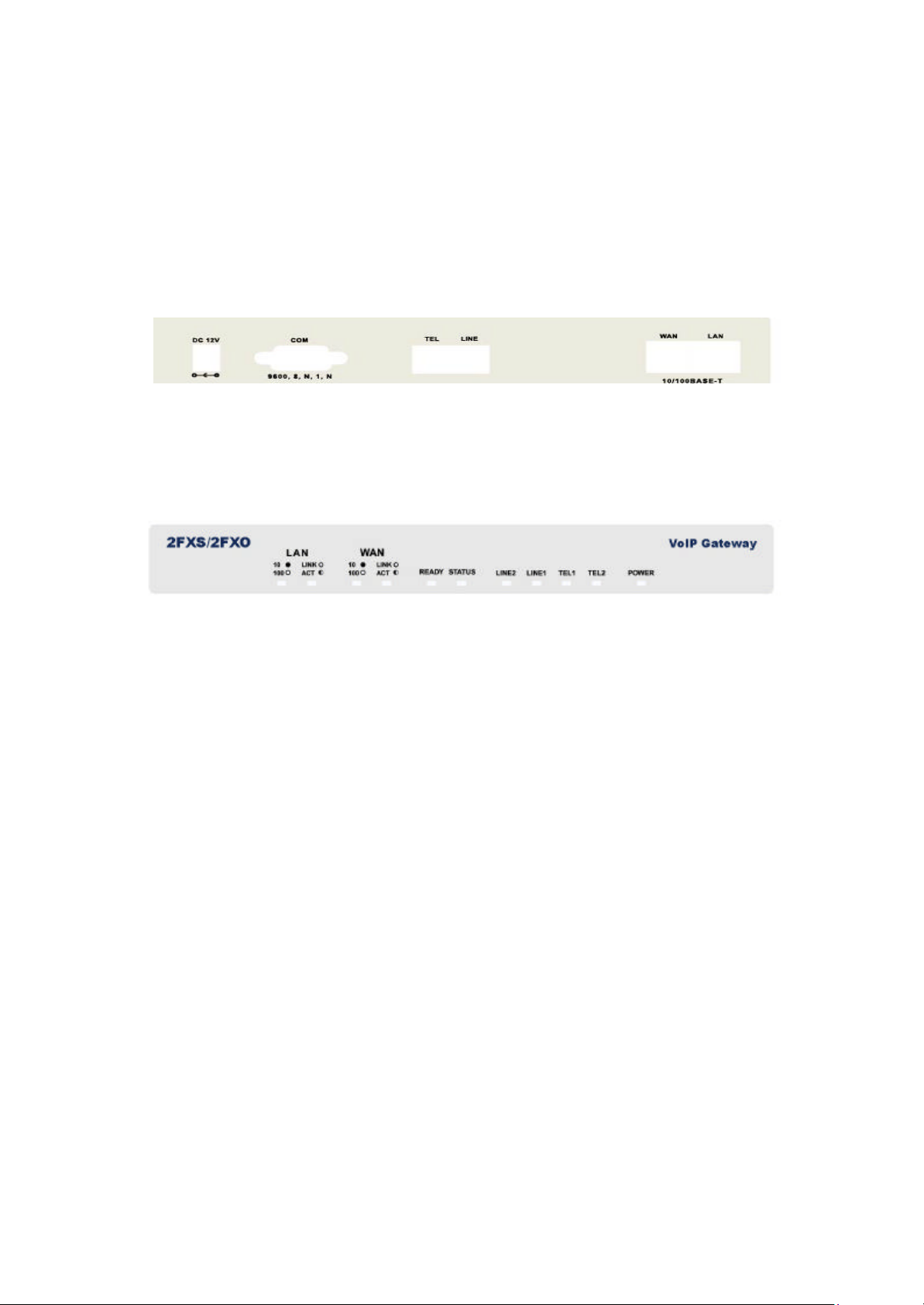

Back panel:
1.4.2 2 FXS/2 FXO
Front panel: The LED light provides system message ofFXSO GateWay.
Power : Light on means FXSO GateWay is power on.
L1-L4: Light on means the line is in use.
Link : Light on means FXSO GateWay is connected to the network
correctly.
Act : LED should be light on and in flash display when data is
transmitting.
Ready : 1. Light on and in slow flash means FXSO GateWay is in
operation mode.
Status : 1. Light on means FXSO GateWay successfully registered to
Gatekeeper when it is set as Gatekeeper Mode.
2. LED flash means FXSO GateWay is not registered to
Gatekeeper when it is set as Gatekeeper Mode.
3. Or whenFXSO GateWay is in downloading mode, LED
should be flash as well.
4. Light off means FXSO GateWay is in Peer-to-Peer Mode.
Back panel:

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
8
1. Ethernet Port
LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET
10/100base-T.
The pin-out is as following:
PIN 1, 2: Transmit
PIN 3, 6: Receive
2. COM:
RS232 console port (DB-9pin male connector)
Note: use straightforward cable to connect to your computer.
PINOUTS
Pin Name Dir Description
2 RXD Receive Data
3 TXD Transmit Data
5 GND System Ground
3. TEL:
RJ-11 connector, FXS interface is for connecting the analog phone setsor
trunk line of PABX.
4. LINE:

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
9
RJ-11 connector, FXSO interface is for connecting the extension line of
PABX or PSTN Line.
5. 12V DC:
Input AC 100V~120V;output DC12V.

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
10
2. How to Setup and connect basically
2.1 System Requirement
1. One PC (a) Pentium 100 or above, 64 RAM, Windows 98 or above.
(b) Ethernet card or COM port
2. One standard straightforward RS-232 cable (female connector to Gateway
side).
3. PBX extension Lines or PSTN Lines.
4. Software tools (a) Hyper Terminal, TELNET, Web Browser.
(b) Gatekeeper (optional).

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
11
2.2 IP Environment Setting
User must prepare a valid IP address, compliedwith IP Network, for Gateway’s
proper operation.
For testing the validation of chosen IP address, using the same IP
configuration in other PC or Notebook, and then try to connect to Public
Internet (go to well-known website, receive Internet mail, or ping a specific
public IP address). If it works, use the same IP address and network
configuration for Gateway.
Please follow up the step for the configuration of your computer or notebook.
2.2.1 For Windows 2000/NT
Please make sure that the network interface of your computer is working fine
and the cross over line (RJ-45) is connecting with the computer correctly or
you could use ahub to connect with your computer and this gateway. Turn on
your computer and configure the network parameter as follow:
1Go to the start menu and enter the setting area. Click control panel.
2Enter the network configuration.

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
12
Figure 2.1: Network Configuration
3Select theProperty of the LAN card.
4 Setup the ip address, subnet mask and default gateway as below:
Figure 2.2: Configure the network
5Click OK after you finished the network setup.
The default ip address, netmask and default gateway address of the gateway
is 10.1.1.3, 255.0.0.0, 10.1.1.254.

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
13
2.3 Network configurations in your gateway
1Key in the ip address of the gateway (http://10.1.1.3) with the browser

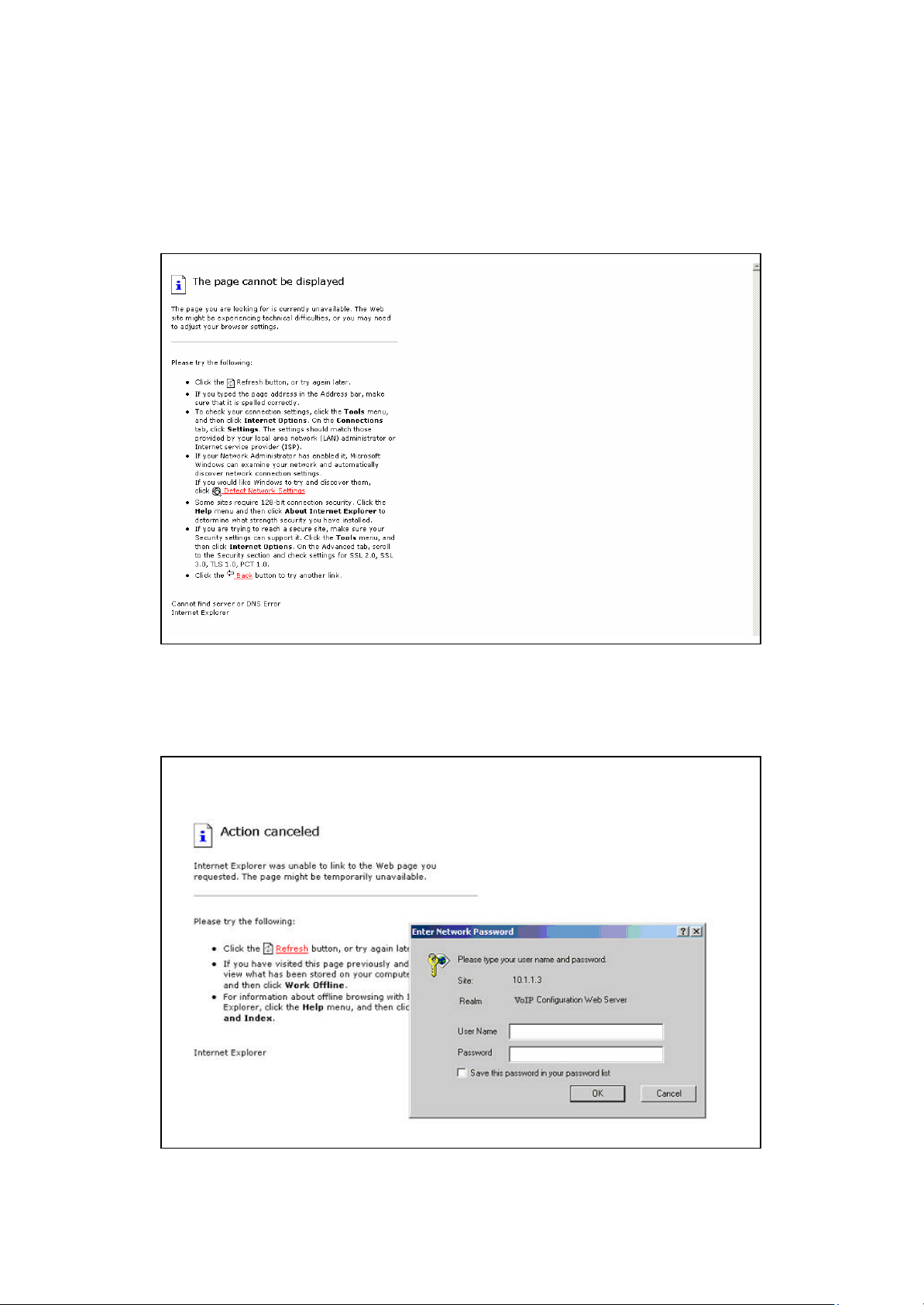

Figure 2.3: WEB Browser
2After key in the ip address, you have to enter the user name and password
to enter the WEB configuration. (Username: root ; No password)

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
14
Figure 2.3: Login the username and password
3You will enter the main page of the configuration after key in the login name
and password correctly:

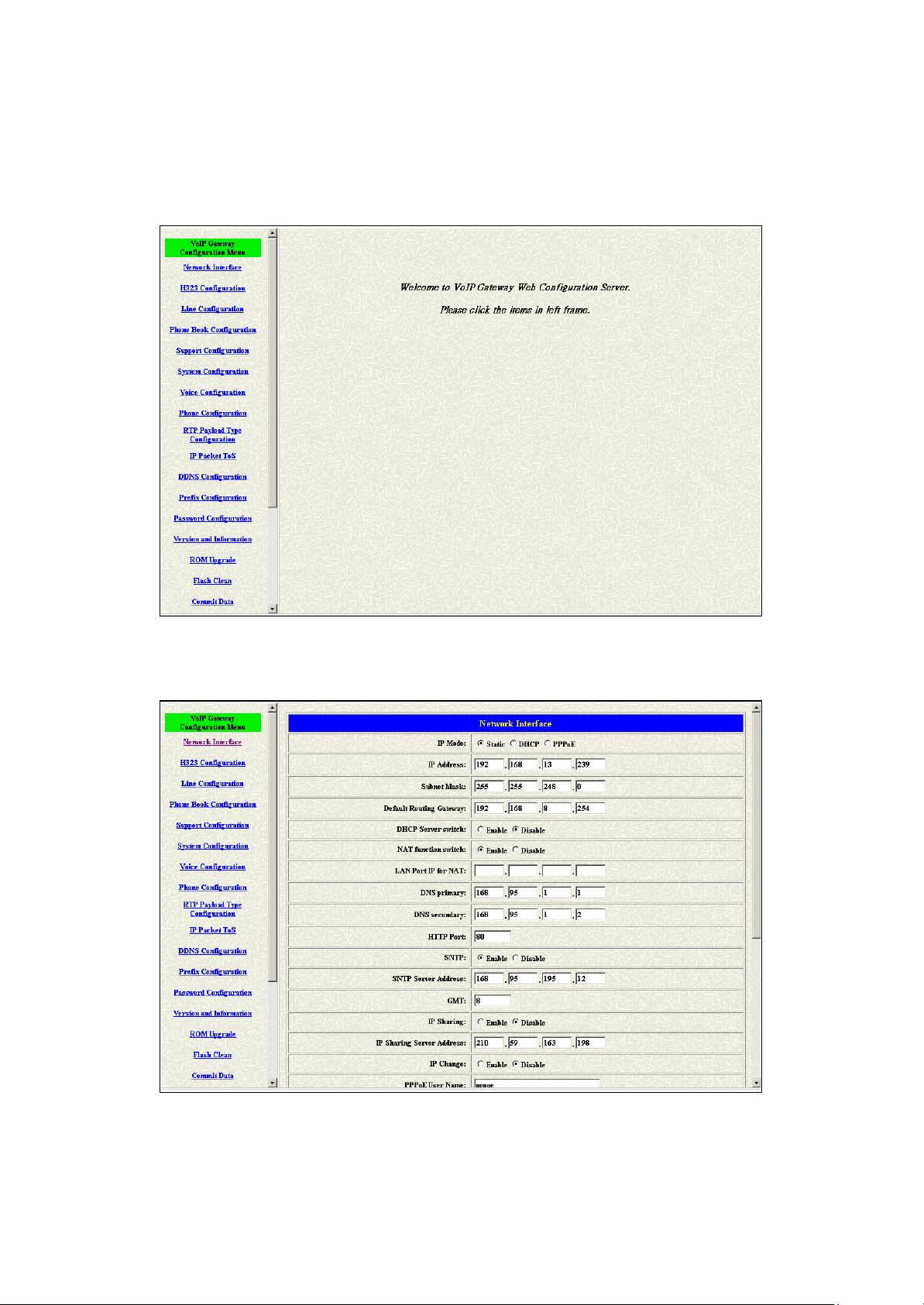

Figure 2.4: The main WEB configuration
4Press the Network Interface to configure the networking of your gateway:
Figure 2.5: The Network Interface

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
15
2.3.1 Static ip address
1Please get the correct ip address, netmask and default gateway address
from your ISP first. Press the OK button if you finished.
Figure 2.5: Configure the static ip address
2Press the commit if you finish the configuration.
Figure 2.6: Commit the data

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
16
3Press the reboot if you want the configuration executed.
Figure 2.7: Reboot the system
2.3.2 DHCP mode
1Enable the DHCP if you are using the cable modem or DHCP server.
Figure 2.8: Enable the DHCP function

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
17
2Please commit the data and reboot the machine after you enable the DHCP
function.
2.3.3 PPPoE mode
1Enable the PPPoE and press the info about PPPoE configuration in the
correct table.
Figure 2.9: Switch to PPPoE function

FXSO H.323 Gateway User Manual Document Ver.: 105
Release Dec, 2004
18
Figure 2.10: Configure the info about PPPoE
2Please commit the data and reboot the machine after you finished the
configuration of PPPoE.
2.4 Making a VoIP Call
There are two modes that you could configure the gateway for making VoIP
calls. One is the Peer-to-Peer mode and another is GK routed mode. The
configurations and functions are different. Please make sure about the mode
you want and follow up the step to configure your gateway.
2.4.1 Configure the gateway into the Peer-to-Peer mode
1Enter the H323 Configuration table and change the mode to Peer-to-Peer.
