ASROCK Rack EPYC3451D4I2-2T User manual

EPYC3451D4I2-2T
EPYC3351D4I2-2T
User Manual
Version 1.0
Published August 2020
Copyright©2020 ASRock Rack INC. All rights reserved.

Version 1.0
Published August 2020
Copyright©2020 ASRock Rack Inc. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Rack Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should not
be constructed as a commitment by ASRock Rack. ASRock Rack assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock Rack does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRock Rack has been advised of the possibility of such damages
arising from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Rack’s Website: www.ASRockRack.com

Contact Information
If you need to contact ASRock Rack or want to know more about ASRock Rack,
you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you
may contact your dealer for further information.
ASRock Rack Incorporation
6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 5
1.4 Motherboard Layout 6

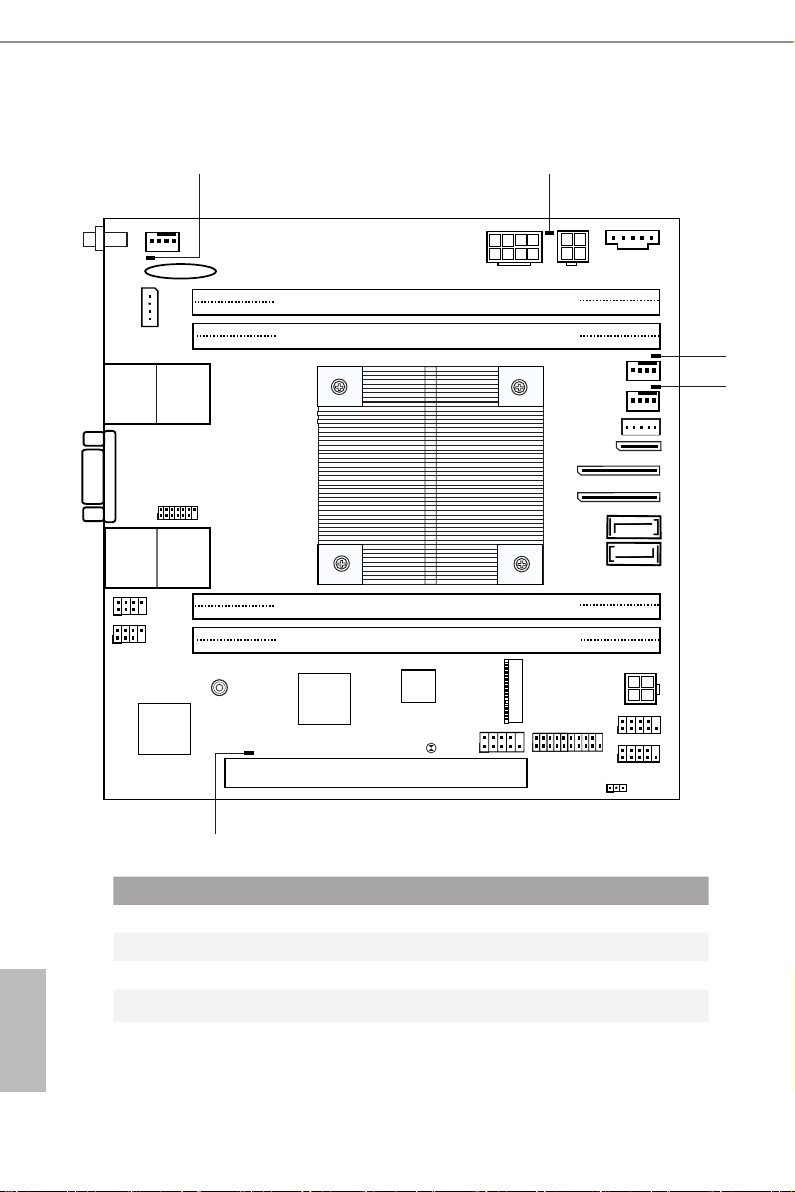

1.5 Onboard LED Indicators 8
1.6 I/O Panel 9
1.7 Block Diagram 11
Chapter 2 Installation 12
2.1 Screw Holes 12
2.2 Pre-installation Precautions 12

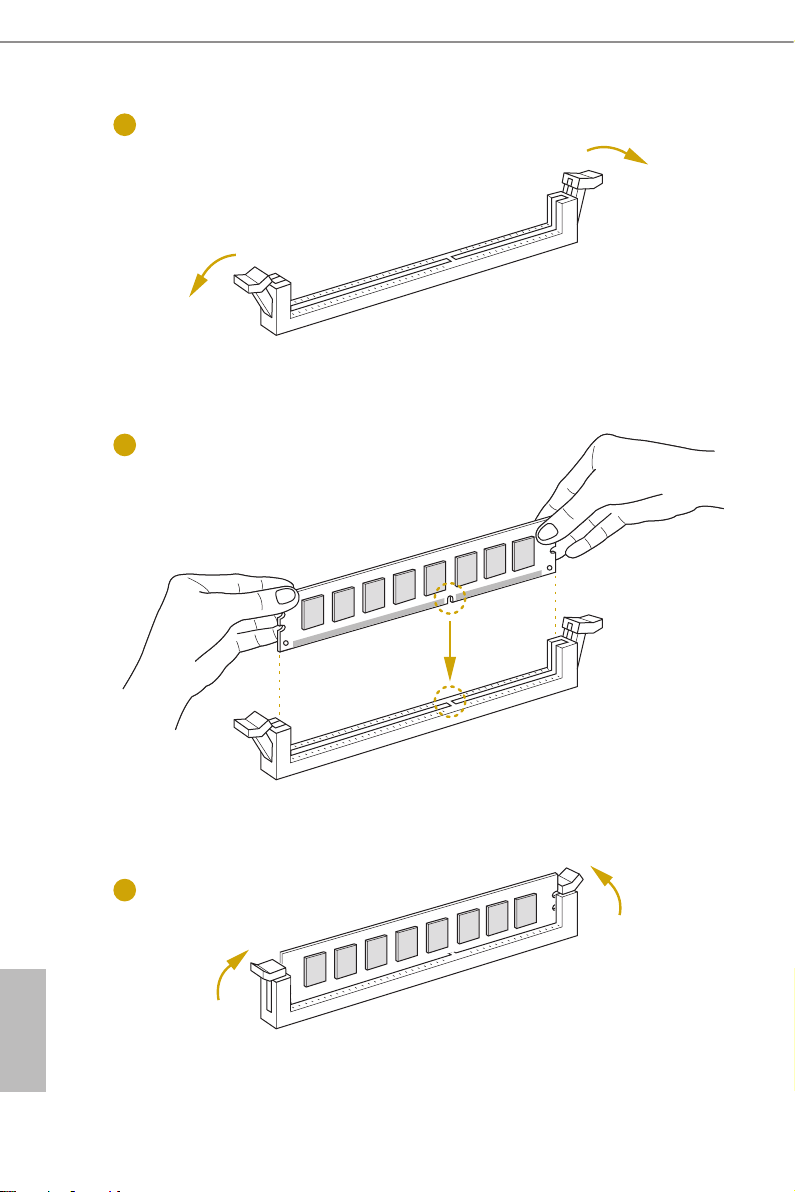

2.3 Installation of Memory Modules (DIMM) 13
2.4 Expansion Slots (PCI Express Slots) 15
2.5 Onboard Headers and Connectors 16
2.6 AC-IN / DC-IN Power Connections 21
2.7 Unit Identication purpose LED/Switch 22
2.8 Driver Installation Guide 22
2.9 Dual LAN and Teaming Operation Guide 23
2.10 M.2_SSD (NGFF) Module Installation Guide 24
Chapter 3 UEFI Setup Utility 25
3.1 Introduction 25
3.1.1 UEFI Menu Bar 25
3.1.2 Navigation Keys 26

3.2 Main Screen 27
3.3 Advanced Screen 28
3.3.1 CPU Conguration 29
3.3.2 Chipset Conguration 30
3.3.3 Storage Conguration 32
3.3.4 ACPI Conguration 33
3.3.5 USB Conguration 34
3.3.6 Super IO Conguration 35
3.3.7 Serial Port Console Redirection 36
3.3.8 H/W Monitor 40
3.3.9 PSP Firmware Versions 41
3.3.10 AMD CBS 42
3.3.11 Instant Flash 43
3.4 Server Mgmt 44
3.4.1 System Event Log 45
3.4.2 BMC Network Conguration 46
3.4.3 BMC Tools 48
3.5 Security 49
3.5.1 Key Management 50
3.6 Boot Screen 54
3.6.1 CSM Parameters 56
3.7 Event Logs 58
3.8 Exit Screen 60

Chapter 4 Software Support 61
4.1 Install Operating System 61
4.2 Support CD Information 61
4.2.1 Running The Support CD 61
4.2.2 Drivers Menu 61
4.2.3 Utilities Menu 61
4.2.4 Contact Information 61
Chapter 5 Troubleshooting 62
5.1 Troubleshooting Procedures 62
5.2 Technical Support Procedures 64
5.3 Returning Merchandise for Service 64

EPYC3451D4I2-2T / EPYC3351D4I2-2T
PB 1
English
Chapter 1 Introduction
ank you for purchasing ASRock Rack EPYC3451D4I2-2T / EPYC3351D4I2-2T
motherboard, a reliable motherboard produced under ASRock Rack’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock Rack’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and information of the Support CD.
1.1 Package Contents
• ASRock Rack EPYC3451D4I2-2T / EPYC3351D4I2-2T Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.02 cm x 17.02 cm)
• Quick Installation Guide
• 1 x Oculink to 4 SATA Cable (60cm) (Optional)
• 1 x Oculink to 8 SATA Cable (60cm) (Optional)
• 1 x SATA3 Cable (60cm)
• 1 x SATA Power Cable (80cm)
• 1 x ATX 4P to 24P Power Cable (8cm)
• 1 x I/O Shield
• 1 x Screw for M.2 Socket
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2 3
English
1.2 Specications
EPYC3451D4I2-2T / EPYC3351D4I2-2T
MB Physical Status
Form Factor Mini-ITX
Dimension 6.7'' x 6.7'' (17.02 cm x 17.02 cm)
Processor System
CPU Support AMD EPYC™ Embedded 3000 Series Processors
Chipset Soc
System Memory
Capacity - 4 x 288-pin DDR4 SDRAM DIMM slots
- Support up to 256GB DDR4 ECC/UDIMM, RDIMM,
LR-DIMM
Type - Dual Channel DDR4 memory technology
- Support DDR4 ECC/UDIMM, RDIMM, LR-DIMM
Voltage 1.2V
DIMM Size per
DIMM
- ECC/UDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- RDIMM/LR-DIMM: 128GB, 64GB, 32GB, 16GB, 8GB, 4GB
DIMM
Frequency
- ECC/UDIMM: 2133/2400/2666 MHz
- RDIMM/LR-DIMM: 2133/2400/2666 MHz
*e max speed may vary based on SoC SKU.
Expansion Slot
PCIe 3.0 x 16 SLOT7: Gen3 x16 link
Storage
SATA Controller AMD Built-in Storage: 14 x SATAIII 6.0 Gb/s (4 x SATA from
OCulink x4, 8 x SATA from OCulink x8, 2 x SATAIII 6.0 Gb/s)
M.2 Slot 1 (2280, supports PCIe 3.0 x4 and SATA3)
Ethernet
Interface 10000/1000 Mbps
LAN Controller - 2 x RJ45 10GLAN by Intel® X710-AT2
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
Management
BMC Controller ASPEED AST2500 : IPMI (Intelligent Platform Management
Interface) 2.0 with ikvm and vMedia support
IPMI Dedicated
GLAN 1 x Realtek RTL8211E for dedicated management LAN
Features Watch Dog
Graphics
Controller ASPEED AST2500

EPYC3451D4I2-2T / EPYC3351D4I2-2T
2 3
English
Rear Panel I/O
VGA Port D-sub x 1
Lan Port
- 2 x 10GLAN RJ45(by Intel® X710-AT2 )
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button 1
USB 3.2 Gen1 2
Internal Connector
COM Header 1
M.2 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 2280
form factor
Front Panel 1
Auxiliary Panel
Header 1 (includes chassis intrusion, 2 front LAN LED, system LED)
TR1 Header 1
IPMB Header 1
PSU_SMB1 1
USB 3.2 Gen1
Header 1 (supports 2 USB 3.2 Gen1 ports)
Fan Header 3
ATX Power 1 x (4-pin) + 1 x (8-pin) support 12V DC-IN
SATA Power 1 (for DC-IN mode)
*Caution: Misconnection may permanently damage the motherboard.
ClearCMOS 1 (short pad)
SATA SGPIO 2
CPU_HSBP1 1
FanFail LED 3
System BIOS
BIOS Ty pe 16MB AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRockRack Instant Flash
Hardware Monitor
Temperature - CPU/DDR Temperature Sensing
- MB/Card Side Temperature Sensing
Fan
- Fan Tachometer
- Fan Multi-Speed Control
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)

4 5
English
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
+1.1V,+1.0V, +BAT, 3VSB, 5VSB
Support OS
OS Windows:
- Windows Server 2019
Linux:
- RedHat Enterprise Linux Server 7.4 (64bit) / 7.6 (64 bit)
- CentOs 7.4 (64 bit) / 7.6 (64 bit)
- UBuntu 18.04 (64 bit)
* Please refer to our website for the latest OS support list.
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
*Install a CPU Fan when the airow through the heatsink is below 2CFM.
* For detailed product information, please visit our website: http://www.asrockrack.com
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN1&2 can wake up S5 under OS.
If you install Intel® LAN utility, this motherboard may fail Windows® Hardware Quality
Lab (WHQL) certication tests. If you install the drivers only, it will pass the WHQL tests.

EPYC3451D4I2-2T / EPYC3351D4I2-2T
4 5
English
1.3 Unique Features
ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM. is conve-
nient BIOS update tool allows you to update system BIOS without entering operating
systems rst like MS-DOS or Windows®. With this utility, you can press the <F6> key
during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock
Rack Instant Flash. Just launch this tool and save the new BIOS le to your USB ash
drive, oppy disk or hard drive, then you can update your BIOS only in a few clicks
without preparing an additional oppy diskette or other complicated ash utility.
Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le
system.

6 7
English

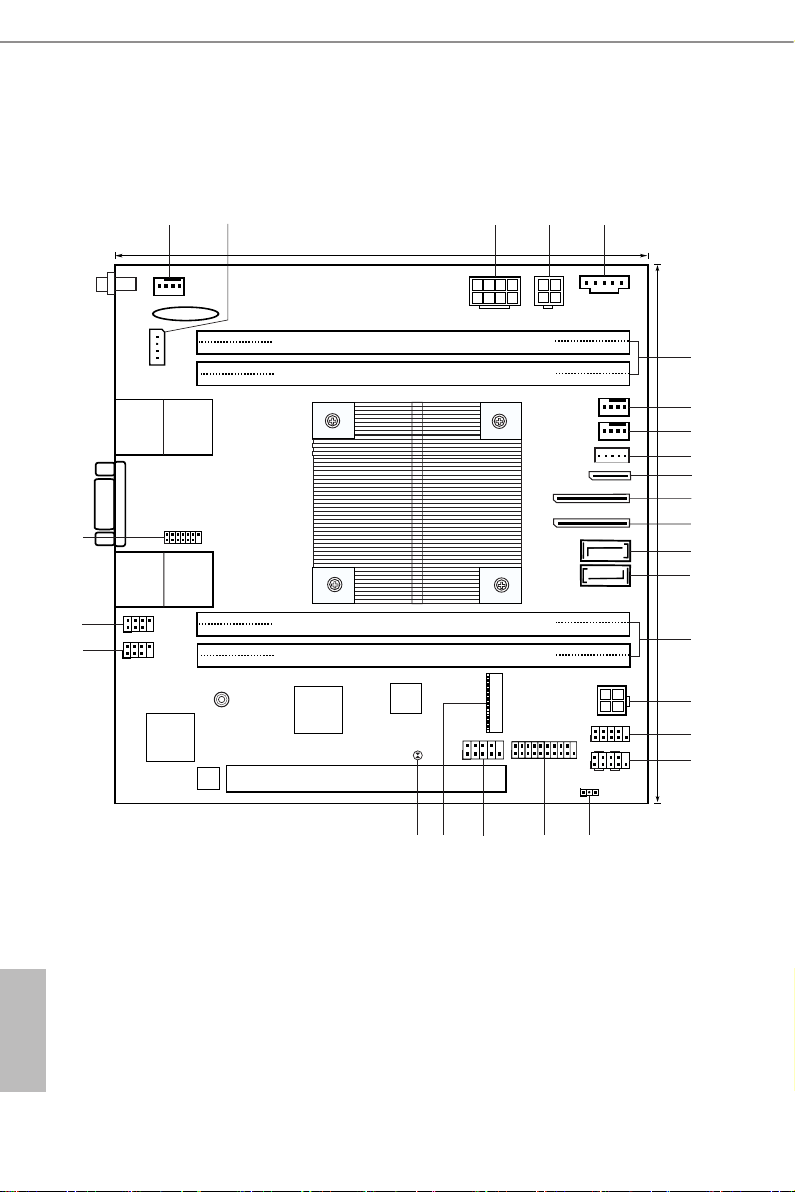

1.4 Motherboard Layout
DDR4_B1 (64 bit, 288-pin module, Blue)DDR4,
DDR4_A1 (64 bit, 288-pin module,DDR4, Blue)
17.0cm (6.7 in)
FAN2
IPMB_1
DDR4_C1 (64 bit, 288-pin module, Blue)DDR4,
DDR4_D1 DDR4, Blue)(64 bit, 288-pin module,
1
PSU_SMB1
FAN3
BAT1
VGA1
UID1
FAN1
6
15
ATXPWR1
ATX12V1
OCU1
PCIE7PCIE7
M2_1
NUT80
HDDPWR1
SATA _4
SATA_5
1
SATA_SGPIO2
PANEL1
HDLED RESET
PLED PWRBTN
1
AUX_PANEL1
1
USB 3.2 Gen1
T: USB2
B: USB1
IPMI
LAN
17.0cm (6.7 in)
3
2
ASPEED
AST2500
145
7
8
10
12
13
17
16
21
22
23 20
(SATAPower)
OCU2_3
OCU4_5
CPU1_HSBP1
1
SATA_SGPIO1
1
USB3_3_4
1
COM1
Intel
X710-AT2
11
14
18
24
25
LAN1 LAN2
(NCSI)
Super
I/O
BMC
F/W
9
1
TPM1
26
1
T 1
R
19

EPYC3451D4I2-2T / EPYC3351D4I2-2T
6 7
English
No. Description
1 System Fan Connector (FAN2)
2 Intelligent Platform Management Bus Header (IPMB_1)
3 ATX 12V Power Connector (ATX12V1)
4 ATX 4-PIN Power Connector (ATXPWR1 (ATX 24pin-to-4pin))***
5PSU SMBus (PSU_SMB1)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)*
7 System Fan Connector (FAN3)
8 System Fan Connector (FAN1)
9 CPU HP-SMBus Connector (CPU1_HSBP1)
10 OCuLink x4 Connector (OCU1)
11 OCuLink x8 Connector (OCU2_3)
12 OCuLink x8 Connector (OCU4_5)
13 SATA3 Connector (SATA_5)**
14 SATA3 Connector (SATA_4)
15 2 x 288-pin DDR4 DIMM Slots (DDR4_C1, DDR4_D1)*
16 SATA Power Connector (HDDPWR1)***
17 Auxiliary Panel Header (AUX_PANEL1)
18 System Panel Header (PANEL1)
19 ermal Sensor Header (TR1)
20 USB 3.2 Gen1 Header (USB3_3_4)
21 COM Port Header (COM1)
22 M.2 Socket (M2_1) (Type 2280)**
23 Clear CMOS Pad (CLRMOS1)
24 SATA SGPIO Connector (SATA_SGPIO1)
25 SATA SGPIO Connector (SATA_SGPIO2)
26 TPM Header (TPM1)
*For DIMM installation and conguration instructions, please see p.14 (Installation of Memory Modules
(DIMM)) for more details.
** If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will be disabled.
***Caution: Misconnection between the ATXPWR1 and the HDDPWR1 connectors may permanently damage
the motherboard.

8 9
English
1.5 Onboard LED Indicators
DDR4_B1 (64 bit, 288-pin module, Blue)DDR4,
DDR4_A1 (64 bit, 288-pin module,DDR4, Blue)
DDR4_C1 (64 bit, 288-pin module, Blue)DDR4,
DDR4_D1 DDR4, Blue)(64 bit, 288-pin module,
1
1
1
1
1
3
4
2
5
No. Item Status Description
1LED_FAN2 Amber FAN2 failed
2 SB_PWR1 Green STB PWR ready
3LED_FAN3 Amber FAN3 failed
4LED_FAN1 Amber FAN1 failed
5BMC_LED1 Green BMC heartbeat LED

EPYC3451D4I2-2T / EPYC3351D4I2-2T
8 9
English
1.6 I/O Panel
4
2
15
36
No. Description No. Description
1 UID Switch/LED (UID1) 4 VGA Port (VGA1)
2 USB 3.1 Gen1 Ports (USB3_1_2) 5 10G LAN RJ-45 Port (LAN1)**
3 Dedicated IPMI LAN Port* 6 10G LAN RJ-45 Port (LAN2)**
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port

10 11
English
**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
10G LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 100Mbps connection or
no link
Blinking Yellow Data Activity Yellow 1Gbps connection
On Link Green 10Gbps connection
ACT/LIN K LE D SPEED LED
LAN Port
ACT/LIN K LE D SPEED LED

EPYC3451D4I2-2T / EPYC3351D4I2-2T
10 11
English
1.7 Block Diagram
ASPEED
AST2500
PCIeUSB
MAC
UART
RTL
8211E
MAC
VGA
SPI
D-Sub
BIOS
Switch
NCT6779D-R
DDR4 DDR4
A
B
AMD EPYC™
Embedded
3000 Series
TDP: max. 100W
X550
-AT2
SLOT7 x16
LPC
COM port
DDR4
DDR4
C
D
Switch
USB
HUB

12 13
English
Chapter 2 Installation
This is a Mini-ITX form factor (6.7'' x 6.7'', 17.0 cm x 17.0 cm)motherboard. Before
you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the motherboard’s components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the compo-
nents.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in
the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard to the chassis,
please do not over-tighten the screws! Doing so may damage the motherboard.
Make sure to unplug the power cord before installing or removing the motherboard. Failure
to do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

EPYC3451D4I2-2T / EPYC3351D4I2-2T
12 13
English
2.3 Installation of Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and
supports Dual Channel Memory Technology.
Dual Channel Memory Conguration
Priority DDR4_A1
(Blue)
DDR4_B1
(Blue)
DDR4_C1
(Blue)
DDR4_D1
(Blue)
1Populated Populated
2Populated Populated Populated Populated
*Since installing three memory modules is NOT supported on this motherboard, we suggest not using
this conguration.
1. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR4 DIMM pairs.
2. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and DIMM may be damaged.
3. Please install the memory module on CH0_A1 for the rst priority.
4. To activate Dual Channel Memory Technology, please follow the “Dual Channel Memory
Conguration” table below.
e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

14 15
English
1
2
3
