Description
The AQE line of Power over Ethernet (PoE) MidSpan
Injectors are available at 15.5 watts (W) and 30W in
accordance with the requirements in the Institute of
Electrical and Electronics Engineers (IEEE) Standard 802.3,
"Ethernet."
The AQE line of MidSpan Injectors provides PoE compli-
ant power to PoE compatible devices such as Internet
Protocol (IP) cameras, infrared (IR) illuminators, ac-
cess control panels and readers, or to non-PoE de-
vices using a PoE Extractor such as the AQE30E.
Regulatory Information
The equipment discussed within this manual has been tested
to the following standards:
• UL Standard UL294b, "The Standard of Safety for
Access Control System Units"
• International Electrotechnical Commission (IEC)
and UL Standard IEC/UL 60950-1, "Components"
• Canadian Standards Association Standard C22.2
No. 205-M1983, "Signal Equipment"

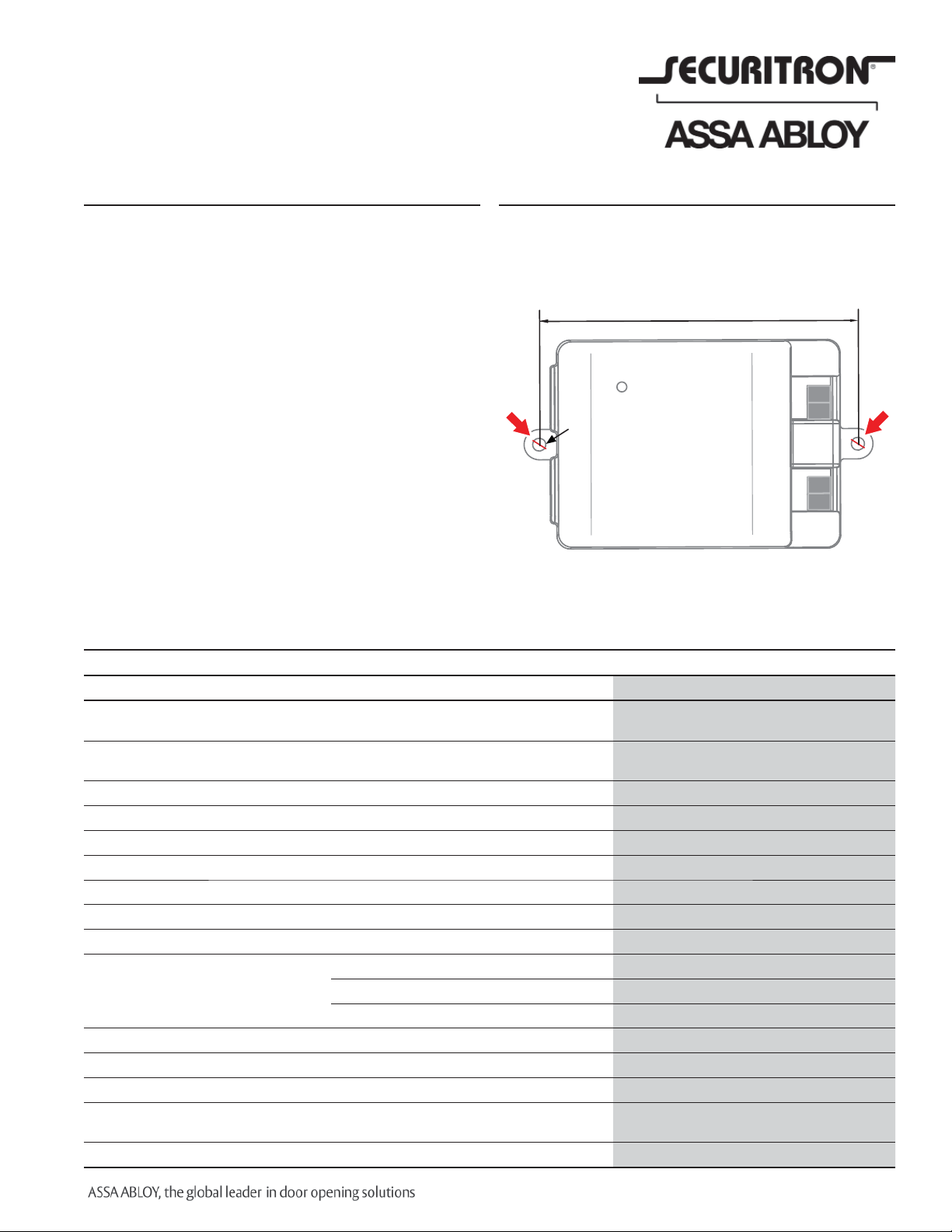

Mounting the AQE Series Module
The AQE line of Midspan Injectors mount using two screws
in the mounting tabs. The unit must be mounted in a
secure, indoor, dry location to a suitable surface, using
suitable hardware.
Data PoE/Data
Port
Status
24V AC/DC
Input
PoE
Shutdown
#6 Diameter
3.85”
Specifications
AQE15 AQE30
Input Voltage 24 volts (V) Alternating Current (AC) or
24V Direct Current (DC) ±15% 24 VAC or 24 VDC ±15%
Input Current 1.4 Amperes (A) Maximum (Max) AC or
DC 2.6A Max AC or DC
Output Power 15.4W (IEEE802.3af) 30W (IEEE802.3at)
Output Voltage 50 VDC 50 VDC
Output Current 300 mA 600 mA
Shutdown Terminals 5–24 VDC @ 10 mA Max 5–24 VDC @ 10 mA Max
Data Cable Length 328 feet (ft) or 100 meters (m) Max 328 ft (100 m) Max
Data Rate 10/100 Base-T 10/100/1000 Base-T
ESD Immunity 8 kilovolts (kV) 8 kV
PoE Pin Assignment Positive (VCC+): Pins 4, 5 Positive (VCC+): Pins 4, 5
Negative (VCC–): Pins 7, 8 Negative (VCC–): Pins 7, 8
Data: Pins 1, 2, 3, 6 Data: Pins 1, 2, 3, 4, 5, 6, 7
Operating Ambient Temperature 0 to 49°C, Indoor Dry Locations 0 to 49°C, Indoor Dry Locations
Storage Temperature –20 to +70°C –20 to +70°C
Operating Humidity 5 to 95% (Non-Condensing) 5 to 95% (Non-Condensing)
Size 4.20" L x 2.50" W x 1.20" D
(107mm L x 64mm W x 31mm D) 4.20" L x 2.50" W x 1.20" D (107mm L x 64mm W x 31mm D)
Weight 0.25 pounds (lb) or 0.11 kilograms (kG) 0.30 lb (0.14 kG)
AQE15 and AQE30
Power over Ethernet Midspan Injector
Installation Manual
500-33605, Rev A

AQE15/AQE30 – Module Overview

Data
This is the non-PoE input from the network switch. This
connector is an RJ45 jack and accepts a CAT-5 cable.

PoE/Data
This is the PoE output to the camera or other device to be
powered. See the Specifications section for ratings. This
connector is an RJ45 jack and accepts a CAT-5 cable.

Port Status (Green)
This LED shows the status of the AQE MidSpan Injector.
See the appropriate status chart for more information.

PoE Shutdown
This input will shut down the PoE output of the AQE MidSpan
Injector. This can be useful for rebooting devices that have
become non-responsive. These terminal strips accept wire
sizes from AWG14–AWG22. To shut down the PoE Output, ap-
ply any DC voltage within the ratings shown under "Shutdown
Terminals" in the Specifications section of this manual.

Mounting Tab
The mounting tab centers are spaced 3.85" on center. Refer to
the mounting guide (page 1) for mounting details.

24 VAC or 24 VDC Input
This is the power supply input for the AQE MidSpan Injector.
These terminal strips accept wire sizes from AWG14–AWG22.See
the Specifications section for more information. When using DC
voltage, the voltage may be connected in either polarity.
AQE15 / AQE30 - Status LED
AQE15 Port Status LED State Flash Pattern
No Primary Power to Unit OFF LED OFF
No Connection on PoE/Data Port OFF LED OFF
Operation Normal ON LED ON
Improper Load Device–Signature Resistance too low Flashing 1 Flash
Improper Load Device–Signature Resistance too high Flashing 2 Flashes
Port Overload Fault Flashing 5 Flashes
AQE30 Port Status LED State Flash Pattern
No Primary Power to Unit OFF LED OFF
No Connection on PoE/Data Port OFF LED OFF
Operation Normal ON LED ON
Improper Load Device Flashing 5 Flashes
Port Overload Fault Flashing 2 Flashes
2
6
4
3
Data PoE/Data
Port Status
24V AC/DC
Input
PoE
Shutdown
1
5

Example Wiring - Block Diagrams
24VAC/VDC
Input PoE Shutdown PoE/Data Data
Power Shutdown
Input
24V DC from
Power Supply
or 24V AC
Network Switch
IP Camera
AQE15/AQE30 MidSpan
24VAC/VDC
Input PoE Shutdown PoE/Data Data
Power Shutdown
Input
24V DC from
Power Supply
or 24V AC
Network Switch
PoE Camera
PoE Compliant
Reader
24VAC/VDC
Input PoE Shutdown PoE/Data Data
24V DC from
Power Supply
or 24V AC
Network Switch
b) Powering a PoE Camera
c) Power & Data for a non-PoE IP Camera
a) Powering a PoE Reader
Port Status
24V AC/DC
Input
PoE
Shutdown
Data PoE/Data
AQE15/AQE30
MidSpan
Port Status
24V AC/DC
Input
PoE
Shutdown
Data PoE/Data
AQE15/AQE30
MidSpan
Port Status
24V AC/DC
Input
PoE
Shutdown
Data PoE/Data
AQE15/AQE30
MidSpan
Data PoE/Data
Output
Status
12VDC
+ –
AQE30E
Extractor

NPM115 / 130 PoE MIDSPAN - INSTALLATION MANUAL 4
Example Wiring - Block Diagrams (continued)
Access Control
Edge Controller
24VAC/VDC
Input PoE Shutdown PoE/Data Data
24V DC from
Power Supply
or 24V AC
Network Switch
Mag Lock
Reader Magnetic Contact
M
f) Powering a PoE Access Controller with AQE30
Data PoE/Data
Output
Status
12VDC
+ –
POE Camera
AQE30E
Extractor
AQE15/AQE30 MidSpan
Port Status
24V AC/DC
Input
PoE
Shutdown
24VAC/VDC
Input PoE Shutdown PoE/Data Data
Power Shutdown
Input
Data PoE/Data
24V DC from
Power Supply
or 24V AC
Network Switch
IR Illuminator
Y
Connector
Data
P
o
E/D
at
a
Output
Status
12VD
C
+ –
P
O
E
C
a
m
A
Q
E
30E
Extract
o
r
I
R Illum
i
c
to
r
AQE15/AQE30
MidSpan
Port Status
24V AC/DC
Input
PoE
Shutdown
Data PoE/Data
AQE30
MidSpan
e) Power & Data for PoE Camera and non-PoE IR Illuminator
IP Camera
I
P
AQE15/AQE30 MidSpan
24VAC/VDC
Input PoE Shutdown PoE/Data Data
Power Shutdown
Input
24V DC from
Power Supply
or 24V AC
Network Switch
d) Power & Data for a non-PoE IP Camera and Illuminator
Port Status
24V AC/DC
Input
PoE
Shutdown
Data PoE/Data
AQE15/AQE30
MidSpan IR Illuminator
Data PoE/Data
Output
Status
12VDC
+ –
AQE30E
Extractor
500-33605, Rev A
