ASTE Heineken Vault User manual

EN
User Manual
THE VAULT
COMMERCIAL BEER DISPENSER
SINGLE TAP | TWIN TAP

2
EN
1. Safety Instructions
• Please read this operating and maintenance guide carefully and also give
it to anyone else assigned the task of handling and using this unit. This
operating and maintenance guide must be kept during the expected service
life of the unit and also always be available at the unit.
• After delivery, immediately check the unit for transport damage and make
sure it works. All safety devices must be present and functional before
operating the unit.
• Make sure that electric cable and plug are undamaged before connecting
the plug into the socket.
• If the electric cable is damaged, it must be replaced with cable of design
and quality identical to the original part.
• Pull out the plug by grasping it instead of pulling it by the cable.
• The unit starts to run straight away once it is connected to its supply
voltage. Note the power rating on the type plate as well as the relevant
local electrical safety regulations before connecting the unit to the power
supply.
• Work on the electrical system and refrigeration system may only be
performed by specialists. If this is not observed, all guarantee and liability
claims become null and void.
• Do not store explosive substances such as aerosol cans with a ammable
propellant in this appliance.
• Do not try to repair the faulty unit by yourself.
D
O
N
’
T
L
I
F
T
F
R
O
M
T
H
E
T
A
P
N
O
N
S
O
L
L
E
V
A
T
E
L
'
A
P
P
A
R
A
T
O
S
E
R
V
E
N
D
O
V
I
D
E
L
R
U
B
I
N
E
T
T
O
N
E
S
O
U
L
E
V
E
Z
P
A
S
L
E
D
I
S
T
R
I
B
U
T
E
U
R
P
A
R
L
E

3
EN
Pouring beer
Precooling the keg
10h
Removing the keg
Installing the keg
Cleaning the driptray
2. Serving the beer

4
EN
TABLE OF CONTENTS
1. Safety Instructions ...........................................................................................2
2. Serving the beer...............................................................................................3
3. Unpacking and handling ..................................................................................5
4. Usage...............................................................................................................6
4.1. Electronic Controller................................................................................. 6
4.2. Adjusting Temperature ............................................................................ 6
4.3. LED lightning............................................................................................ 6
5. Maintenance ....................................................................................................6
5.1. Cleaning after daily usage........................................................................ 6
5.2. Cleaning the condenser ........................................................................... 7
6. Technical information ....................................................................................... 8
7. Refrigerant .......................................................................................................8
8. Exploded view and part list ..............................................................................9
9. Environmental Policy and Recycling..............................................................10
10. Range of Appliance Use ................................................................................10
11. Troubleshooting ............................................................................................. 11

5
EN
3. Unpacking and handling
• Check that the packaging and appliance are intact. Check the external
condition of the packaging and the appliance when you remove the
appliance from its packaging. Notify the vendor as soon as possible of any
problems with the packaging or the appliance.
• If the unit is tilted during transport, then wait at least 2 hours before starting
it up in order to prevent any damage.
• The Vault is designed for Heineken 5l kegs. Do not use appliance for other
products.
• The Vault should be used indoors at the room temperature of between
10° C and 38°C
• Lift the appliance correctly. The product may be lifted, when necessary,
from its base and back wall. Do not lift the door, tap or other external parts.
• Take the Vault out of its packaging, along with the drip tray and the
Heineken tap handle. Place them on a at and dry surface that is clean and
large enough.
• Avoid placing the appliance in direct sunlight or direct air ow!
• Clean the appliance externally and internally using a soft, lint-free cloth.
Don’t use detergents that contain abrasive ingredients. Use mild detergents
such as washing-up liquid. Dry the appliance carefully with a lint-free cloth.
• Checking the air inlet. Make sure that the air inlets at the top and back of
the appliance are not covered, minimum free space 50mm.
• Connecting to a power supply. Connect the appliance to an earthed socket
(10 A,220-240/50Hz) using the power cable supplied. Do not use extension
leads.
• Operating the appliance for the rst time. When connecting the appliance
to the mains current, check that the appliance starts up correctly. Using
the electronic temperature control, you can check that the temperature has
started to fall in (2-3 min).
• Install 5l kegs inside the Vault -> see page 3. Cooling of the beer to a
temperature of 3°C inside The Vault takes around 10 hours if the Keg and
the appliance are at room temperature (22°C).
• WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by the
manufacturer.

6
EN
4. Usage
4.1. Electronic Controller
When the appliance is connected to the mains current, the electronic
temperature control shows the temperature of the appliance at that moment.
The temperature is always displayed while the appliance is connected to the
mains. The Vault is fully automatic cooling system, you don´t need to adjust
temperatures during the usage. Product has automatic defrosting.
4.2. Adjusting Temperature
• Temperature can be adjusted between 2°C to 6°C.
• Adjust temperature by pressing
‘arrow up’ or ‘arrow down’ button ->
temperature digit starts to blink. Press
the button until you have set desired
temperature.
4.3. LED lightning
Product has adjustable LED lightning. Remote control for the LED lightning is
mounted behind the door. You can adjust color and intensity of the light. After
every adjustment put remote controller back to it’s place.
WARNING: Do not use electrical appliances inside the goods storage
compartment of the appliance, unless they are of the type recommended by
the manufacturer.
5. Maintenance
Always disconnect the appliance from the mains before cleaning! When
necessary, clean the surfaces of the appliance using a soft, lint-free cloth. For
cleaning, use mild detergents that do not contain abrasive ingredients. Dry the
appliance carefully with a lint-free cloth. When necessary, clean around the
appliance (removing dust, paper, grit, etc.).
5.1. Cleaning after daily usage
Clean the drip tray and the drip tray grating after each use. See page 3 ->
Cleaning the drip tray. Wash the drip tray and grating in hot water with a mild
detergent. Do not use dishwasher.

7
EN

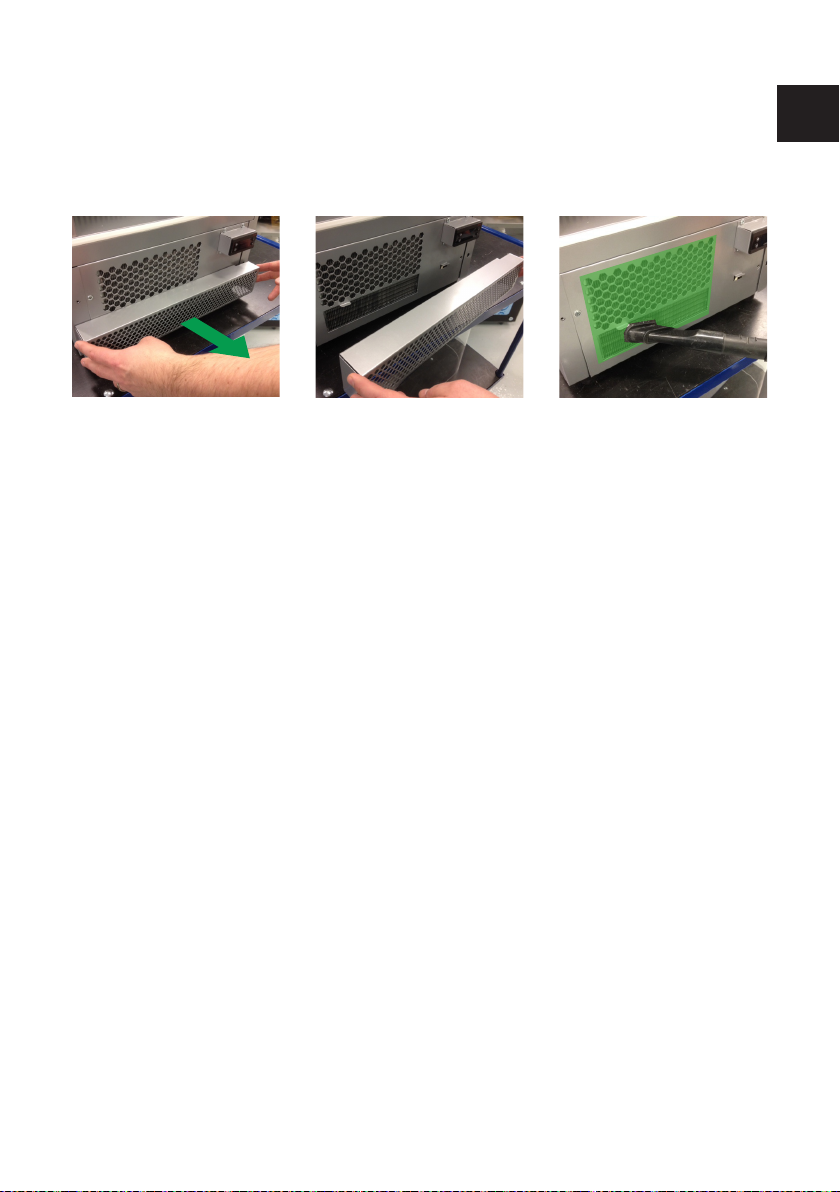

Figure 1.
Remove front grating by pulling from
left and right edges.
Figure 2.
Now you have access to whole
condenser surface.
Figure 3.
Vacuum clean the condenser.
5.2. Cleaning the condenser
Condenser must be cleaned every 3 months or when necessary. Clean the
condenser with a brush or vacuum cleaner. To do this, remove the ventilation
grating by pulling it out from side edges in order to reach the condenser (see
Figures 1, 2 and 3).
WARNING: Keep clear of obstruction all ventilation opening in the appliance enclosrure or
in the structure for building-in.
ATTENTION: Do not clean the unit with high-pressure cleaners or steam jets.
ATTENTION: Do not warm up units to more than 70°C (158°F) and do not subject them to
excess heat (radiant heaters, etc.).
ATTENTION: Only the ventilation grating to the condenser may be opened (see Figure 1).
Other covers on the unit may only be opened by a trained specialist.
ATTENTION: The condenser must be given a thorough cleaning with a brush / vacuum
cleaner at least every three months.
ATTENTION: When cleaning the condenser, wear safety gloves (danger of injury).
ATTENTION: When cleaning the condenser, make sure that the ns are not damaged
(=bent).

8
EN
6. Technical information
Product - The Vault
Net weight........................................................................................................... 30 kg
Gross volume ....................................................................................................... 21 l
External dimension h, w, d...........................................................580 x 455 x 350 mm
Power input........................................................................................................180 W
Defrosting .................................................................................................... Automatic
Compressor..........................................................................................................ACC
Energy consumption............................................................................... 1,5 kWh/24 h
Evaporator................................................................................Finned coil evaporator
Condenser................................................................................Finned coil condenser
Temperature control................................................................... Electronic thermostat
Lightning....................................................................................................LED (RGB)
Climate class ............................................................................................................7*
*=Appliace is safety tested by SGS Fimko Ltd. in testroom climate +35°C/75% relative humidity.
Temperatures
Average temperature.................................................................. 3 °C (factory setting)
Operating conditions MIN.................................................................................. +12°C
Operating conditions MAX (75%RH)................................................................. +38°C
7. Refrigerant
WARNING
The appliance contains in the refrigerant circuit the refrigerant propane
(R290), a highly environmentally compatible natural gas that is ammable.
While transporting and installing the appliance ensure that no parts of the
refrigerant circuit are damaged.
Procedure if the refrigerant circuit is damaged:
• Avoid open re and ignition sources at all costs
• Ensure that room in which the appliance is located is well ventilated
WARNING: Do not try to repair refrigerant circuit by yourself. Service and
repair work for refrigerant circuit must be always done by trained technician.

9
EN



















Nr. Part nr. Description Per unit
1
106-0010 Controller 1,00 PCS
2
107-0010 Evaporator fan 2,00 PCS
3
710-0046 Keg guide pin 4,00 PCS
4
400-0596 Upper hinge 1,00 PCS
5
400-0600 Lower hinge 1,00 PCS
6
710-0008 Hinge pin 2,00 PCS
7
710-0037 DTA (Dispense tap) 1,00 PCS
8
710-0047 Tap handle - Heineken 1,00 PCS
9
710-0038 DTA fixing nut 1,00 PCS
10
250-0045 Door gasket 1,00 PCS
11
400-0588 Drip tray - grill 1,00 PCS
12
400-0602 Drip tray 1,00 PCS
13
400-0601 Front grill 1,00 PCS
14
710-0035 Front grill - magnet 2,00 PCS
15
102-0013 Evaporator 1,00 PCS
16
710-0041 Levelling feet 4,00 PCS
V40-0001 Door - Single tap 1,00 PCS
V40-0002 Door - Twin tap 1,00 PCS
101-0007 Compressor 1,00 PCS
103-0006 Condenser 1,00 PCS
107-0001 Condenser fan 1,00 PCS
110-0003 Connection plug 1,00 PCS
120-0017 Led power supply 1,00 PCS
19
V40-0003 Rear plate (option) 1,00 PCS
110-0001 Power cord 3 m 1,00 PCS
120-0043 Led stripe 1,00 PCS
120-0044 Led controller, including remote control 1,00 PCS
300-0003 Cover profile for led stripe 1,00 PCS
18
17
8. Exploded view and part list

10
EN
9. Environmental Policy and Recycling
The basic is to consider the environment throughout the whole lifetime of our
products; from design process through production till the nal recycling.
We explore continuously the economical and effective use of new
environmentally friendly materials on our products and production. Our target
is to minimize the use of nonrenewable natural resources.
We believe that considering of sustainable development when choosing
materials and energy consumption brings the most benet to us and our
customers now and in the future.
10. Range of Appliance Use
• The appliance is suited only for cooling beer kegs and non alcohol or low
alcohol beverage kegs.
• In the case of commercial food cooling, the pertinent statutory regulations
have to be observed.
• The appliance is not suited for storing and cooling pharmaceuticals, blood
plasma, laboratory preparations or similar substances and products subject
to the Medical Devices Directive 2007/47/EC
• Any misuse of the appliance may result in damage to or the stored goods.
• Furthermore, the appliance is unsuited for use in areas exposed to an
explosion hazard.

11
EN
11. Troubleshooting
Problem Possible causes Remedies
The Vault doesn’t turn on
The Vault is not connected to
the mains power supply.
Connect The Vault to the
power supply.
The electronic board may be
defective.
Contact the ASTE customer
service.
You can’t close the tap cover The tube spout is not inserted
correctly.
Remove the tube spout from
The Vault and t it again fol-
lowing “Installing the Keg”
You can’t close the door of
The Vault.
The Keg or tube spout are not
inserted completely.
Insert The Keg and tube spout
in The Vault completely.
No beer is being dispensed.
The Keg is empty Replace The Keg with a new
one.
There is no Keg inside The
Vault. Install a Keg inside The Vault.
The Vault is dispensing warm
beer.
The Vault is not connected to
the mains power supply.
Connect The Vault to the
power supply.
The door was not closed
correctly. Close the door correctly.
The cooling system is defec-
tive.
Contact the ASTE customer
service.
There is ice in the cooling
chamber.
The room temperature is
below 12°C.
Install The Vault in an adapted
environment.
The temperature regulation
may be defective.
Contact the ASTE customer
service.
There is too much foam.
The beer is not cold enough.
Cooling of the beer to a
temperature of 3°C inside The
Vault takes around 10 hours if
the Keg and the appliance are
at room temperature (22°C)
Tap handle was pulled too
slowly during the service.
Pull the handle quickly for-
ward as far as it will go.

ASTE FINLAND OY
Koskivuorenkatu 5
30420 Forssa - FINLAND
[email protected]
Tel. [phone]
www.astecoolers.com
MANUFACTURED BY:
