Astivita ASTWINE24 User manual

1
Wine manual
1, the directory …………………………………………….1
2, the environmental impact report usersbook …………2
3, safety precautions……………………………………….2
4, Packing List …………………………………………….. 3
5, each part name…………………………………………..4
6, the product sizes………………………………………... 4
7, product technical parameters……………………………5
8, electrical schematics……………………………………...5
9, Installation Notes………………………………………….6
10, product installation method……………………………..7
11, Product Note……………………………………………. 7
12, the product method uses……………………………….8
13, wine storage and display……………………………….9
14, the ideal wine temperature reference table…………..10
15, the product of daily care and maintenance……………11
16, common problems and solutions……………………….12
17, maintenance requirements………………………………13
18, warranty card………………………………………………13
ASTWINE24

2
Users environmental impact report book
Protect the environment, prevent pollution. The company's products during use may cause
environmental impacts,
Letter follows:
Cartons, plastic and other recyclable waste should be thrown into the trash after use
specified category. Waste electrical
Pools and other hazardous waste, litter can cause serious environmental pollution, should be
thrown into the appropriate recycling of waste
Things in the trash.
Safety Precautions
This appliance can be used used by children aged from 8 years and above and persons with
reduced physical,sensory or mental capabilities or lack of experience and knowledge if they
have been given super vision or instruction concerning use of the appliance in a cafe and
understand the hazards involved.
-Children shall not play with the appliance.
-Cleaning and user maintenance shal not be made by children without supervision.
If the supply cord is damaged,it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
*WARNING-keep ventilation openings,in the appliance enclosure or in the built-in
structure,clear of obstruction.
*WARNING-do not use mechanical devices or other means to accelerate the defrosting
process,other than those recommended by the manufacturer.
*WARNING-do not damage the refrigerant circuit.
*WARNING-do not use electrical appliances inside the food storage compartments of the
appliance,unless they are of the type recommended by the manufacturer.
This appliances is intended to be used in household and similar applications such as:
-staff kitchen areas in shops,offices and other working environments;
-farm houses and by clients in hotels,motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
Do not store explosive substances such as aerosol cans with flammable propellant in this
appliances.
1, due to the special nature of glass craft, blew the glass itself has the characteristics of the
industry is 3 ‰ -5 ‰ self Burst rate, our company strictly controlled within 3 ‰ of
2, please use the rated current of 10A or more single outlet. There must be grounded. Do not
use loose or poor contact Power outlet, otherwise easily lead to electric shock, short circuit,
fire; useful if an outlet with other appliances, it is possible Will appear abnormal heat
caused the fire.
3, pull the plug socket, the ends must grip the plug and pull it out, do not pull the power cord
holding the plug,
Otherwise, electric shock, short circuit, fire and other dangerous prone.
4, Do not soak in water or product to product water, otherwise there is the risk of a short

3
circuit or electric shock.
5, Do not use the AC 187-242V outside, otherwise it will cause a fire or electric shock.
6, please do not educate children alone and playing, otherwise easily lead to burns, electric
shock and other accidents
7, in addition to professional repair technician, do not disassemble and repair transform
yourself.
8, if not using the machine, unplug or turn off the power supply of this product.
9, when the power supply is damaged, must be sent to professional service points into the
replacement.
10, when the power cord is damaged, it must be replaced to a professional service points.
11, near the bar, do not store or use gasoline and other flammable items, to avoid fire
12, prohibited unauthorized demolition, alteration wine cooler, refrigeration piping ban
man-made damage, repairs must be performed by a professional wine Qualified personnel to
carry out
Packing List
NO. Box contents
1 Host 1 Taiwan
2 Host packaging bags 1
3 Instructions 1
4 Warranty Card 1 part
5 Certificate 1
6 Mounting screws 1 set
7 Box 1
8 Packaging foam 1 set
9 Stainless steel
cleaning cloth 1 package
ASTWINE24

4
Part Names
1 ①Lighting Indicator
②Power Indicator
③Switching Display
④Shelves
⑤door
Product Specifications
Technical Data
Product Name
Type
Rated voltage 220-240V～
Rated frequency 50Hz
Rated Power 100W
Volume of 60L
Refrigerant R600a/17g
Noise 42db
Size 595*455*618(W*H*D)
Embedding dimension 566x446x618 ( Fixed buckle 5mm Under the fixed buckle
3mm) ( W*H*D)
Package Size 712x520x708 (W*H*D)
Standard “EN 60335-1:2012, EN 60335-2-24: 2010”
ASTWINE24

5

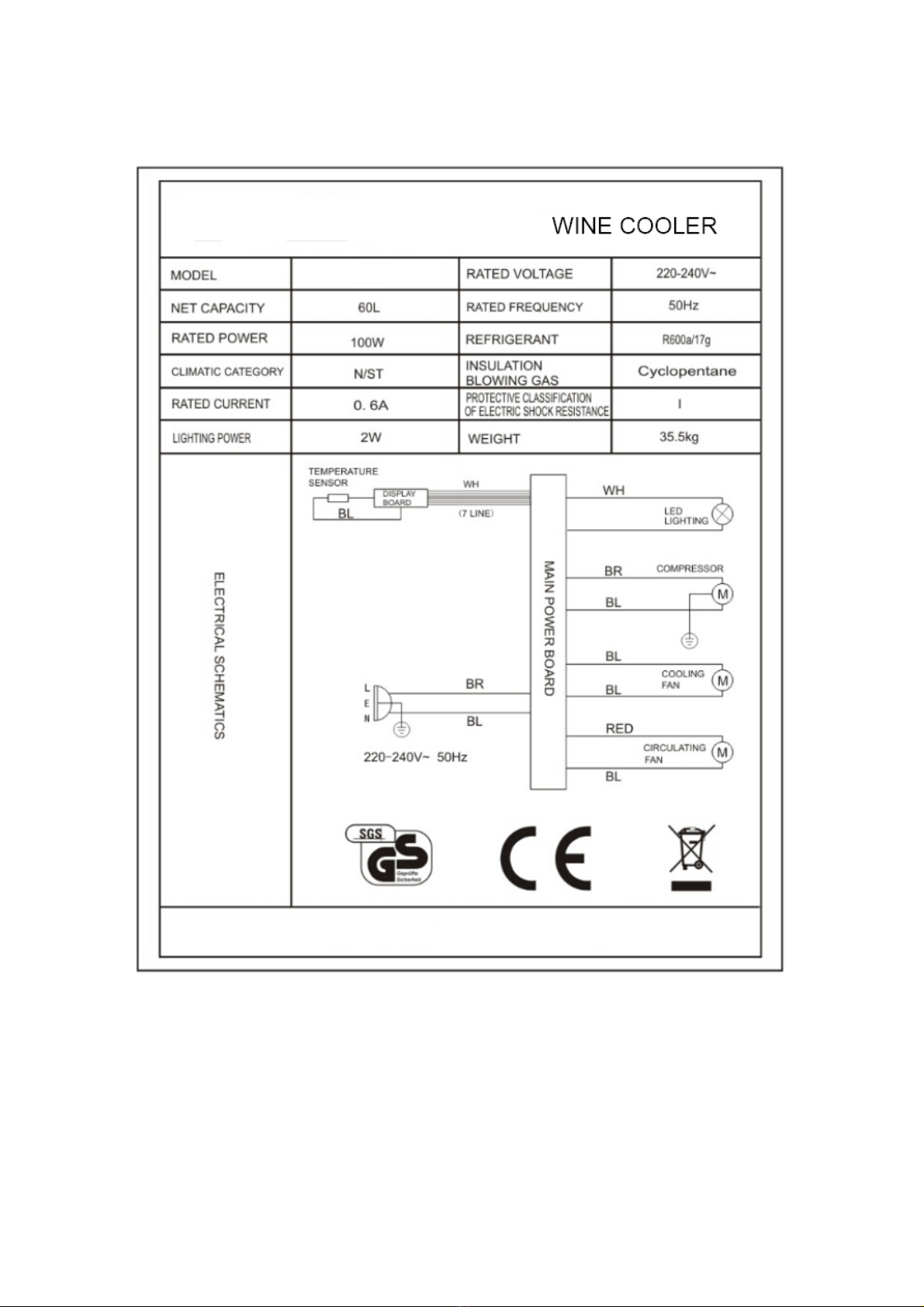

Electrical schematics
Parts or electrical wiring are subject to change without notice.
5
ASTWINE24

6
Installation Notes
1, wine cooler to be placed on a flat firm surface, for booster, also need to choose a smooth,
hard, non-flammable pad, do not The wine packaging foam pad to elevate wine
2 Do not splash water on wet or easy place, splashing water and dirt should be wiped clean
with a soft cloth to prevent rust and affect the electrical Gas insulation properties
3, wine should be away from heat sources and avoid direct sunlight, so as not to affect the
performance of wine cooler
4, must confirm that the power outlet grounding is valid.
5, should be placed from the bottom of the lift moving, light moving light.
6, when the inclination of not more than 45 wine transport and handling after an interval of 10
minutes or more parties can be energized to run Cabinet

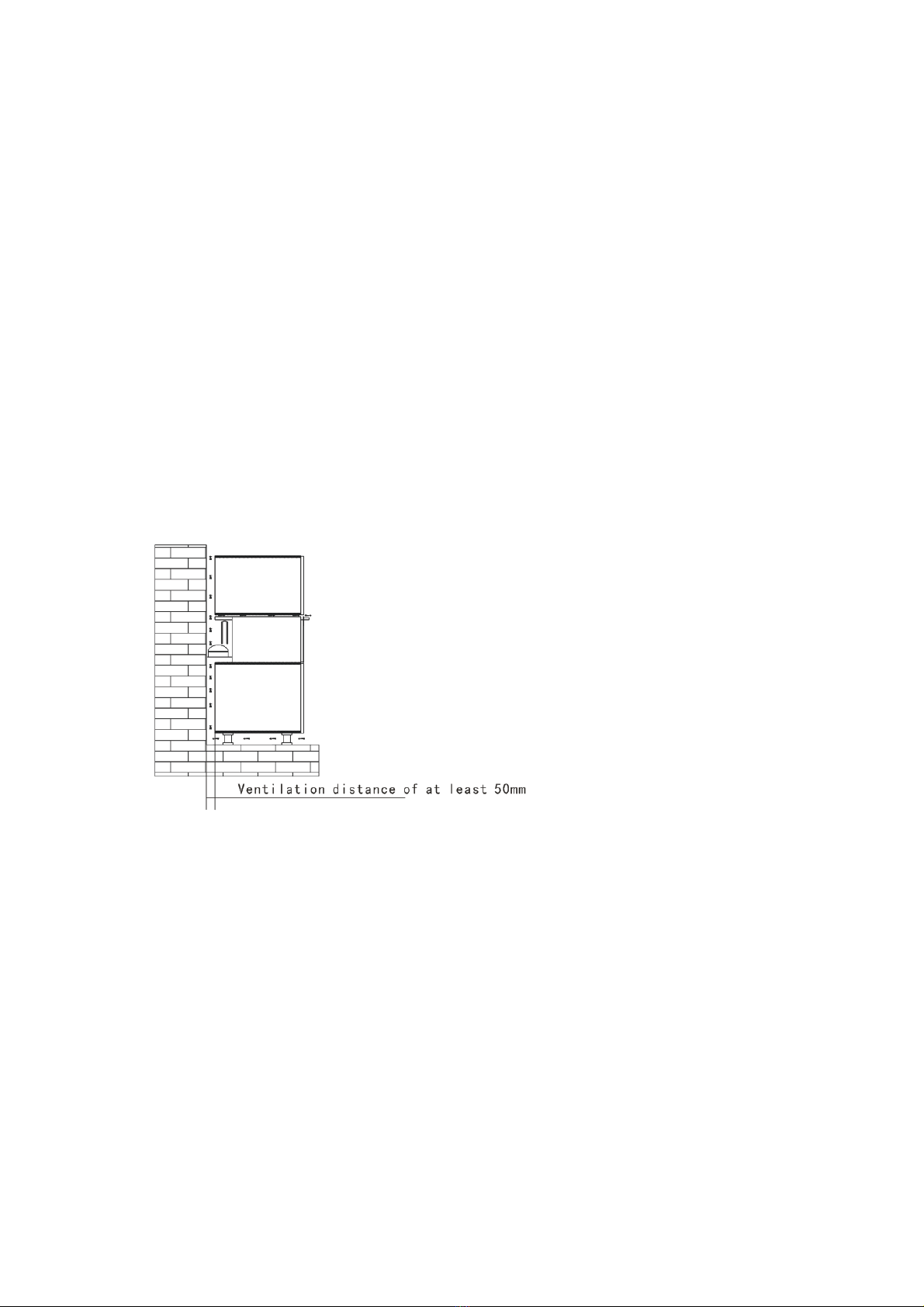

7, flush mounted inside the cabinet, the cabinet has a good space for heat dissipation
requirements, otherwise it will shadow the normal use of the machine, install the
No child back, radiating to the following illustration:

7
Installation method
1, set in the cabinet position, the hole should be the appropriate size of the cooler body
smoothly embedded square hole in the side of the requirements
Hole size chart at right shows:
Product installation size table
Model Hole Size
W566*H446*D618(The buckle 5mm, Under the buckle 3mm)
2.Wine cooler installed in the cabinet, there must be a reliable fixation, requires cooler holes
in the door frame around the sides, marked screws.
Product Note
1, before the first of the use of wine cooler interior cleaning
2, wine placed leveling, after cleaning, the first not power on, let stand for 30 minutes or
more wine and then power, to ensure Jean-Paul freezer normal operation
3, under normal circumstances do not disable the bar, so as not to affect the wine life. After
unplugging the power, for at least five minutes interval, To turn on the power again
4, Do not disconnect the power supply wine cooler, wine cooler because power failure will
cause the temperature to rise, and will shorten the shelf life of liquor and Reduce the quality
of its drinking
5, when the storage of liquor, should retain a certain gap between the bottle and the air
circulation in favor
6, is strictly prohibited rinse body, do not use gasoline and other organic solvents to clean
the body.
7, if the power cord is damaged, in order to avoid dangerous and must, professionals in their
maintenance department or similar sectors replaced by the manufacturer.
8, all of the electrical outlets must have reliable grounding.
ASTWINE24

8
Product Usage1
Control Panel
①LightingIndicator ②PowerIndicator ③Display
④Lightingkey ⑤”一”key ⑥”+”key
⑦Power button
1
Getting Started
1, the temperature setting
Step 1: Host a power, then automatically enter the working state, the power indicator light.
Step 2 :, In this state, long press the "+" key, 1.5 seconds flashing digital displays.
Step 3: Press the "+" or in this state, "-" keys to set the desired temperature (4-18c), the end
of the operation.
Detailed instructions

9
1, the start of work: Click " " power key, the wine display bright, power indicator light, the
machine into working shape State; then click the " " power key, the wine display is off, the
machine is turned off.
2, the temperature settings: in working condition, press the " " key 1.5 seconds, the digital
display flashes, then press the " " key Or " " to set the desired temperature (Most wine
temperature is 12c, see the ideal thermometer).
3, the lighting function: In working condition, press the " " key lights, the bright lights, and
then click " " Lighting Light the lights off key.
Products Daily Care and Maintenance
Note: To play the machine for optimum performance and prolong its life, should always pay
attention to maintenance. Must unplug the power plug before maintenance
And turn off the power has been confirmed.
1, not to pull on the cable to the wine's power plug from the outlet.
Dust 2, once every two years to clean the condenser (cooler back surface of the metal mesh)
on
3, thorough cleaning once a year wine inside, please pull the plug when cleaning, and empty
wine cooler, then gently scrub with a damp cloth cabinet
4, more moisture environment or in the rain, cooler surface condensation may occur,
especially glass door surface, which is composed of
In contact with moisture in the air to the cooler surface, please use a dry cloth to dry.
5, in order to ensure the long-term normal use of wine, please regularly check the user, such
as abnormal use, please notify the vendor
Bottle store
The main role is to make sure you store wine stored under optimal conditions.
At the factory has been set up 12c, which is a most suitable for the storage of temperature.
Wine has a complex nature, it has a length from the processing in order to express its
optimal characteristics, which require specific ring
Environment, all of the wine manufacturing at the same temperature, but due to their
different qualities, and taste to be deposited at different temperatures (
View the table
"Ideal wine temperature")
Therefore, manufacturers of wine, the absolute temperature value is not important for the
preservation of wine is concerned. However, in a certain time
Within the stable temperature is very important. Collection of wine at any temperature are
ideal, as long as the temperature does not change.
Manual temperature control
When your wine cooler connected to power, the display will show the temperature inside the
wine cooler. Beginning it is set to 12c, and will remain

10
Stable. If you want to adjust the temperature in accordance with the following instructions to
perform:
1 When your wine cooler connected to the power supply, the display will show good
temperature has been set.
2 Press and hold the + button one second, watch the control panel, temperature indicator will
begin to blink.
Press the + or - keys to adjust to your desired temperature.
4, 5 seconds, the temperature will stop blinking.
5 and so the temperature reaches the temperature you set, then go into the bottle.
LED lights inside the case of artificially controlled lighting when not in use, please turn off,
this will help you achieve faster design
A given temperature, reducing the energy consumption.
Bottle placed
Standard 24 bottles placed
Recommends 24 bottles (standard, hybrid and Rhenish wine bottles) placed visible and easy
to move.
Standard
24 bottles (100% swing down)
3 gallows
The bottle
Put three wooden slot above the bottom can also be placed six wine bottles
We recommend that you put the bottle into the bottom of the wooden Rhenish, or the bottom
of the cooler, because they are to support a larger bottle designed
Meter.
Security can only be placed 22 wooden bottle.
Champagne bottles placed
Bottle of champagne bottles larger than standard, so they must be put to the bottom of wine,
so the above can be stacked to 5 bottles.
If you want to put more than five bottles of wine champagne inside, you remove the first
three wooden frame, then put the bottle into two layers, so the above is
You can heap to nine bottles.
Ideal wine temperature
The following tells you different temperatures in different liquor store if you need to store
wine reduction temperatures cooler than the temperature inside
More suitable, we recommend that you put out wine, wine cooler temperatures appropriate to
wait until then to go into the wine.
Armagh Ronnie classic red 17℃
Barbaresco wines 17 ℃
Barolo wine 17℃
Bo Nuolai red wine 13℃
Bordeaux white wine 6℃
Dry white wine 8℃
Bordeaux 17℃

11
White Burgundy wines 11℃Lang
Red Burgundy wines 18℃Lang
Brunello wine 17℃
Champagne 6℃
Classic Chianti 16℃
Languedoc and Roussillon 13℃
Passito di Pantelleria wine 6℃
Provence rose 12℃
Dried sweet sparkling wine 6℃
Trentino white wine 11℃
Fa Lanqia wide Jorda white wine 11℃
10℃aromatic dry white wine
Small dry fruity white wine 8℃
Buddha Friuli Venice Julia white wine 11℃
Luo Danuo wine 15℃
Loire dry white wine 10℃
Hurley mouth Loire wines 10℃
Loire red wine 14℃
Pasaituoli port wine 8-18 ℃
Rose wine, new wine 12℃
Accompanied malt tannins light red wine 14 ℃
Red, somewhat tannic wine 16℃
Common Faults and treatment methods
If you happen anomaly in use, please stop using and unplug the power cord, and check
to make sure the following. If necessary,
Please contact our service center
State Causes and treatment
Excessive noise Wine Place unstable Please keep the wine stable
placement, placement is not
smooth operation
Wine is no power Open PowerWine does not work
PC board is damaged Notify the manufacturers
maintenance
Door open too often or for too
long a time the door is open Do not leave the door open or frequent switching
External environment humidity Please use a dry cloth can
Cabinet door surface
condensation
Wine cooler temperature setting
is very low Please set the appropriate temperature
Lamp is not lit Lighting damage Notify the manufacturer to
replace the lamp
Cooler running, issued a
"flap" sound Wine started, stop using the process, start voice relay, thermal protection, and other electrical components caused

12
Maintenance requirements
Dear user:
Thank you for choosing to use day-long wine products, our company will be in
accordance with the relevant provisions "Consumer Protection Law" and my public
Secretary of the sincere commitment of users, by virtue of the warranty card and a valid
proof of purchase, to provide you with the following services:
1, consumers can enjoy the normal use of the warranty period commencing from the date of
a whole year free warranty service
2, the warranty period calculation method: product warranty period from the date of the
preferred sales date +90 days (contract date for the sale date),
Second choice to install a single date +30 days, then select the date of manufacture by
barcode query +120 days;
3, repair and replacement of parts during the warranty period of its ownership of the
company owned by all;
4, one of the following situations occur in accordance with national regulations, are not part
of the Company under warranty, the repair charges should be implemented:
a, maintenance personnel of the Company disassembly, repair damage;
b, do not follow the instructions require the use of precautions;
c, due to force majeure (fire, earthquake, flood, lightning, and other natural disasters) cause
a malfunction and damage;
d, or non-self-repair overhaul or use of voltage is lower than 187V or higher than 242V
damaged;
e, after a free warranty period of the product.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental
safe recycling.

13
Warranty card pasted at
