Astra ESA D7 User manual

Instruction Manual
V1.0 –October 2016

pag 2
Welcome

pag 3
Esa d7 –multifunction display regatta/cruise
WARNING : Release Notes
This manual copy has been released in October 2016, in
reference to fw version esa universal 1.2.0.
Every following modification and7or update of the
operative system could bring to small graphical and
functional modifications of the D7.
Astra Yacht declines any responsibility for the wrong
usage of the system deriving from the non corresponding
manual version.
For every doubt or question, contact Astra at
[email protected]

pag 4
Index
1. Introduction
2. Packaging
1. Measures
2. Hardware
3. Installation
1. Connection
2. Mounting
4. Switch on/Use
1. MicroSD inserting/cartography
2. SW selection
5. Esa Universal

pag 5
Esa d7 –multifunction display racing/cruising
Welcome to the Astra Yacht world.
Esa d7 is your multifunction chartplotter that combines the most advanced tactical navigation
software and the most advanced navigation software with cartography, the ideal for cruising.
Good wind!

pag 6
2. Packaging
Inside the package there are:
•1x esa d7
• 1x external cover
• 1x bracket for table mounting
• 1x quick release bracket and
power/connections
• Screws for wall mounting
• Template for holes
• Gasket for flush wall mounting
• Wiring instructions

pag 7
2. Packaging -Measures
Measures: the size of the device and its dimensions must be checked for a correct installation.
Use the materials in the package for proper installation.

pag 8
2. Packaging -Hardware
Main technical features:
•Display LCD 7” WSGA 1024x600, 1000nits, 24 bit color, wide. (3D GPU 200Mtri/sec -
1Gpxl/sec + 2D GPU 300Mpxl/sec)
•Microprocessor: Dual Core Cortex A9 1GHz, Freescale IMX6-DUAL
•RAM memory: DDR3 533MHz(1066Mps) 64 bit bus , 512MB

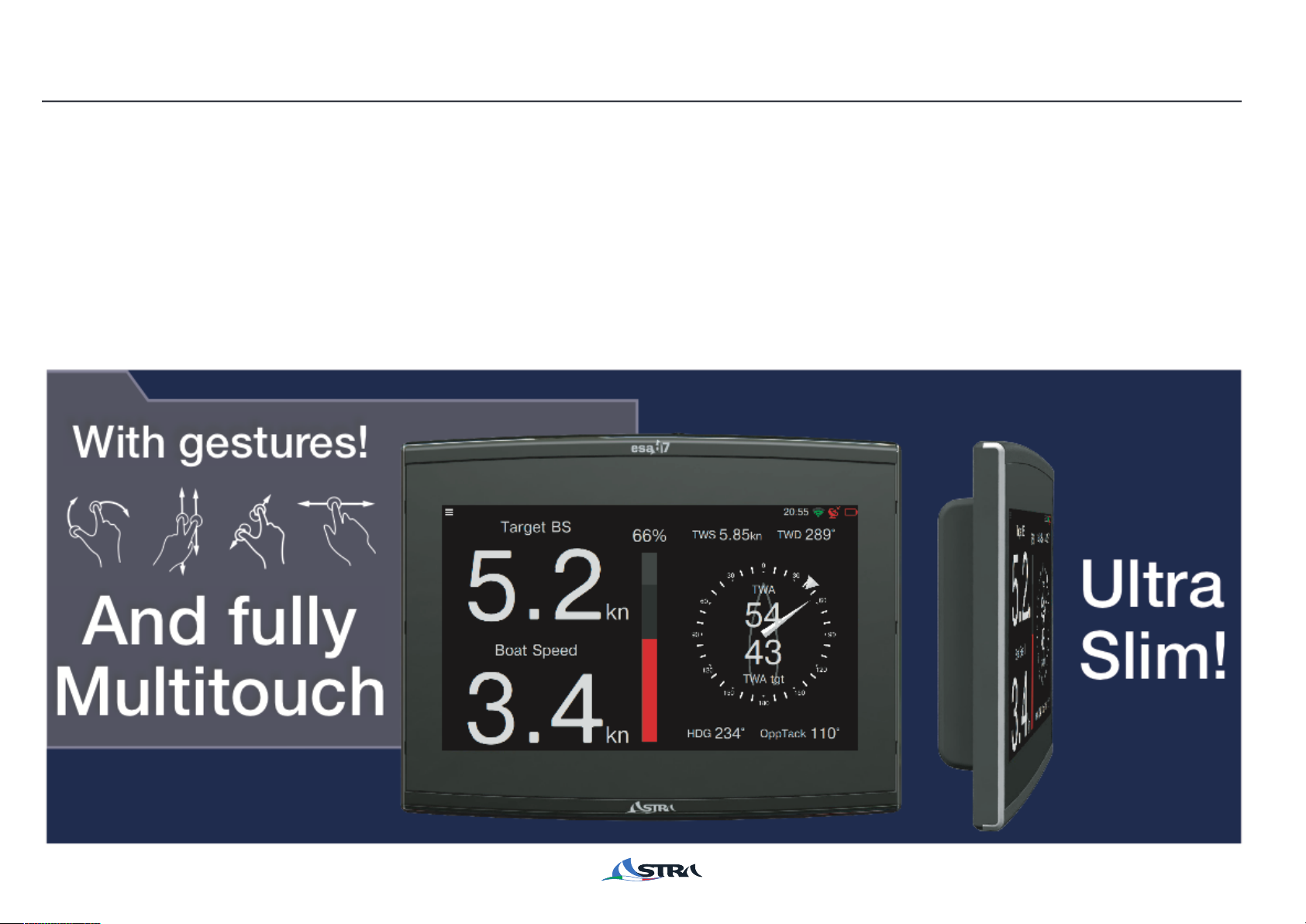

•Full Multitouch with gesture.
•On/Off switch
•Slot Micro SD card
•Wi-Fi, internet connectivity, updates via Wi-Fi (TCP/IP)
•Water resistance: IPX6
•Weight 640g
•Dimensions188 x 146 x 33 mm
•Quick mounting bracket
•Integrated GPS antenna

pag 9
Screen:
Excellent visibility.

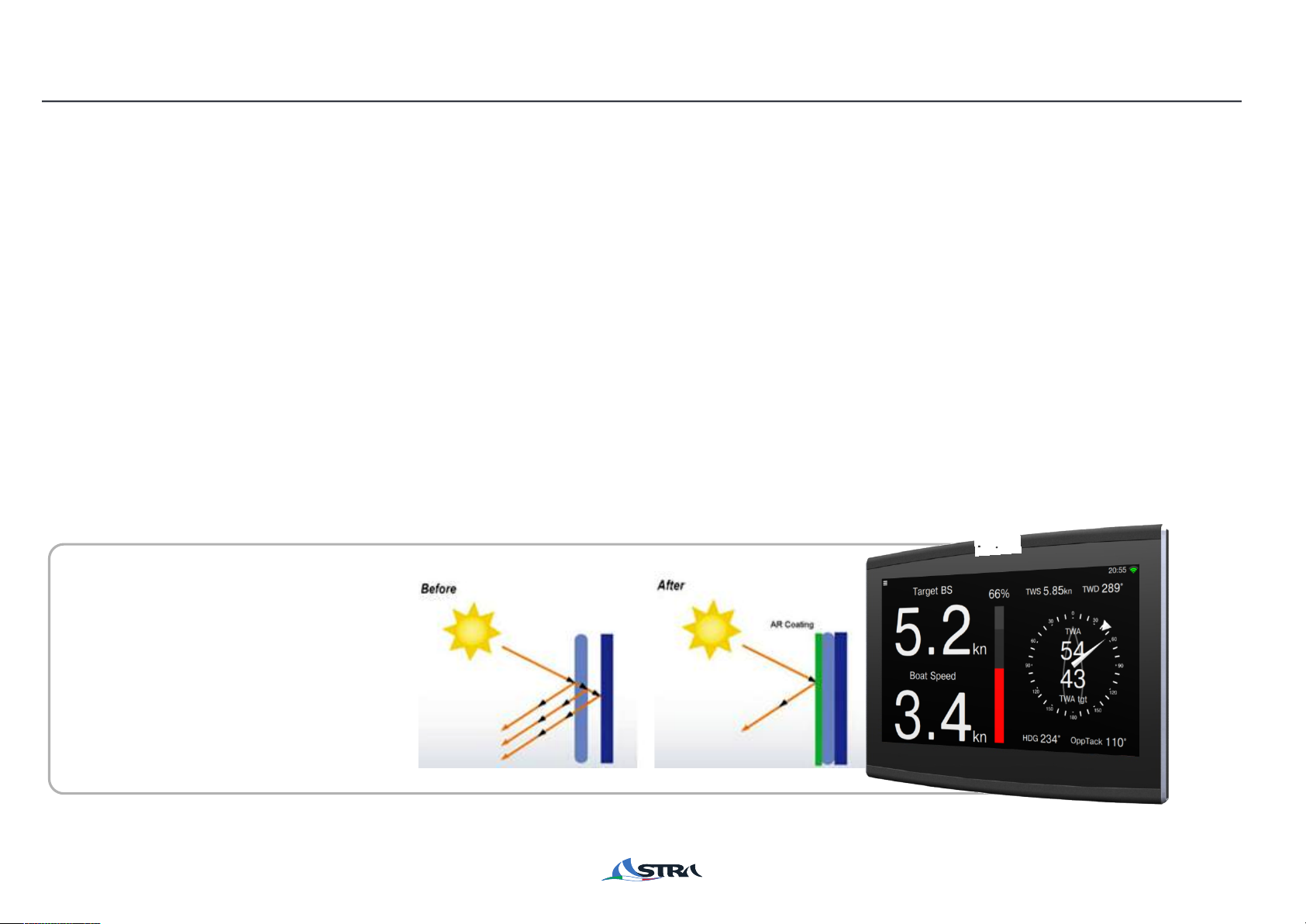

A high strength protective glass is finely bonded to the LCD to eliminate any air bubble
between the cover glass and the LCD itself, reducing incredibly the internal and external
reflections. This allows to increase the contrast and visibility, in addition to providing greater
resistance to vibrations and eliminate any water condensation.
Thanks to this technology together with a powerful LED lighting it is possible to obtain a
visible display under different lighting conditions.
Benefits:
Reducing of light reflections
Contrast increased
Resistance increased
No condensation
Greater temperature range
Reducing parallax effect
Greater thinness
2. Packaging -Hardware

pag 10
Quick release bracket :
Easy and fast: supply the plotter with quick release bracket with
a click. Easy to connect and disconnect.
Clear and elegant: one multi-pole cable coming out from the
bracket for a great installation cleaning.
Water resistance: IPX6
10
2. Packaging -Hardware

pag 11
2. Packaging -Software
Main SW features:
•Dual Boot option. Two souls, racing and cruise, just one device.
•Configurable multidata page.
•Patented real time target calculation (World, European, Italian Champion Software); (from sw
2.0 release)
•Route and waypoint management, layline, cartography.
•Automatic construction of navigation polars.
•Advanced Start page.
•Advanced settings for on board sensors management (from sw 1.3.0 release)
•Mirror control: possibility of control with Smartphone, Tablet and PC

pag 12
2. Packaging -Software
Acronyms inside esa D7:
Acronym Denomination Meaning
AWA Apparent Wind Angle Angle (°) of the apparent wind with respect to its bow (+ from right, -from left)
AWS Apparent Wind Speed Apparent wind speed (knots)
BS Boat speed Speed boat on the water (knots)
BS pol Boat Speed Polar Speed boat as from polar (knots)
BS pol %Boat Speed Polar Perc.Percentage of boat speed over the polar (as target)
BStg Boat Speed Target Boat Speed target upwind/downwind (knots)
COG Course Over Ground Boat’s course over ground (GPS) (knots)
FL TWD FairLine TrueWindDirection Wind direction perpendicular to the starting line.
HDG Heading Direction of the magnetic bow (°)
OPP TACK Opposite Tack New Bow (M°) after a tack or jibe sailing with TWA tg
SOG Speed Over Ground Boat speed over ground (GPS) (knots)
TWA True Wind Angle Actual angle (°) of the wind respect to the bow (+from right, -from left)
TWAtg True Wind Angle Ta rget Actual angle of the wind to beat target upwind/downwind (+from right, -from left)
TWD True Wind Direction True Wind direction with respect to North magn.
TWS True Wind Speed True wind speed (knots)
VMG Velocity Made Good Projection of boat speed on the direction of the wind (knots)

pag 13
3. Installation
For a correct and long-lasting functioning of the device, please carefully follow the instructions
below.
Follow the steps in the package for a proper use of the d7.
Inside there is the “template” for properly arrange the holes and cuts for the device.

pag 14

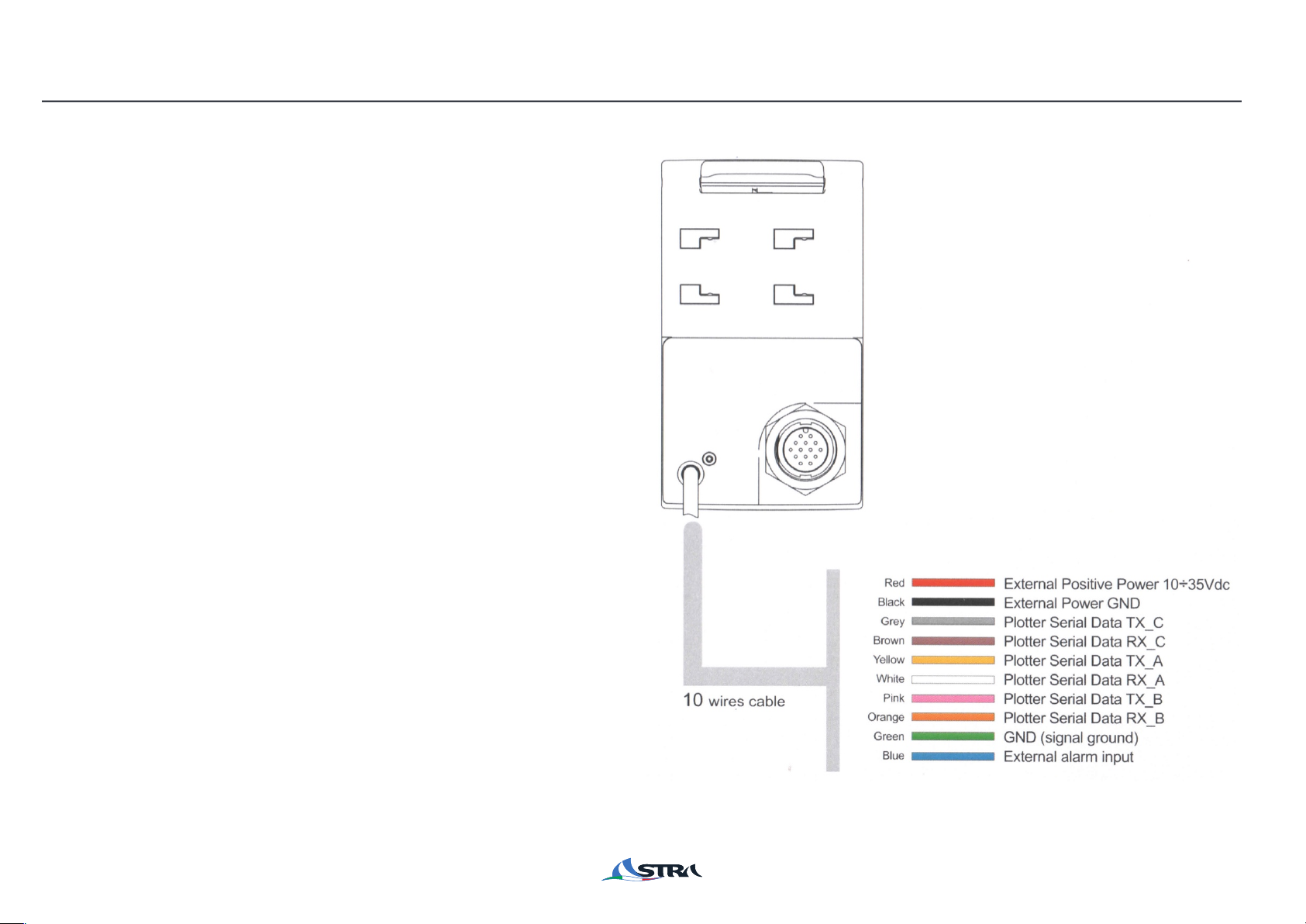

3. Installation –Connection to GAMP or EIB by Astra Yacht
To connect the ASTRA ESA D7 to
ASTRA GAMP or EIB the following wires
must be taken from the cable 10 of
ESA D7 wires :
–Red Positive power (External Positive power
10-35V DC)
– Black Negative power (External Power GND)
–Yellow Plotter Serial Data TX_A (Serial port
A)
– White Plotter Serial Data RX_A (Serial port
A)
–Green GND (signal ground)

pag 15
3. Installation –Power Connection
To connect the ASTRA ESA D7 to the
boat’s power you have to connect the
following wires from the cable 10 of
ESA D7 wires :
– Red Positive power (External Positive power
10-35V DC)
– Black Negative power (External Power
GND)
– To lengthen the cables use AWG 18
–Use a fuse of 3A

pag 16
3. Installation –Power Connection

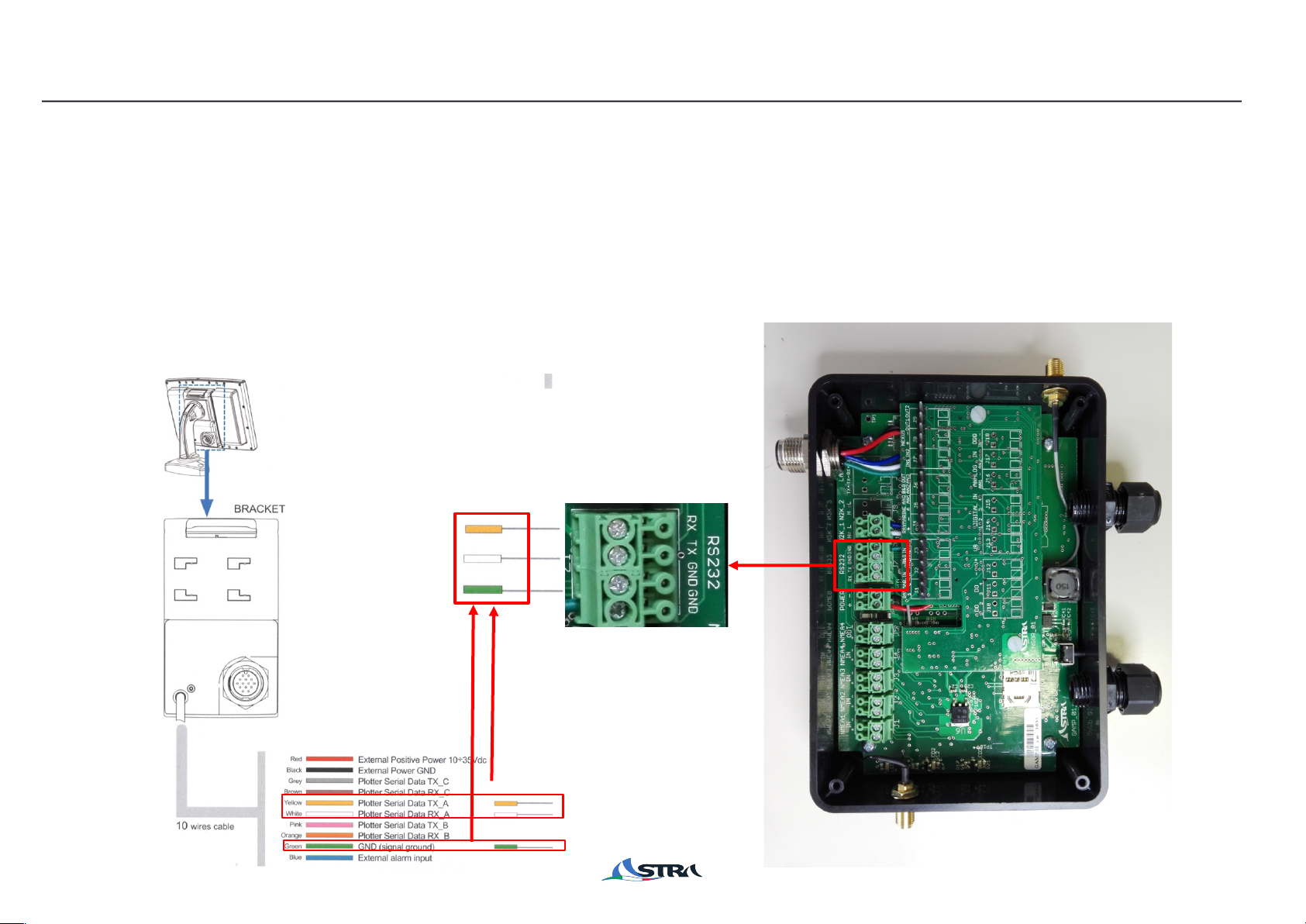

To connect the ASTRA ESA D7 to the ASTRA GAMP or EIB you have to connect the following
wires from the cable 10 of ESA D7 wires to the serial port RS232 of the GAMP or EIB:
–Yellow Plotter Serial Data TX_A (Serial port A) to the RX clamp of the ASTRA Unit
–White Plotter Serial Data RX_A (Serial port A) to theTX clamp of the ASTRA Unit
–Green GND (signal ground) to the GND clamp of the ASTRA Unit
–To lengthen the cables use AWG 24

pag 17

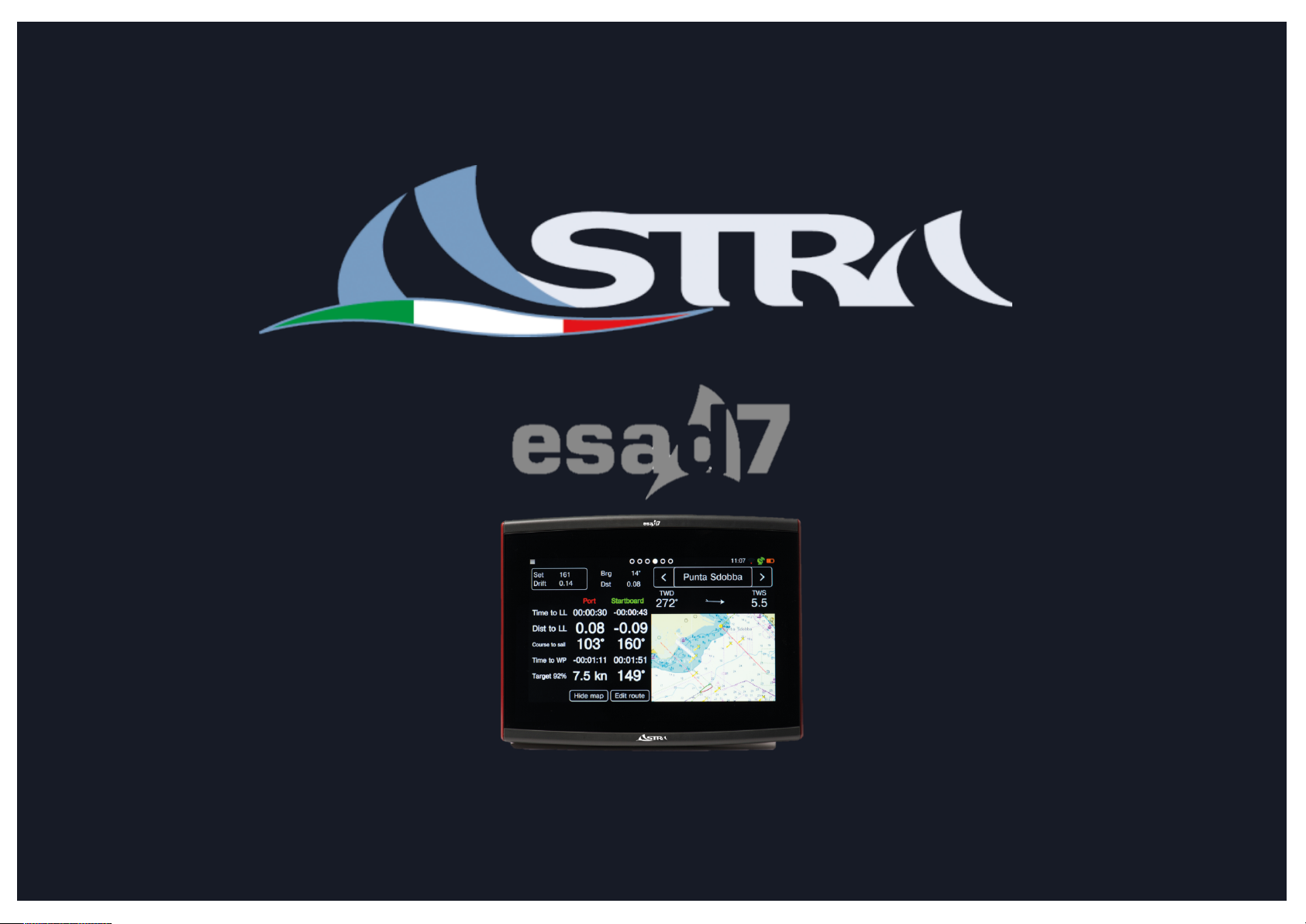

Once properly connected to the system to turn on the display, press the button placed above the
upper frame. Wait until the screen switched on and release the button. In case of correct switch
on, after a few seconds the screen below will appear (see figure)
In case of switching failure, check that the display is correctly powered through the system.
N.B. REMOVE THE MICRO SD WITHOUT POWERING DOWN MAY CAUSE THE DEVICE TO
RESTART
4. Switch on/Use

pag 18
4. Switch on

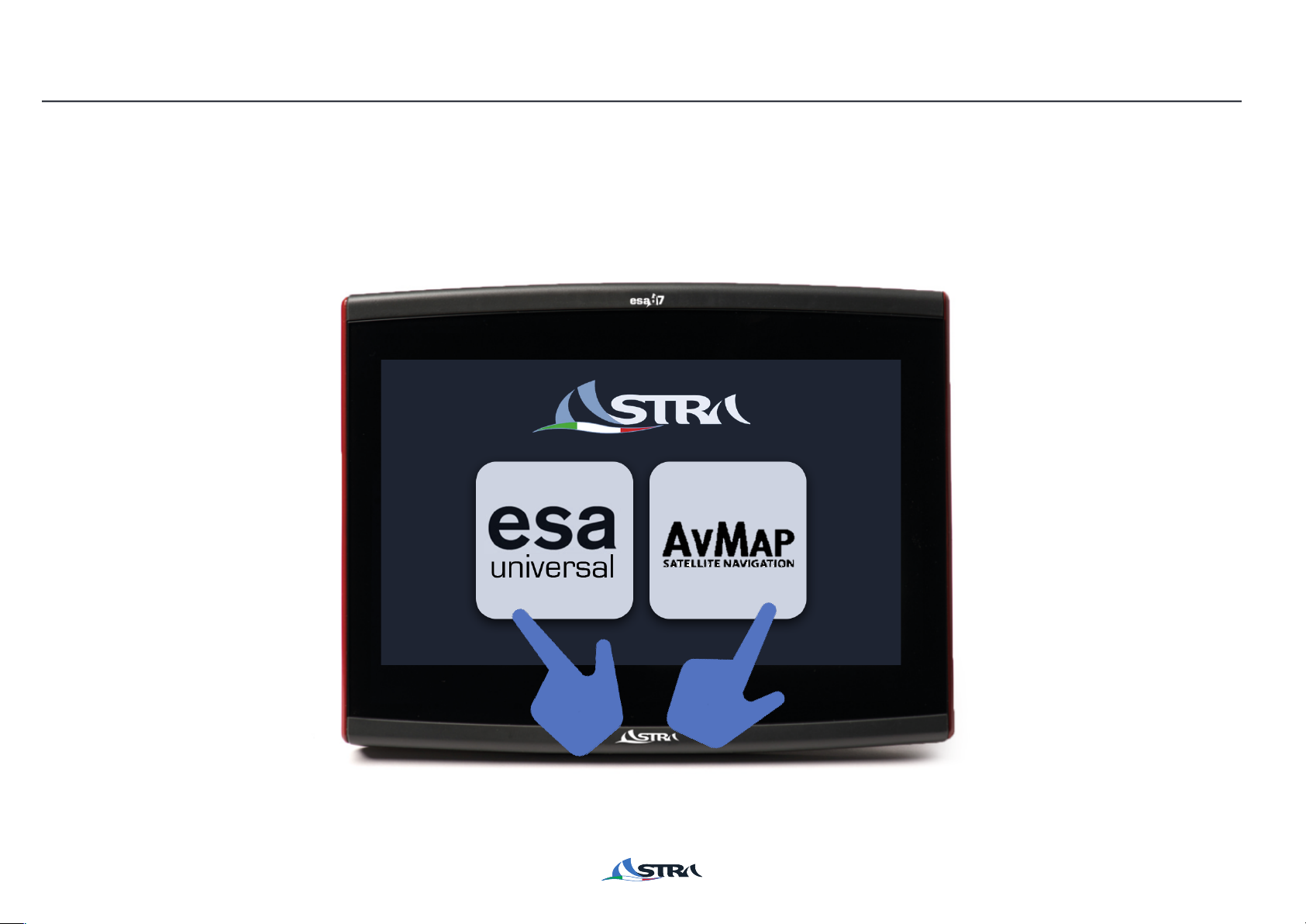

After the switch-on, wait until the software selection screen appears.
Now you can choose between:
•Esa Universal
•AvMap

pag 19
4. Switch on

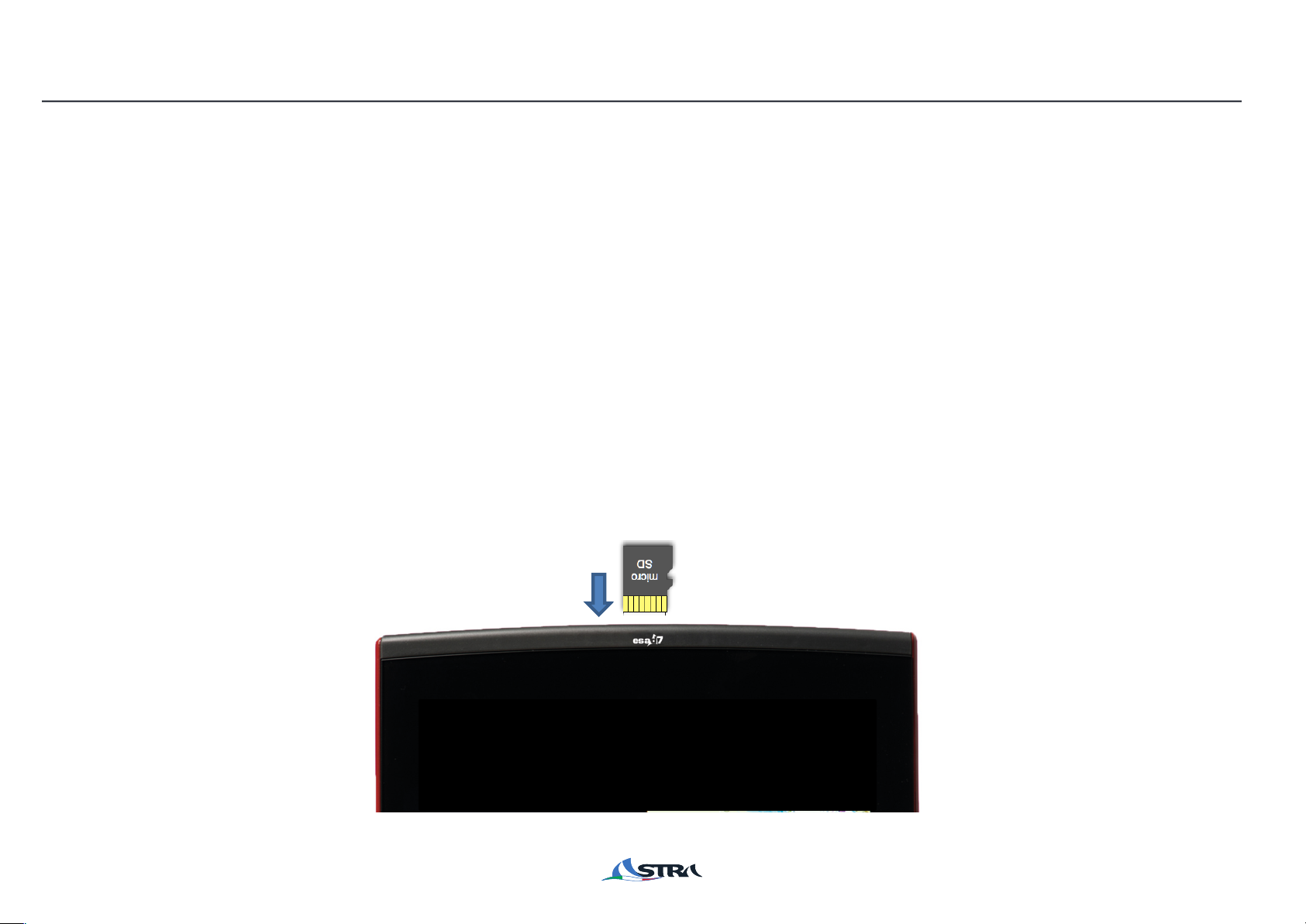

Esa d7 has an integrated MicroSD, available by removing the upper frame of the device and the
rubber cover.
-CAUTION -
Be careful not to lose the slot micro sd rubber seal, otherwise the device waterproof could be
compromised.
Check that the card is inserted.
It is possible to insert a C-MAP 4D card to get detailed cartographic maps on your device.
For more information please contact Astra Yacht.

pag 20
5. Esa Universal
Once selected Esa Universal, the program will start automatically in the default multidata screen.

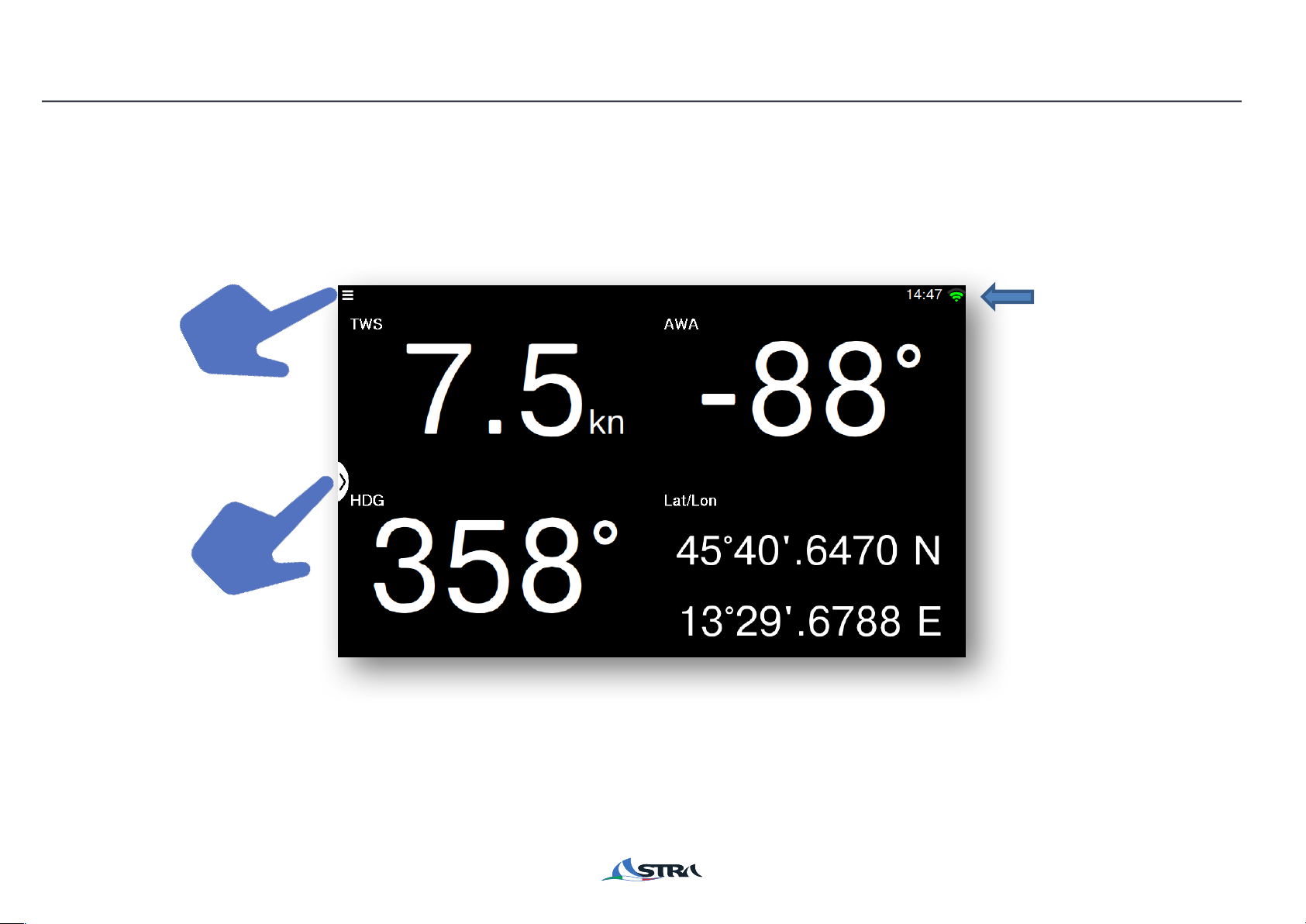

In the figure below you can find the commands available from the page:
Command Menu:
Press to access the main
menu
Page layout:
Press to display the
dropdown menu and
select how many data to
display for each screen:
1/2/3/4/6/9
Timetable and
Wi-Fi signal (When
an Internet
connection is
available)
