Vacuum Packaging Machine
Use and Maintenance Manual
VP-300/VP-400

Introduction
English
Thank you for purchasing the VP300/VP400 Vacuum Packaging Unit.
With its strong performance and high quality, it can bring you a lot
of convenience into your life. In order to make it provide an excellent
working function and make sure it work smoothly, please read this
manual carefully first before operation.
Notice:
■ Before using this machine, please read this manual carefully and fully understand it.
■ Please make sure the operator or supervisor of this product knows well of the essential
points of this manual.
■ After finish the reading, please put it on some places where users can get it conveniently
for easy checking.
■ If any questions, please contact the supplier in time.
Responsibilities:
■ This manual is well edited by supplier. If any serious consequence happens that
was caused by wrong operation by user who was not correctly referring to this manual,
supplier will not take any responsibility for that.
■ Regarding of any damage or problems on machine that were caused by not applied
with correct-provided spare parts, supplier will refuse to take any responsibility for that.
■ Supplier reserves the rights of revising the parameter or spare parts of
this product without notice.

Contents 目录
中文/EN
Safety Notice….....................................................................................................1-8
安全须知 ..............................................................................................................1-8
Product Functions............................................................................................9-11
产品功能 .........................................................................................................9-11
Technical Parameter.............................................................................................12
技术参数 ...................................................................................................................12
Operation Instruction...........................................................................................13
使用说明 ..........................................................................................13
Maintenance.................................................................................................... 14-16
保养与维护 .................................................................................................... 14-16
Errors and troubleshooting ..............................................................................16
故障与排除 ............................................................................................................16

Safety Notice
-1-
English
Key Words
This product is produced according to the latest technical and safety standard. If any
wrong operation, it probably causes danger or harm to users or other people nearby.
Please take notice for the explanations of the key words “DANGER”, “WARNING”,
“CAUTION” as below.
DANGER!
Ignore this safety notice may cause huge
serious harm or even fetal harm to life.
WARNING!
Ignore this safety notice may cause huge
serious harm or even fetal harm to life.
CAUTIONS!
Ignore this safety notice may cause huge
serious harm to life or property loss.

Safety Notice
-2-
English
Working Conditions
This product is designed to be used indoor under normal temperature. If the condition is
very severe (for example, under the caustic atmosphere; temperature is higher than40℃or
lower than 5℃), please remember to contact the supplier about this .
During the operation, the oil in pump will beseparated to the maximum extent, but it will
not be separated completely.
If the machine is use for food industry, pleaseselect some special oil which is safety to
food.
Be Cautious! It is harmful!
There will be residual oil in the air from the pump.
Long-term inhalation of such air is harmful to health.
There should be good ventilation condition in the room
using this machine.

Safety Notice
-3-
English
Transportation & Store
Wooden Case Packing
If lifting device is applied during the installation of machine, please pay attention on the
center-of- gravity position of the machine.
■Please make sure the string could be attached on machine reliably and safely.
■Please hang over the spreader on the hanger which is with the safety lock.
■Please use the crane to proceed the lifting.
Before move or transit the machine, please eliminate all the oil from the pump.
Be Cautious!
Please do not walk by, stay or work
under the lift-up object.
Be Cautious! Damage Machine.
Tipping over the machine whose pump is full of oil
will make the oil enter into the chamber of pump.
When start the pump, if there is too much oil in its
chamber, it will damage the pump.
When the pump is filled with oil, please do not transit
it any more.

Safety Notice
-4-
English
Store the machine in short time
■Turn off the machine, unplug it the power plug, and put away the power cord.
■Close the lid and lock it via lid lock.
■If possible, please cover it with plastic bag to avoid anti dust.
■Please keep the machine in a dry, dust-free and shockproof environment.
Store the machine in long time
Machine inside is already processed through anticorrosive treatment in factory, it is not
necessaryto use protective oil again. However, if the storage condition is severe (for
example, under the caustic atmosphere; temperature is very high or frequently changing),
then it is necessary to use oil again to keep the machine in good condition.
■Turn off the machine, unplug the power plug, and put away the power cord.
■Close the lid and lock it via lid lock.
■Please cover it with plastic bag to avoid anti dust.
■If possible, please keep the original package.
■If moving or transiting is needed, please make sure all the oil in pump is eliminated.
■Please keep the machine in a dry, dust-free and shockproof environment
Installation
Be Cautious! Damage the machine.
If below necessary conditions could not be met during
the installation, it will cause the machine damage.
Be careful to get hurt.
Please must follow with below necessary conditions
to install the machine.

Safety Notice
-5-
English
Please make sure the installing environment conform the safety regulations.
■ No flammable or explosive gas surrounding.
■ Suitable temperature range: 5-40℃. If installation is need proceeding in environment
out of this range, please contact the supplier.
■Ambient pressure: standard atmospheric pressure.
■Make sure the power supply conform the standard.
■Keep the machine at an upright position when moveor transit it as tip it over will
damage the pump.
■Keep the machine in a horizontal place when use it.
Maintain a distance of 10 cm between the unit and walls or other objects for ventilation.
Keep the machine awayfromtheheat source or steaming device (such as steaming
pot, dish washing machine or stove)
■Make sure there is enough spareto change the oil and change the easy-damaged parts.
Filling oil and draining oil
Be Cautious! Damage the Machine.
No oil is in a new machine.
Pump will be damaged if it is running without oil.
Before start the machine, please ensure the pump is full of oil.
Filling theoil from other positions of pump may damage the pump.
Ensure through the oil port to fill the oil into the pump.
It will beharmful to human health with long-term effects of inhaling
the gas (that might be containing residual oil) which is expelling
from pump during the operation.
Please make sure that using the machine is in a good condition of
ventilation.

Safety Notice
-6-
English
Filling oil
■Use the screw driver to open the oil window #1
■Use the spanner to open the screw cap of oil filling port
■Fill theoil to pump via theoil bottle until the oil in pump stays at 1/2~3/4
position (between MIN and MAX that displays from oil indicator)
■Screw tightly the cap and reinstall the cover of oil window#1
Draining oil
■Use the screw driver to open the oil windew#2.
■Prepare a container and put it under the oil draining port directly
■Use the spanner (which is offered by supplier) to twist off the screw cap, then
the oil starts draining.
■After all the oil is drained, screw tight the cap and reinstall the cover of oil
window#2.
When the pump is working, the pump
chamber inside will be full of oil mist
where is in high temperature and high
pressure. If the oil-filling port is open,
it might be hurt by the hot oil mist. Only
when the pump stops working, the oil
plug could be open. When the pump is
working, theoil plug must bescrewed tight.

Safety Notice
-7-
English
oil window#1
oil windows#2
oil pump
screw cap
of oil filling
port
screw cap
of oil
draining
port
oil indicator
Max level
Min level

Safety Notice
-8-
English
Gas Inflation System (If Any)
■Please not use any explosive gas or any mix gas which contains lots of oxygen,
otherwise it will cause explosion. If any damage or accidence was caused due to
user operate the machine not referring to this guideline, supplier will not take
any responsibility.
■Gas bottle must be closed well. If the gas inflation will not be applied or the
machine will not be used, the switch of gas bottle must be closed well.
■The setting of pressure valve on gas bottle must not be higher than 0.1Mpa,
otherwise it will damage the machine.
■The diameter of gas-filled tube connector is 8mm. This connector will be at the
side of machine or at the back of machine.
Be cautious! Damage the machine!
The pressure of gas source must not be higher than
atmospheric pressure.
Warning! Explosion!
It is not allowed that using the explosive
gas or any mix gas which contains 20%
(or above) oxygen, otherwise, it will cause
explosion.

Product Function
-9-
English
Machine
control panel
LID
Lid lock
power switch
pressure gauge

Product Function
chamber
seal strap
seal bar
gasket
-10-
English
Chamber
chamber
seal strap
seal bar
gasket
VP300
VP400

Product Function
-11-
English

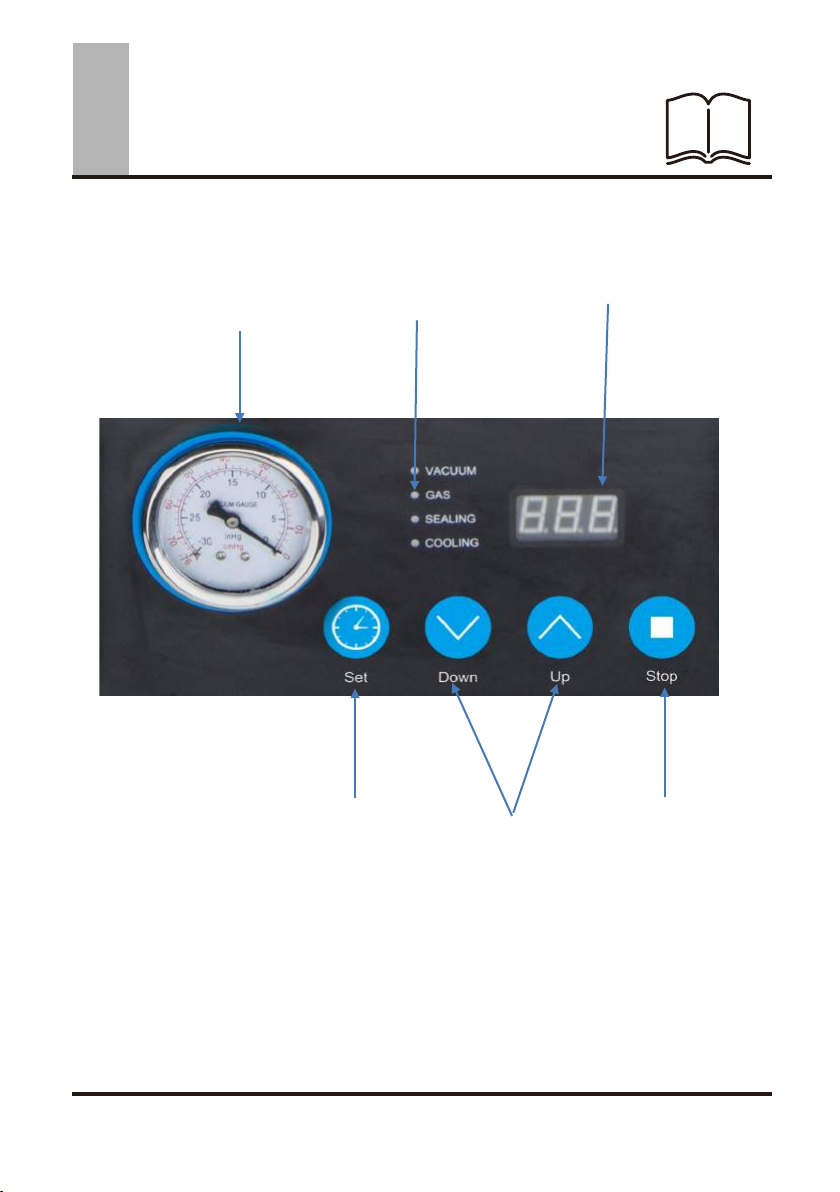

Control panel
A. pressure gauge
Showing the vacuum pressure of chamber
B．Indicate light
（1）light being on indicates that the relative working mode is ready to be set.
（2）light being flashing indicates that the machine is working under the relative
working mode.
A
B C
D E
F

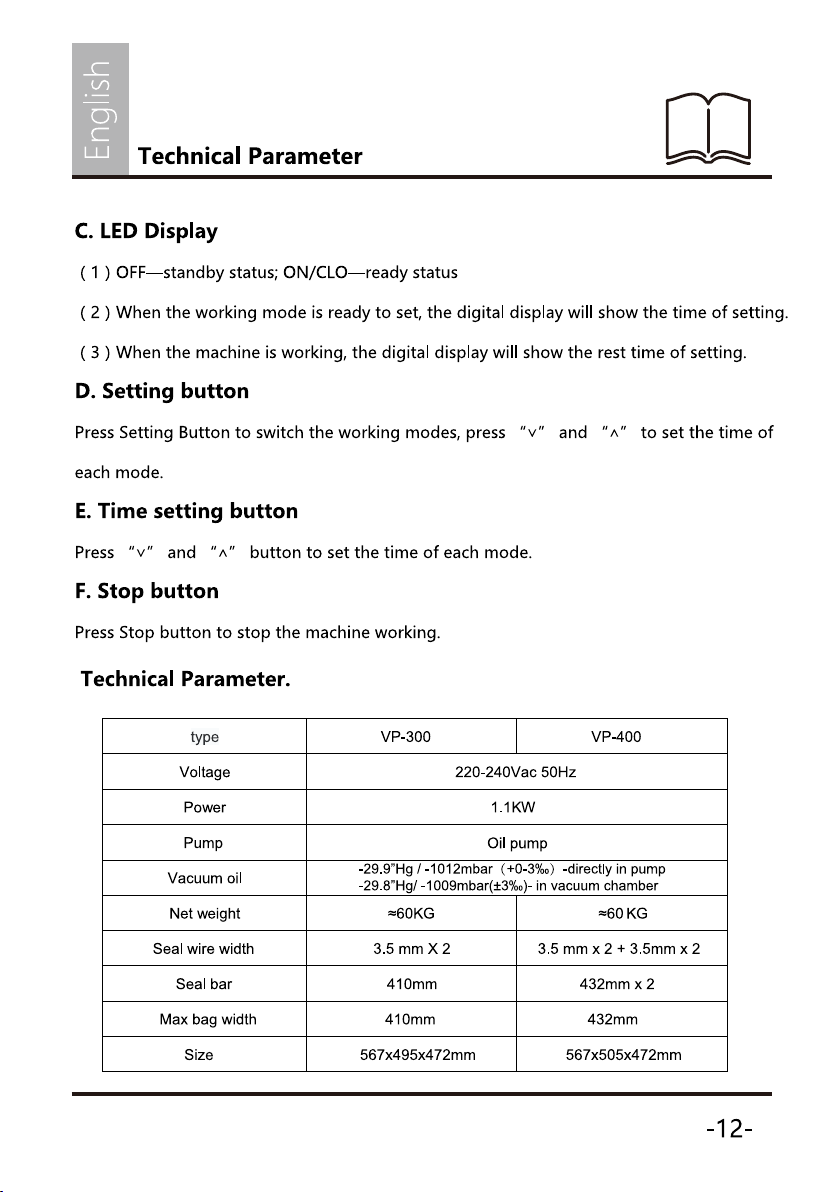

Operation Instruction
-13-
English
1. Select the proper size vacuum pouch. Allow a minimum of 1” to 2” of extra headspace
at the top of the pouch to ensure quality, air-tight seal
2. Let the machine plug into a safety grounding socket, turn the Power Switch to ON step
and the machine displays CLO.
3. Open the lid, then the machine will display ON, and it will stay at the READY status. Put
the vacuum pouch into the chamber and make sure the bag opening is across the seal
wire and well fixed.
4. Press the Setting button and the ∨ and ∧ button to set the time of each mode. Timing
range of vacuum: 0-90s; Timing range of gas inflation: 0-10s; Timing range of sealing:
0-6s; Timing range of cooling 0-10s. When finish all the settings, press the Setting button
again, the machine will beback to theready modeand shows ON. (If one setting is
adjusted the time to 0, it means that this process will beremoved during operation. The
VP300/vp400 model does not offer the gas inflation option, press Setting button to
leave it at 0 seconds.)
5. Close the lid, then the machine starts working. The indicate light of the working process
will be on accordingly, and the machine will show the rest time of that working mode.
6. After the operation finishes, the lid will release automatically, and the machine will give
out a beep sound.
7. Take out the pouch and go on with next process that you want.
(Vacuum package can only slow the process of food spoilage, but it cannot stop food
spoilage. With vacuum package, the food still needs to be freezing in fridge.
8. Restore Factory Defaults
Let the machine power on. When the machine shows OFF, press SET button and “∧”
button at the same time for 3s. When the machine gives out a beep sound and shows rS,
then it is successful to restore factory defaults.

Maintenance
-14-
English
In order to prolong the service life of machine, avoid any quality failure and meet the best
packing performance, maintenance is a must to the machine. If the machine is used
frequently (working more than 4hours per day), then it is suggested being implemented
with a professional maintenance every six months. If it is used less than 4 hours per day,
then it is ok to be implemented a completed maintenance every year (it depends on the
working condition and product self condition).
■Before maintaining, please unplug the power cord of machine from socket.
■If the machine doesn’t work normally and give out some strange noise, please turn it
off and contact the supplier.
■Don’t use the detergent (containing solvent) to clean the machine. At least check the
lid if broken or not per week. If the lid is broken, pleasestop using the machine
immediately.
■Never treat the machine in high pressure cleaning, as it will severely damage the
electrical parts or other parts of the machine.
■Never let any water enter the vacuum port in chamber or air outlet hole of pump,
otherwise it will cause the irreparable damages on pump.
■Non-specialist could not carry on a large-scale maintenance to the machine.
■Keep the machine at an upright position when move or transit it as tipping it over will
damage the pump
■The machine could work 8 hours at most per day. If users prolong the working time of
machine without authorization and cause any damage or quality issue on the machine,
supplier won’t take any responsibility for that.
■If user doesn’t operate the machine according to this manual and cause any damage
or quality issue on machine, factory won’t take any responsibility for that.

Maintenance
-15-
English
Lid
■Never place the machine nearbytheheat source in caseof damaging the lid.
■Never put anything that is heat/sharp/heavyonthe lid, otherwise it might damagethe lid.
■Please use the solvent-free detergent to clean the lid, as thesolvent mightdamage the lid.
■ At least check if the lid is broken or not per week. If the lid is broken, pleasestop using the
machine immediately until a new lid is replaced. Keep using a broken lid might cause the lid
inside explosion. If any explosion from the lid, it will cause accidence onhuman. For this kind
of wrong operation, supplier won’t take any responsibility.
■ For safety, pleasereplace the lid every 3 years.
Pump
In order to prolong theservice life and make sure the correct operation, it is very important
to carryona daily maintenance to the pump. If the machine is used frequently, we suggest
that at least a fully checking per year need to be implemented on pump. If any doubt or
advise, please contactthesupplier.
■ A new machine doesn’t have the oil in pump. If use a new machine at the 1st time, please
fill the oil before use.
■ Please check the color of oil.
The oil should be clear and bright, could not be muddyand contain bubble. When the oil is
at rest, but some white stuffs in oil still doesn’t disappear, it means thattheoil contains some
impurities. If theoil contains impurities or becomes black, theoil must need changing.
■ The service life of oil
The service life of oil will depends ontheworking condition and an environment with clean
and dryair. Normally theoil must need changing every 50 working hours or at least every 6
months.
■ Please check the level and volume of oil in pump once at leastper week. User can check the
oil volume via oil window, if theoil level is lower thantheposition of 1/2 that showing from
oil indicator, then it must need filling oil.

Errors and troubleshooting
-16-
English
Seal Strip
Please check the seal rubber at least once per week. If the seal strip is brokenor not even
enough, please replace it immediately.
■The seal strip is stuck in the groove of the lid, it can be moved out directly.
■Remove the old seal strip from the groove of the lid.
■Install a new seal strip into the groove.
■After finish installation, please check if the seal strip is installed evenlyor not.
Gasket
The purpose of gasket is to make the chamber under sealed condition when the machine is
working. It is important for the machineto reach required vacuumpressure. Due to under
differentpressure, the gasket will be worn. So, it must be replaced periodically. The gasket
need checking once per weekat least, checking it if it is worn or broken.
■The gasket is stuck in the groove of the lid, it can be moved out directly.
■User can check the length of new gasket according to the old one, if the gasket is too long
or too short, it may cause the lid cannot be closed tight or leaving some gap to cause any
leakage when machine is working.
■Install a newgasket into the groove.
■Please make sure the gasket is installed evenly but not over tight. Both ends of gasket
must be installed perfectly straight and evenly and compactly to avoid any leakage.
Error code Causes of warning Troubleshooting
E01
E02
When the machine is
vacuuming for some
time, the pressure
switch doesn’t close.
machine loses power
during the working
1)Check if the lid is closed tight.
2)Check if the gate control switch
system is working normally or not
(like gate control switch assy, GASI
connecting cord, micro switch,
10P data cord)
1)check the power supply. 2)check the
power supply system of machine(power
cord, 10P data cord).
Errors and troubleshooting

前言
中文
首先感谢你购买我司全新开发的真空封口包装机VP300/VP400系列，VP300/
VP400系列功能强劲，品质优良，一旦拥有将会给你带来诸多的便利，但为了VP300/
VP400能最好的发挥出其优秀的产品性能，确保工作顺畅，在使用之前请仔细阅读说
明书。
请注意：
■ 在使用产品前，请务必认真仔细阅读本说明书，并充分理解。
■ 确保最终使用本产品的操作人员或设备管理人员掌握本说明书操作要领。
■ 阅读之后请妥善保管本说明书，并始终置于随手可及之处，以便查阅。
■ 如有任何问题，请及时与我司联系。
责任：
■此说明书为精心编辑，对于其中的任何操作错误或理解错误造成的后果，我
司不承担任何责任。
■对于没有采用规定配件而造成的任何损坏或问题，我司不承担任何责任。
■我司有保留修改参数或配件的权利，并不另行通知。
