ASUNA 7100 User manual

Owner’s Manual
Made in Taiwan
7100
Sabre Magnetic
Commercial Indoor Cycling Bike

INDEX
IMPORTANT SAFETY INFORMATION ..................................................................... 1
EXPLODED DRAWING ............................................................................................. 2
PARTS LIST................................................................................................................ 3
ASSEMBLY INSTRUCTION.................................................................................... 4-9
USER INSTRUCTION .............................................................................................. 10
MAINTENANCE ....................................................................................................... 11
EXERCISE INSTRUCTION ................................................................................. 12-13
ATTENTION: Please verify that all parts associated with this product are in good
condition and accounted for. During the assembly process please be sure to follow
each step accordingly as it has been explained within the manual.
WARNING: During assembly it is recommended that all bolts be tightened by
hand, upon completing assembly, bolts should then be properly secured using the
wrench provided. To avoid injury, check bolts carefully before use.
WARNING: This product can expose you to one or more chemicals
known to the State of California to cause cancer and birth defects or
reproductive harm. For more information go to
www.P65Warnings.ca.gov.
IMPORTANT: Read all instructions carefully before using this product. Retain
owner’s manual for future reference. For customer service, please contact:
[email protected]
!

IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using
the equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk,
or prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking medication that affects your heart rate, blood pressure or cholesterol
level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain, tightness
in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness,
dizziness or feelings of nausea. If you do experience any of these conditions, you should
consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60cm) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, discontinue use of the equipment immediately and do
not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment. Do not use bike without shoes, or with loose shoes.
8. Do not place fingers or objects into moving parts of the exercise equipment.
9. The maximum weight capacity of this unit is 285 pounds (130kgs).
10. The equipment is not suitable for therapeutic use.
11. Please take proper precautions when lifting and moving the equipment so as not to injure
your back. Always use proper lifting technique and seek assistance if necessary.
12. For all adjustable parts be aware of the maximum position to which they can be adjusted.
13. Be aware of non-fixed or moving parts while mounting or dismounting the bike.
14. We take no responsibility for personal injury or damage sustained by or through the use
of this exercise bike.

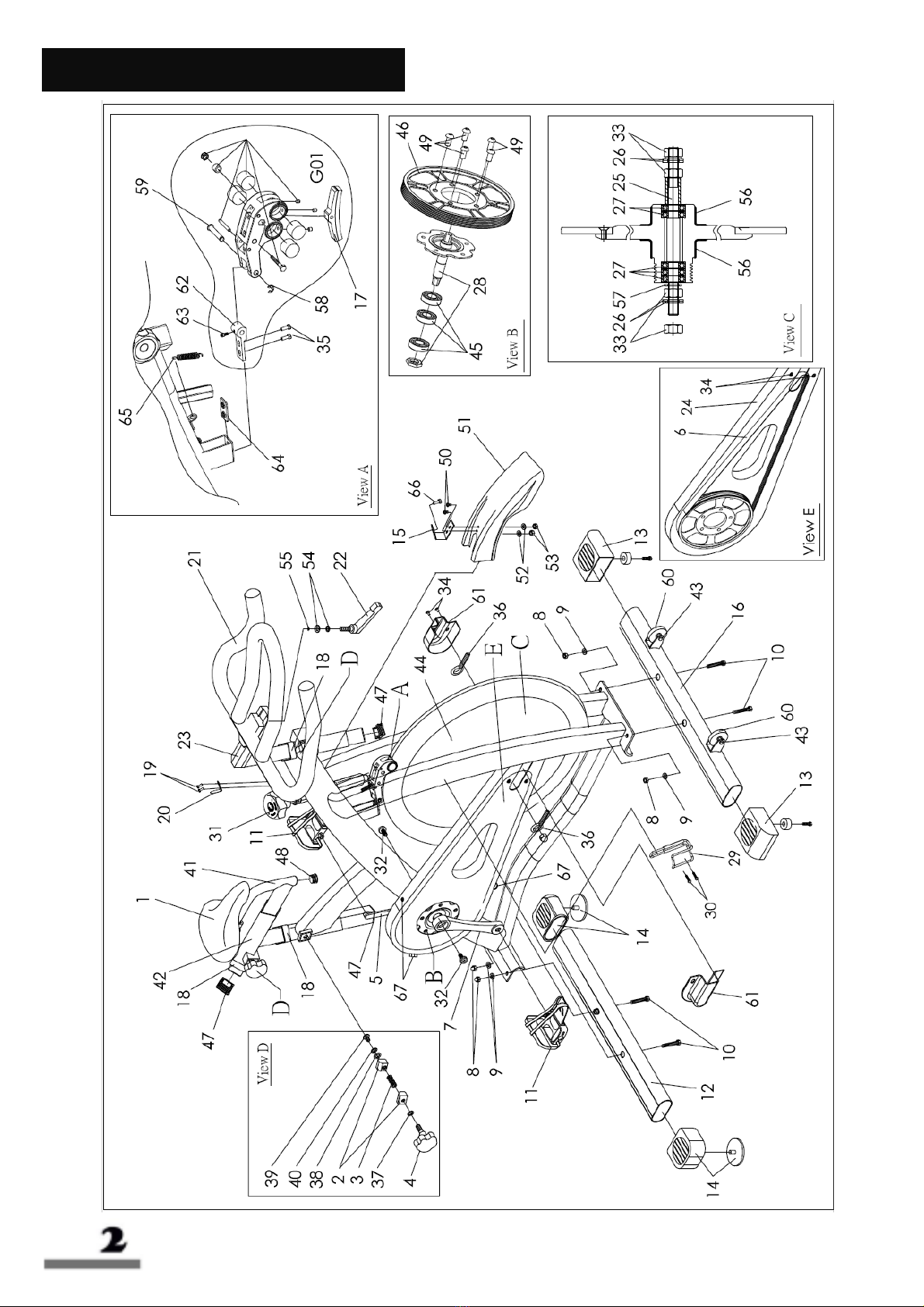

Exploded Drawing

REF. Name QTY REF. Name QTY
1 Seat 1 36 Flywheel adjuster bolt 2
2 Alloy bind clamp ( R &L ) 3 37 Knob washer 3
3 Spring for knob 3 38 Plastic washer for knob 3
4 Adjustment knob 3 39 Knob fixed bolt 3
5 Left crank arm 1 40 Washer for knob 3
6 Belt 1 41 Seat slider 1
7 Right crank arm 1 42 Seat post 1
8 Nut 4 43 Axle bolt for moving wheel 2
9 Washer 4 44 Flywheel 1
10 Bolt 4 45 BB bearing 3
11 Pedal 1PR 46 Belt wheel 1
12 Rear stabilizer 1 47 End cap 3
13 End cap (Pair) 1 48 End cap 1
14 End cap (Pair) 1 49 Screw for pulley 5
15 Fender fixed plate 1 50 Bolt for fender 2
16 Front stabilizer 1 51 Fender 1
17 Brake pad w/holder 1 52 Washer for fender 2
18 Rubber sleeve 3 53 Nut for fender 2
19 Bolt for sprocket bracket 2 54 Washer for L shape knob 2
20 Sprocket bracket for resistance knob 1 55 O clip for L shape knob 1
21 Handlebar 1 56 Rubber cover for flywheel 2
22 L Shape knob 1 57 Flywheel security washer 1
23 Handlebar post 1 58 E clip 1
24 Outer chain guard 1 59 Fixed pin 1
25 Flywheel axle 1 60 Moving wheel 2
26 Flywheel security washer 4 61 Axle cover (Pair) 1
27 Flywheel bearing 5 62 Connection bracket 1
28 Middle axle with plate 1 63 Fixed bolt for connection
bkt
1
29 Bottle holder 1 64 Plate for screw 1
30 Bottle holder bolts 2 65 Spring 1
31 Tension knob 1 66 Bolt for plate 1
32 Crank bolt 2 67 Outer chain guard bolt M5 3
33 Flywheel security nut 4
34 Outer chain guard bolt M6 4
35 screw & washer for bracket 2 G01 Magne
ti
c w
/
suppor
t
,
fi
xe
d
bolt, screw, housing, nut, fixe
p
in 1

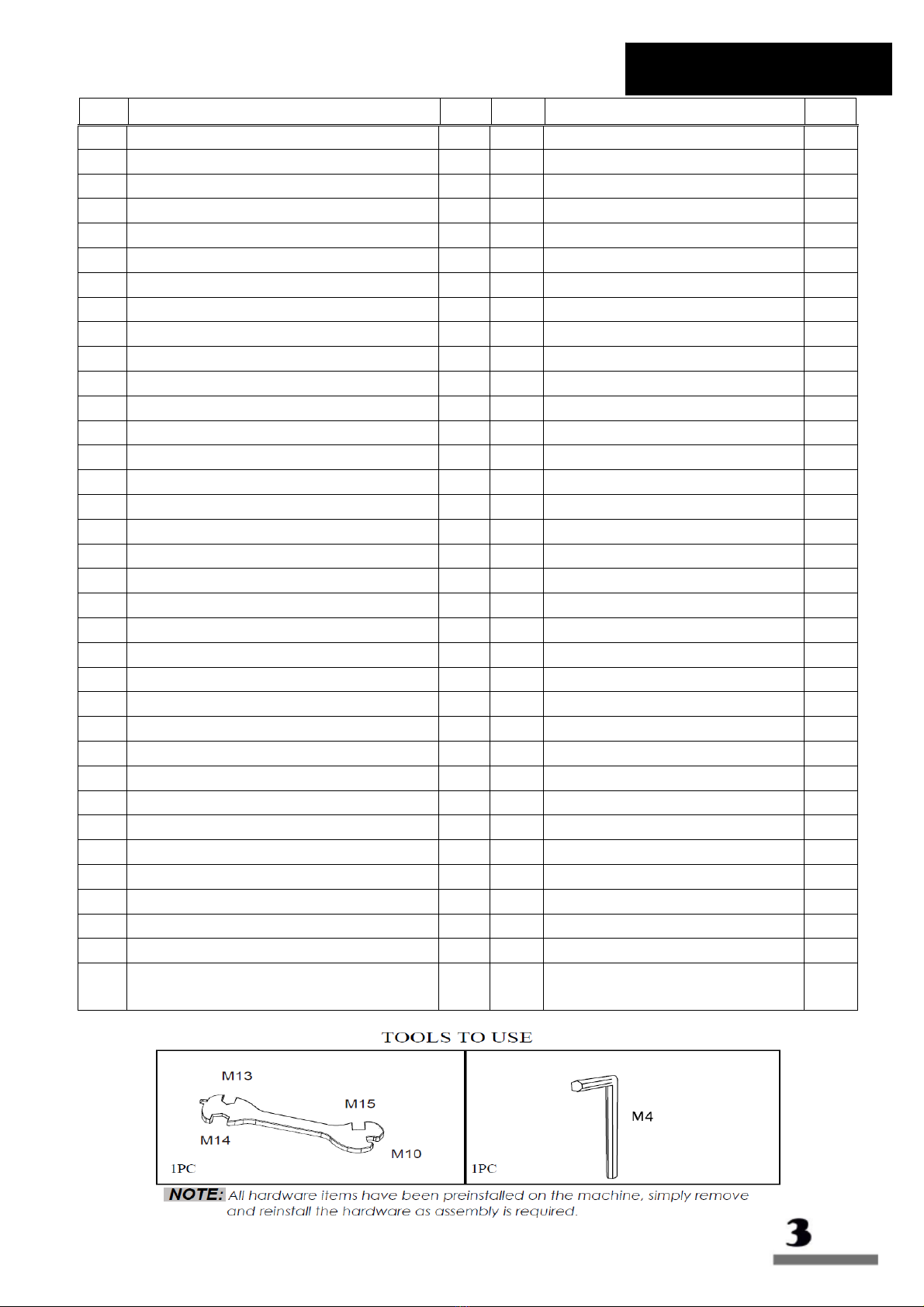

Parts list

STEP: 1

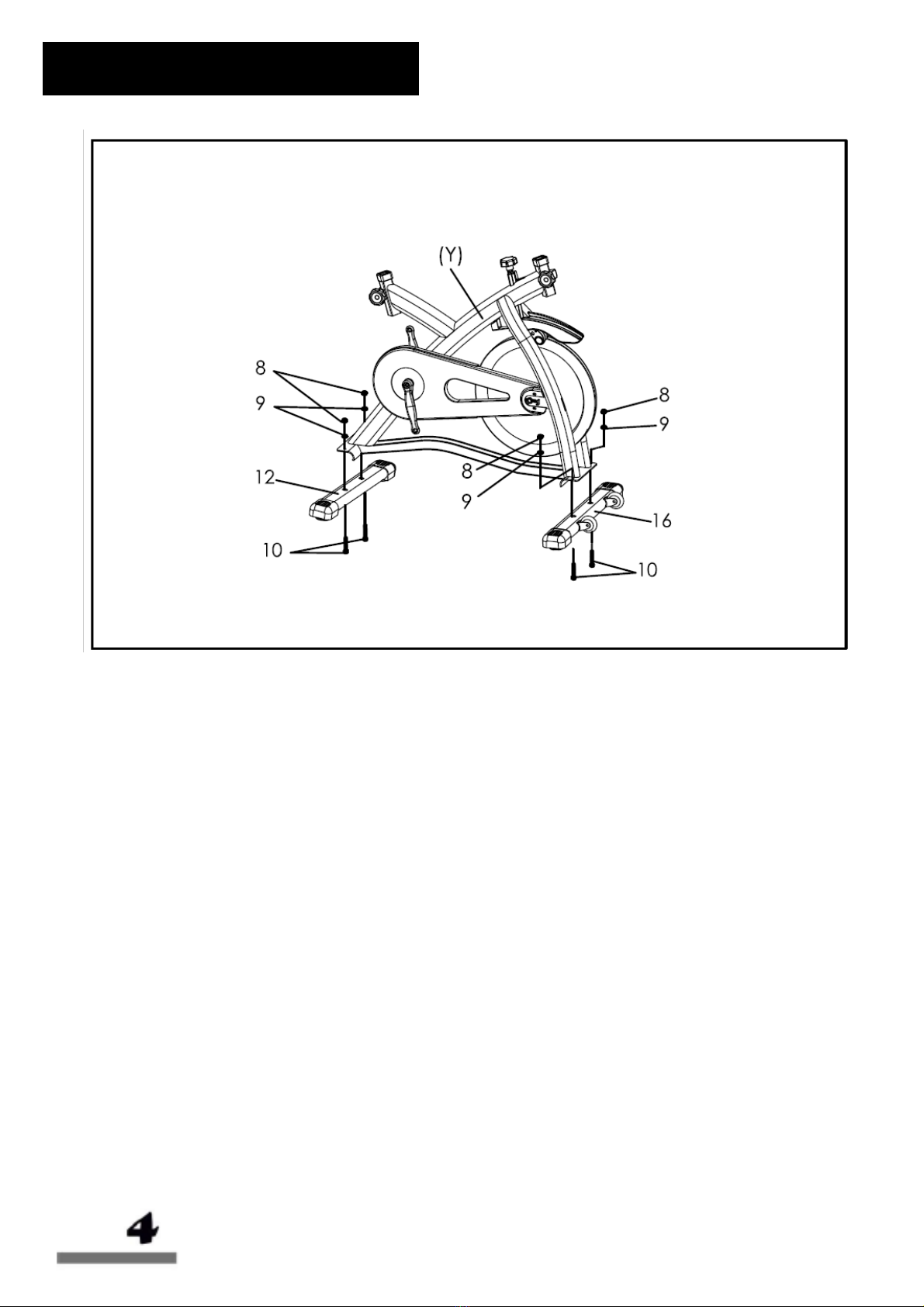

Attach the Front Stabilizer (No. 16) and the Rear Stabilizer (No. 12) to the Main
Frame (Y) using 4 Bolts (No. 10), 4 Washers (No. 9) and 4 Nuts (No. 8). Tighten
and secure using spanner wrench.
A
ssembl
y
Instruction

STEP: 2
Loosen Adjustment Knob (No. 4) on main frame handlebar tube to remove
protection cap, then slide the Handlebar Post (No. 23) into the handlebar tube of
the Main Frame (Y).
Slide the Handlebar (No. 21) onto the Handlebar Post (No. 23). Tighten the
L-Shaped Knob (No. 22) to secure the Handlebar (No. 21) into position.
NOTE: To slide the Handlebar (No. 21) back and forth to adjust it to the desired
position, first loosen the L-Shaped Knob (No. 22).
A
ssembl
y
Instruction

STEP: 3

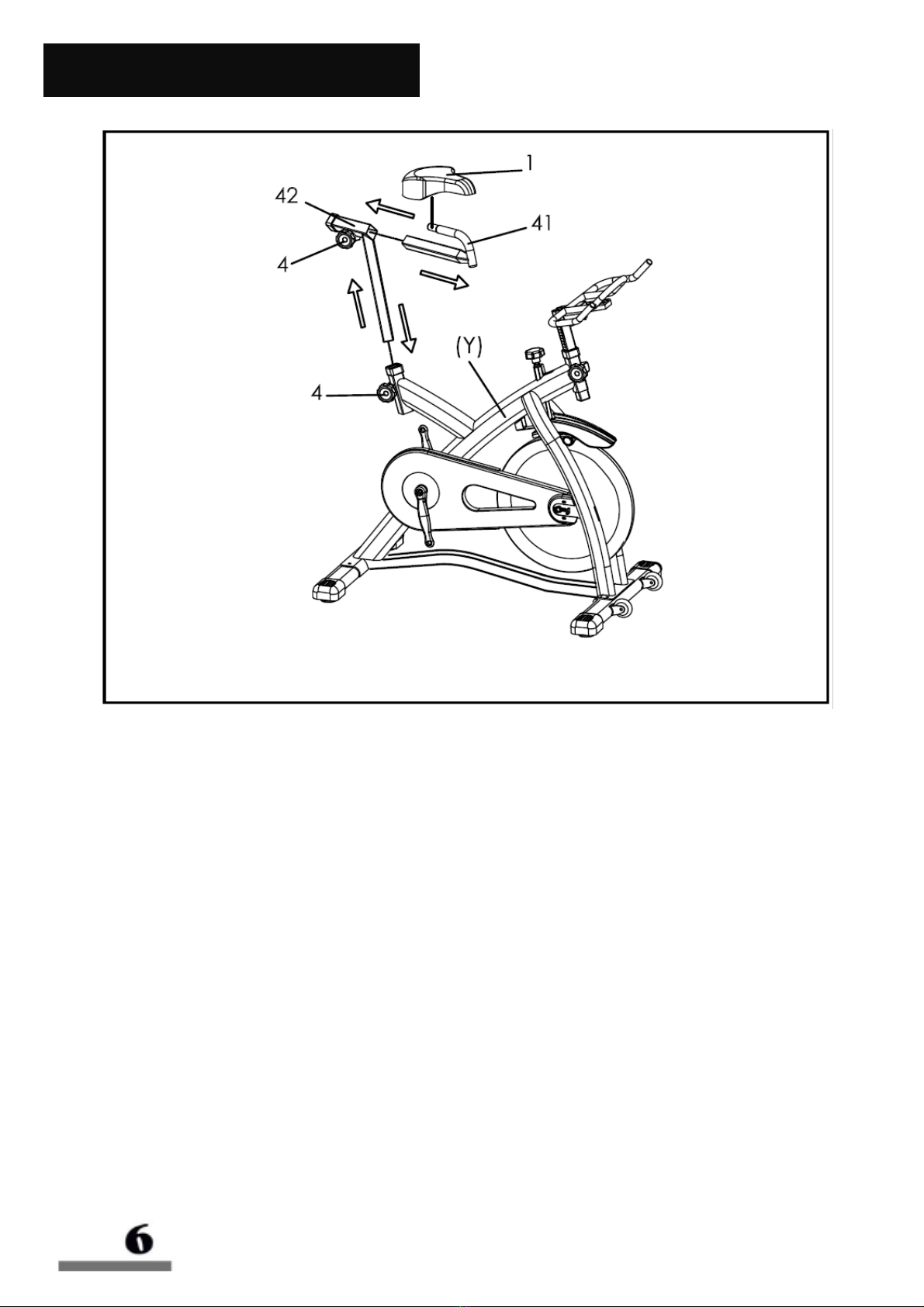

Insert the Seat Post (No. 42) into the seat tube located on the Main Frame (Y).
Insert the Seat Slider (No. 41) into the Seat Post (No. 42). Tighten the
Adjustment Knob (No. 4) to secure the Seat Slider (No. 41) in place.
Secure the Seat (No. 1) onto the post of the Seat Slider (No. 41). Tighten the
seat clamp screw to secure the Seat (No. 1) in place.
Use Adjustment Knob (No. 4) to adjust height of the seat, use Adjustment
Knob (No. 4) to adjust the seat back and forth.
A
ssembl
y
Instruction

STEP: 4
Connect Pedals L/R (No. 11) onto the Left and Right Crank Arms (No. 5 and No.
7). (Before you begin, immobilize the crank arms by turning the tension knob all the
way to the right).
NOTE: Pedals L/R (No. 11) are marked, L for the (left pedal) and R for the (right
pedal).
Left Pedal: align the left pedal, Pedal L (No. 11) with the Left Crank Arm (No. 5) at
90 degrees. Insert the pedal into the crank arm, turn the pedal counter-clockwise
as tightly as you can with your hand. Tighten and secure with (15mm) spanner
wrench.
Right Pedal: align the right pedal, Pedal R (No. 11) with the Right Crank Arm (No.
7) at 90 degrees. Insert the pedal into the crank arm, turn the pedal clockwise as
tightly as you can with your hand. Tighten and secure with (15mm) spanner wrench.
Attach the Bottle Holder (No. 29) to the Main Frame (Y) using 2 Bottle Holder
Bolts (No. 30). Tighten with spanner wrench.
A
ssembl
y
Instruction
IMPORTANT:
Read instructions
carefully, failure to
do so may cause
permanent damage
to your bike.

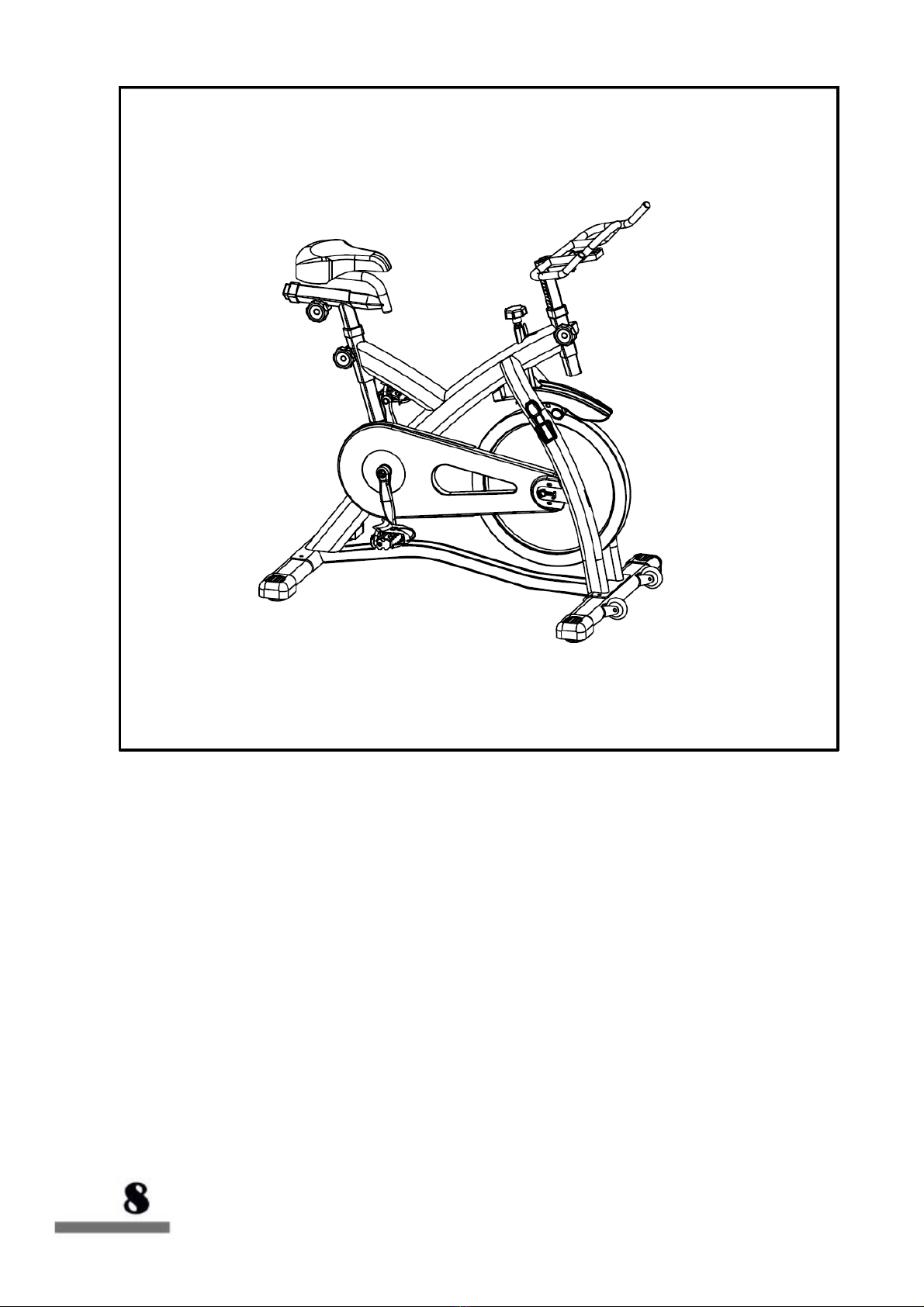

Assembly is complete!

Before beginning use of equipment, please be sure to inspect the entire bike carefully.
Ensure that all moving and stationary parts have been properly installed and are
operational. Inspect all screws, nuts and bolts as well to make sure that they are
tightened and secure.
MOVING

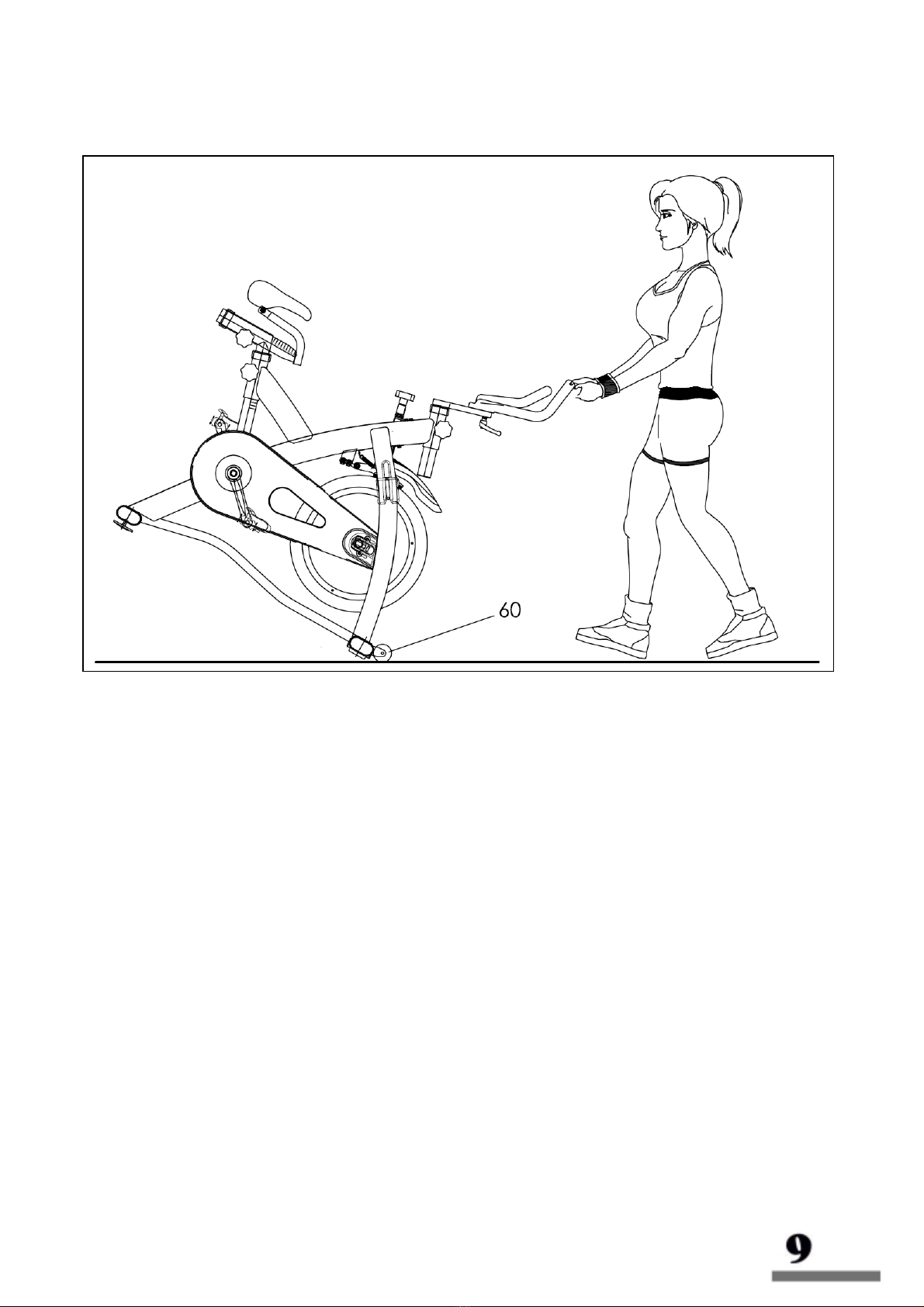

There are Moving Wheels (No. 60) on the front stabilizer. Hold the handlebar,
and tilt the bike towards you until the wheels touch the ground. Then you can
move the bike.

 ASSEMBLY
Properly assembling the equipment before use is very important. Be sure to
follow all instructions as detailed in the assembly instructions section of the
owner’s manual.
 ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Tension Knob. Increase the level of
resistance by turning the tension knob to the RIGHT. Decrease the level of
resistance by turning the tension knob to the LEFT.
 BRAKE to stop the bike, press down on the Tension Knob located at the top of
the Main Frame.
 HANDLEBAR AND SEAT ADJUSTMENT

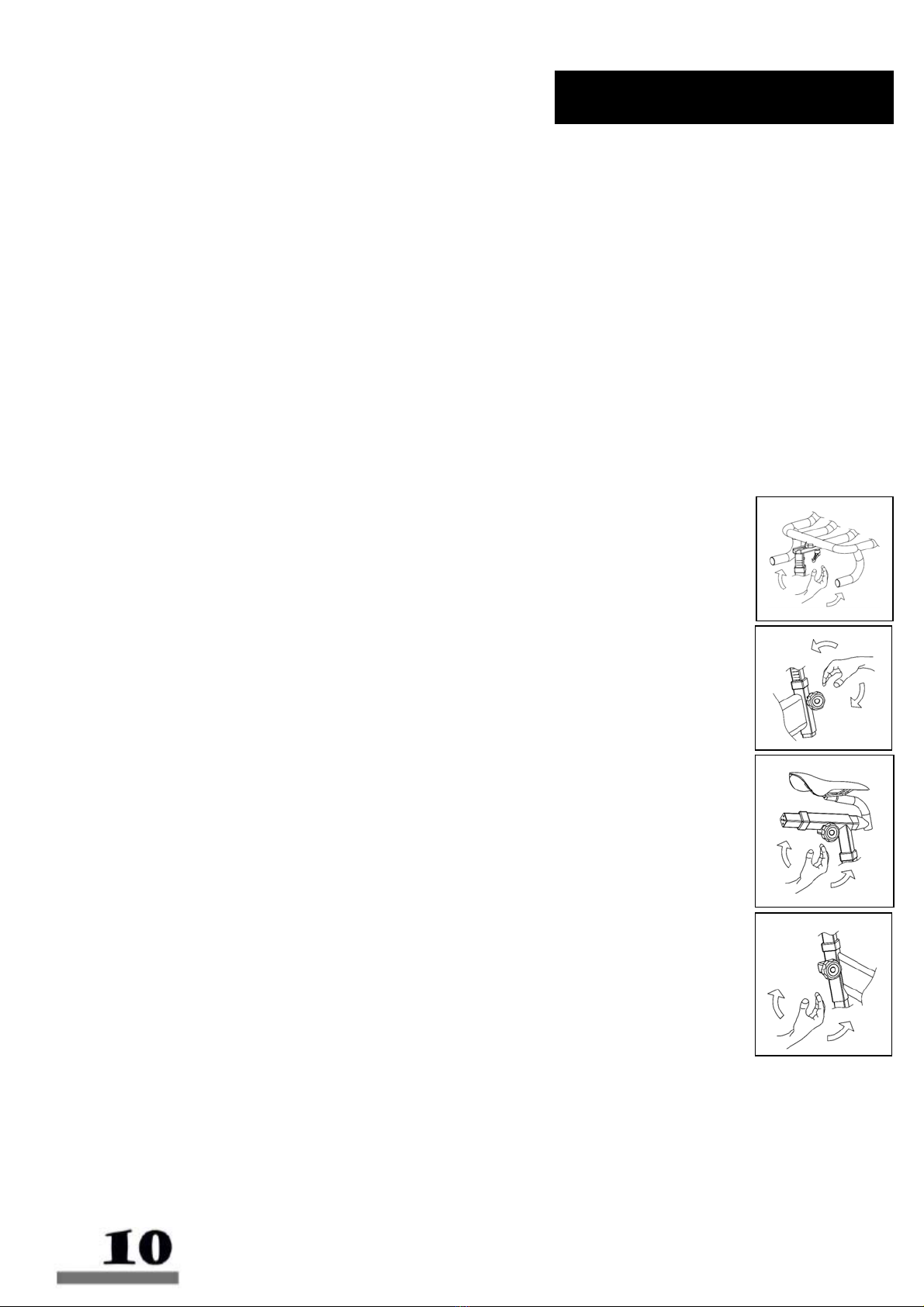

It is important that the handlebar and seat are both set to the correct height of
your body. To adjust the handlebar height, loosen the Handlebar Adjustment
Knob and slide the Handlebar Post up or down to the required height. Once
adjusted, retighten the handlebar adjustment knob. Ensure that it is securely
tightened and there isn’t any lateral or vertical movement of the handlebar. The
Handlebar can also be adjusted forwards or backwards. To do so loosen the
L-Shaped Knob located below the handlebar slider. Slide the handlebar
assembly forwards and backwards until you reach the required position. Once
adjusted retighten the L-Shaped Knob.
 SEAT ADJUSTMENT
To adjust the seat height, loosen the Adjustment Knob, move the seat up or
down to the required height. Once adjusted, retighten the seat adjustment knob.
Ensure that the knob is tight enough to prevent the seat from moving side to side.
The Seat can also be adjusted forwards or backwards. To do so, loosen the
Adjustment Knob located at the top of the Seat Post. Slide the Seat Slider to
the required position. Once adjusted, retighten the seat slider adjustment knob.
 PEDALS AND TOE STRAPS
Feet should be securely positioned in the toe clips during exercise. Put your foot
as far forwards as you can into the toe-clip and then pull the strap tight. Repeat
this process to secure your other foot.
 ADJUSTING THE HEIGHT OF THE BIKE
Located underneath the Front and Rear Stabilizers of the bike are height
adjustment pads. These pads are used to adjust the height of the bike in order to
increase the amount of stability to the ground. To increase the height of the bike,
turn the adjustment pad counter-clockwise. To decrease the height of the bike,
turn the adjustment pad clockwise.
User Instruction

M
aintenance
IMPORTANT:
Safe and effective use can only be achieved if the equipment is assembled, maintained and
used properly. It is your responsibility to ensure that the equipment is maintained regularly. Any
components found to be worn and/or damaged should be replaced before continuing use of the
equipment. Equipment should only be used and stored indoors, prolonged exposure to
weathering and changes in temperature and humidity may have a severe impact on electrical
components and moving parts of the machine.
Daily Maintenance:
-Clean away sweat and moisture after each use.
-Perform inspection of all nuts and bolts associated with moving parts of the equipment, tighten
as required.
-Check the mobility of moving parts and components on the equipment, lubricate if required.
-Clean plastic parts of the equipment using a damp cloth, clean metal parts of the equipment
using a dry cloth. Do not use cleaning products to clean the equipment.
Weekly Maintenance:
-Thoroughly inspect the parts of the equipment; nuts, bolts, screws and moving parts such as
foot pedals, saddle, pulley’s, etc. Tighten or replace parts as required.
Monthly Maintenance:
-Inspect the frame and inner working components for wear and tear as well as damage.
Perform maintenance or replace as required.
Version 1.2
