ASUNA ASUNA 4200 User manual

INDEX
IMPORTANT SAFETY INFORMATION..................................................................... 1
EXPLODED DRAWING.......................................................................................... 2-3
PARTS LIST ........................................................................................................... 4-5
ASSEMBLY PARTS LIST / TOOLS & HARDWARE ................................................. 6
ASSEMBLY INSTRUCTIONS .............................................................................. 7-11
EXERCISE INSTRUCTIONS .............................................................................. 12-13
COMPUTER INSTRUCTIONS............................................................................ 14-18
MAINTENANCE........................................................................................................19
ATTENTION: Please verify that all parts associated with this product are in good
condition and accounted for. During the assembly process please be sure to follow
each step accordingly as it has been explained within the manual.
WARNING: During assembly it is recommended that all bolts be tightened by hand,
upon completing assembly, bolts should then be properly secured using the wrench
provided. To avoid injury, check bolts carefully before use.
IMPORTANT: Read all instructions carefully before using this product.
Retain owner’s manual for future reference. For customer service, please
contact: [e-mail]

IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using
the equipment. Safe and effective use can only be achieved if the equipment is
assembled, maintained and used properly. It is your responsibility to ensure that all users
of the equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at
risk, or prevent you from using the equipment properly. Your physician’s advice is
essential if you are taking medication that affects your heart rate, blood pressure or
cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain, tightness
in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness,
dizziness or feelings of nausea. If you do experience any of these conditions, you
should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet of free space all
around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. It is recommended that you lubricate all moving parts on a monthly basis.
7. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, stop using the equipment immediately and don’t use
the equipment until the problem has been rectified.
8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that
may become entangled in the equipment.
9. Do not place fingers or objects into moving parts of the exercise equipment.
10. The maximum weight capacity of this unit is 265 pounds.
11. The equipment is not suitable for therapeutic use.
12. You must take care of yourself when lifting and moving the equipment so as not to injure
your back. Always use proper lifting technique and seek assistance if necessary.
13. This equipment is designed for indoor and home use only! It is not intended for
commercial use!

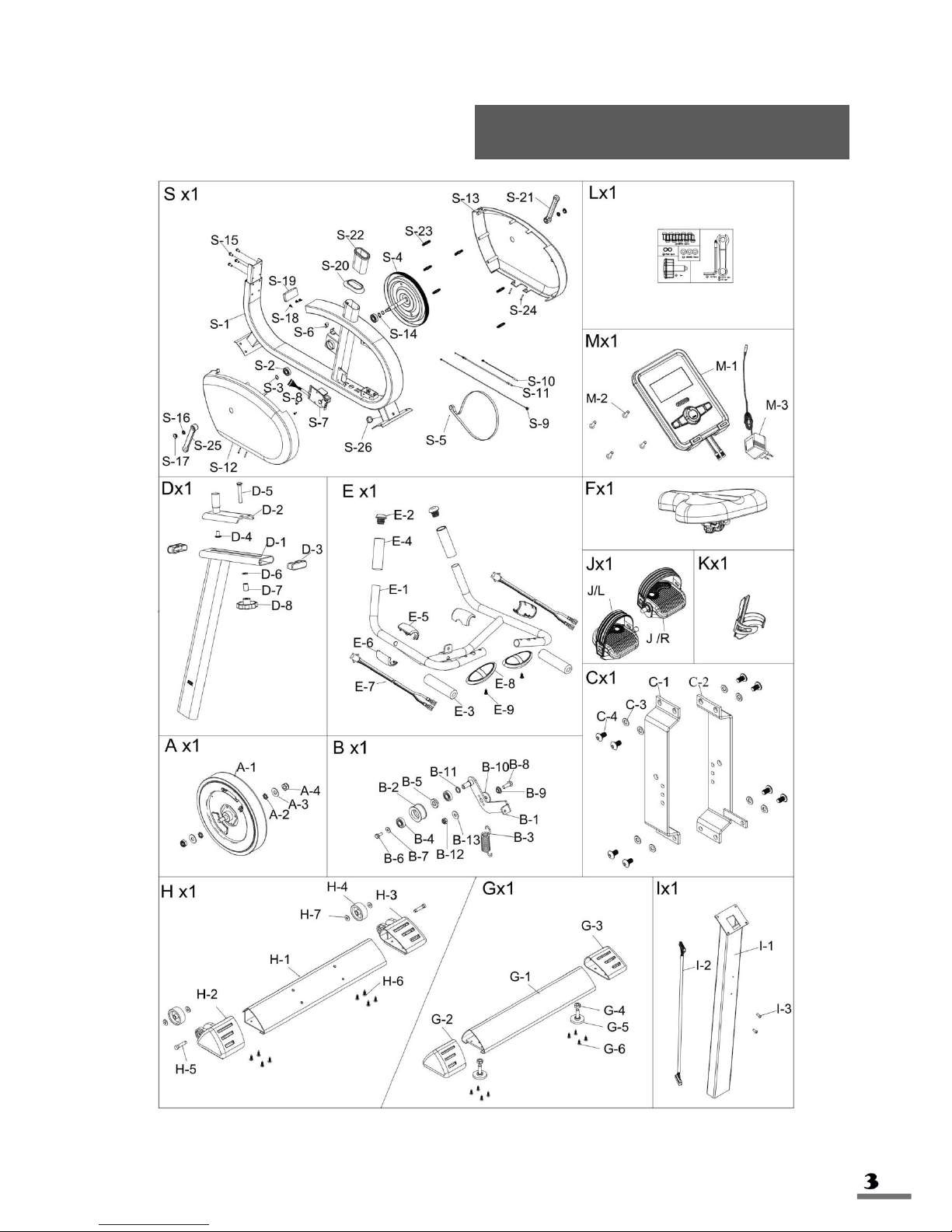

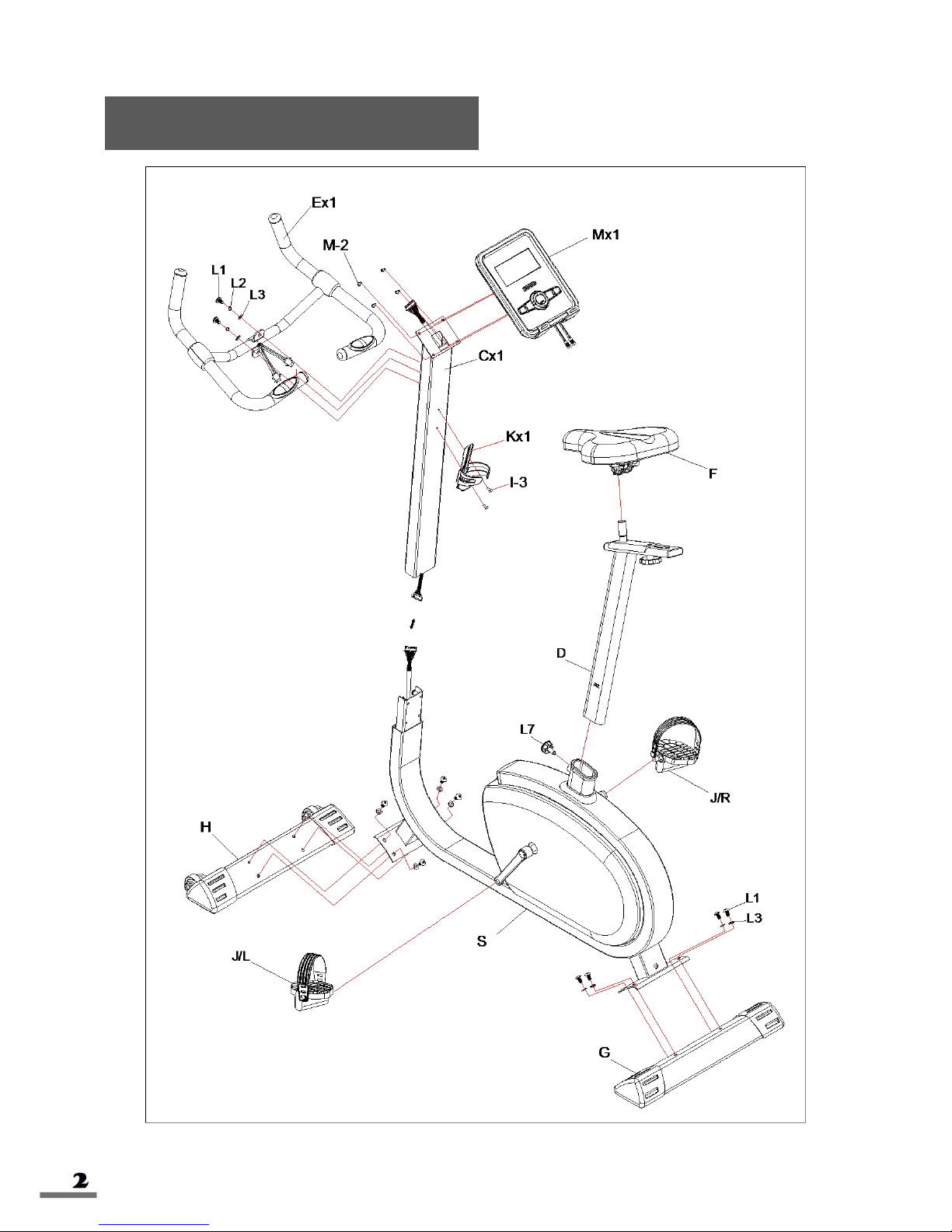

Exploded Drawing

Exploded Drawing

REF.
DESCRIPTION
QTY
REF.
DESCRIPTION
QTY
A
Flywheel set
D-3
End cap/ 20*60*T1.5
2
A-1
Flywheel/8kg
1
D-4
Allen bolt /8.8 M8*15
1
A-2
Hex nut/M10
2
D-5
Carriage bolt/ M8*55
1
A-3
Flat washer/ Φ10.5*Φ25*T1.5
2
D-6
Flat washer/ Φ8.5*Φ16*T1.5
1
A-4
Nylon nut/M10
2
D-7
Bushing/ Φ9*Φ13*20
1
D-8
Knob/ M8
1
B
Idle arm set
B-1
Fixing plate of idle wheel
1
E
Handlebar set
B-2
Idle wheel
1
E-1
Handle bar
1
B-3
Spring/ Φ2*Φ16*63/18
1
E-2
Handlebar end cap/ Φ25.4
4
B-4
Bearing/ 6001Z/Φ12*Φ28*8
2
E-3
Handlebar foam-1/ Φ24*Φ30*400
2
B-5
Bushing/ Φ25*Φ12.5*5.3
1
E-4
Handlebar foam-2/ Φ24*Φ30*240
2
B-6
Hex screw/ M6*15
1
E-5
Handle cover-upper
2
B-7
Flat washer/ Φ6.5*Φ16*T1.5
1
E-6
Handle cover-lower
2
B-8
Hex bolt/ M8*22
1
E-7
Pulse wire
2
B-9
Powder bushing/ Φ7.95*Φ13*Φ19*T5.8/F20
1
E-8
Pulse sensor
2
B-10
Flat washer/ Φ8.5*Φ30*T2.0
1
E-9
Philip screw/ Φ3.5*25
2
B-11
Flat washer/ Φ8.5*Φ12*T2.0
1
B-12
Nylon nut/ M8
1
F
Saddle
1
B-13
Flat washer/ Φ8.2*Φ22*T2.0
1
G
Rear stabilizer set
C
Fixing set of flywheel
G-1
Rear stabilizer
1
C-1
Fixing plate of flywheel/ 60*T5.0
1
G-2
Rear end cap-left (triangle)
1
C-2
Fixing plate of flywheel/ 60*T5.0
1
G-3
Rear end cap-right (triangle)
1
C-3
Flat washer/ Φ8.5*Φ16*T1.5
8
G-4
Hex nut/ M10
2
C-4
Allen screw/ 8.8 M8*15
8
G-5
Adjusting bolt/ Φ44*30*M10
2
G-6
Philip screw/ Φ5*15
8
D
Saddle post set
D-1
Saddle post tube
1
H
Front stabilizer set
D-2
Horizontal tube for saddle
1
H-1
Front stabilizer
1
Parts List

REF.
DESCRIPTION
QTY
REF.
DESCRIPTION
QTY
H-2
Front end cap-left (triangle)
1
M-3
Adaptor
1
H-3
Front end cap-right (triangle)
1
H-4
Transport wheel
2
S
Main frame set
H-5
Axel of wheel/ Φ12*Φ8*45.5
2
S-1
Main frame
1
H-6
Philip screw/ Φ5*15
8
S-2
Bearing/ 6203Z
2
H-7
Flat washer/ Φ8*Φ16*T1.2
4
S-3
Jump ringΦ17
2
S-4
Belt wheel
1
I
Front post set
S-5
Belt/ J6(440)
1
I-1
Post tube
1
S-6
Sensor seat
1
I-2
Computer middle wire
1
S-7
Lower wire and motor
1
I-3
Philip screw / M5*12
2
S-8
Philip screw / M5*15
2
S-9
Power wire
1
J
Pedal set
S-10
Speed sensor wire
1
J/R
Right pedal
1
S-11
Tension cable
1
J/L
Left pedal
1
S-12
Left chain cover
1
S-13
Right chain cover
1
K
Bottle Holder
1
S-14
Cover cap
1
S-15
Allen bolt / M8*15
4
L
Hardware Package
S-16
Flange screw / M10*1.25*T6.5
2
L-1
Allen bolt / M8*15
10
S-17
Crank cap
2
L-2
Spring washer / Φ8.5
2
S-18
Philip screw/ Φ5*15
3
L-3
Flat washer / Φ8.5*Φ16*T1.5
10
S-19
Out cover
1
L-4
Allen wrench/ L6
1
S-20
Saddle post cover
1
L-5
Spanner wrench
1
S-21
Right crank arm
1
L-6
Open wrench
1
S-22
Saddle post bushing
1
L-7
Quick released knob
1
S-23
Pillar
6
S-24
Philip nail
4
M
Computer set
S-25
Left crank arm
1
M-1
Computer
1
S-26
Cap
1
M-2
Screw/ M5*12
4
Parts List

Assembly Parts List
Tools & Hardware

STEP 1:

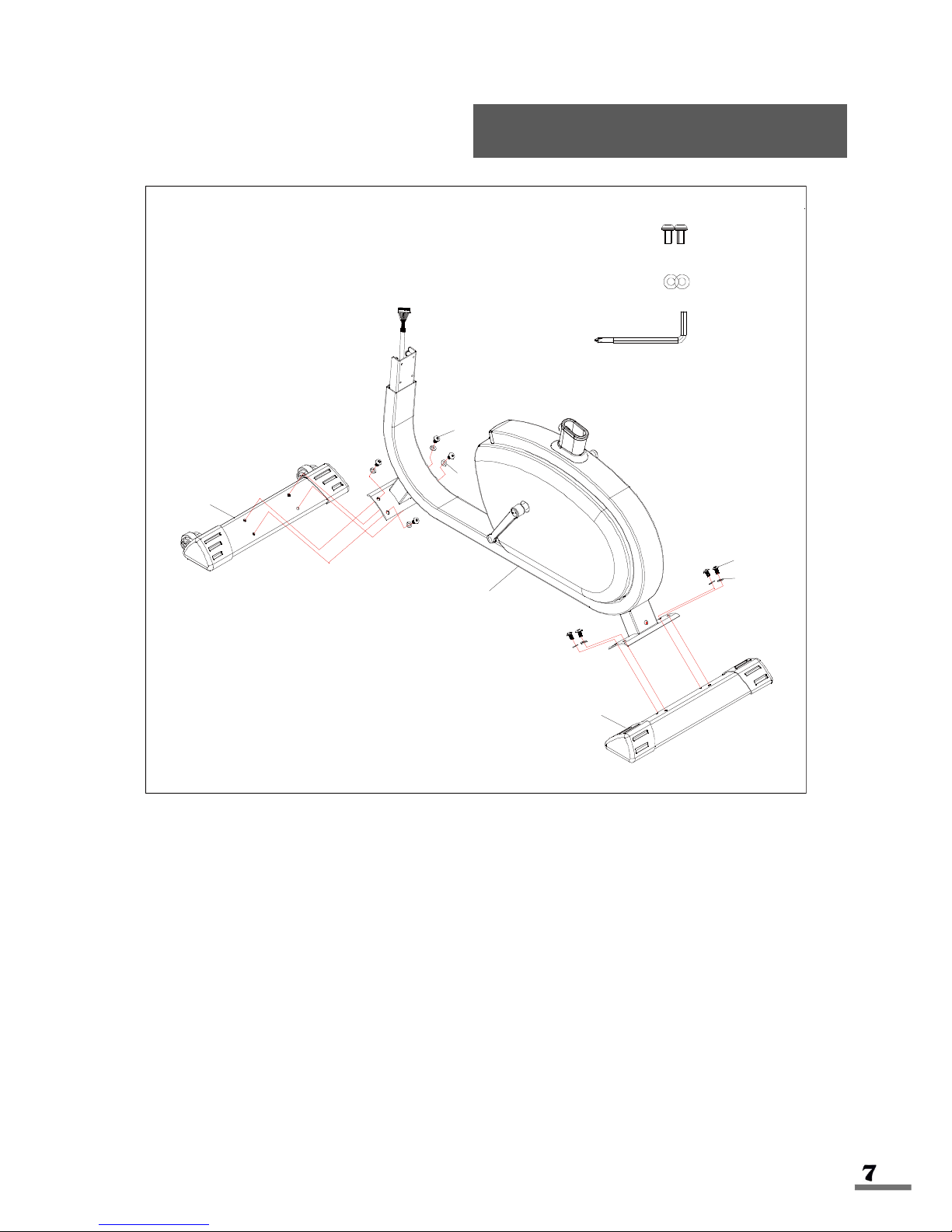

Attach the Front Stabilizer (No. H) and Rear Stabilizer (No. G) to the Main Frame
(No. S) using 8 Allen Bolts (No. L1) and 8 Flat Washers (No. L3). Tighten and
secure using Allen Wrench (No. L4).
Assembly Instructions
L1*8
L3*8
L4*1
H
G
S
L1
L1
L3
L3

Attach the Saddle Post Tube (No. D) to the Main Frame (No. S) and lock with Quick
Released Knob (No. L7). Attach the Saddle (No. F) onto the seat tube located at the
top of the Saddle Post tube (No. D).
Connect the Left and Right Pedals (No. J/L &J/R) onto the Left and Right Crank
Arms (No. S25 & S21).
Left Pedal: Align the Left Pedal (No. J/L) with the Left Crank (No. S25) at 90
degrees. Gently insert the pedal into the crank arm, turn the pedal counter-clockwise
as tightly as you can with your hand. Tighten and secure with Spanner Wrench (No.
L6).
Right Pedal: Align the Right Pedal (No. J/R) with the Right Crank (No. S21)at 90
degrees. Gently insert the pedal into the crank arm, turn the pedal clockwise as tightly
as you can with your hand. Tighten and secure with Spanner Wrench (No. L6).
Assembly Instructions
STEP 2:

L4*1
I
S15
S
I-2
S-15*4
Connect the Computer Middle Wire (No. I2) from the Post Tube (No. I) to the wire
from the Main Frame (No. S) then attach Post Tube (No. I) to the Main Frame (No.
S) connecting piece. Ensure that the screw holes of the Post Tube (No. I) are faced
outward. To secure the Post Tube (No. I) to the Main Frame (No. S), insert the Allen
Wrench (No. L4) through each hole of the Post Tube (No. I) and turn the Allen
Bolts (No. S15) counter-clockwise, as shown in the diagram above.
NOTE: Allen Bolts (S15) should not be visible after this installation.
Assembly Instructions
STEP 3:

STEP 4:
Insert the Pulse Wires (No. E7) into the large hole located on the front of the Post
Tube (No. I) and pull the wires through the top of the Post Tube (No. I). Next, align
the holes of the mounting bracket located on the Handlebar (No. E) with the holes
located on the Post Tube (No. I) and secure the Handlebar (No. E) using 2 Flat
Washers (No. L3), 2 Spring Washers (No. L2) and 2Allen Bolts (No. L1). Tighten
with Allen Wrench (L4).
Assembly Instructions

STEP 5:

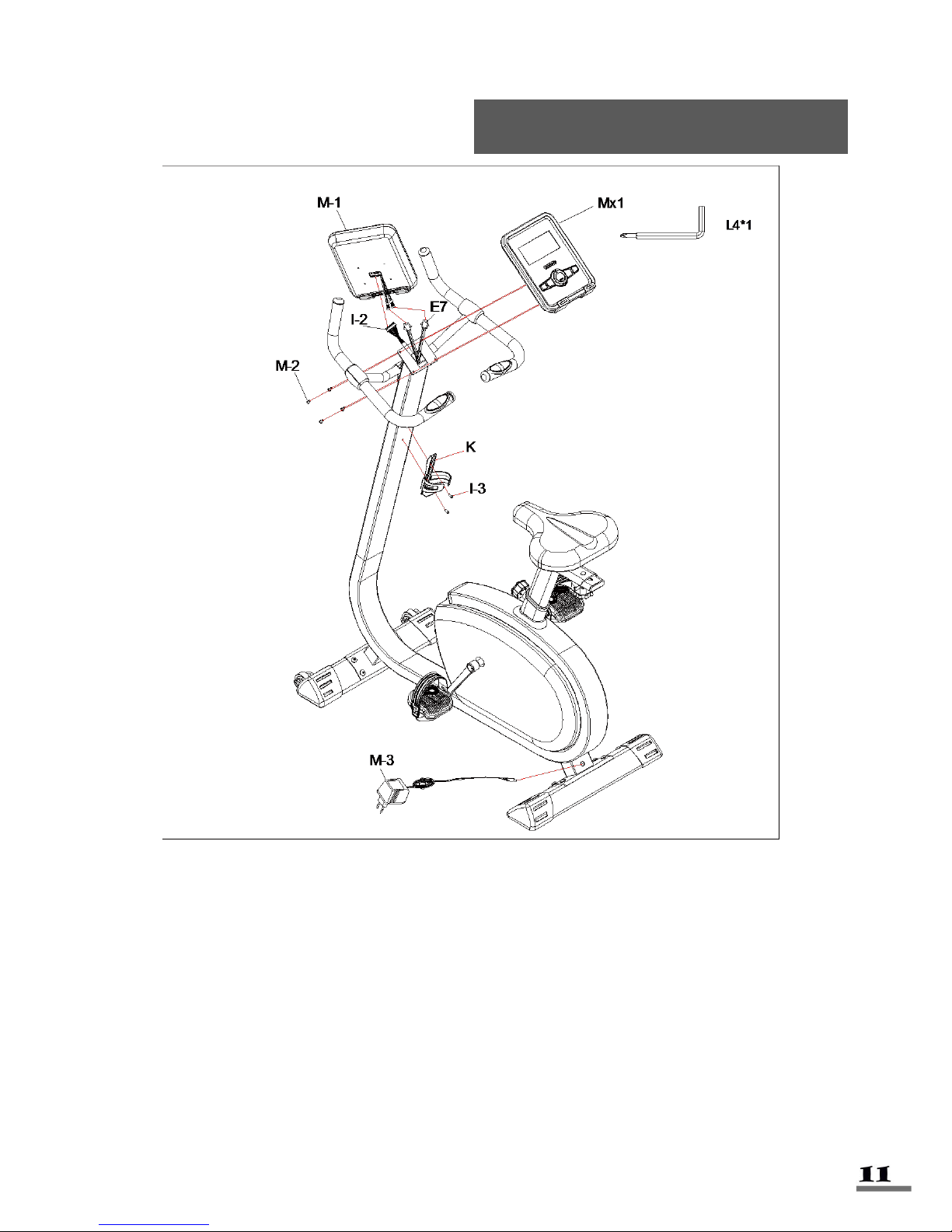

Attach the Bottle Holder (No. K) onto the Post Tube (No. I) using 2 Philip Screws
(No. I3).
Connect the Pulse Wires (No. E7) from the Post Tube (No. I) to the pulse wires at
the back of the Computer (No. M1).
Insert the Computer Middle Wire (No. I2) from the Post Tube (No. I) into the
connection terminal located on the back of Computer (No. M1).
Attach the Computer (No. M1) onto the Post Tube (No. I) using 4 Screws (No. M2)
and Allen Wrench (No. L4).Next, plug in the Adaptor (No. M3).
Assembly Instructions

NOTE:
Using the Asuna Upright Bike will provide you with several benefits. It will improve
your physical fitness, tone muscles, and in conjunction with a calorie controlled diet, it
can even help you lose weight.
1. THE WARM-UP PHASE:
This stage helps to get the blood flowing around the body while loosening and the
muscles for workout. This phase will also reduce the risk of cramp and muscle injury.
It is advisable to do a few stretching exercises as shown below. Each stretch should
be held for approximately 30 seconds, do not force or jerk your muscles into a stretch,
if it hurts, STOP!
2. THE EXERCISE PHASE:
After regular use, the muscles in your legs will become stronger as a result the
duration & intensity of your workouts may increase based on your body’s tolerance to
physical activity, when increasing physical activity it is very important to maintain a
steady tempo throughout. The rate of work should be sufficient enough to raise your

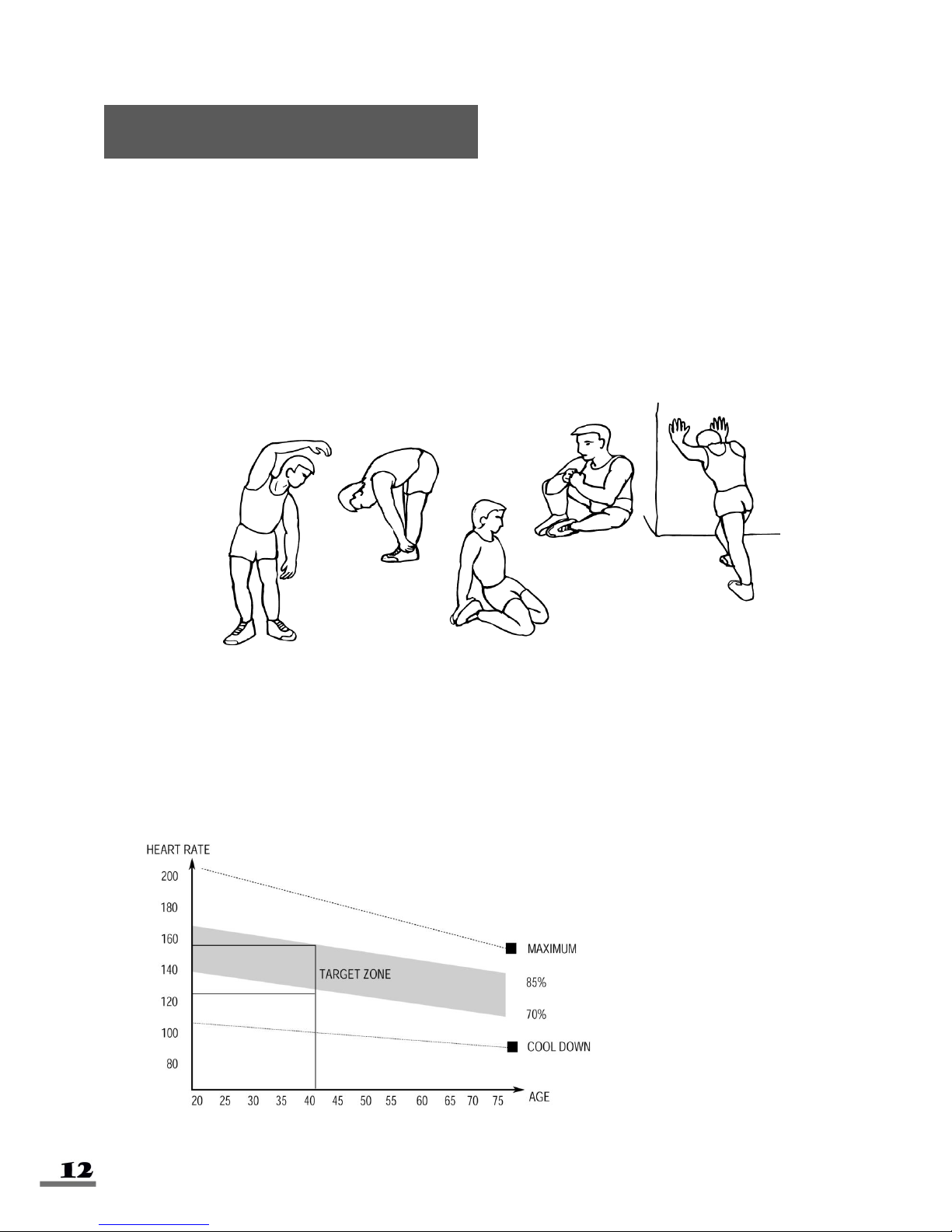

heart beat into the target zone shown on the graph below.
This stage should
last for a minimum of
12 minutes though
most people start at
about 15-20 minutes.
SIDE BENDS OUTER THIGH
FORWARD
BENDS
INNER THIGH
CALF / ACHILLES
Exercise Instructions

Physical activity during this stage should last for a minimum of 12 minutes, although
for most people it will take about 15-20 minutes for their heart rate to reach the target
zone.
3. THE COOL-DOWN PHASE:
This stage is to allow your cardiovascular system and muscles wind down. This is a
repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5
minutes. The stretching exercises should now be repeated, again remembering not to
force or jerk your muscles into the stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at
least three times a week, and if possible space your workouts evenly throughout the
week.
MUSCLE TONING:
To tone muscles using the Asuna Upright Bike, you will need to set the resistance
level to high. This will increase the strain on the leg muscles, which will result in
shorter training sessions. As the work load is increased, it will decrease the required
time for the muscles to obtain an adequate workout. If you’re trying to improve your
fitness, you’ll need to alternate your training programs. You should start with your
usual routine, but towards the end of the exercise phase, the resistance should be
increased in order to make your legs work harder than normal. You may need to
reduce your speed to keep your heart rate in the target zone.
WEIGHT LOSS:
The most important factor here is the amount of effort you put in. The harder and
longer you work, the more calories you will burn.
Exercise Instructions

DISPLAY FUNCTIONS:
KEY FUNCTION:
ITEM
DESCRIPTION
TIME
Workout time displayed during exercise.
Range: 0:00 ~ 99:59
SPEED
Workout speed displayed during exercise.
Range: 0.0 ~ 99.9
DISTANCE
Workout distance displayed during exercise.
Range: 0.0 ~ 99.9
CALORIES
Burned calories during workout display.
Range: 0 ~ 999
PULSE
Pulse (BPM) displayed during exercise.
Pulse alarm when over preset target pulse.
RPM
Rotation per minute
Range: 0 ~ 999
WATT
Watt is the amount of power that you are generating by pedaling. This
program allows you to vary your pace or RPM to which the machine’s
resistance will adjust accordingly to based on your selected goal. In Watt
Program Mode, the computer will remain at the preset watt value (setting
range is 0-350).
MANUAL
Manual mode workout.
PROGRAM
Beginner, Advance, and Sporty PROGRAM selection.
CARDIO
Target HR training mode.
ITEM
DESCRIPTION
Up
‧Increase resistance level
‧Setting selection.
Down
‧Decrease resistance level
‧Setting selection.
Enter
‧Confirm setting or selection.
Reset
‧Pressing and holding for 2 seconds will reboot the computer and re-start
the user setting.
‧Return to main menu during or after stopping an exercise by pressing the
RESET button.
Start / Stop
‧Start or Stop workout.
Recovery
‧Test heart rate recovery status.
Body fat
‧Test body fat% and BMI.

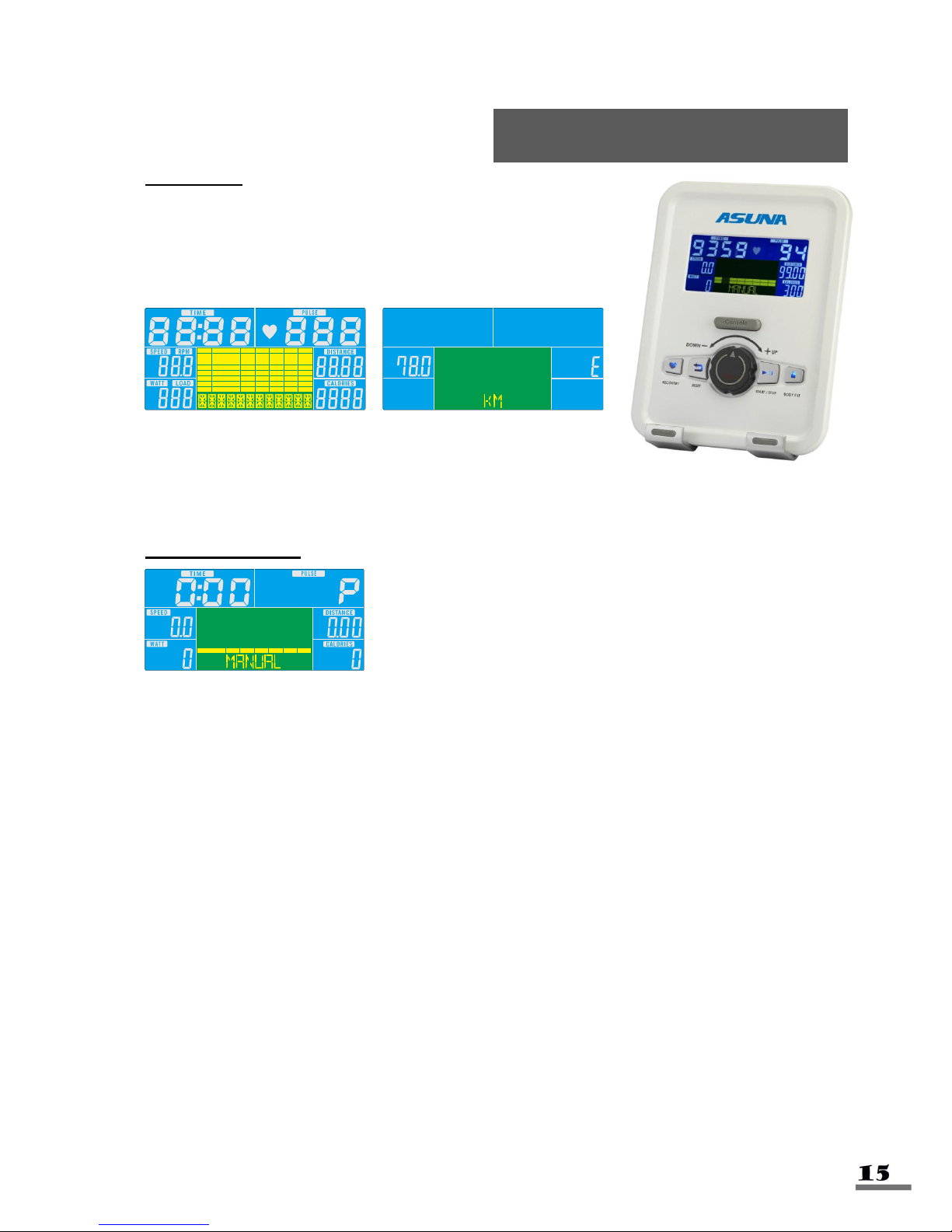

Computer Instructions

POWER ON
Plug in power supply, computer will power on and display
all segments on LCD for 2 seconds. After 4 minutes
without pedaling or pulse input, console will enter into
power saving mode. Pressing any key may wake the
Console up.
WORKOUT SELECTION
Press UP and Down to select workout Manual Beginner
Advance Sporty Cardio Watt
MANUAL MODE
Press the START button from the main menu to begin a workout in Manual Mode.
1. Turn the control knob +UP or -DOWN to select workout program, choose Manual
and press Enter to confirm.
2. Turn the control knob +UP or -DOWN to preset TIME, DISTANCE, CALORIES or
PULSE and press Enter to confirm.
3. Press START/STOP keys to start workout. Turn the control knob +UP or -DOWN to
increase or decrease load level.
4. Press START/STOP keys to stop workout. Press RESET to return to the main
menu.
Computer Instructions

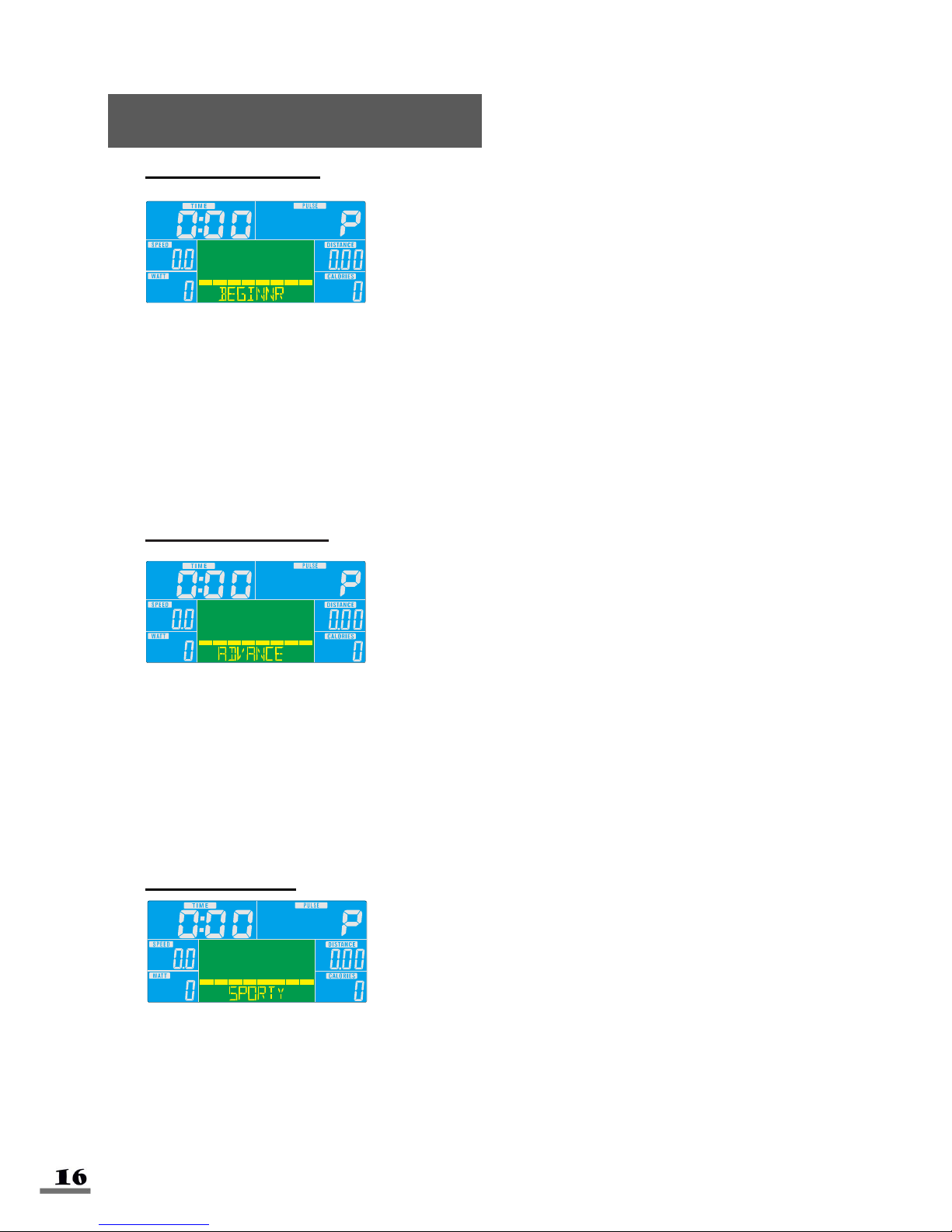

BEGINNER MODE
1. Turn the control knob +UP or -DOWN to select workout program, choose Beginner
mode and press Enter to confirm. (Beginner Mode contains four levels, 1-4).
2. Turn the control knob +UP or -DOWN to preset TIME. Press enter to confirm.
3. Press START/STOP key to start workout. Turn the control knob +UP or -DOWN to
increase or decrease the load level.
4. Press START/STOP key to stop workout. Press RESET to return to the main
menu.
ADVANCED MODE
1. Turn the control knob +UP or -DOWN to select workout program, choose Advance
Mode and press Enter to confirm. (Advance Mode contains four levels, 1-4).
2. Turn the control knob +UP or -DOWN to preset TIME. Press enter to confirm.
3. Press START/STOP key to start workout. Turn the control knob +UP or -DOWN to
increase or decrease the load level.
4. Press START/STOP key to stop workout. Press RESET to return to the main
menu.
SPORTY MODE
1. Turn the control knob +UP or -DOWN to select workout program, choose Sporty
mode and press Enter to confirm. (Sporty Mode contains four levels, 1-4).
2. Turn the control knob +UP or -DOWN to preset TIME. Press enter to confirm.
3. Press START/STOP key to start workout. Turn the control knob +UP or -DOWN to
increase or decrease the load level.
4. Press START/STOP key to stop workout. Press RESET to return to the main
menu.
Computer Instructions
