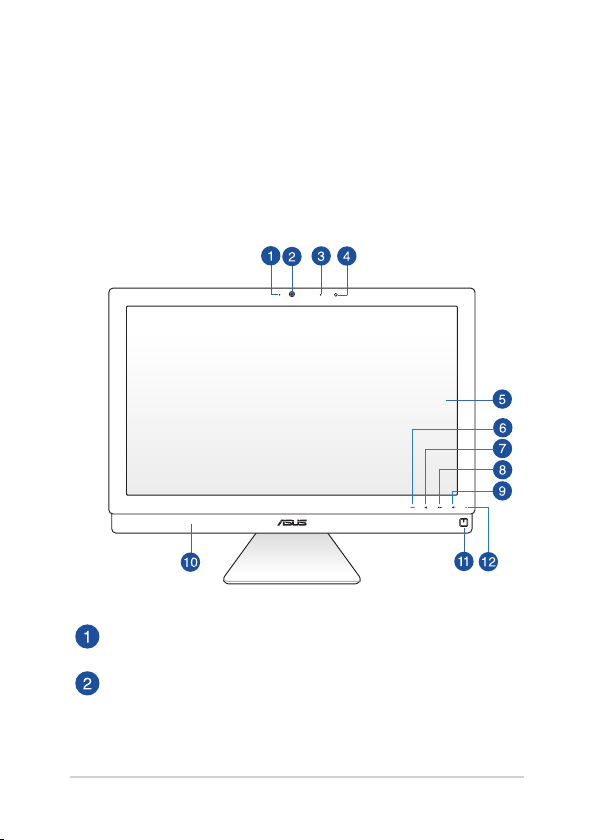

Front view.......................................................................................................................... 13

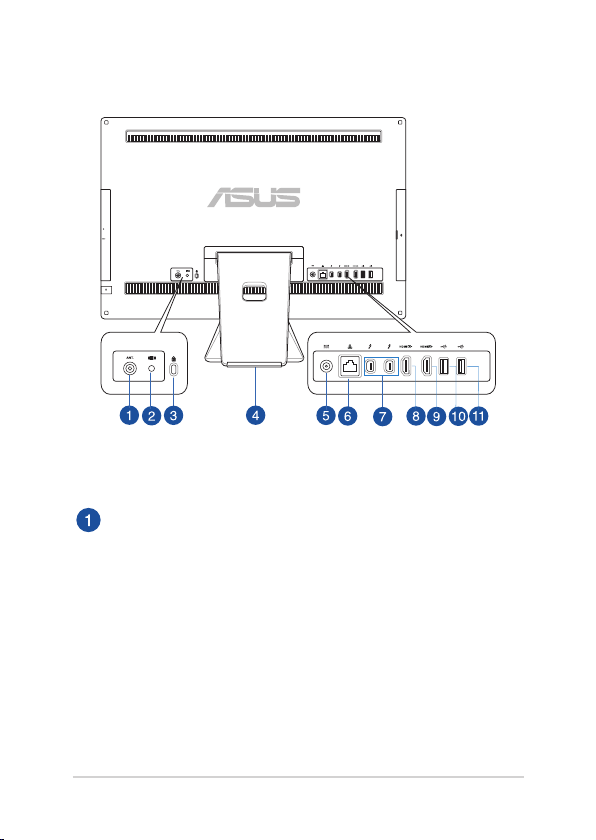

Rear view ........................................................................................................................... 16

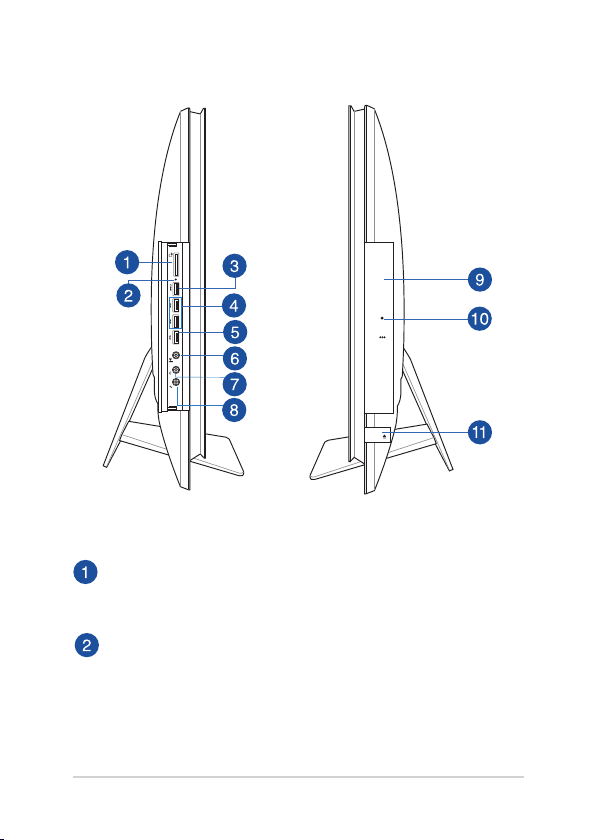

Side views.......................................................................................................................... 20
Chapter 2: Using your ASUS All-in-One PC
Positioning your ASUS All-in-One PC .................................................................23
Placing on the table or desk ....................................................................................... 23
Setting up your ASUS All-in-One PC...................................................................24
Connecting the wired keyboard and mouse........................................................ 24
Connecting the wireless keyboard and mouse (optional) .............................. 25
Powering on the system...............................................................................................26
Using the Device Share function .........................................................................28
Device Share Cable Requirement............................................................................. 28
Using the On Screen Display (OSD) Menu........................................................30
OSD function instruction............................................................................................. 30
Using the touch screen............................................................................................32
Using touch screen panel gestures.......................................................................... 33
ASUS All-in-One PC ET2702I
3

Chapter 3: Working with Windows® 8.1
Starting for the first time.........................................................................................37
Windows®UI ................................................................................................................38
Start screen ....................................................................................................................... 38
Start button ...................................................................................................................... 42
Customizing your Start screen................................................................................... 44
Working with Windows®apps...............................................................................45
Launching apps............................................................................................................... 45
Customizing apps........................................................................................................... 46
Accessing the Apps screen.......................................................................................... 48
Charms bar........................................................................................................................ 50
Snap feature ..................................................................................................................... 52
Other keyboard shortcuts ......................................................................................54
Setting up a secondary display via the HDMI-output port ........................56
Connecting to the Internet ....................................................................................58
Setting up a Wi-Fi connection in Windows®8.1................................................... 58
Configuring your Wi-Fi bandwidth .......................................................................... 59
Wired connection........................................................................................................... 60
Setting up a Bluetooth Wireless Connection...................................................62
Turning your ASUS All-in-One PC off..................................................................63
Putting your ASUS All-in-One PC on sleep mode ..........................................63
Chapter 5: Recovering your system
Entering the BIOS Setup..........................................................................................65
Quickly enter the BIOS.................................................................................................. 65
Recovering your system..........................................................................................66
Resetting your PC ........................................................................................................... 66
Recovering from a system image file ...................................................................... 67
Removing everything and reinstalling Windows................................................ 68
ASUS All-in-One PC ET2702I
4

Appendices
Notices...........................................................................................................................69
Federal Communication Commission Interference Statement..................... 69
RF exposure warning..................................................................................................... 70
Canadian Department of Communications Statement.................................... 71
IC Radiation Exposure Statement for Canada...................................................... 71
Canada, Industry Canada (IC) Notices ..................................................................... 71
Radio Frequency (RF) Exposure Information........................................................ 72
Canada, avis d’Industry Canada (IC) ........................................................................ 72
Informations concernant l’exposition aux frequences radio (RF)................. 72
Declaration of Conformity (R&TTE directive 1999/5/EC).................................. 73
Wireless Operation Channel for Different Domains........................................... 73
CE Mark Warning............................................................................................................. 74
CE marking for devices without wireless LAN/Bluetooth................................ 74
CE marking for devices with wireless LAN/ Bluetooth...................................... 74
REACH................................................................................................................................. 76
.............................................................................................................................................. 76
ASUS Recycling/Takeback Services.......................................................................... 76
Coating Notice................................................................................................................. 77
Rechargeable Battery Recycling Service in North America............................. 77
Prevention of Hearing Loss ........................................................................................ 77
ENERGY STAR complied product .............................................................................. 78
ASUS All-in-One PC ET2702I
5

About this manual
This manual provides information about the hardware and software
features of your ASUS All-in-One PC, organized through the following
chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS All-
in-One PC.
Chapter 2: Using your ASUS All-in-One PC
This chapter provides you with information on using your ASUS
All-in-One PC.
Chapter 3: Working with Windows® 8.1
This chapter provides an overview of using Windows® 8.1 in your
ASUS All-in-One PC.
Chapter 4: Recovering your system
This chapter provides recovery options for your ASUS All-in-One
PC.
Appendices
This section includes notices and safety statements for your ASUS
All-in-One PC.
ASUS All-in-One PC ET2702I
6

Conventions used in this manual
To highlight key information in this manual, some texts are presented as
follows:
IMPORTANT!This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that can
help complete tasks.
WARNING! This message contains important information that must be
followed to keep you safe while performing tasks and prevent damage to
your device’s data and components.
Typography
Bold =This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this manual.
ASUS All-in-One PC ET2702I
7

All illustrations and screenshots in this manual are for reference
only. Actual product specications and software screen images
may vary with territories. Visit the ASUS website at www.asus.com
for the latest information.
Icons
The icons below indicate the devices you can use for completing a
series of tasks or procedures on your ASUS All-in-One PC.
= Use the touch screen panel.
= (optional) Use the wireless mouse.
= (optional) Use the wireless keyboard.
ASUS All-in-One PC ET2702I
8

Safety information
Your All-in-One ASUS All-in-One PC is designed and tested to meet
the latest standards of safety for information technology equipment.
However, to ensure your safety, it is important that you read the
following safety instructions.
Setting up your system
• Readandfollowallinstructionsinthedocumentationbeforeyou
operate your system.
• Donotusethisproductnearwateroraheatedsourcesuchasa
radiator.
• Setupthesystemonastablesurface.
• Openingsonthechassisareforventilation.Donotblockorcover
these openings. Ensure that you leave plenty of space around the
system for ventilation. Never insert objects of any kind into the
ventilation openings.
• Usethisproductinenvironmentswithambienttemperatures
between 0˚C and 40˚C.
• Ifyouuseanextensioncord,ensurethatthetotalampererating
of the devices plugged into the extension cord does not exceed
its ampere rating.
Care during use
• Donotwalkonthepowercordorallowanythingtorestonit.
• Donotspillwateroranyotherliquidsonyoursystem.
• Whenthesystemisturnedo,asmallamountofelectrical
current still remains in the product. Always unplug all power,
modem, and network cables from the power outlets before
cleaning the system.
ASUS All-in-One PC ET2702I
9

• The touch screen requires periodic cleaning to perform at optimal
touch sensitivity. Keep the screen clean from foreign objects or
excessive dust accumulation. To clean the screen:
- Turnothesystemanddisconnectthepowercordfromthe
wall.
- Spray a small amount of household glass cleaner on the
supplied cleaning cloth and gently wipe the surface of the
screen.
- Do not spray the cleaner directly on the screen.
• Donotuseanabrasivecleaneroracoarseclothwhencleaning
the screen.
• If you encounter the following technical problems with the
product, unplug the power cord and contact a qualied service
technician or your retailer.
- The power cord or plug is damaged.
- Liquid has been spilled into the system.
- The system does not function properly even if you follow the
operating instructions.
- The system was dropped or the cabinet is damaged.
- The system performance changes.
ASUS All-in-One PC ET2702I
10

Sound Pressure Warning
Excessive sound pressure from earphones or headphones can cause
hearing loss or permanent damage to hearing. Increasing the volume
and equalizer beyond default levels increases the output voltage and
sound pressure produced by the earphones or headphones.
Adapter
1. Input voltage: 100–240Vac
Input frequency: 50–60Hz
Rating output current: 180W (2.5A)
Rating output voltage: +19.5Vdc/9.23A
2. It is recommended that the power socket is in close proximity to
the ASUS All-in-One PC.
DC Fan Warning
Please note that the DC fan is a moving part and can cause harm when
used improperly. Keep away from the fan when using the product.
ASUS All-in-One PC ET2702I
11

Package contents
NOTES:
• Ifanyoftheitemsisdamagedormissing,contactyourretailer.
• The keyboard, mouse, and power supply illustrations are for reference
only. Actual product specications may vary with territories.
All-in-One PC ET2702 Series Keyboard (wired or wireless, optional) Mouse (wired or wireless,
optional)
Quick Guide
AC adapter Power cord Quick Start Guide
Warranty Card KBM USB receiver dongle
(optional)
Remote Control (optional) Subwoofer (optional) Device share cable
(optional)
ASUS All-in-One PC ET2702I
12

Getting to know your
ASUS All-in-One PC
ASUS All-in-One PC ET2702I
13
Chapter 1: Hardware Setup
Front view
Webcam LED
Indicates that the built-in webcam is enabled.
Webcam
The built-in webcam with the built-in digital microphone
allows you to start video chats online.

ASUS All-in-One PC ET2702I
14
Digital microphone (built-in)
The built-in digital microphone can be used for video
conferencing, voice narrations, audio recordings, and
multimedia applications.
Remote control receiver
The remote control receiver receives the infrared signal from
the remote control.
LCD display
The LCD display features optimal resolution. The touch-
enabled panel on some models also allows you to operate
your All-in-One PC using touch screen gestures.
Mode button
Touch to switch the display signal source. When switched to
HDMI-in, the All-in-One PC can be used as a standard desktop
LCD monitor.
Volume decrease button
When using the All-in-One PC as a standard desktop LCD
monitor, touch this button to decrease the volume.

ASUS All-in-One PC ET2702I
15
MENU button
Touch to display the menu. Touch this button to enter/select
the highlighted icon (function) while the OSD is activated.
Volume increase button
When using the All-in-One PC as a standard desktop LCD
monitor, touch this button to increase the volume.
Audio speakers
The built-in audio speaker allows you to hear audio straight
from the All-in-One PC. The audio features of this All-in-One
PC are software-controlled.
Power button
Press this button to turn on your All-in-One PC.
Drive activity indicator
This indicator lights up when your All-in-One is accessing the
internal storage drives.

ASUS All-in-One PC ET2702I
16
Rear view
Antenna Input (optional)
The antenna input is for TV frequency signal and allows for
use with the digital TV antenna or input from subscription
television services. The antenna can receive digital TV.
Cable service connection can receive digital TV, analog TV,
depending on paid services.

ASUS All-in-One PC ET2702I
17
Subwoofer jack*
The proprietary subwoofer jack is used to connect to the
ASUS All-in-One PC subwoofer. The subwoofer allows you to
enjoy vibrant bass (low frequency) sounds in your multimedia
applications.
IMPORTANT! The subwoofer jack can ONLY be connected to
All-in-One PC subwoofers or sound devices by ASUS. DO NOT
connect other devices to this jack. Doing so may damage the
device.
Kensington® security slot
The Kensington® security slot allows you to secure your
ASUS All-in-One PC using Kensington® compatible security
products.
Cable holder
Use this cable holder to organize your cables behind the All-
in-One PC.
Power input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the PC. To prevent damage to the PC,
always use the supplied power adapter.
WARNING! The power adapter may become warm or hot
when in use. Do not cover the adapter and keep it away from
your body.
*on selected models only

ASUS All-in-One PC ET2702I
18
LAN port
The eight-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
Thunderbolt™ port (optional)
Use a Thunderbolt™ adapter to connect your All-in-One PC to
external devices that utilize high-resolution display features
using Intel® Thunderbolt™ technology.
NOTE: The Thunderbolt™ adapter supports Display Port output
and other Thunderbolt™ devices only. Connect HDMI devices
to your All-in-One PC via the HDMI output port.
IMPORTANT! The devices to be connected should
be Thunderbolt-certied for Windows®. For the latest
Thunderbolt-certied devices for Windows®, visit https://
thunderbolttechnology.net/products
NOTE: To ensure that the Thunderbolt-certied device
for Windows functions properly, visit the device vendor’s
website.
HDMI input port
This port is for a HDMI (High-Denition Multimedia Interface)
connector and is HDCP compliant for HD DVD, Blu-ray, and
other protected content playback.
HDMI output port
This port allows you to connect your All-in-One PC to another
HDMI-compatible device for le sharing or extending your
display monitor.

ASUS All-in-One PC ET2702I
19
USB 2.0 combo with Device Share function for external
devices
This USB (Universal Serial Bus) port is compatible with USB 2.0
or USB 1.1 devices such as keyboards, pointing devices, ash
disk drives, external HDDs, speakers, cameras, and printers.
This port also comes with the Device Share function that
allows you to share the hardware functions of your All-in-One
PC with a connected device and vice versa.
NOTE: For more details, refer to the Using the Device Share
function in this manual.
IMPORTANT! When using the device share function, connect
your keyboard, wireless dongle, or wireless mouse using
this port.
USB 2.0 port
This USB (Universal Serial Bus) port is compatible with USB 2.0
or USb 1.1 devices such as keyboards, pointing devices, ash
disk drives, external HDDs, speakers, cameras, and printers.

ASUS All-in-One PC ET2702I
20
Side views
Memory card reader
This built-in memory card reader supports SD, SDHC, and
MMC card formats.
AI charger LED indicator
This LED indicator lights up when the USB 3.0 port with AI
Charger II is being used.
