Asus PN61 Series User manual

Mini PC
PN61 Series
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to
the owners’benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR
LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE
PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2019 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct
damages resulted from omission or failure of performing legal duties under this Warranty Statement,
up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
or infringement under this Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1)THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3)
SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES
(INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support/
Revised Edition V2
March 2019
CA15347

PN61 Series 3
Contents
About this manual.................................................................................................................5
Conventions used in this manual....................................................................................6
Typography .............................................................................................................................6
Package contents ..................................................................................................................7
Getting to know your Mini PC
Features.....................................................................................................................................10
Front view ................................................................................................................................10
Left view ...................................................................................................................................12
Right view ................................................................................................................................13
Rear view..................................................................................................................................14
Using your Mini PC
Getting started .......................................................................................................................18
Connect the AC power adapter to your Mini PC........................................................18
Connect a display panel to your Mini PC......................................................................20
Connect the USB cable from keyboard or mouse.....................................................23
Turn on your Mini PC ...........................................................................................................24
Turning your Mini PC off .....................................................................................................25
Putting your Mini PC to sleep............................................................................................25
Entering the BIOS Setup......................................................................................................25
Load default BIOS settings.................................................................................................26
Upgrading your Mini PC
Removing the bottom cover .............................................................................................28
Replacing the bottom cover..............................................................................................29
Installing memory modules...............................................................................................30
Installing 2.5”HDD or SSD ..................................................................................................31
Installing the M.2 SSD (on selected models) ...............................................................32
Installing the wireless card.................................................................................................33

4 PN61 Series
Appendix
Safety information.................................................................................................................36
Setting up your system.......................................................................................................36
Care during use......................................................................................................................36
Regulatory notices ................................................................................................................38
ASUS contact information..................................................................................................43

PN61 Series 5
About this manual
This manual provides information about the hardware and software features
of your Mini PC, organized through the following chapters:
Chapter 1: Getting to know your Mini PC
This chapter details the hardware components of your Mini PC.
Chapter 2: Using your Mini PC
This chapter provides you with information on using your Mini PC.
Chapter 3: Upgrading your Mini PC
This chapter provides you with information on how to upgrade the
memory modules, wireless modules, and hard disk drive / solid state
drive of your Mini PC.
Appendix
This section includes notices and safety statements your Mini PC.

6 PN61 Series
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing certain tasks and
prevent damage to your Mini PC's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer to in this manual.

PN61 Series 7
Package contents
Your Mini PC package contains the following items:
ASUS Mini PC PN61 Series
AC power adapter* Power cord*
Technical documentations

8 PN61 Series
NOTE:
• *Thebundledpoweradaptermayvarybymodelandterritories.
• Somebundledaccessoriesmayvarywithdierentmodels.
For details on these accessories, refer to their respective user
manuals.
• Thedeviceillustrationisforreferenceonly.Actualproduct
specications may vary with models.
• Ifthedeviceoritscomponentsfailormalfunctionduring
normal and proper use within the warranty period, bring the
warranty card to the ASUS Service Center for replacement of
the defective components.

1
Getting to know your Mini
PC

10 PN61 Series
Features
Front view
Power button
ThepowerbuttonallowsyoutoturntheMiniPConoro.
You can use the power button to put your Mini PC to sleep
mode or press it for four (4) seconds to force shutdown
your Mini PC.
Headphone/Headset/Microphone jack
This port allows you to connect amplied speakers or
headphones. You can also use this port to connect your
headset or an external microphone.
USB 3.1 Gen 2 Type-C™ port
This USB Type-C™ (Universal Serial Bus) port provides a
transfer rate of up to 10 Gbit/s. This port also supports the
Battery Charging 1.2 technology that allows you to charge
your USB devices.
NOTE: Battery Charging 1.2 technology is only
available on selected models, and provides a
maximum of 5V / 1.5A output.

PN61 Series 11
USB 3.1 Gen 1 port
The USB 3.1 Gen 1 (Universal Serial Bus) port provides a
transfer rate up to 5 Gbit/s.
Drive activity indicator
This indicator lights up when your Mini PC is accessing the
internal storage drive.

12 PN61 Series

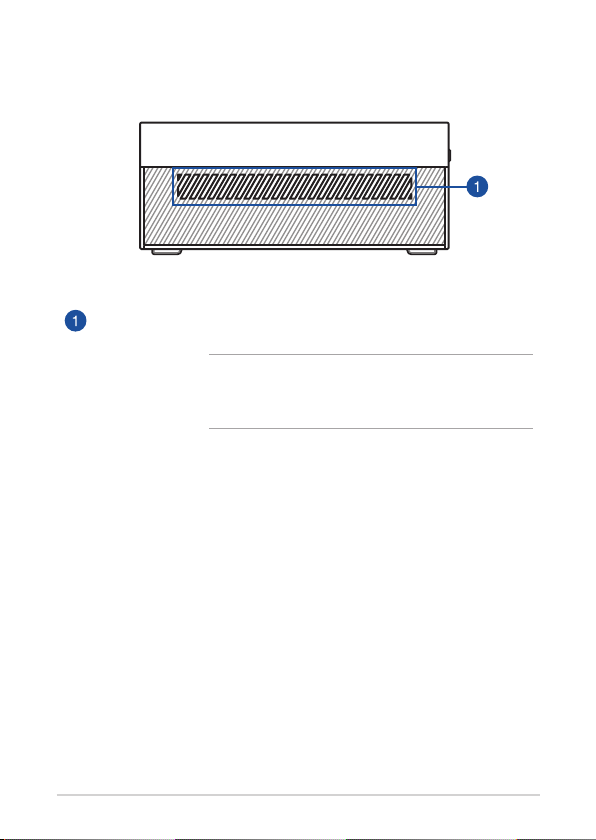

Left view
Air vents (intake vent)
The air vents allow cooler air to enter your Mini PC chassis.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free
from obstructions.

PN61 Series 13
Right view
Air vents (intake vent)
The air vents allow cooler air to enter your Mini PC chassis.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free
from obstructions.
Kensington security slot
The Kensington security slot allows you to secure your
Mini PC using Kensington® security products.

14 PN61 Series
Rear view
HDMI port
The HDMI (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.
NOTE: This port supports up to HDCP 2.0.
Air vents (exhaust vent)
The air vents allow your Mini PC chassis to expel hot air
out.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free
from obstructions.

PN61 Series 15
Congurable port
This port varies between models and consists of the
following port options:
VGA port
This port allows you to connect your Mini PC to an
external display.
Serial (COM) connector
The 9-pin serial (COM) connector allows you to
connect devices that have serial ports such as
mouse, modem, or printers.
LAN port
The 8-pin RJ-45 LAN port supports a standard
Ethernet cable for connection to a local network.
DisplayPort
This port allows you to connect your Mini PC to an
external display.
Thunderbolt 3 port
This Thunderbolt 3 port provides the following:
40 Gbit/s transfer rate for Thunderbolt 3 devices;
USB 3.1 Gen 2, with a transfer rate up to 10 Gbit/s;
DisplayPort 1.2; and USB power delivery with a
maximum of 5V / 3A output.

16 PN61 Series
USB 3.1 Gen 1 Type-C™/DisplayPort combo port
This USB Type-C™ (Universal Serial Bus) port provides a
transfer rate of up to 5 Gbit/s, and supports Display port
1.2. Use a USB Type-C™ adapter to connect your Mini PC
to an external display.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
USB 3.1 Gen 1 port
The USB 3.1 Gen 1 (Universal Serial Bus) port provides a
transfer rate up to 5 Gbit/s.
Power input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Mini PC. To prevent damage to
the Mini PC, always use the supplied power adapter.
WARNING! The power adapter may become warm
to hot when in use. Do not cover the adapter and
keep it away from your body.

2
Using your Mini PC

18 PN61 Series
Getting started

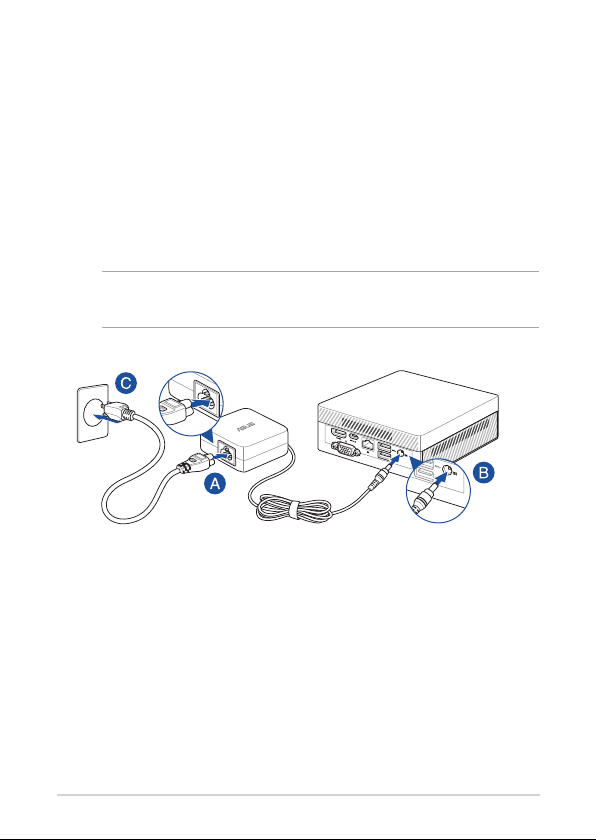

Connect the AC power adapter to your Mini PC
To connect the AC power adapter to your Mini PC:
A. Connect the power cord to the AC power adapter.
B. Connect the DC power connector into your Mini PC’s power (DC)
input.
C. Plug the AC power adapter into a 100V~240V power source.
NOTE: The power adapter may vary in appearance, depending on
models and your region.

PN61 Series 19
NOTE:
The power adapter may vary between models and territories, please
refertothefollowingformoreinformationonthedierentadapters:
90W Power adapter
• Inputvoltage:100-240Vac
• Inputfrequency:50-60Hz
• Ratingoutputcurrent:4.74A(90W)
• Ratingoutputvoltage:19V
65W Power adapter
• Inputvoltage:100-240Vac
• Inputfrequency:50-60Hz
• Ratingoutputcurrent:3.42A(65W)
• Ratingoutputvoltage:19V
IMPORTANT!
• WestronglyrecommendthatyouuseonlytheACpower
adapter and cable that came with your Mini PC.
• Westronglyrecommendthatyouuseagroundedwallsocket
while using your Mini PC.
• ThesocketoutletmustbeeasilyaccessibleandnearyourMini
PC.
• TodisconnectyourMiniPCfromitsmainpowersupply,unplug
your Mini PC from the power socket.

20 PN61 Series
Connect a display panel to your Mini PC
You can connect a display panel or projector to your Mini PC that has the
following connectors:
• HDMIconnector
• VGAconnector
• DisplayPort
• Thunderbolt3port
NOTE:
• Uptotwodisplaypanelsmaybeconnectedsimultaneously
when using the USB3.1 Gen 1 Type-C™/DisplayPort combo
port and the congurable port*, or USB3.1 Gen 1 Type-C™/
DisplayPort combo port and HDMI port.
• WhenusingtheHDMIport,theCongurableport*willbe
disabled, and vice versa.
• Ensureyourdeviceispoweredowhenswitchingbetweenthe
HDMI port and the Congurable port*.
* This port may vary per model. Please refer to the Features section for the location of the ports.
