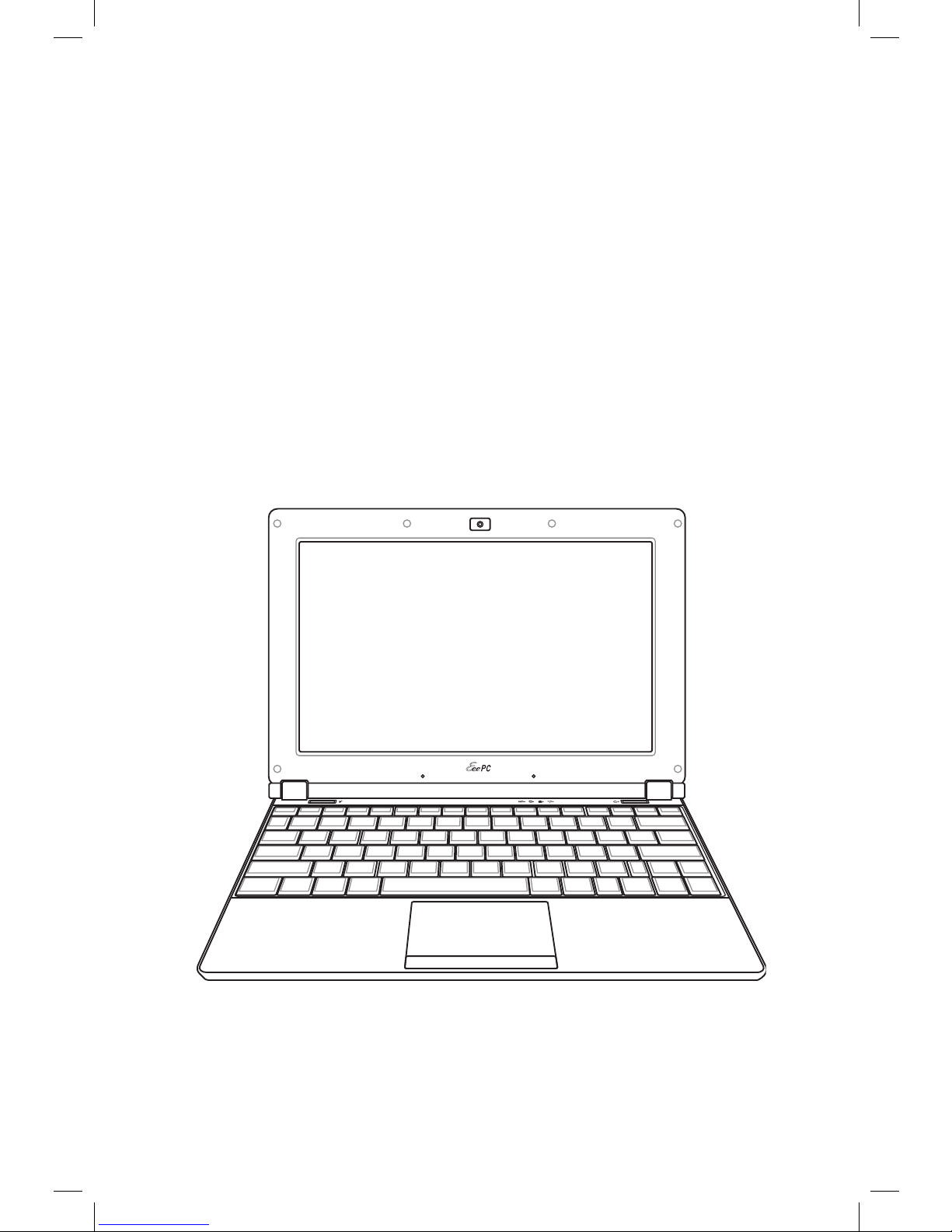

Asus Eee PC S101 XP User manual

Eee PC
User Manual
Windows®XP Edition
Eee PC S101
E4652
15G06Q119001

ii Table of Contents
Table of Contents
About This User’s Manual............................................................................... iv
Notes for This Manual...................................................................................... iv
Safety Precautions ..............................................................................................v
Chapter 1: Knowing the Parts
Top Side ............................................................................................................. 1-2
Bottom Side...................................................................................................... 1-5
Right Side.......................................................................................................... 1-7
Left Side............................................................................................................. 1-8
Rear Side............................................................................................................ 1-8
Keyboard Usage............................................................................................1-10
Special Function Keys ...............................................................................1-10
Touchpad Usage...........................................................................................1-12

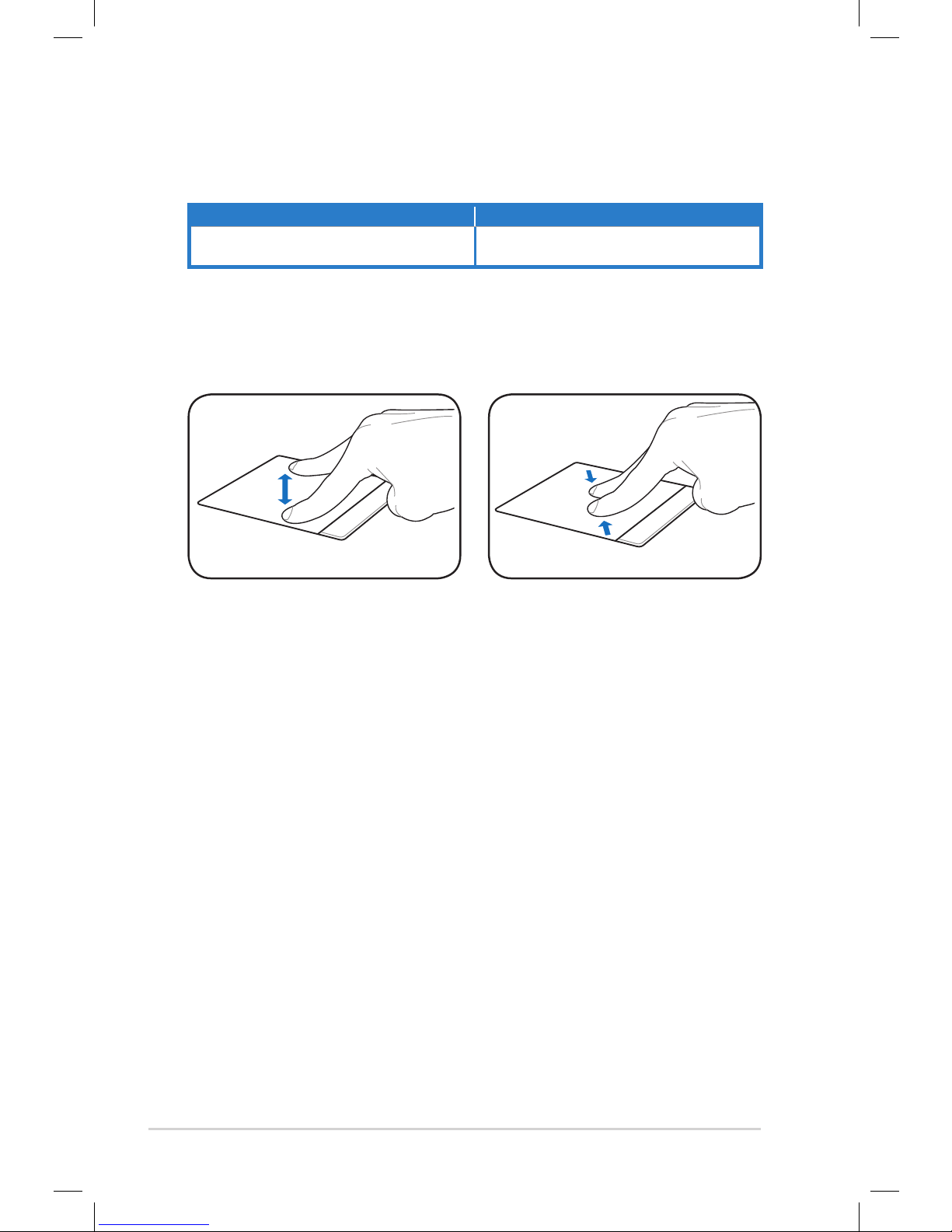

Multi-finger gesture input.......................................................................1-12
Chapter 2: Getting Started
Powering on your Eee PC............................................................................ 2-2
First-time Startup ........................................................................................... 2-3
Desktop.............................................................................................................. 2-4
ASUS EeePC Tray Utility................................................................................ 2-5
Enabling and Disabling Devices.............................................................. 2-5
Adjusting the display resolution............................................................. 2-6
Network Connection..................................................................................... 2-7
Configuring a wireless network connection....................................... 2-7
Local Area Network...................................................................................... 2-8
Browsing web pages .................................................................................2-11
Chapter 3: Using the Eee PC
ASUS Update.................................................................................................... 3-2
Updating the BIOS through the Internet ............................................. 3-2
Updating the BIOS through a BIOS file................................................. 3-3
Bluetooth Connection.................................................................................. 3-4
Super Hybrid Engine..................................................................................... 3-6
Super Hybrid Engine Modes..................................................................... 3-6
Eee Storage....................................................................................................... 3-7

ASUS Eee PC iii
Chapter 4: Support DVD and System Recovery
Support DVD information........................................................................... 4-2
Running the support DVD......................................................................... 4-2
Drivers menu.................................................................................................. 4-3
Utilities menu................................................................................................. 4-3
Contact ........................................................................................................... 4-3
Other information ........................................................................................ 4-3
System Recovery ............................................................................................ 4-4
Using the Support DVD.............................................................................. 4-4
Using the Recovery Partition.................................................................... 4-6
Boot Booster .................................................................................................... 4-7
Appendix
Declarations and Safety Statements .......................................................A-2
Copyright Information .............................................................................. A-11
Limitation of Liability................................................................................. A-12
Service and Support................................................................................... A-12

iv Table of Contents
About This User’s Manual
You are reading the Eee PC User’s Manual.This User’s Manual
provides information regarding the various components in the Eee
PC and how to use them.The following are major sections of this
User’s Manual:
1. Knowing the Parts
Provides information on the Eee PC’s components.
2. Getting Started
Provides information on getting started with the Eee PC.
3. Using the Eee PC
Provides information on using the Eee PC’s utilities.
4. Support DVD and System Recovery
Gives you information on support DVD contents and system
recovery.
5. Appendix
Gives you safety statements.
The actual bundled applications differ by models and territories.
There may be differences between your Eee PC and the pictures
shown in this manual. Please accept your Eee PC as being correct.
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing
you to complete certain tasks safely and effectively.These notes have
different degrees of importance as follows:
WARNING! Important information that must be followed for safe
operation.
NOTE: Information for special situations.
IMPORTANT! Vital information that must be followed to prevent
damage to data, components, or persons.
TIP:Tips for completing tasks.

ASUS Eee PC v

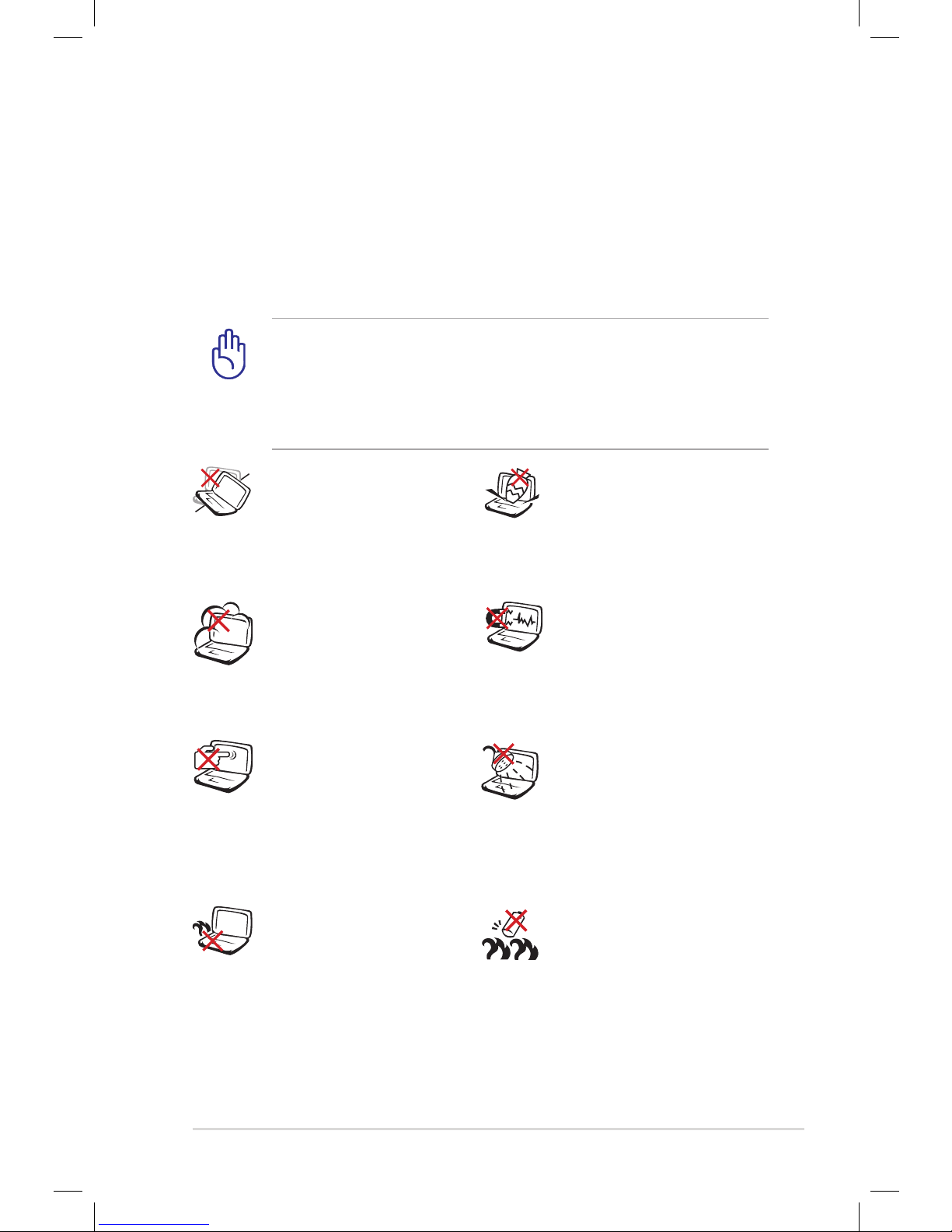

Safety Precautions
The following safety precautions will increase the life of the Eee
PC. Follow all precautions and instructions. Except as described in
this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use
strong solvents such as thinners, benzene, or other chemicals on or
near the surface.
Battery safety warning: DO
NOT throw the battery in
fire. DO NOT short circuit
the contacts. DO NOT
disassemble the battery.
DO NOT leave the Eee PC on
your lap or any part of the
body to prevent discomfort
or injury from heat exposure.
DO NOT expose to dirty or
dusty environments. DO NOT
operate during a gas leak.
DO NOT expose to strong
magnetic or electrical fields.
DO NOT expose to or
use near liquids, rain, or
moisture. DO NOT use the
modem during electrical
storms.
DO NOT press or touch the
display panel. Do not place
together with small items
that may scratch or enter the
Eee PC.
DO NOT place on uneven or
unstable work surfaces. Seek
servicing if the casing has
been damaged.
DO NOT place or drop
objects on top and do not
shove any foreign objects
into the Eee PC.
Disconnect the AC power and remove the battery pack(s)
before cleaning. Wipe the Eee PC using a clean cellulose sponge
or chamois cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.

vi Table of Contents

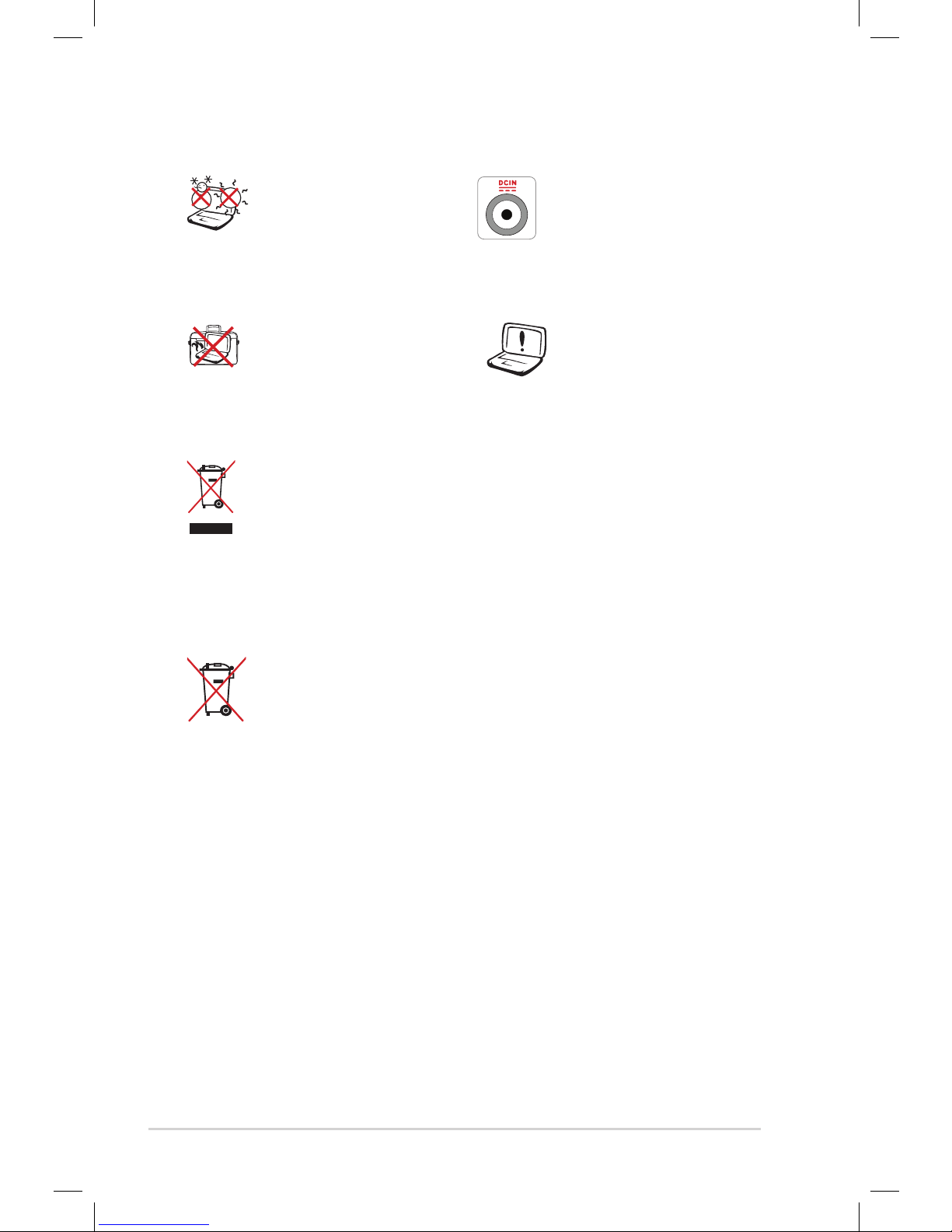

SAFE TEMP:This Eee PC
should only be used in
environments with ambient
temperatures between 5°C
(41°F) and 35°C (95°F)
INPUT RATING: Refer to the
rating label on the bottom
of the Eee PC and be sure
that your power adapter
complies with the rating.
DO NOT carry or cover a
Eee PC that is powered ON
with any materials that will
reduce air circulation such
as a carrying bag.
Incorrect installation
of battery may cause
explosion and damage
the Eee PC.
DO NOT throw the Eee PC in municipal waste.This product
has been designed to enable proper reuse of parts and
recycling.The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercury-containing button cell battery) should not
be placed in municipal waste. Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste.The symbol
of the crossed out wheeled bin indicates that the battery
should not be placed in municipal waste.
Transportation Precautions
To prepare your Eee PC for transport, you should turn it OFF and
disconnect all external peripherals to prevent damage to the
connectors. Close the display panel to protect the keyboard and
display panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape surfaces when transporting your Eee PC.
You can put your Eee PC in a carrying case for protection from dirt,
water, shock, and scratches.

ASUS Eee PC vii
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your
battery pack and any optional battery packs before going on long
trips. Remember that the power adapter charges the battery pack as
long as it is plugged into the computer and an AC power source. Be
aware that it takes much longer to charge the battery pack when the
Eee PC is in use.
Remember to fully charge the battery (8 hours or more) before
first use and whenever it is depleted to prolong battery life.The
battery reaches its maximmum capacity after a few full charging and
discharging cycles.
Airplane Precautions
Contact your airline if you want to use the Eee PC on the airplane.
Most airlines have restrictions for using electronic devices. Most
airlines allow electronic use only between and not during takeoffs
and landings.
There are three main types of airport security devices: X-ray
machines (used on items placed on conveyor belts), magnetic
detectors (used on people walking through security checks),
and magnetic wands (hand-held devices used on people or
individual items).You can send your Eee PC and diskettes
through airport X-ray machines. However, it is recommended
that you do not send your Eee PC or diskettes through airport
magnetic detectors or expose them to magnetic wands.

viii Table of Contents

Top Side
Bottom Side

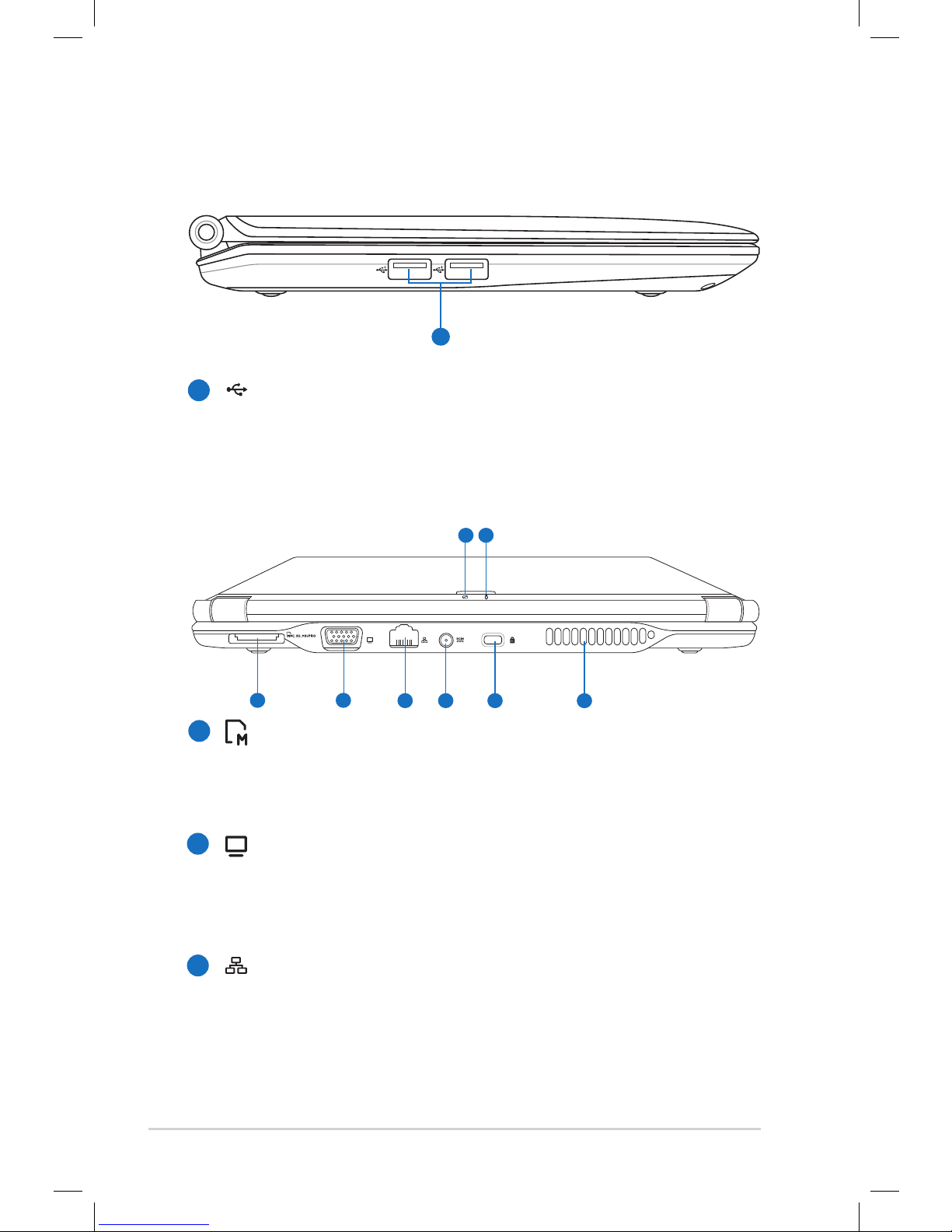

Right Side
Left Side
Rear Side
Keyboard Usage
Touchpad Usage
1
Knowing the Parts

1-2 Chapter 1: Knowing the Parts
Top Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
The keyboard differs for each territory.
The top side may vary in appearance depending on model.
PC
5
6
7
8
1
2
3
4

ASUS Eee PC 1-3
Built-in Camera
Display Panel
Array Microphone (Built-in)
The built-in array microphone is more clear and echo-free
compared with traditional single microphones.
Super Hybrid Engine Key
Press this key to switch among various power saving
modes.The selected mode is shown on the display.
Power Switch
The power switch allows powering ON and OFF the Eee PC
and recovering from STR. Press the switch once to turn ON
and hold it to turn OFF the Eee PC.The power switch only
works when the display panel is opened.
Power Indicator
The power indicator lights when the Eee PC is turned
ON and blinks slowly when the Eee PC is in the Save-to-
RAM (Suspend) mode.This indicator is OFF when the
Eee PC is turned OFF.
Status Indicators
Battery Charge Indicator
The battery charge indicator (LED) shows the battery
charging status as follows:
1
2
3
4
5
6
Powered ON
AC Mode Battery Mode
Battery charge is
between 100%–80% Orange ON Green ON
Battery charge is
between 80%–10% Orange Blinking Slowly Green Blinking Slowly
Battery charge is less
than 10%
Orange Blinking
Quickly Green Blinking Quickly
(Continued on the next page)

1-4 Chapter 1: Knowing the Parts
7
8
Standby Mode / Powered OFF
AC Mode Battery Mode
Battery charge is
between 100%–80% Orange ON Off
Battery charge is
between 80%–10%
Orange Blinking
Slowly Off
Battery charge is less
than 10%
Orange Blinking
Quickly Off
The Battery Charge Indicator will not light when the battery
is removed from your Eee PC.
Storage Device Indicator
The storage device indicator blinks when data is written
to or read from the disk drive.
Capital Lock Indicator
Indicates that capital lock [Caps Lock] is activated when
lighted.
Wireless/Bluetooth Indicator
This is only applicable on models with built-in wireless
LAN/Bluetooth.When the built-in wireless LAN/
Bluetooth is enabled, this indicator lights.
Keyboard
The keyboard provides keys with comfortable travel (depth at
which the keys can be depressed) and palm rest for both
hands.
Touchpad and Buttons
The touchpad and its buttons comprises a pointing device
that provides the same functions as a desktop mouse.

ASUS Eee PC 1-5
Bottom Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
The bottom side may vary in appearance depending on model.
The bottom of the Eee PC can get very hot. Be careful when
handling the Eee PC while it is in operation or recently been in
operation. High temperatures are normal during charging or
operation. DO NOT use on soft surfaces such as beds or sofas,
which may block the vents. DO NOT PUT THE Eee PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE
HEAT.
Battery Lock - Spring
The spring battery lock keeps the battery pack secure.
When the battery pack is inserted, it will automatically lock.
When removing the battery pack, this spring lock must be
retained in the unlocked position.
1
2
13
4
5
6 6

1-6 Chapter 1: Knowing the Parts
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC
when AC power is not connected.This allows use when
moving temporarily between locations. Battery time
varies by usage and by the specifications for this Eee PC.
The battery pack cannot be disassembled and must be
purchased as a single unit.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack
secured. Move the manual lock to the unlocked position to
insert or remove the battery pack. Move the manual lock to
the locked position after inserting the battery pack.
Memory Compartment
The memory module is secured in a dedicated
compartment.
Reset Button (Emergency)
In case your operating system cannot properly turn OFF or
restart, the reset button can be depressed with a pin or a
straightened paper clip to restart the Eee PC.
Audio Speaker System
The built-in stereo speaker system allows you to hear audio
without additional attachments.The multimedia sound
system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with
external stereo headphones or speakers). Audio features
are software controlled.
2
3
4
5
6

ASUS Eee PC 1-7
Right Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
1
2
3
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, and storage devices, connected in a series up to
12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). Also, the
USB supports hot-swapping function.
Microphone Jack
The microphone jack is designed to connect the
microphone used for Skype, voice narrations, or simple
audio recordings.
Headphone Output Jack
The 1/8” stereo headphone jack (3.5mm) connects the Eee
PC’s audio out signal to amplified speakers or headphones.
Using this jack automatically disables the built-in speakers.
12 3

1-8 Chapter 1: Knowing the Parts
Left Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
USB Port (2.0/1.1)
1
Rear Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
21 3 4 5
7 8
6
Memory Card Slot
The built-in memory card reader can read MMC/SD and
MS-PRO cards.
1
2
3
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-
compatible device such as a monitor or projector to allow
viewing on a larger external display.
LAN Port
The eight-pin RJ-45 LAN port (10/100M bit) supports a
standard Ethernet cable for connection to a local network.
The built-in connector allows convenient use without
additional adapters.
1

ASUS Eee PC 1-9
4
5
CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE
NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR
BODY.
Power (DC) Input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Eee PC and charges the internal
battery pack.To prevent damage to the Eee PC and battery
pack, always use the supplied power adapter.
7
Kensington® Lock Port
The Kensington® lock port allows the Eee PC to be secured
using Kensington® compatible security products.These
security products usually include a metal cable and lock
that prevent the Eee PC to be removed from a fixed object.
Air Vents
The air vents allow cool air to enter and warm air to exit the
Eee PC.
Ensure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating may occur.
Battery Charge Indicator
The battery charge indicator (LED) shows the status of the
battery’s power. Refer to the LED status table on pages 1-3
to 1-4.
Power Indicator
The power indicator lights when the Eee PC is turned ON
and blinks slowly when the Eee PC is in the Save-to-RAM
(Suspend) mode.This indicator is OFF when the Eee PC is
turned OFF.
8
6

1-10 Chapter 1: Knowing the Parts
Keyboard Usage
Special Function Keys
The following defines the colored hot keys on the Eee PC’s keyboard.
The colored commands can only be accessed by first pressing
and holding the function key while pressing a key with a colored
command. Some function icons appear in the Notification area after
activation.
The Hot Key locations on the function keys may vary depending
on model but the functions should remain the same. Follow the
icons whenever your hot key locations do not match the manual.
zzZ Icon (F1): Places the Eee PC in suspend mode
(Save-to-RAM).
Radio Tower (F2): Wireless Models Only:Toggles
the internal wireless LAN or Bluetooth (on selected
models) ON or OFF with an on-screen-display.
When enabled, the corresponding wireless indicator
will light.
The default setting is WLAN ON / Bluetooth OFF.
Touchpad (F3):Toggles the touchpad ON/OFF.
Resolution Selection (F4): Press to adjust the
display resolution.
Sun Down Icon (F5): Decreases the display
brightness.
Sun Up Icon (F6): Increases the display brightness.
Crossed Screen Icon (F7):Turns off the display
backlight.

ASUS Eee PC 1-11

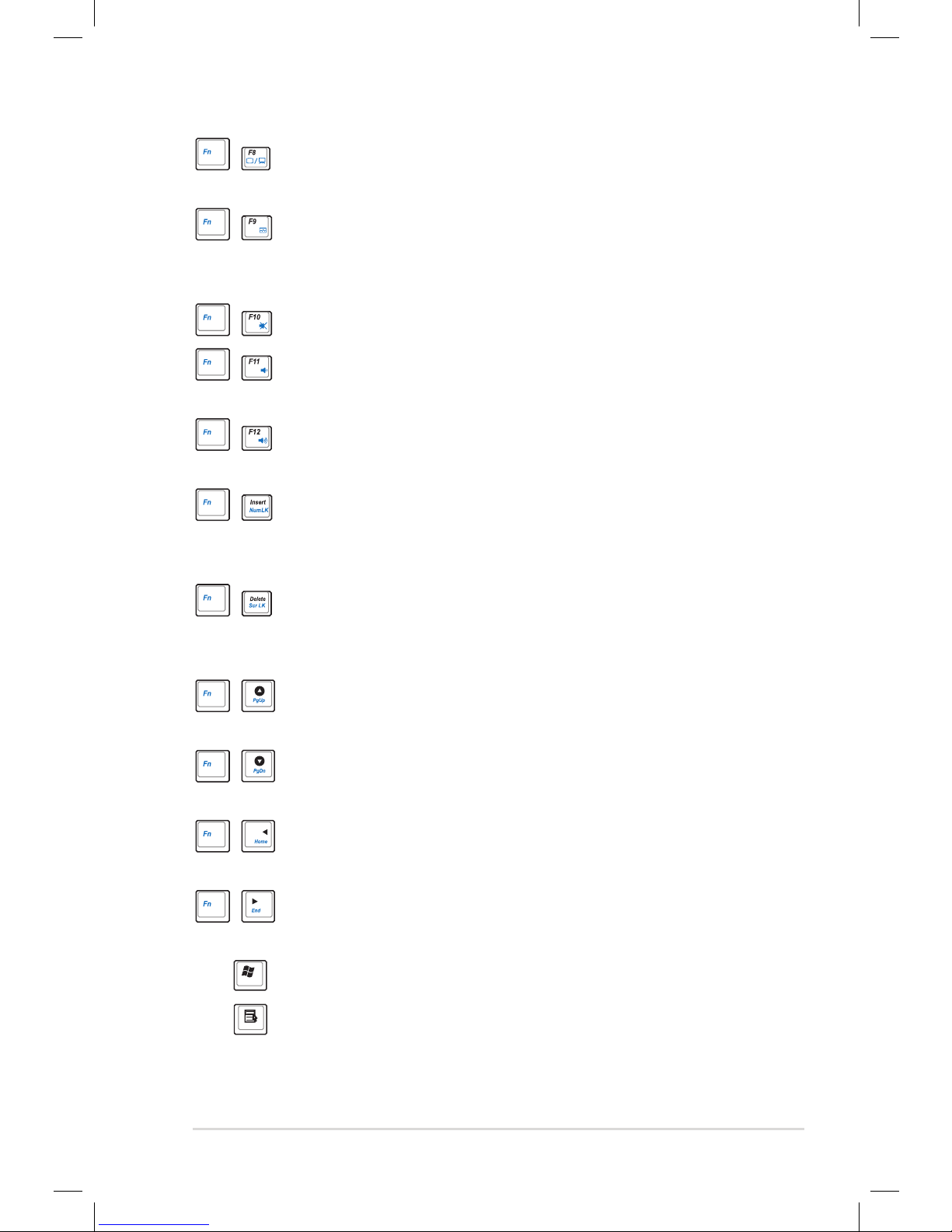

LCD/Monitor Icons (F8):Toggles between the Eee
PC’s LCD display and an external monitor.
Task Manager Icon (F9): Initiates the Task Manager
to view the application process or terminates
applications.
Crossed Speaker Icon (F10): Mutes the speaker.
Volume Down Icon (F11): Decreases speaker
volume.
Volume Up Icon (F12): Increases the speaker
volume.
Num Lk (Insert):Toggles the numeric keypad
(number lock) ON and OFF. Allows use of a larger
portion of the keyboard for number entering.
Scr Lk (Delete): Toggles the “Scroll Lock”ON and
OFF. Allows you to use a larger portion of the
keyboard for cell navigation.
Pg Up (↑): Press to scroll up in documents or the
web browser.
Pg Dn (
↓
): Press to scroll down in documents or the
web browser.
Home (
←
): Press to move the pointer to the
beginning of the line.
End (
→
): Press to move the pointer to the end of
the line.
Windows icon: Displays the start menu.
Menu with pointer icon : Activates the properties
menu and is equivalent to right-clicking the
touchpad/mouse on an object.

1-12 Chapter 1: Knowing the Parts
Touchpad Usage
Multi-finger gesture input
Finger gesture Applications
Two-nger zooming in/out StarOfce Writer/Impress,
Adobe reader, Photomanager
Two-finger zooming in/out - Moving two fingertips apart or
together on the touchpad to zoom in or zoom out.This is convenient
when viewing photos or reading documents.
Zoom in Zoom out
