Asus W1V Instructions for use

E2083 / Jun 2005
Notebook PC
Hardware User’s Manual
DV

2
Contents
1. Introducing the Notebook PC ..................................................................5
About This User’s Manual..........................................................................................6
Notes For This Manual ..........................................................................................6
Preparing your Notebook PC.....................................................................................9
2. Knowing the Parts...................................................................................11
Top Side ...................................................................................................................12
Bottom Side .............................................................................................................14
Left Side...................................................................................................................16
Right Side ................................................................................................................18
Front Side ................................................................................................................19
Back Side.................................................................................................................20
3. Getting Started ....................................................................................... 21
Power System..........................................................................................................22
Using AC Power ..................................................................................................22
Using Battery Power............................................................................................22
Charging the Battery Pack ..................................................................................22
Powering ON the Notebook PC ..........................................................................24
The Power-On Self Test (POST).........................................................................24
Battery Care ........................................................................................................24
Checking Battery Power......................................................................................25
Restarting or Rebooting ......................................................................................26
Powering OFF .....................................................................................................26
Special Keyboard Functions ....................................................................................27
Colored Hot Keys ................................................................................................27
Keyboard as a Numeric Keypad .........................................................................28
Keyboard as Cursors...........................................................................................29
Microsoft Windows™ Keys .................................................................................29
Instant Launch Keys and Status Indicators .............................................................30
Instant Launch Keys............................................................................................30
Status Indicators (top–right) ................................................................................31
Status Indicators (front).......................................................................................32

3
Contents
4. Using the Notebook PC ......................................................................... 33
Operating System ....................................................................................................34
Support Software.................................................................................................34
Pointing Device ........................................................................................................34
Using the Touchpad.............................................................................................35
Touchpad Usage Illustrations ..............................................................................36
Caring for the Touchpad ......................................................................................37
Removing a PC Card (PCMCIA).........................................................................38
Inserting a PC Card (PCMCIA) ...........................................................................38
Storage Devices.......................................................................................................39
PC Card (PCMCIA) Socket .................................................................................39
Optical Drive........................................................................................................40
Hard Disk Drive ...................................................................................................40
Flash Memory Card Reader................................................................................41
Network Connection ............................................................................................42
Modem Connection .............................................................................................43
Power Management Modes .....................................................................................44
Full Power Mode & Maximum Performance........................................................44
ACPI ....................................................................................................................44
Suspend Mode ....................................................................................................44
Power Savings ....................................................................................................45
Stand by and Hibernate.......................................................................................47
Multimedia Connections...........................................................................................47
Audio/Video Remote Controller...........................................................................48
Appendix..................................................................................................... 49
Optional Accessories ...............................................................................................50
Optional Connections...............................................................................................53
Glossary...................................................................................................................54
Declarations and Safety Statements .......................................................................58
Notebook PC Information.........................................................................................70

4
Contents

5
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC

6
1Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the
various components in the Notebook PC and how to use them. The following are major sections of this
User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order to
complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for spe-
cial situations.
TIP: Tips and useful information for
completing tasks.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the <
> or [ ] and the enclosed letters.
< >
[ ]
WARNING! Important information that
must be followed for safe operation.
IMPORTANT! Vital information that
must be followed to prevent damage
to data, components, or persons.
User’s Manual

7
Introducing the Notebook PC 1

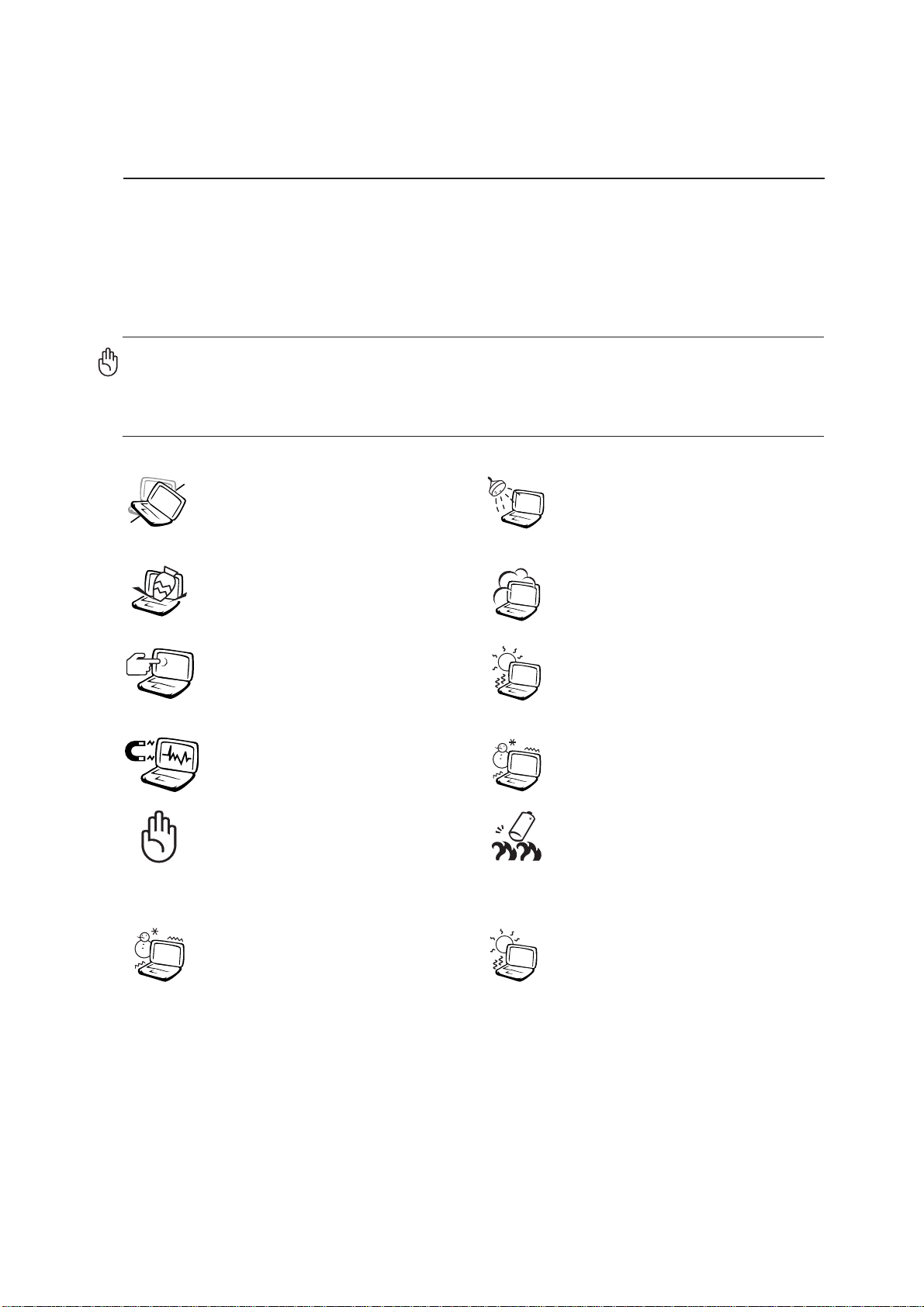

Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the
Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solu-
tion of nonabrasive detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT expose to or use near liq-
uids, rain, or moisture. DO NOT use
the modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
DO NOT expose to strong magnetic
or electrical fields.
DONOTexposetoextremetemperatures
above 50˚C (122˚F) or to direct sunlight.
Do not block the fan vents!
DO NOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with small
itemsthat may scratch orentertheNote-
book PC.
DO NOT leave the Notebook PC on
your lap or any part of the body while
the Notebook PC is turned ON or is
charging in order to prevent discom-
fort or injury from heat exposure.
DO NOT throw batteries in fires as
they may explode. Check local codes
for special battery disposal instruc-
tions.
DO NOT expose to extreme tempera-
tures (below 0˚C (32˚F), otherwise the
Notebook PC may not boot.
Safe Operating Temperatures: This
notebook PC should be used in envi-
ronments with ambient temperatures
between 0°C/32°F and 30°C/86°F.
30°C/86°F
0°C/32°F

8
1Introducing the Notebook PC
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and discon-
nect all external peripherals to prevent damage to the connectors.The hard
disk drive’s head retracts when the power is turned OFF to prevent scratching
of the hard disk surface during transport. Therefore, you should not transport
the Notebook PC while the power is still ON. Close the display panel and check
that it is latched securely in the closed position to protect the keyboard and
display panel.
Cover Your Notebook PC
Use a carrying case such as the one supplied with your Notebook PC to protect it from dirt, water,
shock, and scratches.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restric-
tions for using electronic devices. Most airlines will allow electronic use only between and not during
takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walk-
ing through security checks), and magnetic wands (hand-held devices used on people
or individual items). You can send your Notebook PC and diskettes through airport X-
ray machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
NOTE: The surface glaze is easily dulled if not properly cared for. Be careful not to rub
or scrap the Notebook PC surfaces when transporting your Notebook PC.

9
Introducing the Notebook PC 1
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed infor-
mation on using your Notebook PC.
1. Install the battery pack
3. Open the Display Panel 4. Turn ON the Notebook PC
2.ConnecttheACPowerAdapter
Press the power button and release.
(In Windows XP, this button can also be used to
safely turn OFF the Notebook PC.)
1
2
DV
3
2
1
WARNING! When opening, do not force the display panel down to the table or else
the hinges may break! Never lift the Notebook PC by the display panel!
This Notebook PC features a latchless design.
Lift the display panel with one hand while hold-
ing the system portion with your other hand.

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC

12
2Knowing the Parts

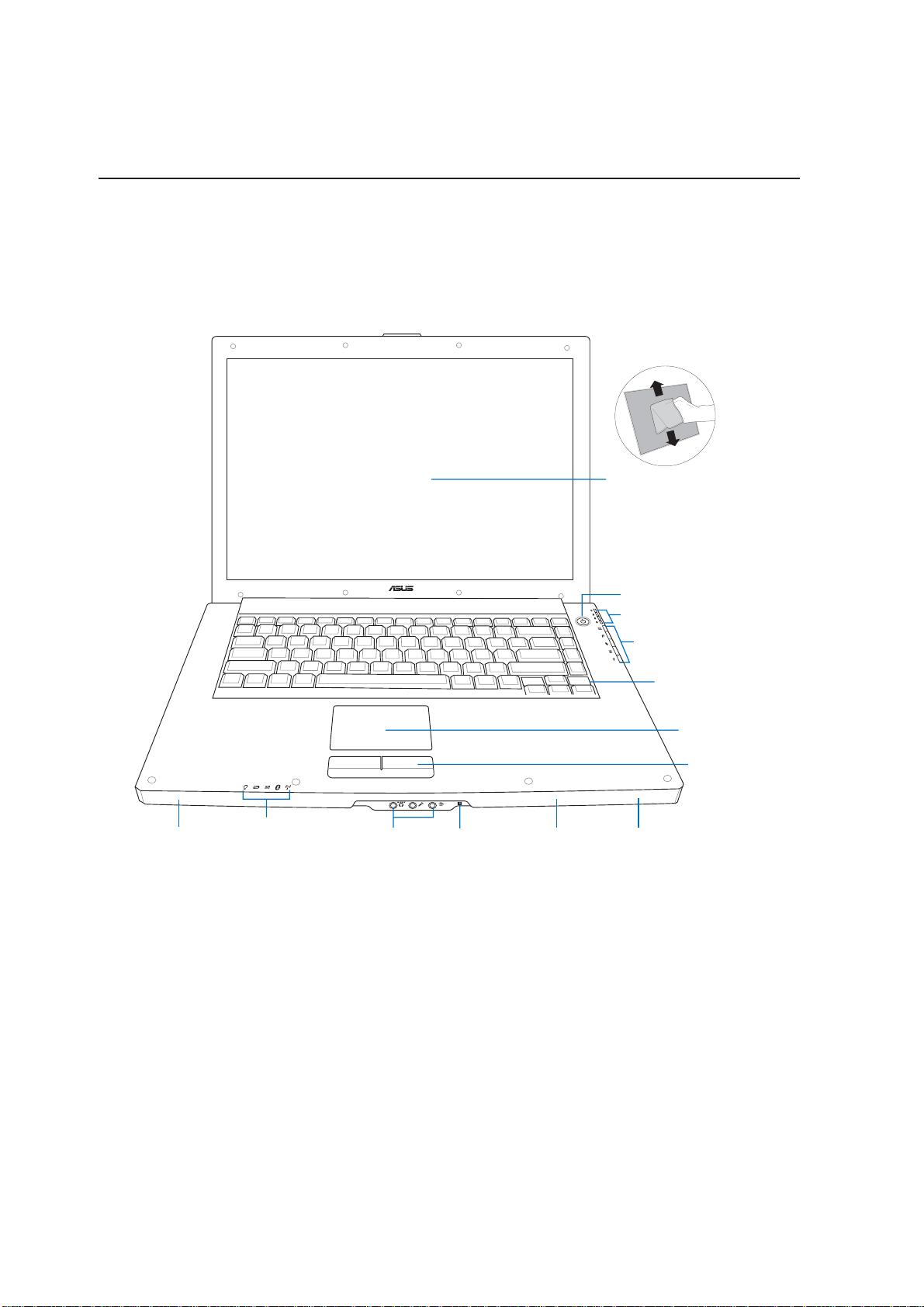

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise.
Display Panel (Use a soft
cloth without chemical
liquids to clean. Use plain
water if necessary.)
Keyboard
Touchpad
Audio Jacks
(see section 3)
Instant Keys (see section 3)
Touchpad buttons
Status Indicators (see section 3)
Status Indicators
(see section 3)
Power Switch (see section 3)
CIR Port
(see front side) AV Status Display (see front view) Stereo Speaker (see front view)
Stereo Speaker
(see front view)

13
Knowing the Parts 2
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse.
A software-controlled scrolling function is available after setting up the included touchpad utility to
allow easy Windows or web navigation.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be de-
pressed) and palm rest for both hands. Two Windows™ function keys are provided to help ease naviga-
tion in the Windows™ operating system.
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an active matrix
TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors,
the LCD panel does not produce any radiation or flickering, so it is easier on the eyes.
Stereo Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments. The multi-
media sound system features an integrated digital audio controller that produces rich, vibrant sound
(results improved with external stereo headphones or speakers).Audio features are software controlled.
Power Switch
The power switch allows powering ON and OFF the Notebook PC and recovering from STD. Push the
switch once to turn ON and once to turn OFF the Notebook PC. The power switch only works when the
display panel is opened.

14
2Knowing the Parts
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise.
IMPORTANT! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. DO NOT PUT THE NOTEBOOK
PC ON THE LAP OR OTHER PARTS OF THE BODY TOAVOID INJURYFROM THE HEAT.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating of the Notebook PC may occur.
Battery PackBattery Lock
Shutdown
Button
Sub-Woofer
Speaker
Spring Battery
Lock
Cooling Fan
and Air Vents
CPU
Compartment
TV-Tuner
Compartment
Hard Disk Drive
Compartment
Memory
Compartment

15
Knowing the Parts 2
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Hard disk drive upgrades are to be done by authorized
service centers or dealers only.
Battery Lock
The battery lock is used to keep the battery pack secured. Usage details are described in the battery
section later in this manual.
Battery Pack
The battery pack is automatically charged when connected to anAC power source and maintains power to
the Notebook PC when AC power is not connected. This allows use when moving temporarily between
locations. Battery time varies by usage and by the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be replaced as a single unit through an authorized vendor.
Memory Compartment
The memory compartment contains an expansion slot for additional memory. Memory installation or
upgrades must be done by an authorized retailer or else warranty will be void.
Central Processor (CPU)
Some Notebook PC models feature a socketed-processor design to allow upgrading to faster processors
in the future. Some models feature a ULV design for compactness and may not be upgraded. Visit an
authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
Emergency Shutdown Button
In case your operating system cannot properly turn OFF or restart, the shutdown button can be pressed
with a straightened paper clip to shutdown the Notebook PC.
Audio Speaker (Sub-Woofer)
The built-in sub-woofer speaker allows you to enjoy amazing bass (low frequency) sounds in your
multimedia applications.
TV-Tuner Card Compartment
This Notebook PC features a TV-Tuner card for viewing television programs on this Notebook PC.

16
2Knowing the Parts
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power supplied
through this jack supplies power to the Notebook PC and charges the internal battery pack. To prevent
damage to the Notebook PC and battery pack, always use the supplied power adapter.
Modem Port
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports a standard
telephone cable. The internal modem supports up to 56K V.90 transfers. The built-in connector allows
convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital phone
systems. Do not connect the modem port to a digital phone system or else damage
will occur to the Notebook PC.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a standard
Ethernet cable for connection to a local network. The built-in connector allows convenient use without
additional adapters.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor or pro-
jector to allow viewing on a larger external display.
USB
Ports
TV-Out
Port
Power
Input
Modem
Port
LAN
Port Infrared Port
PC Card
Slot
1394
Port
Flash Memory
Slot
Display
Output
Air Vents
Antenna
Input PC Card Eject
AV/S-Video
Input

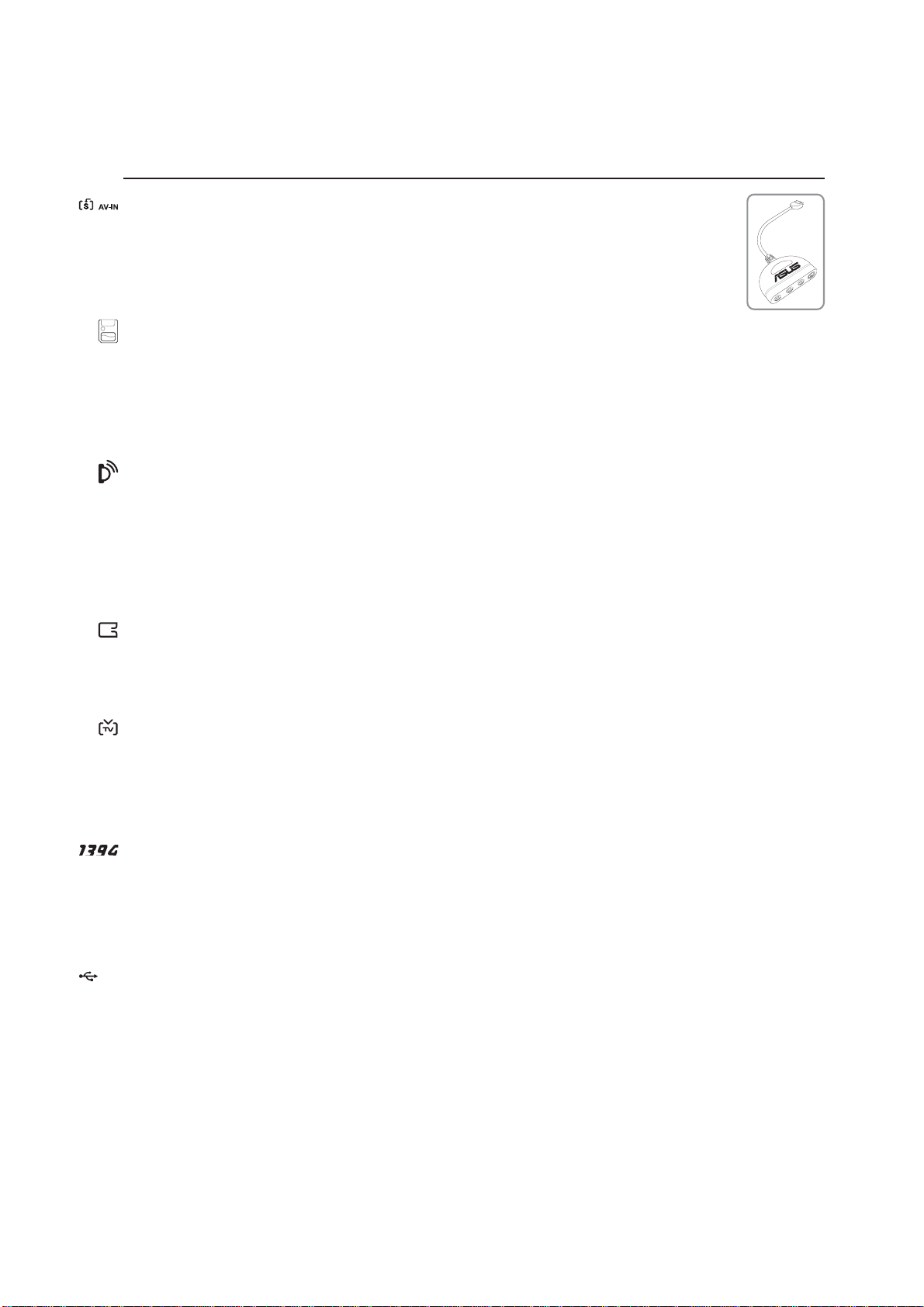

Antenna Input
The antenna input is for TVor FM Radio (on selected models) frequency signal and allows for use with
the provided digital TV/FM antenna or input from subscription television services. The provided an-
tenna can receive digital TV or FM radio. Cable service connection can receive digital TV, analog TV,
or FM radio depending on paid services. The provided adapter is necessary to change the coaxial plug
to fit the slim Notebook PC. Find connection details at the end of section 4.

17
Knowing the Parts 2
TV-Out Port
The TV-Out port is an S-Video connector that allows routing the Notebook PC’s display to a television
or video projection device. You can choose between simultaneouly or single display. Use an S-Video
cable (not provided) for high quality displays or use the provided RCAto S-Video adapter for standard
video devices. This port supports both NTSC and PAL formats.
2
.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing
devices, video cameras, modems, hard disk drives, printers, monitors, and scanners connected in a
series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run
simultaneously on a single computer, with peripherals such as USB keyboards and some newer moni-
tors acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that peripher-
als can be connected or disconnected without restarting the computer.
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order to use memory
cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC
has a built-in memory card reader that can read many flash memory cards as specified later in this
manual. The built-in memory card reader is not only convenient, but also faster than most other forms
of memory card readers because it utilizes the high-bandwidth PCI bus.
1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-plugging capabilities
like USB. The interface IEEE1394 has a bandwidth of 100-400 Mbits/sec and can handle up to 63 units
on the same bus. IEEE1394 is also used in high-end digital equipment and should be marked “DV” for
Digital Video port.
PC Card Slot
One PCMCIA 2.1 compliant PC Card socket is available to support one type I/II PC card. The socket
supports32-bit CardBus.This allowsaccommodation of NotebookPC expansionoptionssuch asmemory
cards, ISDN, SCSI, Smart Cards, and wireless network adapters.
Infrared Port (IrDA)
The infrared (IrDA) communication port allows convenient wireless data communication with infra-
red-equipped devices or computers. This allows easy wireless synchronization with PDAs or mobile
phones and even wireless printing to printers. If your office supports IrDA networking, you can have
wireless connection to a network anywhere provided there is a direct line of sight to an IrDA node.
Small offices can use IrDAtechnology to share a printer between several closely placed Notebook PCs
and even send files to each other without a network.
Audio Video Input (AV/S-Video Input)
The audio video input is featured on selected models and provide a way of inputting audio
and video signals through RCA jacks or S-Video (requires the 1/8” to RCA adapter in-
cluded with selected models). This function only works when purchased with theTV tuner
hardware and software package.

18
2Knowing the Parts
Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Cooling Fan
and Air Vents USB Port Kensington
®
Lock Port
Electronic
Eject Optical Drive (varies by model)
Optical Drive
The Notebook PC comes in various models with different optical drives. The Notebook PC’s optical
drive may support compact discs (CD) and/or digital video discs (DVD) and may have recordable (R)
or re-writable (RW) capabilities. See the marketing specifications for details on each model. The opti-
cal drive has an electronic eject button for opening the tray. You can also eject the optical drive tray
through any software player or by right clicking the optical drive in Windows™ “My Computer.” The
Notebook PC must be turned ON for the electronic eject to work.
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®compatible Note-
book PC security products. These security products usually include a metal cable and lock that prevent
the Notebook PC to be removed from a fixed object. Some security products may also include a motion
detector to sound an alarm when moved.
2
.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing
devices, video cameras, modems, hard disk drives, printers, monitors, and scanners connected in a
series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run
simultaneously on a single computer, with peripherals such as USB keyboards and some newer moni-
tors acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that peripher-
als can be connected or disconnected without restarting the computer.

19
Knowing the Parts 2
Front Side
Refer to the diagram below to identify the components on the front side of the Notebook PC.
Microphone Input Jack (Mic In)
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output signals
from audio devices. Using this jack automatically disables the built-in microphone. Use this feature for
video conferencing, voice narrations, or simple audio recordings.
Audio Input Jack (Audio In)
The stereo input jack (1/8 inch) can be used to connect a stereo audio source to the Notebook PC. This
feature is used mainly to add audio to multimedia applications.
Headphone Output Jack (Phone Output)
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to ampli-
fied speakers or headphones. Using this jack automatically disables the built-in speakers.
SPDIF Output Jack (SPDIF Output)
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices for digital
audio output. Use this feature to turn the Notebook PC into a hi-fi home entertainment system.
Combo
Stereo Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments. The multi-
media sound system features an integrated digital audio controller that produces rich, vibrant sound
(results improved with external stereo headphones or speakers).Audio features are software controlled.
Mic
Input
Display opening tab
Stereo
Speaker Stereo Speaker
CIR
Port
Phone
Output Audio Input AV Status Display (see front view)
AV Status Display
The Audio / Video (AV) status display is a series of LEDs hidden behind the front grill that give short
text messages in correlation to the entertainment system.
CIR Port (Consumer Infrared) (on selected models)
The consumer infrared (IrDA) communication port allows convenient wireless control of the provided
multimedia software in selected models using the provided wireless remote control in selected models.

20
2Knowing the Parts
Back Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Battery Pack
The battery pack is automatically charged when connected to anAC power source and maintains power to
the Notebook PC when AC power is not connected. This allows use when moving temporarily between
locations. Battery time varies by usage and by the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be replaced as a single unit through an authorized vendor.
Battery Pack
