Introducing the Notebook PC 1
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC

6
1Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the
various components in the Notebook PC and how to use them. The following are major sections of this
User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order to
complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for spe-
cial situations.
TIP: Tips and useful information for
completing tasks.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the <
> or [ ] and the enclosed letters.
< >
[ ]
WARNING! Important information that
must be followed for safe operation.
IMPORTANT! Vital information that
must be followed to prevent damage
to data, components, or persons.
User’s Manual

7
Introducing the Notebook PC 1

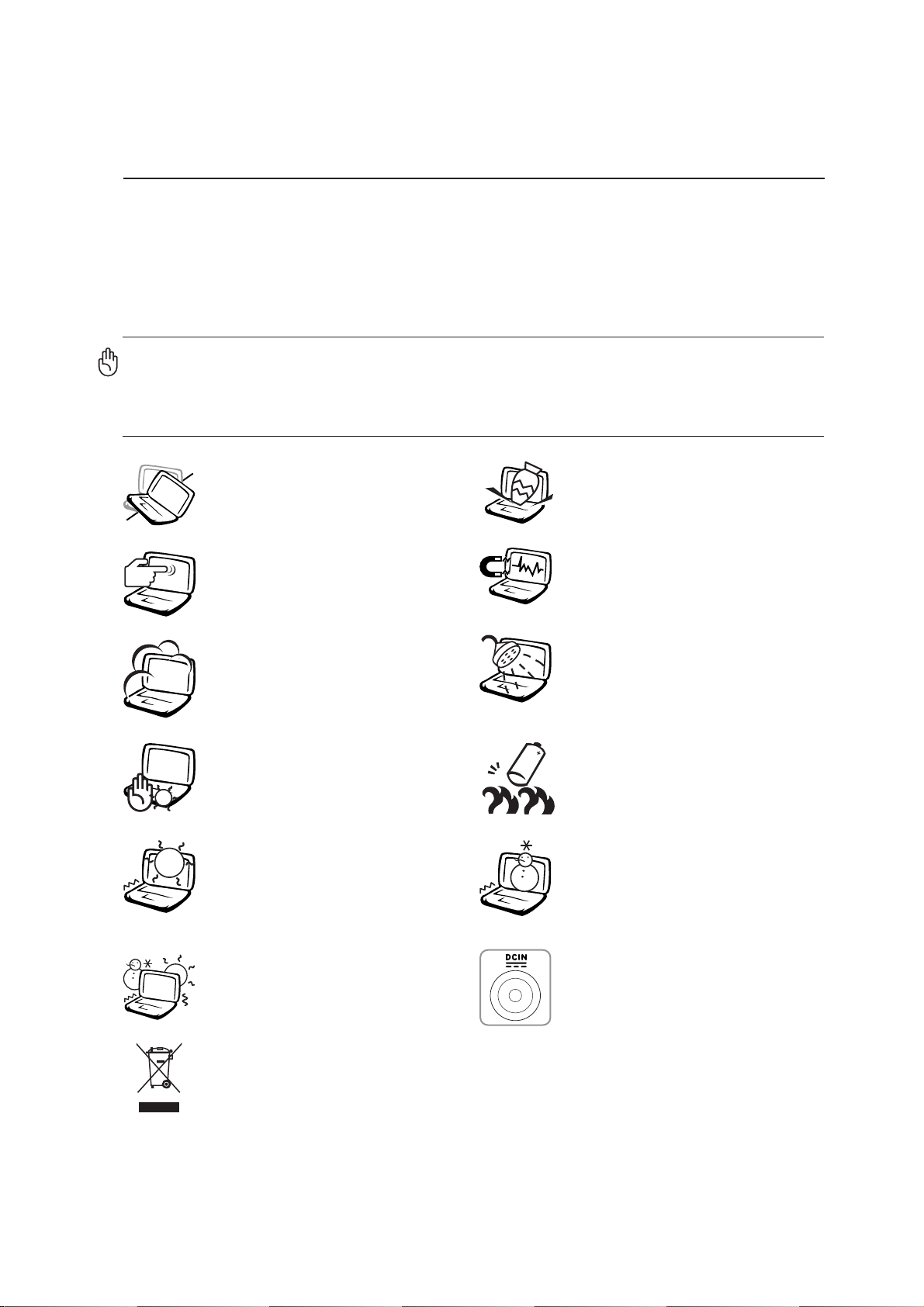

Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the
Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solu-
tion of nonabrasive detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT expose to or use near liq-
uids, rain, or moisture. DO NOT use
the modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
DONOTexposetoextremetemperatures
above 50˚C (122˚F) or to direct sunlight.
Do not block the fan vents!
DO NOT throw batteries in fires as
they may explode. Check local codes
for special battery disposal instruc-
tions.
DO NOT expose to extreme tempera-
tures (below 0˚C (32˚F), otherwise the
Notebook PC may not boot.
DO NOT expose to strong magnetic
or electrical fields.
DONOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with small
itemsthat mayscratchor entertheNote-
book PC.
DO NOT leave the Notebook PC on
your lap or any part of the body while
the Notebook PC is turned ON or is
charging in order to prevent discom-
fort or injury from heat exposure.
SAFE TEMP: This notebook PC
should only be used in environments
with ambient temperatures between
0°C (32°F) and 35°C (95°F).
INPUT RATING: Must only receive
power input of 19VDC, 3.42A (65W).
Thesymbol of the crossed out wheeled binindicatesthatthe product (electrical and electronic
equipment) should not be placed in municipal waste. Please check local regulations for
disposal of electronic products.

8
1Introducing the Notebook PC
Transportation Precautions
To prepare the Notebook PC fortransport,youshouldturn it OFF and disconnect
all external peripherals to prevent damage to the connectors.The hard disk
drive’s head retracts when the power is turned OFF to prevent scratching of the
hard disk surface during transport. Therefore, you should not transport the
Notebook PC while the power is still ON. Close the display panel and check
that it is latched securely in the closed position to protect the keyboard and
display panel.
Cover Your Notebook PC
You can purchase an optional carrying case to protect it from dirt, water, shock, and scratches.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walk-
ing through security checks), and magnetic wands (hand-held devices used on people
or individual items). You can send your Notebook PC and diskettes through airport X-
ray machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
NOTE: The surface glaze is easily dulled if not properly cared for. Be careful not to rub
or scrap the Notebook PC surfaces when transporting your Notebook PC.

9
Introducing the Notebook PC 1
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed
information on using your Notebook PC.
1. Install the battery pack
3. Open the Display Panel 4. Turn ON the Notebook PC
2.ConnecttheACPowerAdapter
Press the power button and release.
(In Windows XP, this button can also be used to
safely turn OFF the Notebook PC.)
1
2
WARNING! When opening, do not force
the display panel down to the table or else
the hinges may break! Never lift the Note-
book PC by the display panel!

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC

12
2Knowing the Parts
Top Side

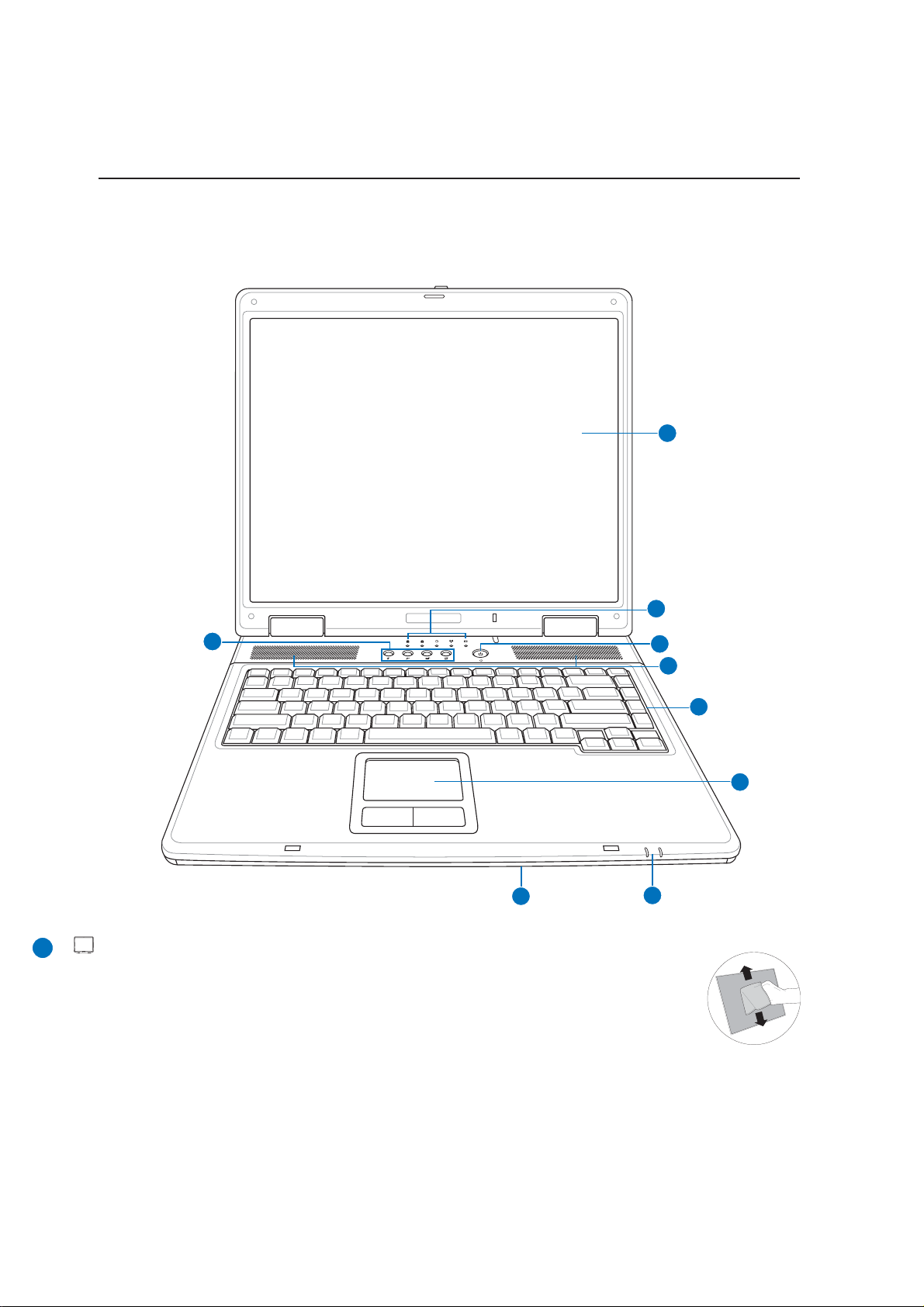

Refer to the diagram below to identify the components on this side of the Notebook PC.
1
2
3
5
7
6
8
94
1
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an
active matrix TFTLCD, which provides excellent viewing like that of desktop monitors.
Unlike desktop monitors, the LCD panel does not produce any radiation or flickering,
so it is easier on the eyes. Use a soft cloth without chemical liquids (use plain water if
necessary) to clean the display panel.

13
Knowing the Parts 2
2
3
4
5
6
7
8
9
Status Indicators (top)
Status indicator details are described in section 3.
Power Switch
The power switch allows powering ON and OFF the Notebook PC and recovering from STD. Use the
switch once to turn ON and once to turn OFF the Notebook PC. In Windows XP, this button
can also be used to safely turn OFF the Notebook PC. The power switch only works when
the display panel is opened.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed)
and palm rest for both hands. TwoWindows™ function keys are provided to help ease navigation in the
Windows™ operating system.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse.
A software-controlled scrolling function is available after setting up the included touchpad utility to
allow easy Windows or web navigation.
Instant Keys
Instant keys allow you to launch frequently used applications with one push of a button. Details are
described in section 3.
Audio Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments. The
multimedia sound system features an integrated digital audio controller that produces rich, vibrant
sound (results improved with external stereo headphones or speakers). Audio features are software
controlled.
Status Indicators (front)
Status indicator details are described in section 3.
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order to
use memory cards from devices such as digital cameras, MP3 players, mobile phones, and
PDAs. This Notebook PC has a built-in memory card reader that can read many flash memory
cards as specified later in this manual. The built-in memory card reader is not only convenient,
but also faster than most other forms of memory card readers because it utilizes the high-
bandwidth PCI bus.

14
2Knowing the Parts
Bottom Side

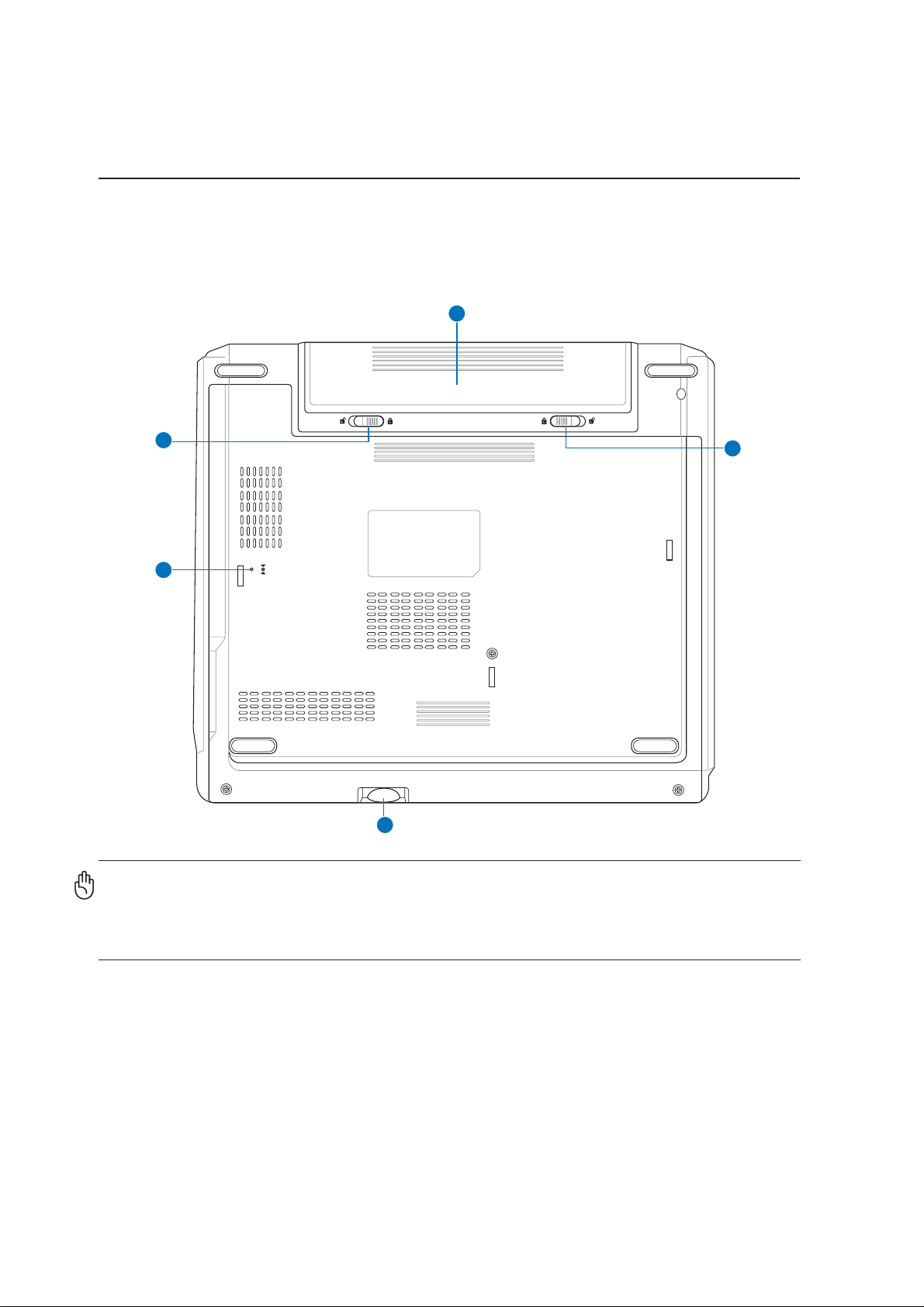

Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise.
IMPORTANT! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. DO NOT PUT THE NOTEBOOK
PC ON THE LAP OR OTHER PARTS OF THE BODYTOAVOID INJURYFROM THE HEAT.
1
2
3
4
5

15
Knowing the Parts 2

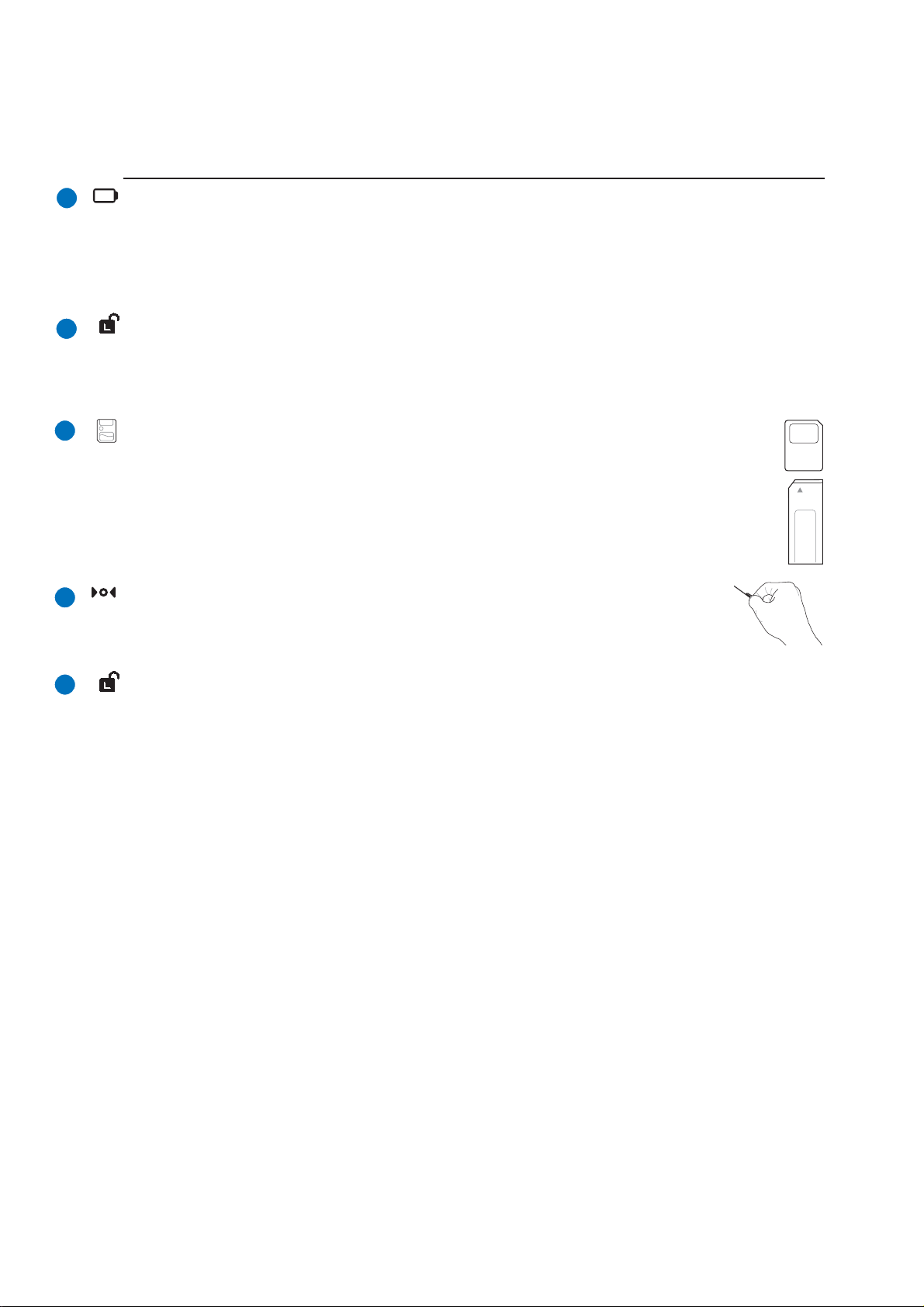

Battery Pack
The battery pack is automatically charged when connected to anAC power source and maintains power to
the Notebook PC when AC power is not connected. This allows use when moving temporarily between
locations. Battery time varies by usage and by the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be replaced as a single unit through an authorized vendor.
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will
automatically lock. To remove the battery pack, this spring lock must be held in the unlocked position.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked
position to insert or remove the battery pack. Move the manual lock to the locked position after inserting
the battery pack.
2
3
4
5
1
Emergency Shutdown Button
In case your operating system cannot properly turn OFF or restart, the shutdown button
can be pressed with a straightened paper clip to shutdown the Notebook PC.
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order to
use memory cards from devices such as digital cameras, MP3 players, mobile phones, and
PDAs. This Notebook PC has a built-in memory card reader that can read many flash memory
cards as specified later in this manual. The built-in memory card reader is not only convenient,
but also faster than most other forms of memory card readers because it utilizes the high-
bandwidth PCI bus.

16
2Knowing the Parts
Right Side

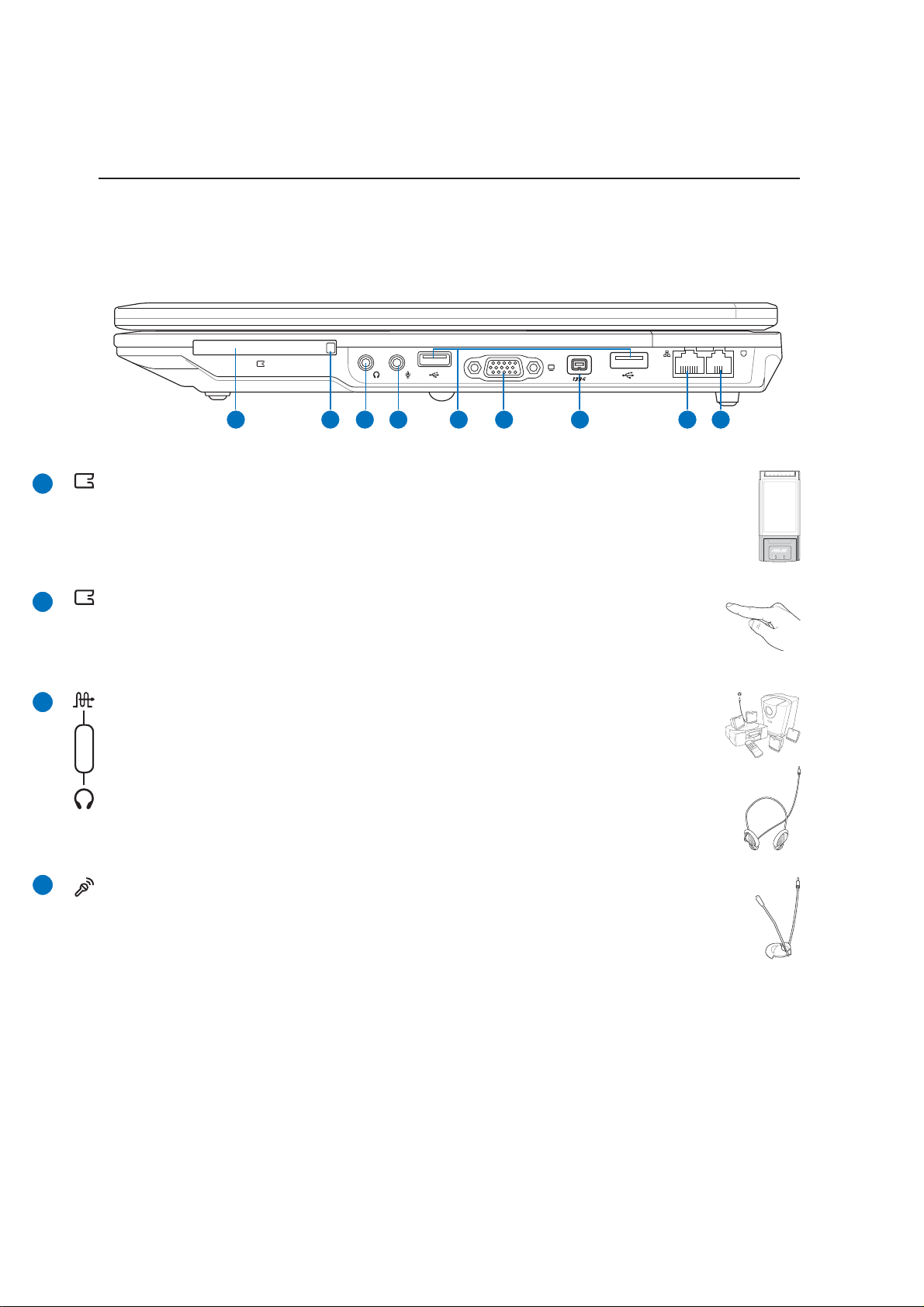

Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 43 76 85 9
PC Card Slot
One PCMCIA2.1 compliant PC Card socket is available to support one type I/II PC card. The
socket supports 32-bit CardBus. This allows accommodation of Notebook PC expansion
options such as memory cards, ISDN, SCSI, Smart Cards, and wireless network adapters.
PC Card Eject
Use this button to eject optional PC cards. This button is mechanical (not electronic) so a
small force is required and the Notebook PC does not have to be turned ON to eject PC cards.
Microphone Input Jack (Mic In)
The mono microphone jack (1/8 inch) can be used to connect an external microphone or
output signals from audio devices. Using this jack automatically disables the built-in
microphone. Use this feature for video conferencing, voice narrations, or simple audio
recordings.
2
3
4
1
SPDIF Output Jack
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices
for digital audio output. Use this feature to turn the Notebook PC into a hi-fi home
entertainment system.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplified speakers or headphones. Using this jack automatically disables the built-in speakers.
Combo

17
Knowing the Parts 2

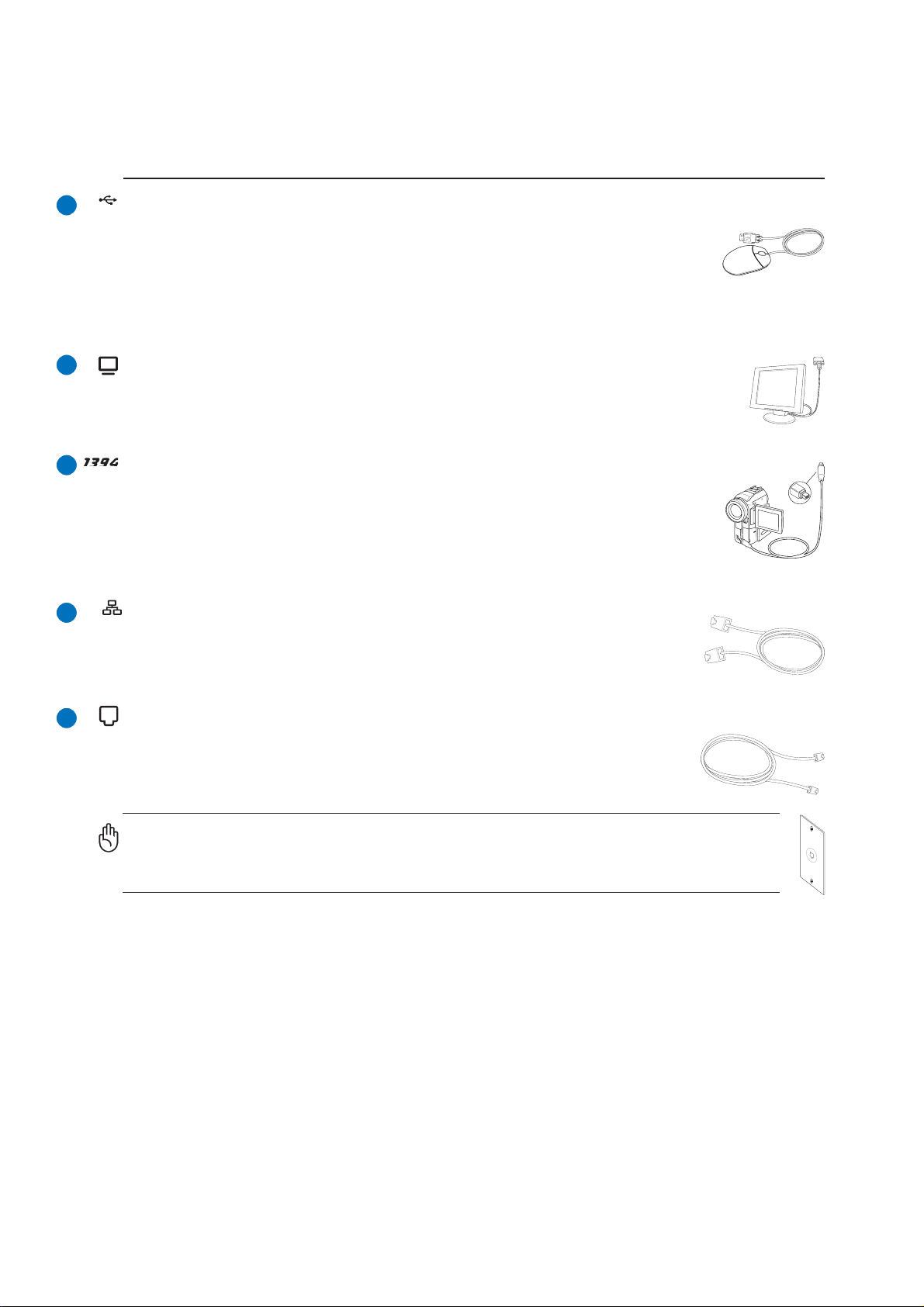

1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-
plugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400
Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in
high-end digital equipment and should be marked “DV” for Digital Video port.
2.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows
many devices to run simultaneously on a single computer, with peripherals such as USB keyboards and
some newer monitors acting as additional plug-in sites or hubs. USB supports hot-swapping of devices
so that most peripherals can be connected or disconnected without restarting the computer.
5
6
8
7
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a
monitor or projector to allow viewing on a larger external display.
LAN Port
TheRJ-45 LAN port with eight pinsislargerthan the RJ-11modem portandsupports
a standard Ethernet cable for connection to a local network. The built-in connector
allows convenient use without additional adapters.
Modem Port
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports
a standard telephone cable. The internal modem supports up to 56K V.90 transfers.
The built-in connector allows convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital
phone systems. Do not connect the modem port to a digital phone system or else
damage will occur to the Notebook PC.
9

18
2Knowing the Parts
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 43 5 6
Optical Drive
The Notebook PC comes in various models with different optical drives. The
Notebook PC’s optical drive may support compact discs (CD) and/or digital
video discs (DVD) and may have recordable (R) or re-writable (RW)
capabilities. See the marketing specifications for details on each model.
2.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows
many devices to run simultaneously on a single computer, with peripherals such as USB keyboards and
some newer monitors acting as additional plug-in sites or hubs. USB supports hot-swapping of devices
so that most peripherals can be connected or disconnected without restarting the computer.
2
3
4
5
6
1
Optical Drive Electronic Eject
The optical drive eject has an electronic eject button for opening the tray. You can also eject
the optical drive tray through any software player or by right clicking the optical drive in
Windows™ “My Computer.”
Optical Drive Emergency Eject
The emergency eject is used to eject the optical drive tray in case the electronic eject
does not work. Do not use the emergency eject in place of the electronic eject.
Optical Drive Activity Indicator
The optical drive activity indicator shows when data is being transferred by the optical disk drive. This
indicator will light in porportion to the data size transferred.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating of the Notebook PC may occur.

19
Knowing the Parts 2
Front Side

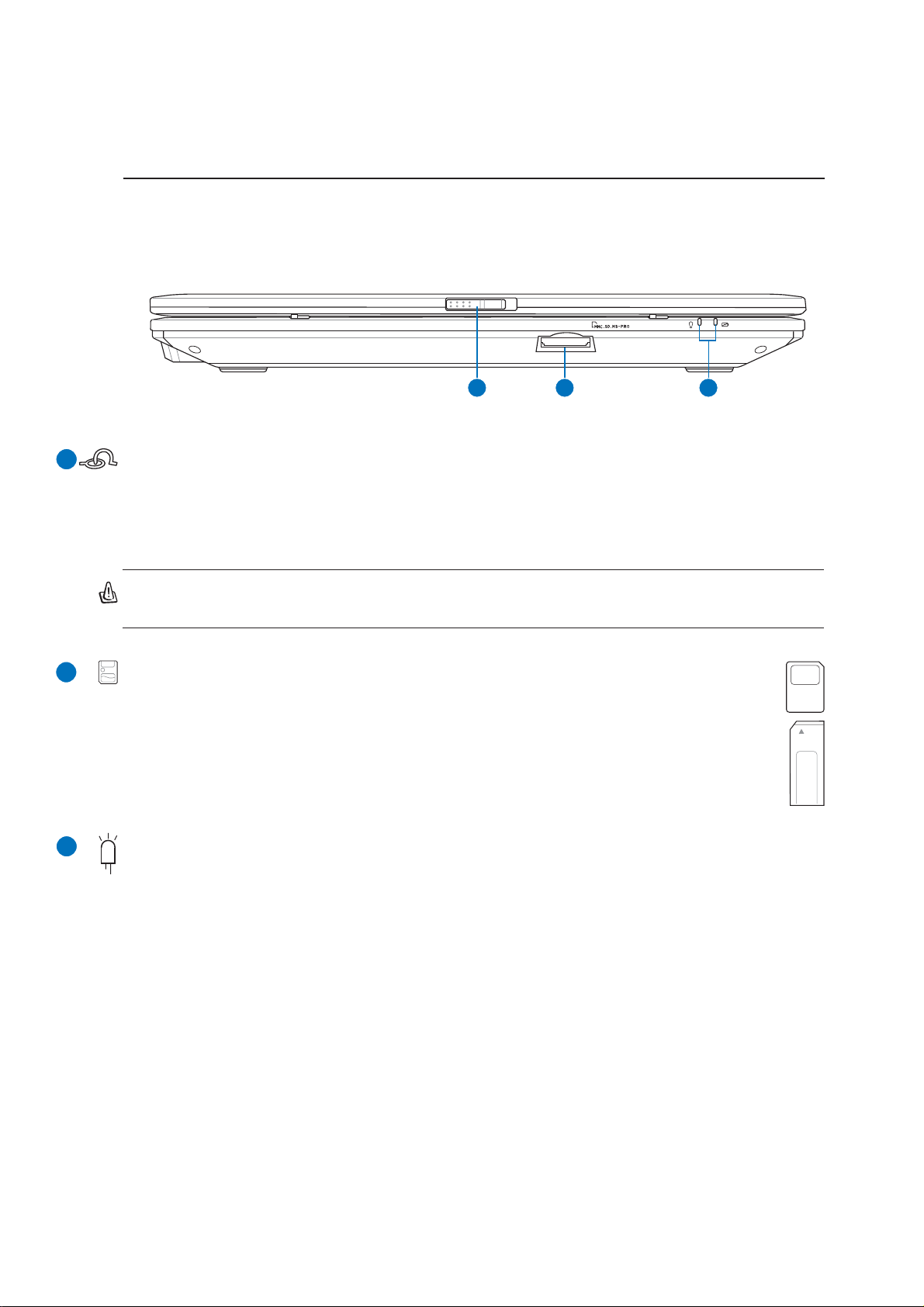

Refer to the diagram below to identify the components on the front side of the Notebook PC.
1 2 3
Status Indicators
Status indicator details are described in section 3.
2
3
1
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order to
use memory cards from devices such as digital cameras, MP3 players, mobile phones, and
PDAs. This Notebook PC has a built-in memory card reader that can read many flash memory
cards as specified later in this manual. The built-in memory card reader is not only convenient,
but also faster than most other forms of memory card readers because it utilizes the high-
bandwidth PCI bus.
Display Panel Latch
One spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use. To open the display panel, negotiate the latch with your thumb and
lift up the display panel while holding the latch. Slowly tilt the display panel forward or backward to a
comfortable viewing angle.
WARNING! When opening, do not force the display panel down to the table or else
the hinges may break! Never lift the Notebook PC by the display panel!

20
2Knowing the Parts
Rear Side
Refer to the diagram below to identify the components on this side of the Notebook PC.

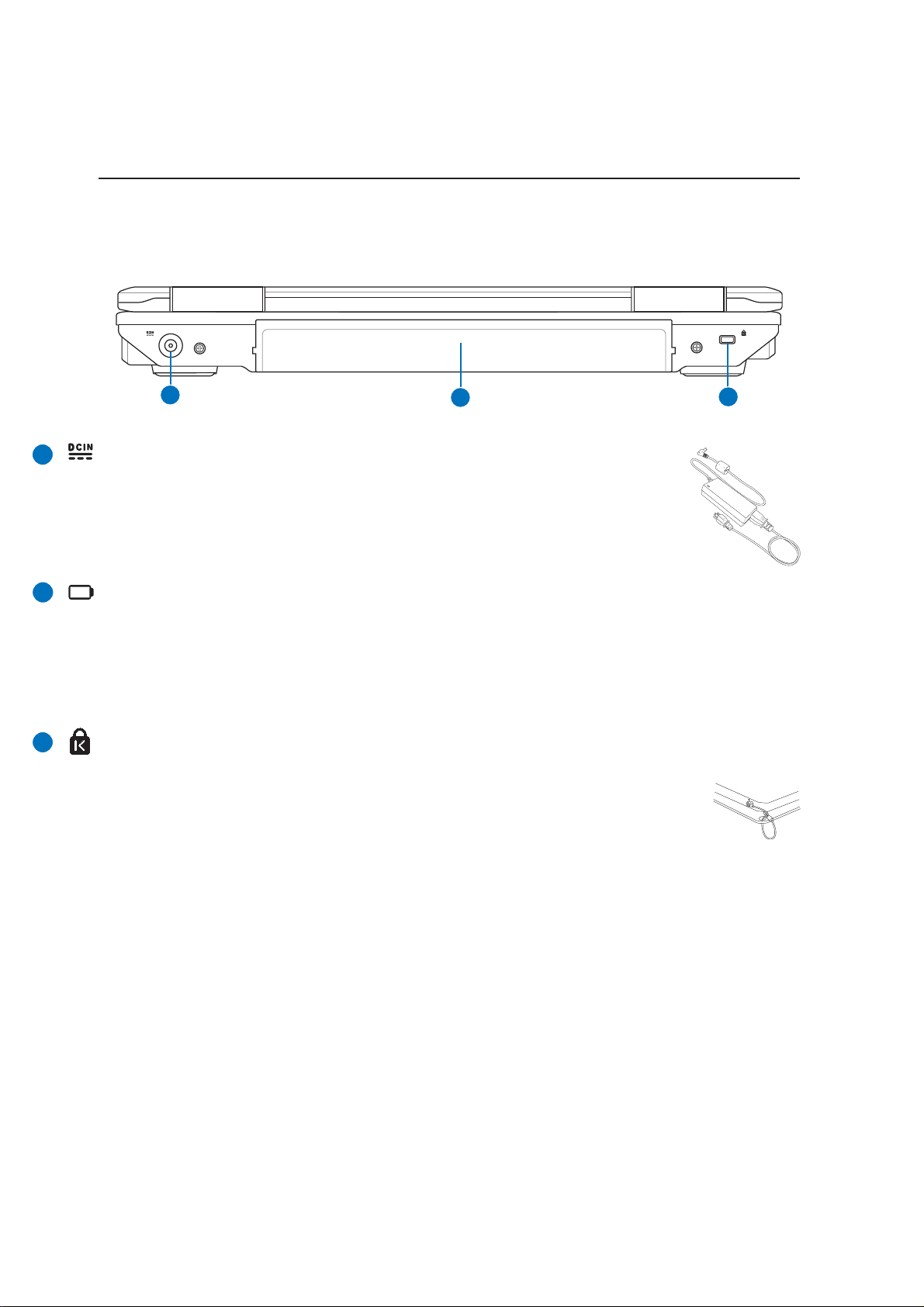

123
Battery Pack
The battery pack is automatically charged when connected to anAC power source and maintains power to
the Notebook PC when AC power is not connected. This allows use when moving temporarily between
locations. Battery time varies by usage and by the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be replaced as a single unit through an authorized vendor.
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®
compatible Notebook PC security products. These security products usually include a
metal cable and lock that prevent the Notebook PC to be removed from a fixed object.
Some security products may also include a motion detector to sound an alarm when moved.
2
3
1
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to theASUS Notebook PC and charges
the internal battery pack. To prevent damage to the ASUS Notebook PC and battery
pack, always use the supplied power adapter.
