Asus W5F Instructions for use

E2344 / Nov 2005
Notebook PC
Hardware User’s Manual

2
Contents
1. Introducing the Notebook PC ..................................................................5
About This User’s Manual..........................................................................................6
Notes For This Manual ..........................................................................................6
Preparing your Notebook PC.....................................................................................9
2. Knowing the Parts...................................................................................11
Top Side ...................................................................................................................12

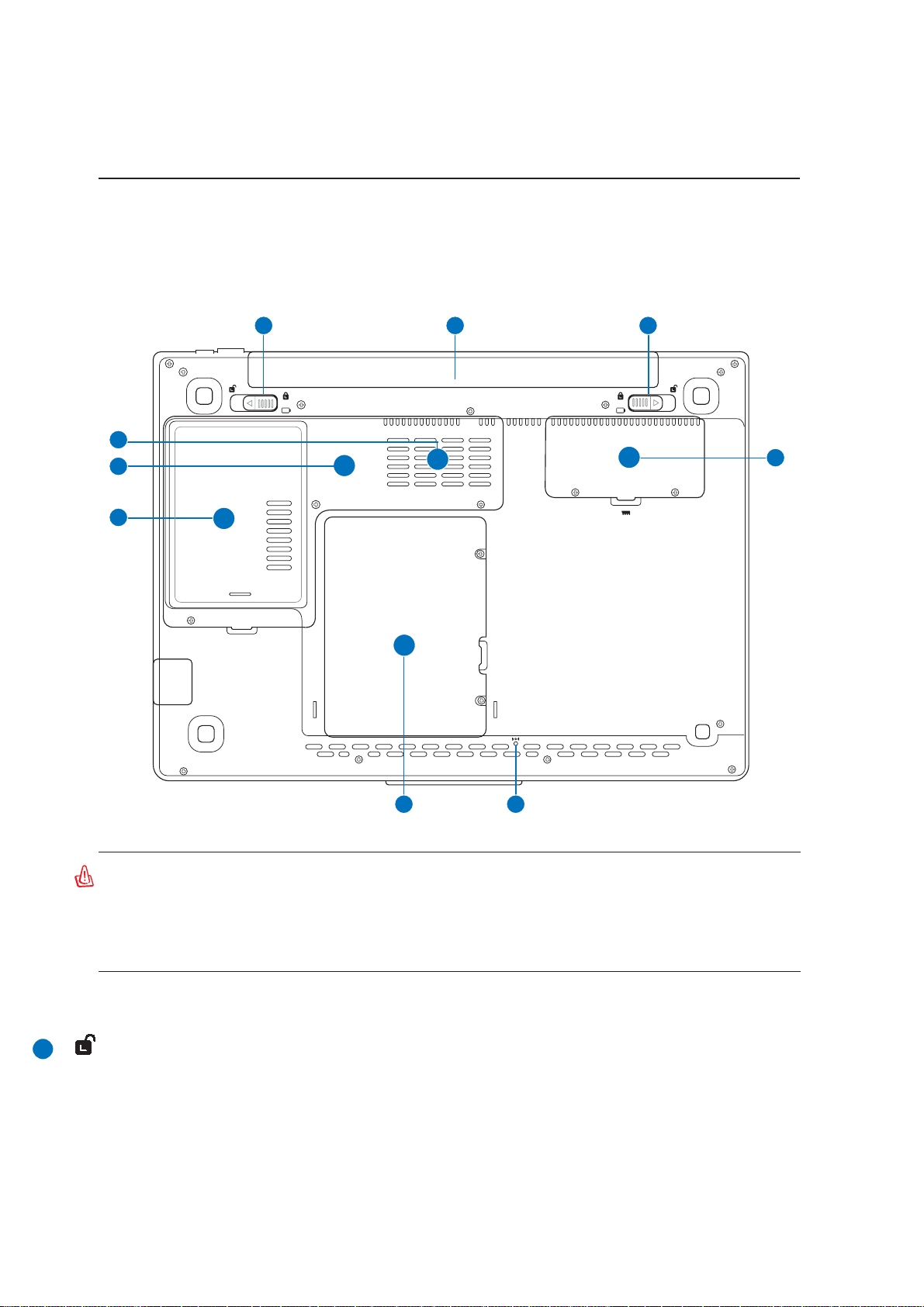

Bottom Side .............................................................................................................14
Left Side...................................................................................................................16
Right Side ................................................................................................................18

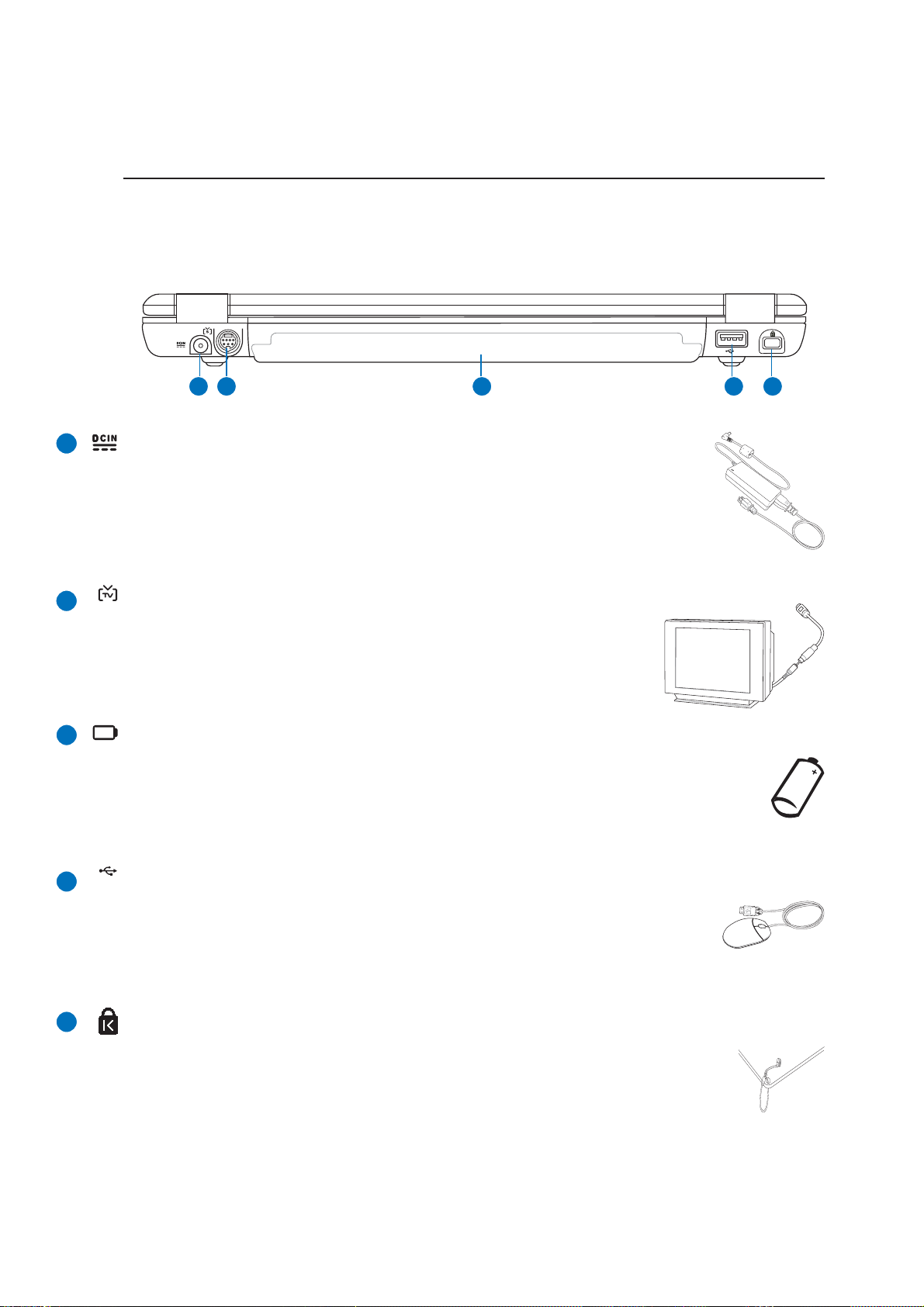

Rear Side .................................................................................................................19
Front Side ................................................................................................................20
3. Getting Started ....................................................................................... 21
Power System..........................................................................................................22
Using AC Power ..................................................................................................22
Using Battery Power............................................................................................22
Charging the Battery Pack ..................................................................................22
Powering ON the Notebook PC ..........................................................................24
The Power-On Self Test (POST).........................................................................24
Battery Care ........................................................................................................24
Checking Battery Power......................................................................................25
Battery Care ........................................................................................................25
Restarting or Rebooting ......................................................................................26
Powering OFF .....................................................................................................26
Microsoft Windows Keys .....................................................................................26
Keyboard as a Numeric Keypad .........................................................................26
Keyboard as Cursors...........................................................................................26
Special Keyboard Functions ....................................................................................28
Colored Hot Keys ................................................................................................28
Buttons and Status Indicators..................................................................................30
Buttons (above keyboard) ...................................................................................30
Buttons (display panel)........................................................................................31
Buttons (side) ......................................................................................................31
Status Indicators (top) .........................................................................................32
Status Indicators (front).......................................................................................32

3
Contents
4. Using the Notebook PC ......................................................................... 33
Operating System ....................................................................................................34
Support Software.................................................................................................34
Pointing Device ........................................................................................................35
Using the Touchpad.............................................................................................35
Touchpad Usage Illustrations ..............................................................................36
Caring for the Touchpad ......................................................................................37
Storage Devices.......................................................................................................38
Inserting an ExpressCard....................................................................................38
Removing an ExpressCard .................................................................................38
Optical Drive........................................................................................................39
Flash Memory Card Reader................................................................................41
Hard Disk Drive ...................................................................................................41
Connections .............................................................................................................42
Modem Connection .............................................................................................42
Network Connection ............................................................................................43
Wireless LAN Connection (on selected models).................................................44
Bluetooth Wireless Connection (on selected models) ........................................45
Power Management Modes .....................................................................................46
Full Power Mode & Maximum Performance........................................................46
ACPI ....................................................................................................................46
Suspend Mode ....................................................................................................46
Power Savings ....................................................................................................46
Power State Summary ........................................................................................47
Thermal Power Control .......................................................................................47
Stand by and Hibernate.......................................................................................48
Appendix..................................................................................................... 49
Optional Accessories ...............................................................................................50
Glossary...................................................................................................................52
Declarations and Safety Statements .......................................................................56
Notebook PC Information.........................................................................................68

4
Contents

5
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC

6
1Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the
various components in the Notebook PC and how to use them. The following are major sections of this
User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order to
complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for spe-
cial situations.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
WARNING! Important information that
must be followed for safe operation.
IMPORTANT! Vital information that
must be followed to prevent damage
to data, components, or persons.
User’s Manual
TIP: Tips and useful information for
completing tasks.

7
Introducing the Notebook PC 1

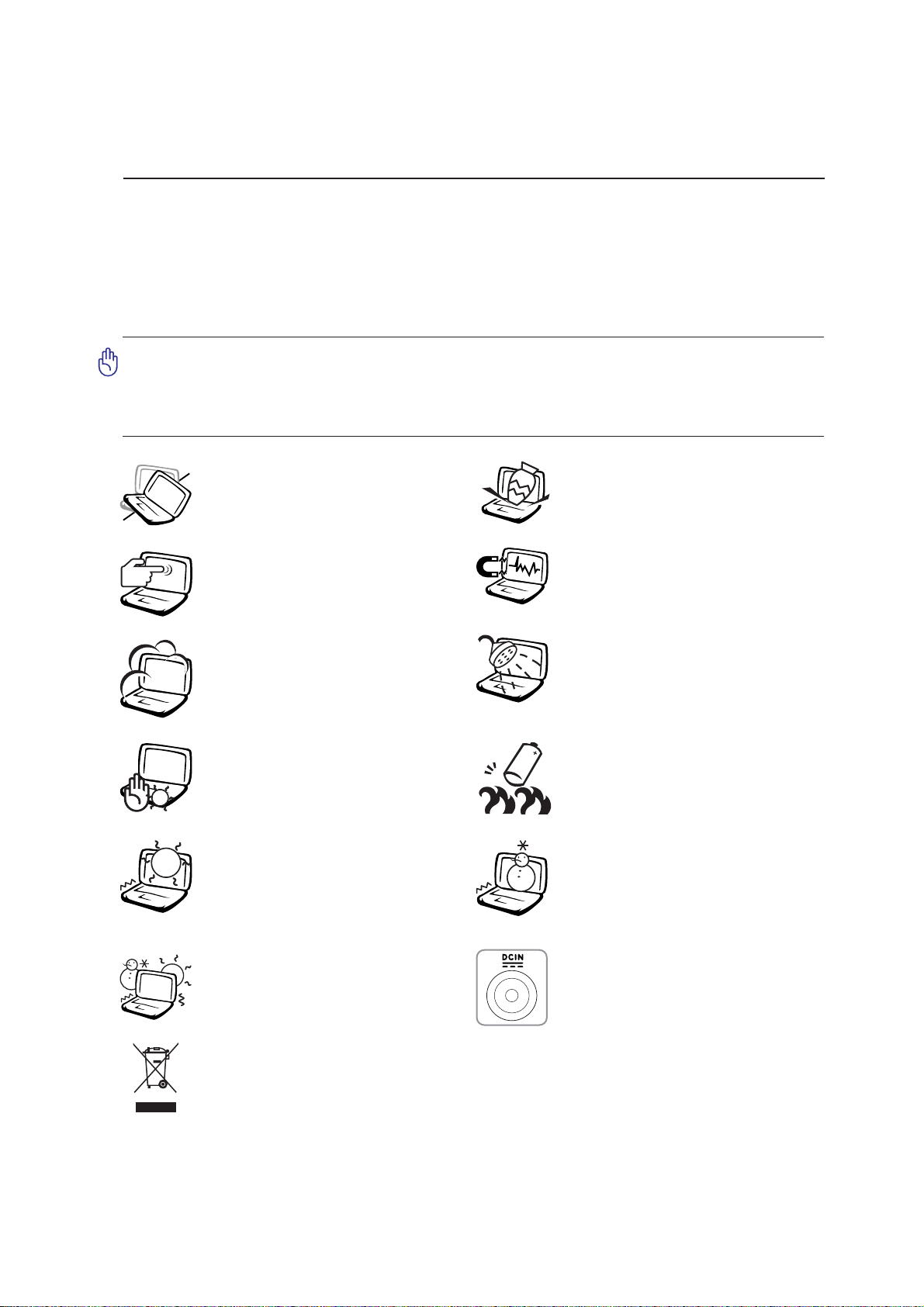

Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the
Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solu-
tion of nonabrasive detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT expose to or use near liq-
uids, rain, or moisture. DO NOT use
the modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
DONOTexposetoextremetemperatures
above 50˚C (122˚F) or to direct sunlight.
Do not block the fan vents!
DO NOT throw batteries in fires as
they may explode. Check local codes
for special battery disposal instruc-
tions.
DO NOT expose to extreme tempera-
tures (below 0˚C (32˚F), otherwise the
Notebook PC may not boot.
DO NOT expose to strong magnetic
or electrical fields.
DONOTplace on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with small
itemsthat may scratch orentertheNote-
book PC.
DO NOT leave the Notebook PC on
your lap or any part of the body while
the Notebook PC is turned ON or is
charging in order to prevent discom-
fort or injury from heat exposure.
SAFE TEMP: This notebook PC
should only be used in environments
with ambient temperatures between
0°C (32°F) and 35°C (95°F).
INPUT RATING: Must only receive
power input of 19VDC, 4.74A (90W).
Thesymbol ofthe crossedoutwheeled binindicates thatthe product(electrical and electronic
equipment) should not be placed in municipal waste. Please check local regulations for
disposal of electronic products.

8
1Introducing the Notebook PC
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external
peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power
is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not
transport the Notebook PC while the power is still ON. Close the display panel and check that it is
latched securely in the closed position to protect the keyboard and display panel.
Cover Your Notebook PC
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walk-
ing through security checks), and magnetic wands (hand-held devices used on people
or individual items). You can send your Notebook PC and diskettes through airport X-
ray machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
CAUTION: The Notebook PC’s surface is easily dulled if not properly
cared for. Be careful not to rub or scrape the Notebook PC surfaces
when transporting your Notebook PC. You can purchase an optional
carrying case to protect it from dirt, water, shock, and scratches.

9
Introducing the Notebook PC 1

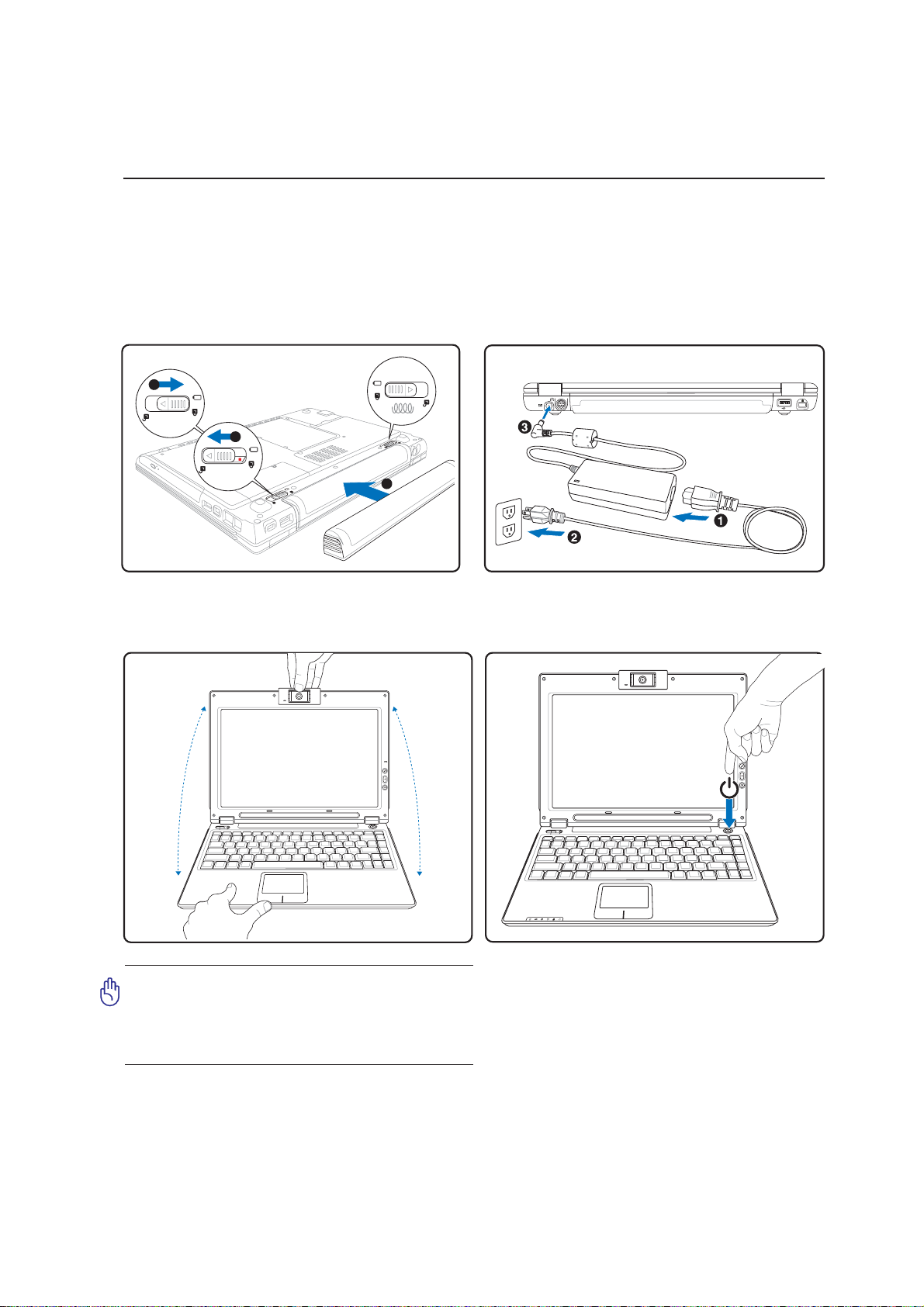

Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed
information on using your Notebook PC.
1. Install the battery pack
3. Open the Display Panel 4. Turn ON the Notebook PC
2.Connectthe ACPower Adapter
Press the power button and release.
(In Windows XP, this button can also be used to
safely turn OFF the Notebook PC.)
3
1
2
IMPORTANT! When opening, do not force
the display panel down to the table or else
the hinges may break! Never lift the Note-
book PC by the display panel!

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC

12
2Knowing the Parts

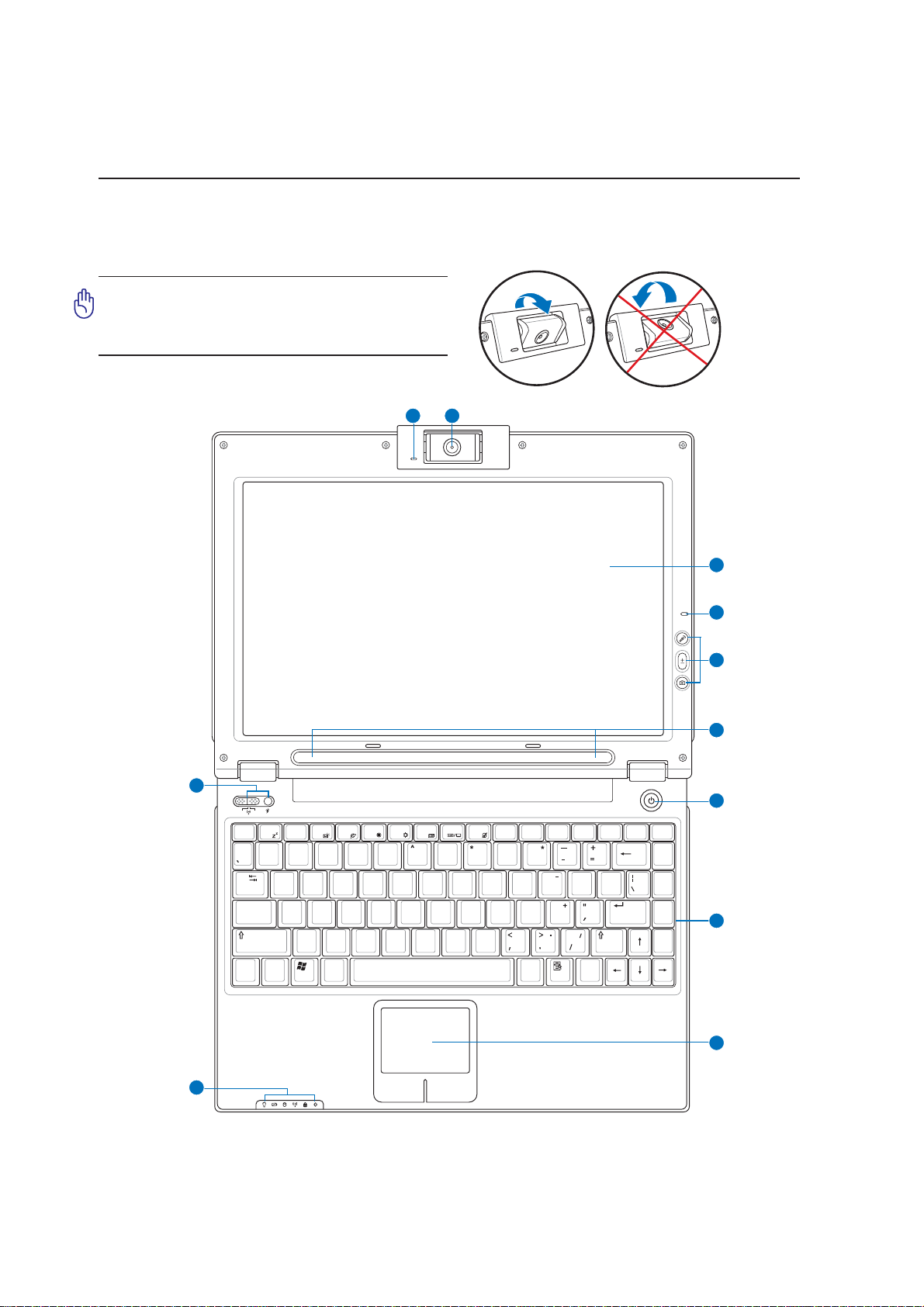

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
ON OFF
Num LK
1
!
#
@
$
%
&()
234567890
QWERT Y UI O
ASDFGHJKL:
;
ZXCVBNM ?
P
{
[
}
]
Tab
ShiftShift
Fn Ctrl Ctrl
Alt Alt
Caps
Lock
~
End
Pg Dn
Pg Up
Home
Scr Lk
DeleteInsert
Sys Rq
Prt ScPause
Break
Enter
Enter
Backspace
Esc
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
1
456
789
0
23
2
4
7
5
8
9
3
1
11
6
10
Important: The camera can be used in two
positions: facing forward or facing back-
ward but must be rotated downward.
Rotate downwards DO NOT rotate upwards

13
Knowing the Parts 2
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an
active matrix TFT LCD, which provides excellent viewing like that of desktop monitors.
Unlike desktop monitors, the LCD panel does not produce any radiation or flickering, so
it is easier on the eyes. Use a soft cloth without chemical liquids (use plain water if neces-
sary) to clean the display panel.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed)
and palm rest for both hands. Two Windows function keys are provided to help ease navigation in the
Windows operating system.
4
5
6
7
8
9
Microphone
The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio
recordings.
2
3
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video conferencing and
other interactive applications.
Mic Mute, Volume, and Camera Buttons
Details are described in section 3.
Wireless Switch and Power4 Gear Button
Details are described in section 3.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse.
A software-controlled scrolling function is available after setting up the included touchpad utility to
allow easy Windows or web navigation.
Power Switch
The power switch allows powering ON and OFF the Notebook PC and recovering from STD. Push the
switch once to turn ON and once to turn OFF the Notebook PC. The power switch only works when the
display panel is opened.
Status Indicators
Status indicator details are described in section 3.
1
1
010
Camera Indicator
The camera indicator lets you know when the camera is in use.
1
1
Stereo Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments. The multi-
media sound system features an integrated digital audio controller that produces rich, vibrant sound
(results improved with external stereo headphones or speakers).Audio features are software controlled.

14
2Knowing the Parts
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC. Some labels
identify components inside removable panels.
1
2
4
56
7
8
9
31
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will
automatically lock. To remove the battery pack, this spring lock must be held in the unlocked position.
WARNING! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. Do not use on soft surfaces
such as beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC
ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.

15
Knowing the Parts 2
WLAN Expansion Compartment
The WLAN expansion compartment contains a slot to accomodate a wireless networking card in order
to wirelessly connect to network access points or other wireless networking devices.
Battery Pack
The battery pack is automatically charged when connected to anAC power source and maintains
power to the Notebook PC when AC power is not connected. This allows use when moving
temporarily between locations. Battery time varies by usage and by the specifications for this
Notebook PC. The battery pack cannot be disassembled and must be purchased as a single unit.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked
position to insert or remove the battery pack. Move the manual lock to the locked position after insert-
ing the battery pack.
Shutdown Button (Emergency)
In case your operating system cannot properly turn OFF or restart, the shutdown button
can be pressed with a straightened paper clip to shutdown the Notebook PC.
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Hard disk drive upgrades are to
be done by authorized service centers or dealers only.
2
3
4
5
6
7
8
Central Processor (CPU)
Some Notebook PC models feature a socketed-processor design to allow upgrading to faster processors
in the future. Some models feature a ULV design for compactness and may not be upgraded. Visit an
authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory.Additional memory
will increase application performance by decreasing hard disk access. The BIOS automatically detects
the amount of memory in the system and configures CMOS accordingly during the POST (Power-On-
Self-Test) process. There is no hardware or software (including BIOS) setup required after the memory
is installed. Visit an authorized service center or retailer for information on memory upgrades for your
Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC to
ensure maximum compatibility and reliability.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating of the Notebook PC may occur.
9

16
2Knowing the Parts

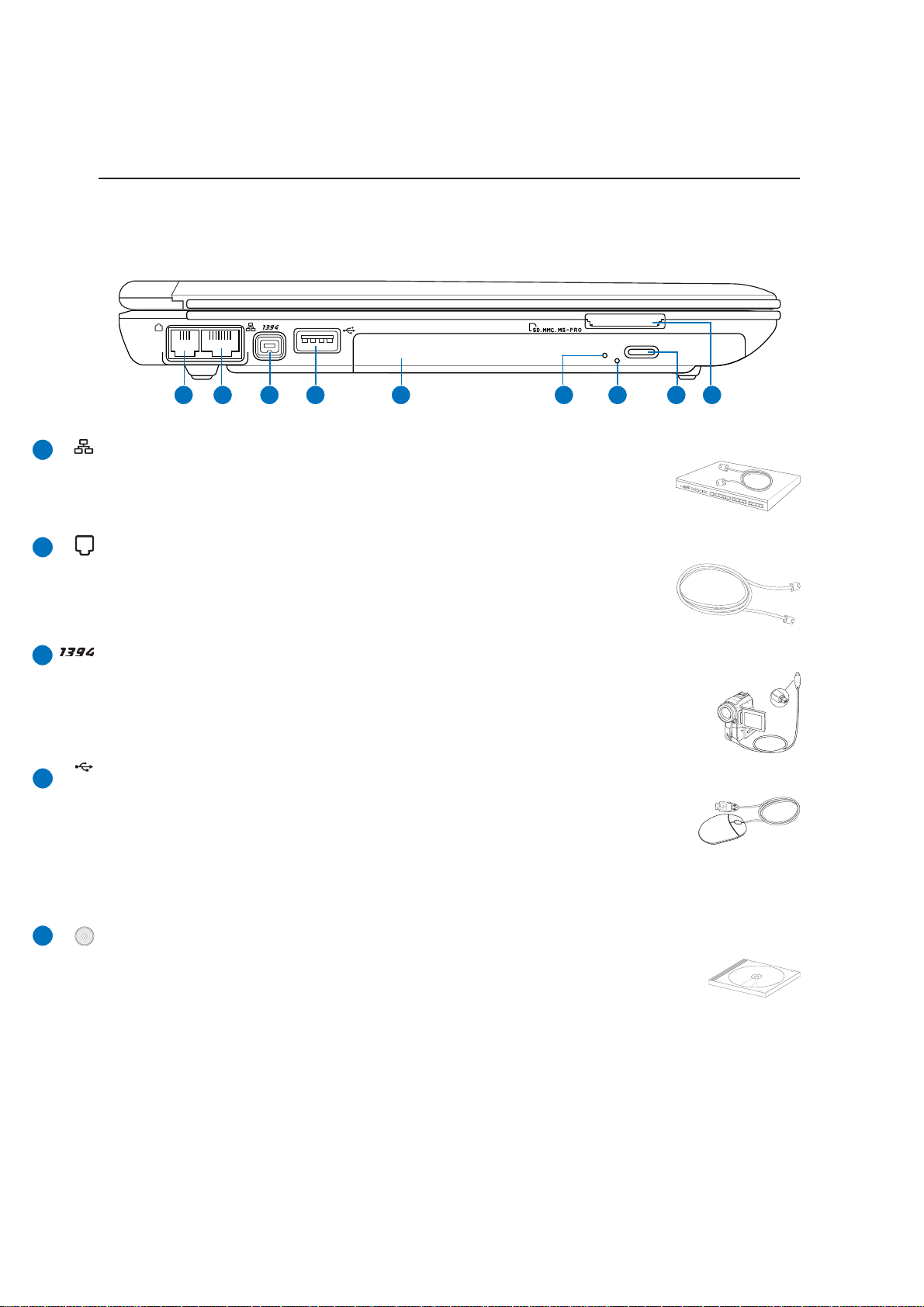

Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and sup-
ports a standard Ethernet cable for connection to a local network. The built-in con-
nector allows convenient use without additional adapters.
Modem Port
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and sup-
ports a standard telephone cable. The internal modem supports up to 56KV.90 trans-
fers. The built-in connector allows convenient use without additional adapters.
IEEE1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-
plugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400
Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in high-
end digital equipment and should be marked “DV” for Digital Video port.
2.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners con-
nected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB
allows many devices to run simultaneously on a single computer, with peripherals such as USB key-
boards and some newer monitors acting as additional plug-in sites or hubs. USB supports hot-swapping
of devices so that most peripherals can be connected or disconnected without restarting the computer.
2
3
4
5
1
1 2 43 5 76 8 9
Optical Drive (type varies by model)
The Notebook PC comes in various models with different optical drives. The Notebook
PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD)
and may have recordable (R) or re-writable (RW) capabilities. See the marketing
specifications for details on each model.

17
Knowing the Parts 2
6

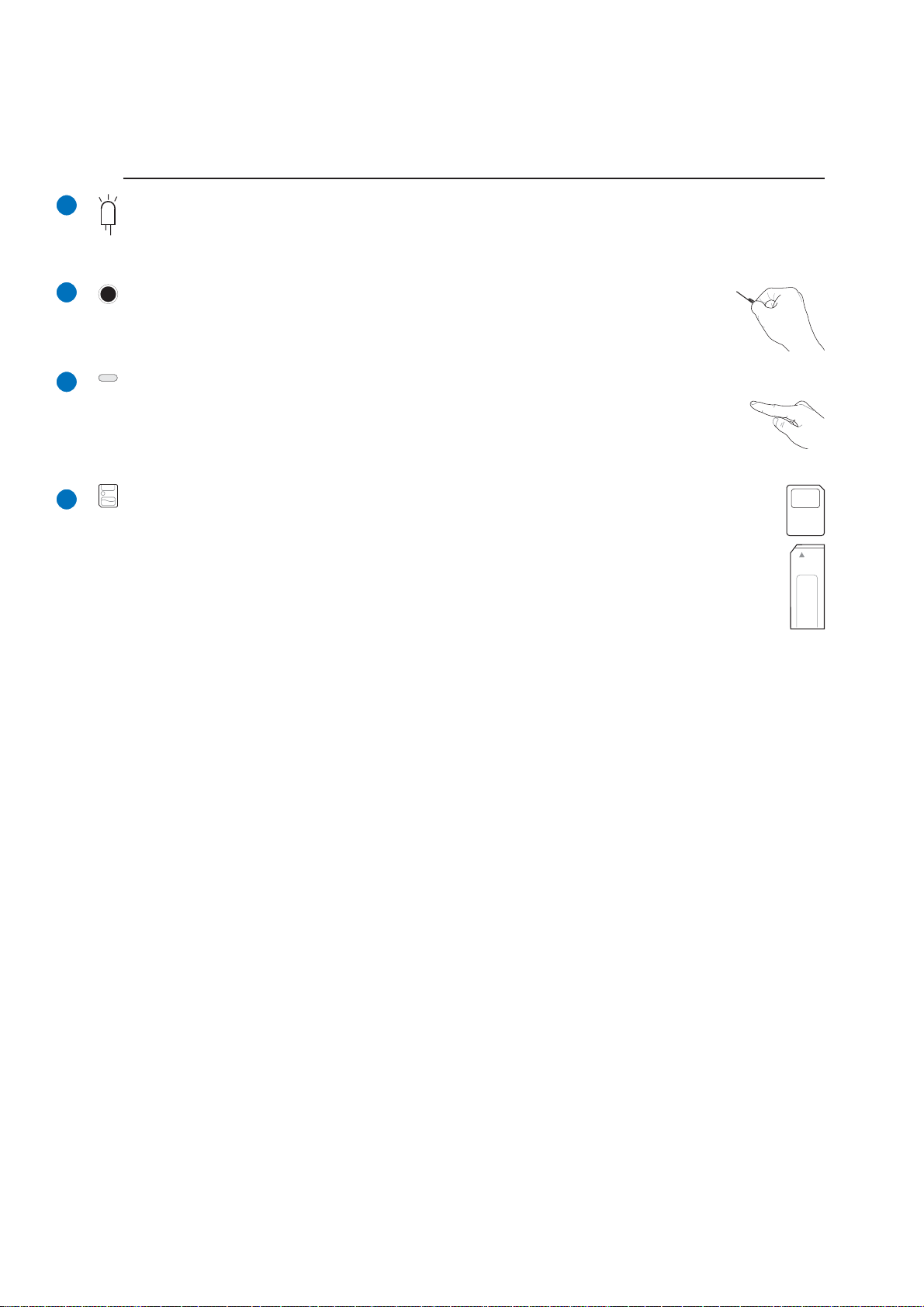

Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order to
use memory cards from devices such as digital cameras, MP3 players, mobile phones, and
PDAs. This Notebook PC has a built-in memory card reader that can read many flash memory
cards as specified later in this manual. The built-in memory card reader is not only conve-
nient, but also faster than most other forms of memory card readers because it utilizes the
high-bandwidth PCI bus.
Optical Drive Emergency Eject (location varies by model)
The emergency eject is used to eject the optical drive tray in case the electronic eject
does not work. Do not use the emergency eject in place of the electronic eject.
Optical Drive Electronic Eject (location varies by model)
The optical drive eject has an electronic eject button for opening the tray. You can also eject
the optical drive tray through any software player or by right clicking the optical drive in
Windows™ “My Computer.”
Optical Drive Activity Indicator (location varies by model)
The optical drive activity indicator shows when data is being transferred by the optical disk drive. This
indicator will light in porportion to the data size transferred.
8
7
9

18
2Knowing the Parts
Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a
monitor or projector to allow viewing on a larger external display.
2
3
4
5
6
1
1 2 43 5 6
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or
output signals from audio devices. Using this jack automatically disables the built-in micro-
phone. Use this feature for video conferencing, voice narrations, or simple audio recordings.
SPDIF Output Jack (on selected models)
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant de-
vices for digital audio output. Use this feature to turn the Notebook PC into a hi-fi home
entertainment system.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplified speakers or headphones. Using this jack automatically disables the built-in speakers.
Combo
Audio Volume Control (details in section 3)
Audio volume (stereo speakers and headphone jack) can be instantly adjusted using this
physical dial in order to make listening to audio CD’s or watching movies more convenient.
2.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners con-
nected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB
allows many devices to run simultaneously on a single computer, with peripherals such as USB key-
boards and some newer monitors acting as additional plug-in sites or hubs. USB supports hot-swapping
of devices so that most peripherals can be connected or disconnected without restarting the computer.
ExpressCard Slot
One 26pin Express card slot is available to support one ExpressCard/34mm or one
ExpressCard/54mm expansion card. This new interface is faster by using a serial bus
supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC
card slot. (Not compatible with previous PCMCIA cards.)

19
Knowing the Parts 2
Rear Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
TV-Out Port
The TV-Out port is an S-Video connector that allows routing the Notebook
PC’s display to a television or video projection device. You can choose be-
tween simultaneouly or single display. Use an S-Video cable (not provided)
for high quality displays or use the provided RCA to S-Video adapter for
standard video devices. This port supports both NTSC and PAL formats.
2
3
4
5
1
1 2 43 5
Kensington®Lock Port
The Kensington lock port allows the Notebook PC to be secured using Kensington com-
patible Notebook PC security products. These security products usually include a metal
cable and lock that prevent the Notebook PC to be removed from a fixed object. Some
security products may also include a motion detector to sound an alarm when moved.
Battery Pack
The battery pack is automatically charged when connected to anAC power source and maintains
power to the Notebook PC when AC power is not connected. This allows use when moving
temporarily between locations. Battery time varies by usage and by the specifications for this
Notebook PC. The battery pack cannot be disassembled and must be purchased as a single unit.
2.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners con-
nected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB
allows many devices to run simultaneously on a single computer, with peripherals such as USB key-
boards and some newer monitors acting as additional plug-in sites or hubs. USB supports hot-swapping
of devices so that most peripherals can be connected or disconnected without restarting the computer.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to theASUS Notebook PC and charges
the internal battery pack. To prevent damage to the ASUS Notebook PC and battery
pack, always use the supplied power adapter. CAUTION: MAY BECOME WARM TO
HOTWHEN INUSE. BESURENOTTOCOVERTHEADAPTERAND KEEPITAWAY
FROM YOUR BODY.

20
2Knowing the Parts
Front Side
Refer to the diagram below to identify the components on the front side of the Notebook PC.
1
1
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video conferencing and
other interactive applications.
