Asus X510 Series Installation instructions

Disassembly Procedure
V1.0
2 - 1
Disassembly and Assembly
Please follow the information provided in this section to perform the
complete disassembly procedure of the notebook. Be sure to use proper
tools described before.
SUS X510 Series Notebook consists of various modules. This chapter describes the
procedure for the complete notebook disassembly and assembly (Assemble process please
look up from the last page). In addition, in between procedures, the detailed disassembly
(assembly) procedure of individual modules will be provided for your service needs.
The disassembly procedure consists of the following steps:
Service overview
Appropriate Tools
Bottom Case Module
HDD Module
WLAN Module
Battery Module
SSD Module
Thermal Assy & FAN Module
Memory Module
IO Board
HDDBoard
Motherboard Module
Speaker Module
Touchpad Module
LCD Module
Chapter
2
A

Disassembly Procedure
V1.0
2 - 2
Service Overview

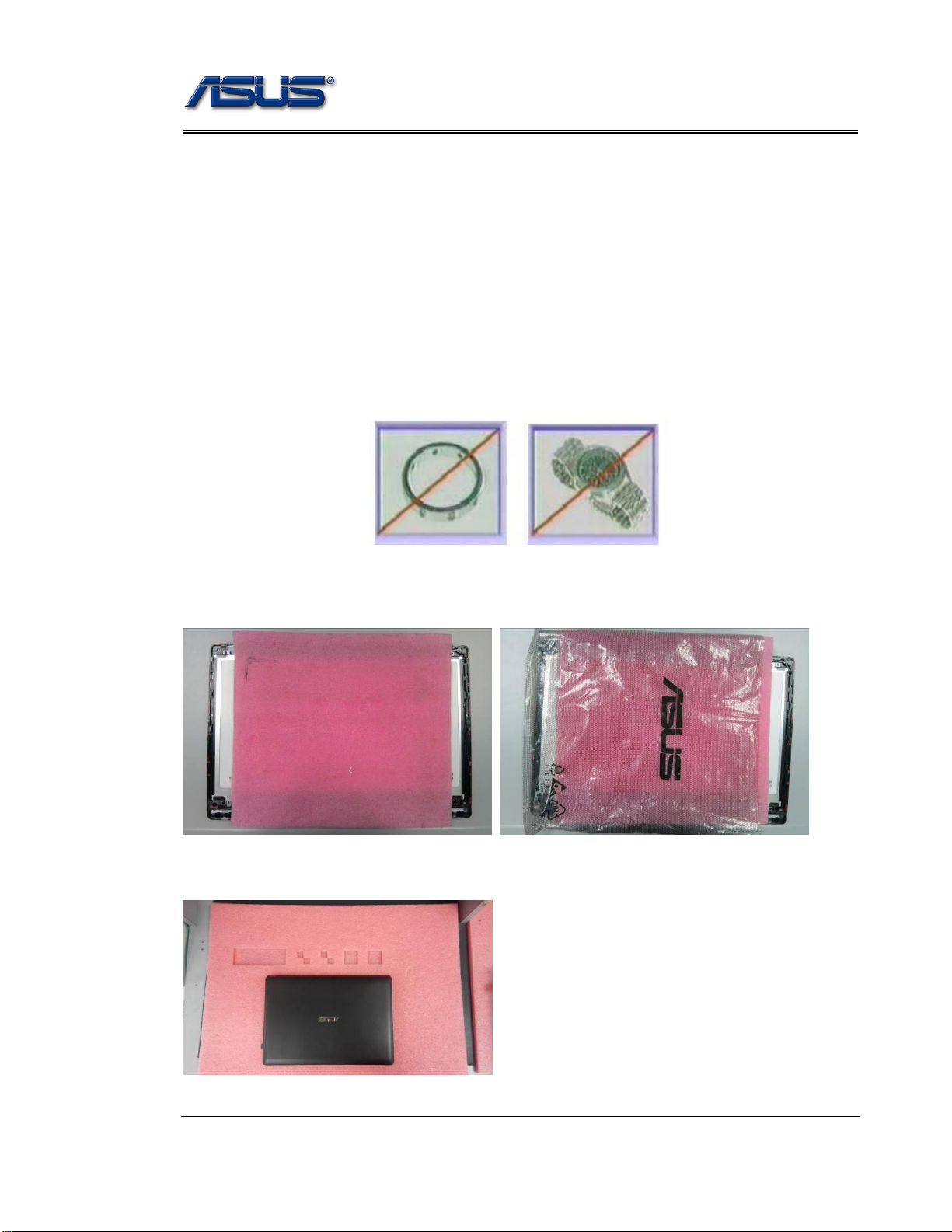

Please pay special attention to the cautions below to prevent any damages to the notebook and also
please be sure to select the appropriate tools described in this section to perform any services desired.
Precautions
Before you perform any service and or repair on the notebook, please follow the steps below first.
1. Be sure that the notebook is powered down.
2. Disconnect the AC plug from the notebook.
3. Remove all rings, watches and any other metal objects from your hands.
4. Always wear a ground strap on your hand to protect the notebook from static discharge.
5. Please refer to “ANSI ESD S20.20”about ESD protection measure.
6. Put disassemble the parts in the functional PE BAG for avoid any damages of the A/B/C/D
part.
7. Environment temperature is 20-30 ℃and humidity is 40% - 70%.
8. Avoid scratching the surface of the machine, please use anti-static and soft materials to put on
desk in repair environment as below photo.

Disassembly Procedure
V1.0
2 - 3
9. Screw Appearance Criteria.
If the screws have the following damaged appearance, please do not use.
a. Shape deformed
b. Paint scratched off
c. Rusty
d. Damaged head –unable to drive in
e. Damaged unable to securely tighten
BACK

Disassembly Procedure
V1.0
2 - 4
Appropriate Tools
The illustrations below show the appropriate tools that should be used for the notebook’s service and
repair.
Cross Screwdriver
Please accord to different screw specification to choose different screwdriver and head.
Below photos are for reference only.
Use a cross screwdriver to fasten/remove screws.
Plastic Blade (PN: 20LT0-0005O000)

Disassembly Procedure
V1.0
2 - 5
Tweezers
Use a pair of tweezers to remove/insert flexible cables.
Thickness gauge (PN: 20LT0-0002J000)
Thickness compass specification 0.05mm-1.5mm
Use it to measure the gap.
BACK

Disassembly Procedure
V1.0
2 - 6
Bottom Case Module
The illustrations below show how to remove the Bottom Case Module.
Remove Bottom Case Module
1. Follow below numbers to remove 10 screws on the Bottom Case.
Assembly Notice: follow the reverse numbers to lock screws.
Screw tightening torque:[1-7] 2.0±0.2 kgf-cm,[8-9] 2.0±0.2 kgf-cm,[10] 2.0±0.2 kgf-cm
1
2
3
4
6
5
9
7
8
10
SCREW M2*6L (K) W-NI,NY
SCREW M2*3L D4.5 (K) W-NI NY
SCREW M2*8.5L(4.5,0.75) (K)#1

Disassembly Procedure
V1.0
2 - 7
2. Remove 2 rubber cover on the bottom case and remove 2 screws under it.
Be careful to use tweezers to avoid scratching the cover.
Assembly Notice: Screw tightening torque:3.0±0.2 kgf-cm
SCREW M2.5*8L (K) B-ZN,NY

Disassembly Procedure
V1.0
2 - 8
3. Using a plastic blade to pry up the bottom case away by following the hook position below.
BACK
Parts:
Total screw * 12
X510UA-1A BOT CASE ASSY * 1
(Actual part name depends on different SKU.)
Please pry open bottom
case from this location

Disassembly Procedure
V1.0
2 - 9
HDD Module
The illustrations below show how to remove the HDD from the notebook.
Remove HDD Module
1. Disconnect the battery cable.
Notice: Before disassembly, please be sure to pull out adapter and disconnect the battery
more than ten seconds in order to avoid IC damage.
Disconnect the battery cable by hand instead of using a tweezer , in order to avoid short circult.
2. Tear up the mylar and follow below numbers to remove 4 screws and take HDD module away.
Assembly Notice: follow the reverse numbers to lock screws.
Screw tightening torque: [1-2]2.0±0.25kgf-cm,[3-4]2.0±0.25kgf-cm

Disassembly Procedure
V1.0
2 - 10
3. Follow below numbers to remove 4 screws on the bracket.
Assembly Notice: follow the reverse numbers to lock screws.
Screw tightening torque: 2.5+0.5kgf-cm
1
2
4
3
SCREW M2*6L (K) W-NI,NY
1
2
3
4
SCREW M2*3L D4.5 (K) W-NI NY

Disassembly Procedure
V1.0
2 - 11
BACK
Parts:
Total screw * 8
X510UA HDD SATA3 2.5' 2T5 * 1
X510UA HDD RF GASKET* 1
X510UA-1A HDD MYLAR* 1
(Actual part name depends on different SKU.)
SCREW M3*3L (K)
W-NI,NY

Disassembly Procedure
V1.0
2 - 12
WLAN Module
The illustrations below show how to remove the WLAN Module from the notebook.
1. Disconnect the antenna cable.
2. Remove 1 screw on the WLAN card and take the WLAN card away.
Screw tightening torque: 2.0±0.2kgf-cm
SCREW M2*3L D4.5 (K) W-NI NY

Disassembly Procedure
V1.0
2 - 13
BACK
Parts:
Total screw * 1
802.11AC+BT4.2(2*2)M.2_WW_MSQ * 1
(Actual part name depends on different SKU.)

Disassembly Procedure
V1.0
2 - 14
Battery Module
The illustrations below show how to remove the battery from the notebook.
1. Follow below numbers to remove 3 screws on the battery and take the battery away.
Assembly Notice: follow the reverse numbers to lock screws.
Screw tightening torque: 2.0+0.5kgf-cm
Assembly Notice: Please well arrange the antenna and put it in the hook slot as below.
BACK
Parts:
Total screw * 3
X510UA BATT 3CELL 42WH* 1
(Actual part name depends on different SKU.)
1
2
3
SCREW M2*6L (K) W-NI,NY

Disassembly Procedure
V1.0
2 - 15
SSD Module
The illustration below shows how to remove the SSD module.
1. Remove 1 screw from SSD and take it away.
Screw tightening torque: 2.0±0.2kgf-cm
BACK
Parts:
Total screw * 1
X510UA SSD M2 2280 S3 512G*1
(Actual part name depends on different SKU.)
SCREW M2*1.8L+0.7(5.7,0.8)
(K)

Disassembly Procedure
V1.0
2 - 16
Thermal Assy & FAN Module
1.Use a plastic plade to disconnect the FAN cable and follow the numbers to remove 7 screws on the
thermal module and take it away.
Assembly Notice: follow the reverse numbers to lock screws.
Screw tightening torque: 2.0±0.25kgf-cm
Notice: If the CPU or GPU Thermal pad is melt, please change a new one.
13NB0C10T03011 K401UQK TH PAD 25*12//翰興
13GNWU10T010-1 UL50ATH CPU PAD//APUS
BACK
Parts:
Total screw * 7
X510UQ TH MOD ASSY * 1
X510UQ THERMAL FAN * 1
(Actual part name depends on different SKU.)
1
2
3
SCREW M2*3L D4.5 (K) W-NI NY
4
5
6
7

Disassembly Procedure
V1.0
2 - 17
Memory Module
The illustrations below show how to remove and disassemble the memory of the notebook.
1. Pull four latches here to pop the Memory module up at 45angles, and then pull out the module
at that angle.
2. Take the memory away.
BACK
Parts:
X510UA DDR4 2400 8G * 2
(Actual part name depends on different SKU.)

Disassembly Procedure
V1.0
2 - 18
IO Board
The illustrations below show how to disassemble and remove the IO Board.
1. Disconnect IO FFC from MB.
Assembly notice: 1) Insert FFC to the bottom until just accord with the line when lock the latch.
2) Please check whether the appearance of FFC/FPC is intact (not broken) and press the cable carefully before
assembly.
2. Remove 1 screw from hinge, pull up the hinge and take the IO board away.
Assembly Notice: Screw tightening torque: 3.0±0.25kgf-cm

Disassembly Procedure
V1.0
2 - 19
3. Disconnect the IO FFC from the IO Board.
Assembly notice: 1) Insert FFC to the bottom until just accord with the line when lock the latch.
2) Please check whether the appearance of FFC/FPC is intact (not broken) and press the cable carefully before
assembly.
BACK
Parts:
Total screw * 1
X510UQ IO_BD.* 1
X510UA IO FFC 32P 0.5P L91.5 * 1
(Actual part name depends on different SKU.)
SCREW M2.5*4 (K) W-NI #1
NY

Disassembly Procedure
V1.0
2 - 20
HDD Board
The illustrations below show how to disassemble and remove the HDD Board.
1. Remove 1 screw from hdd board and take the it away.
Assembly Notice: Screw tightening torque: 2.0±0.25kgf-cm
BACK
SCREW M2*3L D4.5 (K)
W-NI NY
Parts:
Total screw * 1
X510UQ HDD_BD. * 1
(Actual part name depends on different SKU.)
