Asus TUF GAMING B560M-PLUS WIFI User manual

Motherboard
TUF GAMING
B560M-PLUS WIFI

ii
E19912
Revised Edition V2
February 2022
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Safety information...................................................................................................... iv
About this guide.......................................................................................................... v
Package contents....................................................................................................... vi
TUF GAMING B560M-PLUS WIFI specications summary..................................... vi
Connectors with shared bandwidth .......................................................................... x
Chapter 1 Product Introduction
1.1 Before you proceed...................................................................................... 1-1
1.2 Motherboard overview ................................................................................. 1-1
1.3 Central Processing Unit (CPU).................................................................... 1-8
1.4 System memory............................................................................................ 1-9
1.5 Wi-Fi antennas installation........................................................................ 1-10
Chapter 2 BIOS Information
2.1 Knowing BIOS............................................................................................... 2-1
2.2 BIOS Setup program .................................................................................... 2-2
2.3 ASUS EZ Flash 3........................................................................................... 2-3
2.4 ASUS CrashFree BIOS 3.............................................................................. 2-4
Appendix
Notices ..................................................................................................................... A-1
Warranty................................................................................................................... A-8
ASUS contact information.................................................................................... A-10
Service and Support ............................................................................................. A-10

iv
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.

v
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS Information
This chapter tells how to boot into the BIOS and upgrade BIOS using the EZ Flash
Utility.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to
yourself when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

vi
TUF GAMING B560M-PLUS WIFI specications summary
CPU
Intel®Socket LGA1200 for 11th Gen Intel®Core™ processors & 10th Gen
Intel®Core™, Pentium®Gold and Celeron®Processors
Supports Intel®14 nm CPU
Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel®B560 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/
4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/
3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Prole (XMP)
OptiMem II
* 10
th
Gen Intel
®
Core™ i7/ i9 processors support 2933/2800/2666/2400/2133 natively,
others will run at the maximum transfer rate of DDR4 2666.
* 11
th
Gen Intel
®
processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualied Vendors Lists), and
memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.4**
1 x HDMI®1.4 / 2.0***
* Graphics specications may vary between CPU types.
** Intel
®
11
th
& 10
th
Gen processors support DisplayPort 1.4 with max. resolution of
4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
***Only Intel
®
11
th
Gen processors support HDMI
®
2.0 with max. resolution of
4K@60Hz, others will only support HDMI
®
1.4 with max. resolution of 4K@30Hz.
Please refer to www.intel.com for any updates.
Expansion Slots
Intel®11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel®11th Gen processors support PCIe 4.0 x16
- Intel®10th Gen processors support PCIe 3.0 x16
Intel®B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard 1 x TUF GAMING B560M-PLUS WIFI motherboard
Cables 2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Installation Media 1 x Support DVD
Documentation 1 x TUF Certication card
1 x User manual
If any of the above items is damaged or missing, contact your retailer.

vii
TUF GAMING B560M-PLUS WIFI specications summary
Storage
Total supports 2 x M.2 slot and 6 x SATA 6Gb/s ports
Intel® 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel®11th Gen processors support PCIe 4.0 x4 mode, this slot will
be disabled for other CPUs
Intel®B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA
modes)
6 x SATA 6Gb/s ports
* To enable Intel®Optane™ Memory (Hybrid Storage device), it must be installed
in PCH-attached slots with Intel®Rapid Storage Technology.
* M.2_2 slot shares bandwidth with SATA6G_2.When M.2_2 slot is operating in
SATA mode, SATA6G_2 will be disabled.
Ethernet Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless &
Bluetooth
Intel®Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later
USB
Rear USB (Total 9 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC897 7.1 Surround Sound High Denition Audio CODEC
- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
(continued on the next page)

viii
TUF GAMING B560M-PLUS WIFI specications summary
Internal I/O
Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
AURA Sync
- AURA RGB headers
- AURA Addressable Gen 2 RGB headers
(continued on the next page)

ix
TUF GAMING B560M-PLUS WIFI specications summary
Software
Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating
System Windows®10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• Specications are subject to change without notice. Refer to
the ASUS website for the latest specications.
• MyASUS offers a variety of support features such as helping
to troubleshoot issues, optimizing product performance,
integrating ASUS software, and recovery drive creation.
Please scan the QR Code for installation guide and FAQ.

x
Connectors with shared bandwidth
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2* (64bit, 288-pin module) DDR4 DIMM_B1 (64bit, 288-pin module) DDR4 DIMM_B2* (64bit, 288-pin module)
DIGI+
VRM
CPU_FAN
CPU_OPT
COM_DEBUG
CHA_FAN2 CHA_FAN1
TB_HEADER
RGB_HEADER1
RGB_HEADER2
ADD GEN 2_1 PANEL
AAFP
CLRTC
SATA6G_6 SATA6G_5
SATA6G_3 SATA6G_2 SATA6G_1
SATA6G_4
128Mb
BIOS
ATX_12V
ATX_PWR
U32G1_56
A
A
U32_4
BATTERY
LAN_U32G2_12
USB_E5_71011
U32G1_E12
U32G1_EC3
HDMI
_DP
ASM
1442K
AUDIO
Ethernet
CNVI(WIFI)
Super
I/O
PCIEX1
M.2_1(SOCKET3)
M.2_2(SOCKET3)
2280 2260 2242
AURA
228022602242
PCIEX16_2
PCIEX16_1
USB_E34USB_E12
COM
Intel®
B560
M.2_2(SOCKET3)
PCIE SATA IRST
3.0 X4 V V
LGA1200
BOOT
VGA
DRAM
CPU
M.2_1(SOCKET3)
PCIE SATA
4.0 X4
RAID ON CPU
X X
Audio
CODEC
ADD GEN 2_2
Conguration 1 2
AM.2_2 x4 (PCIe mode) V (SATA mode)
SATA6G_2 V -
M.2_2 slot shares bandwidth with SATA6G_2.When M.2_2 slot is operating in SATA mode,
SATA6G_2 will be disabled.

ASUS TUF GAMING B560M-PLUS WIFI 1-1
Product Introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.
1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2* (64bit, 288-pin module) DDR4 DIMM_B1 (64bit, 288-pin module) DDR4 DIMM_B2* (64bit, 288-pin module)
DIGI+
VRM
CPU_FAN
CPU_OPT
COM_DEBUG
CHA_FAN2 CHA_FAN1
TB_HEADER
RGB_HEADER1
RGB_HEADER2
ADD GEN 2_1 PANEL
AAFP
CLRTC
SATA6G_6 SATA6G_5
SATA6G_3 SATA6G_2 SATA6G_1
SATA6G_4
128Mb
BIOS
ATX_12V
ATX_PWR
U32G1_56
U32_4
BATTERY
LAN_U32G2_12
USB_E5_71011
U32G1_E12
U32G1_EC3
HDMI
_DP
ASM
1442K
AUDIO
Ethernet
CNVI(WIFI)
Super
I/O
PCIEX1
M.2_1(SOCKET3)
M.2_2(SOCKET3)
2280 2260 2242
AURA
228022602242
PCIEX16_2
PCIEX16_1
USB_E34USB_E12
COM
24.4cm(9.6in)
24.4cm(9.6in)
Intel®
B560
M.2_2(SOCKET3)
PCIE SATA IRST
3.0 X4 V V
LGA1200
BOOT
VGA
DRAM
CPU
M.2_1(SOCKET3)
PCIE SATA
4.0 X4
RAID ON CPU
X X
Audio
CODEC
ADD GEN 2_2
9
8
6
13
7
5
4 12 111415
3
5 16 24
74171610
18 1112
The pin denitions in this chapter are for reference only. The pin names depend on the
location of the header/jumper/connector.

1-2 Chapter 1: Product Introduction
1.2.1 Layout contents
1. CPU socket
The motherboard comes with a surface mount Intel®Socket LGA1200 designed for 11th Gen
Intel®Core™ processors & 10th Gen Intel®Core™, Pentium®Gold and Celeron®Processors.
For more details, refer to Central Processing Unit (CPU).
2. DDR4 DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4
(Double Data Rate 4) memory modules.
For more details, refer to System memory.
3. Expansion slots
This motherboard supports two PCIe x16 graphics cards and one PCIe 3.0 x1 network card,
SCSI card or other card that complies with the PCI Express specication.
4. Fan headers
The Fan headers allow you to connect fans to cool the system.
Header Max.
Current Max. Power Default Speed Shared Control
CPU_FAN 1A 12W Q-Fan Controlled A
CPU_OPT 1A 12W Q-Fan Controlled A
CHA_FAN1 1A 12W Q-Fan Controlled -
CHA_FAN2 1A 12W Q-Fan Controlled -
5. Power connectors
These Power connectors allow you to connect your motherboard to a power supply. The
power supply plugs are designed to t in only one orientation. Find the proper orientation and
push down rmly until the power supply plugs are fully inserted.
Ensure to connect the 8-pin power plug.
• For a fully congured system, we recommend that you use a power supply unit
(PSU) that complies with ATX 12V Specication 2.0 (or later version) and provides a
minimum power of 350W.
• We recommend that you use a PSU with a higher power output when conguring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system, we
recommend you to refer to online resources for Power Supply Wattage Calculator.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with
1000W power or above to ensure the system stability.
6. M.2 slot (Key M)
The M.2 slot allows you to install an M.2 device such as an M.2 SSD module.
FAN PWM
FAN IN
FAN PWR
GND
GND FAN PWR FAN IN FAN PWM

ASUS TUF GAMING B560M-PLUS WIFI 1-3
• M.2_1 slot (Key M), type 2242/2260/2280 (Only Intel®11th Gen processors support
PCIe 4.0 x4 mode, this slot will be disabled for other CPUs)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• To enable Intel®Optane™ Memory (Hybrid Storage device), it must be installed in
PCH-attached slots with Intel®Rapid Storage Technology.
• M.2_2 slot shares bandwidth with SATA6G_2.When M.2_2 slot is operating in SATA
mode, SATA6G_2 will be disabled.
7. SATA 6Gb/s ports
The SATA 6Gb/s ports allow you to connect SATA devices such as optical disc drives and
hard disk drives via SATA cables.
8. USB 3.2 Gen 1 connector (supports USB Type-C®)
The USB 3.2 Gen 1 connector (USB Type-C®) allows you to connect a
USB 3.2 Gen 1 module for an additional USB 3.2 Gen 1 Type-C®port.
The connector provides a data transfer speed of up to 5 Gb/s.
9. USB 3.2 Gen 1 header
The USB 3.2 Gen 1 header allows you to connect a USB 3.2 Gen
1 module for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1
header provides data transfer speeds of up to 5 Gb/s.
The USB 3.2 Gen 1 module is purchased separately.
10. USB 2.0 headers
The USB 2.0 headers allow you to connect a USB module for additional USB
2.0 ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.
DO NOT connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
The USB 2.0 module is purchased separately.
11. AURA Addressable Gen 2 headers
The Addressable Gen 2 headers allow you to connect individually addressable
RGB WS2812B LED strips or WS2812B based LED strips.
The Addressable Gen 2 headers support WS2812B addressable RGB LED strips (5V/Data/
Ground), with a maximum power rating of 3A (5V), and the addressable headers on this
board can handle a combined maximum of 500 LEDs.
Before you install or remove any component, ensure that the power supply is switched off
or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components.
SBU2
SBU1
CC1
VBUS
RX1-
RX1+
GND
TX1-
TX1+
VBUS
VBUS
TX2+
TX2-
GND
RX2+
RX2-
GND
D-
D+
CC2
USB3+5V
IntA_P1_SSRX-
IntA_P1_SSRX+
GND
IntA_P1_SSTX-
IntA_P1_SSTX+
GND
IntA_P1_D-
IntA_P1_D+
GND
PIN 1
USB3+5V
IntA_P2_SSRX-
IntA_P2_SSRX+
GND
IntA_P2_SSTX-
IntA_P2_SSTX+
GND
IntA_P2_D-
IntA_P2_D+
USB+5V USB_E1- USB_E1+ GND NC
USB+5V
USB_E2-
USB_E2+
GND
PIN 1
ADD_GEN 2
+5V
Data
Ground
PIN 1

1-4 Chapter 1: Product Introduction
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the addressable RGB LED strip is
connected in the correct orientation, and the 5V connector is aligned with the 5V
header on the motherboard.
• The addressable RGB LED strip will only light up when the system is powered on.
• The addressable RGB LED strip is purchased separately.

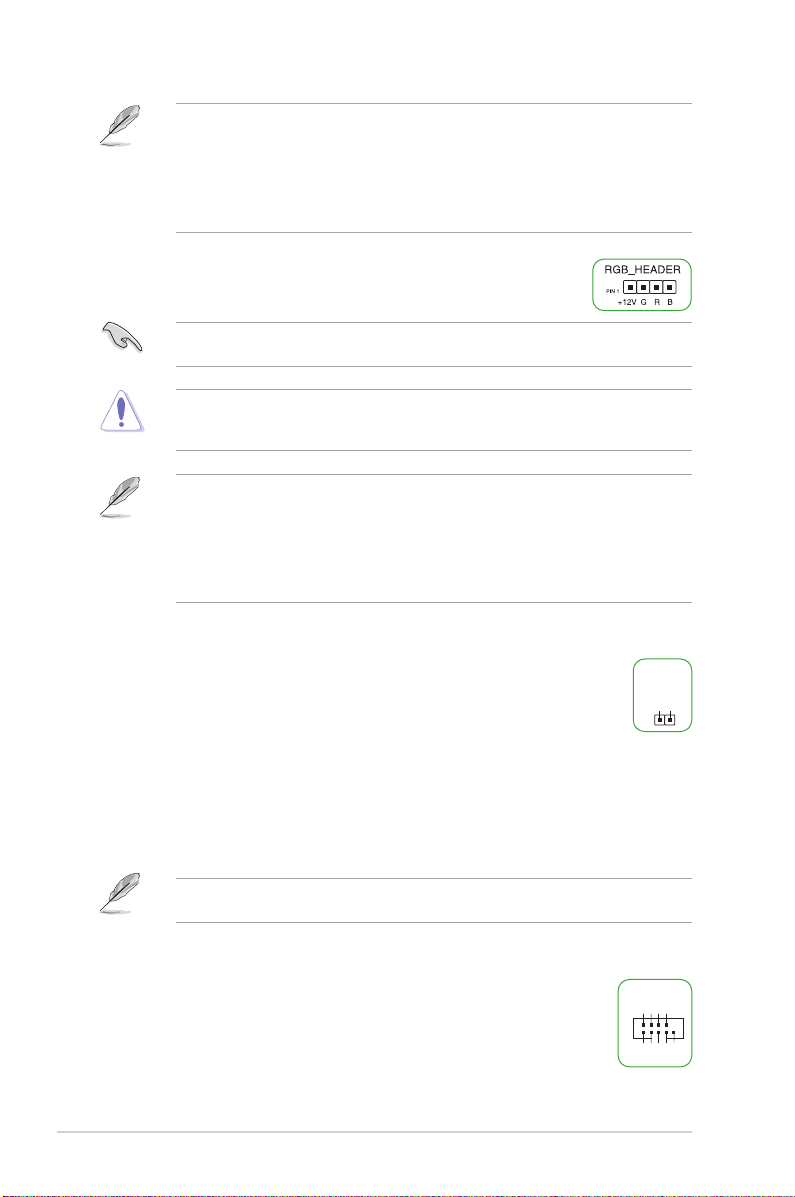

12. AURA RGB headers
The RGB headers allow you to connect RGB LED strips.
The RGB headers support 5050 RGB multi-color LED strips (12V/G/R/B), with a maximum
power rating of 3A (12V), and no longer than 3m.
Before you install or remove any component, ensure that the ATX power supply is switched
off or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components.
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the RGB LED extension cable and the
RGB LED strip are connected in the correct orientation, and the 12V connector is
aligned with the 12V header on the motherboard.
• The LED strip will only light up when the system is powered on.
• The LED strip is purchased separately.
13. Clear CMOS header
This header allows you to clear the CMOS RTC RAM data of the system setup
information such as date, time, and system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS Setup to re-
enter data.
If the steps above do not help, remove the onboard battery and short the two pins again to
clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
14. COM Port header
This header is for a serial (COM) port. Connect the serial port module cable to
this header, then install the module to a slot opening at the back of the system
chassis.
CLRTC
+3V_BAT GND
PIN 1
COM
PIN 1
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS

ASUS TUF GAMING B560M-PLUS WIFI 1-5
15. Front panel audio header
This header is for a chassis-mounted front panel audio I/O module that
supports HD audio standard. Connect one end of the front panel audio I/O
module cable to this header.
• We recommend that you connect a high-denition front panel
audio module to this header to avail of the motherboard’s high-
denition audio capability.
• If you want to connect a high-denition front panel audio module
to this header, set the Front Panel Type item in the BIOS Setup
to [HD Audio]. By default, this header is set to [HD Audio].
16. System Panel header
This header supports several chassis-mounted functions.
• System power LED (4-pin PLED)
This 4-pin header is for the system power LED. Connect the
chassis power LED cable to this header. The system power
LED lights up when you turn on the system power, and
blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin HDD_LED)
This 2-pin header is for the HDD Activity LED. Connect the
HDD Activity LED cable to this header. The HDD LED lights
up or ashes when data is read from or written to the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin header is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This header is for the system power button. Pressing the power button turns the
system on or puts the system in sleep or soft-off mode depending on the operating
system settings. Pressing the power switch for more than four seconds while the
system is ON turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin header is for the chassis-mounted reset button for system reboot without
turning off the system power.
• Chassis intrusion header (2-pin CHASSIS)
This header is for a chassis-mounted intrusion detection sensor or switch. Connect one
end of the chassis intrusion sensor or switch cable to this header. The chassis intrusion
sensor or switch sends a high-level signal to this connector when a chassis component
is removed or replaced. The signal is then generated as a chassis intrusion event.
AAFP
AGND NC SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition

1-6 Chapter 1: Product Introduction
1.2.2 Rear panel connectors
1. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0 devices.
2. DisplayPort. This port is for a DisplayPort-compatible device.
3. USB 3.2 Gen 1 (up to 5Gbps) ports. These 9-pin Universal Serial Bus (USB) ports
connect to USB 3.2 Gen 1 devices.
811109 12 13 14
54321 6 7
17. Thunderbolt™ header
The Thunderbolt™ header allows you to connect an add-on
Thunderbolt™ I/O card that supports Intel®’s Thunderbolt™
Technology, allowing you to connect Thunderbolt™-enabled
devices to form a daisy chain-conguration.
• The add-on Thunderbolt™ I/O card and
Thunderbolt™ cables are purchased separately.
• Please visit the ofcial website of your purchased
Thunderbolt card for more details on compatibility.
18. Q-LEDs
The Q-LEDs check key components (CPU, DRAM, VGA, and booting devices) during the
motherboard booting process. If an error is found, the critical component’s LED stays lit up
until the problem is solved.
The Q-LEDs provide the most probable cause of an error code as a starting point for
troubleshooting. The actual cause may vary from case to case.
PIN 1
FORCE_PWR
CIO_PLUG_EVENT
SLP_S3# SLP_S5#
GND
RTD3_SW
I2C_SCL I2C_SDA I2C_IRQ# RTD3_POWER_EN S_SLP_S0#_IDLE PERST_N WAKE#
TB_HEADER

ASUS TUF GAMING B560M-PLUS WIFI 1-7
4. Ethernet port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the Ethernet port LED indications.
Realtek 2.5G Ethernet port LED indications
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF No link
GREEN Linked GREEN 2.5 Gbps connection
BLINKING Data activity ORANGE 1 Gbps / 100 Mbps /
10 Mbps connection
ACT/LINK
LED
SPEED
LED
LAN port
5. Center / Subwoofer port (orange). This port connects the center/subwoofer speakers.
6. Rear Speaker Out port (black). This port connects the rear speakers in a 4 channel,
5.1 channel, or 7.1 channel audio conguration.
7. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
8. HDMI®port. This port is for a High-Denition Multimedia Interface (HDMI®) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
9. USB 3.2 Gen 1 (up to 5Gbps) port (USB Type-C®). This 9-pin Universal Serial Bus
3.2 (USB 3.2) port is for USB 3.2 Gen 1 Type-C®devices.
10. USB 3.2 Gen 2 (up to 10Gbps) ports (teal blue, Type A). These 9-pin Universal
Serial Bus 3.2 (USB 3.2) ports are for USB 3.2 Gen 2 devices.
11. Intel®Wi-Fi 6 ports. These ports connect to Wi-Fi antennas.
Refer to the 1.5 Wi-Fi antennas installation section for details.
12. Optical S/PDIF out port. This port allows you to connect your PC to amplied
speakers, headphones, or Sony/Phillips Digital Interconnect Format (S/PDIF) compliant
devices.
13. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table below for the function of the audio ports in 2, 4, 5.1,
or 7.1-channel conguration.
Audio 2, 4, 5.1 or 7.1-channel conguration
Port Headset
2-channel 4-channel 5.1-channel 7.1-channel
Light Blue Line In Line In Line In Side Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange — — Center/Subwoofer Center/Subwoofer
Black — Rear Speaker Out Rear Speaker Out Rear Speaker Out
14. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel,
5.1-channel, and 7.1-channel congurations, the function of this port becomes Front
Speaker Out.

1-8 Chapter 1: Product Introduction
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount Intel®Socket LGA1200
designed for 11th Gen Intel®Core™ processors & 10th Gen Intel®Core™,
Pentium®Gold and Celeron®Processors.
Unplug all power cables before installing the CPU.
• Ensure that you install the correct CPU designed for the LGA1200 socket only. DO
NOT install a CPU designed for LGA1150, LGA1151, LGA1155 and LGA1156 sockets
on the LGA1200 socket.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1200 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
• The CPU ts in only one correct orientation. DO NOT force the CPU into the socket to
prevent bending the connectors on the socket and damaging the CPU.
Installing the CPU
1
4
Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the
heatsink and fan if necessary.
2
3
A
B
A
B
C
D
5
4
4
5

ASUS TUF GAMING B560M-PLUS WIFI 1-9
1.4 System memory
This motherboard comes with four Double Data Rate 4 (DDR4) Dual Inline Memory Module
(DIMM) sockets. The gure illustrates the location of the DDR4 DIMM sockets:
DIMM_A2*
DIMM_A1
DIMM_B2*
DIMM_B1
Channel Sockets
Channel A DIMM_A1 & DIMM_A2*
Channel B DIMM_B1 & DIMM_B2*
• You may install varying memory sizes in Channel A and Channel B. The system
maps the total size of the lower-sized channel for the dual-channel conguration. Any
excess memory from the higher-sized channel is then mapped for single-channel
operation.
• A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module.
DO NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.
• 10th Gen Intel®Core™ i7/ i9 processors support 2933/2800/2666/2400/2133 natively,
others will run at the maximum transfer rate of DDR4 2666.
• 11th Gen Intel®processors support 3200/2933/2800/2666/2400/2133 natively.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value.
• For system stability, use a more efcient memory cooling system to support a full
memory load.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
• Refer to www.asus.com for the Memory QVL (Qualied Vendors Lists), and memory
frequency support depends on the CPU types.
Recommended memory congurations
DIMM_B2*
DIMM_A1
DIMM_A2*
DIMM_B2*
DIMM_A2*
DIMM_B1
DIMM_B2*

1-10 Chapter 1: Product Introduction
To remove a DIMM
B
A
Installing a DIMM
1 2
B
A
A
1.5 Wi-Fi antennas installation
Installing the ASUS Wi-Fi antennas
Connect the bundled ASUS Wi-Fi antennas connectors to the Wi-Fi ports at the back of the
chassis.
• Ensure that the ASUS Wi-Fi antennas are securely installed to the Wi-Fi ports.
• Ensure that the antennas are at least 20 cm away from all persons.
The illustration above is for reference only. The I/O port layout may vary with models, but
the Wi-Fi antennas installation procedure is the same for all models.
