RS260-E4/RX8
Conguration Guide

II
Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means,
except documentation kept by the purchaser for backup purposes, without the express written permission
of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not
limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no
event shall ASUS, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental,
or consequential damages (including damages for loss of prots, loss of business, loss of use or data,
interruption of business and the like), even if ASUS has been advised of the possibility of such damages
arising from any defect or error in this manual or product.
Specications and information contained in this manual ae furnished for informational use only, and are
subject to change at any time without notice, and should not be construed as a commitment by ASUS.
ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual,
including the products and software described in it.
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
E4222
First Edition V1
October 2008

III
Contents
Contents ...................................................................................................... III
Revision history.......................................................................................... III
Safety information ...................................................................................... IV
Chapter 1: Product introduction
1.1 Key features.................................................................................. 1-2
1.2 System overview.......................................................................... 1-3
1.3 Front panel features..................................................................... 1-4
1.4 Rear panel features...................................................................... 1-5
1.5 Systemspecications ................................................................. 1-6
Chapter 2: Components
2.1 Upgrading CPU and CPU heatsink............................................. 2-2
2.2 Upgrading system memory......................................................... 2-3
2.3 Upgrading hard disk drives......................................................... 2-4
2.4 Installing ASUS RAID card .......................................................... 2-5
2.5 Installing ASUS Server Management Board.............................. 2-6
2.6 Upgrading power supply unit ..................................................... 2-7
2.7 OS support list ............................................................................. 2-8
Revision history
Revision Revision history Date
V1 First release of RX260-E4/RX8 conguration guide October 2008

IV
Safety information
Electrical Safety
• Before installing or removing signal cables, ensure that the power cables for
the system unit and all attached devices are unplugged.
• To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
• When adding or removing any additional devices to or from the system, contact
a qualied service technician or your dealer. Ensure that the power cables for
the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you service.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your dealer.
Operation Safety
• Servicing of this product or units is to be performed by trained service
personnel only.
• Before operating the server, carefully read all the manuals included with the
server package.
• Before using the server, make sure all cables are correctly connected and the
power cables are not damaged. If any damage is detected, contact your dealer
as soon as possible.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Place the server on a stable
surface.
This product is equipped with a three-wire power cable and plug for the user’s
safety. Use the power cable with a properly grounded electrical outlet to avoid
electrical shock.
Lithium-Ion Battery Warning
CAUTION! Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
CD-ROM Drive Safety Warning
CLASS 1 LASER PRODUCT
Heavy System
CAUTION! This server system is heavy. Ask for assistance when moving or
carrying the system.

1-
This chapter describes the key
features of RX260-E4/RX8. It includes
the product overview and general
specications.
Chapter 1
Product introduction

Chapter 1: Product introduction1-2
1.1 Key features
As one of the Taiwan Excellence Winners in 2006, ASUS Server RS260-E4/RX8
is based on two Dual-Core Intel®Xeon® processor 5000/5100 Sequence or Quad-
Core Intel®Xeon® processor 5300/5400 Sequence, FSB 1333MHz and up to 8M L2
cache. Running on the Intel® 5000P MCH, and Intel® 6321ESB I/O Controller Hub
chipset, it supports 64-bit computing to deliver outstanding performance upgrade.
The RS260-E4/RX8 also supports 8 hot-swap SAS or SATA2 HDDs within the
limited 2U server space. The 12 DIMM slots enable DDR2 533/667 fully buffered
memory up to 48GB, signicantly raising memory performance of server systems.
RS260-E4/RX8 provides the high performance brought by the latest technology
and ASUS unique features.
The RS260-E4/RX8 offers complete RAID functions: RAID 0, 1, 1E, providing
reliable data protection. In addition, optional ZCR PCI-X card for customer, providing
hardware RAID 5, 50 function for upgrading in the future. Such storage solutions help
enterprises get highest level of data integrality, storage efciency, system usability,
and application exibility.
The system thermal is always the key factor which affects system stability. Thermal
solution is critical for maintaining system temperature, so every excellent server
should have an outstanding cooling system. The RS260-E4/RX8 adopted the Smart
Fan II technology, which could monitor system temperature and intelligently adjust
fan speeds for optimal cooling or quiet operation.
Like other ASUS servers, the RS260-E4/RX8 incorporated ASWM2.0 system
management software, an effective management and monitoring system. With ASUS
nest after-sales service and free “0800 special telephone line” service, customers can
use RS260-E4/RX8 without worrying about possible malfunctions during operation.
As a leading provider of performance and quality server solutions, ASUS server and
server board products are recognized by the international market depending on its
powerful R&D strength and solid quality. With the excellent representation of stability,
compatibility and cooling capability, RS260-E4/RX8 is one of the best choices for
enterprises to build an electronic environment.

ASUS RX260-E4/RX8 1-3
1.2 System overview
Items Items
1. Central processing unit (CPU) 6. ASUS ZCR (Zero Channel RAID) card
(optional)
2. CPU heatsink
3. System memory 7. Riser card for ASUS ZCR card (optional)
4. Hard disk drives 8. ASUS Server management board (optional)
5. HDD trays 9. Redundant power supply module (optional)
2
1
3
5
6
4
7
9
8

Chapter 1: Product introduction1-4

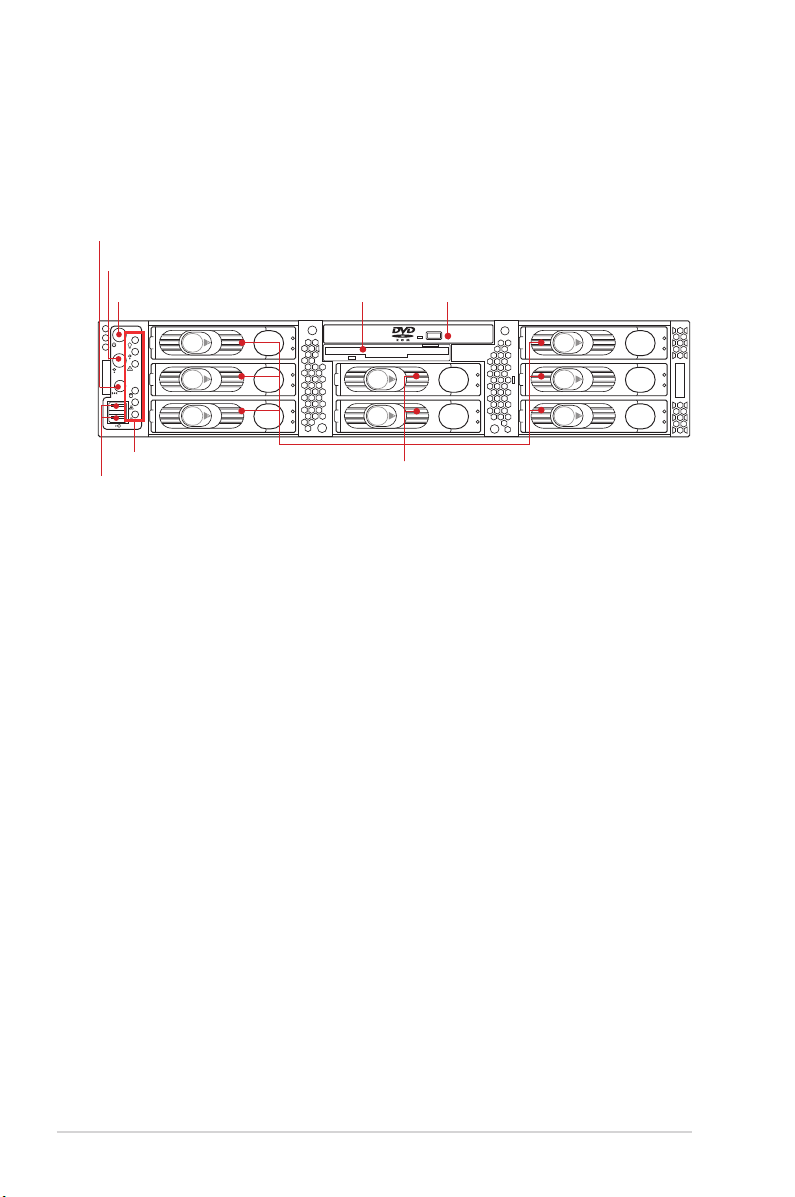

1.3 Front panel features
1
2
Hot-swappable HDD bays
Slim optical drive
Reset button
USB 2.0 ports
Power button
Location switch
Slimoppydrive
Front panel LEDs

ASUS RX260-E4/RX8 1-5
1.4 Rear panel features
PS/2 keyboard port PS/2 mouse port
VGA port
Gigabit LAN2 port
Serial port
AC power sockets Location switch
Location LED
Expansion slots
USB 2.0 ports
Rear fan bays
Redundant power
supply modules
Gigabit LAN1 port

Chapter 1: Product introduction1-6
1.5 Systemspecications
Processor support
2 x Socket LGA771
Quad-Core Intel®Xeon® processor 5400 series (45nm)
Dual-Core Intel®Xeon® processor 5200 series (45nm)
Quad-Core Intel®Xeon® processor 5300 series
Dual-Core Intel®Xeon® processor 5100 series
2 x 2M, 4M, 8M L2 cache
FSB 1333 / 1066 / 667 MHz EM64T
Chipset Intel® 5000P Chipset
Intel® 6321ESB I/O Controller Hub
Memory 12 x Quad Channel ECC Reg. DDR2 533 / 667 Fully-Buffered
DIMMs, max. up to 48 GB
Expansion Slot
2 x Full-Height / Full-Length 64-bit PCI-X slots ( Support only
one PCI-X if plug ZCR for LSI® 1068)
1 x Full-Height / Full-Length PCI Express x 8 slot
LAN Chip Intel® 82563EB Network Connection (Dual-Port)
Dimension 732mm x 448mm x 87.7mm
*Specicationsaresubjecttochangewithoutnotice.

1-
This chapter lists the key components
and optional accessories for the server
system.
Chapter 2
Components

Chapter 2: Components2-2

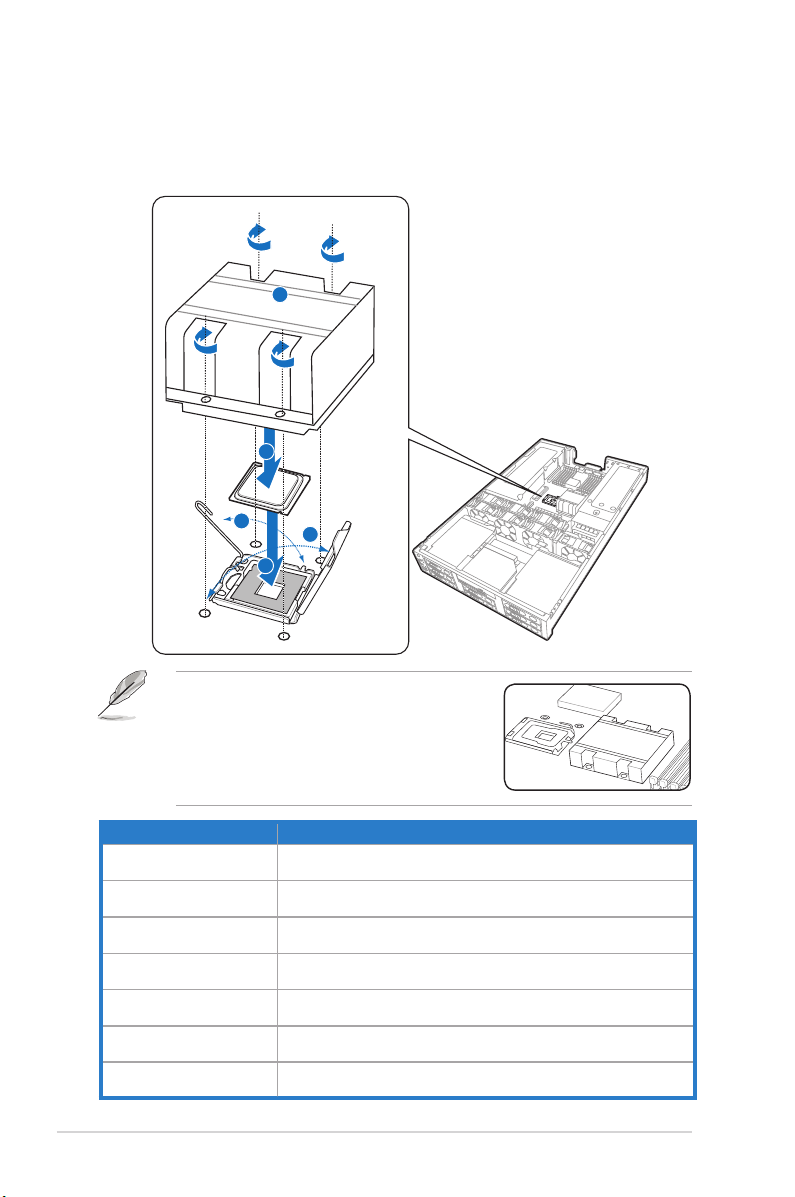

2.1 Upgrading CPU and CPU heatsink
The ASUS RX260-E4/RX8 supports Intel®Xeon® Quad-core 5400 / 5300 series
and Dual-core 5200 / 5100 series processor.
Order P/N Description
90-S3Y0U0150T Quad Core Intel Xeon E5450, 3.00G, FSB 1333, 12M L2 (with
RS260-E4 Heatsink)
90-S3Y0U0140T Quad Core Intel Xeon E5440 2.83G, FSB 1333, 12M L2 (with
RS260-E4 Heatsink)
90-S3Y0U0130T Quad Core Intel Xeon E5430 2.66G, FSB 1333, 12M L2 (with
RS260-E4 Heatsink)
90-S3Y0U0120T Quad Core Intel Xeon E5420 2.50G, FSB 1333, 12M L2 (with
RS260-E4 Heatsink)
90-S3Y0U0110T Quad Core Intel Xeon E5410 2.33G, FSB 1333, 12M L2 (with
RS260-E4 Heatsink)
90-S3Y0U0100T Quad Core Intel Xeon E5405 2.00G, FSB 1333, 12M L2 (with
RS260-E4 Heatsink)
90-S3Y0U0160T Dual Core Intel Xeon E5205 1.86G, FSB 1066, 6M L2 (with
RS260-E4 Heatsink)
• If you install only one CPU, install the CPU
to the CPU1 socket only. The system will not
boot and the CPU warning LED will light up if a
single CPU is installed on the CPU2 socket.
• We recommend to install CPUs with the same
frequency.
CPU2
CPU1
5
4
1
2
3

ASUS RX260-E4/RX8 2-3
2.2 Upgrading system memory
The motherboard comes with twelve (12) Double Data Rate 2 (DDR2) Fully-
Buffered Dual Inline Memory Modules (DIMM) slots.
Order P/N Description
90-S000I0170T 1GB, DDR2 667 Fully-Buffered DIMM / ASUS
90-S000I0180T 2GB, DDR2 667 Fully-Buffered DIMM / ASUS
90-S000I0190T 4GB, DDR2 667 Fully-Buffered DIMM / ASUS
Recommendedmemorycongurations
DIMMs 00 01 02 10 11 12 20 21 22 30 31 32
Momory size
1 GB-----------
1 GB - - 1 GB - - - - - - - -
1 GB - - 1 GB - - 1 GB - - 1 GB - -
1 GB 1 GB - 1 GB 1 GB - 1 GB - - 1 GB - -
1 GB 1 GB - 1 GB 1 GB - 1 GB 1 GB - 1 GB 1 GB -
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB - 1 GB 1 GB -
1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
2 GB-----------
2 GB - - 2 GB - - - - - - - -
2 GB - - 2 GB - - 2 GB - - 2 GB - -
2 GB 2 GB - 2 GB 2 GB - 2 GB - - 2 GB - -
2 GB 2 GB - 2 GB 2 GB - 2 GB 2 GB - 2 GB 2 GB -
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB - 2 GB 2 GB -
2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
4 GB-----------
4 GB - - 4 GB - - - - - - - -
4 GB - - 4 GB - - 4 GB - - 4 GB - -
4 GB 4 GB - 4 GB 4 GB - 4 GB - - 4 GB - -
4 GB 4 GB - 4 GB 4 GB - 4 GB 4 GB - 4 GB 4 GB -
4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB - 4 GB 4 GB -
4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
12
1
2
3
4
11 10 987
FB-DIMM_00
FB-DIMM_01
FB-DIMM_02
FB-DIMM_10
5
6
FB-DIMM_11
FB-DIMM_12
7
8
9
10
11
12
FB-DIMM_20
FB-DIMM_21
FB-DIMM_22
FB-DIMM_30
FB-DIMM_31
FB-DIMM_32
123456

Chapter 2: Components2-4
2.3 Upgrading hard disk drives
The system supports eight hot-swap SATAII/SAS hard disk drives.
Order P/N Description
SAS HDD
90-S000H0050 450GB, 3.5” SAS HDD / ASUS
90-S000H0040 300GB, 3.5” SAS HDD / ASUS
90-S000H0030 146GB, 3.5” SAS HDD / ASUS
90-S000H0020 73GB, 3.5” SAS HDD / ASUS
SATAII HDD
90-S000H5500T 1TB, 3.5” SATAII HDD / ASUS
90-S000H5400 750GB, 3.5” SATAII HDD / ASUS
90-S000H5300 500GB, 3.5” SATAII HDD / ASUS
90-S000H5000 250GB, 3.5” SATAII HDD / ASUS
90-S000H5200 160GB, 3.5” SATA2 HDD / ASUS
We recommend that you install identical drives of the same model and capacity
for RAID conguration.
1
2
2

ASUS RX260-E4/RX8 2-5
2.4 Installing ASUS RAID card
The ASUS RAID card allows users to create RAID 0, 1, 5, 10 and 50 from SAS
hard disk drives connected to the SAS connectors on the motherboard.
Order P/N Description
90-S000R0030T ZCR Card, LSI SAS 8300XLP (Support Hardware RAID 0, 1, 5,
10, 50)
1
2
3
4
5
7
9
6
8

Chapter 2: Components2-6
2.5 Installing ASUS Server Management
Board
ASUS Server Management Board is an Intelligent Platform Management Interface
(IPMI) 2.0-compliant board that allows users to monitor, control and manage a
remote server from the local or central server in local area network (LAN).
Order P/N Description
90-C1SCT5-00UAN00Z ASMB3-SOL PLUS (V3) IPMI 2.0 Module
ASMB3-SOL PLUS (V3)
• Monitor the running status of major components via LAN or Serial Port, such
as CPU and memory utilization, storage capacity and networking transfer rate.
• Advanced server management functions including “remote power on/off/reset”,
“remote control via SOL (Serial-over LAN)” and “remote SEL (system event log
reading when the system is out-of-band)”.
• Support Dynamic Host Conguration Protocol (DHCP), which avoids
manually assigning IP address by setting DHCP mode to receive IP address
automatically.
Use the LAN1 port for server management.
30 - 45O

ASUS RX260-E4/RX8 2-7
2.6 Upgrading power supply unit
750W 1+1 hot-swap redundant power supply eliminate system and application
downtime by redundancy power backup
Order P/N Description
90-S00PR5000T RPSU, 750W Redundant Power Supply Module
Remove the dummy power supply module before installing the second
redundant power supply.

Chapter 2: Components2-8
2.7 OS support list
Order P/N Description
90-S00SW7120T OS, Microsoft®Windows® Server 2003 R2 Standard 1-4 CPU, 5
CAL (32bit) (Traditional Chinese)
90-S00SW7130T OS, Microsoft®Windows® Small Business Server 2003 R2 STD
1-2 CPU, 5 CAL (32bit) (Chinese)
OS support list
Windows® Server 2003 R2 Enterprise 32-bit
Windows® Server 2003 R2 Enterprise 64-bit
RedHat® Enterprise Linux AS3.0 UP6 32-bit
RedHat® Enterprise Linux AS3.0 UP6 64-bit
RedHat® Enterprise Linux AS4.0 UP2 32-bit
RedHat® Enterprise Linux AS4.0 UP2 64-bit
SuSE® Linux Enterprise Server 9 SP3 32-bit
SuSE® Linux Enterprise Server 9 SP3 64-bit
