Asus ME173X User manual

MeMO Pad User Manual
E8254
ASUS is devoted to creating environment-friendly products
and packaging to safeguard consumers’ health while
minimizing the impact on the environment. The reduction
of the number of the manual pages complies with the
reduction of carbon emission.
For the detailed user manual and related information, refer
to the user manual included in the MeMO Pad or visit the
ASUS Support Site at http://support.asus.com/.
E8254_ME173X_User_Manual.indd 1 4/23/13 10:09:53 AM

Charging your batteries
Ensure to fully charge your battery pack before using your
MeMO Pad in battery mode for extended periods. Remember
that the power adapter charges the battery pack as long as it is
plugged into an AC power source. Be aware that it takes much
longer to charge the battery pack when the MeMO Pad is in
use.
IMPORTANT! Do not leave the MeMO Pad connected to the
power supply once it is fully charged. MeMO Pad is not designed
to be left connected to the power supply for extended periods
of time.
Airplane precautions
Contact your airline provider to learn about related inight
services that can be used and restrictions that must be followed
when using your MeMO Pad in-ight.
IMPORTANT! You can send your MeMO Pad through x-ray
machines (used on items placed on conveyor belts), but do not
expose them from magnetic detectors and wands.
Safety precautions
This MeMO Pad should only be used in enviroments with
ambient temperatures between 0°C (32°F) and 35°C (95°F).
Long time exposure to extremely high or low temperature
may quickly deplete and shorten the battery life. To ensure the
battery’s optimal performance, ensure that it is exposed within
the recommended environment temperature.
E8254_ME173X_User_Manual.indd 2 4/23/13 10:09:53 AM

ASUS MeMO Pad
3
Package contents
NOTES:
• If any of the items is damaged or missing, contact your
retailer.
• The bundled power adapter varies with country or region.
ASUS MeMO Pad Power adapter
Micro USB cable Technical documentations and
warranty card
E8254_ME173X_User_Manual.indd 3 4/23/13 10:09:54 AM

ASUS MeMO Pad
4
Your MeMO Pad
Touch screen panel
The touch screen panel allows you to operate your
MeMO Pad using touch gestures or a stylus pen.
Front camera
This built-in 1.2-megapixel camera allows you to take
pictures or record videos using your MeMO Pad.
E8254_ME173X_User_Manual.indd 4 4/23/13 10:09:56 AM

ASUS MeMO Pad
5
Volume button
The volume button allows you to increase or decrease
the volume level of your MeMO Pad.
Power button
Press the power button for about two (2) seconds to
turn your MeMO Pad on.
To turn your MeMO Pad o, press the power button
for about two (2) seconds and when prompted, tap
Power o then tap OK.
To lock your MeMO Pad or put it to standby mode,
press and quickly release the power button.
In the event that your MeMO Pad becomes
unresponsive, press and hold the power button for
about eight (8) seconds to force it to shut down.
IMPORTANT!
•When your MeMO Pad is inactive for fteen (15)
seconds, it will automatically go to standby mode.
•Forcing the system to restart may result to data
loss. We strongly recommend that you back up
your data regularly.
E8254_ME173X_User_Manual.indd 5 4/23/13 10:09:57 AM

ASUS MeMO Pad
6
Speaker/Headset port
This port allows you to connect the MeMO Pad to
amplied speakers or a headset.
IMPORTANT! This port does not support an external
microphone.
Microphone
The built-in microphone can be used for video
conferencing, voice narrations or simple audio
recordings.
Micro USB 2.0 port
Use the micro USB (Universal Serial Bus) 2.0 to charge
the battery pack or supply power to your MeMO Pad.
This port also allows you to transfer data from your
computer to your MeMO Pad and vice versa.
NOTE: When you connect your MeMO Pad to the
USB port on your computer, your MeMO Pad will be
charged only when it is in sleep mode (screen o) or
turned o.
Rear camera
This built-in 5-megapixel camera allows you to take
high-denition pictures or record high-denition
videos using your MeMO Pad.
E8254_ME173X_User_Manual.indd 6 4/23/13 10:09:58 AM

ASUS MeMO Pad
7
MicroSD card slot
The MeMO Pad comes with a built-in memory card
reader slot that supports microSD and microSDHC
card formats.
Audio speaker
The built-in speaker allows you to hear audios straight
from your MeMO Pad. Audio features are software
controlled.
E8254_ME173X_User_Manual.indd 7 4/23/13 10:09:58 AM

ASUS MeMO Pad
8
Charging your MeMO Pad
Connect the micro USB cable to the power adapter.
Plug the micro USB connector into your MeMO Pad.
Plug the power adapter into a grounded power outlet.
To charge your MeMO Pad:
Charge your MeMO Pad for eight (8) hours before
using it in battery mode for the rst time.
E8254_ME173X_User_Manual.indd 8 4/23/13 10:09:59 AM

ASUS MeMO Pad
9
IMPORTANT!
• Use only the bundled power adapter and micro USB cable to
charge your MeMO Pad. Using a dierent power adapter may
damage your MeMO Pad.
• Peel the protective lm o from the power adapter and micro
USB cable before charging the MeMO Pad to prevent risk or
injury.
• Ensure that you plug the power adapter to the correct power
outlet with the correct input rating. The output voltage of this
adapter is DC5.2V, 1.35A.
• Do not leave the MeMO Pad connected to the power supply
once it is fully charged. MeMO Pad is not designed to be left
connected to the power supply for extended periods of time.
• When using your MeMO Pad while plugged-in to a power
outlet, the grounded power outlet must be near to the unit
and easily accessible.
NOTES:
• Your MeMO Pad can be charged via the USB port on the
computer only when it is in sleep mode (screen o ) or turned
o.
• Charging through the USB port may take longer time to
complete.
• If your computer does not provide enough power for
charging your MeMO Pad, charge your MeMO Pad via the
power outlet instead.
E8254_ME173X_User_Manual.indd 9 4/23/13 10:10:00 AM

ASUS MeMO Pad
10
Appendices
Federal Communications Commission
Statement
This device complies with FCC Rules Part 15. Operation is
subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to Part 15 of the
Federal Communications Commission (FCC) rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment causes harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by doing one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
E8254_ME173X_User_Manual.indd 10 4/23/13 10:10:00 AM

ASUS MeMO Pad
11
• Consult the dealer or an experienced radio/TV technician for
help.
Changes or modications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
The antenna(s) used for this transmitter must not be co-
located or operating in conjunction with any other antenna or
transmitter.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure
to radio waves. This device is designed and manufactured not
to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of
the U.S. Government.
The exposure standard employs a unit of measurement
known as the Specic Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg. Tests for SAR are conducted using
standard operating positions accepted by the FCC with the EUT
transmitting at the specied power level in dierent channels.
The highest SAR value for the device as reported to the FCC is
1.12 W/kg when placed next to the body.
The FCC has granted an Equipment Authorization for this device
with all reported SAR levels evaluated as in compliance with the
FCC RF exposure guidelines. SAR information on this device is
on le with the FCC and can be found under the Display Grant
section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:
MSQK00B.
E8254_ME173X_User_Manual.indd 11 4/23/13 10:10:00 AM

ASUS MeMO Pad
12
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003
and RSS-210.
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device. The IC ID for this device is
3568A-K00B.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below
the Industry Canada (IC) radio frequency exposure limits. The
Wireless Device should be used in such a manner such that
the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with
the IC Specic Absorption Rate (“SAR”) limits when installed
in specic host products operated in portable exposure
conditions.
Canada’s REL (Radio Equipment List) can be found at the
following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.
do?lang=eng
Additional Canadian information on RF exposure also can be
found at the following web address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
E8254_ME173X_User_Manual.indd 12 4/23/13 10:10:00 AM

ASUS MeMO Pad
13
Canada, avis d’Industrie Canada (IC)
Cet appareil numérique de classe B est conforme aux normes
canadiennes ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas causer d’interférence et (2) cet
appareil doit accepter toute interférence, notamment les
interférences qui peuvent aecter son fonctionnement.
L’identiant IC de cet appareil est 3568A-K00B.
Informations concernant l’exposition aux fréquences
radio (RF)
La puissance de sortie émise par cet appareil sans l est
inférieure à la limite d’exposition aux fréquences radio d’
Industrie Canada (IC). Utilisez l’appareil sans l de façon à
minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a été évalué et démontré conforme aux limites
SAR (Specic Absorption Rate – Taux d’absorption spécique) d’
IC lorsqu’il est installé dans des produits hôtes particuliers qui
fonctionnent dans des conditions d’exposition à des appareils
portables.
Ce périphérique est homologué pour l’utilisation au Canada.
Pour consulter l’entrée correspondant à l’appareil dans la liste
d’équipement radio (REL - Radio Equipment List) d’Industrie
Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.
do?lang=eng
E8254_ME173X_User_Manual.indd 13 4/23/13 10:10:00 AM

ASUS MeMO Pad
14
EC Declaration of Conformity
This product is compliant with the regulations of the R&TTE
Directive 1999/5/EC. The Declaration of Conformity can be
downloaded from http://support.asus.com.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’
part or other liability, you are entitled to recover damages from
ASUS. In each such instance, regardless of the basis on which
you are entitled to claim damages from ASUS, ASUS is liable
for no more than damages for bodily injury (including death)
and damage to real property and tangible personal property;
or any other actual and direct damages resulted from omission
or failure of performing legal duties under this Warranty
Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss,
damages or claims based in contract, tort or infringement
under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the
maximum for which ASUS, its suppliers, and your reseller are
collectively responsible.
Pour des informations supplémentaires concernant l’exposition
aux RF au Canada rendez-vous sur :
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
E8254_ME173X_User_Manual.indd 14 4/23/13 10:10:00 AM

ASUS MeMO Pad
15
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE
FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR
DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR
FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR
YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

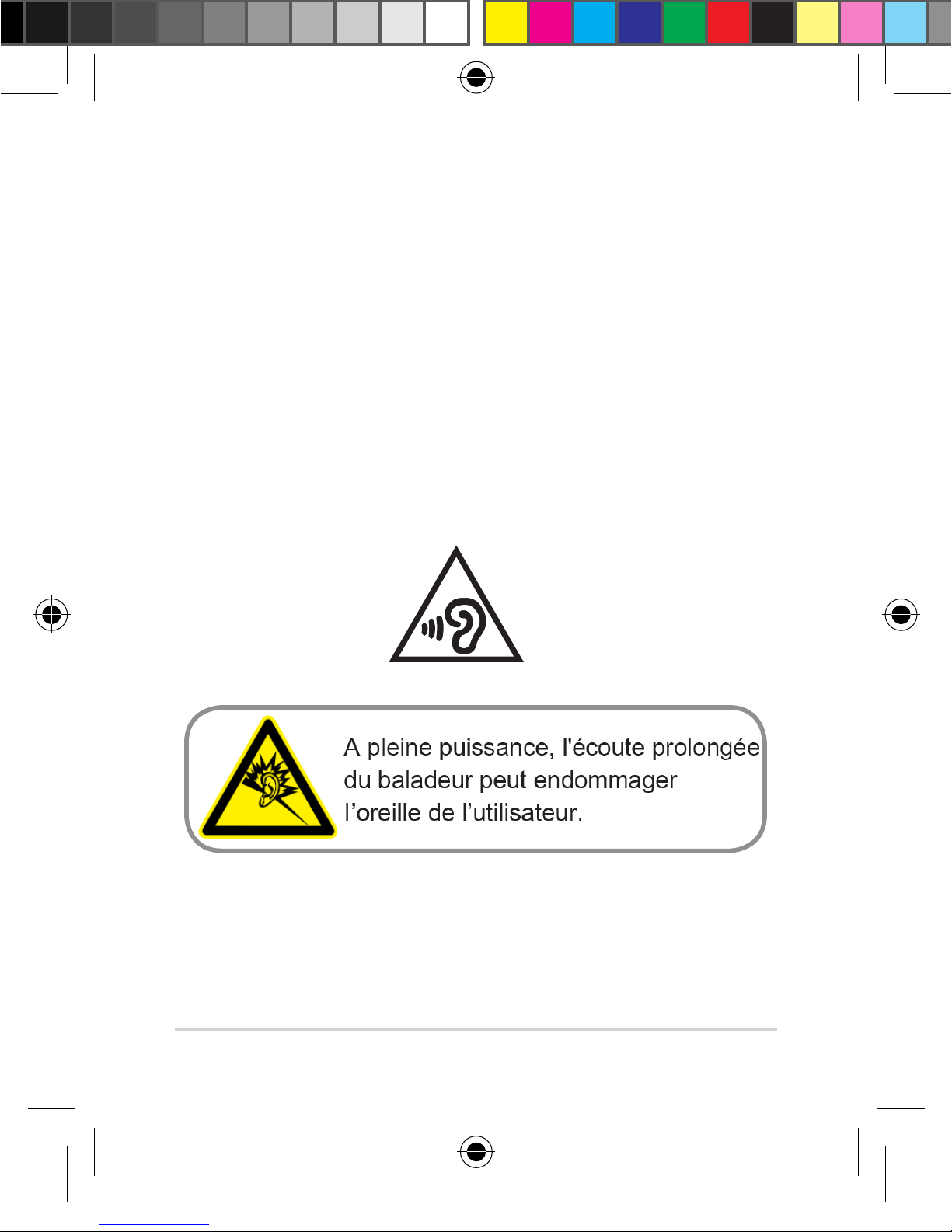

Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high
volume levels for long periods.
For France, as required by French Article L. 5232-1, this device is
tested to comply with the Sound pressure requirement in
NF EN 50332-1:2000 and NF EN 50332-2:2003 standards.
E8254_ME173X_User_Manual.indd 15 4/23/13 10:10:01 AM

ASUS MeMO Pad
16
CE Mark Warning
CE marking for devices without wireless LAN/
Bluetooth
The shipped version of this device complies with
the requirements of the EEC directives 2004/108/EC
“Electromagnetic compatibility” and 2006/95/EC “Low voltage
directive”.
The highest CE SAR value for the device is 0.383 W/Kg.
RF Exposure information (SAR) - CE
This device meets the EU requirements (1999/519/EC) on the
limitation of exposure of the general public to electromagnetic
elds by way of health protection.
The limits are part of extensive recommendations for the
protection of the general public. These recommendations
have been developed and checked by independent scientic
organizations through regular and thorough evaluations of
scientic studies. The unit of measurement for the European
Council’s recommended limit for mobile devices is the “Specic
Absorption Rate” (SAR), and the SAR limit is 2.0 W/Kg averaged
over 10 grams of body tissue. It meets the requirements of the
International Commission on Non-Ionizing Radiation Protection
(ICNIRP).
E8254_ME173X_User_Manual.indd 16 4/23/13 10:10:01 AM

ASUS MeMO Pad
17
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing
more than 3Kg must use approved power cords greater than or
equal to: H05VV-F, 3G, 0.75mm2or H05VV-F, 2G, 0.75mm2.
For next-to-body operation, this device has been tested and
meets the ICNRP exposure guidelines and the European
Standard EN 62311 and EN 62209-2. SAR is measured with the
device directly contacted to the body while transmitting at the
highest certied output power level in all frequency bands of
the mobile device.

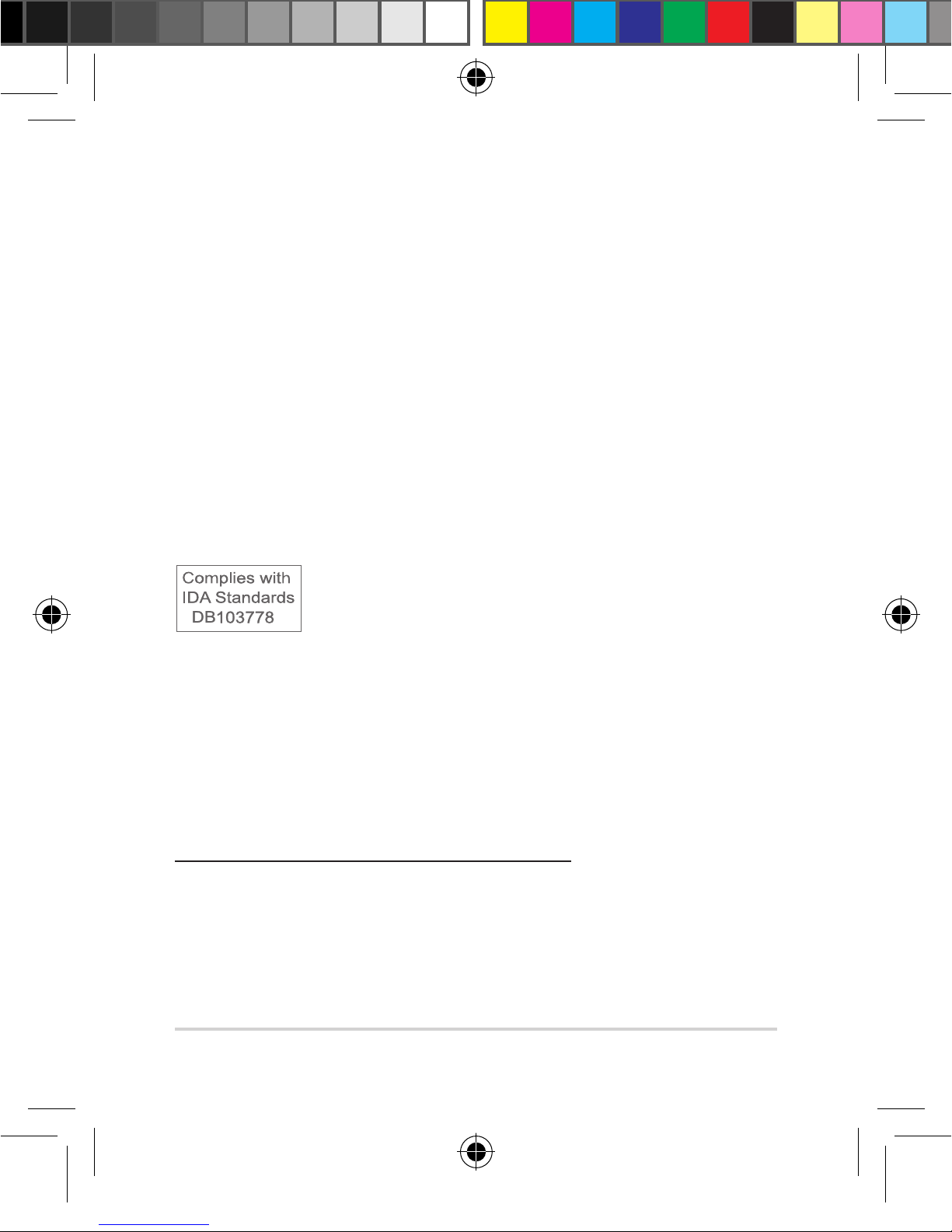

Regional notice for Singapore
This ASUS product complies with IDA Standards.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our
commitment to the highest standards for protecting our
environment. We believe in providing solutions for you to
be able to responsibly recycle our products, batteries, other
components as well as the packaging materials. Please go to
http://csr.asus.com/english/Takeback.htm for detailed recycling
information in dierent regions.
E8254_ME173X_User_Manual.indd 17 4/23/13 10:10:01 AM

ASUS MeMO Pad
18
Driving safely
Never use this device while driving. It is an oence, that while
driving, to hold the device or cradle it in your neck at any point,
during the setup, making or taking text message or any other
data related mobile communication. Use of fully installed car
kits are still permitted, as are the use of alternate handsfree
accessories.
In the interest of safety, we would recommend the use of a
cradle while using any form of handsfree accessory.
While driving, we recommend that you use voicemail wherever
possible, and that you listen to your messages when you are
not in the car. If you must make a handsfree call when driving,
keep it brief.
Do not place objects, including both installed or portable
wireless equipment, in the area over the airbag or in the airbag
deployment area. An airbag inates with great force. If the
airbag inates, serious injury could result.
Coating notice
IMPORTANT! To provide electrical insulation and maintain
electrical safety, a coating is applied to insulate the device
except on the areas where the I/O ports are located.
E8254_ME173X_User_Manual.indd 18 4/23/13 10:10:02 AM

ASUS MeMO Pad
19
Electronic devices
Most modern electronic equipment is shielded from RF energy.
However, certain electronic equipment may not be shielded
against the RF signals from your device.
Pacemakers
The Health Industry Manufacturers’ Association recommends
that a minimum separation of six (6”) inches be maintained
between a phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations
are consistent with the independent research by and
recommendations of Wireless Technology Research.
If you have a pacemaker:
• Always keep your device more than six inches (15cm) from
your pacemaker when turned on.
• Do not carry your device in your breast pocket.
• Use the ear opposite the pacemaker to minimize the
potential for interference.
• If you have any reason to suspect that interference is taking
place, turn your device o immediately.
Hearing aids
Some digital phones may interfere with some hearing aids. In
the event of such interference, call ASUS Customer Service to
discuss alternatives.
E8254_ME173X_User_Manual.indd 19 4/23/13 10:10:02 AM

ASUS MeMO Pad
20
Other medical devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be able
to assist you in obtaining this information.
Turn your device o in healthcare facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or healthcare facilities may be using equipment that
could be sensitive to external RF energy.
Vehicles
RF signals may aect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with the
manufacturer or its representative regarding your vehicle. You
should also consult the manufacturer of any equipment added
to your vehicle.
Posted facilities
Turn your device o where posted notices so require.
Magnetic media
Magnetic elds generated by mobile devices may damage data
on magnetic storage media, such as credit cards, computer
discs or tapes. Do not place your device next to such media.
You should never expose your device to strong magnetic eldsdevice to strong magnetic eldsto strong magnetic elds
as this may cause temporary malfunction.
E8254_ME173X_User_Manual.indd 20 4/23/13 10:10:02 AM
