AT&T BL103-2 User manual

Complete user’s manual
BL103-2/BL103-3/BL103-4
DECT 6.0 cordless telephone/
answering system with
BLUETOOTH® wireless technology

Congratulations
on purchasing your new AT&T product. Before using this AT&T product, please read
the Important safety information section on pages 1-3 of this manual.
Please thoroughly read this Complete user’s manual for all the feature operations
and troubleshooting information necessary to install and operate your new AT&T
product. You can also visit our website at https://telephones.att.com or call
1 [phone]. In Canada, dial 1 [phone].
This telephone meets the California Energy Commission regulations for energy
consumption. Your telephone is set up to comply with the energy–conserving
standards right out of the box. No further action is necessary.
This telephone system is compatible with certain AT&T DECT 6.0 cordless headsets.
Visit https://telephones.att.com/accessories for a list of compatible
cordless headsets.
Model number: BL103-2 (two-handset system)
BL103-3 (three-handset system)
BL103-4 (four-handset system)
Type: DECT 6.0 cordless telephone/answering system with
BLUETOOTH® wireless technology
Serial number: __________________________________________________________
Purchase date: __________________________________________________________
Place of purchase: _______________________________________________________
Both the model and serial numbers of your AT&T product can be found on the
bottom of the telephone base.
Save your sales receipt and original packaging in case it is necessary to
return your telephone for warranty service.
Telephones identied with this logo have reduced noise and interference when
used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083
Compliant Logo is a trademark of the Telecommunications Industry Association.
Used under license.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the
use of products that save energy and help protect our environment. We are proud to
mark this product with the ENERGY STAR® label indicating it meets the latest energy
eciency guidelines.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks
by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech
Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those
of their respective owners.
©2020-2021 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.

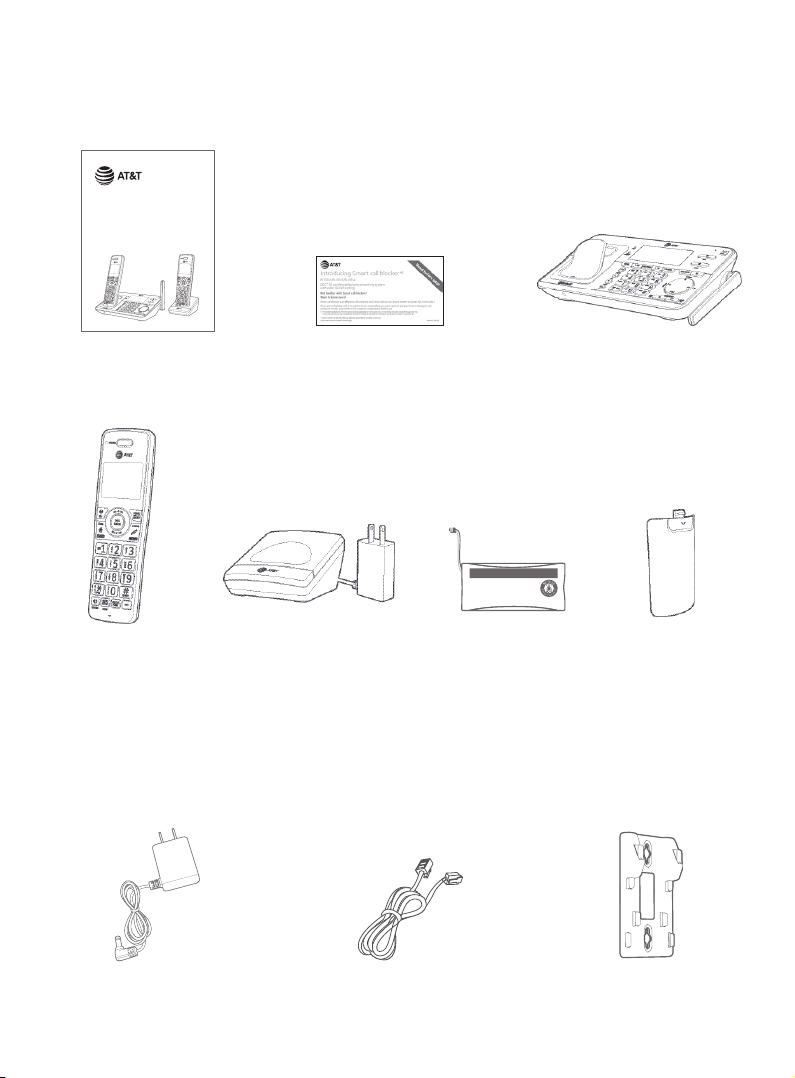

Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Telephone line cordPower adapter for
telephone base
Telephone base
Wall-mount bracket
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT162342/BT262342 (2.4V 300mAh Ni-MH)
WARNING / AV ERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine GP1621
Quick start guide
Cordless handset
(2 for BL103-2)
(3 for BL103-3)
(4 for BL103-4)
Charger for cordless
handset with power
adapter installed
(1 for BL103-2)
(2 for BL103-3)
(3 for BL103-4)
Battery for cordless
handset
(2 for BL103-2)
(3 for BL103-3)
(4 for BL103-4)
Battery
compartment cover
(2 for BL103-2)
(3 for BL103-3)
(4 for BL103-4)
Smart call blocker leaflet
Quick start guide
BL103-2/BL103-3/BL103-4
DECT 6.0 cordless telephone/
answering system with
BLUETOOTH® wireless technology

Complete user’s manual
BL103-2/BL103-3/BL103-4
DECT 6.0 cordless telephone/
answering system with
BLUETOOTH® wireless technology
Table of contents
Getting started
Important safety information............... 1
Safety information.................................. 1
Especially about cordless
telephones....................................................2
Precautions for users of
implanted cardiac
pacemakers .................................................3
ECO mode.....................................................3
Especially about telephone
answering systems.................................3
Installation ..........................................................4
Quick reference guide - telephone
base .........................................................................5
Quick reference guide - handset.........9
Telephone base and charger
installation ........................................................13
Telephone base installation............13
Charger installation............................. 14
Battery installation and charging .....15
Installation options.................................... 18
Tabletop to wall-mount
installation................................................. 18
Wall-mount to tabletop
installation..................................................19
Bluetooth
Introducing Bluetooth .............................20
Connect to CellTM application .......22
Glossary of terms........................................ 23
Bluetooth setup...........................................24
Add a cell phone ....................................24
Add a headset ......................................... 25
Auto connection....................................26
Device list and connection ............. 27
Review the device list......................... 27
Connect/disconnect an active
device............................................................ 27
Remove a paired device ...................28
Download directory.............................28
Remote voice control...............................30
Activate remote voice control......31
Telephone settings
Handset settings......................................... 32
Ringer volume......................................... 33
Ringer tone................................................34
LCD language........................................... 35
Set date and time................................. 35
Set speed dial voicemail
number......................................................... 37
Voicemail (visual message
waiting) indicator.................................. 37
Clear voicemail indicator/
indication....................................................38
Key tone......................................................38
Home area code ....................................39
Dial mode ...................................................40
QUIET mode...............................................41

Telephone operation
Telephone operation................................ 53
Make, answer or end a
home call................................................53
Make, answer or end a cell call.....54
Silence the ringer.................................. 55
Call waiting on the home line.......56
Call waiting on the cell line.............56
Options while on calls .............................. 57
Handset speakerphone .................... 57
Volume control....................................... 57
Mute............................................................... 57
Temporary tone dialing....................58
Chain dialing.............................................59
Redial ...................................................................60
Last number redial...............................60
Save a redial entry to the
directory.......................................................61
Delete a redial entry.............................61
Handset locator............................................62
Multiple handset use
Join a call in progress ...............................63
Intercom............................................................64
Initiate an intercom call....................64
Answer an incoming call during
an intercom call......................................66
Call transfer using intercom................67
Push-to-talk (PTT)......................................69
Turn PTT on or o ................................69
PTT call to a single device...............70
PTT call to multiple devices........... 72
Answer a PTT call.................................. 74
Change a one-to-one PTT call
to an intercom call ............................... 75
Answer an incoming call during
a PTT call..................................................... 75
Make an outgoing call during
PTT call......................................................... 76
End or leave a PTT call....................... 76
Directory
About the directory................................... 77
Create and review entries.....................78
Create a new directory entry........78
Add a predialed telephone
number to the directory ..................80
Review the directory.........................81
Search by name .....................................82
Dial a directory entry..........................83
Dial, delete and edit a directory
entry.....................................................................84
Edit a directory entry .........................84
Delete a directory entry...................85
Delete all directory entries.............85
Caller ID
About caller ID...............................................86
Information about caller ID
with call waiting .....................................86
Caller ID operation......................................87
How the caller ID log works...........87
Missed (new) call indicator............. 87
Memory match.....................................87
Review the caller ID log..................88
View dialing options............................89
Dial a caller ID log entry....................89
Save a caller ID log entry to the
directory......................................................90
Delete caller ID log entries ...........93
Reasons for missing caller ID
information .....................................................94
Smart call blocker
About Smart call blocker*.....................95
Call categories ........................................96
Call handling............................................. 97
Call block settings.......................................99
Set Smart call blocker on/o .......99
Set prole................................................ 100
Block list.................................................... 101
Allow list ....................................................105

Star name list.........................................109
Screening announcements...........112
Voice guide to set Smart call
blocker.........................................................115
Allowed calls ................................................. 116
Blocked calls..................................................117
Screen unknown home calls.............. 118
Screened call options.......................120
Screen robocalls .........................................121
Option while on a call.............................122
Answering system
Answering system settings................123
Announcement.....................................123
Answer on/o .......................................125
Voice guide to set up answering
system........................................................126
Call screening.........................................127
Number of rings...................................128
Remote access code.........................129
Message alert tone............................129
Message recording time ................130
About the answering system.............131
Answering system and
voicemail....................................................131
Use the answering system and
voicemail together..............................131
Message capacity ...............................132
Voice prompts.......................................132
Call screening.........................................133
Call intercept..........................................134
Temporarily turn o the
message alert tone............................134
Message playback.....................................135
Options during playback................136
Delete all old messages.................. 137
Record and play memos.......................138
Record a memo....................................138
Playback a memo................................138
Remote access............................................139
To remotely access the
answering system...............................139
Appendix
Add and register handsets/
headsets.......................................................... 141
Register a handset to your
telephone base..................................... 141
Deregister handsets................................143
Deregister all handsets from
the telephone base............................143
Screen icons, indicator lights and
alert tones..................................................... 144
Screen icons .......................................... 144
Handset indicator lights................ 144
Telephone base indicator
lights ............................................................145
Handset alert tones ..........................145
Telephone base alert tones.........145
Screen messages..................................... 146
Troubleshooting........................................ 148
Maintenance.................................................158
For C-UL compliance...............................159
Mesures de sécurité
importantes............................................159
FCC Part 68 and ACTA............................162
FCC Part 15.................................................... 164
California Energy Commission
battery charging testing
instructions ...................................................165
Limited warranty.......................................166
Technical specications........................168
DECT 6.0 digital technology.........168
Telephone operating range.........168
Redening long range
coverage and clarity..........................168
Simulated full-duplex handset
and base speakerphones ..............168
Index
Index...................................................................169

1
Important safety information
Safety information
fRead and understand all instructions in the user’s manual. Observe all markings on the product.
fAvoid using a telephone during a thunderstorm. There might be a slight chance of electric shock
from lightning.
fDo not use a telephone in the vicinity of a gas leak. Under certain circumstances, a spark may
be created when the adapter is plugged into the power outlet, or when the handset is replaced
in its cradle. This is a common event associated with the closing of any electrical circuit. In an
inadequately ventilated environment, the user should not plug the phone into a power outlet,
nor put a charged handset into the cradle where there are concentrations of ammable or
ame-supporting gases. A spark in such an environment could create a re or explosion. Such
environments might include: medical use of oxygen without adequate ventilation; industrial
gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc.
fDo not use this product near water or when you are wet. For example, do not use it in a wet
basement or shower, nor next to a swimming pool, bathtub, kitchen sink, and laundry tub. Do
not use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquids,
unplug any line or power cord immediately. Do not plug the product back in until it has dried
thoroughly.
fInstall this product in a protected location where no one can trip over any line or power cords.
Protect cords from damage or abrasion.
fIf this product does not operate normally, read the Troubleshooting section on pages 148-157
of this user’s manual. If you cannot solve the problem, or if the product is damaged, refer to the
Limited warranty section on pages 166-167. Do not open this product except as may be
directed in your user’s manual. Opening the product or reassembling it incorrectly may expose you
to hazardous voltages or other risks.
fReplace batteries only as described in your user’s manual (pages 15-17). Do not burn or
puncture batteries — they contain caustic chemicals.
fThe power adapters are intended to be correctly oriented in a vertical or oor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-
table or cabinet outlet.
fFor pluggable equipment, the socket-outlet shall be installed near the equipment and shall be
easily accessible.
CAUTIONS:
fUse only the power adapters provided with this product. To obtain a replacement, visit our
website at https://telephones.att.com, or call 1 (800) 222–3111. In
Canada, dial 1 [phone].
fUse only the supplied rechargeable battery or replacement battery (model BT162342/BT262342).
To order, visit our website at https://telephones.att.com or call
1 [phone]. In Canada, dial 1 [phone].
i
CAUTION: To prevent risk of re or battery explosion, replace with the correct battery type.
Dispose of used batteries according to the instructions.
This symbol is to alert you to important operating or servicing instructions that may
appear in this user’s manual. Always follow basic safety precautions when using this
product to reduce the risk of injury, re, or electric shock.
Getting started

2
Getting started
Important safety information
Especially about cordless telephones
fPrivacy: The same features that make a cordless telephone convenient create some limitations.
Telephone calls are transmitted between the telephone base and the handset by radio waves, so
there is a possibility that your cordless telephone conversations could be intercepted by radio
receiving equipment within range of the cordless handset. For this reason, you should not think
of cordless telephone conversations as being as private as those on corded telephones.
fElectrical power: The telephone base of this cordless telephone must be connected to a
working electrical outlet which is not controlled by a wall switch. Calls cannot be made from
the handset if the telephone base is unplugged, switched o or if the electrical power
is interrupted.
fPotential TV interference: Some cordless telephones operate at frequencies that may cause
interference to TVs and VCRs. To minimize or prevent such interference, do not place the
telephone base of the cordless telephone near or on top of a TV or VCR. If interference is
experienced, moving the cordless telephone farther away from the TV or VCR will oen reduce
or eliminate the interference.
fRechargeable batteries: This product contains nickel-metal hydride rechargeable batteries.
Exercise care in handling batteries in order not to create a short circuit with conductive material
such as rings, bracelets, and keys. The battery or conductor may overheat and cause harm.
Observe proper polarity between the battery and the battery charger.
fNickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not
burn or puncture. Like other batteries of this type, if burned or punctured, they could release
caustic material which could cause injury.
The RBRC Seal means that the manufacturer is voluntarily participating in an
industry program to collect and recycle nickel-metal hydride rechargeable
batteries when taken out of service within the United States. These batteries
may be taken to a participating local retailer of replacement batteries or
recycling center. You may call 1-800-8-BATTERY® for locations accepting
spent Ni-MH batteries.
The RBRC Seal and 1-800-8-BATTERY® are registered trademarks of
Call2recycle, Inc.

3
Getting started
Important safety information
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac
pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to
physicians that:
Pacemaker patients:
fShould keep wireless telephones at least six inches from the pacemaker.
fShould NOT place wireless telephones directly over the pacemaker, such as in a breast pocket,
when it is turned ON.
fShould use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using
wireless telephones.
ECO mode
This power conserving technology reduces power consumption for optimal battery performance. The
ECO mode activates automatically whenever the handset is synchronized with the telephone base.
Especially about telephone answering systems
Two-way recording: This unit does not sound warning beeps to inform the other party that the
call is being recorded. To ensure that you are in compliance with any federal or state regulations
regarding recording a telephone call, you should start the recording process and then inform the
other party that you are recording the conversation.
SAVE THESE INSTRUCTIONS

4
Getting started
Installation
Install the telephone base close to a telephone jack and a power outlet not
controlled by a wall switch. The telephone base can be placed on a at surface
or vertically mounted on the wall (page 18). For optimum range and better
reception, place the telephone base in a central and open location.
You may hear interference if your cellular phone is too close to the telephone
base during a CELLULAR call. Make sure that your Bluetooth enabled cellular
phone is within 15 feet of the telephone base in order to maintain a clear and
consistent connection between your Bluetooth cell phone, telephone base and
cell tower.
If you subscribe to high-speed Internet service (DSL - digital subscriber line)
through your telephone line, you must install a DSL lter between the
telephone line cord and the telephone wall jack (page 13). The lter prevents
noise and caller ID problems caused by DSL interference. Please contact your
DSL service provider for more information about DSL lters.
Your product may be shipped with a protective sticker covering the handset or
telephone base display - remove it before use.
For customer service or product information, visit our website at
https://telephones.att.com or call 1 [phone]. In Canada, dial
1 [phone].
Avoid placing the telephone base and charger too close to:
fCommunication devices such as television sets, VCRs, or other
cordless telephones.
fExcessive heat sources.
fNoise sources such as a window with trac outside, motors, microwave
ovens, refrigerators, or uorescent lighting.
fExcessive dust sources such as a workshop or garage.
fExcessive moisture.
fExtremely low temperature.
fMechanical vibration or shock, such as on top of washing machine or
workbench.
You must install and charge
the battery before using the
cordless handset.
See pages 15-17 for easy
instructions.

5
Getting started
Quick reference guide - telephone base
REDIAL/PAUSE
fPress repeatedly to view the last 10
numbers dialed (page 60).
fWhile entering numbers, press and hold
to insert a dialing pause (page 80).
VOL
fPress to adjust the volume during
message playback (page 135).
fPress to adjust the listening volume
during a call (page 57).
fWhen the phone is not in use, press
to adjust the telephone base ringer
volume for all lines (page 33).
MUTE/VOICE
fDuring a call, press to mute the
microphone (page 57).
fWhile the telephone base is ringing,
press to silence the ringer temporarily
(page 56).
fWhen the telephone is not in use,
press to activate the voice-controlled
application of connected cell phone
(page 30).
1
fWhile reviewing a caller ID log entry,
press repeatedly to add or remove 1in
front of the telephone number before
dialing or saving it in the directory.
fPress and hold to set (page 37) or to
dial your voicemail number.
TONE /a>A
fPress to switch to tone dialing
temporarily during a call if you have
pulse service (page 58).
fWhile entering names, press to change
the next letter to upper or lower case.
QUIET# (pound key)
fPress repeatedly to display other dialing
options when reviewing a caller ID log
entry (page 89).
fPress and hold to enter the QUIET mode
setting screen, or to deactivate QUIET
mode (page 41).
/ANS ON
Press to turn the answering system on or
o (page 125).
2
3
456
8
9
10
11
12
1
15
14 13
7
1
2
3
4
5

6
Getting started
Quick reference guide - telephone base
/FIND HS
fPress the button to page all system
handsets (page 62).
Antenna
X/DELETE
fPress to delete the message
currently playing (page 135).
fWhen the phone is not in use,
press twice to delete all previously
reviewed messages (page 135).
fWhile reviewing the redial list,
directory, caller ID log, allow list, block
list, or star name list, press to delete
an individual entry (pages 60,
81, 88, 106, 102 and 110).
fWhile entering names or numbers,
press to delete a digit or a character.
fWhile predialing, press to delete
a digits.
/REPEAT
fPress to repeat a message or press
twice to play the previous message
(page 135).
/SKIP
fDuring message playback, press to skip
to the next message (page 135).
/PLAY/STOP
fPress to play messages (page 135).
fPress to stop message playback (page
135).
INT
fPress to initiate an intercom
conversation or transfer a call (page
64).
HOME (Speakerphone)
fPress to make or answer a home call
(page 53).
fFlashes quickly when there is an
incoming home call.
fFlashes slowly when a home call is on
hold.
CELL
fPress to make or answer a cell call
(page 54).
fFlashes quickly when there is an
incoming cell call.
fFlashes slowly when a cell call is on hold.
8
9
10
11
2
3
456
8
9
10
11
12
1
15
14 13
7

7
Getting started
Quick reference guide - telephone base
CALL BLOCK
fPress to block the incoming call when
the telephone is ringing (page 95).
fWhen on a call, press to block the call
(page 122).
fWhen the telephone base is not in
use, press to show the call block menu
(page 95).
CELL 1 Light
XOn when the telephone is paired and
connected with a Bluetooth device.
XFlashes alternately while pairing a
Bluetooth device.
CELL 2/Headset Light
XOn when the telephone is paired and
connected with a Bluetooth device or
headset.
XFlashes alternately while pairing a
Bluetooth device or headset.
CANCEL
fWhile in a menu, press to exit without
making changes or press and hold to
return to idle mode.
fPress and hold while the telephone
is not in use to erase the missed call
indicator (page 87).
qCID
fPress to scroll down while in a menu.
fPress to review the caller ID log when
the telephone is not in use (page 88).
fWhile entering names or numbers,
press to move the cursor to the le.
MENU/SELECT
fWhen the telephone base is not in use,
press to show the menu.
fWhile in the menu, press to conrm or
save an entry or setting.
pDIR
fPress to scroll up while in a menu.
fPress to show directory entries when
the telephone is not in use (page 81).
fWhile entering names or numbers,
press to move the cursor to the right.
PTT/FLASH
fPress to display the PTT menu to begin
a PTT call (page 69).
fPress and hold to begin a one-to-group
broadcast when the telephone base is
not in use (page 72).
fDuring a call, press to answer an
incoming home call when you receive a
call waiting alert (page 53).
12
13
14
15
2
3
456
8
9
10
11
12
1
15
14 13
7

8
Getting started
Using menus:
XPress MENU/SELECT to enter the main menu.
XPress CID or DIR to scroll through menu items.
XPress MENU/SELECT to select or save the indicated item.
XPress CANCEL to cancel an operation, back up to the previous menu or
exit the menu display.
Main menu
The selected menu item is highlighted.
Feature menu
fAnswering sys (page 123)
fSmart call blk (page 95)
fDirectory (page 77)
fCaller ID log (page 86)
fIntercom (page 64)
fBluetooth (page 24)
fRingers (page 33)
fSet date/time (page 35)
fCaller ID annc (page 36)
fSettings (page 35)
Menu
Quick reference guide - telephone base

9
Getting started
Quick reference guide - handset
fPress to decrease the listening
volume when on a call (page 57),
or to decrease the message playback
volume (page 135).
CELL
fPress to make or answer a cell call
(page 54).
fDuring a cell call, press to answer an
incoming cell call when you hear a call
waiting alert (page 56).
HOME/FLASH
fPress to make or answer a home call
(page 53).
fDuring a call, press to answer an
incoming home call when you receive a
call waiting alert (page 56).
CHARGE light
fOn when the handset is charging in the
telephone base or charger.
VOL pDIR
fPress pDIR to show directory entries
when the handset is not in use (page
81).
fPress to scroll up while in menus.
fWhile entering names or numbers, press
to move the cursor to the right.
fPress to increase the listening volume
when on a call (page 57), or to increase
the message playback volume (page
135).
VOL qCID
fPress qCID to show caller ID log when
the handset is not in use (page 88).
fPress to scroll down while in menus.
fWhile entering names or numbers, press
to move the cursor to the le.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4

10
Getting started
Quick reference guide - handset
1
fWhile reviewing a caller ID log entry,
press repeatedly to add or remove 1 in
front of the telephone number before
dialing or saving it in the directory.
fPress and hold to set (page 37) or to
dial your voicemail number.
TONE /a>A
fPress to switch to tone dialing
temporarily during a call if you have
pulse service (page 58).
fWhile entering names, press to change
the next letter to upper or lower case.
/SPEAKER
fPress to make or answer a home or cell
call using the speakerphone (page 53
or page 54).
fPress to switch between the
speakerphone and the handset (page
57).
MUTE/DELETE/VOICE
fDuring a call, press to mute the
microphone (page 57).
fWhen the handset is ringing, press to
mute the ringer temporarily (page
56).
fWhile reviewing the caller ID log, the
directory or the redial memory, press
to delete an individual entry.
fWhile predialing, press to delete digits.
fDuring message or announcement
playback, press to delete the
playing message or the recorded
announcement.
fWhen the handset is not in use, press
to activate the voice-controlled
application of connected cell phone
(page 30).
MENU/SELECT
fWhen the handset is not in use, press
to show the menu.
fWhile in the menu, press to select an
item or save an entry or setting.
7
8
9
5
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14

11
Getting started
Quick reference guide - handset
CALL BLOCK
fPress to block the incoming call when
the telephone is ringing (page 95).
fWhen on a call, press to block the call
(page 122).
fWhen the handset is not in use, press to
show the call block menu (page 95).
OFF/CANCEL
fDuring a call, press to hang up (page
53 or page 54).
fWhile in a menu, press to cancel an
operation, back up to the previous
menu, or exit the menu display; or
press and hold this button to exit to idle
mode.
fWhen the handset is ringing, press to
mute the ringer temporarily (page
56).
fPress and hold while the telephone
is not in use to erase the missed call
indicator (page 87).
QUIET# (pound key)
fPress repeatedly to display other
dialing options when reviewing a caller
ID log entry (page 89).
fPress and hold to enter the QUIET
mode setting screen, or to deactivate
QUIET mode (page 41).
PTT (PUSH TO TALK)
fPress to initiate a one-to-one (page
70) or one-to-group broadcast
(page 72).
fPress and hold to broadcast to a group
of system devices (page 72).
REDIAL/PAUSE
fPress repeatedly to view the last 10
numbers dialed (page 60).
fWhile entering numbers, press and
hold to insert a dialing pause (page
80).
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14

12
Getting started
Quick reference guide - handset
Feature menu
fPlay messages (page 135)
fAnswering sys (page 123)
fSmart call blk (page 95)
fDirectory (page 77)
fCaller ID log (page 86)
fIntercom (page 64)
fRingers (page 33)
fSet date/time (page 35)
fCaller ID annc (page 36)
fSettings (page 35)
Main menu
The selected menu
item is highlighted.
Using menus:
1. Press MENU/SELECT in idle mode (when the telephone is not in use) to enter
the main menu.
2. Press CID or DIR to scroll through menu items.
3. Press MENU/SELECT to select or save the highlighted item.
-OR-
Press OFF/CANCEL to cancel an operation, back up to the previous menu,
or exit the menu display.
Menu

13
Getting started
Telephone base and charger installation
Install the telephone base and charger, as shown below.
The telephone base is ready for tabletop use. If you want to change to
wall-mounting, see Installation options on page 18 for details.
Telephone base installation
Raise the antenna.
Plug one end of the
telephone line cord into a
telephone jack or a DSL lter.
Plug the small end of the
telephone base power adapter
into the power adapter jack on
the back of the telephone base.
Plug the large end of the
telephone base power adapter
into a power outlet not
controlled by a wall switch.
Plug the other end of the telephone
line cord into the telephone jack on
the back of the telephone base.
If you have DSL
high-speed Internet
service, a DSL lter
(not included) is
required.
Route the
telephone line cord
through this slot.
Route the power
adapter cord through
this slot.

14
Getting started
Telephone base and charger installation
Charger installation
IMPORTANT INFORMATION
fUse only the power adapter(s) provided with this product. To obtain a
replacement, visit our website at https://telephones.att.com or call
1 [phone]. In Canada, dial 1 [phone].
fThe power adapters are intended to be correctly oriented in a vertical or
oor mount position. The prongs are not designed to hold the plug in place if
it is plugged into a ceiling, under-the-table or cabinet outlet.
Plug the large end of the
charger’s power adapter
into an electrical outlet not
controlled by a wall switch.
Ensure the small end of the charger’s
power adapter is plugged into the power
jack on the bottom of the charger.
