AT&T CL83101 User manual

Quick start guide (Canada version)
CL83101/CL83201/
CL83301/CL83351/
CL83401/CL83451
DECT 6.0 cordless telephone/
answering system with
caller ID/call waiting

1
See page 3 for
easy instructions.
You must install and
charge the battery before
using the telephone. STOP!
Installation
Install the telephone base close to a telephone jack and a power outlet
not controlled by a wall switch. The telephone base can be placed on a flat
surface or vertically mounted on the wall. For optimum range and better
reception, place the telephone base in a central and open location.
If you subscribe to high-speed Internet service (DSL - digital subscriber line)
through your telephone line, you must install a DSL filter between the telephone
line cord and the telephone wall jack (see the following page). The filter prevents
noise and caller ID problems caused by DSL interference. Please contact your DSL
service provider for more information about DSL filters.
Your product may be shipped with protective stickers covering the handset
and telephone base displays - remove them before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 [phone].
Avoid placing the telephone base too close to:
Communication devices such as television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing machine
or workbench.
•
•
•
•
•
•
•

2
Telephone base and charger installation

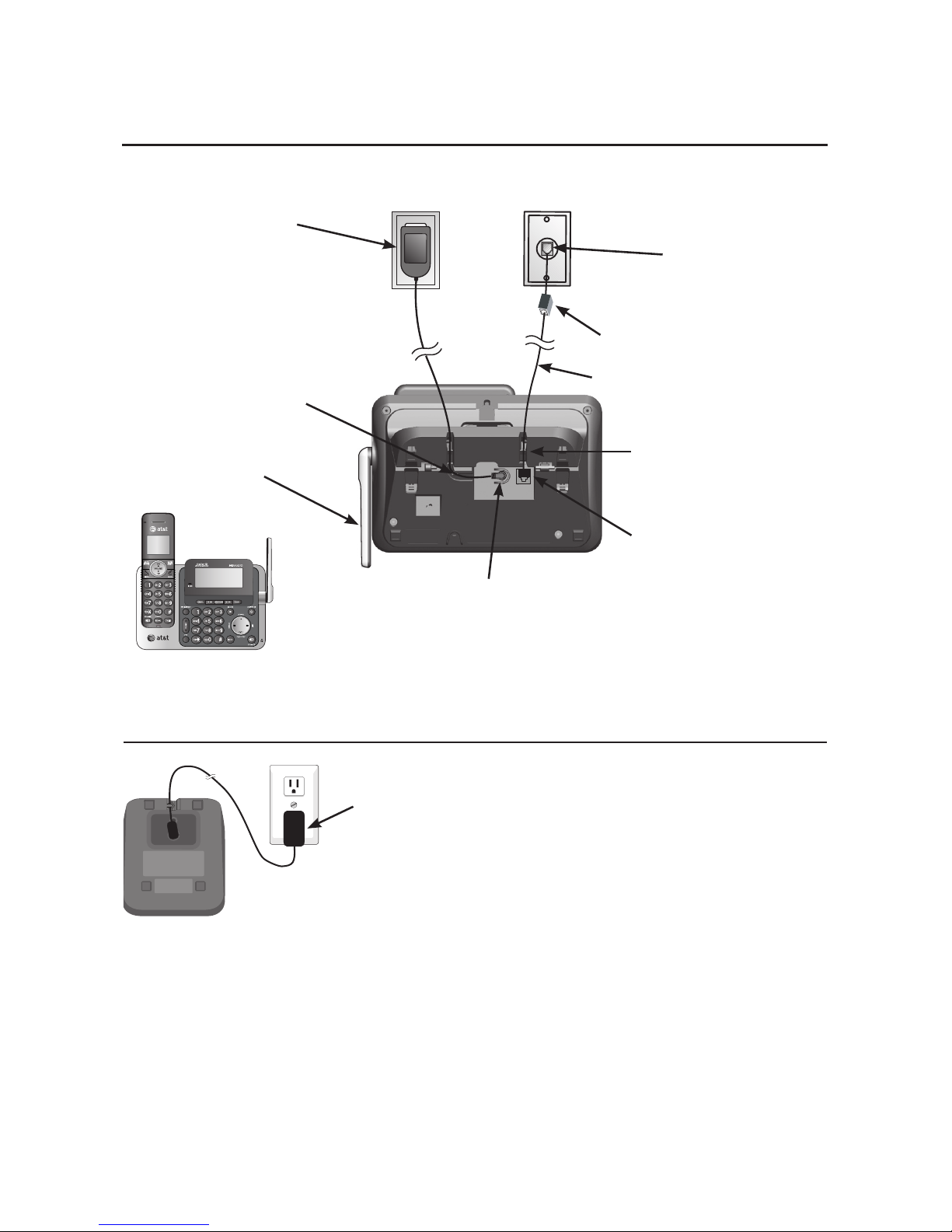

Install the telephone base and charger as shown below.
IMPORTANT INFORMATION
Use only the power adapter(s) supplied with this product. To order a replacement
power adapter, visit our website at www.telephones.att.com or call
1 [phone].
The power adapters are intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
•
•
Plug the power adapter into an electrical outlet
not controlled by a wall switch.
Raise the antenna.
Charger installation
Telephone base installation
Plug the other end of the
telephone line cord into the
telephone jack on the back
of the telephone base.
Route the power adapter
cord through this slot.
Plug the small end of the
telephone base power
adapter into the power
adapter jack on the back
of the telephone base.
Plug the large end of
the power adapter into
a power outlet not
controlled by a wall
switch.
Plug one end of the
telephone line cord
into a telephone jack
or a DSL filter.
If you have DSL high-speed
Internet service, a DSL filter
(not included) is required.
Telephone line cord
Route the telephone line
cord through this slot.

3
Battery installation and charging
Once you have installed the battery, the screen indicates the battery status. For
best performance, keep the handset in the telephone base or charger when
not in use. The battery is fully charged after 10 hours of continuous charging.
BY 1021
BT183342/BT283342

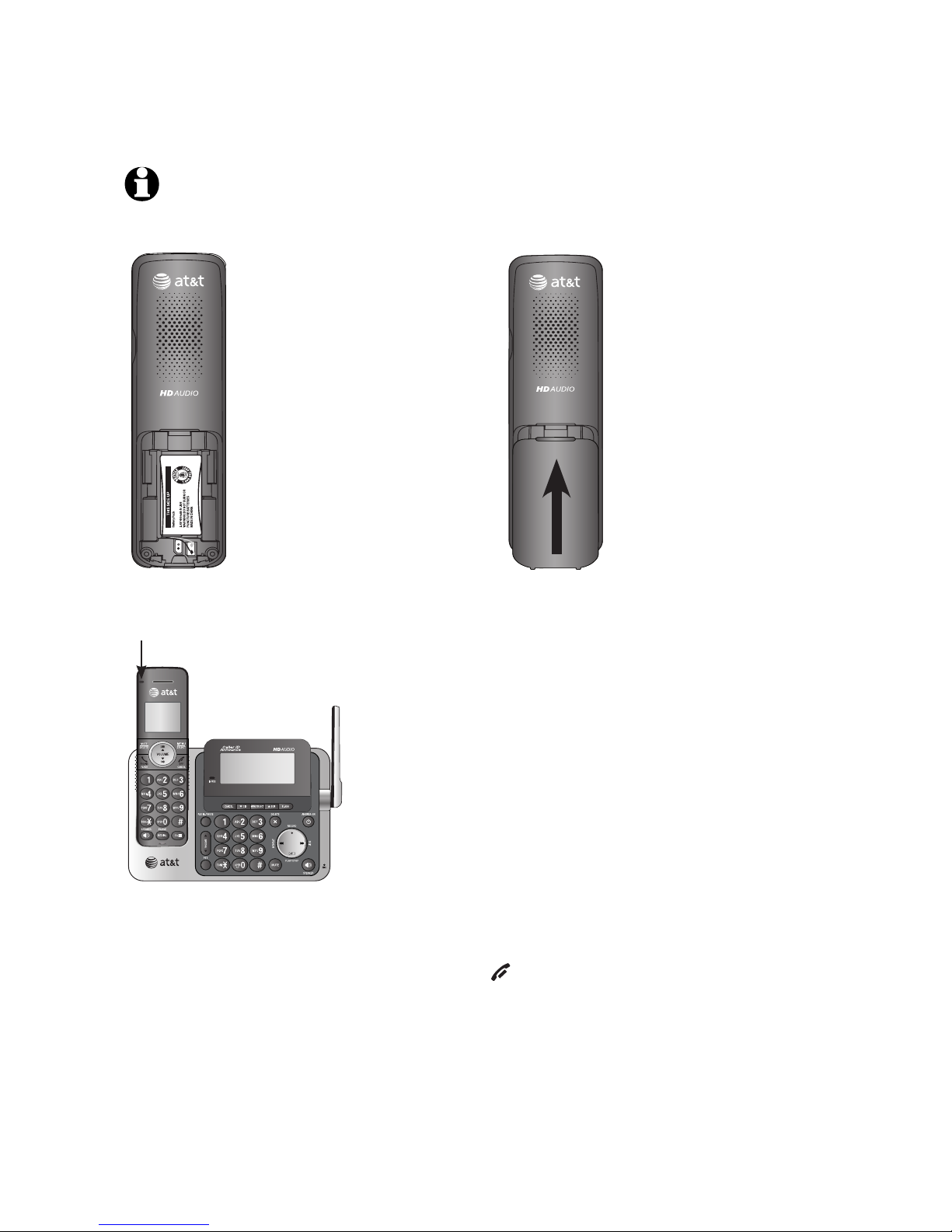

Step 1
Plug the battery
connector securely
into the socket inside
the handset battery
compartment, matching
the color-coded label.
Insert the supplied
battery with the label
THIS SIDE UP facing up
as indicated.
Step 2
Align the cover flat
against the battery
compartment, then
slide it upwards until
it clicks into place.
NOTE: If you are on a phone call in low battery mode, you hear four short beeps
every minute.
Step 3
Charge the handset by placing it face forward in
the telephone base or charger. The CHARGE light
on the top of the handset is on during charging.
IMPORTANT INFORMATION
Use only the supplied rechargeable battery or replacement battery (model BT166342).
To order, visit our website at www.telephones.att.com or call
1 [phone].
If you do not use the handset for a long time, disconnect and remove the battery
to prevent possible leakage.
•
•
CHARGE light
After you install your telephone or power returns following a power outage,
the handset will prompt you to set the date and time. For instructions, see
Set date/time on page 8. To skip, press OFF/CANCEL.

4
CHARGE indicator
On when the handset is
charging in the telephone base
or charger.
qCID/VOLUME
Press qCID to show caller ID
history when the handset is not
in use.
Press to scroll down while in
menus.
While entering names or
numbers, press to move the
cursor to the left.
Press to decrease the listening
volume when on a call, or to
decrease the message playback
volume.
PHONE/FLASH
Press to make or answer a call.
During a call, press to answer
an incoming call when you
receive a call waiting alert.
During message playback, press
to call back the caller if caller’s
number is available.
/SPEA�ERSPEA�ER
Press to make or answer a
call using the speakerphone.
Press to switch between
the speakerphone and the
handset.

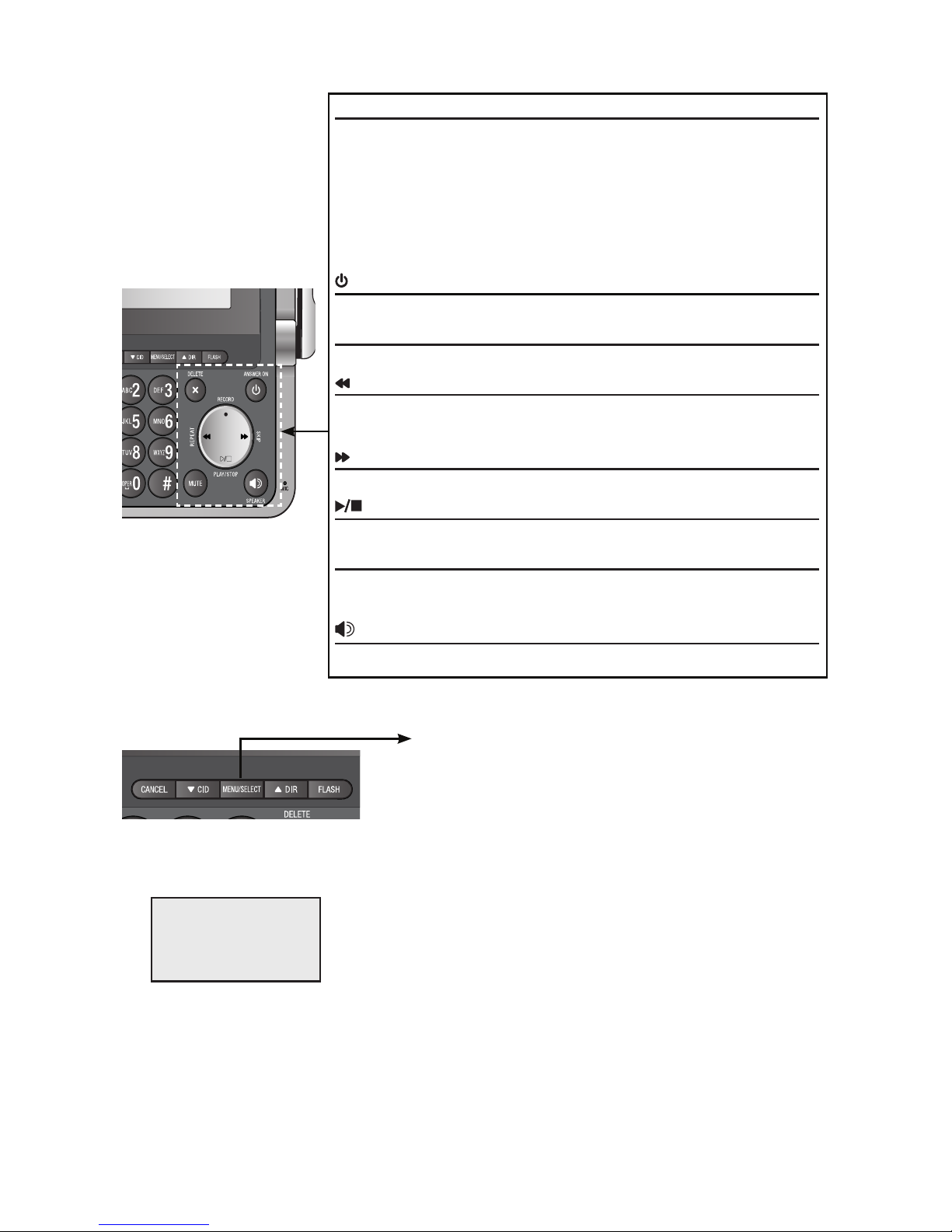

Quick reference guide - handset
# (pound key)
Press repeatedly to display
other dialing options when
reviewing a caller ID log entry.
OFF/CANCEL
During a call, press to hang
up.
While in a menu, press to
cancel an operation, back up
to the previous menu, or exit
the menu display, or
press and hold this button to
exit to idle mode.
When the handset is ringing,
press to mute the ringer
temporarily.
Press and hold while the
telephone is not in use to
erase the missed call indicator.
MENU/SELECT
When the handset is not in
use, press to show the menu.
While in the menu, press to
select an item or save an
entry or setting.
pDIR/VOLUME
Press pDIR to show directory
entries when the handset is
not in use.
Press to scroll up while
in menus.
While entering names or
numbers, press to move the
cursor to the right.
Press to increase the listening
volume when on a call, or to
increase the message
playback volume.
REDIAL/PAUSE
Press repeatedly to view
the last 10 numbers dialed.
While entering numbers,
press and hold to insert a
dialing pause.
EQ
During an outside call,
intercom call, message or
announcement playback,
press to change the audio
quality to best suit your
hearing.
1
While reviewing a caller ID
log entry, press repeatedly to
add or remove 1 in front of
the telephone number before
dialing or saving it in the
directory.
TONE
Press to switch to tone dialing
temporarily during a call if you
have pulse service.
MUTE/DELETE
During a call, press to mute the
microphone.
When the handset is ringing,
press to mute the ringer
temporarily.
While reviewing the caller ID
history, the directory or the
redial memory, press to delete
an individual entry.
While predialing, press to
delete digits.
During message or announcement
playback, press to delete the
playing message or the recorded
announcement .

5
Quick reference guide - handset

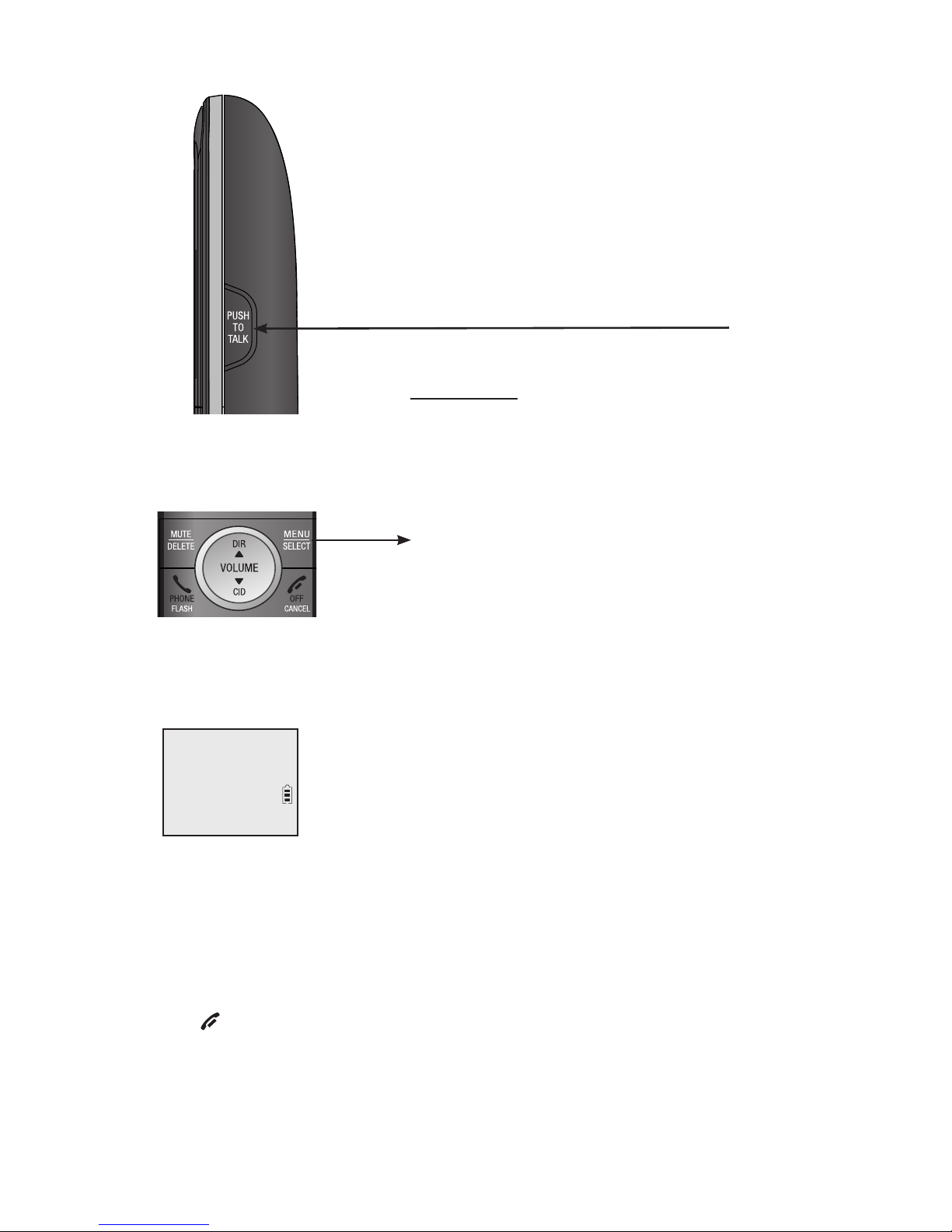

Main menu
Play messages
Answering sys
Directory
Caller ID log
Intercom
Ringers
Set date/time
Settings
Website
•
•
•
•
•
•
•
•
•
Using menus:
Press MENU/SELECT to show the menu.
Press qCID or pDIR to scroll through menu items.
Press MENU/SELECT to confirm or save changes to a highlighted menu item.
Press OFF/CANCEL to cancel an operation, back up to the previous
menu, or exit the menu display.
•
•
•
•
PUSH TO TAL�
Press to initiate a one-to-one or
one-to-group broadcast.
Press and hold to broadcast to a group of
system devices.
The >symbol highlights
a menu item.
>Play messages
Answering sys
p
q
Main menu

6

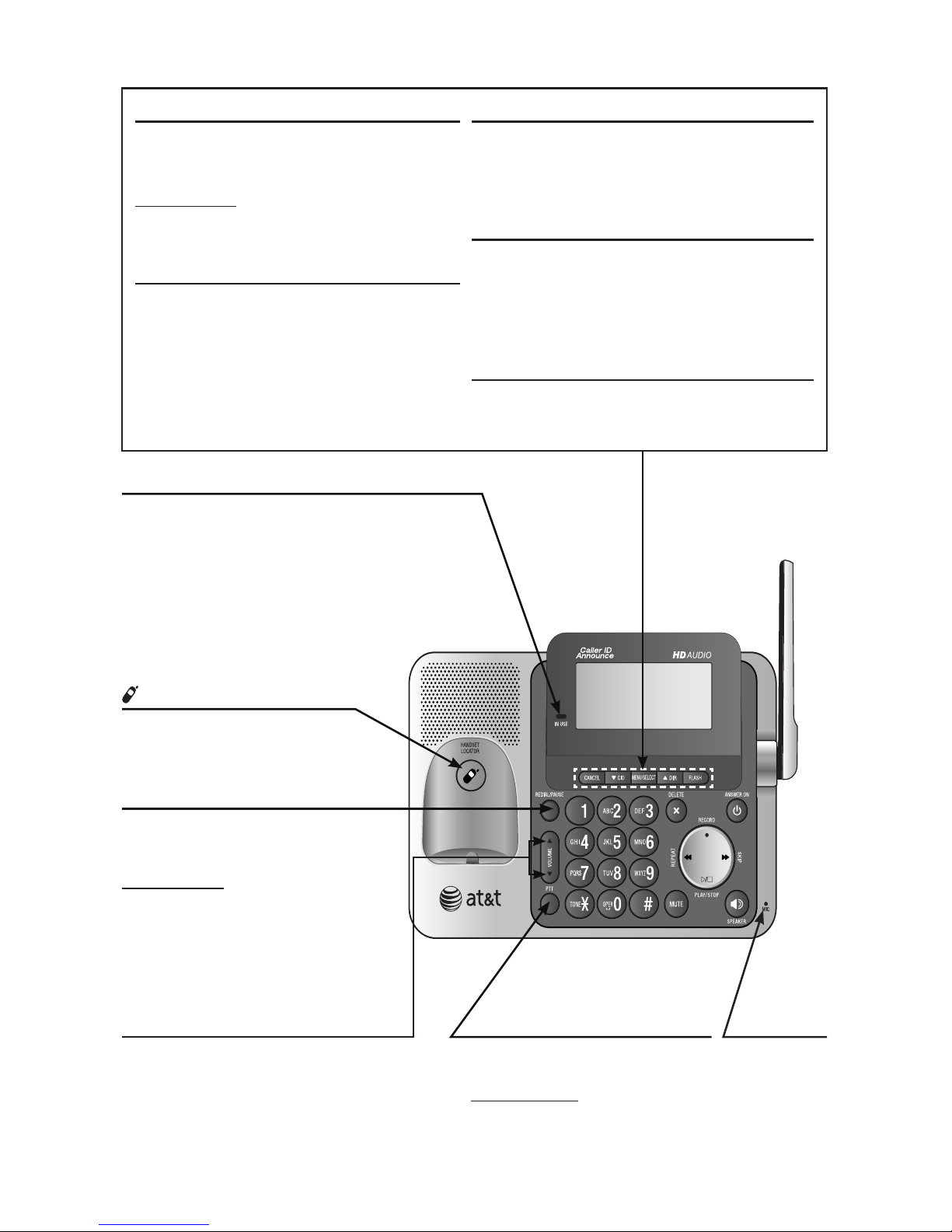

Quick reference guide - telephone base
IN USE indicator
On when the telephone is in use, or when the
answering system is answering an incoming call.
On when a handset is being registered.
Flashes when there is an incoming call or when
all handsets are being deregistered.
Flashes when another telephone is in use on the
same line.
REDIAL/PAUSE
Press repeatedly to view the last
10 numbers dialed.
While entering numbers,
press and hold to insert a dialing
pause.
MENU/SELECT
When the telephone base is not in use, press
to show the menu.
While in the menu, press to confirm or save an
entry or setting.
pDIR
Press to display the directory when the phone is
not in use.
Press to scroll up while in menus and lists.
While entering names and numbers, press to
move the cursor to the right.
FLASH
During a call, press to answer an incoming call
when you receive a call waiting alert.
PTT
Press to initiate a one-to-one or
one-to-group broadcast.
Press and hold to broadcast to a
group of system devices.
CANCEL
While in a menu, press to cancel an operation,
back up to the previous menu or exit the menu
display.
Press and hold to go back to idle mode.
When the telephone base is ringing, press to
mute the ringer temporarily.
qCID
Press to display the caller ID history when
the phone is not in use.
Press to scroll down while in menus and lists.
While entering names and numbers, press to
move the cursor to the left.
/HANDSET LOCATOR
While the phone is idle, press to
page all handsets.
MIC
Microphone
q/VOLUME/p
During message playback or call
screening, press to adjust the listening
volume.
While in idle mode, press to adjust the
base ringer volume.
When on a call, press to adjust the
listening volume.

7
X/DELETE
While reviewing the caller ID history, the directory or the redial
memory, press to delete an individual entry.
While predialing, press to delete digits.
During message or announcement playback, press to delete the
playing message or the recorded announcement.
Press twice to delete all old messages when the phone is not
in use.
/ANSWER ON
Press to turn the built-in answering system on or off.
•/RECORD
Press to record a memo or an announcement.
/REPEAT
During playback, press to repeat the playing message.
During playback, press twice to play the previous message.
/S�IP
Press to skip a message.
/PLAY/STOP
Press to start or stop message playback.
MUTE
During a call, press to mute the microphone.
When the phone is ringing, press to mute the ringer temporarily.
/SPEA�ER
Press to make or answer a call using the speakerphone.
Main menu
Play messages
Answering sys
Directory
Caller ID log
Intercom
Ringers
Set date/time
Settings
Website
•
•
•
•
•
•
•
•
•
Using menus:
Press MENU/SELECT to show the menu.
Press qCID or pDIR to scroll through menu items.
Press MENU/SELECT to confirm or save changes to a highlighted menu item.
Press CANCEL to cancel an operation, back up to the previous menu, or
exit the menu display.
•
•
•
•
Quick reference guide - telephone base
The >symbol highlights
a menu item.
>Playing messages
Answering sys
p
q
Main menu

8
Telephone settings
Set date/time
To set the date and time manually:
1. When the handset or telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press qCID or pDIR to scroll to >Set date/time and then
press MENU/SELECT.
3. Press qCID or pDIR to select the month, then press
MENU/SELECT, or enter the number using the dialing keys.
4. Press qCID or pDIR to select the day, then press
MENU/SELECT, or enter the number using the dialing keys.
5. Press qCID or pDIR to select the year, then press
MENU/SELECT, or enter the number using the dialing keys,
then press MENU/SELECT to move on to set the time.
6. Press qCID or pDIR to select the hour, then press
MENU/SELECT, or enter the number using the dialing keys.
7. Press qCID or pDIR to select the minute, then
press MENU/SELECT, or enter the number using the
dialing keys.
8. Press qCID or pDIR to highlight AM or PM,or press
2for AM or 7for PM.Then press MENU/SELECT to
confirm. There is a confirmation tone and the screen
returns to the previous menu.
NOTE: If the clock is not set when a message is recorded, the
system announces, “Time and day not set,” before it plays the
message.
SET DATE
MM/DD/YY
p
q
SET TIME
HH:MM --
p
q
Ringers
>Set date/time
p
q
SET DATE
MM/DD/YY
p
q
SET TIME
HH:MM --
p
q
Ringers
>Set date/time
p
q

9
Telephone operation
Making a call
Using a cordless handset:
Press PHONE/FLASH or /SPEA�ERSPEA�ER, then enter the
telephone number.
The screen displays the elapsed time as you talk (in hours,
minutes and seconds).
Using the telephone base:
Press /SPEA�ERSPEA�ER, then enter the telephone number.
The screen displays the elapsed time as you talk (in hours,
minutes and seconds).
NOTE: Pressing PHONE/FLASH or /SPEA�ERSPEA�ER to access
services from your telephone service provider does not affect the
elapsed time.
Answering a call
Using a cordless handset:
Press PHONE/FLASH or /SPEA�ERSPEA�ER.
-OR-
Press any dialing key (0-9, TONE or #).
Using the telephone base:
Press /SPEA�ERSPEA�ER.
-OR-
Press any dialing key (0-9, TONE or #).
Ending a call
Using a cordless handset:
Press OFF/CANCEL or return the handset to the telephone base or charger.
Using the telephone base:
Press /SPEA�ERSPEA�ER.
•
•
•
•
•
•
•
•
Phone 0:00:30
Elapsed time
6:30AM 8/06
Speaker 0:00:30
6:30AM 8/06
Speaker 0:00:30
Elapsed time
6:30AM 8/06
