AT&T PBH10 User manual
User’s Manual
PBH10
Bluetooth®/Wired Headphones
Page 2
Welcome |Thank you for buying AT&T PBH10
Bluetooth®/Wired Headphones
Features
- Bluetooth 2.1 technology with amazing sound
- Built-in microphone with echo cancellation
- Full controls for playback and calls
- Portable folding design
- 3.5 mm auxiliary input jack
Page 3
What’s Included
Unpack the Bluetooth® headphones and make sure all
accessories are put aside so they will not be lost.
Micro USB Cable Audio Cord

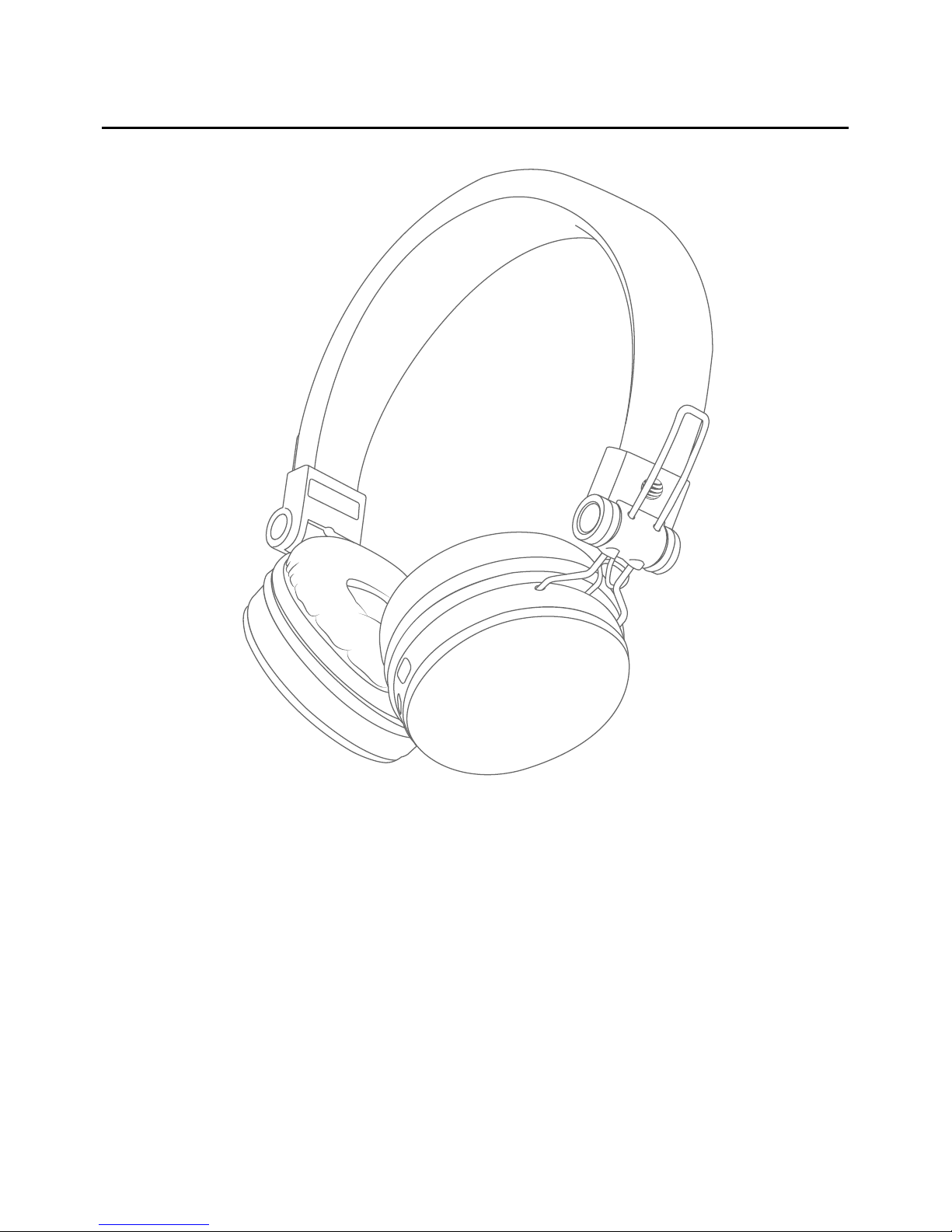

Bluetooth Headphones
Page 4
Content
Introduction
Features 2
What’s Included 3
Safety Information
Important Safety Instructions 5
Getting Started
Location of Main Unit Controls 6
Operational Instructions
Charging 7
Power ON/OFF 7
Pairing 7
Making Phone Calls 8
Listening to Music 9
LED Indicator Chart 9
Troubleshooting 10
Compliance with FCC Regulations 11
Warranty Information
Limited Warranty 12
Specications 14
Page 5
Safety Information
Important Safety Instructions
Please read all safety and operating instructions carefully
before installation and use, and keep these instructions handy
for future reference. Take special note of all warnings listed in
this user’s manual and on the PBH10.
1. Attachments - Do not use attachments not recommended by the
manufacturer.
2. Water and Moisture - The unit should not be used near water. For
example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming
pool or in a wet basement.
3. Ventilation - The unit should be situated so that its location or position
does not interfere with its proper ventilation. For example, it should
not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed in a built-in installation,
such as a bookcase or cabinet, which may impede the ow of air through
the ventilation openings.
4. Objects and Liquid Entry - Care should be taken so that external objects
do not fall into and liquids are not spilled onto any openings or vents
located on the product.
5. Power Source - The unit should be connected only to a power supply
of the type described in the operating instructions or as marked on
the unit. If you are not sure, please consult the dealer or local power
company.
6. Heat - The unit should be situated away from heat sources such as
radiators, heat registers, stoves or other appliances (including ampliers)
that produce heat.
7. Servicing - The user should not attempt to service the unit beyond
those methods described in the user’s manual. Opening or removing
covers will expose you to dangerous voltage and other hazards. Service
methods not covered in the user’s manual should be referred to qualied
service personnel.
Page 6
Getting Started
Location of Main Unit Controls
6.
Previous song /
Volume -
7.
Play / Pause
8.
5. Next song /
LED Volume +
1.
ON/OFF / Pairing /
Answer / Reject call /
Redial
2.
Micro USB
charging port
3.
3.5 mm input port
4.
Microphone
(not shown)
Page 7
Operational Instructions
Charging
Charge your PBH10 through any USB jack or wall charger. The
LED indicator will begin to blink red when charging. Before
using for the rst time, charge at least 4 hours. Aer the rst
charge, the headset will charge in 2 to 3 hours and the LED
indicator will stop blinking when the charge is complete.
Note: When the battery is fully charged, the LED indicator will change to blue.
Power ON/OFF
Press and hold the ON/OFF button for 1 second to switch the
headset on. The LED will ash blue when powered on. Press
and hold the ON/OFF button for 3 seconds to switch the
headset o. When powering o, the LED will ash blue and
then turn o indicating the headset is o.
Pairing
While the headset is o, press and hold the ON/OFF –
Bluetooth Pairing buttons for 5 seconds to start pairing mode.
Once the headset is in the pairing mode (the LED will ash red
and blue), select ‘LHB18’ among discovered Bluetooth devices
on the phone. If requested, enter the password ‘0000’ to pair
the headset. When connected, you will hear a beep and your
mobile device will show “Paired”.
Note: If the headset is not pair with a Bluetooth device in 3 minutes, it will turn itself o.
Page 8
Operational Instructions
Making Phone Calls
Making a call
Once paired, use your mobile device to dial a number as usual.
Once connected, the call will be heard on your PBH10 headset
Last number redial
Press the ON/OFF button to redial last number.
Note: For some mobile models, press the ON/OFF button twice.
Answer a call
When receiving a call, press the ON/OFF button to answer
the call.
Ending a call
While talking on the phone, press the ON/OFF button to end
the call.
Rejecting a call
While receiving a call, press and hold the ON/OFF button to
refuse the call.
Call transfer
During a phone conversation, press the Play/Pause button to
switch the call between the headset and the phone.
Page 9
Operational Instructions
Listening to Music
Play/Pause
Press the Play button to launch the phone’s music player and
to start listening to music. While listening to music, press the
Pause button to pause or to resume play.
Song selection
While music is playing, press the Next Song or Previous Song
buttons to select songs.
Answer a call while listening to music
When receiving a call, press the ON/OFF button to answer the
call. Press the ON/OFF button while on the phone to end the
call. When receiving a call, press and hold the ON/OFF button
to reject the call. (Music will resume playing when the call is
rejected.)
Volume control
Use the Volume + and Volume - buttons to adjust the volume
level.
LED Indicator Chart
Status Indicator
Powering ON Blue and red lights ashing rapidly
Powering OFF LED turns o
Low battery Blinking red & headset emits a beep
Charging Solid red light
Pairing mode Blue and red lights ashing rapidly
Connection complete Blue light blinks every 3 seconds
Incoming call & on the phone Blinking blue and purple lights
Playing music Blinking blue light
Page 10
Troubleshooting
Symptom Solution
Check to make sure both devices
are paired and connected over
Music is not streaming over Bluetooth.
Bluetooth Restart the PBH10 to auto-
connect with your Bluetooth
device.
No power Make sure the PBH10 is fully
charged.
Check to make sure both devices
are paired and connected over
PBH10 does not answer Bluetooth.
phone calls Restart the PBH10 to auto-
connect with your Bluetooth
device.
Music does not resume
aer ending a call Press play to resume music.
Not able to control music
from the PBH10
Check and make sure your mobile
device supports Bluetooth A2DP
prole.
Page 11
Compliance with FCC Regulations
Caution!
The user is cautioned that changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
The equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate Radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to Radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to Radio or television
reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from which the receiver is
connected.
-Consult the dealer or an experienced Radio/television technician for assistance.
This equipment complies with FCC’s RF radiation exposure limits set forth for an
uncontrolled environment. The antenna(s) used for this transmitter must be installed
and operated to provide a separation distance of at least 20 cm from all persons
and must not be collocated or operating in conjunction with any other antenna or
transmitter. Installers must ensure that 20 cm separation distance will be maintained
between the device (excluding its handset) and users.
THE SPECIFICATION AND EXTERNAL APPEARANCE OF THE HEADPHONES ARE
SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
If at any time in the future you should need to dispose of this
product, please note that waste electrical products should not
be disposed of with household waste. Please recycle where
facilities exist. Check with your local authority or retailer for
recycling advice.
Page 12
Warranty Information
Limited Warranty
The AT&T brands are used under license. Any repair, replacement, or
warranty service, and all questions about this product should be directed to
Concept 101 LLC at www.att.com/electronics or call 1 (888) 920-8680 from
the USA or Canada.
Concept 101 LLC warrants to the original purchaser that the product will be free from defects
in material, parts and workmanship for the period designated for this product. The warranty
commences the day the product is purchased and covers up to a period of one (1) year.
Concept 101 LLC agrees that it will, at its option, replace the defective product with either a
new or remanufactured headset equivalent to your original purchase during the warranty
period. Should the Parts warranty period exceed the Labor warranty period, Concept 101 LLC
will supply at no charge for the remainder of the Parts warranty, any new or remanufactured
replacement parts as required by the product. During this period all labor and service charges
will become the responsibility of the customer.
Exclusions: This warranty does not apply to the appearance or exterior of the product
which may have been damaged or defaced, altered or modied in design or
construction. This warranty does not apply if the serial number is altered or
removed, or if there is any damage due to power line surge, user damage to
the AC power cord, connection to improper voltage source, general misuse,
accidents, or repair attempts by unauthorized service agents. Other exclusions
include ear pads, rechargeable and non-rechargeable batteries.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE
EXCLUSIVE REMEDY OF THE CUSTOMER; Concept 101 LLC SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO
THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY
OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED TO THE DURATION OF THE WARRANTY.
Some states do not allow the exclusion or limitations of incidental or
consequential damages, or limitations on how long the warranty lasts. In
these cases the above exclusions or limitations may not apply to you. This
warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
Page 13
Warranty Information
Obtaining Service: To obtain service, product literature, supplies or accessories please call
1 888-920-8680, or visit our website, www.att.com/electronics, to create
a ticket for exchange/repair. Please make sure to provide the date of
purchase, model number and a brief description of the problem. Our
customer service representative will contact you or send detailed return
instructions.
Concept 101 LLC does not warrant that the headset will work properly in all environmental
conditions, and makes no warranty and representation, either implied or expressed, with
respect to the quality, performance, merchantability, or tness for a particular purpose
other than the purpose identied within this user’s manual. Concept 101 LLC has made
every eort to ensure that this user’s manual is accurate and disclaims liability for any
inaccuracies or omissions that may have occurred. Information in this user’s manual is
subject to change without notice and does not represent a commitment on the part of
Concept 101 LLC. Concept 101 LLC reserves the right to make improvements to this user’s
manual and/or to the products described in this user’s manual at any time without notice.
If you nd information in this manual that is incorrect, misleading, or incomplete, please
contact us through our website.
Page 14
Specications
- Bluetooth 2.1
- Bluetooth compatibility: Bluetooth 2.0 or above device with
A2DP/AVRCP/HFP/HSP
- Working distance: Up to 30 .*
* Up to 30 . wireless range as determined by Bluetooth SIG. Range may vary depending on
the line of sight obstacles.
www.att.com/electronics
© 2017 Concept 101 LLC. All Rights Reserved. AT&T and the AT&T logo are trademarks
of AT&T Intellectual Property licensed to Concept 101 LLC, New York, New York 10018.
D Issue 5.0 AT&T 9/2017.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. Other trademarks and trade names are those of their respective owners.
Table of contents
Other AT&T Headphones manuals
