ATC SIENNA OUTDOOR INFRA RED
RADIANT HEATERS
Sienna 2.2
Black
Sienna 2.2
Silver
INSTALLATION, OPERATION AND
MAINTENANCE MANUAL
Sienna 4kW

-2-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
IMPORTANT INFORMATION
These Instructions should be carefully read before installation and retained by the user.
This booklet must be retained and delivered to the new user in case of sale of the heater.
The Manufacturer reserves the right to vary the features of the product without prior
notice. The technical data contained herein are indicative only.
1. This appliance is intended solely for the use it has been designed for, namely
the achievement and maintenance of a thermal comfort for the people by
means of irradiation on them. The product can also be used to heat indoor
environments but only when using a temperature controller - sold by others.
The Manufacturer is not responsible for any damage that could result from improper
use or not following these instructions.
2. After unpacking make sure that the appliance is complete and shows no signs of
visible damage or tampering.
3. The packing materials which are potential dangerous, should be kept away from
children.
4. The device can be used by children at least 8 years (as well as by persons with reduced
physical, sensory or mental capabilities, or lack of experience or required knowledge)
provided that they are under surveillance, or after they have been instructed relating
to the safe use and have understood the potential dangers. Children should not play
with the appliance. Cleaning and maintenance must be performed by the user and
not by unsupervised children.
5. Children of less than 3 years should be kept away unless continuously supervised.
6. Children aged from 3 years and less than 8 years shall only switch on/o the appliance
provided that it has been placed or installed in its intended normal operating position
and they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
7. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean
the appliance or perform user maintenance.
8. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
9. Children should be supervised to ensure that they do not play with the appliance.
10. Do not use the heater in small rooms used by people who are unable to leave such
rooms on their own unless they are under constant surveillance. Unless the heating
system has a feature to control the temperature or an external device to control the
ambient temperature.
11. Before wiring the heater make sure that the voltage is the same as indicated on the
device rating plate.
12. Do not use in presence of gas, inflammable or explosive liquids or substances.
13. Some fundamental rules which apply to all electrical devices must be observed when
using the heater:
USE & MAINTENANCE

ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
-3-
• Do not touch the heater with wet hands.
• Do not handle with bare feet.
• Do not pull the electric cord or the device itself to unplug it from the socket; pull the
plug directly.
14. Avoid the use of an extension cord with this product, because the extension cord
may overheat and cause a risk of fire.
15. Do not apply any modification to the product that could compromise the safety.
16. Keep connections dry.
17. If the appliance is not used for a long period, disconnect it from the power supply.
18. Always disconnect the appliance before doing any maintenance operation.
Some parts of the appliance may become hot and cause burns.
Caution should be exercised if there are children and vulnerable people.
CAUTION REGARDING THE INSTALLATION OF THE APPLIANCE
Installation should always be carried out by a qualified electrician or a competent person
in accordance with the standards HD 384 CENELEC for Europe, or international IEC
60346-7-708 1988.
The energy supply must be made through a properly grounded socket. The
appliance must be connected to the power supply by a H05RN-F cable, gotten
properly into dimension in respect to its own length and the kind of the connection.
An over-voltage category III Combined Circuit breaker and Residual Current
Device (RCD) with rated earth leakage operation not exceeding 30mA must
be fitted upstream on the supply line. The circuit breaker must have a contact
opening distance of at least 3mm.
• The appliance has a protection rating of IPX5, so it can be used outside.
• Keep the indicated distances between the heater and the wall/ceiling
• Install the heater in such a way that the lamps stay horizontal.
• A safety distance of not less than 1 meter should always be left in front of the heater.
• The appliance must not be located either directly below, or in front of a socket-outlet.
• Do not use the heater directly near a bathtub, a shower, a swimming pool.
• Ensure that the power cable cannot come into contact with the reflector of the
appliance and does not intrude into the area of heat output.
• Ensure that there is no possibility of inflammable material, combustible material or
curtains coming into contact with the Heater, or stored near the heater.
• When carrying out maintenance operations, never touch the lamps directly, but only
the terminal casings. The bulb will be damaged by contact with naked hands; in this
eventuality, the product guarantee will no longer be considered valid.
• In the event of accidental contact with the surface of the bulb, clean it immediately
by wiping with a cloth dipped in denatured alcohol.
CAUTION

-4-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
All infra red radiation heaters are designed to achieve and maintain a certain thermal
comfort to the people who need it, therefore it is very important to carefully study the
occupied area where people stay and consequently direct the heat towards them.
OPERATION INSTRUCTIONS
Read the instructions contained in this booklet carefully before using the appliance. ATC
cannot assume any responsibility for damage to property or personal injury resulting
from failure to abide by the instructions given in this booklet. Following these instructions
will insure a long service life and overall electrical and mechanical reliability. Keep this
instruction booklet in a safe place.
DESCRIPTION
ATC SIENNA is an extremely versatile heater that works with infrared rays. It can be used
in many dierent situations and is a very useful Heater for various dierent jobs. The heat
is immediate and the electricity consumption is very low, it only takes up a little space
although it heats a very wide area. The Sienna is built and developed with the best quality
components in accordance with all legal regulations and certified for safety in use.
INSTALLATION TO WALL
Install the heater on the wall at least a minimum distance of 0.32m from the ceiling (see
installation examples pages 10 and 11).
The height at which the heaters are normally installed varies between 2.7 to 3m Max for
the single version and from 3.4 to 4m Max for the double element heater.
Wall mounting is the best solution to achieve the best results in terms of heat
with the reflector at a 45° angle and the element always mounted horizontally.
The appliance must not be placed immediately below a mains socket.
WIRE GUARD - (Supplied with single 2.2kw heater)
• The wire guard should be used if protection is required (for example sports halls or
places where games are played). In areas where indoor football is played, it may be
necessary to fit additional external guarding to cope with the force of impact.
• The wire guard is simply mounted into the holes in the front of the reflector.
• The wire guard must be installed when the heater is fixed under a height of 2,5 m
from the floor level and this assembly must be done during installation and by a
qualified electrician.
• The Sienna protective wire guard has been designed to prevent direct access to the
heating elements and must not be removed while the heater is being used.
• The guard does not guarantee full protection for children or the disabled.

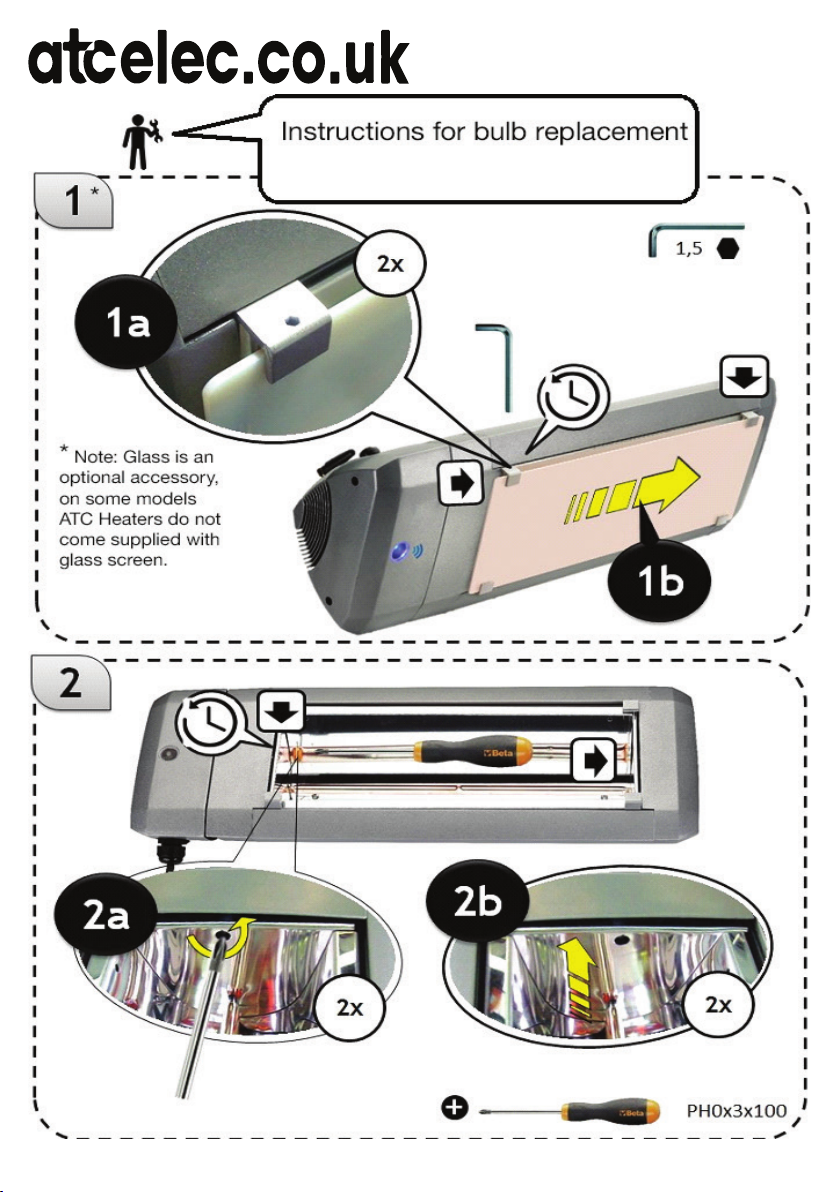

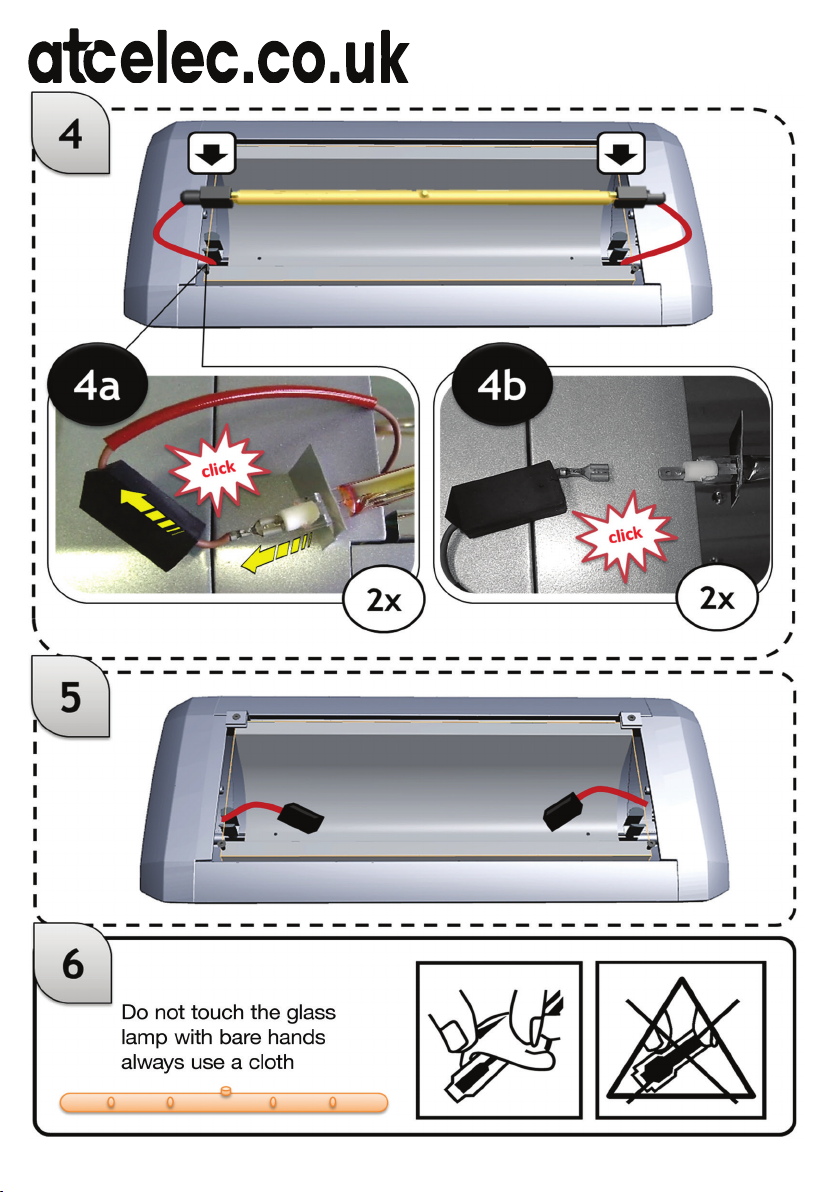

MAINTENANCE OF BULB (to be performed by qualified sta or specialized technician)
• The guarantee does not cover replacement or repair of bulb.
• Remove dust from the reflector and bulb periodically with brush or compressed air
for best heat eciency.
• The replacement bulb must be the same as the bulb supplied with the device.
• Replacement with other bulbs may damage the device and cause it to be unsafe.
contact ATC or the retail outlet authorized to sell the
replacement bulb, specifying the model and code of the
purchased heater.

ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
-5-
• IPX5 Waterproof
• Colour: BLACK (SIE2.2KW-BL) & SILVER (SIE2.2KW-SL)
• Dimensions: 465x195x113 mm
• Net weight: 2.45 kg.
• Package size: 640x270x190mm
• Gross weight: 3.5 kg.
• Power: 2200 Watt@ 220-240 Vac 50/60Hz
• Can heat an area of approximately 15m² * @ 2.7– 3m Max.
•
CONSTRUCTION
• Oven painted Aluminium with epoxy powder coating.
• Reflective aluminum reflector.
• Power cable length 5 m resistant to T180.
ACCESSORIES PROVIDED
Wall mount bracket Adjustment bracket
*HEATED AREAS
The heated areas covered can vary according to the installation height,
the environmental conditions and the synergy produced when several
heaters are installed. In the latter case results can be significantly higher
when the beams are overlapping.
TECHNICAL DATA SIE2.2KW-BL / SL
SIE2.2KW-BL SIE2.2KW-SL

-6-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
• IPX5 Waterproof
• Colour: BLACK (SIE4KW-BL) & SILVER (SIE4KW-SL)
• Dimensions: 910x195x113 mm
• Net weight: 4.05 kg.
• Package size: 1007x270x190mm
• Gross weight: 5.55 kg.
• Power: 4000 Watt@ 220-240 Vac 50/60Hz
• Can heat an area of approximately 30m² * @ 3.4– 4m Max.
•
CONSTRUCTION
• Oven painted Aluminium with epoxy powder coating.
• Reflective aluminum reflector.
• Power cable length 2 x 1.5 m resistant to T180.
ACCESSORIES PROVIDED
Wall mount bracket Adjustment bracket
*HEATED AREAS
The heated areas covered can vary according to the installation height,
the environmental conditions and the synergy produced when several
heaters are installed. In the latter case results can be significantly higher
when the beams are overlapping.
TECHNICAL DATA SIE4Kw-BL / SL
SIE4KW-BL SIE4KW-SL

ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
-7-

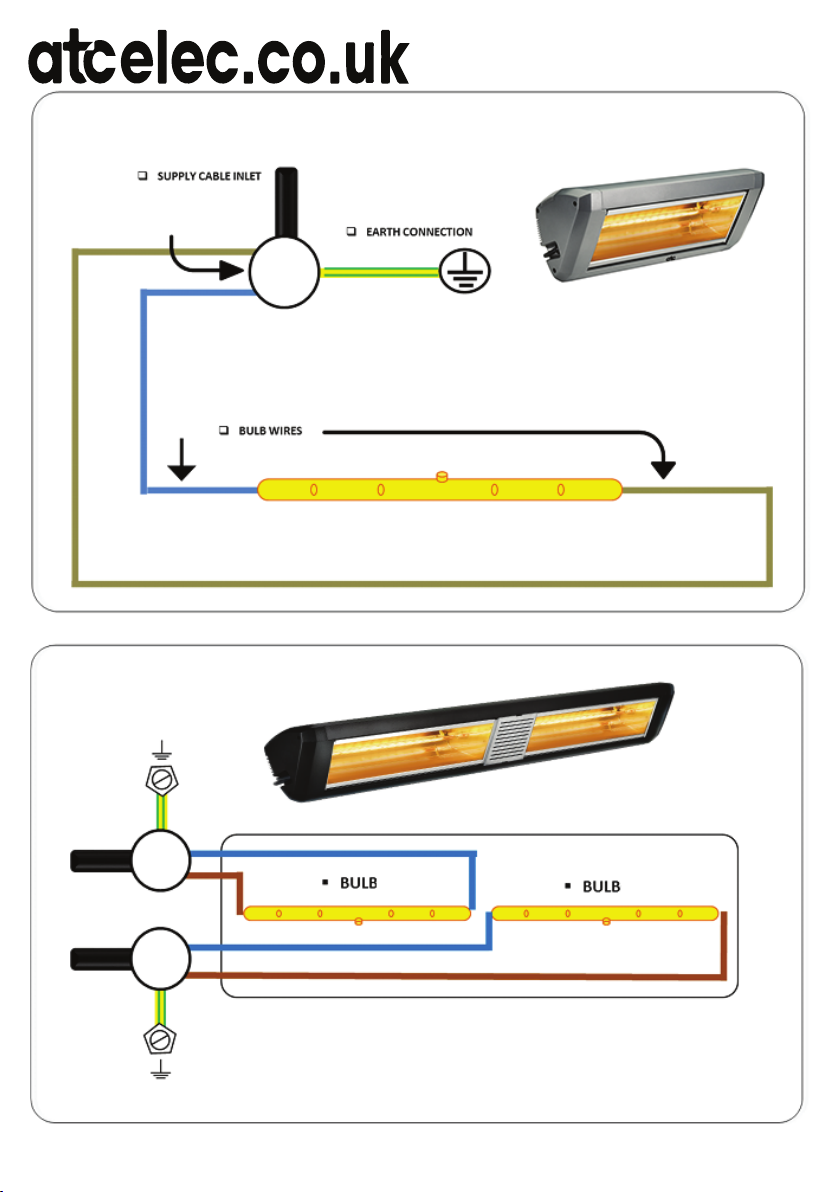

-8-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]

ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
-9-

-10-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]

ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
-11-

-12-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]

ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
-13-

-14-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]

ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
-15-
Your appliance is guaranteed for 2 years from the date of purchase – during this period
we will repair or exchange, at our discretion, any faulty or defective parts providing the
appliance has been used in accordance with the operating & installation instructions and
has not been misused or mistreated in any way.
LAMPS ARE NOT COVERED UNDER THE MANUFACTURERS GUARANTEE.
LAMPS ARE A CONSUMABLE ITEM.
Any un-authorised repair or attempted repair will invalidate the guarantee.
You may be asked to return the product to our workshop for inspection to establish
whether the fault is covered under the guarantee.
The guarantee is valid in the UK and Ireland only.
This guarantee is additional to your statutory rights.
In the unlikely event of a problem with your appliance please contact your supplier.
IMPORTANT INFORMATION CONCERNING THE ENVIRONMENTALLY COMPATIBLE
DISPOSAL OF THE APPLIANCE
This product conforms to EU Directive 2002/96/EC.
This appliance bears the symbol of the barred waste bin. This indicates that, at the end
of its useful life, it must not be disposed of as domestic waste, but must be taken to a
collection centre for waste electrical and electronic equipment, or returned to a retailer
on purchase of a replacement.
It is the user’s responsibility to dispose of this appliance through the appropriate chan-
nels at the end of its useful life. Failure to do so may incur the penalties established by
laws governing waste disposal.
Proper segregated collection, and the subsequent recycling, processing and
environmentally compatible disposal of waste equipment avoids unnecessary damage
to the environment and possible related health risks, and also promotes recycling of the
materials used in the appliance.
For further information on waste collection and disposal, contact your local waste dis-
posal service, or the shop from which you purchased the appliance.
Manufacturers and importers fulfil their responsibilities for recycling, processing and
environmentally compatible disposal either directly or by participating in collective
systems.
GUARANTEE

-16-
ATC Electrical & Mechanical,
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email [email protected]
This page left blank for your notes.
Head O󰀩ce & Energy
Showrooms:
ATC House, Broomhill Drive,
Tallaght, D24 EF99
Ireland.
Tel: [phone]
UK Tel: [phone]
Email: [email protected]
