AOL-TE Series
Passion for Wireless World
1
TE720 Quick Start Guide
Dear Customer
Thank you for Purchasing the Outdoor LTE CPE. Have a wonderful
experience with lightning speed downloads.
This device must be installed by professional installer.
For information LTE stands for “Long Term Evolution” and CPE stands for
“Customer Premises Equipment”.
Before you Begin
Check the following items in this package:
CPE Package:
Item
Quantity
LTE Outdoor CPE
1
AC/DC Adapter(Optional)
1
Installation kit
1
U shape bolt
4
Screws
6
Bolts
8
PoE connector(Optional)
1

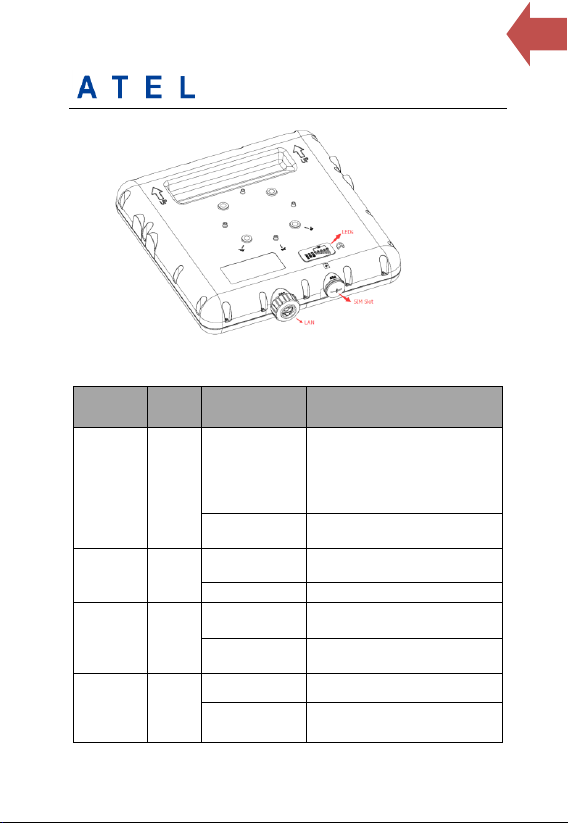

Getting to know the CPE
Note:
The figures below are provided only for reference purposes. See the actual
product for more details.

AOL-TE Series
Passion for Wireless World
2
LED
LED
Indicator
Color
Status
Description
Signal
Blue
Level -5
Level -4
Level -3
Level -2
Level -1
24 <= SINR
16 <= SINR < 24
12 <= SINR < 16
8 <= SINR < 12
1 <= SINR < 8
Level 0-LED
Off
SINR < 1
PWR
Blue
ON
Device is Powered On
Off
Device is Powered Off
ETH
Blue
ON
Ethernet connection is
established.
Off
Ethernet connection is not
established
SIM
Blue
ON
SIM card is inserted/ detected
Off
SIM card is not
detected/Inserted

AOL-TE Series
Passion for Wireless World
3
How to Install the CPE
CPE support both Wall mounting and Pole mounting, please refer to below
pictures for overview.
Step 1: Align CPE with eNB (Coarse Adjustment/Direction)
Let CPE front side face to eNB, like below pictures

AOL-TE Series
Passion for Wireless World
4

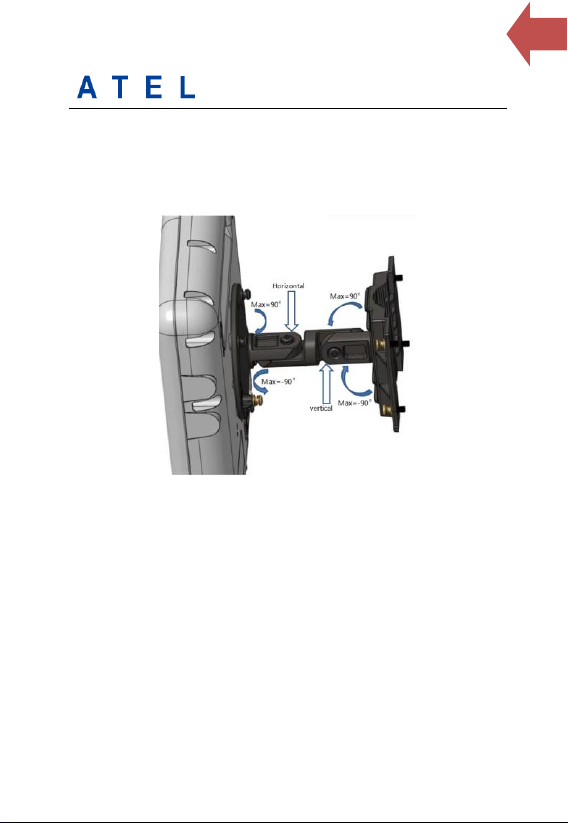

Step 2: Select the best location and lockdown (Fine Adjustment/Direction,
Degree)
Adjust Horizontal and Vertical degree of mounting kits, find a best signal
(best location) and then lockdown, tighten the screws.
How to find best signal (best location)
1. You can find signal level information via Signal LEDs, Signal LEDs are on
the rear side of CPE.
1 Signal Bar: Poor Signal
2 Signal Bar: Normal Signal
3 Signal Bar: Good Signal
4 Signal Bar: Very Good Signal
5 Signal Bar: Excellent Signal

AOL-TE Series
Passion for Wireless World
5
2. You can find signal level information via CPE Website
Power up CPE, and connect CPE with PC via Ethernet cable, you can find
Signal level in CPE Website also.
Connecting the CPE
Install the USIM card
This CPE is specially designed for the 4G LTE network. Please check that
you have a valid USIM card from the service provider.

AOL-TE Series
Passion for Wireless World
6
1. Open the USIM Card Slot lid.
2. Insert a valid USIM card into the USIM card slot.
3. Connect Ethernet cable.
4. Put the lid cover back.
Remove the USIM card
Open SIM Slot Lid cover and Push USIM card to eject it from the slot.
Connecting External Device(s) to the CPE
To use the Internet connection and configure the CPE settings, you must
connect your CPE to a computer.
1. Insert the other end of the Ethernet cable to the port of the POE
power supply (Port marked POE) to be kept inside the premises near
the AC outlet.
2. Connect one end of another Ethernet cable to a Wireless Router or
directly to a PC/Laptop and the other end to the port marked LAN on
the POE Power Supply. For setting up Wireless router, please refer to
the User Manual supplied with wireless router.
3. Plug the POE Power Supply to an electrical outlet using the AC cord
supplied with POE power supply.
4. Connect LAN devices such as computer or switches to the LAN ports
of the CPE by using good quality Ethernet cables or use Wi-Fi.

AOL-TE Series
Passion for Wireless World
7
Accessing the Web based Utility
The web based utility of the CPE is a web browser based configuration
interface that allows easy device set up, configuration and management
through internet browser. For example: on a PC with Windows XP or higher
version:
1. Connect the hardware of the CPE correctly.
2. Set the IP address of the connected computer and ensure that the IP
address of the computer is in the same segment as that of CPE.
Note:
By default the IP address of the CPE is 192.168.254.251, the subnet mask is
255.255.255.0 and the user log in password is admin and password is
admin. It is recommended that the IP address and DNS settings are
obtained automatically.
3. Run internet explorer. Enter http:// 192.168.254.251 . In the address
bar and press enter.
4. Enter the correct user name and password in login window and login.
After the password verification, the web based utility functions can
be performed.
5. The HOME screen of the CPE will be displayed.
For more information
Refer to the User Manual on home screen of the GUI of the CPE.

AOL-TE Series
Passion for Wireless World
8
FAQ:
The power indicator is not ON.
Check if the POE Power Supply is plugged properly into AC socket.
Check if the LED on the POE power supply is Green indicating it is
correctly plugged in AC.
Check if the power adapter meets the requirement and specification.
Check if the Ethernet Cable used to carry power to CPE is a four pair
cable.
Web Based Utility cannot be accessed
Ensure that the CPE is powered on.
Ensure that network cable between LAN port on POE power supply
(or wireless router) and computer is properly connected.
Ensure that IP address of the computer is correct.
Device cannot access the network
Check if the SIM card is inserted properly.
Check LTE network status from Web GUI and Minimum RSRP should
be greater than -120 dBm for access to the network. Typically
should be around -90 dBm.
Device cannot access the internet
Check that Operator has provided internet access services.
Check that IP address is automatically taken.
Check that firewall rules are not blocking your internet service.
Throughput performance is not OK
Ensure that there are not too many users under the same LTE Cell.
Ensure the wireless environment is good.

AOL-TE Series
Passion for Wireless World
9
Check the value of SINR thru GUI. >10 dB is a good value for good
throughput.
