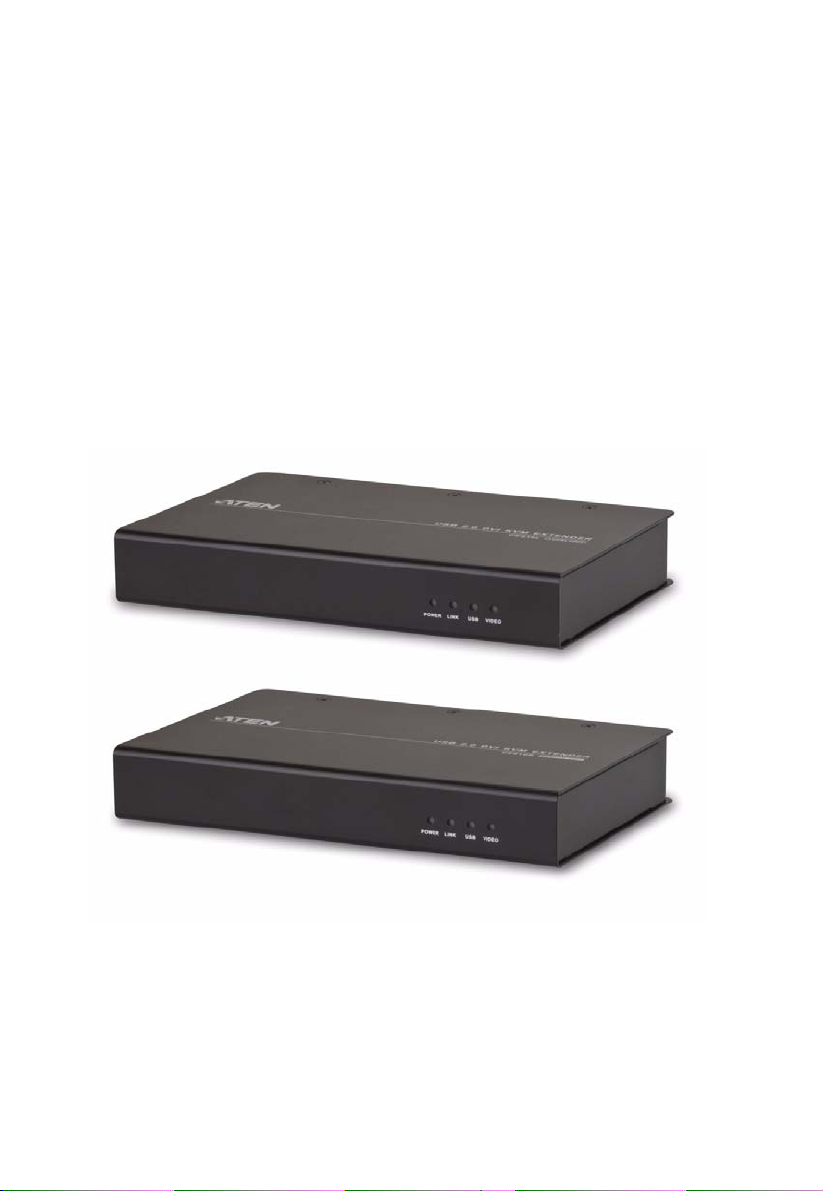

ATEN CE610L User manual

USB 2.0 DVI KVM Extender
CE610
User Manual
www.aten.com

CE610 User Manual
ii
FCC Information
Warning: This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.

CE610 User Manual
iii
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
International http://eservice.aten.com
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8-4481-58923

CE610 User Manual
iv
Package Contents
The CE610 package consists of:
1 CE610L USB 2.0 DVI KVM Extender (Local Unit)
1 CE610R USB 2.0 DVI KVM Extender (Remote Unit)
1 Custom DVI 1.8 m Cable
1 1.8 m USB Cable
2 Power Adapters
1 Mounting Kit
1 User Instructions*
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
*Features may have been added to the CE610 since this manual was
published. Please visit our website to download the most up-to-date version
of the manual.
© Copyright 2013 ATEN® International Co., Ltd.
Manual Date: 2013-10-29
ATENandtheATENlogoareregisteredtrademarksofATENInternationalCo.,Ltd.Allrightsreserved.
All other brand names and trademarks are the registered property of their respective owners.

CE610 User Manual
v
Contents
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
SJ/T 11364-2006. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
1. Introduction
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Consoles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Computers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

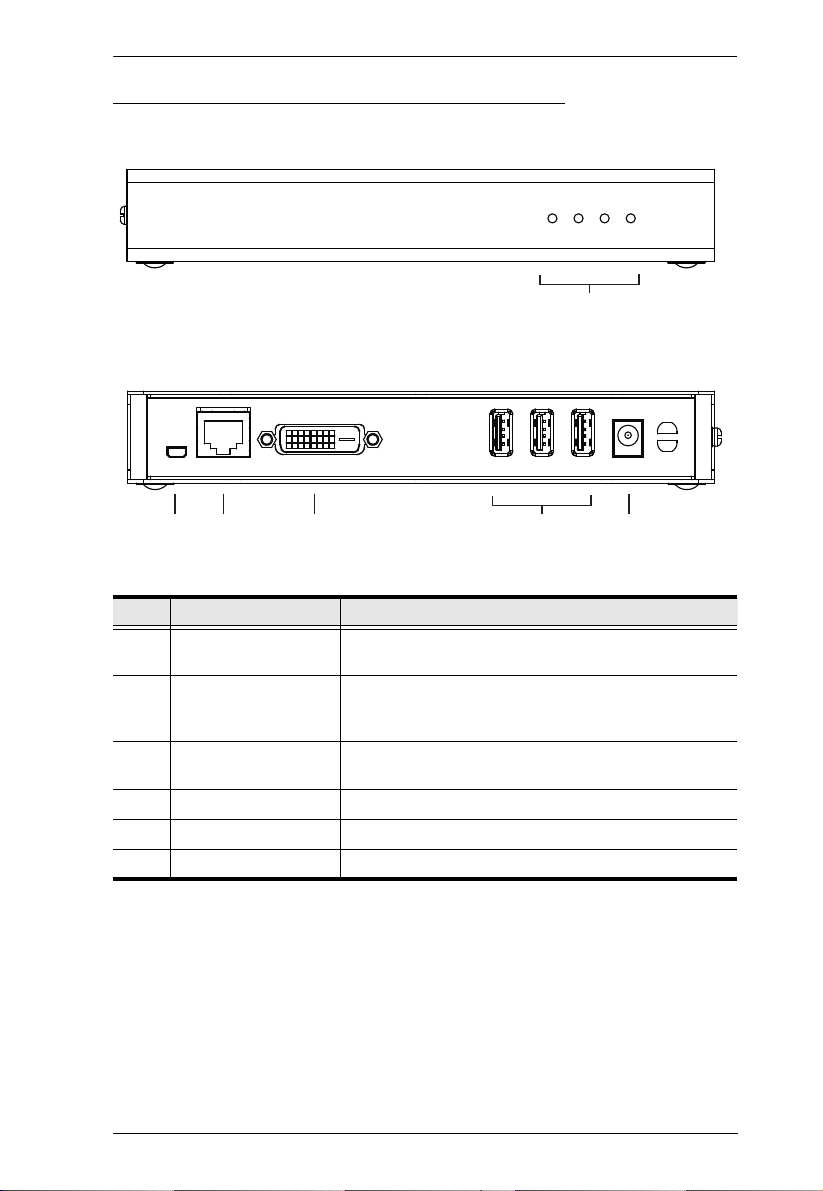

CE610L (Local Unit) Front and Rear View . . . . . . . . . . . . . . . . . . . . . .5
CE610R (Remote Unit) Front and Rear View . . . . . . . . . . . . . . . . . . . .6
2. Hardware Setup

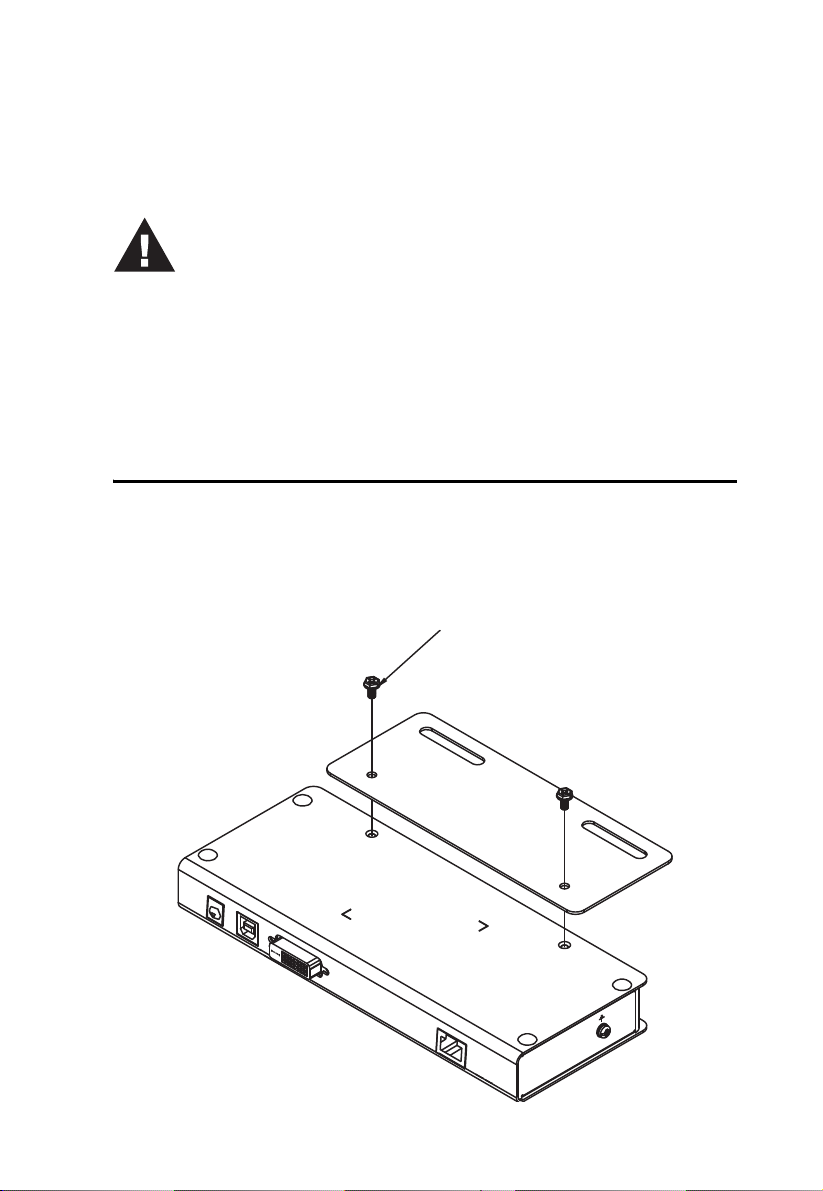

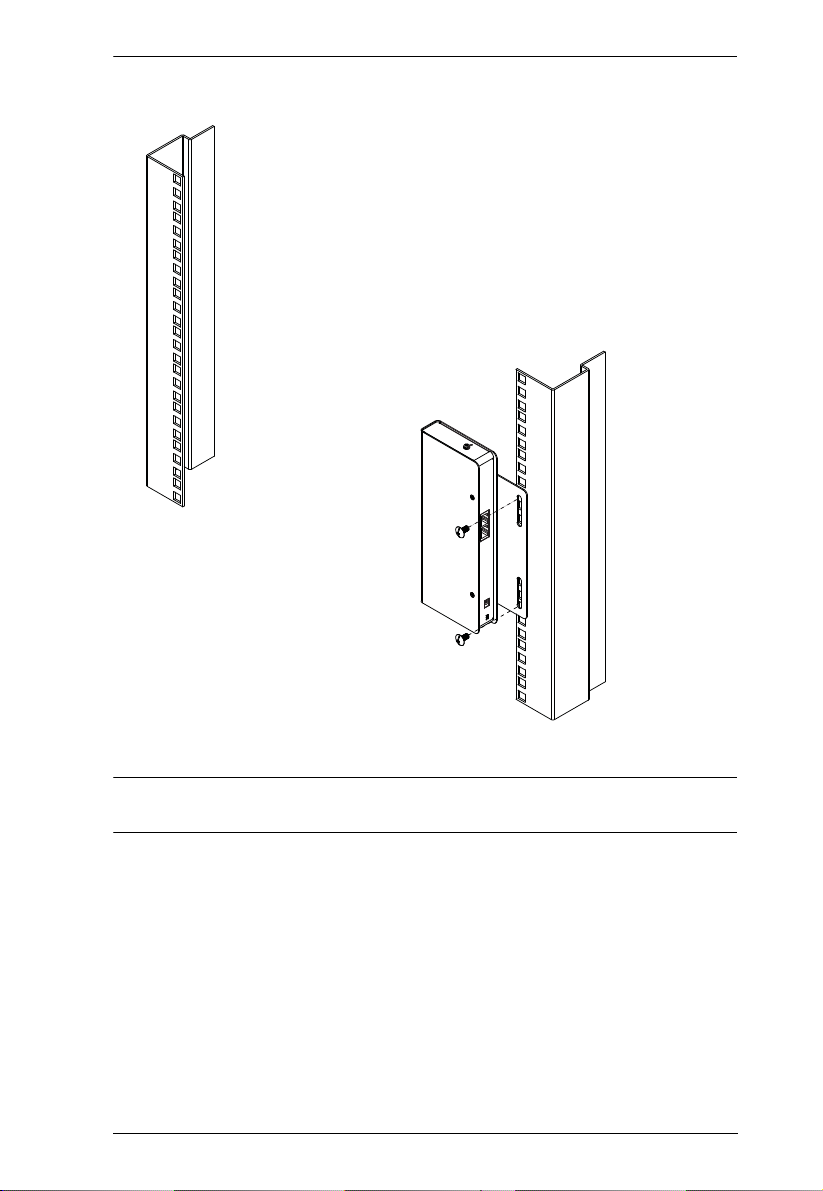

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3. Operation
LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
CE610L (Local Unit) and CE610R (Remote Unit). . . . . . . . . . . . . . . .13
Appendix
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
International. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

CE610 User Manual
vi
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CE610 system. Its purpose,
features and benefits are presented, and its front and back panel components
are described.
Chapter 2, Hardware Setup, describes the steps that are necessary to
quickly and safely set up your installation.
Chapter 3, Operation, explains the fundamental concepts involved in
operating the CE610
An Appendix, provides specifications and other technical information
regarding the CE610.

CE610 User Manual
vii
Conventions
This manual uses the following conventions:
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
→Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start →Run means to
open the Start menu, and then select Run.
Indicates critical information.
International http://www.aten.com
North America http://www.aten-usa.com

Chapter 1
Introduction
Overview
The CE610 USB 2.0 DVI KVM Extender supports HDBaseT technology and
uses only one Cat 5e cable to extend DVI and USB signals up to 100 m. The
CE610 is equipped with USB connectors which allow you to extend any USB
device between the units. The USB functionality provides not only peripheral
sharing but also provides support for touch panel control and file transfer. The
CE610 is ideal for transportation centers, medical facilities, and shopping
malls, and for syncing files and folders between portable and desktop
computers.
The CE610 allows access to a computer system from a remote console (USB
keyboard, monitor, and mouse). Because it allows access to a computer system
from a remote console, the CE610 is perfect for use in any type of installation
where you need to place the console where it is conveniently accessible, but
youwantthesystemequipmenttoresidein a safe location – away from the dust
and dirt of the factory floor, or the harsh environmental influence of a
construction site, for example. This allows users to deploy system equipment
over large distances.
The CE610 is useful for control and security purposes, where you can have the
system unit in a secure area at the same time that you put the console in the
most convenient location for user access. This is ideal for managing highly
confidential data systems.
With HDBaseT support, the CE610 uses one Cat 5e cable (DVI Single Link)
to support up to 1920 x 1200 video resolution to extend DVI and USB signals
up to 100 m.
The CE610 improves on previous designs by: 1) using inexpensive Cat 5e
cable instead of bulkier, more expensive, standard DVI cables, for a much
neater, more convenient, more reliable data transfer connection; and 2)
featuring a custom ASIC to ensure the utmost in reliability and compatibility.
Setup is as easy as can be – simply connect the computer system box; run the
Cat 5e cable up to 100 meters to the Remote Unit; and plug the remote console
into the Remote Unit.

Chapter 1. Introduction
2
Features
Uses a single Cat 5e cable to connect the local and remote units
Allows access to a computer or KVM installation from a remote console
Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
Supports HDBaseT connectivity technology
Transparent USB Support – supports all USB 2.0 High Speed device*
Extends local PC Video/Keyboard/Mouse to Remote side
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage
15KV)
USB 2.0 Support* – connects devices such as keyboard, mouse, flash
drive, printer, microphone, speakers, USB 1.1 web cameras and other USB
devices which require moderate amounts of bandwidth
*Note: The CE610 supports USB transfer rates of up to 30 Mbps.

CE610 User Manual
3
Requirements
Consoles
A DVI-D monitor capable of the highest resolution you will be using on
any computer in the installation.
A USB keyboard
A USB mouse
Computers
The following equipment must be installed on each computer that is to be
connected to the system:
A DVI-D / DVI-I port
2 USB ports for the mouse and keyboard
Microphone and speaker ports (optional)
Cables
For optimal signal integrity, and to simplify the layout, we strongly
recommend that you use the high quality custom DVI Cable that is
provided with this package.
Cat 5e cable is required to connect the Local and Remote CE610 Units.
Cable of a lower standard will result in degrading of the video signal. We
strongly recommend using Cat 5e cables.
For better quality over longer distances, we suggest using 2L-2801 (350
MHz) Low Skew Cable
Maximum Cable Distances
Connection Distance
Computer to Local Unit (CE610L) 1.8 m
Local Unit (CE610L)
to Remote Unit (CE610R) 100 m
Remote Unit (CE610R) to monitor 5 m
