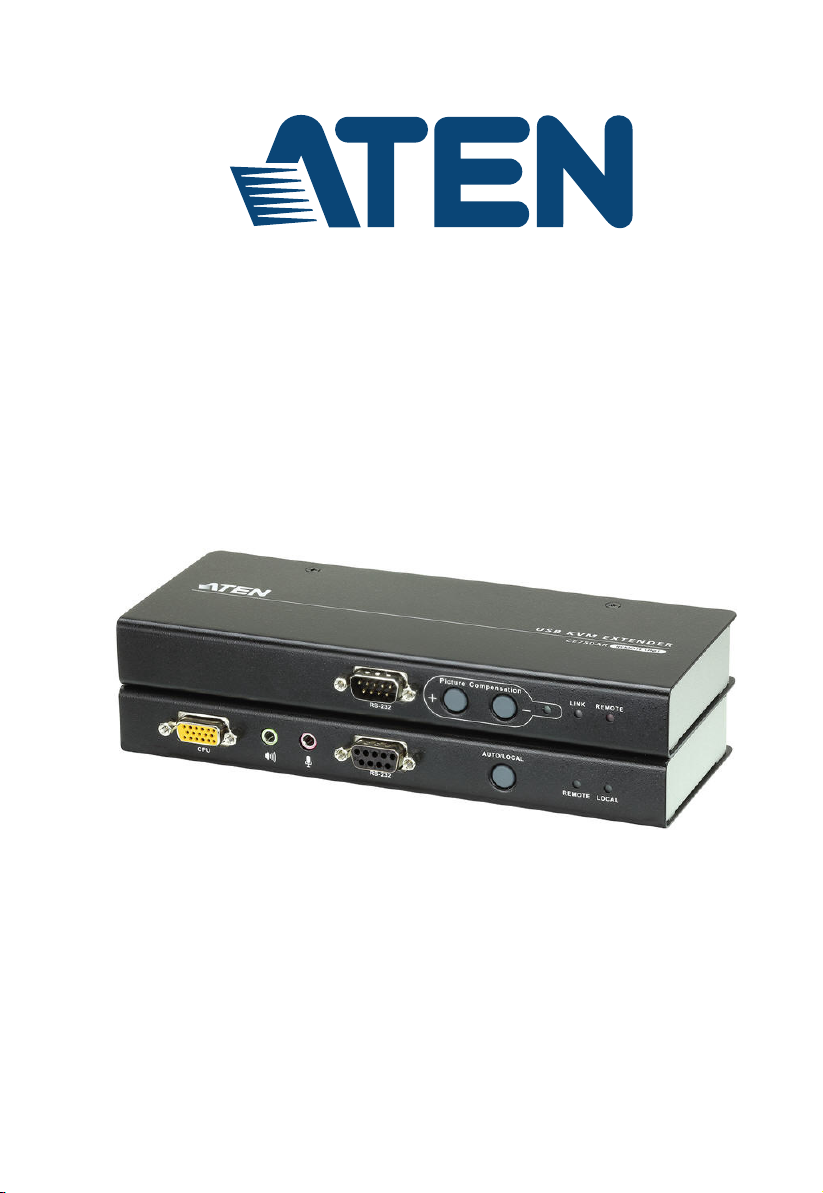

ATEN CE750A User manual

USB KVM Extender
CE750A
User Manual
www.aten.com
ce750a.book Page i Monday, January 7, 2019 8:01 PM

CE750A User Manual
ii
EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
The device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
CE Warning: This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be required to
take adequate measures.
Suggestion: Shielded twisted pair (STP) cables must be used with the unit to
ensure compliance with FCC & CE standards.
KCC Statement
유선 제품용 / A 급 기기 (업무용 방송 통신 기기 )
이 기기는 업무용 (A 급)전자파적합기기로서 판매자 또는 사용자는 이
점을 주의하시기 바라며 ,가정 외의 지역에서 사용하는 것을 목적으로
합니다 .
RoHS
This product is RoHS compliant.
ce750a.book Page ii Monday, January 7, 2019 8:01 PM

CE750A User Manual
iii
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
International http://support.aten.com
North America http://www.aten-usa.com/product_registration
International 886-2-8692-6959
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111
ce750a.book Page iii Monday, January 7, 2019 8:01 PM

CE750A User Manual
iv
Package Contents
The CE750A package consists of:
1 CE750AL USB KVM Extender (Local Unit)
1 CE750AR USB KVM Extender (Remote Unit)
1 Custom KVM Cable Set
2 Power Adapters
1 Mounting Kit
1 User Instructions
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
*Features may have been added to the CE750A since this manual was printed.
Please visit our website to download the most up-to-date version of the
manual.
© Copyright 2019 ATEN® International Co., Ltd.
Manual Part No. PAPE-0297-AT4G
Manual Date: 2019-01-07
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved.
All other brand names and trademarks are the registered property of their respective owners.
ce750a.book Page iv Monday, January 7, 2019 8:01 PM

CE750A User Manual
v
Contents
EMC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Consoles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Computers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

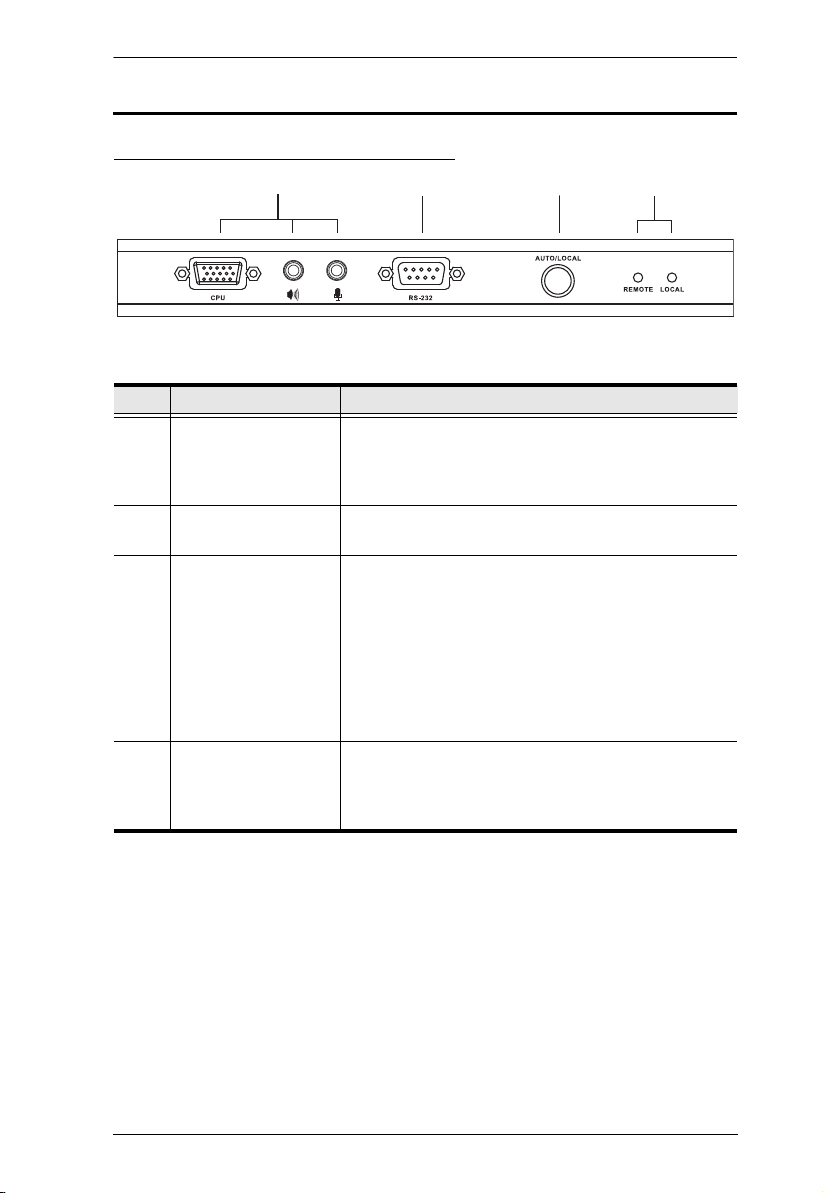

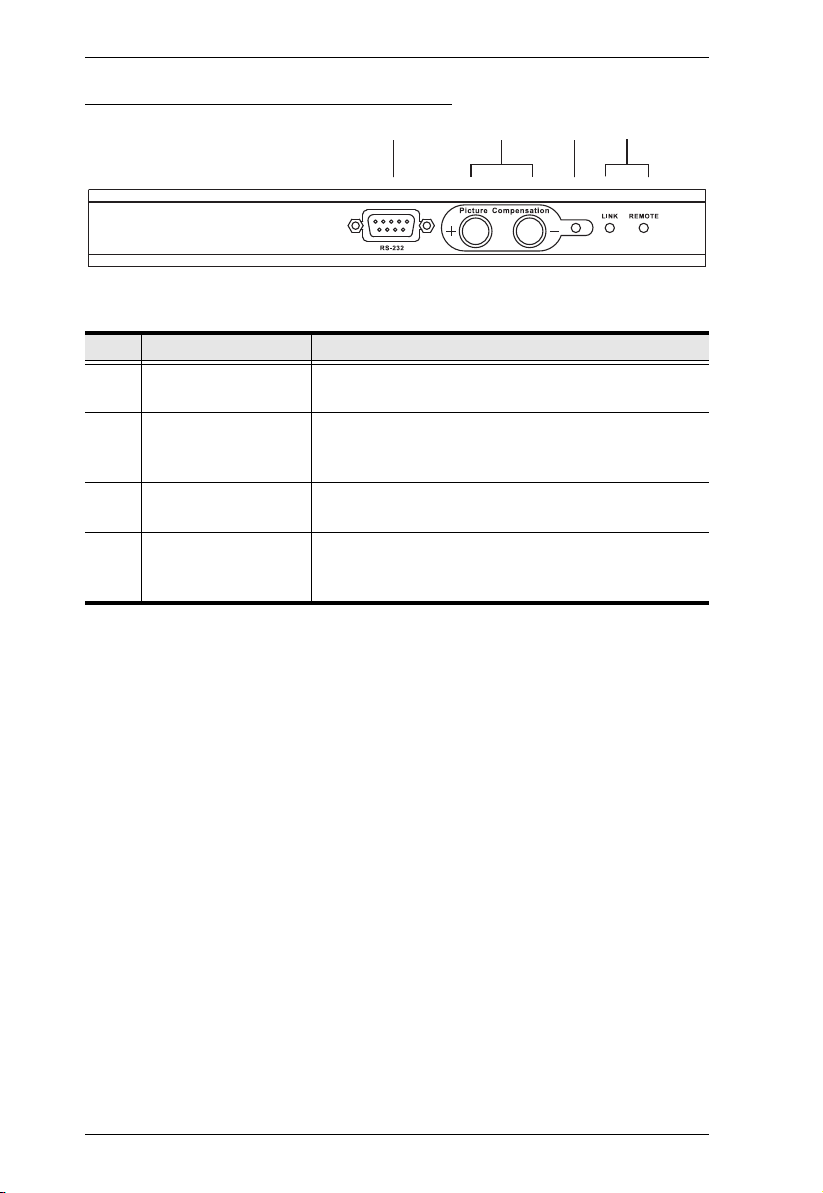

CE750AL (Local Unit) Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CE750AR (Remote Unit) Front View . . . . . . . . . . . . . . . . . . . . . . . . . . 6

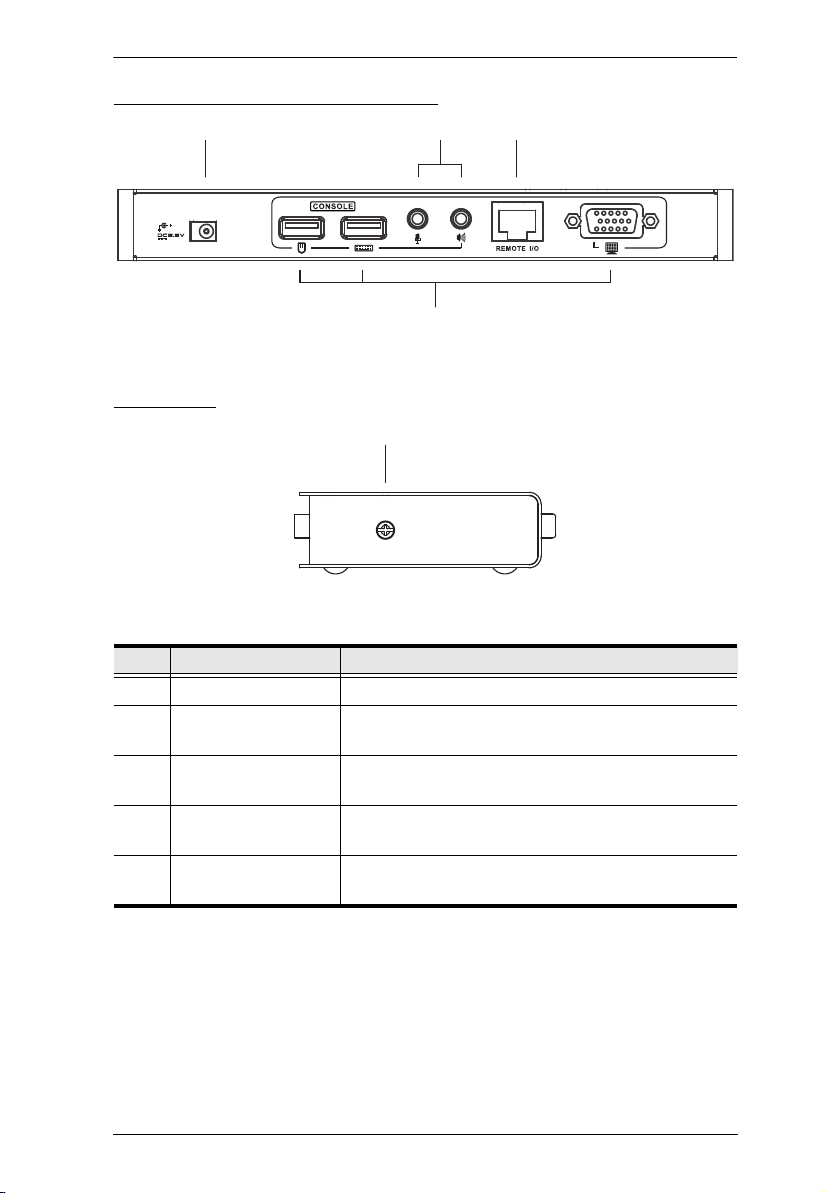

CE750AL / CE750AR Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2. Hardware Setup

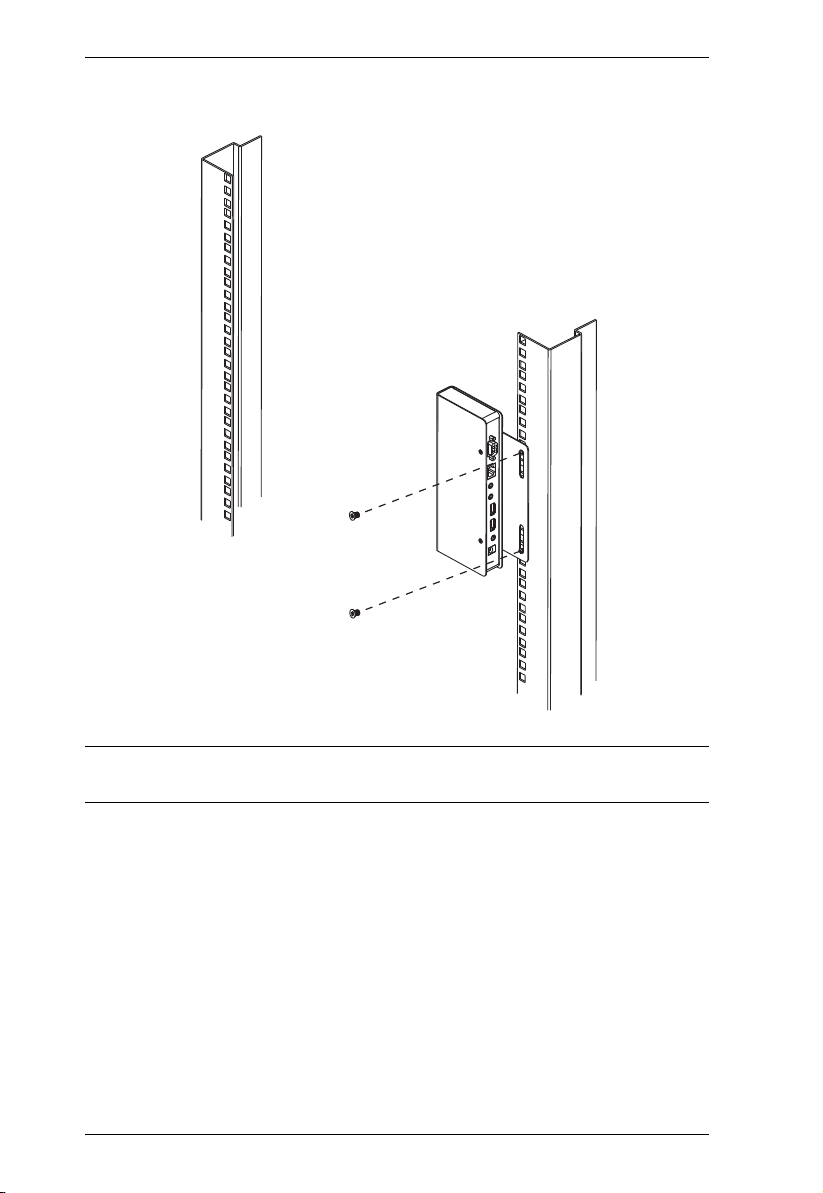

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CE750AL / CE750AR Rear View . . . . . . . . . . . . . . . . . . . . . . . . . 14
CE750AL Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3. Operation
Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Picture Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Manual Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CE750AL (Local Unit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CE750AR (Remote Unit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
ce750a.book Page v Monday, January 7, 2019 8:01 PM

CE750A User Manual
vi
Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
About SPHD Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
ce750a.book Page vi Monday, January 7, 2019 8:01 PM

CE750A User Manual
vii
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CE750A system. Its
purpose, features and benefits are presented, and its front and back panel
components are described.
Chapter 2, Hardware Setup, describes the steps that are necessary to
quickly and safely set up your installation.
Chapter 3, Operation, explains the fundamental concepts involved in
operating the CE750A.
An Appendix, provides specifications and other technical information
regarding the CE750A.
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
→Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start →Run means to
open the Start menu, and then select Run.
Indicates critical information.
ce750a.book Page vii Monday, January 7, 2019 8:01 PM

CE750A User Manual
viii
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com
ce750a.book Page viii Monday, January 7, 2019 8:01 PM

1
Chapter 1
Introduction
Overview
The CE750A is a USB (Universal Serial Bus) based KVM Extender with
automatic signal compensation and RS-232 serial functionality that allows
access to a computer system from a remote USB console (USB keyboard,
monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the
CE750A is perfect for use in any type of installation where you need to place
the console where it is conveniently accessible, but you want the system
equipment to reside in a safe location – away from the dust and dirt of the
factory floor, or the harsh environmental influence of a construction site, for
example.
The CE750A is also useful for control and security purposes, where you can
have the system unit in a secure area at the same time that you put the console
in the most convenient location for user access. This is ideal for managing
highly confidential data systems.
The CE750A improves on previous designs by: 1) the addition of an RS-232
port, on both the Local and Remote Units – the RS-232 port on the Local Unit
allows you to connect to a serial terminal for configuration, while the RS-232
port on the Remote Unit allows you to connect serial devices such as
touchscreens and barcode scanners; 2) the addition of a dedicated KVM port
section on the Local Unit so you can simply and easily include a KVM switch
in your installation; 3) using inexpensive Cat 5e cable instead of bulkier, more
expensive, standard cables, for a much neater, more convenient, more reliable
data transfer connection; 4) its ability to sense the distance to the system and
automatically adjust the gain accordingly; and 5) featuring a custom ASIC to
ensure the utmost in reliability and compatibility.
Further CE750A key features are built-in 8KV/15KV ESD protection and 2KV
surge protection, and picture compensation pushbuttons on the Remote Unit to
adjust the picture on the remote console.
Setup is as easy as can be – simply connect the computer system box and local
console to the Local CE750AL Unit; run the Cat 5e cable to the Remote
CE750AR Unit (up to 150 meters away); and plug the remote console into the
Remote Module.
ce750a.book Page 1 Monday, January 7, 2019 8:01 PM

CE750A User Manual
2
Features
Local and Remote Units connect at distances up to 150 m using Cat 5e
cable.
Dual console operation – control your system from both the local and
remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
USB Keyboard and USB Mouse Ports
RS-232 serial ports – allows you to connect to a serial terminal for
configuration (Local Unit), or serial devices such as touchscreens and
barcode scanners (Remote Unit)
Supports stereo speakers and stereo microphone
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) – select between
Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage
15KV) and 2KV surge protection
Adjustable gain control – automatically and manually adjusts signal
strength to compensate for distance
High resolution video – up to 1920 x 1200@60Hz (30 m ); 1600 x
1200@60Hz (150 m); 1280 x 1024@60Hz (200 m)
Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200)
and multisync monitors; local monitor supports DDC; DDC2; DDC2B
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to the devices is
all it takes
Supports Wide Screen formats*
Note: The EDID data for a widescreen is sent from the local video output
port. For widescreen modes and displays connect the monitor to the
local video output port or use an ATEN EDID emulator.
ce750a.book Page 2 Monday, January 7, 2019 8:01 PM
