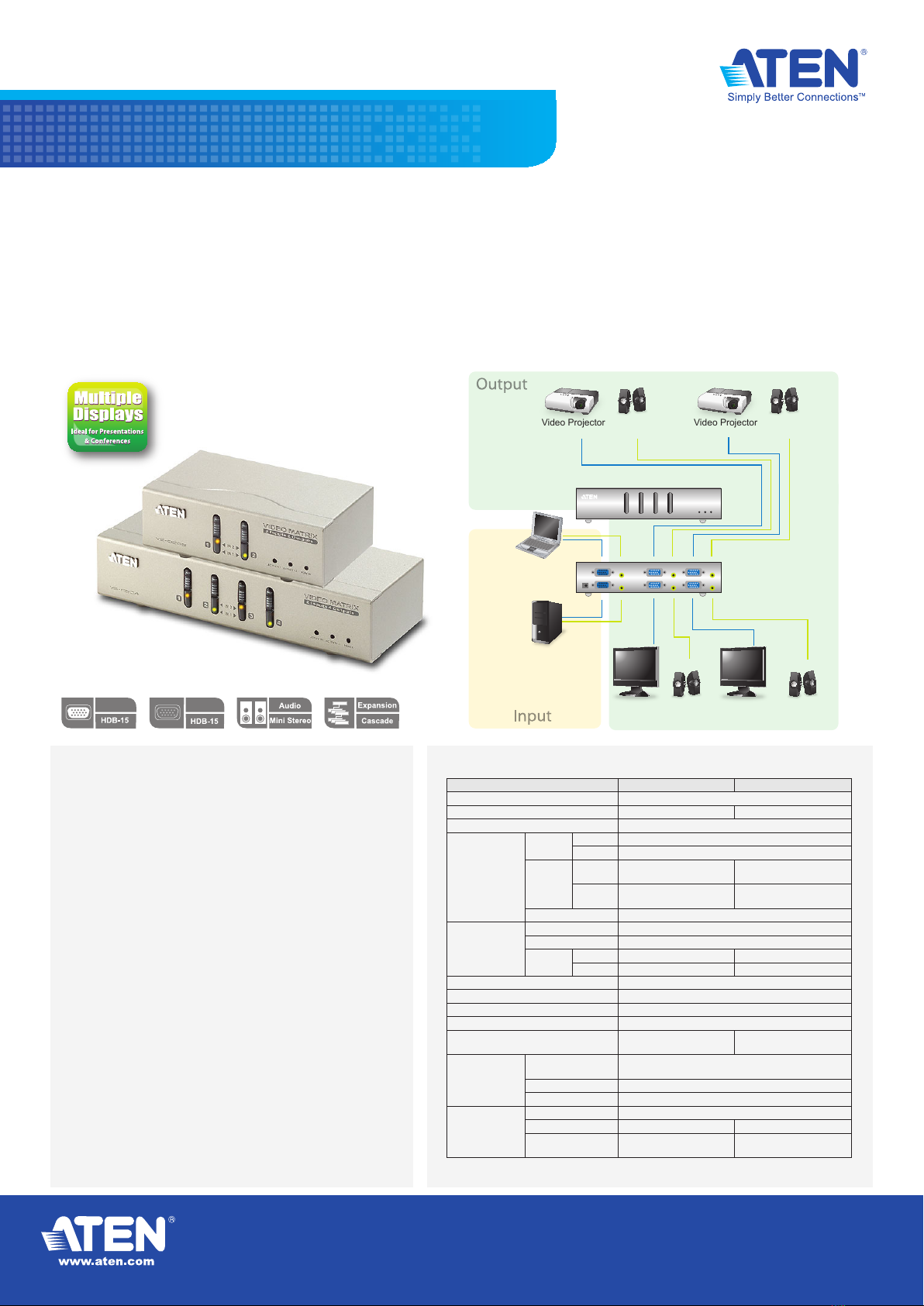

The VS0202 / VS0204 Video Matrix Switch combines the capabilities of a video switch and signal
splitter. It duplicates and enhances the video and audio signals from up to two input sources
(computers), and routes them to two / four output devices (monitors, projectors, etc.).
The VS0202 / VS0204 provides fast, exible, reliable solutions for installations that require audio-visual
information from multiple sources to be delivered to multiple destinations – such as:
• Broadcasting information to public locations (news, airline and train schedules and arrival/departure
information).
• Sporting events
• Theater and lecture overow rooms
• Classroom and company training facilities
Features
• Eachofthe2/4videooutscantogglebetweenSource1
andSource2usingfrontpanelpushbuttons
• Expandable–CascadetoATEN’svideosplitterstosupport
hundredsofvideodisplays
• Audio-enabled
• Withupto300MHzVideoBandwidth
• Duplicateandenhancevideosignalsupto65m
• Superiorvideoquality–upto1920x1440
Specications
VS0202/VS0204
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
2009. Version 2.0
Video Matrix Switch + Audio
© Copyright 2009 ATEN® International Co., Ltd. All brand names and trademarks are the registered property of their respective owners.
Headquarters
ATEN International Co., Ltd.
3F, No.125, Sec. 2, Datung Rd. Sijhih City, Taipei 221, Taiwan
Tel: [phone] Fax: [phone] E-mail: [email protected]
Flat Screen
Monitor Monitor
PC
Notebook
Video Projector
VS0204
Speakers Speakers
Speakers Speakers
Video Projector
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Function VS0202 VS0204
Display Connections 2
Computer Connections 2 4
Port Selection Pushbutton
Connectors
Input Video 2 x HDB-15 Male (Blue)
Audio 2 x Mini Stereo Jack Female (Green)
Output
Video 2 x HDB-15 Female
(Blue) 4 x HDB-15 Female (Blue)
Audio 2 x Mini Stereo Jack
Female (Green) 4 x Mini Stereo Jack Female (Green)
Power 1 x DC Jack
LEDs
Power 1 (Blue)
Activity / Source 2 (Green)
Input 1 2 (Green) 4 (Green)
2 2 (Orange) 4 (Orange)
Video 1920 x 1440 @ 60Hz
Video Bandwidth 300 MHz
Sync Range Sync Positive/Negative
Signal Range 65m (210’)
Power Consumption DC 5.3V ,2.39W
(Max.) DC 5.3V ,3.02W (Max.)
Environment
Operating
Temp. 0–50˚C
Storage Temp. -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.47 kg 0.69 kg
Dimensions
( L x W x H ) 13.00 x 7.50 x 4.50 cm 20.00 x 7.50 x 4.50 cm
* The specications and pictures are subject to change without notice.
Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Video Out Video In
