Overview
Although RS-232 serial ports are found on almost every
computer, because of their slow transmission speeds, limited
range, and limited networking capabilities, they are not an
effective solution for industrial strength long distance
communications systems.
Systems based on the RS-485 standard, however, utilize
different voltage lines for the data and control signals, so they are
not subject to the RS-232 limitations.
The IC-485S / IC-485SI is a bidirectional converter that
transparently converts RS-232 signals to RS-485 signals (and
vice versa). The IC-485S / IC-485SI provides Point-to-Point;
Multidrop; and Simplex operations over distances of up to 1200
m (4000 ft.), thus permitting the creation of reliable long distance
data communications systems using standard computer
hardware.

- 6 -
switch configuration
The IC-485S / IC-485SI’s operating mode parameters are set
with two slide switches:
SW1 sets the Device Mode
SW2 sets the Transmitting and Receiving Mode
IC-485S Switch Settings
Position Setting
SW1 SW2
1 DCE TxO, RxON
2 DTE TxRTS, RxRTS
3 Monitor TxRTS, RxON
Spare
Power Jack
RJ-11
Terminal Block
SW 1
SW 2 RS-232 DB-25 Female Connecter

- 7 -
IC-485SI Switch Setting
Position Setting
SW1 SW2
1 DCE TxO, RxON
2 DTE TxRTS, RxRTS
3XTxRTS,RxON
Power Jack
Grnd. Tab
Terminal Block
SW 1
SW 2 RS-232 DB-25 Female Connecte
r

- 8 -
Terminology
Explanations of the SW! and SW2 terms are given in the table
below:
Term Explanation
DCE Data Communications Equipment; if the IC-485S /
IC-485SI is going to be plugged into a DTE
device, the IC-485S / IC-485SI must be set to
DCE.
DTE Data Terminating Equipment; if the IC-485S / IC-
485SI is going to be plugged into a DCE device,,
the IC-485S / IC-485SI must be set to DTE.
TxON,, RxON This setting is used in Point-to-Point operations,,
in which the unit is always in Transmitting and
Receiving Mode.
TxRTS, RxRTS This setting is used in Multidrop operations, in
which the unit is in Transmitting Mode when the
RTS signal is high, and is in Receiving Mode
when the RTS signal is low.
TxRTS, RxON This setting is used in Multidrop Full Duplex
operations to monitor the RS-485 line signals.
ReceivingModeisalwaysON.Transmittingmode
only occurs when the RTS signal is high.

- 9 -
Operating Modes
The IC-485S / IC-485SI supports four operating modes: Point-to-
Point; Multidrop; Simplex; and Monitor (IC-485S only). Point-to-
Point and Multidrop can be configured for Full or Half Duplex.
Each of the operating modes is explained in the sections that
follow.
Point-to-Point
A Point-to-Point configuration is one in which two devices,
located at two different places are linked for communication by a
pair of IC-485S or IC-485SI units. There are two configurations:
Point-to-Point Full Duplex, and Point-to-Point Half Duplex.
1. Point-to-Point Full Duplex

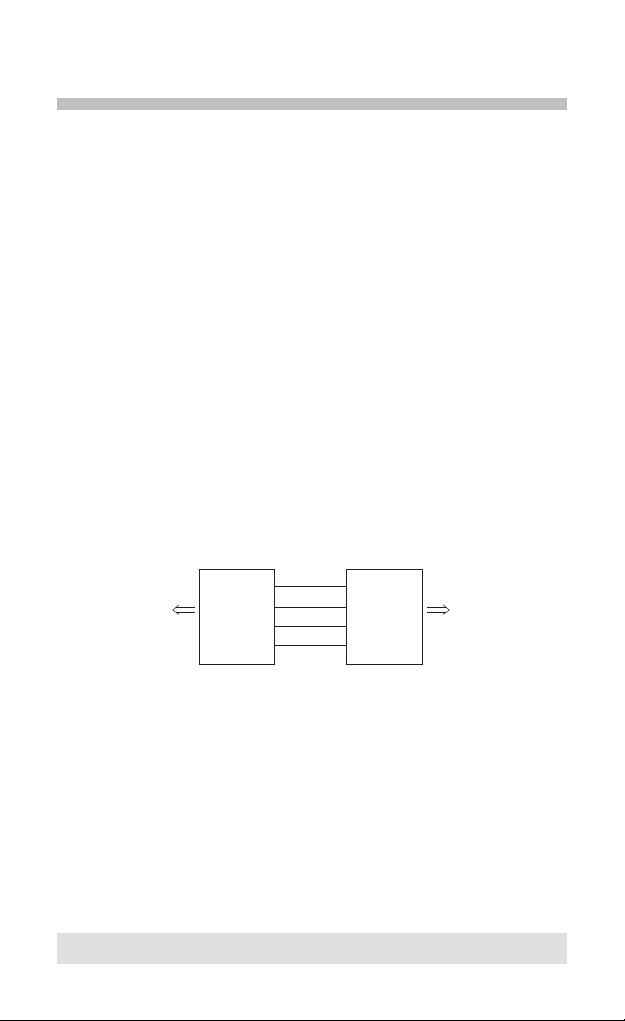

Point-to-Point Full Duplex uses reverse four wire cabling
as shown in the diagram below:
For both IC-485S / IC-485SI units, set SW1 to DCE or DTE
depending on what type of device the IC-485S / IC-485SI
will plug into (if it will plug into a DCE device, configure it
for DTE, and vice versa).
For both IC-485S / IC-485SI units, set SW2 to TxON,
RxON.
T+
T-
R-
R+
R+
R-
T-
T+
Connect
to PC#1's
COM port
Connect
to PC#2's
COM port
DB-25 DB-25

- 10 -

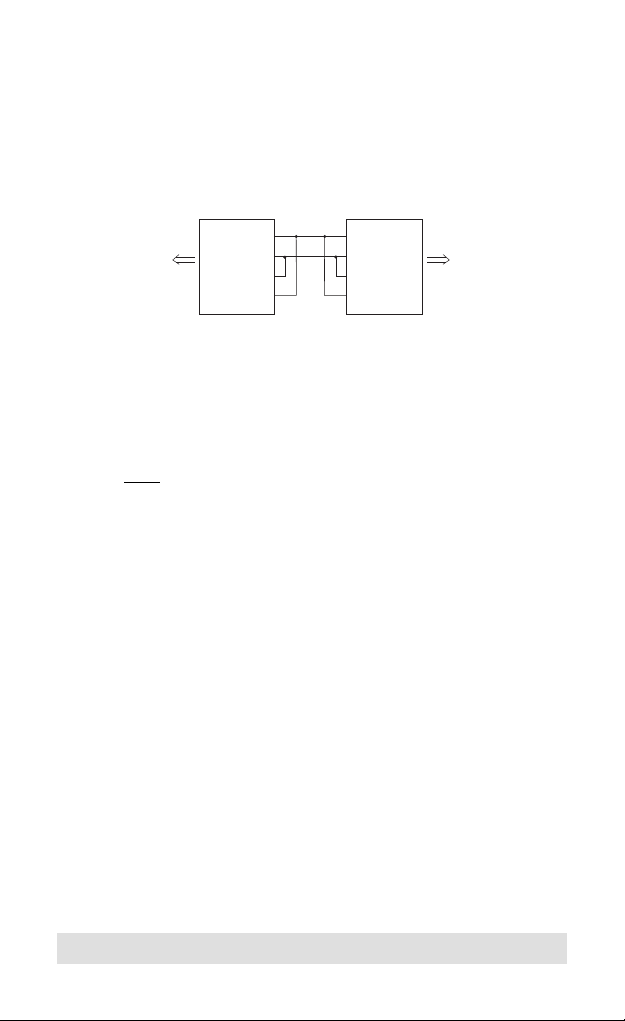

2. Point-to-Point 2 Wire Half Duplex
Point-to-Point Half Duplex uses straight through four wire
cabling, as shown in the diagram below:
For both IC-485S / IC-485SI units, set SW1 to DCE or DTE
depending on what type of device the IC-485S / IC-485SI
will plug into (if it will plug into a DCE device, configure it
for DTE, and vice versa).
For both IC-485S / IC-485SI units, set SW2 to TxRTS,
RxRTS.
Note: The RTS signal is controlled by an external software
command. The IC-485S / IC-485SI has no capability to
control this signal by itself
T+
T-
R-
R+
R+
R-
T-
T+
Connect
to PC#1's
COM port
Connect
to PC#2's
COM port
DB-25 DB-25

- 11 -
Multidrop
A Multidrop configuration is one in which more than two devices
are linked for communication using several IC-485S / IC-485SI
units.
One of the devices that one of the IC-485S / IC-485SIs connects
to is designated as the Master device. All the remaining devices
thatthe restofthe IC-485S/IC-485SIsconnectto aredesignated
as Slave devices. There are two configurations: Multidrop Full
Duplex, and Multidrop Half Duplex.

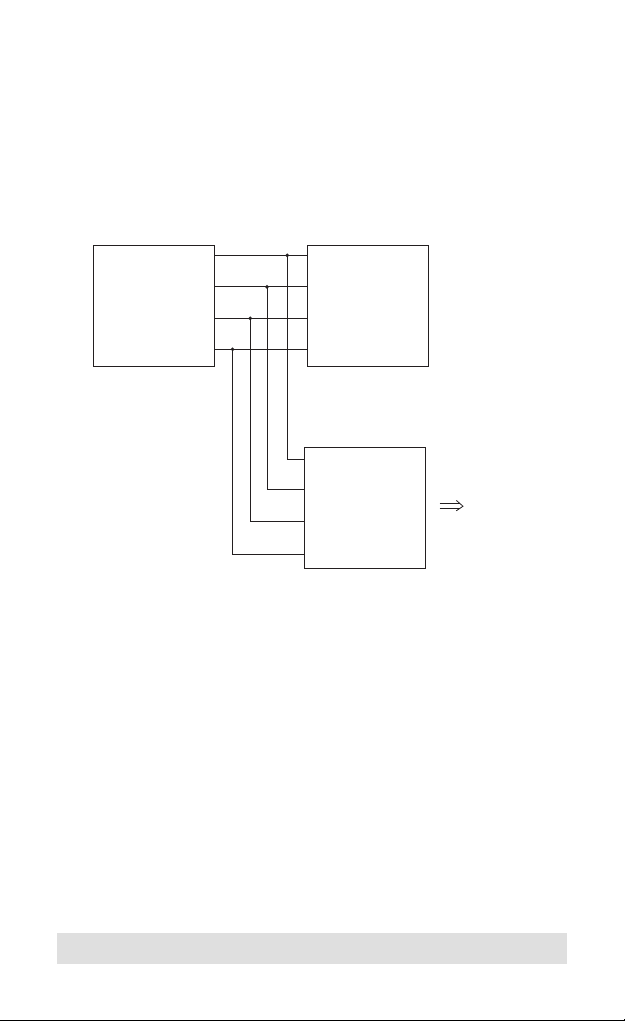

1. Multidrop 4 Wire Full Duplex
Multidrop Full Duplex uses reverse four wire cabling to link
all the connected IC-485S / IC-485SI units:
For all IC-485S / IC-485SI units, set SW1 to DCE or DTE
depending on what type of device the IC-485S / IC-485SI
will plug into (if it will plug into a DCE device, configure it
for DTE, and vice versa).
For the Master unit, set SW2 to TxON, RxON.
For all Slave units, set SW2 to TxRTS, RxON.
Master
T+
T
-
R
-
R+
Slave 1
R+
R -
T -
T+
Slave 2
R+
R -
T -
T+
.
.
.
Slave 31
PC1
COM1/
COM2
PC2
COM1/
COM2
PC3
COM1/
COM2

- 12 -
2. Multidrop Half Duplex
Multidrop Half Duplex uses straight-through four wire
cabling, to link all the connected IC-485S / IC-485SI units:
For all IC-485S / IC-485SI units, set SW1 to DCE or DTE
depending on what type of device the IC-485S / IC-485SI
will plug into (if it will plug into a DCE device, configure it
for DTE, and vice versa).
For all IC-485S / IC-485SI units set SW2 to TxRTS,
RxRTS.
Note: The RTS signal is controlled by an external software
command.The IC-485S / IC-485SI has no capability to
control this signal by itself.
Master
T+
T
-
R
-
R+
Slave 1
R+
R -
T -
T+
Slave 2
R+
R -
T -
T+
PC1
COM1/
COM2
PC2
COM1
/
COM2
PC3
COM1
/
COM2
Slave 3
R+
R -
T -
T+
.
.
Slave 31
PC4
COM1
/
COM2

- 13 -
Simplex
A Simplex configuration is one in which more than two devices
are linked for communication using several IC-485S / IC-485SI
units in a manner similar to Multidrop. The difference is that in a
Simplex configuration, the Master device can only talk, and the
Slave devices can only listen.

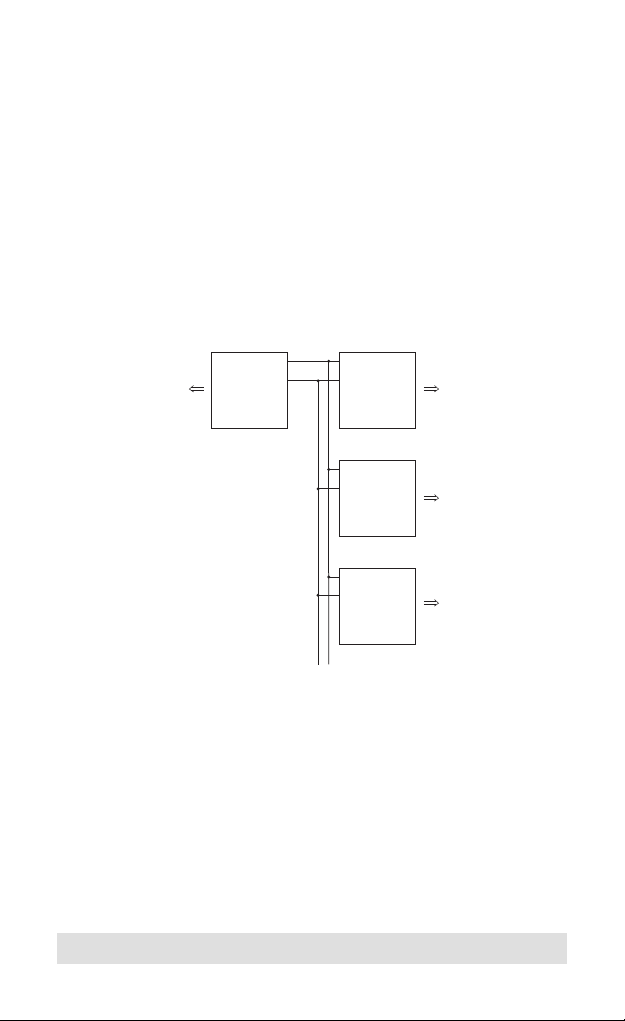

Simplex uses reverse two wire cabling to link all the
connected IC-485S / IC-485SI units, as shown in the figure
below:
For all IC-485S / IC-485SI units, set SW1 to DCE or DTE
depending on what type of device the IC-485S / IC-485SI
will plug into (if it will plug into a DCE device, configure it
for DTE, and vice versa).
For all of the units (Master and Slave), set SW2 to TxON,
RxON.
Master
T+
T
-
R
-
R+
Slave 1
R+
R -
T -
T+
Slave 2
R+
R -
T -
T+
Slave 3
R+
R -
T -
T+
:
:
Slave 31
PC1
COM1/
COM2
PC2
COM1/
COM2
PC3
COM1/
COM2
PC4
COM1/
COM2

- 14 -
Monitor IIX-485S Only!
With Monitor Mode, the RS-485S can be wired to the lines of an
RS-485 or RS-422 device to monitor the line signals. In this
configuration, the RS-485S changes the functions of T+ and T- to
R’+ and R’- respectively.
Set SW1 to Monitor.
Set SW2 to TxRTS, RxON
Note: 1. The RTS must be Low in Monitor Mode.
2. The R+ and R- signals are converted and linked to the
RS-232 port, DB-25 pin 3. The R’+ and R’- (T+ and T-)
signals are converted and linked to the RS-232 port,
DB-25 pin 2.
Device 1
T+
T -
R-
R+
Device 2
R+
R-
T-
T+
IC-485S
T+ (R'+)
T- (R'-)
R-
R+
PC
COM1/
COM2

- 15 -
Installation
1. Set each IC-485S / IC-485SI’s configuration switches
according to the information provided in the Switch
Configuration and Operating Modes sections.
2. Plug the IC-485S / IC-485SI’s DB-25 female connector into
the computer’s RS-232C port.
3. Connect the IC-485S / IC-485SI units to each other:
Use two or four wire twisted pair cable in a reverse or
straight through configuration according to the information
provided in the Switch Configuration and Operating Modes
sections.
For the IC-485S, you may use either the RJ-11 telephone
socket, or wire directly to the Terminal Block (See the
Terminal Block section for pin assignment details).
For the IC-485SI, you must ground the device by
connecting a grounding wire from the Grounding Tab to the
grounding source.
Note: 1. When tightening the terminal connector screws it is
recommended to use a Phillips PH1 Screwdriver.
2. Over-tightening the terminal connector screws may
result in damage to your IC-485S or IC-485SI and
difficulty loosening the screws.
4. Power on the computers. The units are now ready for
operation.

- 16 -
Appendix
The Terminal Block
The four screw terminal block has different pin assignments
depending on the operating mode:
In DCE/DTE mode, terminals 1 (+V) and 2 (-V) are configured
to transmit data (the transmitter); while terminals 3 (-V) and 4
(+V) are configured to receive data (the receiver).
In Monitor mode (IC-485S only), terminals 1 and 2 are,
respectively, the positive and negative of receiver 1; while
terminals 3 and 4 are, respectively, the positive and negative
of receiver 2.
Pin DCE/DTE Monitor
1 Transmitter +V Receiver 1 +V
2 Transmitter -V Receiver 1 -V
3 Receiver -V Receiver 2 -V
4 Receiver +V Receiver 2 +V

- 17 -
DCE / DTE Connection Table
Because of the polarity of the communication signals, a DTE
configured device must connect to a DCE configured device. The
shaded area in the figure below is an example of a DTE to DCE
connection:
Self Test
To test the internal circuit of the interface converter, connect a
dumb terminal to the unit and do the following:
1. Set SW1 to DCE (if the dumb terminal is configured for DCE).
2. Set SW2 to TxON, RxON.
3. Connect a wire from pin 1 (Tx+) to pin 4 (Rx+)
4. Connect a wire from pin 2 (Tx-) to pin 3 (Rx-)
5. Set the terminal to full duplex and enter data.
If the data displays on the screen, the internal circuit is
operational.
DCE
DB-9
2
3
8
7
4
6
5
DTE
DB-9
3
2
7
8
6
4
5
DCE
DB-25
3
2
5
4
20
6
7
DTE
DB-25
2
3
4
5
6
20
7
DCE
DB-25
2
3
4
5
6
20
7
DTE
DB-25
3
2
5
4
20
6
7
Tx Rx
Rx Tx
RTS CTS
CTS RTS
DSR DTR
DTR DSR
GND
Cable
25/25 or
9/25 pin
IC-485ASIDevice's Connector Pin #

- 18 -
Troubleshooting
Problem Action
Data Transmission
Failure Check that the power adapter is plugged in and working properly.
Check that the IC-485S / IC-485SI units are
securely plugged into the computers’ serial
ports.
Check that the cables are properly set up and
properly connected.
Check that SW1 and SW2 are set properly.
Data Loss or Error Check that the Data Rate and Data Format
are the same for all devices.
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE
PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THE PRODUCT, DISK OR ITS DOCUMENTATION.
The direct vendor makes no warranty or representation, expressed, implied, or
statutory with respect to the contents or use of this documentation, and specially
disclaims its quality, performance, merchantability, or fitness for any particular
purpose.
The direct vendor also reserves the right to revise or update the device or
documentation without obligation to notify any individual or entity of such revisions,
or update. For further inquires please contact your direct vendor.
