ATI Technologies 137-71040-10 User manual

ATI
Remote Wonder™ Plus
Users Guide
P/N 137-71040-10

ii
Copyright © 2006, ATITechnologies Inc. All rights reserved.
ATI, the ATI logo, and ATI product and product-feature names are trademarks and/or registered
trademarks of ATI Technologies Inc. All other company and/or product names are trademarks and/or
registeredtrademarksoftheirrespective owners.Features,performanceandspecificationsaresubject
to change without notice. Product may not be exactly as shown in diagrams.
Reproductionofthismanual,orpartsthereof,inanyform,withouttheexpresswrittenpermissionofATI
Technologies Inc. is strictly prohibited.
Disclaimer
While every precaution has been taken in the preparation of this document, ATI Technologies Inc.
assumes no liability with respect to the operation or use of ATI hardware, software or other products
and documentation described herein, for any act or omission of ATI concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss ofanticipatory
profits, or for punitive,incidental or consequential damages in connection with the furnishing,
performance, or use of the ATI hardware, software, or other products and documentation provided
herein.
ATI Technologies Inc. reserves the right to make changes without further notice to a product or system
described herein to improve reliability, function or design. With respect to ATI products which this
document relates, ATI disclaims all express or implied warranties regarding such products, including
but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-
infringement.
Product Notices
Dolby® Laboratories, Inc.
ManufacturedunderlicensefromDolby®Laboratories.Dolbyandthedouble-Dsymbol aretrademarks
of Dolby Laboratories. Confidential Unpublished Works.
© 1992-1997 Dolby Laboratories, Inc. All rights reserved.
Macrovision
Apparatus Claims of U.S. Patent Nos.4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for
limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Documentation Updates
ATI is constantly improving its product and associated documentation. To maximize the value of your
ATI product, you should ensure that you have the latestdocumentation. ATI’s documentation contains
helpful installation/configuration tips and other valuable feature information.

iii
LIMPORTANT SAFETY INSTRUCTIONS
•Read Instructions - All the safety and operating instructions should
be read before the product is operated.
•Retain Instructions - The safety and operating instructions should
be retained for future reference.
•Heed Warnings - All warnings on the product and the operating
instructions should be adhered to.
•Compatibility - This option card is for use only with IBM AT or
compatible UL Listed personal computers that have Installation
Instructions detailing user installation of card cage accessories.
•Grounding - For continued protection against risk of electric shock
and fire, this accessory should be installed only in products equipped
with a three-wire grounding plug, a plug having a third (grounding)
pin. This plug will only fit into a grounding-type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet,
contact your electrician to replace the obsolete outlet. Do not defeat
the safety purpose of the grounding-type plug.
•Secure Attachment - All card securement pins shall be completely
tightened as to provide continuous bonding between the option card
and the PC chassis.
•Outdoor Antenna Grounding - Since an outdoor antenna or cable
system is connected to the product, be sure that the antenna or cable
system is grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with regard to
proper grounding of the mast and supporting structure, grounding of
the lead-in wire to the antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection of
grounding electrodes, and requirements for the grounding electrode.
•Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet, and disconnect the antenna or
cable system. This will prevent damage to the product due to
lightning and power-line surges.
•Power Lines - An outside antenna system should not be located in
the vicinity of overhead power lines or other light or power circuits, or
where it can fall into such power lines or circuits.
•Antenna Installation - When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines
or circuits, as contact with them may be fatal.
•Note to CATV System Installer - This reminder is provided to call
the CATV systems installer’s attention to Section 820-40 of the NEC,
which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.

iv

v
Table of Contents
Remote Wonder™ Plus Specifications . . . . . . . . . 1
System Requirements 1
Product Registration 1
Features 1
Compatibility 2
Installing the Remote Wonder™ Plus . . . . . . . . . . 3
Using Remote Wonder™ Plus Functions . . . . . . . 5
EazyLook™ 8
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Product Registration 15
Customer Care 15
Getting Additional Accessories 17
Compliance Information 17
FCC Compliance Information 17
Industry Canada Compliance Statement 18
CE Compliance Information 18
Informations de conformité de la CE 18
Electrical Safety 18
Waste Electrical and Electronic Equipment
(WEEE) Directive Compliance 18

vi

1
Remote Wonder™ Plus Specifications
In addition to performing the expected functions of a remote-control device
for your PC's media players, your Remote Wonder™ Plus works like a
mouse with all Windows® software applications. It also works with other
ATI products, such as Radeon® graphics cards, but some buttons may be
inactive (TV and FM, for example). Remote Wonder™ Plus works with
any Windows® PC or Macintosh® that complies with the System
Requirements outlined below. However, functionality is limited to mouse
control and the plug-ins installed on the system. For details onplug-ins visit
ati.com.
System Requirements
Product Registration
The part number printed on the back of the Remote Wonder™ Plus is
required for product registration.
Features
• Full tactile mouse control - provides full cursor control in any
application.
• Greater than 60 foot range.
• Customizable launch button.
• Fully integrated with ATI Multimedia Center™ software for the
PC.*
• Six programmable buttons, including color-coded teletext keys for
Europe.
• 433MHz operating frequency
* ATI’s Multimedia Center software is one of many applications with
which your Remote Wonder™ Plus can work.
Hardware • Intel® Pentium® 4 or equivalent.
• CD-ROM or DVD-ROM drive (for installation software).
• USB port
• Power MAC computer with 256 MB of System Memory.
Operating
System • Windows® XP (Home or Pro).
• Windows® 2000.
• Mac OS® X 10.2.8 or higher.

2
Compatibility
Your Remote Wonder™ Plus works with any graphics card supporting
Microsoft® Direct X® overlay.

3
Installing the Remote Wonder™ Plus
Adding the Remote Wonder™ Plus to your system does not require any
special tools. To install the Remote Wonder™ Plus follow the instructions
below.
To install your Remote Wonder™ Plus
1Open the battery container on the back of the Remote Wonder™ Plus
and insert two AAA batteries.
2Insert the included ATI Installation CD into your CD-ROM drive.
3Click the Remote Wonder™ icon on the ATI CD Install screen.
Follow the on-screen instructions, and then allow the computer to
restart.
4Plug the remote receiver into any available USB port on your
computer. The Remote Wonder™ Plus icon will appear on the
Windows taskbar. Your Remote Wonder™ Plus is ready to use!
The Remote Wonder™ Plus operates at 433 MHz. The Remote Wonder™
Plus range depends upon the environment. For best results, the receiver
should be placed as far as possible from the computer’s case and monitor.
LFor optimum long-range performance, tilt the Remote
Wonder™ Plus up approximatley 30 degrees.

4

5
Using Remote Wonder™ Plus
Functions

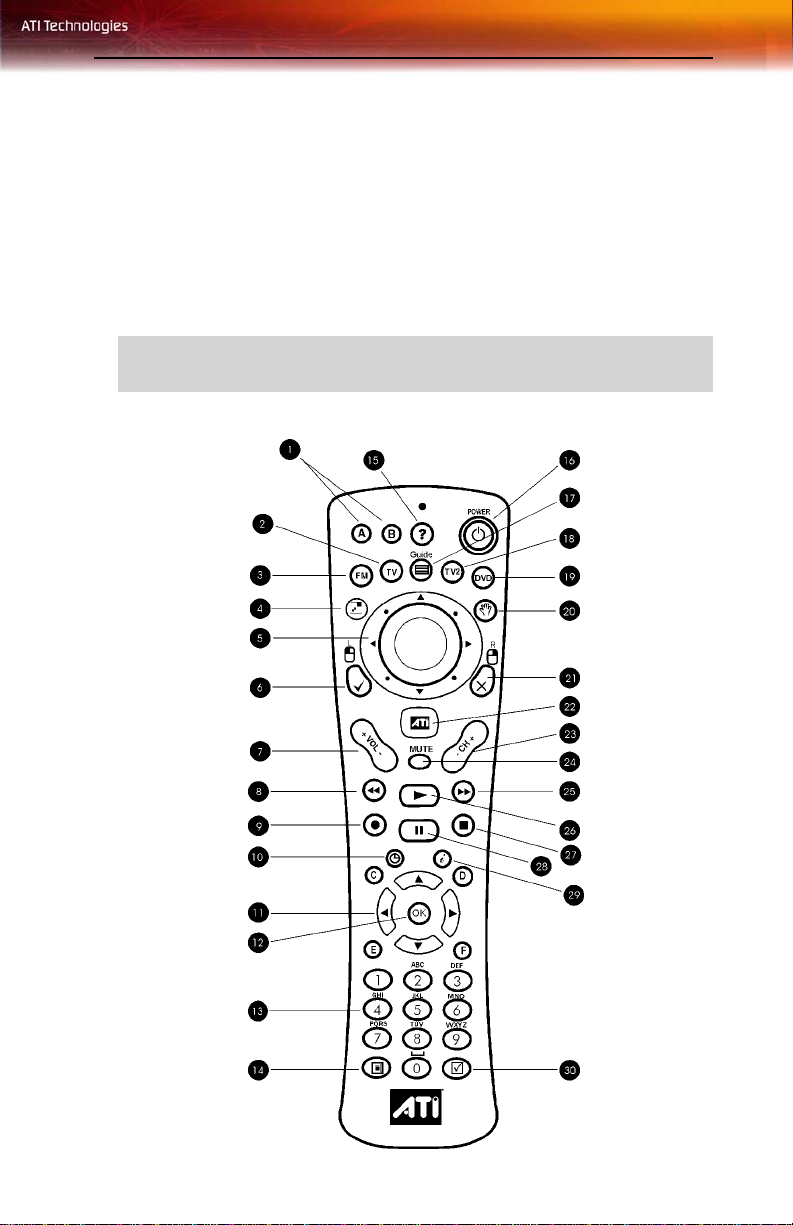

The following diagrams and tables list the Remote Wonder™ Plus
functions when used with Windows® and the included software. You will
requirean All-in-Wonder®or TVWonder™ familyproduct toaccess most
of these features.
LFor more information on using your Remote Wonder™ Plus refer to
the Remote Wonder™ Plus online Help.

6
The table below shows the functions for the ATI Multimedia Center™ TV,
DVD, and Video CD applications.
Remote Wonder™ Plus ATI Multimedia Center™
Functions
Butto
nTV DVD Video CD
1Programmable buttons A - F. To program buttons, right-click the
Remote Wonder™ Plus icon in the system tray and choose
Properties from the shortcut menu or press a programmable button
and follow the onscreen instructions.
2Activate TV Start TV
3Start FM Activate FM
4Maximize/Restore the foreground window if possible.
5Thumbpad controls cursor movement in all modes.
6Left mouse button
7Increase/Decrease volume
8Rewind Rewind
9Record No action
10 Toggle No action
11 Up/Down/Left/Right arrows
12 Enter Enter/Navigate
select Enter
13 Number pad
14 Toggle Open root menu No action
15 Display Help
16 Power off
17 Toggle Open root menu No action
18 Activate second TV Start second TV
19 Start DVD Activate DVD Start DVD
20 Drag (toggle holding down the left mouse button)
21 Right mouse button
22 Open Launchpad or Library

7
The table below shows the functions for the ATI Multimedia Center™ File
Player, CD Player, and for other Windows® multimedia applications.
23 Channel up/Down No action
24 Toggle audio mute
25 Fast-forward Fast-forward
26 Play Play
27 Exit Stop
28 Start Pause
29 Information details
30 Open Setup Menu
Remote Wonder™ Plus ATI Multimedia Center™ and
Windows® Functions
Butto
nFile Player CD Audio Windows®
1Programmable buttons A - F. To program buttons, right-click the
Remote Wonder™ Plus icon in the system tray and choose
Properties from the shortcut menu or press a programmable button
and follow the onscreen instructions.
2Start TV
3Activate FM
4Maximize/Restore the foreground window if possible.
5Thumbpad controls cursor movement in all modes.
6Left mouse button
7Increase/Decrease volume
8Rewind Skip to previous track*
9No action
10 No action
Remote Wonder™ Plus ATI Multimedia Center™
Functions
Butto
nTV DVD Video CD

8 EazyLook™
EazyLook™
Designed to work with the Remote Wonder™ Plus in full-screen mode,
EazyLook™ displays large, on-screen information about remote control
functions when you watch ATI Multimedia Center™ TV, DVD, or File
11 Up/Down/Left/Right arrows
12 Enter
13 Number pad
14 No action
15 Display Help
16 Power off
17 No action
18 Start second TV channel
19 Start DVD
20 Drag (toggle holding down the left mouse button)
21 Right mouse button
22 Open Launchpad or Library
23 No action
24 Toggle audio mute Toggle audio mute*
25 Fast-forward Skip to next track*
26 Play Play*
27 Stop Stop*
28 Pause Pause*
29 Information details No action
30 Open Setup menu No action
*This function is supported by many Windows® applications.
Remote Wonder™ Plus ATI Multimedia Center™ and
Windows® Functions
Butto
nFile Player CD Audio Windows®

EazyLook™ 9
Player.Most keyboard shortcutsare supportedwith EazyLook™,however,
use your Remote Wonder™ Plus to enjoy full remote control capability.
The following tables list all Remote Wonder™ Plus functions when used
in EazyLook™ with ATI Multimedia Center™. You will require an All-in-
Wonder® or TV Wonder™ family product to access the features listed
under the TV heading.
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button TV DVD
1A. Toggle closed captions over
video
B. Cycle through input
connector
C. Enable / Disable Parental
Control
D. Cycle through audio modes
E. Cycle through recording
presets
A. Toggle closed captions over
video
B. Subtitles
C. Cycle through audio tracks
D. Eject DVD disk
2Displays TV settings and
content information Close DVD, and then start TV
3Close TV and start FM Display settings
4Aspect Ratio

10 EazyLook™
5TV Listings / Scheduler in TV-
on-Demand™: Media
Information
Menus: Media information If no
navigation buttons: Navigate
6Yes/Accept
7Increase/Decrease volume
8Rewind in TV-on-Demand™ Rewind
9TV Listings/Scheduler:
Record/Schedule recording No action
10 Toggle TV-on-Demand™ No action
11 Left / right arrows: TV-on-
Demand™ Skip back / ahead
30 seconds
Up / down arrows: TV-on-
Demand™ Jump to previous /
next program
Left / right arrows: Movie: Skip
back / ahead 30 seconds.
Menus: Navigate
Up / down arrows: Movie: Start
at beginning of previous / next
program. DVD Menus:
Navigate
12 TV Listings: Schedule viewing
Scheduler: Select time Enter / Navigation
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button File Player Library
1A. Toggle closed captions A. Filter media by type
B. Filter media by date
C. Select all list items
D. Unselect all list items
E. Delete selected item(s) from
disk
2Close File Player, then start TV Close Library, then start TV
3Capture still image from current
source No action
4No / Cancel
5Open Library
6No action
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button TV DVD

EazyLook™ 11
7Toggle audio mute No action
8Fast-forward No action
9Start or resume playback. For
ATI VCR, can select speed No action
10 Stop playback No action
11 Pause playback or slide show.
Press repeatedly to advance
one frame at a time.
No action
12 Information details No action
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button TV DVD
13 Number Pad
14 No action Open root menu
15 Display EazyLook™ Help
16 Close ATI Multimedia Center™
17 No action Open root menu
18 Display second TV channel
settings and content
information
Close DVD, open second TV
channel
19 Close TV, and then start DVD Display DVD settings and
media information
20 Capture still image from current source
21 No / Cancel
22 Open Library
23 Channel Up / Down Chapter Up / Down
24 Toggle audio mute
25 Fast-forward in TV-on-
Demand™ Fast-forward
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button File Player Library

12 EazyLook™
26 Play in TV-on-Demand™ Play selected items (or
highlighted item if none is
selected)
27 Exit in TV-on-Demand™ Stop playback
28 Start in TV-on-Demand™ Pause playback
29 Information details
30 Adjust video controls No action
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button File Player Library
13 Number Pad
14 Display current Player settings
and media information Cycle through sort options
15 Display EazyLook™ Help
16 Close ATI Multimedia Center™
17 Display current Player settings
and media information Cycle through sort options
18 Close File Player, start second
TV Close Library, start second TV
19 Close File Player, start TV Close Library, start TV
20 Capture still image from current
source No action
21 No / Cancel
22 Open Library
23 No action
24 Toggle audio mute No action
25 Fast-forward No action
26 Start or resume playback. For
ATI VCR, can select speed No action
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button TV DVD

EazyLook™ 13
27 Stop playback No action
28 Pause playback or slide show.
Press repeatedly to advance
one frame at a time.
No action
29 Information details No action
30 No action
Remote Wonder™ Plus Functions in EAZYLOOK™ Mode
Button File Player Library

14 EazyLook™
