Atlantic Geolia 5 User manual

Operation manual
intended for professionals
and end users.
To be saved for
future consultation
Ground source heat pump
water/water and brine/water
atlantic geolia
atlantic-comfort.com
Subject to modications without notice.
Non contractual document.
Document n° 1639-9 ~ 30/08/2019
atlantic geolia 5
atlantic geolia 7
atlantic geolia 10
atlantic geolia 13
atlantic geolia 17
FR NL DE EN IT
ES PT

Contents
Instructions to be read before using the equipment. . . . . . . . . . . . . . 2
Safety instructions . . . . . . . . . . . . . . . . . . . 2
End of life of the device . . . . . . . . . . . . . . . . 3
Precautions and warnings regarding your installation. 3
Operation of the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
User interface . . . . . . . . . . . . . . . . . . . . . 6

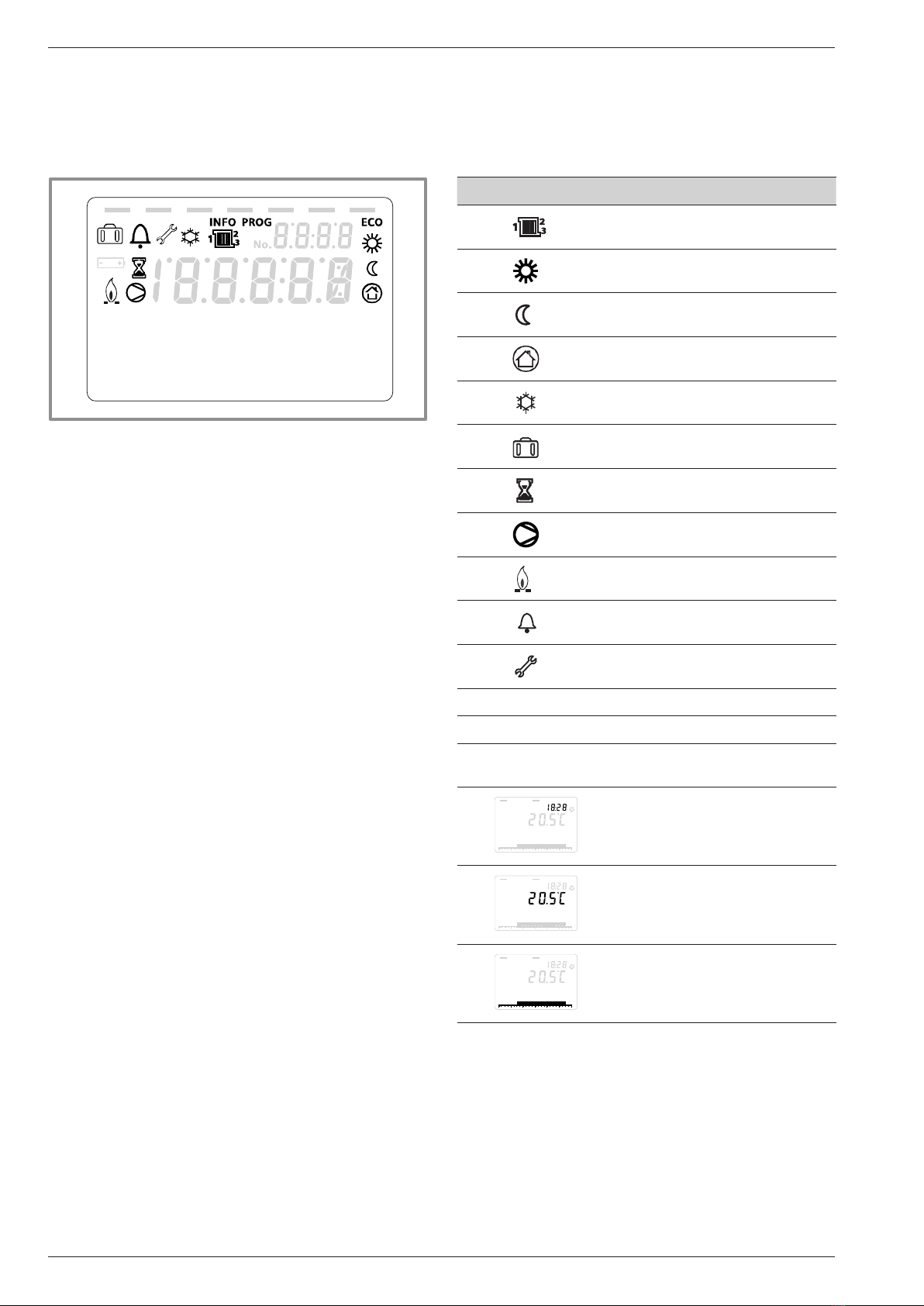

Description of the display . . . . . . . . . . . . . . . 8
Appliance start up . . . . . . . . . . . . . . . . . . 10
Quick start-up . . . . . . . . . . . . . . . . . . . . 10
Setting Time, Date and Language . . . . . . 11
Selecting and setting the heating operating mode 12
Selecting and setting the DHW operating mode (option) 14
Brine circuit . . . . . . . . . . . . . . . . . . . 3
Heat pump . . . . . . . . . . . . . . . . . . .4
Heating emitters . . . . . . . . . . . . . . . .4
Domestic hot water (DHW) . . . . . . . . . . . 4
Overall view of the installation . . . . . . . . . . . . . . . . . . . . . . . . .5
Holiday periods . . . . . . . . . . . . . . . . 16
Swimming pool temperature setting and cooling (option)17
Setting Parameters . . . . . . . . . . . . . . . . . 18
General . . . . . . . . . . . . . . . . . . . . 18
Setting parameters . . . . . . . . . . . . . . 18
List of "End user" settings . . . . . . . . . . 18
Information display . . . . . . . . . . . . . . . . . 22
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Heating circuit checks . . . . . . . . . . . . . . . . 23
Brine circuit checks . . . . . . . . . . . . . . . . . 23
Refrigerant circuit checks . . . . . . . . . . . . . . 23
1 Instructions to be read before using the equipment
Please comply with the following instructions in order to avoid any risk of injury or inappropriate use of the
appliance.
1.1 Safety instructions
• Start-up
"Do not try to install this appliance yourself. This heat pump requires an appropriately qualied
person to install it.
"The installation must always be connected to the Earth and tted with a protective circuit breaker.
"Do not modify the electricity supply.
"The appliances are not reproof and should therefore not be installed in a potentially explosive
atmosphere.
"Do not place any heat source under the room control unit.
• Maintenance
"Do not try to repair this appliance yourself.
"This appliance does not contain any components capable of being repaired by the user himself.
Removing one or other of the covers can expose you to dangerous electrical voltages.
"In any case, switching o󰀨 the current is not su󰀩cient to protect you from any external electrical
shocks (capacitors).
ErP performance values . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
ErP Denition . . . . . . . . . . . . . . . . . . . . 24
ErP specications Single phase type . . . . . . . . 24
Package che. . . . . . . . . . . . . . . . . 26
ErP specications 3-Phase . . . . . . . . . . . . . 28
Fiche package . . . . . . . . . . . . . . . . 30
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 2 -

1.3.1 Brine circuit
There are three installation congurations according to
the type of Brine circuit chosen :
• Surface brine circuit :
These are polyethylene pipes buried horizontally
averaged depth of 1 meter. They are in the form of loop,
with 40 cm between each tube.
From the mixed antifreeze water ows through the
tubes, rises in temperature and back into the heat pump.
The surface brine circuit should be 1.5 to 2 times the
heating surface area. The minimum garden area
required is 200 m2.
• Boreholes :
These are polyethylene pipes in U-shape, buried 80 m.
This conguration requires the intervention of a drilling
machine, which introduces the sensors, which are then
cast in concrete. The operation is performed several
times, a few meters apart.
Heat recovery is identical to the Surface brine
conguration. Water mixed with antifreeze ows through
the tubes, rises in temperature and back into the heat
pump.
• Ground water :
The waters of ground water are usually at 10-14°C
temperature whatever the season. This is an important
and stable source of energy that can be perfectly used
for heating via the heat pump.
The collection of the ground water can be performed in
two ways :
- either by a single well, in this case, after passing
through the heat pump, the water is discharged into a
surface network, stream, pond, lake ...
- either by the principle of doublet, a drill for water
pumping, and a drill for feeding back the water in
original groundwater
"Do not open the outdoor unit or the hydraulic unit while they are operating.
"Switch o󰀨 the power supply if there are any abnormal noises, smells or smoke coming from the
appliance and contact your installer.
"Switch o󰀨 the power to the appliance before you clean it.
"Do not use aggressive cleaning liquid or solvents to clean the body work.
"Not place anything on the appliance.
1.2 End of life of the device
Disassembly and recycling shall be handled by a qualied body.
Wild disposal and domestic garbage is stricly prohibited.
At the end-of-life of the equipment, please contact your installer or any local representant to proceed to disassembly
and recycling.
1.3 Precautions and warnings regarding your installation.
Surface brine circuit
Boreholes
Ground water
Operation manual "1639 - EN" - 3 -
Ground source heat pump atlantic geolia

1.3.2 Heat pump
The heat pump contains the complete control system,
in charge of controlling the heating comfort level and the
production of domestic hot water (if the installation is
tted with a DHW tank with electrical back-up heating).
The heat pump is tted with an electrical back-up
system which starts up in order to provide addtional
heating during the coldest periods.
• Control system :
Your installer has carefully adjusted your installation.
Do not modify setting parameters without his agreement.
If in doubt, do not hesitate to contact him.
The control system for your heating system is designed
in ow temperature for the water based on the outdoor
temperature (water control).
The installation of a room thermostat (option) allows to
improve operation of the regulation (the inuence of the
room temperature is taken into account).
1.3.3 Heating emitters
• Radiators :
To ensure the function of the regulation with room
inuence, it's necessary that the room in which the room
thermostat is installed has no thermostatic valve or that
they must be completely open.
• Heating oor :
New heating oor systems require to be initially heated
slowly to avoid any problems with cracking. Check
with your installer that this initial heating procedure
has indeed been performed before using your heating
system freely.
The great stability in a regulation system for oor-heating
systems avoids sharp di󰀨erences in temperature.
However, this stability involves a reaction time of the
order of several hours, (approx 6 hours).
Any changes to the setting must be made slowly, leaving
the installation time to react. Adjusting the system to
exaggerated setting or in an untimely manner always
results in signicant temperature uctuations during
course of the day.
Similarly if your dwelling has a oor-heating system,
do not reduce the heating or switch it o󰀨 if you will be
absent for a short period. The reheating period is always
quite long (approx 6 hours).
• Fan coils / Dynamic radiators with integrated
control system :
Do not use a room sensor the area equipped with fan coils.
1.3.4 Domestic hot water (DHW)
This function is performed optionally with the use of a
DHW tank (with electric back-up).
When the DHW production is required, the heat pump
adapts to this demand with higher priority.
No space heating is produced while the domestic hot
water is being prepared.
Domestic hot water (DHW) is produced by the heat
pump and then topped up, if necessary, by electrical
backup heating.
To ensure a DHW setting over 45°C, the electrical
back-up heating must be left on.
The electrical back-up heating enables anti-legionella
cycles to be conducted e󰀩ciently.
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 4 -

Your heat pump has been congured by your installer. It
is composed of the following main elements:
- The brine circuit (surface or borehole) extracts energy
from the ground.
- The heat pump positioned in your boiler room, cellar,
garage or even your kitchen, transfers the energy to
the heating circuit (and the domestic hot water).
- The outdoor sensor detects the outdoor temperature.
Optional equipment:
- Room thermostat.
- Room control unit.
Heat pumps are systems that can be connected to any
form of low temperature heat distribution systems :
the heat captured by the heat pump can therefore be
used in di󰀨erent ways:
- Floor-heating systems.
- Radiators or fan coil heaters.
- Domestic hot water (DHW).
gure 1 - Overall view of the conguration of a complete installation
Room control unit
Options
depending
on the system
congurations
Room thermostat
or/and
or
or
Outdoor
sensor Control
options
DHW kit
Boiler connexion
kit
Pilote wire kit
2nd circuit kit
Surface brine circuit
borholes
Ground water
Heat pump
DHW tank with electrical
back-up heating
Heating circuit
Radiators, fan-coils,
dynamic radiators
Boiler
and/or
Heating circuit
Heating oor system
2 Overall view of the installation
Operation manual "1639 - EN" - 5 -
Ground source heat pump atlantic geolia

3 Operation of the installation
3.1 User interface

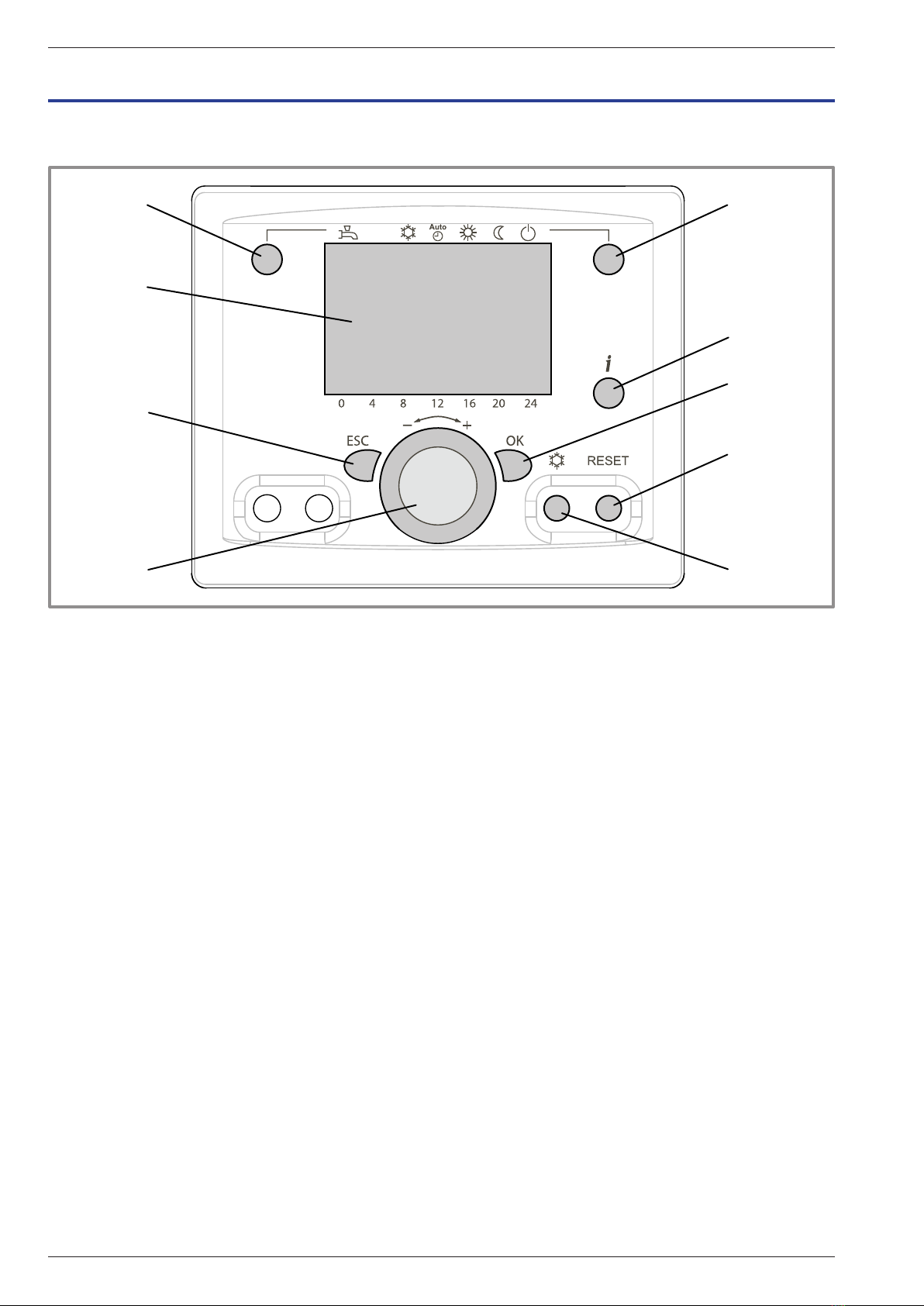

gure 2 - User interface
1
2
3
4
5
6
7
9
8
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 6 -

Ref. Functions - Denitions
1 Selecting of the DHW operating mode
(Domestic hot water).
On
Off
If the installation is tted with a DHW tank:
-On: Production of DHW according to the time program.
-O󰀨: Preparing the domestic hot water for stopping with the anti-frost function
active.
-Manual start button: Hold down the DHW key for 3 seconds. Switch from
"reduced" to "comfort" until the next time the ECS timer switches over.
2 Digital display. - Operating control. Readout of the current temperature, of the heating mode
and of any faults .
- View the settings.
3Exit "ESC". - Quit the menu and/or return to the previous menu.
4 Navigation and setting. - Selecting the menu.
- Setting parameters.
- Adjusting the ambient temperature setpoint.
5 Selecting the heating mode. -
Auto
Heating operating according to the heating program
(Summer/winter mode switchover is automatic).
- Constant comfort temperature.
- Constant reduced temperature.
- Stand-by mode with anti-frost protection
(Provided that the heat pump's electrical power supply is not interrupted).
6 Information display. - Various data (see 22).
- Reading error codes (see 22).
- Information concerning maintenance, special mode.
7Conrm "OK". - Input into the selected menu.
- Conrmation of the parameter settings.
- Conrmation of the adjustment to the comfort temp. setting.

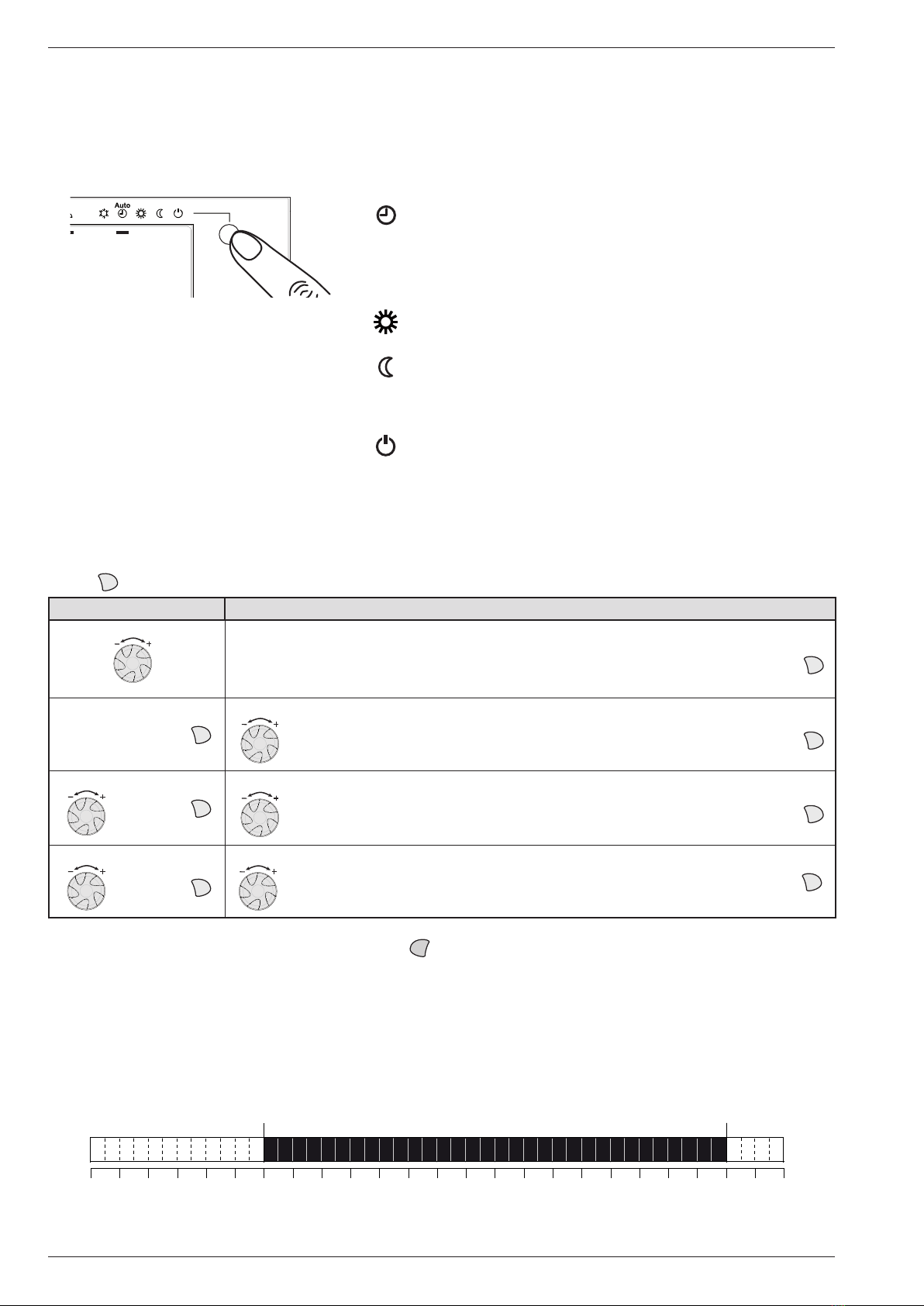

8 Selecting cooling mode If the installation is tted with the cooling kit:
- Cooling operating according to the heating programme
(Summer/winter mode switchover is automatic).
9 RESET button
(Brief press)
- Reinitialising the parameters and cancelling error messages.
Do not use during normal operation.
Operation manual "1639 - EN" - 7 -
Ground source heat pump atlantic geolia

3.2 Description of the display
Symbols Denitions
- Heating mode active with reference
to the heating circuit.
- Heating in comfort mode.
- Heating in reduced mode.
- Heating in "standby" mode
(freeze protection).
- Cooling mode active.
- Holiday mode activated.
- Process in progress.
- Compressor operation.
- Burner operation.
- Default message.
- Service / Special operation.
INFO - Information level activated.
PROG - Program activated.
ECO - ECO mode activated
(Heating temporarily stopped).
temperature ambiante
- Hour /
Parameter number /
Setpoint value.
temperature ambiante
- Room temperature /
Setpoint value.
temperature ambiante
- Setpoint information /
Parameter Information.
gure 3 -
Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 8 -


Operation manual "1639 - EN" - 9 -
Ground source heat pump atlantic geolia

3.3 Appliance start up
• The installation and 1st start up of the appliance must
be done by a qualied installer. That person will also
give you instructions on starting and running the
appliance.
3.4 Quick start-up
Once your installer has started your installation for the
rst time:
• Engage the start/stop switch of HP.
During the regulator initialisation phase, the
display shows all the symbols and then the hour.
• Setting the time and the date (see chapter 3.4.1).
• Select the "AUTO" heating mode (see chapter 3.4.2).
• Select the DHW mode (If the installation is tted with a
DHW tank option) (see chapter 3.4.3).
gure 4 - Start-up
1. User interface
2. Start/stop switch
1
2
gure 5 - Closing the display
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 10 -

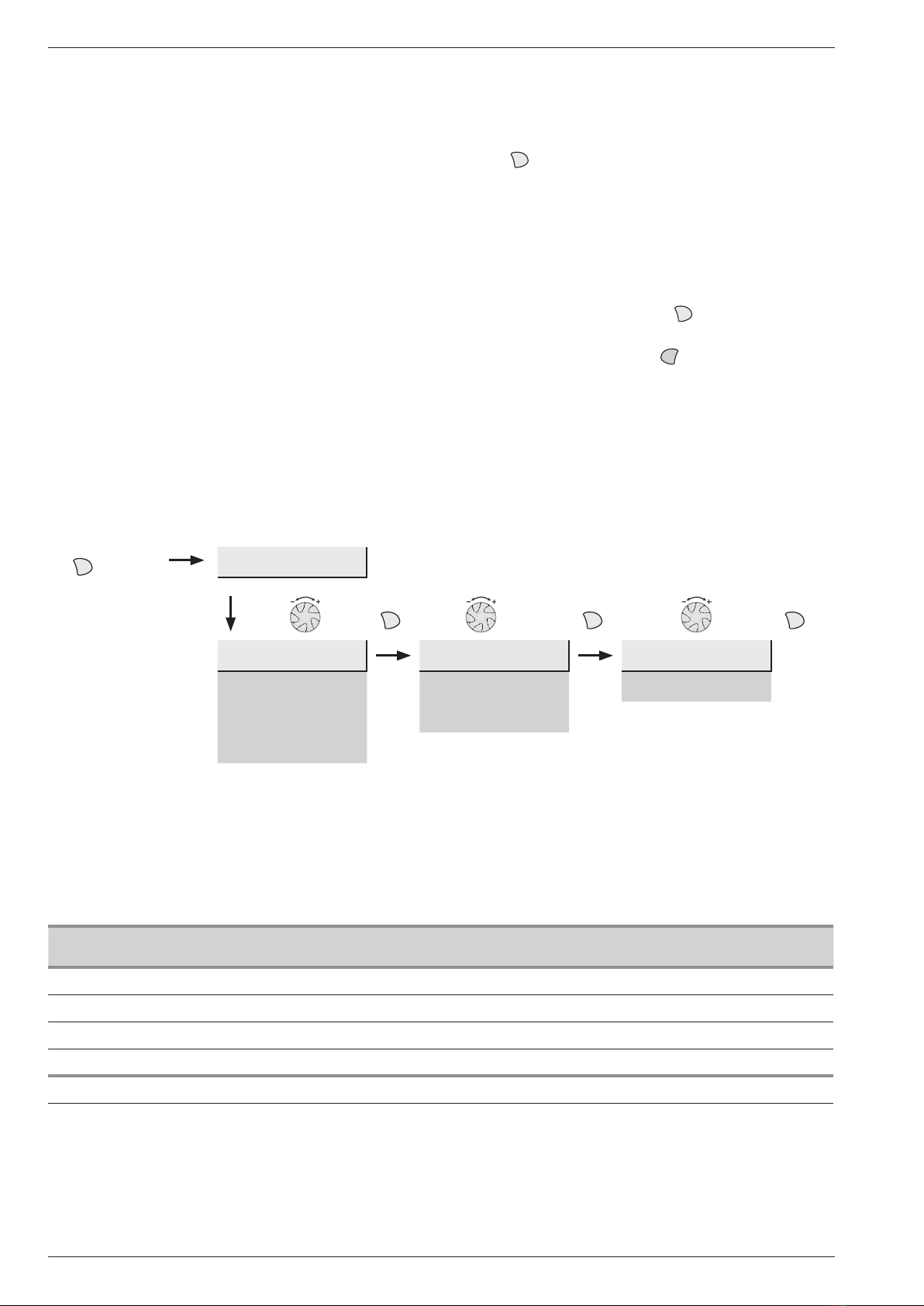

3.4.1 Setting Time, Date and Language
Press
OK
to go to "End user" level.
Line No. Selection Settings
- Time and date
- User interface
- Heating time program circuit 1
- ...
OK
20
OK
Language
Eg : English
OK
Return to the previous display, press
ESC
,
Line No. Selection Settings
- Time and date
- User interface
- Heating time program circuit 1
- ...
OK
1
OK
Hours / minutes.
Eg : ..:.. OK
The hours blinks,
turn the knob to set the hour.
Eg : 14:..
OK
The minutes blinks,
turn the knob to set the minutes.
Eg : 14:31
OK
2OK
Day / month.
Eg : ../..
OK
The month blinks,
turn the knob to set the month.
Eg : ../01
OK
The day blinks,
turn the knob to set the day.
Eg : 12/01
OK
3OK
Year.
Eg : ....
OK
The year blinks,
turn the knob to set the year.
Eg : 2012
OK
Return to the previous display, press 2x
ESC
.
Operation manual "1639 - EN" - 11 -
Ground source heat pump atlantic geolia

3.4.2 Selecting and setting the heating operating mode
• Selecting the heating operating mode
To select the heating operating mode, press several time on mode.
"Auto" :
Auto
Automatic mode controls room temperature according to
the time program.
"Constant" :
Constant mode maintains constant room temperature at
selected operating.
COMFORT Mode.
REDUCED Mode.
"Stand-by" :
Stop with frost protection
(Provided that the heat pump's electrical power supply is
not interrupted).
• Set point settings for heating temperature (Comfort, Reduced, Stand-by)
Press
OK
to go to "End user" level.
Line No. Selection Settings
- ...
- Holidays heating circuit 2
- Heating adjustment circuit 1
- Heating adjustment circuit 2
- ...
OK
710
OK
Comfort setpoint
(set from "Reduced setpoint" to 28°C)
Eg : 20°C
OK
712
OK
Reduced setpoint
(set from "Frost protection setpoint" to "Comfort setpoint")
Eg : 17.5°C
OK
714 OK
Frost protection setpoint
(set from 4°C to "Reduced setpoint")
Eg : 7°C
OK
Return to the previous display, press several times
ESC
.
Use the same procedure to program the second heating circuit (heating circuit 2 / option kit 2 circuits) Lines 1010, 1012
and 1014.
• Change heating periods (menu "Heating time program x")
The time heating program is set by default for the entire week (Mon-Sun: from Monday to Sunday)
and 6:00 a.m. to 10:00 p.m. in comfort mode (from 10:00 p.m. to 6:00 a.m. in reduced mode).
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
ON
Reduced T° Reduced T°
Comfort T°
1st phase OFF
For your convenience, you can set up to 3 heating phases and di󰀨erent periods (week, day, ...).
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 12 -

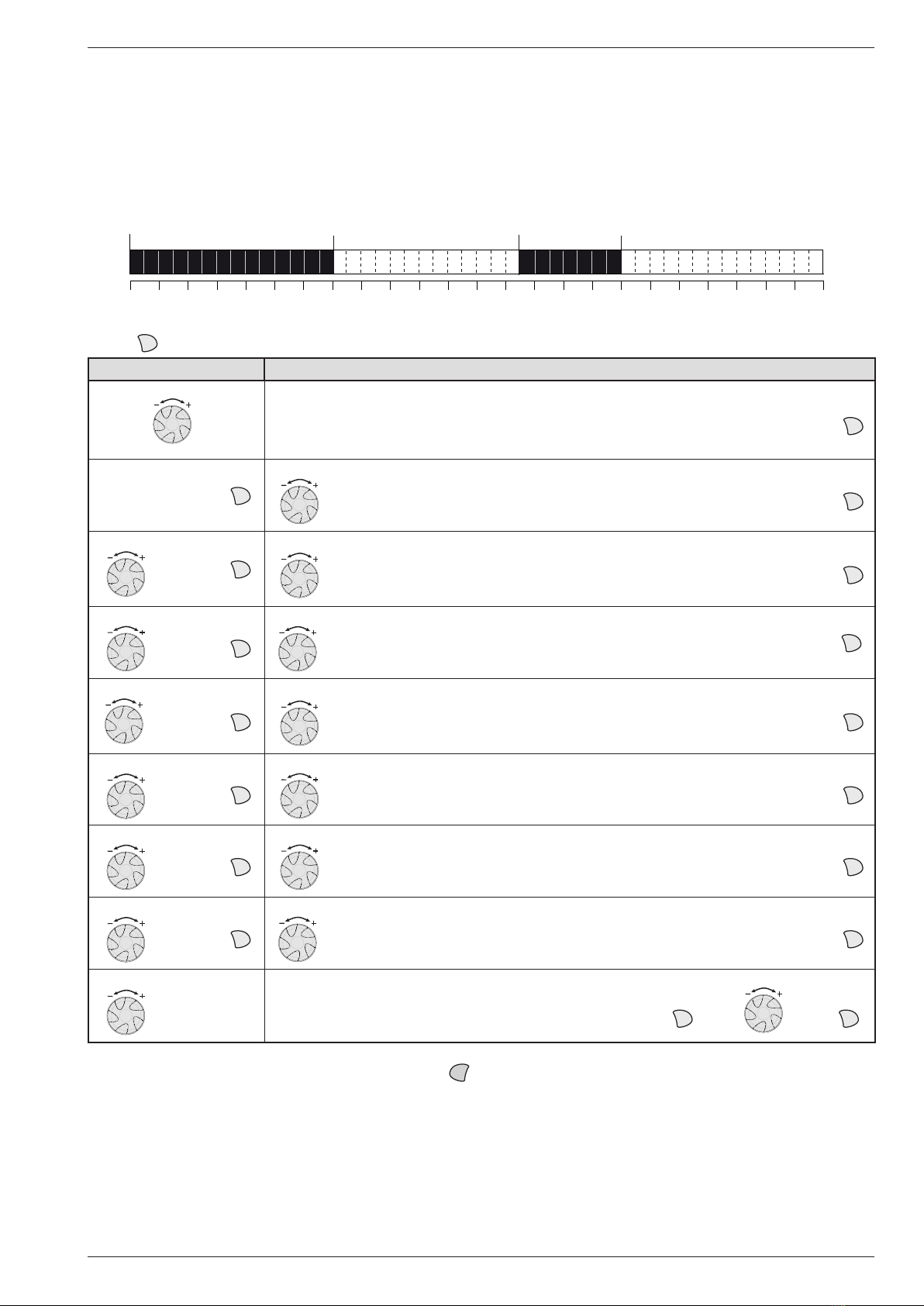

Heating periods programming example
Heating period from Monday to Friday (Mon-Fri).
A program can be performed for the period from Saturday to Sunday (Sat-Sun).
Each day of the week can be programmed di󰀨erently and independently.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
ON
Reduced T° Reduced T° Reduced T° Reduced T°
comfort T° comfort T° comfort T°
1st phase 2ephase 3ephase
OFF OFF OFFON ON
Press
OK
to go to "End user" level.
Line No. Selection Settings
- Time and date
- User interface
- Heating time program circuit1
- Heating time program circuit 2
- ...
OK
500
OK
Select the period :
Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sundaye
Eg : (Monday to Friday) Mon-Fri
OK
501
OK
Start hour from the 1st heating phase
Eg : 1st phase (ON) 6:00
OK
502 OK
Stop hour from the 1st heating phase
Eg : 1st phase (OFF) 8:00
OK
503 OK
Start hour from the 2e heating phase
Eg : 2ephase (ON) 11:30
OK
504 OK
Stop hour from the 2e heating phase
Eg : 2ephase (OFF) 13:30
OK
505 OK
Start hour from the 3e heating phase
Eg : 3ephase (ON) 17:00
OK
506 OK
Stop hour from the 3e heating phase
Eg : 3ephase (OFF) 22:30
OK
516
Back to standard values
OK
No Yes
OK
Return to the previous display, press several times
ESC
.
Use the same procedure for time program :
- Second circuit* (Heating time program circuit 2) Lines 520 to 536,
- DHW* (Time program 4 /DHW) lines 560 to 576,
- Cooling* (Time program 5 / Cooling) lines 600 to 616.
*Option
Operation manual "1639 - EN" - 13 -
Ground source heat pump atlantic geolia

3.4.3 Selecting and setting the DHW operating mode (option)
• Change the DHW operating mode
To change from "Active" mode to "O󰀨" mode, press several times the DHW mode key.
Marche
Arrêt
DHW On :
DHW according to the time program.
Manual start button (forced mode) :
Hold on the DHW key for 3 seconds. Switch from "reduced"
to "comfort" for one DHW load).
Marche
Arrêt
DHW O󰀨 :
DHW stopped with frost protection active.
• Set point settings for DHW temperature (DHW kit / option)
Press
OK
to go to "End user" level.
Line No. Selection Settings
- ...
- Heating circuit 2
- Domestic Hot Water
- Fault
- ...
OK
1610
OK
Comfort setpoint
(set from "Reduced setpoint" to 65°C)
Eg : 55°C
OK
1612
OK
Reduced setpoint
(set from 8°C to "Comfort setpoint")
Eg : 40°C
OK
Return to the previous display, press several times
ESC
.
• Change DHW heating periods (menu "Time program 4 / DHW")
The time DHW heating program is set by default for the entire week (Mon-Sun : from Monday to Sunday)
and 0:00 a.m. to 5:00 a.m (1st DHW heating phase) and 14:30 a.m. to 17:00 a.m (2eDHW heating phase).
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
ON
DHW heating DHW heating
1st phase 2ephase
OFF OFFON
For your convenience, you can set up to 3 DHW heating phases and di󰀨erent periods (week, day, ...).
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 14 -

DHW heating periods programming example
DHW heating period from Monday to Friday (Mon-Fri).
A program can be performed for the period from Saturday to Sunday (Sat-Sun).
Each day of the week can be programmed di󰀨erently and independently.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
ON
DHW heating DHW heating
1st phase 2ephase
OFF OFFON
Press
OK
to go to "End user" level.
Line No. Selection Settings
- ...
- Heating time program circuit 2
- Time program 4 / DHW
- Holidays heating circuit 1
- ...
OK
560
OK
Select the period :
Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sundaye
Eg : (Monday to Friday) Mon-Fri
OK
561
OK
Start hour from the 1st heating phase
Eg : 1ephase (ON) 0:00
OK
562 OK
Stop hour from the 1st heating phase
Eg : 1ephase (OFF) 7:00
OK
563 OK
Start hour from the 2e heating phase
Eg : 2ephase (ON) 13:30
OK
564 OK
Stop hour from the 2e heating phase
Eg : 2ephase (OFF) 17:00
OK
565 OK
Start hour from the 3e heating phase
Eg : 3ephase (ON) ..:..
OK
566 OK
Stop hour from the 3e heating phase
Eg : 3ephase (OFF) ..:..
OK
576
Back to standard values
OK
No Yes
OK
Return to the previous display, press several times
ESC
.
Operation manual "1639 - EN" - 15 -
Ground source heat pump atlantic geolia

3.4.4 Holiday periods
It is possible to adjust holiday periods during which the heating is reduced mode or frost protection. It is possible to
set up to 8 periods. DHW does not work during these periods.
"For the Holiday program is active, the heating mode should be on AUTO
Auto
(see page 12).
Holidays periods programming example
from February 14 to February 25.
Press
OK
to go to "End user" level.
Line No. Selection Settings
- ...
- Time program 4 / DHW
- Holidays heating circuit 1
- Holidays heating circuit 2
- ...
OK
641
OK
Select the period from 1 to 8
Eg : Periode 1
OK
642
OK
Periode 1 BEGIN
Eg : Day / month ../..
OK
Month set
(01 to 12)
Eg : Day / month ../02
OK
Day set
(01 to 31)
Eg : Day / month 14/02
OK
643 OK
Periode 1 END
Eg : Day / month ../..
OK
Month set
(01 to 12)
Eg : Day / month ../02
OK
Day set
(01 to 31)
Eg : Day / month 25/02
OK
To program other periods, return to the line 641 and select the following period (8 periods).
648 OK
Heating schedule
OK
Frost protection Reduced
OK
"The heating schedule selected is identical for ALL holiday periods.
Return to the previous display, press several times
ESC
.
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 16 -

3.4.5 Swimming pool temperature setting and cooling (option)
• Set the swimming pool temperature (Swimming pool kit option)
Press
OK
to go to "End user" level.
Line No. Selection Settings
- ...
- Domestic Hot Water
- Swimming pool
- Fault
- ...
OK
2056
OK
Poll setpoint producer heating
(set from 8°C to 35°C)
Ex : 22°C
OK
Return to the previous display, press several time
ESC
.
• Set the cooling setpoint temperature (Cooling kit option)
Press
OK
to go to "End user" level.
Line No. Selection Settings
- ...
- Heating circuit 1
- Cooling circuit 1
- Heating circuit 2
- ...
OK
902
OK
Comfort cooling setpoint
(set from 17°C to 40°C)
Ex : 24°C
OK
Return to the previous display, press several time
ESC
.
• Change cooling periods (menu "Time program 5 / Cooling")
The time DHW heating program is set by default for the entire week (Mon-Sun : from Monday to Sunday)
and 8:00 a.m. to 20:00 p.m. in cooling mode (from 20:00 p.m. to 8:00 a.m. in standby mode).
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
ON
T° cooling
OFF
For your convenience, you can set up to 3 cooling phases and di󰀨erent periods (week, day, ...).
Each day of the week can be programmed di󰀨erently and independently.
Cooling periods programming example
Press
OK
to go to "End user" level.
Line No. Selection Settings
- ...
- Time program 4 / DHW
- Time Program 5 / Cooling
- Holidays heating circuit 1
- ...
OK
600 to 616
OK
Use the same procedure as the time program of heating periods
(see page 12).
Return to the previous display, press several time
ESC
.
Operation manual "1639 - EN" - 17 -
Ground source heat pump atlantic geolia

3.5.2 Setting parameters
With the screen on basic display.
- Press OK .
Once in "End user" level.
- Scroll the menu list.
- Choose the desired menu.
- Scroll the function lines.
- Choose the desired line.
- Adjust the parameter.
- Check the setting by pressing
OK
.
- To return the menu, press ESC .
If no setting is made for 8 minutes, the screen returns
automatically to the basic display.
3.5 Setting Parameters
3.5.1 General
Only the parameters accessible to levels:
End user
... are described in this document.
The parameters accessible at level:
Commissioning
Engineer
… are described in the document reserved for
these professional specialists. Do not make any
modications to these parameters without advice
from these professional specialists. Incorrect use
of any kind may result in serious malfunctioning.
3.5.3 List of "End user" settings
Line Function Setting range
or display
Setting range
or display
Basic
setting
Time and date
1 Hours / minutes 00:00... 23:59 1
2 Day / Month 01.01... 31.12 1
3 Year 1900... 2099 1
User interface
20 Language English, Deutsch, Français,
Italiano, Nederlands,...
English
OK Brief
press End user
OK OK OK
Time and date Hours / minutes 1 Hours 1...24 h
User interface Day / Month 2 Minutes 0...60 min
CC1 time program Year 3
...
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 18 -

Line Function Setting range
or display
Setting range
or display
Basic
setting
Heating time programme, circuit 1
500 UPre-selection (Day / Week) Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, …
Mon-Sun
501 U1st phase On (start) 00:00... --:-- 10 min 6:00
502 U1st phase O󰀨 (end) 00:00... --:-- 10 min 22:00
503 U2nd phase On (start) 00:00... --:-- 10 min --:--
504 U2nd phase O󰀨 (end) 00:00... --:-- 10 min --:--
505 U3rd phase On (start) 00:00... --:-- 10 min --:--
506 U3rd phase O󰀨 (end) 00:00... --:-- 10 min --:--
516 UStandard values, Circuit 1 No, Yes No
Yes + OK: The standard values memorised in the controller replace and cancel the customised heating programmes.
Your customised settings are therefore lost.
Heating time programme, circuit 2
Only with the 2nd circuit kit option.
520 UPre-selection (Day / Week) Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, …
Mon-Sun
521 U1st phase On (start) 00:00... --:-- 10 min 6:00
522 U1st phase O󰀨 (end) 00:00... --:-- 10 min 22:00
523 U2nd phase On (start) 00:00... --:-- 10 min --:--
524 U2nd phase O󰀨 (end) 00:00... --:-- 10 min --:--
525 U3rd phase On (start) 00:00... --:-- 10 min --:--
526 U3rd phase O󰀨 (end) 00:00... --:-- 10 min --:--
536 UStandard values, Circuit 2 No, Yes No
Yes + OK: The standard values memorised in the controller replace and cancel the customised heating programmes.
Your customised settings are therefore lost.
Time programme 4 / DHW
If the installation is tted with the DHW kit.
560 UPre-selection (Day / Week) Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, …
Mon-Sun
561 U1st phase On (start) 00:00... --:-- 10 min 00:00
562 U1st phase O󰀨 (end) 00:00... --:-- 10 min 05:00
563 U2nd phase On (start) 00:00... --:-- 10 min 14:30
564 U2nd phase O󰀨 (end) 00:00... --:-- 10 min 17:00
565 U3rd phase On (start) 00:00... --:-- 10 min --:--
566 U3rd phase O󰀨 (end) 00:00... --:-- 10 min --:--
576 UStandard values No, Yes No
Yes + OK: The standard values memorised in the controller replace and cancel the customised heating programmes.
Your customised settings are therefore lost.
Operation manual "1639 - EN" - 19 -
Ground source heat pump atlantic geolia

Line Function Setting range
or display
Setting range
or display
Basic
setting
Time programme 5 / Cooling
If the installation is tted with the cooling kit (Only with the cooling kit option).
600 UPre-selection (Day / Week) Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, …
Mon-Sun
601 U1st phase On (start) 00:00... --:-- 10 min 8:00
602 U1st phase O󰀨 (end) 00:00... --:-- 10 min 20:00
603 U2nd phase On (start) 00:00... --:-- 10 min --:--
604 U2nd phase O󰀨 (end) 00:00... --:-- 10 min --:--
605 U3rd phase On (start) 00:00... --:-- 10 min --:--
606 U3rd phase O󰀨 (end) 00:00... --:-- 10 min --:--
615 UCopy
616 UStandard values No, Yes No
Yes + OK: The standard values memorised in the controller replace and cancel the customised heating programmes.
Your customised settings are therefore lost.
Holidays, heating circuit 1 (For the Holiday program is active, the heating mode should be on AUTO).
641 UPreselection Period 1 to 8 Period 1
642 UPeriod Start (Day / Month) 01.01... 31.12 1
643 UPeriod End (Day / Month) 01.01... 31.12 1
648 UOperating level Frost protection, Reduced Frost
protection
Holidays, heating circuit 2 (For the Holiday program is active, the heating mode should be on AUTO).
If the installation consists of 2 heating circuits (Only with the 2nd circuit kit option).
651 UPreselection Period 1 to 8 Period 1
652 UPeriod Start (Day / Month) 01.01... 31.12 1
653 UPeriod End (Day / Month) 01.01... 31.12 1
658 UOperating level Frost protection, Reduced Frost
protection
Heating adjustment, circuit 1
710 Comfort ambient temperature setpoint Reduced setpoint…
Comfort setpoint max
0,5 °C 20 °C
712 Reduced ambient temperature setpoint Frost-free temp…
Comfort temperature
0,5 °C 19 °C
714 Frost-free ambient temperature setpoint 4 °C… Reduced temperature 0,5 °C 8 °C
Cooling circuit 1 (Only with the cooling kit option)
901 UOperating mode O󰀨, Automatic O󰀨
902 UComfort cooling setpoint 17... 40 °C 0,5 °C 24 °C
907 URelease 24h/day, Time program HC,
Time program 5 / Refresh
Time
program 5
If the installation is tted with a DHW tank, set the parameter 907 to " Time program 5 / Cooling"
(In order to activate cooling only during the day and leave the DHW system to operate during the night).
Heating adjustment, Circuit 2
Only with the 2nd circuit kit option (If the installation consists of 2 heating circuits).
1010 Comfort ambient temperature setpoint Reduced setpoint…
Comfort setpoint max
0,5 °C 20 °C
1012 Reduced ambient temperature setpoint Frost-free temp…
Comfort temperature
0,5 °C 19 °C
1014 UFrost-free ambient temperature setpoint 4°C… Reduced temperature 0,5 °C 8 °C
Operation manual "1639 - EN"
Ground source heat pump atlantic geolia
- 20 -
