USE
Alfea Hybrid Duo Oil A.I.
Hybrid air/water Split Inverter heat pump
High temperature with oil backup and integrated DHW

- 3 -
Table of Contents
Precautions and warnings
about your installation ......................7
Carrying out the installation 8
User Interface ............................8
Display Description ........................9
Navigating the Menus .....................10
Modifying Settings ........................10
Menu Structure ..........................11
Manual mode........................12
Absence............................14
Active functions ......................15
Temperature setting...................15
Programming ........................16
Power consumption ...................17
Oil consumption......................17
Settings ............................17
Overview of the installation ..................6
Maintenance 20
Regular checks ..........................20
Boiler room, hydraulic unit and
heating system ..........................20
Outdoor unit and refrigeration circuit ..........20
End-of-life of the appliance .................20
Error messages ..........................21
Safety instructions 4
Overview of the installation 6
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

Safety instructions
Please comply with the following instructions in order to avoid any risk of injury or
inappropriate use of the appliance.
Commissioning
Do not switch the appliance ON until every lling operation has been performed.
Do not attempt to install this appliance yourself. This heat pump must be installed by
qualied personnel holding a certicate of competence.
The installation must always be properly earthed and tted with a safety circuit breaker.
Do not modify the power supply.
The appliances are not reproof and therefore must not be installed in an explosive
environment.
Use
This appliance can be used by children aged 8 years old at a minimum and by people
with reduced physical, sensory or mental capabilities or with no experience or knowledge,
if they are properly monitored or if they have been given instructions on how to use the
appliance safely and if the potential risks have been understood. Children must not play
with the appliance. Cleaning or maintenance work shall not be performed by children
without supervision.
Do not let children insert foreign bodies inside the fan protection grill or climb on top of the
outdoor unit. The ns of the air heat exchanger are extremely thin and can cause cuts.
Nothing should obstruct air circulation through the evaporator and out from the fan.
Do not climb on top of the outdoor unit.
The appliance must be installed in an appropriate and well-ventilated room.
If your installation location already meets safety standards, do not carry out any modications
(ventilation, ue gas evacuation, openings, etc.) without the advice of your installation
engineer.
Avoid making excessive amounts of dust in proximity to the burner, especially when it is
in operation.
Do not insert anything into the burner fan.
Do not place any heat source under the remote control.

Maintenance
Do not try to repair the appliance yourself.
This appliance does not contain any components which can be repaired by the user.
Removing either of the covers can expose you to dangerous electrical voltages.
In any case, switching o󰀨 the current is not su󰀩cient to protect you from any external
electrical shocks (condensers).
Do not open the outdoor unit or the hydraulic unit while they are in operation.
If you hear unusual noises, smell smoke or other odours coming from the appliance, turn
o󰀨 the power and contact your installation engineer.
Any modication of a sealed component is forbidden.
This appliance requires:
Qualied personnel possessing a certicate of competence for handling refrigerants
are required for performing maintenance work on the outdoor unit and checking the
refrigeration circuit.
A heating installer is required for maintenance of the burner and the chimney (or room-
sealed pipe).
Before starting any cleaning, turn o󰀨 the power to the appliance.
Do not use aggressive cleaning liquids or solvents to clean the body work.
Do not use a pressure hose to clean the outdoor unit. You may damage the air exchanger
and get water inside the electrical circuits.

- 6 -
g. 1 - Overview of complete installation conguration
outdoor
sensor
Room control unit A75
Heating circuit
underoor heating
system
The radiator heating
circuit or
fan-coils
Options depending
on hydraulic
congurations
Dual circuit
kit
Hybrid hydraulic unitOutdoor unit
Control options
or
►
Overview of the installation
Your heat pump has been congured by your installation
engineer. It is made up of the following main parts:
- The outdoor unit, as its name suggests, is placed
outside your dwelling, and extracts energy from the
outside air.
- The hybrid hydraulic unit is located in your boiler room,
cellar or garage, and transfers energy to the heating
and domestic hot water circuits.
- The outdoor sensor monitors the outdoor temperature.
Optional:
- Room sensor(s).
- Room control unit or wireless remote control.
Hybrid heat pumps are systems which can be connected
to any type of radiator, and the heat captured by the
heat pump can be used in di󰀨erent ways:
- Radiators (high, medium, low temperature) or fan-
coils.
- Underoor heating system.
Overview of the installation
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 7 -
►
Precautions and warnings
about your installation
▼
Outdoor unit
This unit was installed by your installer in a location
where it is able to operate most e󰀩ciently.
Nothing should obstruct air circulation
through the evaporator and out from the fan.
In the outdoor unit, the surrounding air is cooled through
contact with an exchanger. The water contained in the
air may condense and ow out of the outdoor unit. The
outdoor unit can generate a large volume of water called
condensate.
In cold weather, this water freezes on contact with the
exchanger and must be regularly removed using the
defrosting cycles. The defrosting cycle is managed
automatically by the control system and can produce
steam emissions which are completely normal.
▼
Hydraulic unit
The hydraulic unit contains the appliance's control
system which manages the room temperature and the
production of domestic hot water.
The hydraulic unit is dual energy (air/water heat pump
and integrated fuel oil boiler).
Oil: Your appliance is equipped with a burner
which uses domestic oil (heating fuel oil). The
oil must be free of impurities and of water.
▼
Control system
Your installer has carefully adjusted your
installation. Do not change the settings without
their consent. If in doubt, do not hesitate to
contact them.
Your heating system is controlled by adjustment in
relation to the outdoor temperature (temperature
control).
The installation of a room sensor (optional) makes
it possible to improve the operation of the control
system (inuence of the room temperature is taken into
account).
▼
Fan-coils with integrated control system
Do not use a room sensor in the area in question.
▼
Radiators
If the radiators are equipped with thermostatic
valves, they must be fully open.
▼
Underoor heating system
• A new underoor heating system must initially be
heated slowly to avoid any problems of cracking.
Check with your installer that this initial heating
procedure has indeed been performed before freely
using your heating system.
• To be e󰀩cient, underoor heating systems do not
need to be very hot and never should be. At most, the
systems should be warm to the touch in cold weather.
• An underoor heating system's signicant heat inertia
prevents sudden room temperature di󰀨erences.
However, this intertia involves a reaction time of
several hours (approx 6 hours).
Any changes to the setting must be made
slowly, leaving the installation su󰀩cient
time to react. Any exaggerated or abrupt
adjustments to the settings always result in
signicant temperature uctuations during
the day.
• Similarly, if your dwelling has an underoor heating
system, do not reduce the heating or switch it o󰀨 if
you will be absent for only short periods. The reheating
period is always quite long (approx 6 hours).
▼
Domestic Hot Water (DHW)
When hot water is required, the heat pump
adapts its priority to meet the demand.
No space heating is produced during the
preparation of domestic hot water.
The HP produces the DHW, which is then additionally
heated, if required, by the boiler.
The boiler allows Legionella cycles to be run e󰀨ectively
(ask your engineer if this function is activated).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 8 -
Carrying out the installation
N° Description

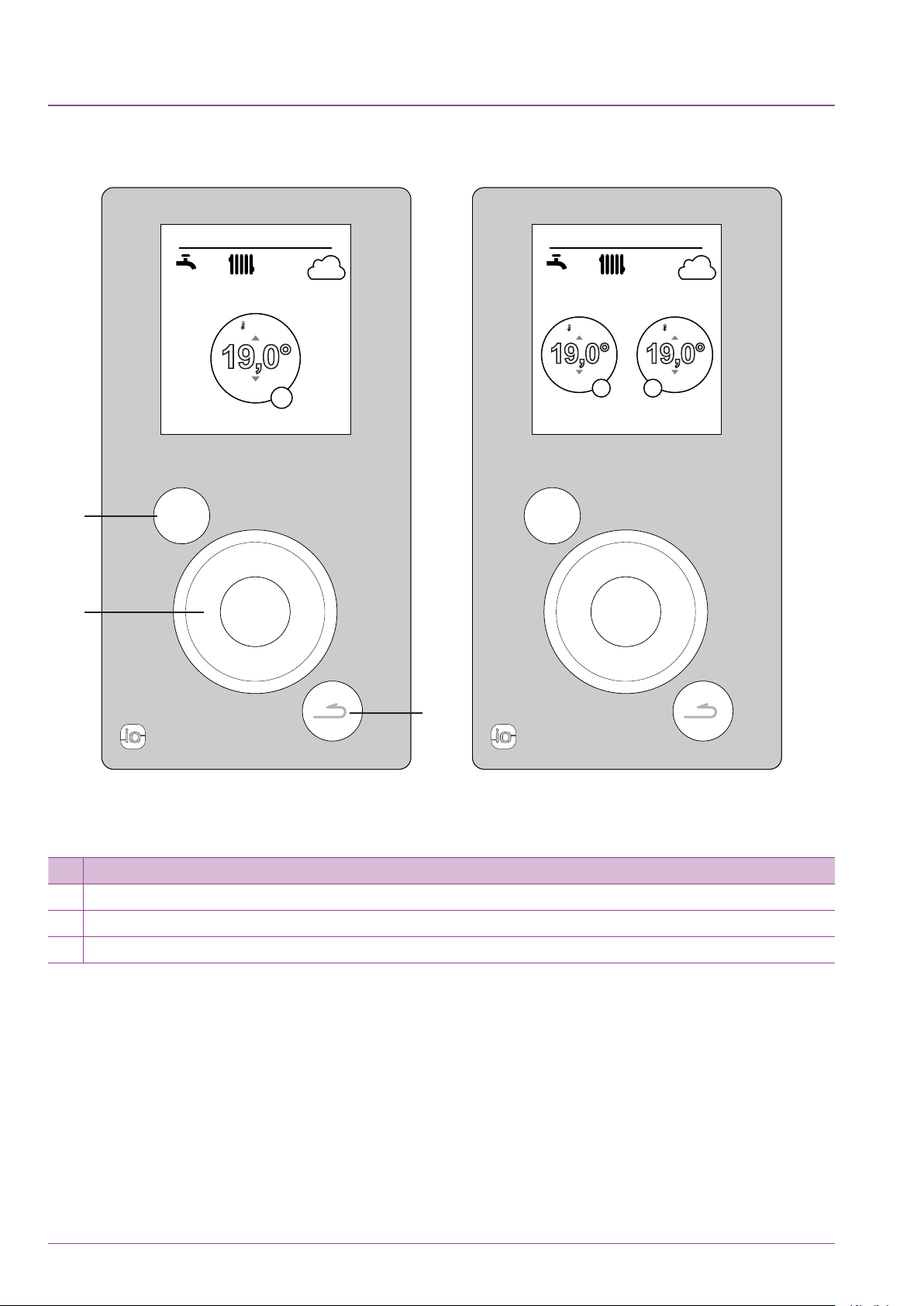

1Menu button
2Navigation knob (rotate knob), accept (press knob).
3Back button
►
User Interface
MENU
15:23
12°
19,0°
19.5
ECO
19,0°
21.5
ECO
OFF
2 heating circuit version
+ domestic hot water (DHW)
Area 1 Area 2
MENU
15:23
12°
19,0°
21,5
ECO
OFF
1 heating circuit version
+ domestic hot water (DHW)
1
2
3
7 September 2017 7 September 2017
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 9 -
►
Display Description
N° Symbols Denitions
115:23 Time
27 September 2017 Date
3
21.5
Temperature measured by the room
sensor*
4
19,0°
Room temperature setpoint
5Information (zone names, emergency mode, test
mode, error display, etc.)
6Domestic Hot Water (DHW)*:
Activated
Boosting in progress
Deactivated
7Temperature measured by the
outdoor sensor
8Operation
Heating
Cooling*
N° Symbols Denitions
9Mode
Comfort
Manual (exemption)
ECO
Absence
Floor drying
Stop (except frost)
10 Production via ...
HP
HP + Fuel oil
Fuel oil
* Options
15:23
12°
19,0°
19.5
ECO
19,0°
21.5
ECO
7
10
9
3
10
8
6
4
5
7 September 2017
Area 1 Area 2
1 2
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 10 -
►
Navigating the Menus
To ... Action:
Access the menu Press MENU .
Choose a menu item
Turn the knob to highlight your choice.
Press the knob to accept.
Return to the previous menu Press .
Return to the main menu Press MENU twice.
Return to the welcome screen Press MENU or on the main menu.
Note: Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and
installed options).
►
Modifying Settings

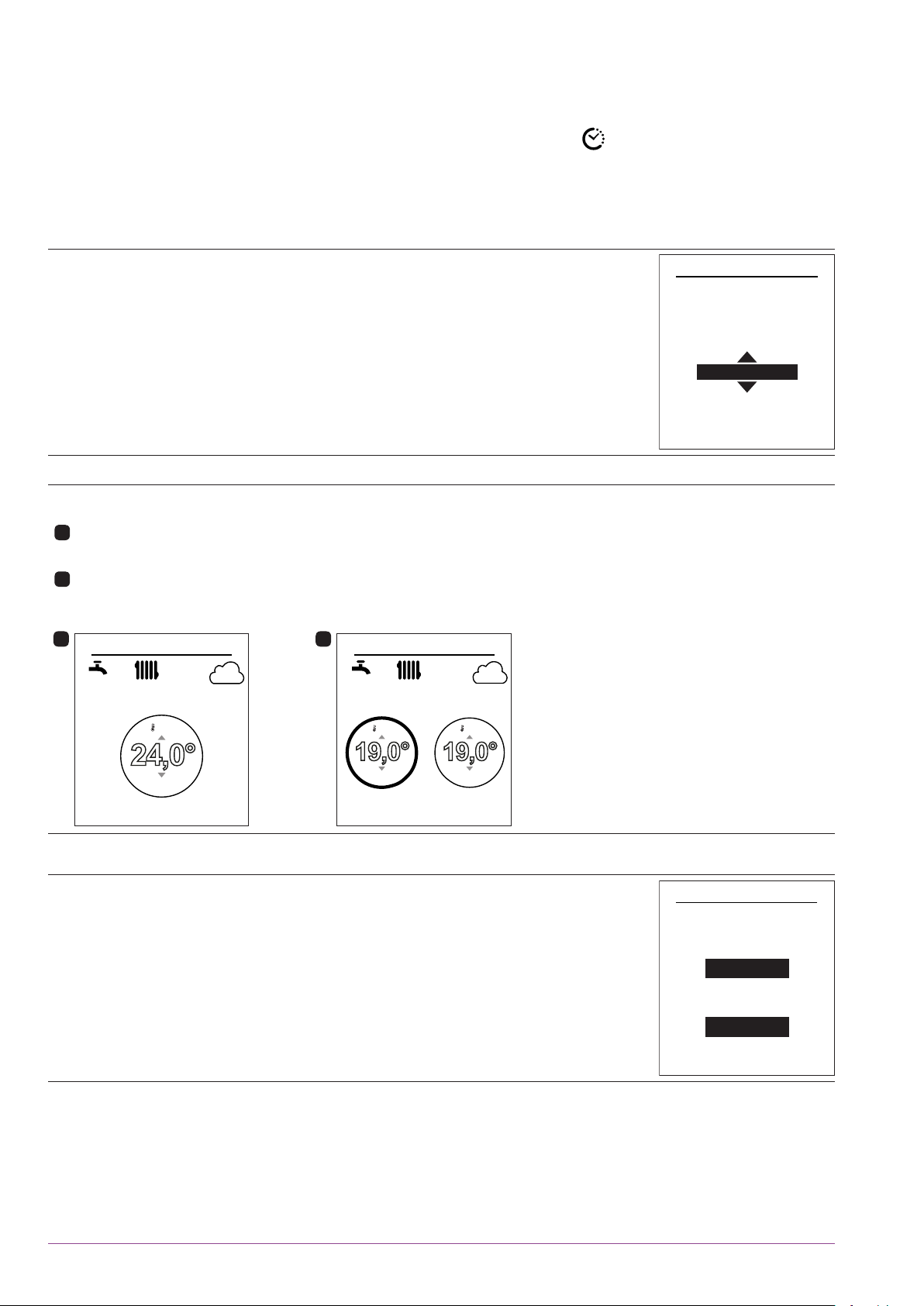

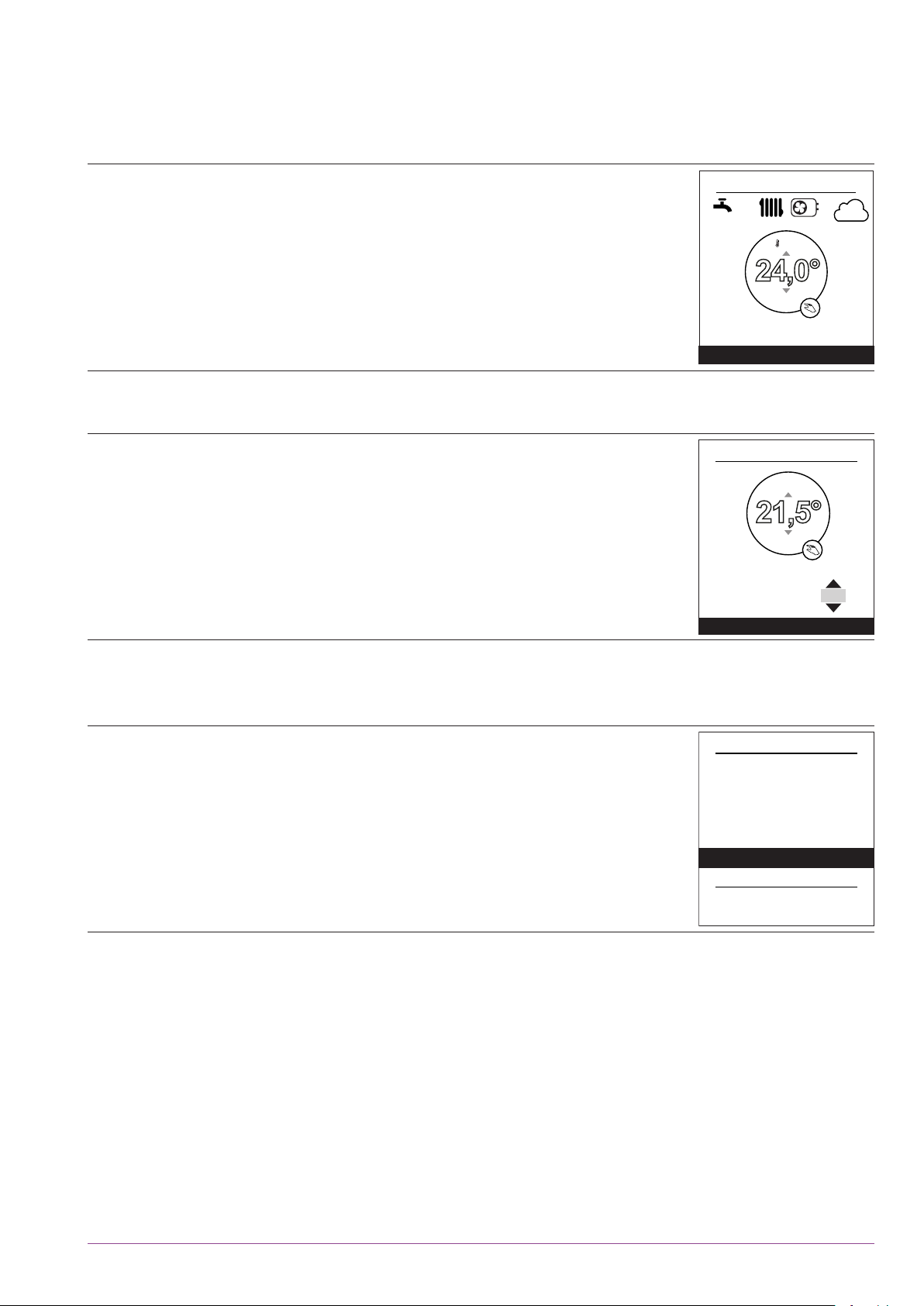

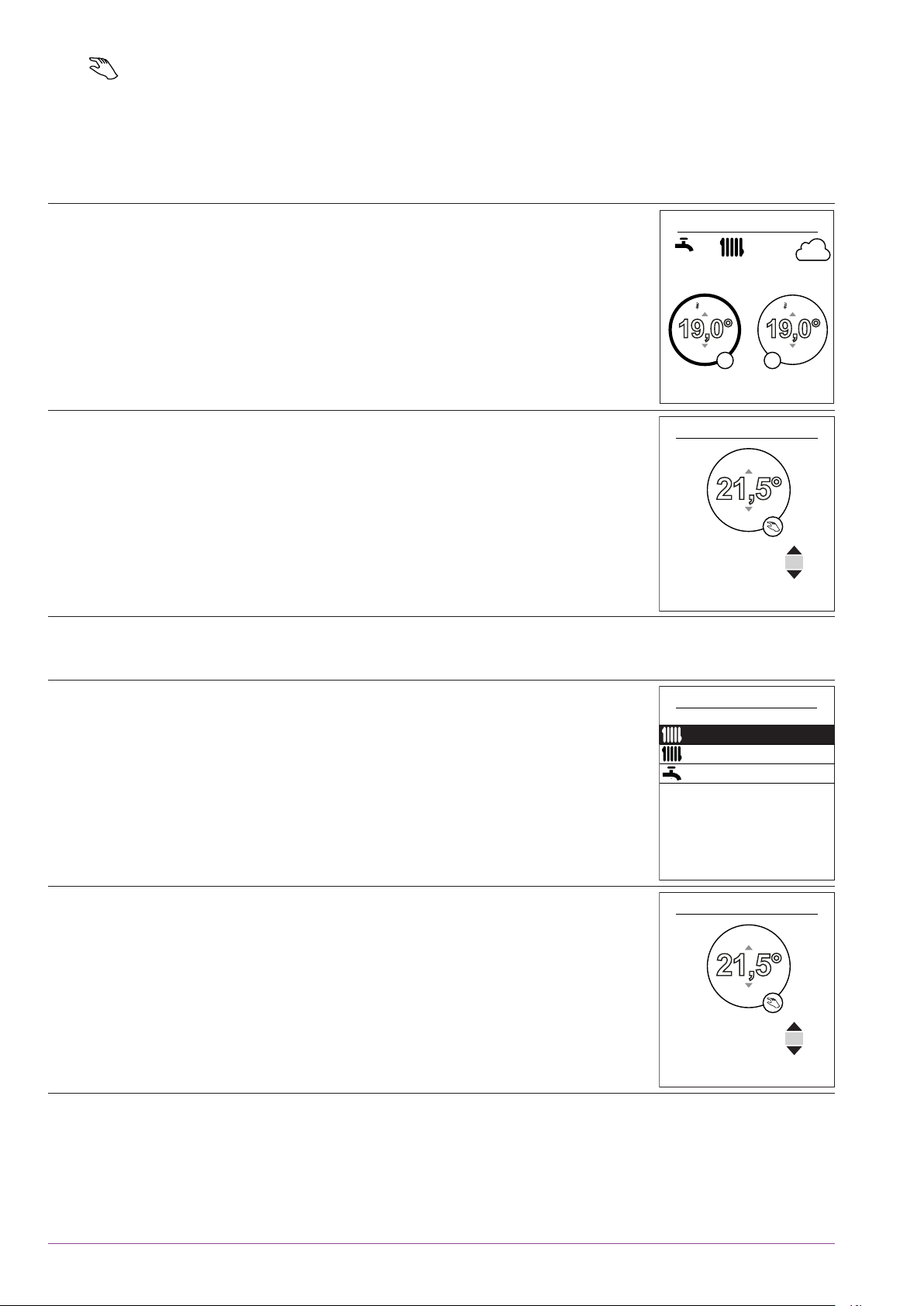

• Turn the knob to highlight the setting you wish to
change.
• Press the knob to accept the change.
• Turn the knob to adjust the setting.
• Press the knob to accept your choice.
MENU
MENU
Manual mode
Active functions
Setting temperatures
Timer programming
Absence
Electricity consumption
Fuel consumption
Settings
g. 2 - Navigation
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 11 -
►
Menu Structure
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Manual mode Area 1
page 12 Area 2
Hot water
Absence
page 14
Active functions
page 15
Temperature setting
Area 1
page 15 Area 2
Programming Heating
page 16 Area 1
Area 2
Cooling
Power consumption Heating
page 17
Daily cons.
Monthly cons.
Cooling Annual cons.
Hot water
Total
Oil consumption
page 17
Settings Date and time
page 17 Language
Advanced/simplied menu
Areas name
Connectivities Connection
Reset Connectivities
Energy costs
Software version
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 12 -
►
Manual mode
▼
Exemption from timer program
When a timer program is active (advanced menu), an exemption allows you to force the appliance into operation
("Heating" or "Cooling") at the desired temperature for a certain duration.
■From the welcome screen
Select the zone using the knob (the selected zone's circle is thicker).
15:23
12°
19,0°
--,-
ECO
19,0°
--,-
ECO
OFF
7 September 2017
Set the required temperature, then the duration of the exemption.
21,5°
Area 1
for a duration of: 10h
■From the menu
Choose the zone from the menu:
"Manual mode".
Manual mode
Area 1
Area 2
Hot water
Set the required temperature, then the duration of the exemption.
21,5°
Area 1
for a duration of: 10h
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 13 -
▼
Cancelling an exemption from timer program
■Cancelling an exemption with 1 heating zone
From the welcome screen, select:
"Stop the derogation".
15:23
12°
24,0°
--,-
OFF
7 September 2017
for a duration of: 9h:55m
Stop the derogation
■Cancelling an exemption with 2 heating zones
Choose the zone from the menu:
"Manual mode".
Press the knob to cancel the exemption.
21,5°
Area 1
for a duration of: 10h
Derogation in progress
Stop the derogation
▼
Domestic hot water boost
The domestic hot water (DHW) boost function heats the tank up to the Comfort temperature.
Go to the menu:
"Manual mode" > "Hot water".
Press the knob to activate the "BOOST" function.
When hot water is required, the heat pump adapts its priority to meet the demand.
No space heating is produced during the preparation of domestic hot water.
Hot water
The BOOST function is used
to force water tank heating
BOOST
The BOOST function stops
automatically when the water reserve
has been renewed
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 14 -
►
Absence
In the event of a prolonged absence, you can set a period in which the heating operates at a reduced temperature
(except for frost) and the production of domestic hot water (DHW) is stopped.
▼
Programming absence mode
Set the absence start and end dates and accept.
- To return to the previous setting (e.g. from month to day),
press the button.
Return date:
03 August
Validate
The absence will start at 0.00 am on the
departure day and end at 0.00 am on the
return date
Absence
Departure date:
19 July
Set the temperature for the dwelling during the absence.
Absence
8°
The hot water is stopped
House temperature during
absence:
▼
Viewing, modifying and cancelling the next absence period
You can view, modify and cancel the next absence period by going into the menu:
"Absence".
Absence
The next absence is planned
from
Cancel the absence
Modify
to
19 July
03 August
You can cancel a currently active absence period from the welcome screen.
15:23
12°
08,0°
--,-
OFF
7 Septembre 2017
Date de retour : 15 Septembre
Annuler l'absence
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 15 -
►
Active functions
The "Active functions" page tells you which services are operating and allows you to change their status.
- "Indoor comfort" : Heating / Cooling / Stop.
-"Area 1" / "Area 2" / "Hot water" / "Emergency mode" * : ON / Stop.
If "Indoor comfort" is set to "Stop", Zones 1 and 2 cannot be modied.
"Emergency mode" : Activate only in case of error "370: Thermodynamic
Generator". The appliance operates only from the fuel unit.
Active functions
Area 1 ON
Indoor comfort Heating
ONArea 2
ONHot water
StopEmergency mode
►
Temperature setting
The "Temperature setting" page allows you to set temperature setpoints for Comfort and ECO periods (heating and
cooling). Settings must be recorded for each zone.
Heating temperatures factory settings:
Comfort 20°C, ECO 19°C.
Cooling temperatures factory settings:
Comfort 24°C, ECO 26°C.
Temperature setting
Area 1
Heating
Comfort T° 21,5°C
21,5°CECO T°
Cooling
Comfort T° 19,5°C
21,5°CECO T°
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 16 -
►
Programming
A timer program allows you to dene the appliance's automatic operation periods (Comfort ↔ ECO) Each day can
be set independently.
▼
Creating a timer program
1- Choose "Heating" or "Cooling" as well as the appropriate zone by accessing the menu:
"Programmation" > "Heating" / "Cooling" > "Zone 1" / "Zone 2".
2- Select the day.
3- Adjust the Comfort period start and end times.
If 2 or 3 Comfort periods are not required, click on "---".
- To return to the previous setting (e.g. end of 1st heating period to start of 1st heating period), press the
button.
• To copy the program to other days:
4- Select "Validate and copy".
5- Set the required days to "Yes" and then select "Complete".
• Else "Validate".
Heating / cooling period factory setting: 06:00 - 22:00.
2
0 6 12 18 24
Heating prog.
Tuesday
Monday
Wednesday
Thursday
Friday
Saturday
Sunday
3
0 6 12 18 24
Monday
Comfort ranges
Validate
Validate and copy
Program 2 : 11:45 14:00-
Program 3 : --- ----
Program 1 : 06:50 07:50-
5Copy the programs
Copy the Mon. program to
Complete
NoWednesday
No
Thursday
NoFriday
NoSaturday
NoSunday
Tuesday Yes
▼
Deleting a Comfort period
To delete a Comfort period, set its start and end times to the same value.
When accepting a setting, the screen displays:
Program X : --- ----
0 6 12 18 24
Monday
Comfort ranges
Validate
Validate and copy
Program 3 : 18:30 23:00-
Program 1 : 06:50 07:50-
Program 2 : --- ----
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 17 -
►
Power consumption
Electricity consumption can be displayed per usage:
- Heating (Zones 1 and 2).
- Cooling.
- Domestic Hot Water (DHW).
- Total (Heating + Cooling + Hot Water).
This information is available for:
- the last 8 days: daily consumption (Ajd = Today, J-1 = yesterday, etc.).
- the last 12 months: monthly consumption (Initial letter of month. e.g. J = January,
etc.).
- the last 10 years: Annual consumption (last 2 digits. e.g. 16 = 2016).
20kW.h
Daily cons.
Heating
J-7 J-6 J-5 J-4 J-3 J-2 J-1 Ajd
Example for daily consumption of the heating system.
►
Oil consumption
Fuel oil consumption can be displayed per usage:
- Heating (Zones 1 and 2).
- Domestic Hot Water (DHW).
- Total (Heating + Hot Water).
Oil consumption
Heating 15 L
Hot water 5 L
Total 20 L
Reset
►
Settings
▼
Date and time
To set the appliance's date and time, access the menu:
"Settings" > "Date and time".
Settings
Date and time
09 : 45
Monday September 201612
Modify
Validate
▼
Language
To change the language, access the menu:
"Settings" > "Language".
Settings
Language
English
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 18 -
▼
Advanced/simplied menu
Two display modes for menus and appliance functions are available:
- Advanced menu:
- The appliance follows the timer programming dened in paragraph " Programming", page 16.
- Simplied menu*:
- The appliance operates at a constant temperature set directly by the user.
- Some functions are no longer accessible.
*The "Simplied menu" setting is not compatible with the Cozytouch application.
Choose the display mode from the menu:
"Settings" > "Advanced/simplied menu".
Settings
Simplied menu
Advanced/simplied menu
Select the level of accessible
functions:
Setting the temperature in the Simplied Menu
- 1 zone
1- Turn the knob to adjust the temperature directly.
- 2 zones
2- Select the zone. Accept.
- Set the temperature using the knob. Accept.
115:23
12°
24,0°
--,-
OFF
7 September 2017 215:23
12°
19,0°
--,-
19,0°
--,-
OFF
7 September 2017
▼
Areas name
You can customise the zone names from the menu:
"Settings" > "Areas name".
Available names : "Areas 1" / "Areas 2" / "Day area" / "Night area" / "1st oor" / "Lounge"
/ "G. oor" / "Bedroom" / "Floor" / "Radiator".
Settings
Circuits name
Rename Areas 1 in
Rename Areas 2 in
Day area
Night area
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 19 -
▼
Connectivities
- Pairing a room sensor:
To connect a room sensor, go to the menu:
"Settings" > "Connectivities" > "Connection".
The appliance waits for pairing for 10 minutes.
See the room sensor's installation instructions.
The "Connection" menu is no longer accessible if a thermostat has already
paired.
Connection
Quit
Settings
Connectivities
- Resetting connections
Resetting will cancel all pairings.
Select "Reset" in the menu:
"Settings" > "Connectivities" > "Reset connectivities".
Reset connectivities
Reset
Quit
Warning! The equipment will be
removed from the system.
Settings
Connectivities
▼
Energy costs
- "Peak hours" / "O󰀨-peak hours" : xx cts/kWh
- "Oil" : xx cts/l
Energy costs
Electricity:
Oil:
Peak hours
Off-peak hours
---
---
---
▼
Software version
Show the display (HMI) and controller software versions.
Version logicielle
HMI :
Controller :
xxxx xxxx xxxx xxxx
RVS21 - 87.006.050
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN

- 20 -
Maintenance
►
Outdoor unit and refrigeration
circuit
▼
Checking the outdoor unit
Remove any dust from the exchanger, if necessary,
while making sure not to damage the blades.
Check that there is nothing blocking the air ow.
▼
Checking the refrigeration circuit
If the amount of refrigerant in the system exceeds 2
kg (models > 10 kW), the refrigeration circuit must be
checked annually by an approved engineer (they must
have a certicate of competence for the handling of
refrigerants). Consult your heating engineer.
►
End-of-life of the appliance
The appliances must be dismantled and recycled by
a specialised service. The appliances must not, under
any circumstances, be thrown out with household waste,
bulky waste or at a tip.
At the end of its service life, please contact your installer
or local representative to proceed with its dismantling
and recycling.
Maintenance operations must be done regularly to
ensure the appliance operates in total safety.
Depending on the operating conditions, boiler and
burner must be cleaned and inspected once or twice
a year.
The room-sealed pipe should be checked and cleaned
regularly by a specialist (once per year).
These operations must be performed by a specialist
who will also check the boiler's safety devices and
installation.
Clean all the enamelled panels of the casing with a dry
or slightly damp soft cloth.
Do not use abrasive cleaners.
►
Regular checks
The burner should always be switched on.
No ue gases from the boiler and the chimney should
be released into the boiler room when the burner is in
operation.
Fuel oil consumption and tank condition should be
monitored in order to detect any leaks immediately.
Every year, clean the lter installed on the burner’s oil
supply.
In case of an incident, switch o󰀨 the main power supply
as well as the oil valve and call your heating engineer.
►
Boiler room, hydraulic unit and
heating system
▼
Hydraulic unit
The boiler and the burner should be cleaned and
checked once a year.
These operations must be performed by a specialist
who will also monitor the safety devices of the hydraulic
unit and installation.
▼
Hot water tank
Maintenance on the tank must be carried out annually
(frequency may vary according to water hardness).
Consult your heating engineer.
▼
Verication of installation lling
The pressure when cold and when stopped must be 1.5
bars.
If the pressure is below 0.5 bar, increase the pressure
by operating the lling valve.
If relling and a pressure reset are necessary, check
what type of uid was used initially.
If in doubt, contact your installer.
If frequent rells are required it is absolutely
essential that you check for any leaks.
Alfea Hybrid Duo Oil A.I. / Use / 1927- EN
