Atlantic 63636007 User manual

80 203.2
PART NO: 63636007
180 0
180 0
180 0
180 0
180 0
180 0
+5 0
-15 0
MIN:2.95 in / 75 mm MAX:15.75 in / 400 mm
MIN:7.87 in / 200 mm
MAX:23.62 in / 600 mm
MIN:2.95 x 2.95 in / 75 x 75 mm
MAX:3.94 x 3.94 in / 100 x 100 mm
MIN:3.15 in / 80 mm
MAX:21.65 in / 550 mm
MIN:2.56 in / 65 mm
MAX:21.06 in / 535 mm
+50
-15 0
ption 2O
Option 1
19 48.26

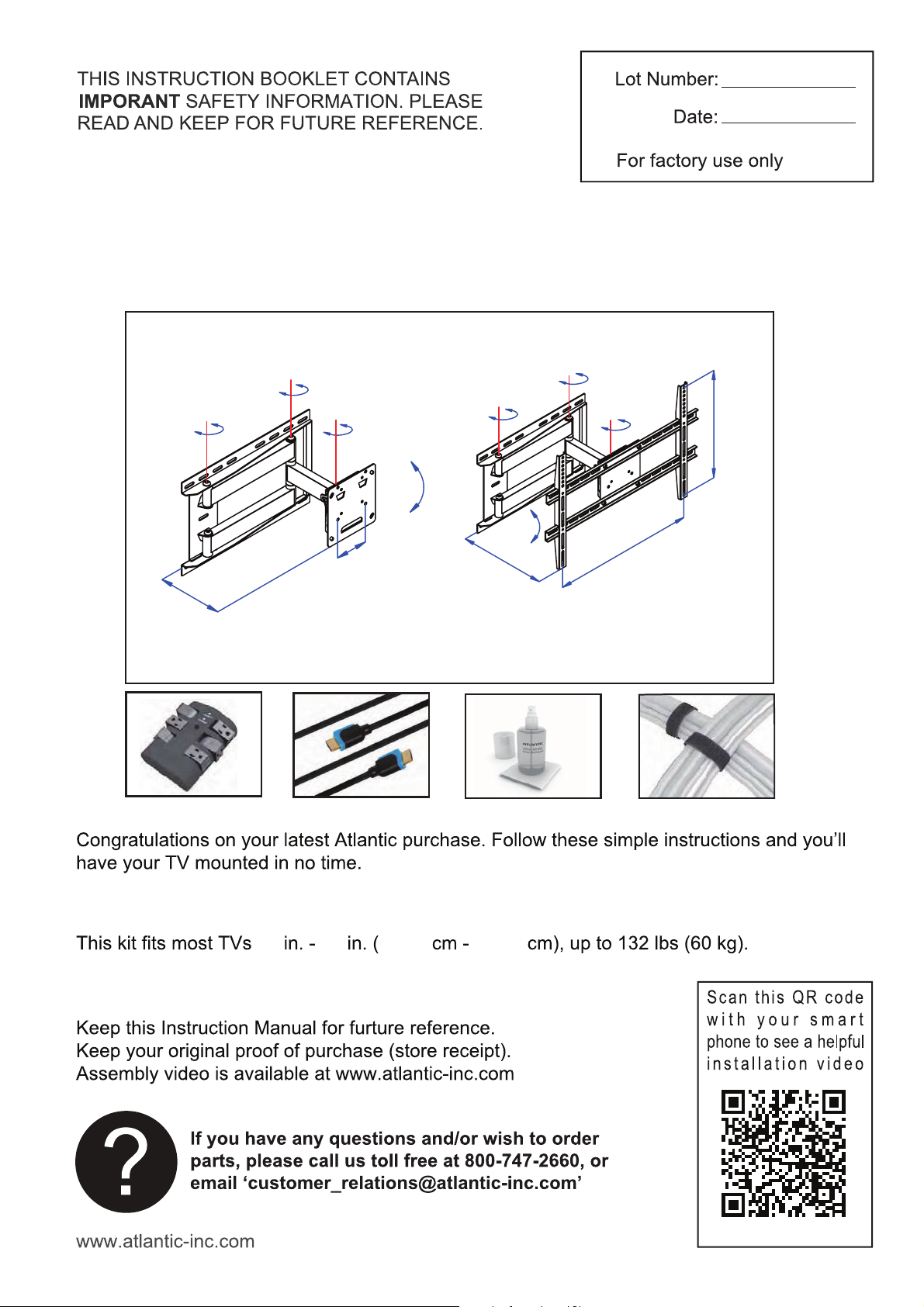

Articulating TV Wall Mount

2
TV Wall Mount

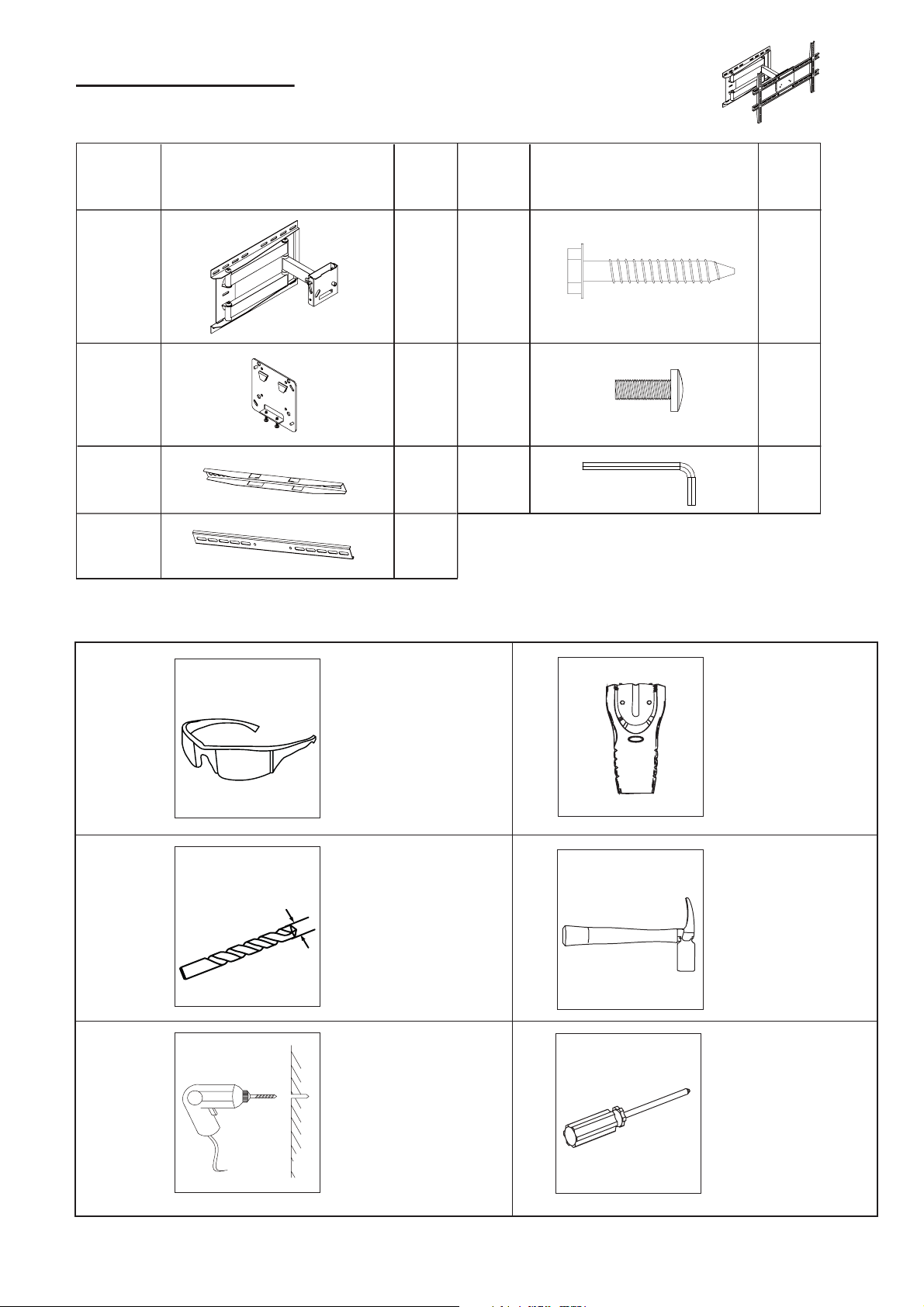

Parts List
Part # Part # ItemItem QtyQty .
A
B
C
D
F
G
H
1
1
2
2
4
8
1
Safety Glasses
Lag Bolt Drill
Bit 3/16 in or 5 mm
Drill
Hammer
Philips
Screwdriver
Stud Finder
Tools Needed (not included)
3/16in. or 5 mm

Caution:
Never let children climb on product or play with product.
Do not sit or stand on furniture.
Do not place a weight that is heavier than the recommended load rating on the
product surface.
If you do not understand these instructions, or have doubts about the safety of this
installation, contact customer service or call a qulified contractor. The manufacture
is not liable for damage or injury caused by incorrect mounting, assembly or use.
The unit will hold a 19 to 80 in (48.26 to 203.2 cm) Plasma or LCD TV. The weight
of the TV must not exceed 132 lbs (60 kgs). The wall must be capable of supporting
five times the weight of the TV plus the mount.
Improper handling can result in cuts and lacerations.
Images are for reference only.
3

4
TV Wall Mount
PLEASE CHOOSE BEST INSTALLATION OPTION BASED ON TV BRACKET PANEL
HOLE SPACING:
Option 1: 2.95 in x 2.95 in / 75 mm x 75 mm or 3.94 in x 3.94 in / 100 mm x 100 mm
16”/406mm
F
A
A
B
21
Remove TV mounting plate(B) from wall
bracket(A).
This mount is designed to be attached into wood
studs. DO NOT use wall anchors. using a stud finder,
find the center of two adjacent studs. With a pencil,
mark the hole locations at the bracket(A) as a
template to mark the two remaining holes. Drill pilot
holes at 4 pencil marks 2.5 in. (64mm) deep, using a
3/16 in. or 5 mm diameter drill bit.
Attach wall bracket(A) to the wall with 4 washers and
screws(F).
B
34
Attach TV mounting plate(B) to the back of
the TV, by selecting mounting hardware and
then using instructions on Page 7.
We strongly recommend two people, one on each side,
hold the TV. Carefully position the TV over the wall
bracket(A) until ti locks in place. Tighten safety screws.

PLEASE CHOOSE BEST INSTALLATION OPTION BASED ON TV BACK PANEL
HOLES SPACING:
OPTION 2: (7.87 to 23.6 ) in x 15.7 in / (200 to 600) mm x 400 mm
16”/406mm
F
A
1
This mount is designed to be attached into
wood studs, DO NOT use wall anchors. using a
stud finder, find the center of two adjacent
studs. With a pencil, mark the hole location at
the desired height, making sure you are level.
Use wall bracket(A) as a template to mark the
two remaining holes. Drill pilot holes at 4 pencil
marks 2.5 in. (64mm) deep, using a 3/16 in. or
5 mm diameter drill bit.
Attach wall bracket(A) to the wall with 4
washers and screws(F).
5
D
B
D
B
2
Attach horizontal bar(D) to TV mounting plate(B), then fix it with screws(G) and allen
wrench(H).

We strongly recommend two people, one on each side, hold the TV. Carefully postion
the TV over the wall bracket(A) until it locks in place. Tighten safety screws.
safety screws
3
4

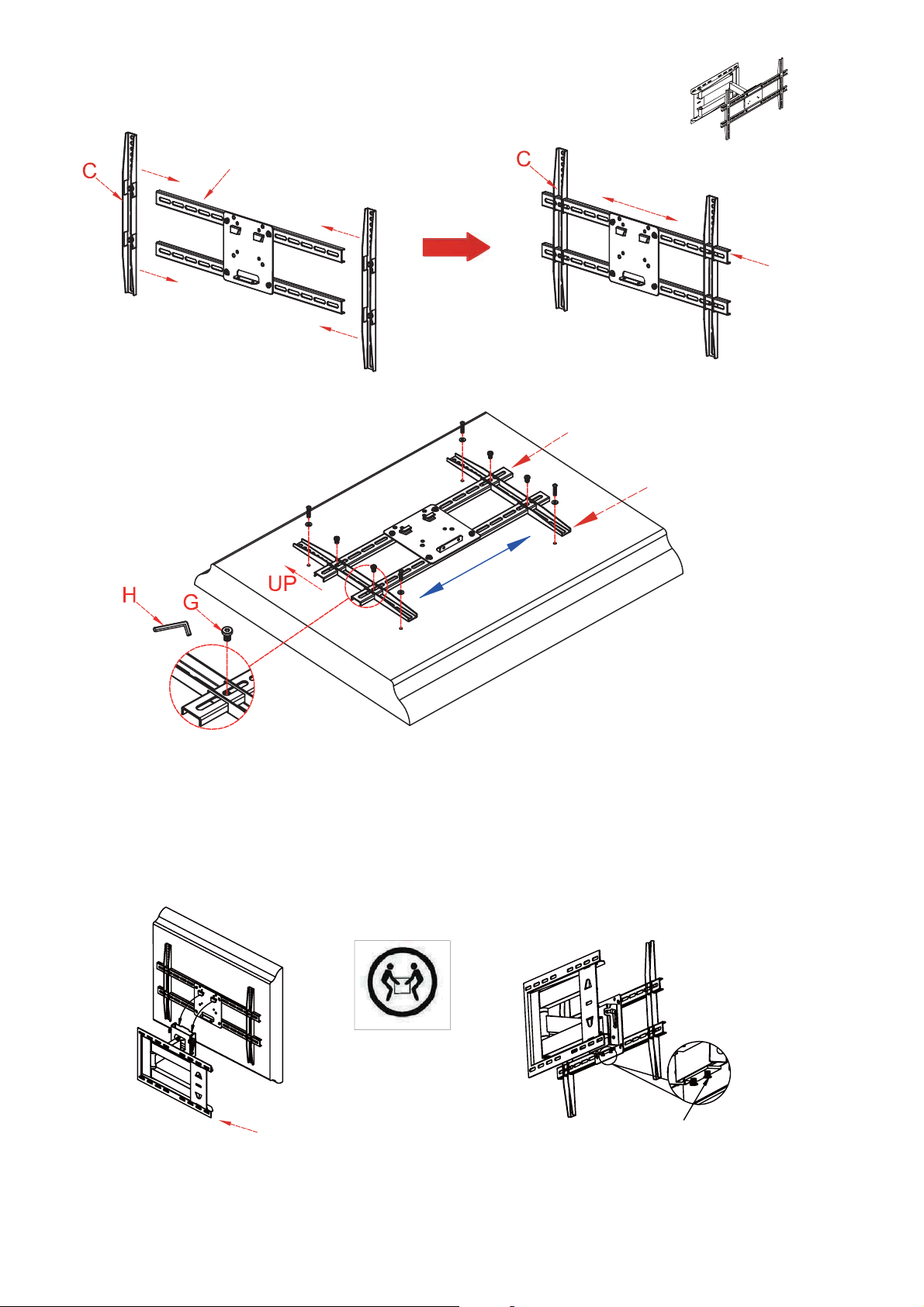

Figure 1
Slide TV mounts(C) along with TV horizontal bar(D). See Figure 1
6
Attach Figure 1 to the back of the TV, then fix the TV mount(C) and horizontal bar(D)
with screws(G) and allen wrench(H).
Selecting mounting hardware and then using instructions on page 7.
D
D
C
A
D

7
TV Wall Mount

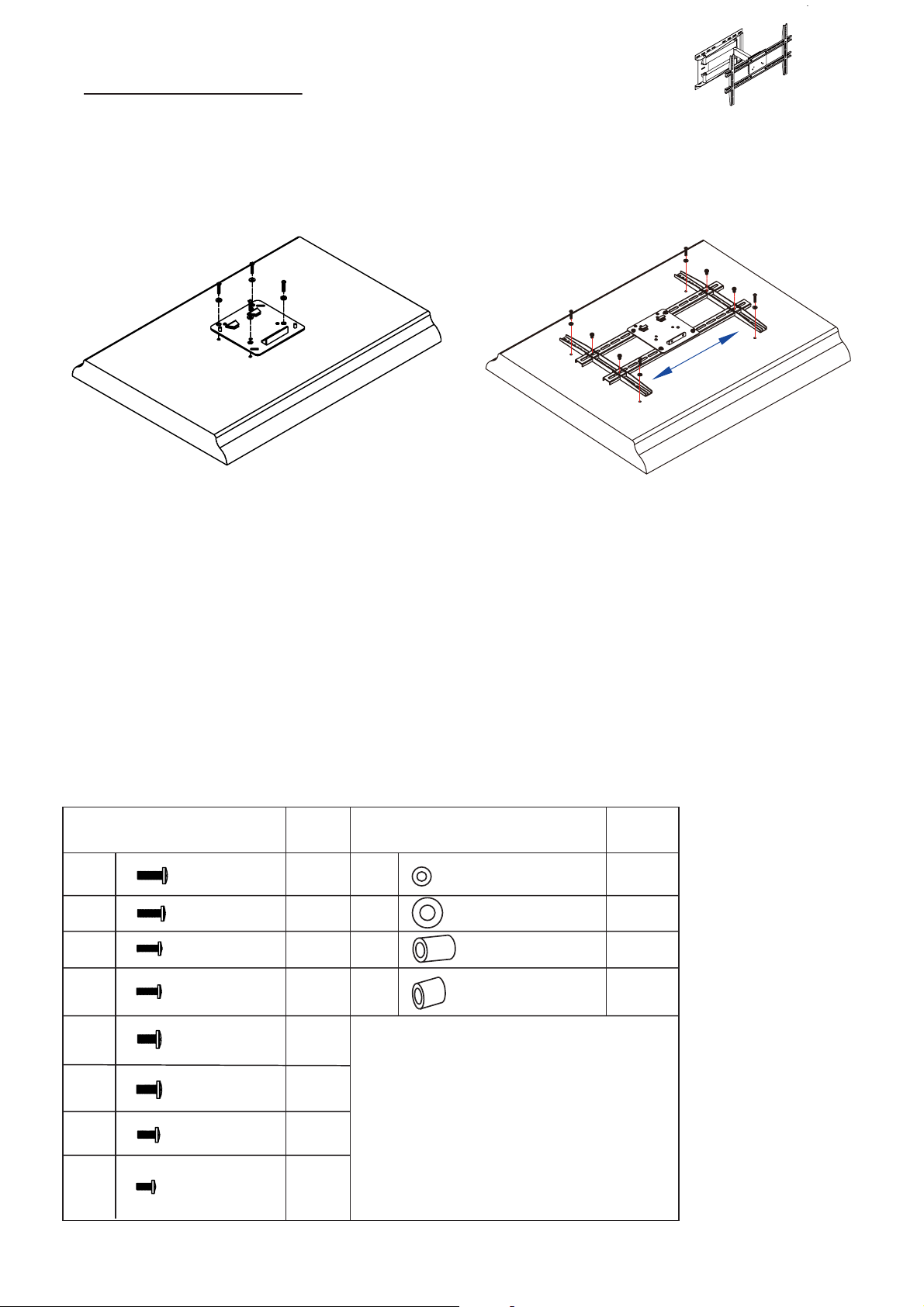

Mounting Hardware List Q’ty Mounting Hardware List Q’ty
M8 X 16MM
M6 X 12MM
M5 X 12
M4 X 12MM
M8 X 40
M6 X 35MM
M5 X 30MM
M4 X 30MM
4
4
4
4
4
4
4
4
M4 / M5 washer
M6 / M8 washer
M8 / M6 spacer
M4 / M5 spacer
4
4
4
4
I
J
K
L
M
N
O
P
Q
R
S
T
(7.87 to 23.6) in x 15.7 in
(200 to 600) mm x 400 mm
2.95 in x 2.95 in / 75 mm x 75 mm
3.94 in x 3.94 in / 100 mm x 100 mm
OPTION 1 OPTION 2
TAKE EXTRA CARE AND PAY ATTENTION WHEN YOU FASTEN THE TV MOUNT(S) TO THE
BACK TV PANEL IN STEP 3. MAKE SURE TO USE THE APPROPRIATE MOUNTING HARDWARE
FOR YOUR TV.
1. Select the correct Mounting Hardware according to the screw hole size on your TV. Discard any
remaining screws and spacers.
2. Carefully lay your TV face down on a non-abrasive surface, laying padding underneath it to protect
the screen.
3. OPTION 1: Place the TV plate (B) in the appropriate position, making sure it is CENTERED on the
back of TV and LEVEL.
OPTION 2: Place the right and left TV mounts in their appropriate positions, making sure they are
CENTERED on the back of the TV and LEVEL with one another.
MM
MM

8
Surge Protector
Operation Instructions:
Electrical Rating: 15A, 120 VAC, 60Hz, 1800 Watts
Surge Lines Protected: 3-Line (L-N, L-G, N-G)
UL Clamping Voltage: L-N 400V, L-G 400V, N-G 400V
Surge Energy Joule Rating: 2160 Joules
Maximum Spike Current: 144,000 Amps (3 Line Total)
Response Time: < 1 Nanosecond
Max. Spike Voltage: 6KV
Attenuation: Up to 40dB
UL Listed to U.S
Standards: UL 1449, UL 498A
Frequecy: 150KHz~100MHz
EMI/RFI Noise Filter:
Technical Specification:

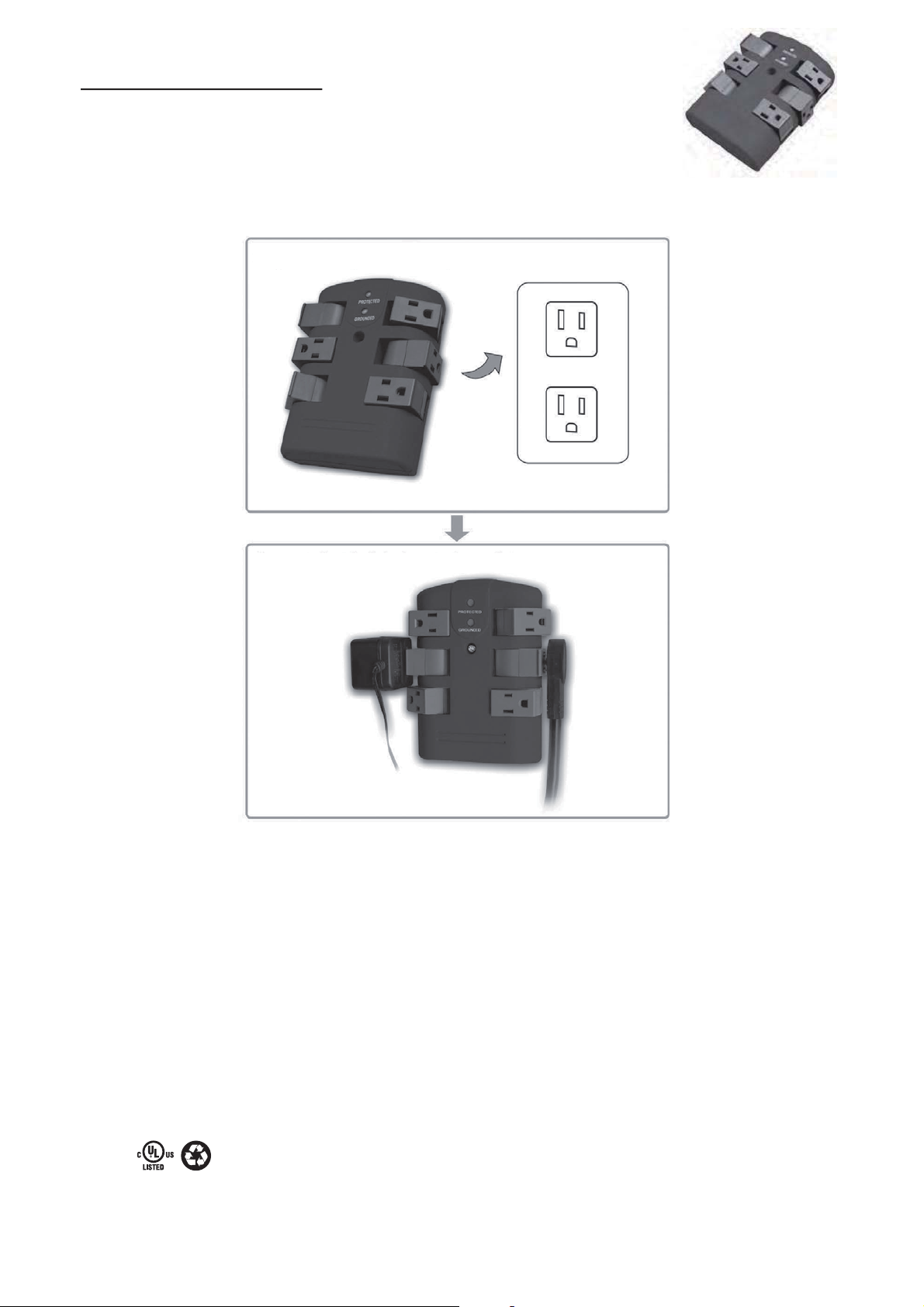

OPERATION INSTRUCTIONS
Plug Wall tap into Wall Receptacle
Connect electrical devices to the outlets

9
Surge Protector
Information/Functions:
This wall tap surge protector is designed to protect your electronic equipment from AC
power surges up to a certain level. It’s not a lightning arrestor, so it won’t afford protection
while lightning strikes to nearby power lines, house, and/or service entrance antenna’s.
New X3 MOV (Metal Oxide Varistor) Technology:
New designed component with improved material and surge functions absorb surges.
Provides common and normal mode protection from high energy spikes.
Safety Shutdown Technology:
Uses thermal fuses to power off your system, which protects against fire and other damage
in the event of an extreme, extended over-voltage or when surge protection expires.
High-Frequency Capacitor:
Reduces noise interference.
Surge Protected Outlets with 90° Rotating Design:
Can be rotated to a different direction for easy usage with 3line surge protection
Each outlet pivots
90° (degrees) for
your convenience.

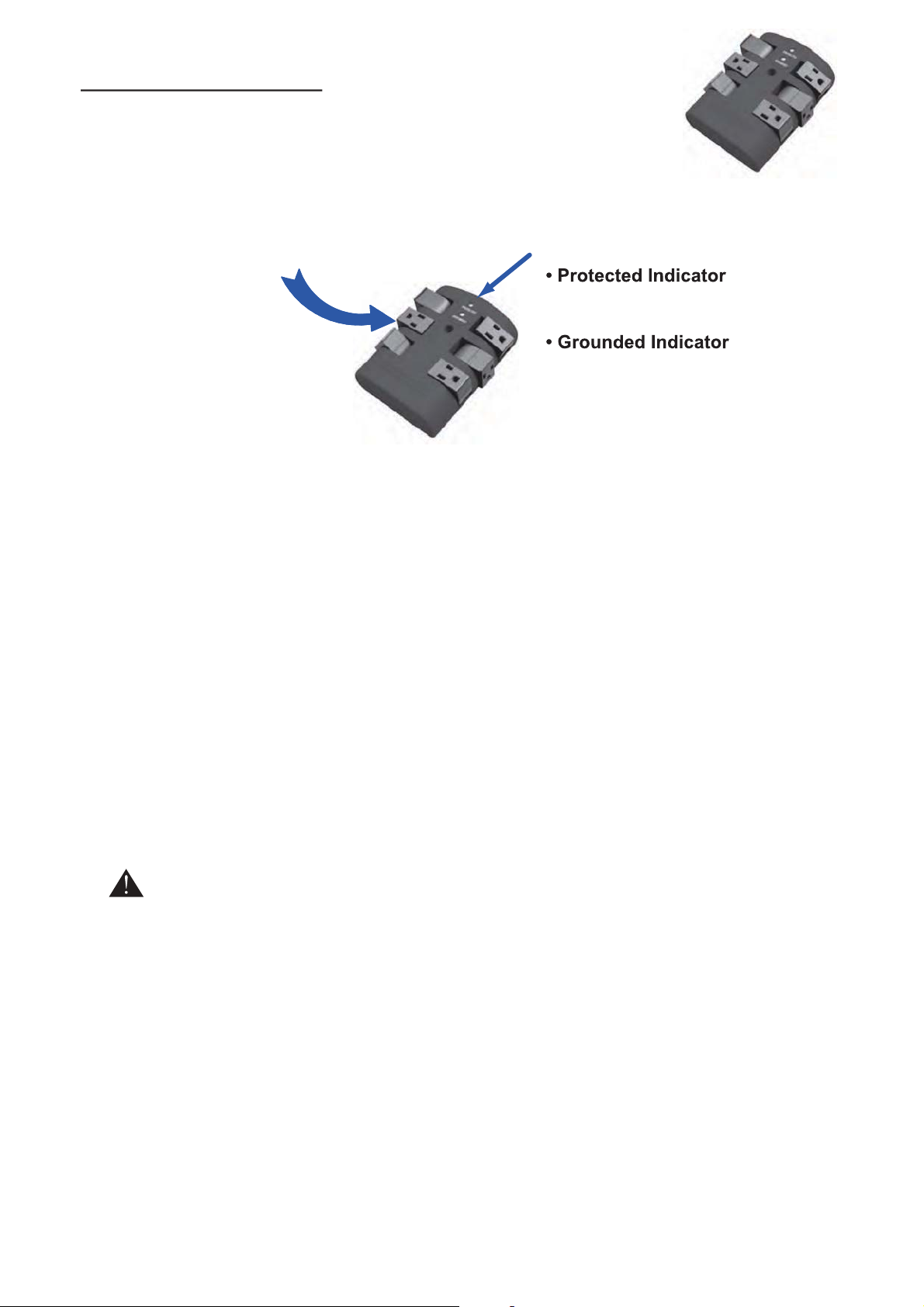

Grounded and Surge Protection LED
indicators -
- Green light
indicates your Surge Protection is
working properly.
- Green light
indicates your electrical wiring is
properly grounded.
Do not plug the included surge protector into a power outlet that is different from the specs
called out. If you don’t know or are not sure about the type of electrical power that is sup-
plied to your home, please consult your local power company or a professional electrician.
Use indoor and in dry locations. Not for use with aquariums and other water-related prod-
ucts. This surge protector must be plugged directly into the power source and must not be
‘daisy chained’ together in serial fashion with other power strips, UPS, other surge protec-
tors or extension chords. Risk of fire: Do not exceed electrical rating.
Don’t force your surge protector’s plug into an outlet that isn’t designed to accept a three-
wire grounded-type AC plug (a three-pring plug). This plug is designed to be inserted into a
grounded-type outlet only. If this plug doesn’t fit directly inside your outlet, do not attempt to
force it in. Never attempt to take apart the plug in any way (or alter the power chord). Don’t
attempt to defeat the grounding feature by using a 3-to-2 prong adapter. If you have ques-
tions about grounding, consult your local power company or a qualified electrician.
Caution:

10
HDMI Cables
Information:
This Kit includes 2 HDMI™ cables
Supports Ethernet and 3D
O.D.: 6.0mm
Double molding
Technical Specifications:
Each HDMI cable measures 9 feet (2.74 m) in length.
1.4 Version
Cleaning Spray and Cloth
Instructions:
The Screen Cleaning Kit in this package is comprised of
1 Bottle of Anti-Run Anti-Static Screen Cleaning Gel and
1 Cleaning Cloth
This special formula is designed for cleaning any type of screen, including LCD. The
gel does not run down the screen.
Please shake bottle before spraying. Hold screen cleaner about 6 inches (15cm) away
from the area to be cleaned. Spray screen, then use the included microfiber cloth to
clean and polish. Shake or wash the cloth regularly to prevent collected dirt from
making scratches. Do not spray excessive amount of cleaning gel.
Cleaning Cloth measures 7.87 sq. in. (20 sq. cm.)
6.76 oz (200 ml)
Anti-Static Screen Cleaning Gel: IPA Free, 6.76 oz (200 ml)
Cleaning Cloth: 7.87 sq. in (20 x 20 sq. cm.)
Technical Specifications:
Directions:
Caution: Keep away from children.
4 First aid measures:
1. After inhalation: Supply fresh air; consult doctor in case of complaints.
2. After skin contact:
Immediately wash with water and soap and rinse thoroughly.
If skin irritation continues, consult a doctor.
3. After eye contact:
Rinse opened eye for several minutes under running water. If symptoms
persist a doctor.
4. After swallowing: If symptoms persist consult doctor

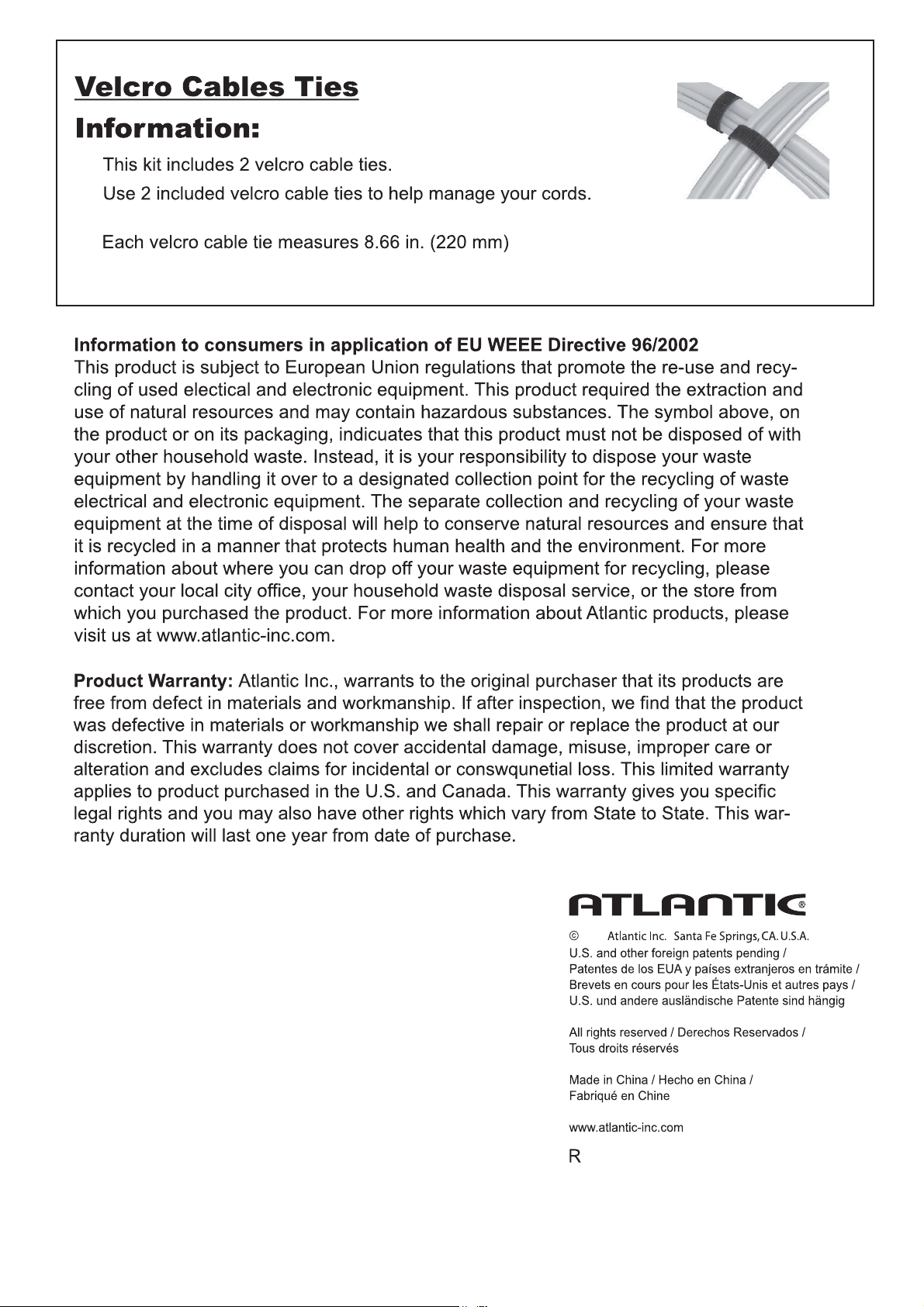

2014
1.1 140707 #63636007
