Atlantis Land A02-RA242-W54 User manual

Where solutions begin
WebShare 242W
Wireless ADSL2+ Router
A02-RA242-W54
USER’S MANUAL
A02-RA242-W54_ME01
Company certified ISO 9001:2000

WEBSHARE 242W
Copyright
The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names
mentioned mat be trademarks or registered trademarks of their respective owners. Subject to
change without notice. No liability for technical errors and/or omissions.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface
cables when connecting to computer or peripheral devices) any changes or modifications not
expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause
undesired operation.

WEBSHARE 242W
TABLE OF CONTENTS
CHAPTER 1............................................. 1
1.1 AN OVERVIEW OF THE WEBSHARE 242W ................................................................................... 1
1.2 PACKAGE CONTENTS .................................................................................................................... 1
1.3 WEBSHARE 242W FEATURES ...................................................................................................... 2

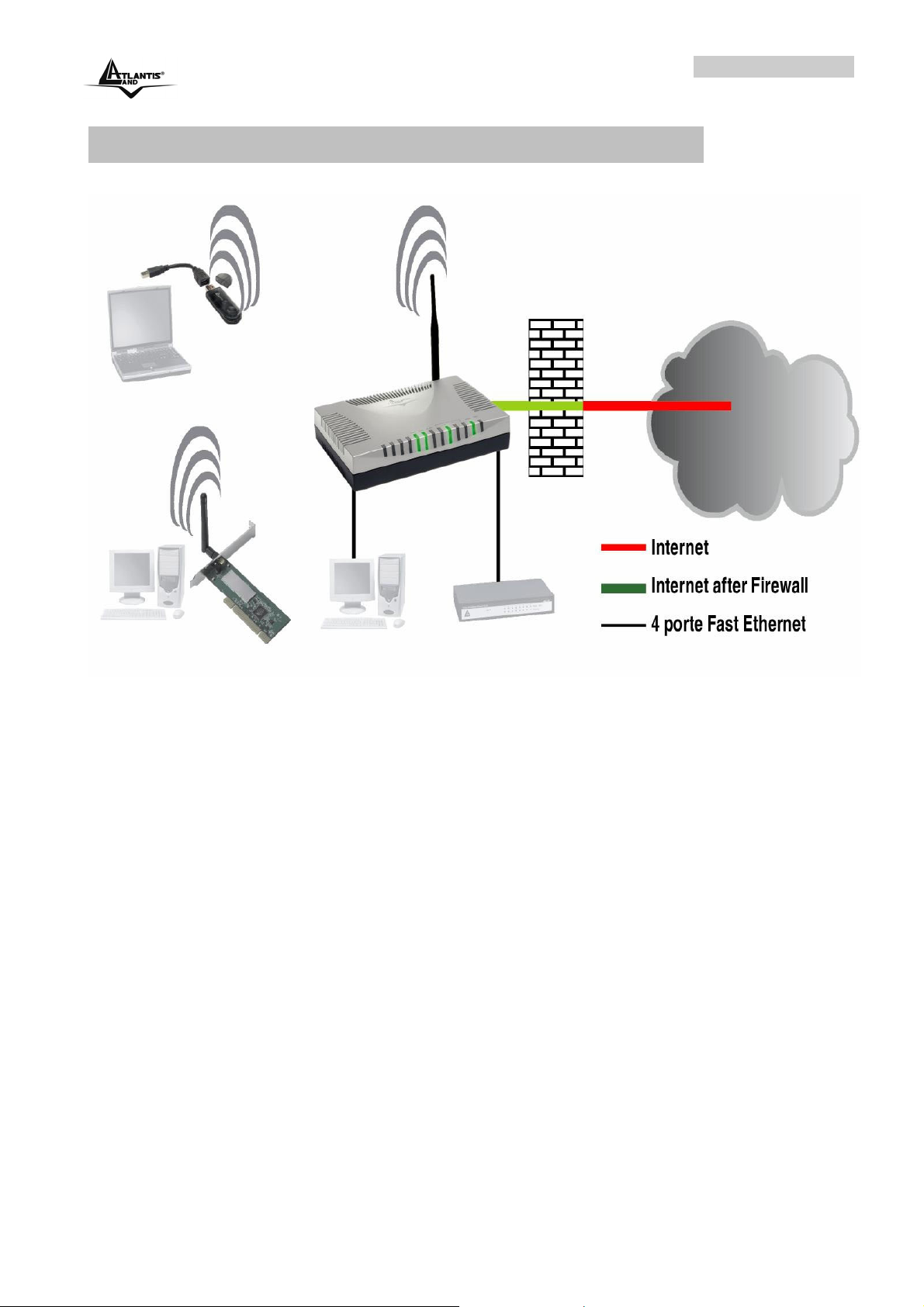

1.4 WEBSHARE 242W WIRELESS APPLICATION ............................................................................... 5
CHAPTER 2............................................. 6
2.1 CAUTIONS FOR USING THE WEBSHARE 242W WIRELESS........................................................... 6
2.2 THE FRONT LEDS......................................................................................................................... 6
2.3 THE REAR PORTS.......................................................................................................................... 7
2.4 CABLING......................................................................................................................................... 7
CHAPTER 3............................................. 9
3.1 BEFORE CONFIGURATION ............................................................................................................. 9
3.2 CONNECTING THE WEBSHARE 242W WIRELESS ........................................................................ 9
3.3 CONFIGURING PC IN WINDOWS.................................................................................................. 10
For Windows 95/98/ME.............................................................................................................. 10
For Windows NT4.0 .................................................................................................................... 12
For Windows 2000 ...................................................................................................................... 13
For Windows XP.......................................................................................................................... 15
3.4 FACTORY DEFAULT SETTINGS .................................................................................................... 17
3.4.1 Username and Password................................................................................................. 17
3.4.2 LAN and WAN Port Addresses ....................................................................................... 17
3.5 INFORMATION FROM THE ISP ...................................................................................................... 18
3.6 CONFIGURING WITH THE WEB BROWSER ................................................................................... 18
3.6.1 STATUS.............................................................................................................................. 19
3.6.1.1 ARP Table................................................................................................................... 19
3.6.1.2 Routing Table ............................................................................................................. 20
3.6.1.3 DHCP Table................................................................................................................ 20
3.6.1.4 System Log ................................................................................................................. 21
3.6.1.5 Security Log................................................................................................................ 21
3.6.2 Quick Start Guide.............................................................................................................. 22
3.6.3 CONFIGURATION............................................................................................................ 24
3.6.3.1 LAN .............................................................................................................................. 24
3.6.3.1.1 Ethernet................................................................................................................ 24
3.6.3.1.2 Wireless................................................................................................................ 25
3.6.3.1.3 Wireless Security................................................................................................ 26
3.6.3.1.4 DHCP Server....................................................................................................... 28
3.6.3.2 WAN............................................................................................................................. 30
3.6.3.2.1 ISP ........................................................................................................................ 30
3.6.3.2.2 DNS ...................................................................................................................... 34
3.6.3.2.3 ADSL .................................................................................................................... 35
3.6.3.3 System......................................................................................................................... 36
3.6.3.3.1 Time Zone............................................................................................................ 36

WEBSHARE 242W
3.6.3.3.2 Remote Access................................................................................................... 36
3.6.3.3.3 Firmware .............................................................................................................. 37
3.6.3.3.4 Backup/Restore .................................................................................................. 38
3.6.3.3.5 Restart.................................................................................................................. 39
3.6.3.3.6 User Management.............................................................................................. 39
3.6.3.4 Firewall ........................................................................................................................ 40
3.6.3.4.1 Packet Filering .................................................................................................... 40
3.6.3.4.2 MAC address Filtering ....................................................................................... 47
3.6.3.4.3 Intrusion Detection.............................................................................................. 48
3.6.3.4.4 Block Wan Request............................................................................................ 49
3.6.3.4.5 URL Blocking....................................................................................................... 49
3.6.3.5 QoS .............................................................................................................................. 52
3.6.3.6 Virtual Server .............................................................................................................. 64
3.6.3.7 Advanced .................................................................................................................... 66
3.6.3.7.1 Static Routed....................................................................................................... 66
3.6.3.7.2 Dynamic DNS...................................................................................................... 67
3.6.3.7.3 VLAN .................................................................................................................... 68
3.6.3.7.4 Device Management .......................................................................................... 69
3.6.3.7.5 IGMP..................................................................................................................... 71
3.6.4 SAVE Config ...................................................................................................................... 72
CHAPTER 4........................................... 73
PROBLEMS STARTING UP THE ADSL ROUTER................................................................................. 73
PROBLEMS WITH THE WAN INTERFACE ............................................................................................ 73
PROBLEMS WITH THE LAN INTERFACE ............................................................................................. 73
APPENDIX A ......................................... 75
TRAFFIC SHAPING .............................................................................................................................. 75
APPENDIX B ......................................... 76
TECHNICAL FEATURES....................................................................................................................... 76
APPENDIX C ......................................... 77
FIRMWARE RECOVERY....................................................................................................................... 77
APPENDIX D ......................................... 78
SUPPORT............................................................................................................................................ 78
A02-RA242-W54_ME01 (March 2006, V1.00)

WEBSHARE 242W
1
Chapter 1
Introduction
1.1 An Overview of the WebShare 242W
Broadband Sharing and IP sharing
The Wireless ADSL2+ Router supports 4 x 10/100 Mbps auto-negotiating Fast Ethernet
ports for connection to your PC or LAN and downstream (with built-in ADSL2+ modem) rate
up to 24Mbps. Power by NAT technology, dozens of network users can surf on the Internet
and share the ADSL connection simultaneously by using one ISP account and one single IP
address.
Wireless
With integrated IEEE802.11g Wireless Access Point (up to 54Mbps), the device offers quick
and easy access among wired network and wireless network. The Wireless Router also
supports WPA/WPA2 security, it increases the level of data protection and access control for
Wireless LAN. Reverse-SMA 5 dBi Antenna provides extended coverage.
Security: Firewall (SPI, DoS) & VLAN
This product also serves as an Internet firewall, protecting your network from being accessed
by outside users. Not only provide the natural firewall function (Network Address Translation,
NAT), it also provides rich firewall features to secure user's network. The VLANs allow to
segment the traffic of net and, in this way, they improve management and performance of
entire network.
Quality of Service and IP Throttling
QoS gives you full control over which types of outgoing data traffic should be given priority by
the router, ensuring important data like gaming packets move through the router at lightning
speed, even under heavy load. Using IP Throttling, bandwidth limits can be enforced on any
system within your LAN, or even on a particular application.
Easy Configuration and Management
Support web based GUI and Telnet for configuration and management. Also supports remote
management (Web and telnet) capability for remote user to configure and manage this
product. It incorporates besides a client Dynamic DNS.
1.2 Package Contents
•WebShare 242W Wireless ADSL2+ Router
•Vera (Multilanguage Interactive Tutorial)

WEBSHARE 242W
2
•One CD-Rom containing the online manual
•One Quick Start Guide
•One 5 dBi Antenna (R-SMA)
•One RJ-11 ADSL/telephone cable
•One CAT-5 LAN cable
•One AC-DC power adapter (12VDC, 1A)
If any of the above items are missing, please contact your reseller.
1.3 WebShare 242W Features
ADSL Router2+ provides the following features:
•ADSL Multi-Mode Standard: Supports downstream transmission rates of up to
8Mbps, the router is capable of up to 12/24 Mbps with ADSL2/2+, and upstream
transmission rates of up to 1024Kbps. It also supports rate management that allows
ADSL subscribers to select an Internet access speed suiting their needs and budgets.
It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1);
G.lite (G992.2); G.hs(G994.1); G.dmt.bis(ITU G.992.3); Gdmt.bisplus(ITU G.992.5)].
•Fast Ethernet Switch: A 4-port 10/100Mbps fast Ethernet switch is supported in the
LAN site and automatic switching between MDI and MDI-X for 10Base-T and
100Base-TX ports is supported. An Ethernet straight or cross-over cable can be used
directly, this fast Ethernet switch will detect it automatically.
•Wireless Ethernet 802.11g: With built-in 802.11g access point for extending the
communication media to WLAN while providing the WEP and WPA/WPA2 for securing
your wireless networks.
•Multi-Protocol to Establish A Connection: Supports PPPoA (RFC 2364 - PPP over
ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed),
PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with
the ISP. The product also supports VC-based and LLC-based multiplexing.
•Quick Installation Wizard: Supports a WEB GUI page to install this device quickly.
With this wizard, an end user can enter the information easily which they from the ISP,
then surf the Internet immediately.
•Universal Plug and Play (UPnP) and UPnP NAT Traversal: This protocol is used to
enable simple and robust connectivity among stand-alone devices and PCs from
many different vendors. It makes network simple and affordable for users. UPnP
architecture leverages TCP/IP and the Web to enable seamless proximity networking
in addition to control and data transfer among networked devices.
•Network Address Translation (NAT): Allows multi-users to access outside resource
such as Internet simultaneously with one IP address/one Internet access account.
Besides, many application layer gateway (ALG) are supported such as web browser,
ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting and others.
•Firewall: Supports SOHO firewall with NAT technology. Automatically detects and
blocks the Denial of Service (DoS) attack. The URL-blocking, packet filtering are also

WEBSHARE 242W
3
supported. The hacker’s attack will be recorded associated with timestamp in the
security logging area. More firewall features will be added continually, please visit our
web site to download latest firmware.
•VLAN: A VLAN is a group of end-stations that are not constrained by their physical
location and can communicate as if a common broadcast domain, a LAN. The primary
utility of using VLAN is to reduce latency and need for routers, using faster switching
instead. Other VLAN utility includes:
•Security, Security is increased with the reduction of opportunity in
eavesdropping on a broadcast network because data will be switched to
only those confidential users within the VLAN.
•Cost Reduction, VLANs can be used to create multiple broadcast domains,
thus eliminating the need of expensive routers.
•Port-based (or port-group) VLAN is the common method of implementing a
VLAN, and is the one supplied in the Switch.
•QoS: QoS gives you full control over which types of outgoing data traffic should be
given priority by the Router, ensuring important data like gaming packets move
through the Router at lightning speed, even under heavy load. The QoS features are
configurable by source IP address, destination IP address, protocol, and port. You can
throttle the speed at which different types of outgoing data pass through the router, to
ensure P2P users don’t saturate upload bandwidth, or office browsing doesn’t bring
client web serving to a halt. In addition, or alternatively, you can simply change the
priority of different types of upload data and let the router sort out the actual speeds.
•Domain Name System (DNS) relay: provides an easy way to map the domain name
(a friendly name for users such as www.yahoo.com) and IP address. When a local
machine sets its DNS server with this router’s IP address, then every DNS conversion
requests packet from the PC to this router will be forwarded to the real DNS in the
outside network. After the router gets the reply, then forwards it back to the PC.
•Dynamic Domain Name System (DDNS): The Dynamic DNS service allows you to
alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN
IP address. For example, to use the service, you must first apply an account from this
free Web server http://www.dyndns.org/. There are more than 5 DDNS servers
supported.
•PPP over Ethernet (PPPoE): Provide embedded PPPoE client function to establish a
connection. Users can get greater access speed without changing the operation
concept, sharing the same ISP account and paying for one access account. No
PPPoE client software is required for the local computer. The Always ON, Dial On
Demand and auto disconnection (Idle Timer) functions are provided too.
•Virtual Server: Users can specify some services to be visible from outside users. The
router can detect incoming service request and forward it to the specific local
computer to handle it. For example, users can assign a PC in a LAN acting as a WEB
server inside and expose it to the outside network. Outside users can browse an
inside web server directly while it is protected by NAT. A DMZ host setting is also
provided to a local computer exposed to the outside network, Internet

WEBSHARE 242W
4
•Rich Packet Filtering: Not only filters the packet based on IP address, but also based
on Port numbers. It also provides a higher-level security control.
•Dynamic Host Control Protocol (DHCP) client and server: In the WAN site, the
DHCP client can get an IP address from the Internet Server Provider (ISP)
automatically. In the LAN site, the DHCP server can allocate up to 253 client IP
addresses and distribute them including IP address, subnet mask as well as DNS IP
address to local computers. It provides an easy way to manage the local IP network.
•Static and RIP1/2 Routing: Supports an easy static table or RIP1/2 routing protocol
to support routing capability.
•SNTP: An easy way to get the network real time information from an SNTP server.
•SNMP: SNMP is an application layer protocol that is used for managing networks
(V1,V2 and V3)
•Web based GUI: supports web based GUI for configuration and management. It is
user-friendly with an on-line help, providing necessary information and assist user
timing. It also supports remote management capability for remote users to configure
and manage this product.
•Firmware Upgradeable: the device can be upgraded to the latest firmware through
the WEB based GUI.
•Rich management interfaces: Supports flexible management interfaces with local
console port, LAN port, and WAN port. Users can use terminal application through
console port to configure and manage the device, or Telnet, WEB GUI, and SNMP
through LAN or WAN ports to configure and manage a device.

WEBSHARE 242W
5
1.4 WebShare 242W Wireless Application

WEBSHARE 242W
6
Chapter 2
Using WebShare 242W Wireless
2.1 Cautions for using the WebShare 242W Wireless
Do not place the WebShare 242W Wireless under high humidity and high
temperature.
Do not use the same power source for WebShare 242W Wireless with other
equipment.
Do not open or repair the case yourself. If the WebShare 242W Wireless is
too hot, turn off the power immediately and have a qualified serviceman repair
it.
Avoid using this product and all accessories outdoors.
Place the WebShare 242W Wireless on a stable surface.
Only use the power adapter that comes with the package.
Do NOT upgrade firmware on any Atlantis Land product over a wireless
connection.
Failure of the device may result. Use only hard-wired network connections.
2.2 The Front LEDs
LED Meaning
PWR Lights when power ON.
SYS Lights when system is ready.
WLAN Flashes when sending/receiving data.
LAN Lights when connected to Ethernet device:

WEBSHARE 242W
7
•Green for 100Mbps; Orange for 10Mbps
•Blinking when data transmit/received.
ADSL Lights when successfully connected to an ADSL DSLAM.
PPP Steady glow when there is a PPPoA / PPPoE connection.
2.3 The Rear Ports
PORT Meaning
LINE Connect the supplied RJ-11 cable to this port when
connecting to the ADSL/telephone network.
LAN
Connect an UTP Ethernet cable to one of the four LAN ports
when connecting to a PC or an office/home network of
10Mbps or 100Mbps.
RESET Recovery procedures for a lost web interface password:
After turning the router on press the Emergency/Failure
Recovery Button on the back of the modem, and hold the
button in until all lights on the modem flash and it reboots with
factory default settings. The login will be reset to admin and
the password will be reset to atlantis, and the modem will be
accessible via its default IP address at http://192.168.1.254/
This is used when you can not login to the router, e.g. forgot
the password)
PWR Connect the supplied power adapter to this jack.
POWER (Switch) A Power ON/OFF switch.
2.4 Cabling
The most common problem is bad cabling or ADSL line. Make sure that all connected
devices are turned on. On the front of the product is a bank of LEDs. As a first check, verify
that the LAN Link, ADSL , PWR, SYS LEDs are lit. If they are not, verify that you are using
the proper cables.

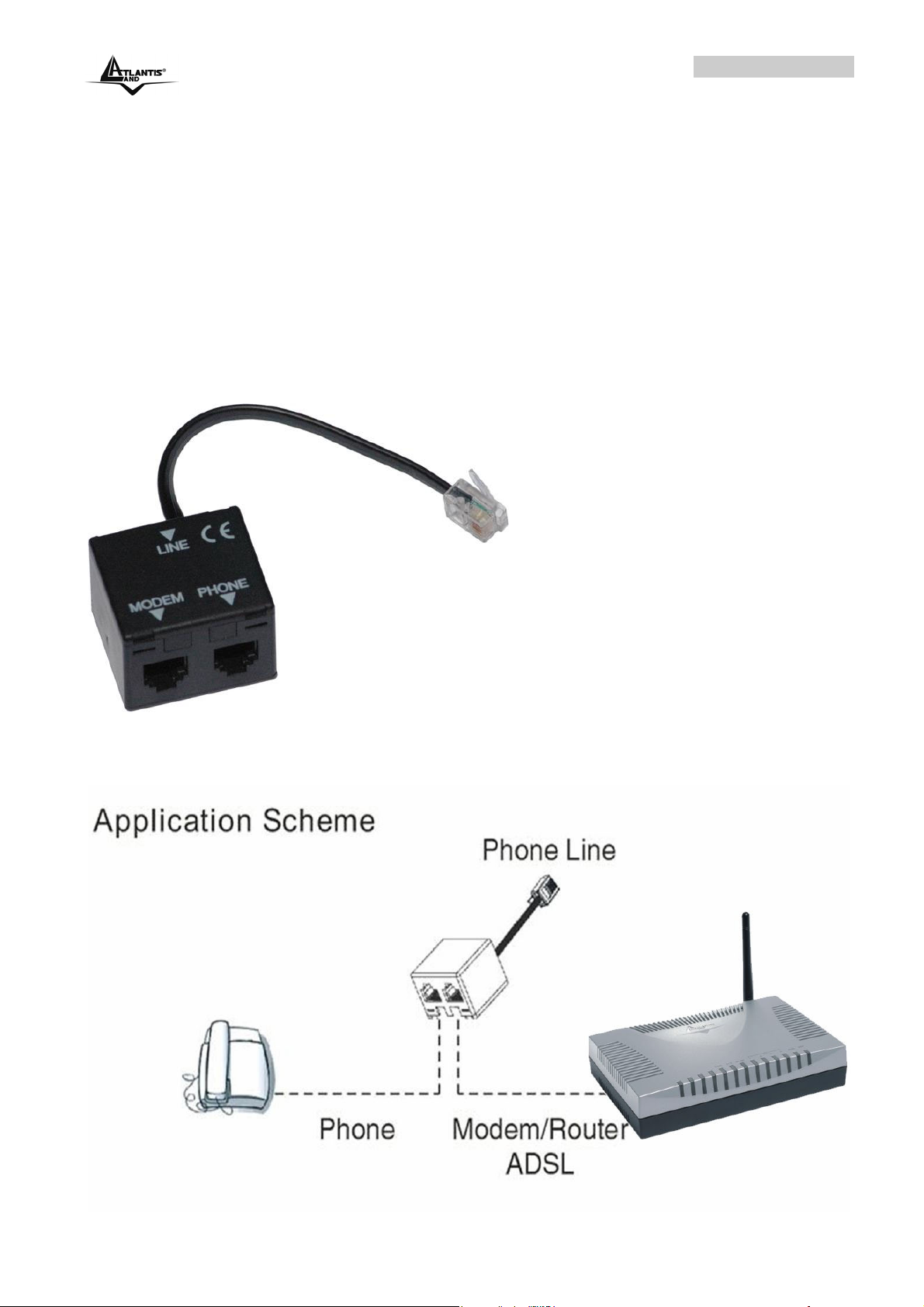

Ensure that all other devices connected to the same telephone line as your router (e.g.
telephones, fax machines, analog modems) have a line filter (A01-AF2) connected between

WEBSHARE 242W
8
them and the wall socket (unless you are using a Central Splitter or Central Filter installed by
a qualified and licensed electrician), and ensure that all line filters are correctly installed and
the right way around.
Missing line filters or line filters installed the wrong way around can
cause problems with your ADSL connection, including frequent
disconnections.

WEBSHARE 242W
9
Chapter 3
Configuration
The WebShare 242W Wireless can be configured with your Web browser. The web browser
is included as a standard application in the following operation systems, UNIX, Linux, Mac
OS, Windows 95/98/NT/2000/Me, and etc. The product provides a very easy and user-
friendly interface for configuration.
3.1 Before Configuration
This section describes the configuration required by LAN-attached PCs that communicate
with the WebShare 242W Wireless , either to configure the device or for network access.
These PCs must have an Ethernet interface installed properly, be connected to the Router
either directly or through an external repeater hub, and have TCP/IP installed and configured
to obtain an IP address through a DHCP server or a fixed IP address that must be in the
same subnet of the ADSL Firewall Router. The default IP address of the WebShare 242W
Wireless is 192.168.1.254 and subnet mask is 255.255.255.0. The best and easy way is to
configure the PC to get an IP address from the WebShare 242W Wireless . Also make sure
you have UNINSTALLED any kind of software firewall that can cause problems while
accessing the 192.168.1.254 IP address of the router.
Please follow the steps below for PC’s network environment installation. First of all, please
check your PC’s network components. The TCP/IP protocol stack and Ethernet network
adapter must be installed. If not, please refer to MS Windows related manuals.
Any TCP/IP capable workstation can be used to communicate with or
through the WebShare 242W Wireless . To configure other types of
workstations, please consult the manufacturer’s documentation.
3.2 Connecting the WebShare 242W Wireless
•Connect the WebShare 242W Wireless to a LAN (Local Area Network) and the
ADSL/telephone network.
•Power on the device
•Make sure the PWR is lit steady & LAN/ADSL LED is lit.
•Before taking the next step, make sure you have uninstalled any software firewall.

WEBSHARE 242W
10
3.3 Configuring PC in Windows

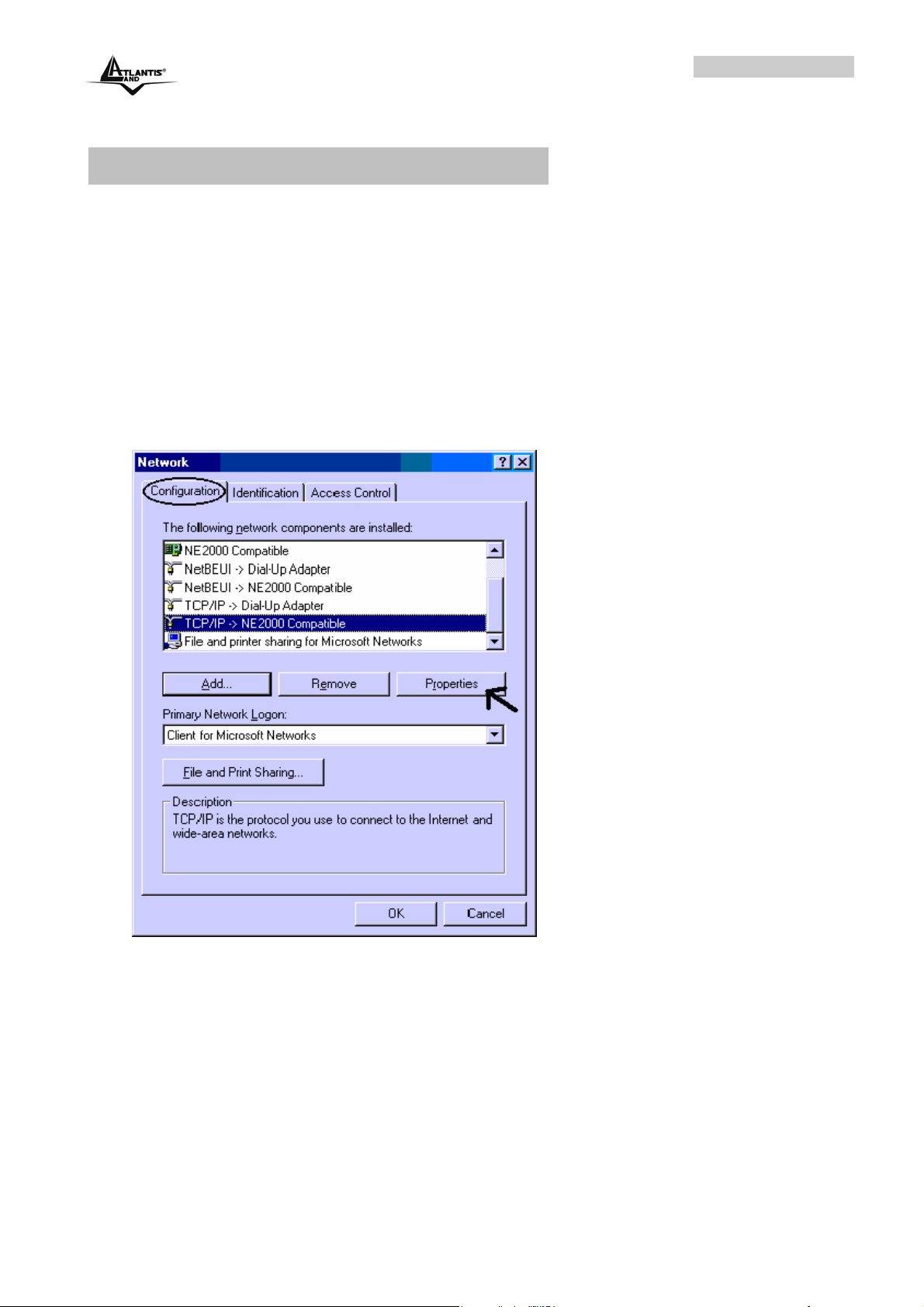

For Windows 95/98/ME
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on
Network and choose the Configuration tab.
2. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card
(NIC) in your PC.
3. Click Properties.

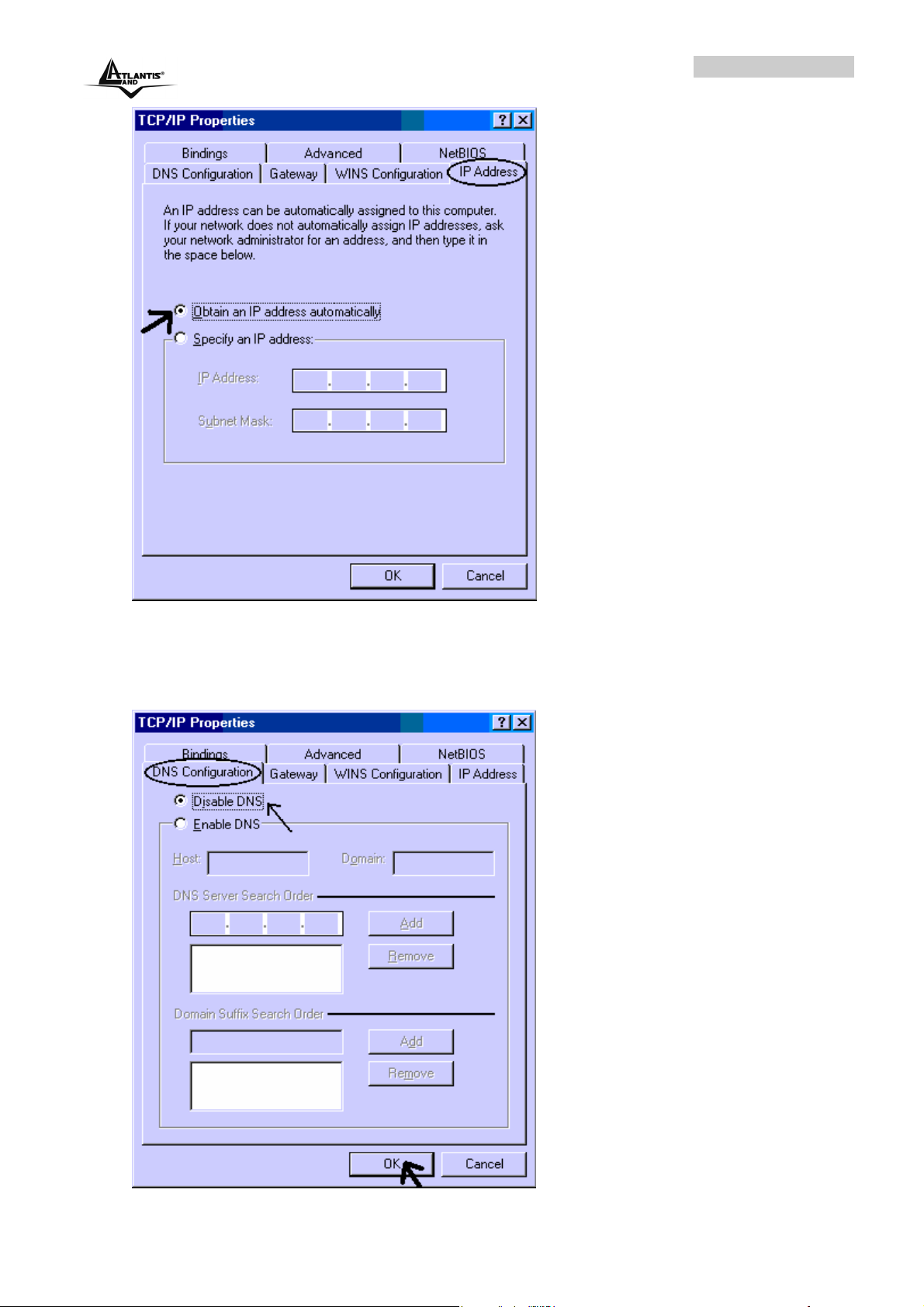

4. Select the IP Address tab. In this page, click the Obtain an IP address
automatically radio button.

WEBSHARE 242W
11
5. Then select the DNS Configuration tab.
6. Select the Disable DNS radio button and click “OK” to finish the configuration.

WEBSHARE 242W
12

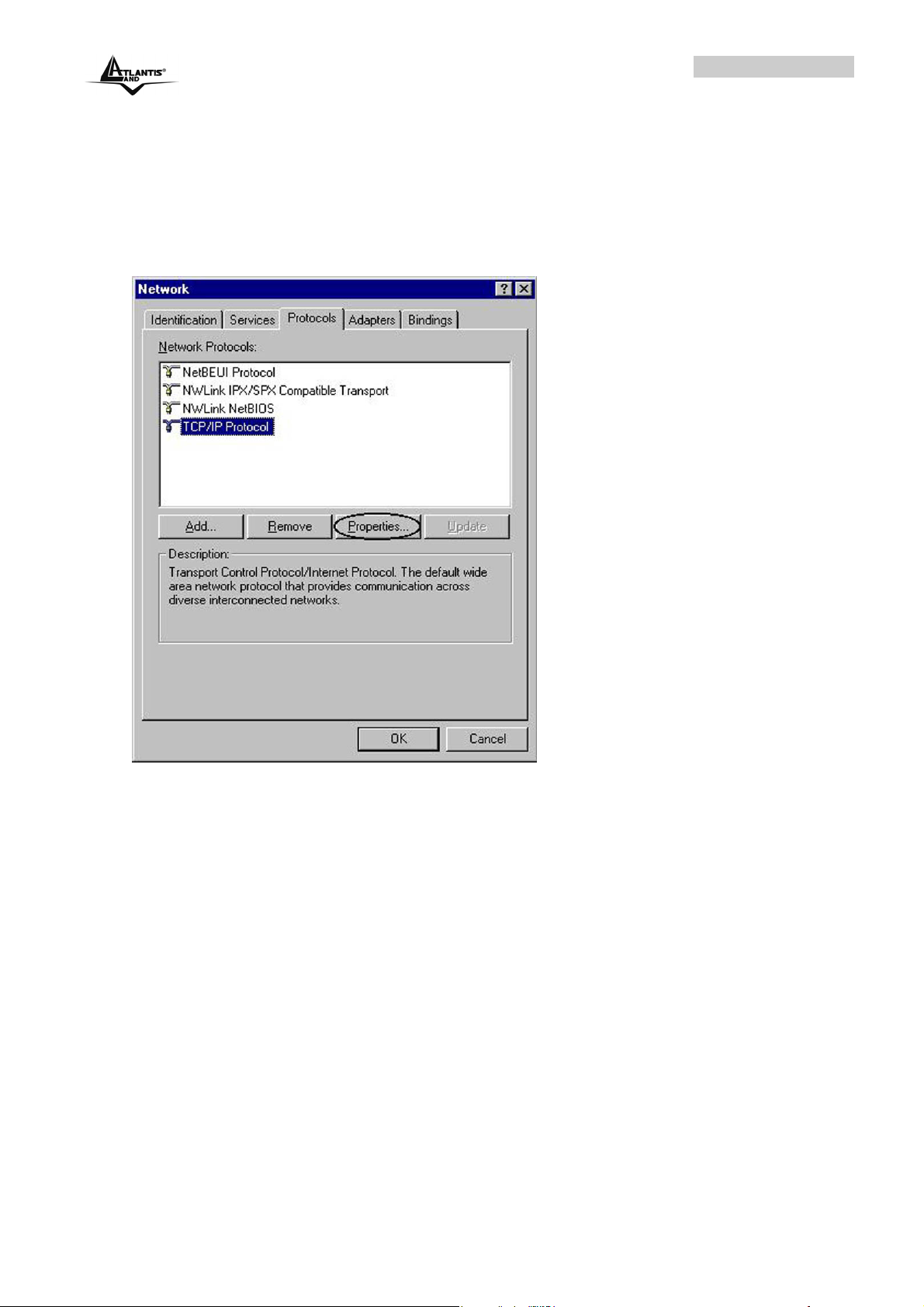

For Windows NT4.0
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on
Network and choose the Protocols tab.
2. Select TCP/IP Protocol and click Properties.
3. Select the Obtain an IP address from a DHCP server radio button and click “OK”.

WEBSHARE 242W
13
For Windows 2000
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on
Network and Dial-up Connections.
2. Double-click LAN Area Connection.
3. In the LAN Area Connection Status window, click Properties.

WEBSHARE 242W
14
4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server
address automatically radio buttons.
6. Click “OK” to finish the configuration.
