Atlas Copco DKR 36 Maintenance and service guide

Safety and operating instructions
Handheld rotary hammers
Prescriptions de sécurité et instructions pour
l’opérateur
Marteaux perforateurs portatifs
Sicherheits- und Betriebsanleitung
Hand-Rotationshammer
Instrucciones de seguridad y de funcionamiento
Martillos giratorios manuales
Instruções de segurança e operação
Perfuradores e demolidores rotativos manuais
Istruzioni per la sicurezza e per l'uso
Martelli manuali a rotazione
Veiligheidsvoorschriften en bedieningshandleiding
Handbediende klopboren
Οδηγίες ασφάλειας και χειρισμού
Φορητές περιστροφικές σφύρες
Turvallisuusohjeet ja käyttöohje
Käsikäyttöiset vasaramurskaimet
Sikkerhedsinstruktioner og betjeningsvejledning
Håndholdte borehamre
Sikkerhetsinstrukser og bruksanvisning
Håndholdte roterende hammere
Säkerhetsinstruktion och instruktionsbok
Handhållna borrhammare
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
DKR 36, 36R

Contents
ENGLISH...........................................................................4
FRANÇAIS........................................................................24
DEUTSCH.........................................................................46
ESPAÑOL.........................................................................68
PORTUGUÊS......................................................................90
ITALIANO........................................................................112
NEDERLANDS...................................................................134
ΕΛΛΗΝΙΚΑ.......................................................................156
SUOMI...........................................................................178
DANSK..........................................................................198
NORSK..........................................................................218
SVENSKA........................................................................238
3© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
ContentsDKR 36, 36R

ENGLISH
Contents
Introduction........................................................................7
About the Safety and operating instructions..........................................7
Safety instructions.................................................................8
Safety signal words..............................................................8
Personal precautions and qualifications...........................................8
Personalprotectiveequipment...................................................8
Drugs, alcohol or medication....................................................8
Installation, precautions..........................................................8
Operation, precautions...........................................................9
Maintenance, precautions.......................................................12
Storage, precautions............................................................12
Overview.........................................................................13
Design and function............................................................13
Main parts.....................................................................13
Labels.........................................................................13
Dataplate....................................................................13
Noise level label..............................................................13
Safety label..................................................................14
Installation........................................................................14
Unpacking the drill..............................................................14
Plastic guards................................................................14
Lubricate....................................................................14
Hoses and connections.........................................................14
Methods to prevent freezing.....................................................14
Connecting a water separator...................................................14
Lubrication.....................................................................14
Insertion tool...................................................................15
Selectingtherightinsertiontool.................................................15
Before fitting the insertion tool..................................................15
Fitting the insertion tool........................................................16
Removing the insertion tool....................................................16
Operation.........................................................................16
Preparations before starting.....................................................16
Checktheequipment..........................................................16
Blowouttheairhose..........................................................16
Fill the lubricator with oil.......................................................16
Start and stop..................................................................17
Start and stop................................................................17
Operating......................................................................17
Starting a cut.................................................................17
Breakinganddrilling...........................................................17
Breaking and drilling under water...............................................17
When taking a break............................................................18
Maintenance......................................................................18
Every day......................................................................18
Periodic maintenance...........................................................18
Tightening torques.............................................................18
Assembly......................................................................18
Storage...........................................................................19
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
4
DKR 36, 36RContents

Disposal..........................................................................19
Technical data.....................................................................20
Machine data...................................................................20
Noise and vibration declaration statement........................................20
Noise and vibration data........................................................21
EC Declaration of Conformity......................................................22
EC Declaration of Conformity (EC Directive 2006/42/EC)...........................22
5© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
ContentsDKR 36, 36R

Introduction
Thank you for choosing a product from Atlas Copco. Since 1873, we have been
committed to finding new and better ways of fulfilling our customers' needs.
Through the years, we have developed innovative and ergonomic product
designs that have helped customers improve and rationalize their daily work.
Atlas Copco has a strong global sales and service network, consisting of
customer centers and distributors worldwide. Our experts are highly trained
professionals with extensive product knowledge and application experience.
In all corners of the world, we can offer product support and expertise to ensure
that our customers can work at maximum efficiency at all times.
For more information please visit: www.atlascopco.com
Atlas Copco Construction Tools AB
105 23 Stockholm
Sweden
About the Safety and operating
instructions
The aim of the instructions is to provide you with knowledge of how to use the
rock drill in an efficient, safe way. The instructions also give you advice and
tell you how to perform regular maintenance on the rock drill.
Before using the rock drill for the first time you must read these instructions
carefully and understand all of them.
7© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
Safety and operating instructionsDKR 36, 36R

Safety instructions
To reduce the risk of serious injury or death to
yourself or others, read and understand the Safety
and operating instruction before installing, operating,
repairing, maintaining, or changing accessories on
the machine.
Post this Safety and operating instruction at work
locations, provide copies to employees, and make
sure that everyone reads the Safety and operating
instruction before operating or servicing the machine.
In addition, the operator or the operator's employer
must assess the specific risks that may be present
as a result of each use of the machine.
Safety signal words
The safety signal words Danger, Warning and
Caution have the following meanings:
Indicates a hazardous situation
which, if not avoided, will result
in death or serious injury.
DANGER
Indicates a hazardous situation
which, if not avoided, could
result in death or serious injury.
WARNING
Indicates a hazardous situation
which, if not avoided, could
result in minor or moderate
injury.
CAUTION
Personal precautions and
qualifications
Only qualified and trained persons may operate or
maintain the machine. They must be physically able
to handle the bulk, weight, and power of the tool.
Always use your common sense and good
judgement.
Personal protective equipment
Always use approved protective equipment.
Operators and all other persons in the working area
must wear protective equipment, including at a
minimum:
●Protective helmet
●Hearing protection
●Impact resistant eye protection with side protection
●Respiratory protection when appropriate
●Protective gloves
●Proper protective boots
●Appropriate work overall or similar clothing (not
loose-fitting) that covers your arms and legs.
Drugs, alcohol or medication
WARNING Drugs, alcohol or medication
Drugs, alcohol or medication may impair your
judgment and powers of concentration. Poor
reactions and incorrect assessments can lead to
severe accidents or death.
►Never use the machine when you are tired or
under the influence of drugs, alcohol or
medication.
►No person who is under the influence of drugs,
alcohol or medication may operate the machine.
Installation, precautions
DANGER Whipping air hose
A compressed air hose that comes loose can lash
around and cause personal injury or death. To reduce
this risk:
►Check that the compressed air hose and the
connections are not damaged, replace if
necessary.
►Check that all compressed air connections are
properly attached.
►Never carry a pneumatic machine by the air hose.
►Never attempt to disconnect a compressed air
hose that is pressurized. First switch off the
compressed air at the compressor and then bleed
the machine by activating the start and stop
device.
►Never point a compressed air hose at yourself or
anyone else. To avoid the risk of getting injured,
never use compressed air to blow for example
dust, dirt etc. from your clothes.
►Whenever universal twist couplings (claw
couplings) are used, we recommend that lock pins
are installed and whipcheck safety cables are used
to safeguard against possible hose to tool and
hose to hose connection failure.
WARNING Ejected insertion tool
If the tool retainer on the machine is not in a locked
position, the inserted tool can be ejected with force,
which can cause personal injury.
►Never start the machine while changing the
insertion tool.
►Before changing the insertion tool or accessories,
stop the machine, switch off the power supply and
bleed the machine by activating the start and stop
device.
►Never point the inserted tool at yourself or anyone
else.
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
8
DKR 36, 36RSafety and operating instructions

►Make sure that the insertion tool is fully inserted

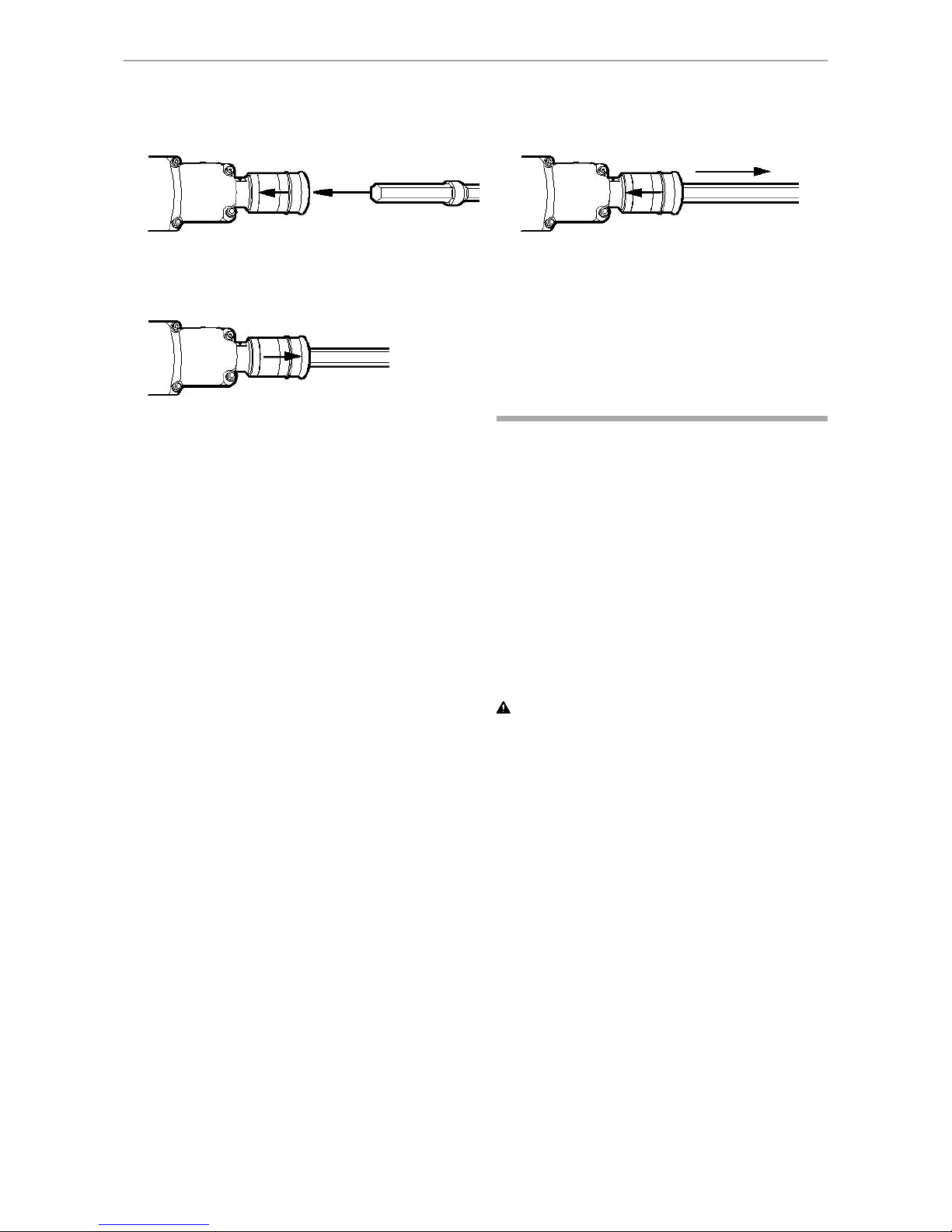

and the tool retainer is in a locked position before
the machine is started.
►Check the locking function by pulling the inserted
tool outwards forcefully.
WARNING Moving or slipping insertion tool
An incorrect dimension of the inserted tool’s shank
can result in that the inserted tool is lost or is slipping
out during operation. Risk of severe injury or crushed
hands and fingers.
►Check that the insertion tool has the shank length
and dimensions that the machine is intended for.
►Never use an insertion tool without a collar.
Operation, precautions
DANGER Explosion hazard
If a warm insertion tool comes into contact with
explosives, an explosion could occur. During
operation with certain materials as well as use of
certain materials in machine parts, sparks and
ignition can occur. Explosions will lead to severe
injuries or death.
►Never operate the machine in any explosive
environment.
►Never use the machine near flammable materials,
fumes or dust.
►Make sure that there are no undetected sources
of gas or explosives.
►Never drill in an old hole.
WARNING Unexpected movements
The inserted tool is exposed to heavy strains when
the machine is used. The inserted tool may break
due to fatigue after a certain amount of use. If the
inserted tool breaks or gets stuck, there may be
sudden and unexpected movement that can cause
injuries. Furthermore, losing your balance or slipping
may cause injury.
►Make sure that you always keep a stable position
with your feet as far apart as your shoulder width,
and keeping a balanced body weight.
►Always inspect the equipment prior to use. Never
use the equipment if you suspect that it is
damaged.
►Make sure that the handles are clean and free of
grease and oil.
►Keep your feet away from the inserted tool.
►Stand firmly and always hold on to the machine
with both hands.
►Never drill in an old hole.
►Never start the machine when it is lying on the
ground.
►Never ‘ride’ on the machine with one leg over the
handle.
►Never strike or abuse the equipment.
►Check regularly for wear on the insertion tool, and
check whether there are any signs of damage or
visible cracks.
►Pay attention an look at what you are doing.
WARNING Stalling hazard
If the insertion tool gets caught during operation, the
whole machine will start to rotate if you lose your grip
on it. This unexpected rotation of the entire machine
may cause serious injury or death.
►Stand firmly and always hold onto the machine
with both hands.
►Make sure that the handle or handles are clean
and free from grease and oil.
►Never drill in an old hole.
WARNING Trapping hazard
There is risk of neck ware, hair, gloves and clothes
getting dragged into or caught by a rotating insertion
tool or accessories. This may cause choking,
scalping, lacerations or death. To reduce the risk:
►Never grab or touch a rotating drill steel.
►Avoid wearing clothing, neck ware or gloves that
may get caught.
►Cover long hair with a hair net.
9© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
Safety and operating instructionsDKR 36, 36R

WARNING Dust and fume hazard
Dusts and/or fumes generated or dispersed when
using the machine may cause serious and permanent
respiratory disease, illness, or other bodily injury (for
example, silicosis or other irreversible lung disease
that can be fatal, cancer, birth defects, and/or skin
inflammation).
Some dusts and fumes created by drilling, breaking,
hammering, sawing, grinding and other construction
activities contain substances known to the State of
California and other authorities to cause respiratory
disease, cancer, birth defects, or other reproductive
harm. Some examples of such substances are:
●Crystalline silica, cement, and other masonry
products.
●Arsenic and chromium from chemically-treated
rubber.
●Lead from lead-based paints.
Dust and fumes in the air can be invisible to the
naked eye, so do not rely on eye sight to determine
if there is dust or fumes in the air.
To reduce the risk of exposure to dust and fumes,
do all of the following:
►Perform site-specific risk assessment. The risk
assessment should include dust and fumes
created by the use of the machine and the
potential for disturbing existing dust.
►Use proper engineering controls to minimize the
amount of dust and fumes in the air and to
minimize build-up on equipment, surfaces,
clothing, and body parts. Examples of controls
include: exhaust ventilation and dust collection
systems, water sprays, and wet drilling. Control
dusts and fumes at the source where possible.
Make sure that controls are properly installed,
maintained and correctly used.
►Wear, maintain and correctly use respiratory
protection as instructed by your employer and as
required by occupational health and safety
regulations. The respiratory protection must be
effective for the type of substance at issue (and if
applicable, approved by relevant governmental
authority).
►Work in a well ventilated area.
►If the machine has an exhaust, direct the exhaust
so as to reduce disturbance of dust in a dust filled
environment.
►Operate and maintain the machine as
recommended in the operating and safety
instructions
►Select, maintain and replace consumables/
inserted tools/ other accessory as recommended
in the operating and safety instructions. Incorrect
selection or lack of maintenance of consumables/
inserted tools/ other accessories may cause an
unnecessary increase in dust or fumes.
►Wear washable or disposable protective clothes
at the worksite, and shower and change into clean
clothes before leaving the worksite to reduce
exposure of dust and fumes to yourself, other
persons, cars, homes, and other areas.
►Avoid eating, drinking, and using tobacco products
in areas where there is dust or fumes.
►Wash your hands and face thoroughly as soon as
possible upon leaving the exposure area, and
always before eating, drinking, using tobacco
products, or making contact with other persons.
►Comply with all applicable laws and regulations,
including occupational health and safety
regulations.
►Participate in air monitoring, medical examination
programs, and health and safety training programs
provided by your employer or trade organizations
and in accordance with occupational health and
safety regulations and recommendations. Consult
with physicians experienced with relevant
occupational medicine.
►Work with your employer and trade organization
to reduce dust and fume exposure at the worksite
and to reduce the risks. Effective health and safety
programs, policies and procedures for protecting
workers and others against harmful exposure to
dust and fumes should be established and
implemented based on advice from health and
safety experts. Consult with experts.
WARNING Projectiles
Failure of the work piece, of accessories, or even of
the machine itself may generate high velocity
projectiles. During operating, splinters or other
particles from the working material may become
projectiles and cause personal injury by striking the
operator or other persons. To reduce these risk:
►Use approved personal protective equipment and
safety helmet, including impact resistant eye
protection with side protection.
►Make sure that no unauthorised persons trespass
into the working zone.
►Keep the workplace free from foreign objects.
►Ensure that the work piece is securely fixed.
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
10
DKR 36, 36RSafety and operating instructions

WARNING Splinters hazard
Using the insertion tool as a hand struck tool can
result in splinters hitting the operator and can cause
personal injury.
►Never use a insertion tool as a hand struck tool.
They are specifically designed and heat-treated
to be used only in a machine.
WARNING Slipping, tripping and falling
hazards
There is a risk of slipping or tripping or falling, for
example tripping on the hoses or on other objects.
Slipping or tripping or falling can cause injury. To
reduce this risk:
►Always make sure that no hose or other object is
in your way or in any other person's way.
►Always make sure you are in a stable position with
your feet as far apart as your shoulders width and
keeping a balanced body weight.
WARNING Motion hazards
When using the machine to perform work-related
activities, you may experience discomfort in the
hands, arms, shoulders, neck, or other parts of the
body.
►Adopt a comfortable posture whilst maintaining
secure footing and avoiding awkward off-balanced
postures.
►Changing posture during extended tasks may help
avoid discomfort and fatigue.
►In case of persistent or recurring symptoms,
consult a qualified health professional.
WARNING Vibration hazards
Normal and proper use of the machine exposes the
operator to vibration. Regular and frequent exposure
to vibration may cause, contribute to, or aggravate
injury or disorders to the operator’s fingers, hands,
wrists, arms, shoulders and/or nerves and blood
supply or other body parts, including debilitating
and/or permanent injuries or disorders that may
develop gradually over periods of weeks, months, or
years. Such injuries or disorders may include damage
to the blood circulatory system, damage to the
nervous system, damage to joints, and possibly
damage to other body structures.
If numbness, persistent recurring discomfort, burning
sensation, stiffness, throbbing, tingling, pain,
clumsiness, weakened grip, whitening of the skin, or
other symptoms occur at any time, when operating
the machine or when not operating the machine, stop
operating the machine, tell your employer and seek
medical attention. Continued use of the machine after
the occurrence of any such symptom may increase
the risk of symptoms becoming more severe and/or
permanent.
Operate and maintain the machine as recommended
in these instructions, to prevent an unnecessary
increase in vibration.
The following may help to reduce exposure to
vibration for the operator:
►Let the tool do the job. Use a minimum hand grip
consistent with proper control and safe operation.
►If the machine has vibration absorbing handles,
keep them in a central position, avoid pressing the
handles into the end stops.
►When the percussion mechanism is activated, the
only body contact with the machine you should
have are your hands on the handle or handles.
Avoid any other contact, for example supporting
any part of the body against the machine or
leaning onto the machine trying to increase the
feed force. It is also important not to keep the start
and stop device engaged while extracting the tool
from the broken work surface.
►Make sure that the inserted tool is well-maintained
(including sharpness, if a cutting tool), not worn
out, and of the proper size. Insertion tools that are
not well-maintained, or that are worn out, or that
are not of the proper size result in longer time to
complete a task (and a longer period of exposure
to vibration) and may result in or contribute to
higher levels of vibration exposure.
►Immediately stop working if the machine suddenly
starts to vibrate strongly. Before resuming the
work, find and remove the cause of the increased
vibrations.
►Never grab, hold or touch the inserted tool when
using the machine.
11© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
Safety and operating instructionsDKR 36, 36R

►Participate in health surveillance or monitoring,
medical exams and training programs offered by
your employer and when required by law.
►When working in cold conditions wear warm
clothing and keep hands warm and dry.
See the ”Noise and vibration declaration statement”
for the machine, including the declared vibration
values. This information can be found at the end of
these Safety and operating instructions.
♦Comply with the recommended air-pressure when
operating the machine. Either higher or lower
air-pressure has the potential of resulting in higher
levels of vibration.
DANGER Electrical hazard
The machine is not electrically insulated. If the
machine comes into contact with electricity, serious
injuries or death may result.
►Never operate the machine near any electric wire
or other source of electricity.
►Make sure that there are no concealed wires or
other sources of electricity in the working area.
WARNING Concealed object hazard
During operating, concealed wires and pipes
constitute a danger that can result in serious injury.
►Check the composition of the material before
operating.
►Watch out for concealed cables and pipes for
example electricity, telephone, water, gas and
sewage lines etc.
►If the inserted tool seems to have hit a concealed
object, switch off the machine immediately.
►Make sure that there is no danger before
continuing.
WARNING Involuntary start
Involuntary start of the machine may cause injury.
►Keep your hands away from the start and stop
device until you are ready to start the machine.
►Learn how the machine is switched off in the event
of an emergency.
►Release the start and stop device immediately in
all cases of power supply interruption.
►Whenever fitting or removing the insertion tool,
switch off the air supply, bleed the machine by
pressing the start and stop device and disconnect
the machine from the power source.
WARNING Noise hazard
High noise levels can cause permanent and disabling
hearing loss and other problems such as tinnitus
(ringing, buzzing, whistling, or humming in the ears).
To reduce risks and prevent an unnecessary increase
in noise levels:
►Risk assessment of these hazards and
implementation of appropriate controls is essential.
►Operate and maintain the machine as
recommended in these instructions.
►Select, maintain and replace the insertion tool as
recommended in these instructions.
►If the machine has a silencer, check that it is in
place and in good working condition.
►Always use hearing protection.
►Use damping material to prevent work pieces from
'ringing'.
Maintenance, precautions
WARNING Machine modification
Any machine modification may result in bodily injuries
to yourself or others.
►Never modify the machine. Modified machines are
not covered by warranty or product liability.
►Always use original parts, insertion tools, and
accessories.
►Change damaged parts immediately.
►Replace worn components in good time.
CAUTION Hot insertion tool
The tip of the insertion tool can become hot and
sharp when used. Touching it can lead to burns and
cuts.
►Never touch a hot or sharp insertion tool.
►Wait until the insertion tool has cooled down before
carrying out maintenance work.
WARNING Insertion tool hazards
Accidental engagement of the start and stop device
during maintenance or installation can cause serious
injuries, when the power source is connected.
►Never inspect, clean, install, or remove the
insertion tool while the power source is connected.
Storage, precautions
♦Keep the machine and tools in a safe place, out
of the reach of children and locked up.
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
12
DKR 36, 36RSafety and operating instructions

Overview
To reduce the risk of serious injury or death to
yourself or others, read the Safety instructions
section found on the previous pages of this
manual before operating the machine.
Design and function
DKR 36 and DKR 36R is a combined drilling and
breaking machine, designed for horizontal and
vertical use.
DKR 36 and DKR 36R is equipped with a
quick-change retainer and has right-hand rotation.
The machine can be adapted for drilling or breaking
by changing the insertion tool. Examples of use are
drilling, chipping, or chasing in concrete or brick. No
other use is permitted.
To choose the correct insertion tool, see the spare
parts list.
Main parts
DKR 36, 36R
A. Handle
B. Air inlet
C. Tool retainer
D. Silencer
E. Start and stop device
F. Lubricator
G. Exhaust port
H. Side bolt
Labels
The machine is fitted with labels containing important
information about personal safety and machine
maintenance. The labels must be in such condition
that they are easy to read. New labels can be ordered
from the spare parts list.
Data plate
A. Machine type
B. Maximum permitted compressed air pressure
C. Serial number
D. The warning symbol together with the book
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
E. The CE symbol means that the machine is
EC-approved. See the EC declaration which
is delivered with the machine for more
information. If the CE symbol is missing, it
means that the machine is not EC-approved.
Noise level label
The label indicates the guaranteed noise level
corresponding to EC-directive 2000/14/EC. See
"Technical data" for accurate noise level.
13© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
Safety and operating instructionsDKR 36, 36R

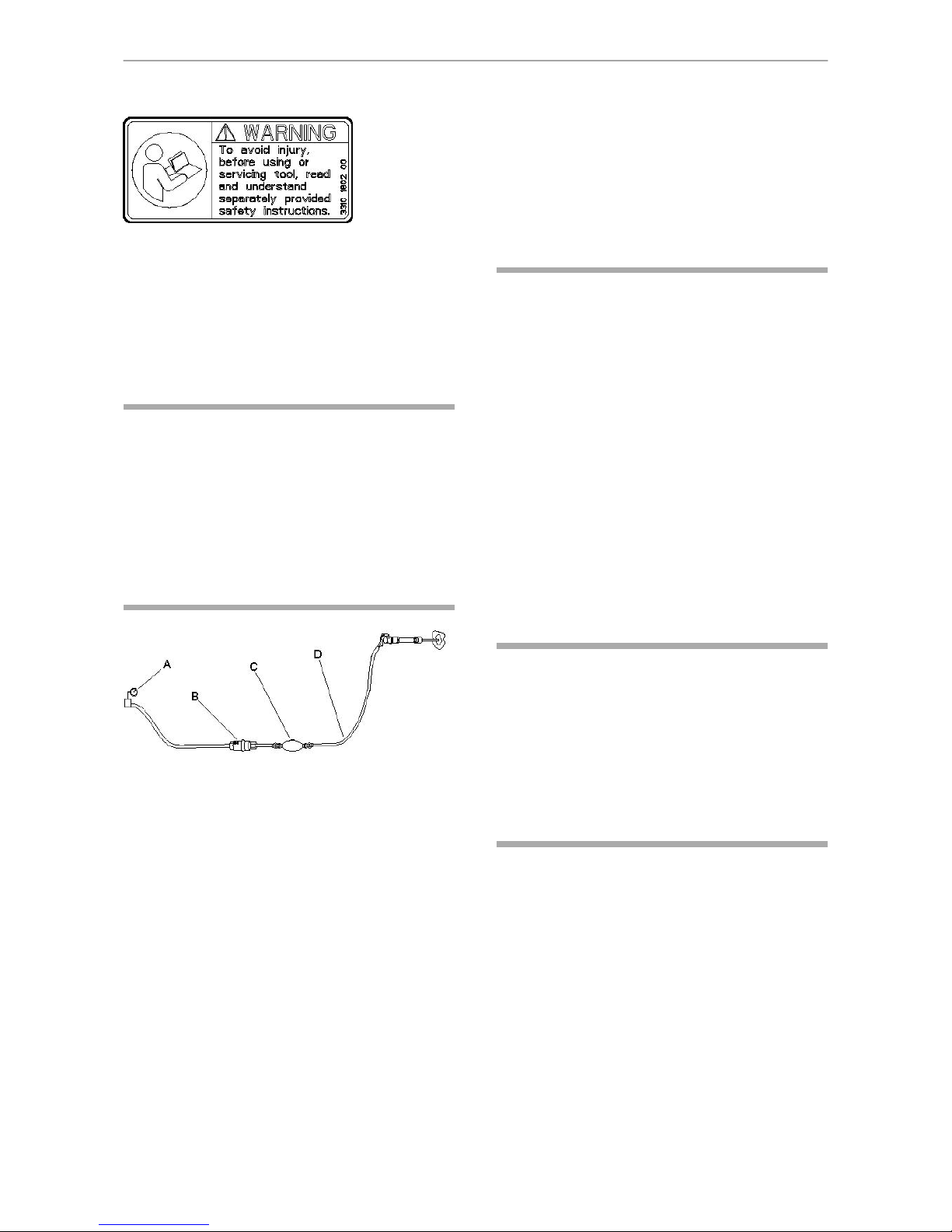

Safety label
To avoid injury, before using or servicing tool, read
and understand separately provided safety
instructions.
Installation
Unpacking the drill
Plastic guards
Before the drill is used for the first time remove all
the plastic guards from the hose nipples.
Lubricate
After unpacking and installing the tool, pour a liberal
amount of lubrication oil in the air connection.
Hoses and connections
A. Compressed air source
B. Water separator (optional)
C. Lubricator (optional)
D. Max. 3 m (10 ft) compressed air hose between
the lubricator and the machine.
♦Check that you are using the correct
recommended operating pressure, 6 bar (e) (87
psi).
♦The maximum permissible air pressure, 7 bar (e)
(102 psi), must not be exceeded.
♦Blow any impurities out of the compressed air hose
before connecting it to the machine.
♦Select the correct dimension and length for the
compressed air hose. For hose lengths up to 30
m (100 ft), a hose with a minimum internal
diameter of 19 mm (3/4 in.) must be used. If the
hose length is between 30 and 100 m (100 and
330 ft), a hose with a minimum internal diameter
of 25 mm (1 in.) must be used.
Methods to prevent freezing
Ice formation in the silencer can occur when the
ambient air temperature is 0–10°C (32-50 °F) and
the relative humidity is high.
The machine is designed to avoid the formation of
ice in the silencer. Despite this, under extreme
conditions ice can form in the silencer.
Take the following actions to further counteract the
risk of ice formation:
♦Use Atlas Copco Rock Drill AIR-OIL as a lubricant.
♦Use a water separator.
If the machine freeze, never heat it to melt the ice.
Always let the ice thaw at room temperature.
Never pour methylated spirits or similar substances
into the rock drill, as they will interfere with the
lubrication and lead to increased wear.
Connecting a water separator
The length of the air hose between the compressor
and the water separator must be such that the water
vapor is cooled and condenses in the hose before
reaching the water separator.
If the ambient temperature is below 0 °C (32 °F) the
hose must be short enough to prevent the water from
freezing before reaching the water separator.
Lubrication
The lubricant is important for the machine’s function
and has a great impact on the service life.
Indications of proper lubrication are the presence of
oil mist in the exhaust air and of slight traces of oil
on the drill or adapter shank. Too much lubrication
can cause starting problems, low power or uneven
performance.
In order to supply the correct volume of oil, the built
in lubricator must be checked and filled regularly. In
addition, use of an air line lubricator is recommended
to assure a constant and adequate supply of
lubricant.
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
14
DKR 36, 36RSafety and operating instructions

Use Atlas Copco Rock Drill AIR-OIL which is
specially developed for pneumatic rock drills. Rock
Drill AIR-OIL is readily biodegradable according to
OECD 301 and has high film strength that can
withstand heavy loads. If Rock Drill AIR-OIL is not
available use a mineral-based air tool oil with the
properties recommended in the table below.
Viscosity grade
(ISO 3448)
Temperature range
°C (F)
ISO VG 32-68-30 to 0 (-22 to +32)
ISO VG 68-100-10 to +20 (+14 to +68)
ISO VG 100-150+10 to +50 (+50 to +122)
DKR 36, DKR 36R
Daily before using and after each four hours of
service, remove the plug (A) and saturate the felt
and fill the cavity with recommended oil.
Insertion tool
CAUTION Hot insertion tool
The tip of the insertion tool can become hot and
sharp when used. Touching it can lead to burns and
cuts.
►Never touch a hot or sharp insertion tool.
►Wait until the insertion tool has cooled down before
carrying out maintenance work.
Selecting the right insertion tool
Selecting the right insertion tool is a precondition for
proper machine function. It is important to select
insertion tools of high quality to avoid unnecessary
machine damage.
The machine can be destroyed if you use an incorrect
insertion tool.
Recommended insertion tools are listed in the
machine's spare parts list.
WARNING Vibration hazard
Using inserted tools that do not fulfil the criterias
mentioned below, will result in a longer time to
complete a task, and may result in higher levels of
vibration exposure. A worn tool will also cause
increased working time.
►Make sure that the inserted tool is well-maintained,
not worn out and of the proper size.
►Always use a sharp tool in order to work efficiently.
NOTICE Never cool a hot insertion tool in water, it
can result in brittleness and early failure.
WARNING Ejected insertion tool
If the tool retainer on the machine is not in a locked
position, the inserted tool can be ejected with force,
which can cause personal injury.
►Before changing the insertion tool, stop the
machine, switch off the compressed air supply
and bleed the machine by activating the start and
stop device.
Before fitting the insertion tool
Check that the tool shank is of the correct size and
length for the chuck used. The shank must be clean
and the tool must be in good condition. Shanks which
are chipped, rounded, out of square or too hard on
the striking end will operate inefficiently and cause
premature piston failure.
Inspect the drill steel:
A dull drill steel will slow down the drilling speed and
overstrain the drill mechanism. When changing drill
steel make sure that the new one is the correct size
to follow your previous bore.
Before drilling, check that the flushing hole in the drill
steel is not blocked.
15© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
Safety and operating instructionsDKR 36, 36R

Fitting the insertion tool
Whenever fitting the insertion tool the following
instructions must be observed:
1.
Pull the tool retainer and hold it backwards in the
direction of the arrow, insert the insertion tool in
the chuck at the same time.
2.
When the insertion tool bottoms, lock the tool
retainer by releasing it. Check the lock function
by pulling the inserted tool sharply outwards.
NOTICE If burrs are raised around the four ball slots
in the shank of the insertion tool, polish them
smoothly. It will result in easier entry and removal of
the insertion tool, and also an efficient operation of
the chuck.
Removing the insertion tool
Whenever removing the insertion tool the following
instructions must be observed:
1.
Pull the tool retainer and hold it backwards in the
direction of the arrow, remove at the same time
the insertion tool by pulling it out.
Operation
Preparations before starting
Check the equipment
♦Check that all of the equipment is in good
condition.
♦Check that the impact surface of the insertion tool
shank is flat, with no signs of wear.
♦Make sure that the air inlet and exhaust ports are
free from obstructions.
♦Check that the flushing hole in the drill steel is not
blocked, and that the flushing air flows through
without obstruction.
♦Ensure that the fittings are tight and leak-proof.
DANGER Whipping air hose
A compressed air hose that comes loose can lash
around and cause personal injury or death
►Check that the compressed air hose and the
connections are not damaged.
►Check that all compressed air connections are
properly attached.
Blow out the air hose
♦Every day before using the drill, blow out the air
hose to clear it of accumulated dirt and moisture.
Fill the lubricator with oil
♦Check that the chuck and insertion tool shank are
always covered with a film of oil.
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
16
DKR 36, 36RSafety and operating instructions

Start and stop
WARNING Involuntary start
Involuntary start of the machine may cause injury.
►Keep your hands away from the start and stop
device until you are ready to start the machine.
►Learn how the machine is switched off in the event
of an emergency.
►Stop the machine immediately in all cases of
power supply interruption.
Start and stop
Start the machine by squeezing the start and stop
device while firmly holding the handle.
Stop the machine by releasing the start and stop
device. The start and stop device returns
automatically to the stop position.
Operating
Starting a cut
♦Stand in a stable position with your feet well away
from the inserted tool.
♦Press the machine against the working surface
before you start.
♦Start collaring at such a distance from the edge
that the machine is capable of breaking the
material without levering.
♦Never try to break off too large pieces. Adjust the
breaking distance (A) so that the inserted tool does
not get stuck.
Breaking and drilling
♦Use protective shoes, gloves, helmet, ear
protectors, and impact resistant eye protection
with side protection.
♦Avoid working in extremely hard materials for
example granite and reinforcing iron (re-bar) which
would cause substantial vibrations.
♦Check regularly that the machine is well lubricated.
♦When the machine is lifted, the start and stop
device must not be activated.
♦Any form of idling, operating without insertion tool
or operating with an uplifted machine must be
avoided.
♦Stand firmly and always hold the machine with
both hands.
♦Hold the inserted tool firmly against the work
surface before starting the machine.
♦Let the machine do the work; do not press too
hard.
Breaking and drilling under water
DKR 36 and DKR 36R can be used for operating
under water. No special preparations have to be
carried out before start operating. In order to make
operating under water easier, connect a hose to the
exhaust port with a 1/4 in. NPT nipple.
When the machine has been used under water, and
is to be used directly afterwards or stored over-night,
the following must be done:
1. Rinse the machine externally with fresh water
and dry it.
2. Run the machine until no water moisture comes
out from the exhaust port.
3. Disconnect the air hose and fill 3-5 centilitres
(1-1
3
⁄ 4 oz) of oil directly into the air intake.
Connect the machine to the compressed air
supply and run it for a few seconds.
17© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
Safety and operating instructionsDKR 36, 36R

If the machine has been used under water, and is to
be stored for longer time then over-night, the
following must be done:
1. Rinse the machine externally with fresh water
and dry it.
2. Run the machine until no water moisture comes
out from the exhaust port.
3. Disassemble the machine.
4. Dry the parts and lubricate them with a thin layer
of oil.
5. Assemble the machine.
When taking a break
♦During all breaks you must place the machine in
such a way that there is no risk for it to be
unintentionally started.
♦In the event of a longer break or when leaving the
workplace: Switch off the power supply and then
bleed the machine by activating the start and stop
device.
Maintenance
Regular maintenance is a basic requirement for the
continued safe and efficient use of the machine.
Follow the maintenance instructions carefully.
♦Before starting maintenance on the machine, clean
it in order to avoid exposure to hazard substances.
See “Dust and fume hazards”
♦Use only authorised parts. Any damage or
malfunction caused by the use of unauthorised
parts is not covered by warranty or product liability.
♦When cleaning mechanical parts with solvent,
comply with appropriate health and safety
regulations and ensure there is satisfactory
ventilation.
♦For major service to the machine, contact your
nearest authorised workshop.
♦After each service, check that the machine's
vibration level is normal. If not, contact your
nearest authorised workshop.
Every day
Before undertaking any maintenance or changing
the insertion tool on pneumatic machines, always
switch off the air supply and bleed the machine by
depressing the start and stop device then disconnect
the air hose from the machine.
♦Clean and inspect the machine and its functions
each day before the work commences.
♦Conduct a general inspection for leaks and
damage.
♦Check that the air inlet nipple is tightened and that
the claw coupling is free from damage.
♦Check the function of the throttle handle. Make
sure that it moves freely up and down.
♦Check the function of the retainer. Make sure that
it locks the drill steel.
♦Change damaged parts immediately.
♦Replace worn components in good time.
♦Check the side bolts of the machine. Make sure
that they are tightened.
♦If the machine is equipped with a silencer, check
for damage.
Periodic maintenance
After each operating period of approximately 100
working hours or three times a year the machine
must be dismantled and all parts be cleaned and
checked. This work must be performed by authorized
staff, trained for this task.
Tightening torques
16-19 Nm (12-14
ft.lbf)
Side bolt nutDKR 36
16-19 Nm (12-14
ft.lbf)
Side bolt nutDKR 36 R
Assembly
When assembling the machine, be aware of the
following:
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
18
DKR 36, 36RSafety and operating instructions

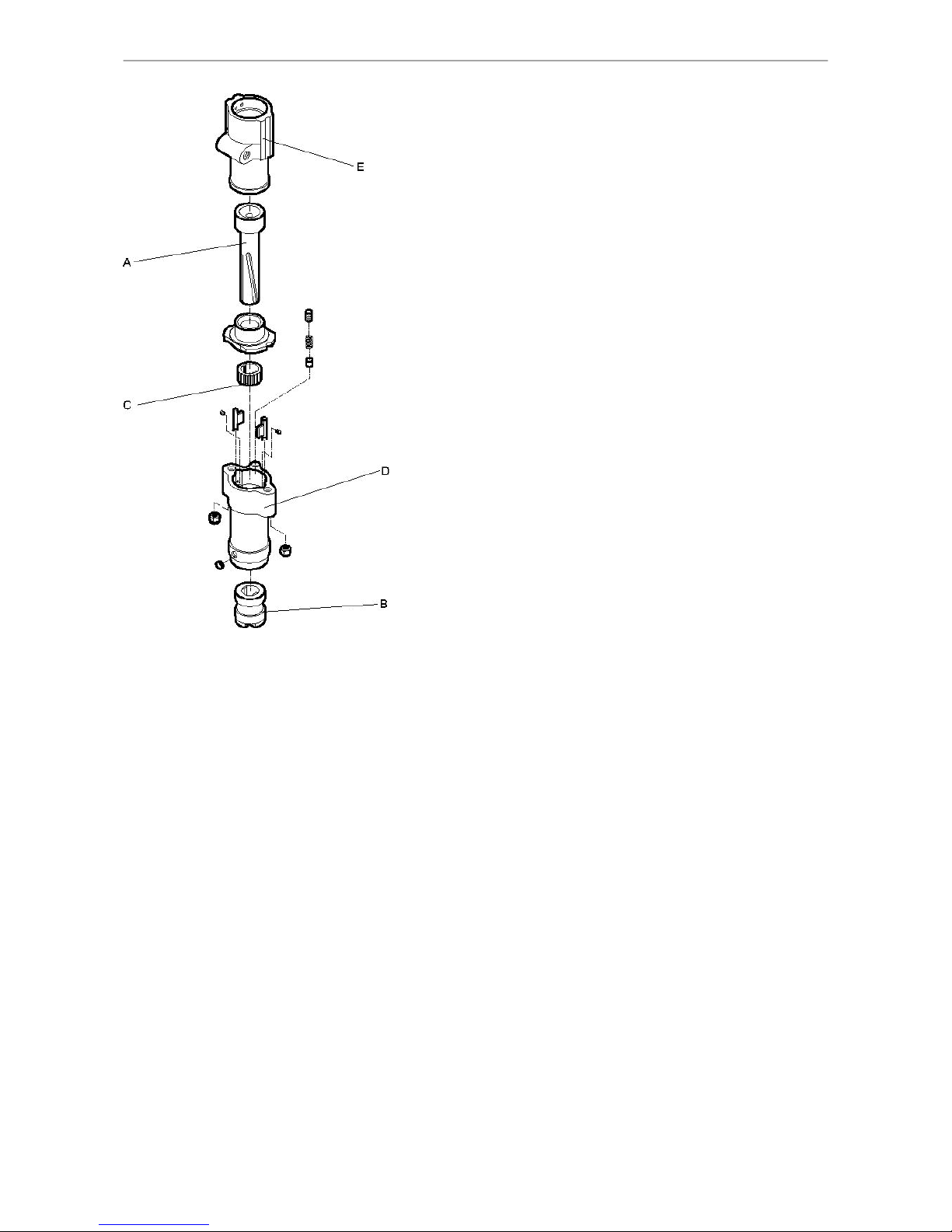

♦Be sure that the straight spline on the piston (A)
engages the straight spline on the chuck sleeve
(B), and that the spiral spline on the piston (A)
engages the spiral spline of the ratchet ring (C).
♦Assemble the ratchet ring (C) into the fronthead
(D), so that the flat surface marked T faces the
cylinder (E).
♦Tighten the side bolts stepwise to the correct
torque. After tightening, rotate the chuck manually
to make sure that the rotation is free.
Storage
●Clean the machine properly before storage, in
order to avoid hazardous substances. See “Dust
and fume hazard”
●Pour approximately
1
⁄ 2 oz (5 cl) of oil directly into
the air inlet nipple, connect the machine to the
compressed air supply and start it for a few
seconds.
●Always store the machine in a dry place.
Disposal
A used machine must be treated and disposed of in
such a way that the greatest possible portion of the
material can be recycled and any negative influence
on the environment is kept as low as possible, and
in respect to local restrictions.
19© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
Safety and operating instructionsDKR 36, 36R

Technical data
Machine data
Overall length
mm
(in.)
Stroke length
mm
(in.)
Piston bore
mm
(in.)
Weight
kg
(lb)
Shank dimension
mm
(in.)Type
375
(14
3
⁄ 4 )
35
(1
3
⁄ 8 )
31.8
(1
1
⁄ 4 )
4.5
(10)
Round 19 - Hexagon 14.7 x 89
(Round
3
⁄ 4 - Hexagon
9
⁄ 16 x 3
1
⁄ 2 )
DKR 36
375
(14
3
⁄ 4 )
35
(1
3
⁄ 8 )
31.8
(1
1
⁄ 4 )
4.5
(10)
Round 19 x 95
(Round
3
⁄ 4 x 3
3
⁄ 4 )
DKR 36R
Impact rate
(6 bar)
Hz
(bpm)
Air consumption
(6 bar)
l/s
(cfm)
Exhaust port
in.
Air inlet
in.Type
47
(2820)
10
(21)
1
⁄ 4 NPT
3
⁄ 8 BSPDKR 36
47
(2820)
10
(21)
1
⁄ 4 NPT
3
⁄ 8 BSPDKR 36R
Noise and vibration declaration statement
Guaranteed sound power level Lw according to ISO 3744 in accordance with directive 2000/14/EC.
Sound pressure level Lp according to ISO 11203.
Vibration value Aand uncertainty Bdetermined according to ISO 20643. See table ”Noise and vibration data”
for the values of A, B, etc.
These declared values were obtained by laboratory type testing in accordance with the stated directive or
standards and are suitable for comparison with the declared values of other tools tested in accordance with
the same directive or standards. These declared values are not suitable for use in risk assessments and values
measured in individual work places may be higher. The actual exposure values and risk of harm experienced
by an individual user are unique and depend upon the way the user works, in what material the machine is
used, as well as upon the exposure time and the physical condition of the user, and the condition of the machine.
We, Atlas Copco Construction Tools AB, cannot be held liable for the consequences of using the declared
values, instead of values reflecting the actual exposure, in an individual risk assessment in a work place situation
over which we have no control.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed. An EU guide to managing
hand-arm vibration can be found at http://www.humanvibration.com/EU/VIBGUIDE.htm
We recommend a programme of health surveillance to detect early symptoms which may relate to vibration
exposure, so that management procedures can be modified to help prevent future impairment.
© 2010 Atlas Copco Construction Tools AB | No. 9800 0938 90 | 2010-04-01
Original instructions
20
DKR 36, 36RSafety and operating instructions
