Introduction
The Atlas Sound AA-GPN1200 analog signal generator is ideal to use for many basic
Sound Masking systems. The analog topology design eliminates repeating cycles commonly
found in other manufactures digital designs. The AA-GPN1200 supports selections between
Pink or White noise signals. This generator incorporates a variable balanced output and will
deliver a 1V balanced output allowing it to match input circuits of Atlas Sound equalizers
and amplifiers. Also a variable Hi-Cut filter when engaged, supports most equalizing
requirements for most basic Sound Masking systems. The EQ filter operating range is
between 1 kHz and 8 kHz with a slope of 6 dB per octave.
This small but effective generator can be used standalone or rack mounted. If multiple
zones are required up to three AA-GPN1200 can be mounted onto a single 1 RU panel.
The balanced output connection is via a Phoenix type (Euro block) connector. Rear-
mounted controls also help prevent unauthorized tampering.

OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: [phone] • FAX: [phone]
© 2008 ATLAS SOUND LP Printed in U.S.A. ATS003064 RevA 3/08 6
AA-GPN1200
Features
• Compact
• Analog Topology
• Balanced Output
• Selectable between Pink and White Noise
• Defeatable EQ
• Variable Hi-Cut filter
• Variable Gain
• Stand Alone or Rack Mountable
• Rear Panel Adjustments
Applications
The analog noise generator Model GPN-1200B can be used for audio equipment testing or
as the signal source in Sound Masking systems. It provides the output level necessary to
match the input circuits of most commercially available equalizers and amplifiers. The unit is
recommended for use in Sound Masking systems using Atlas Sound masking loudspeakers
and amplifiers. Sound Masking systems are designed to help eliminate the auditory
distraction associated with open office plan environments as well as providing conversation
privacy in facilities such as schools, churches, restaurants, offices, etc. (Additional information
on masking loudspeakers and sound masking in general is available upon request.)
Installation Options

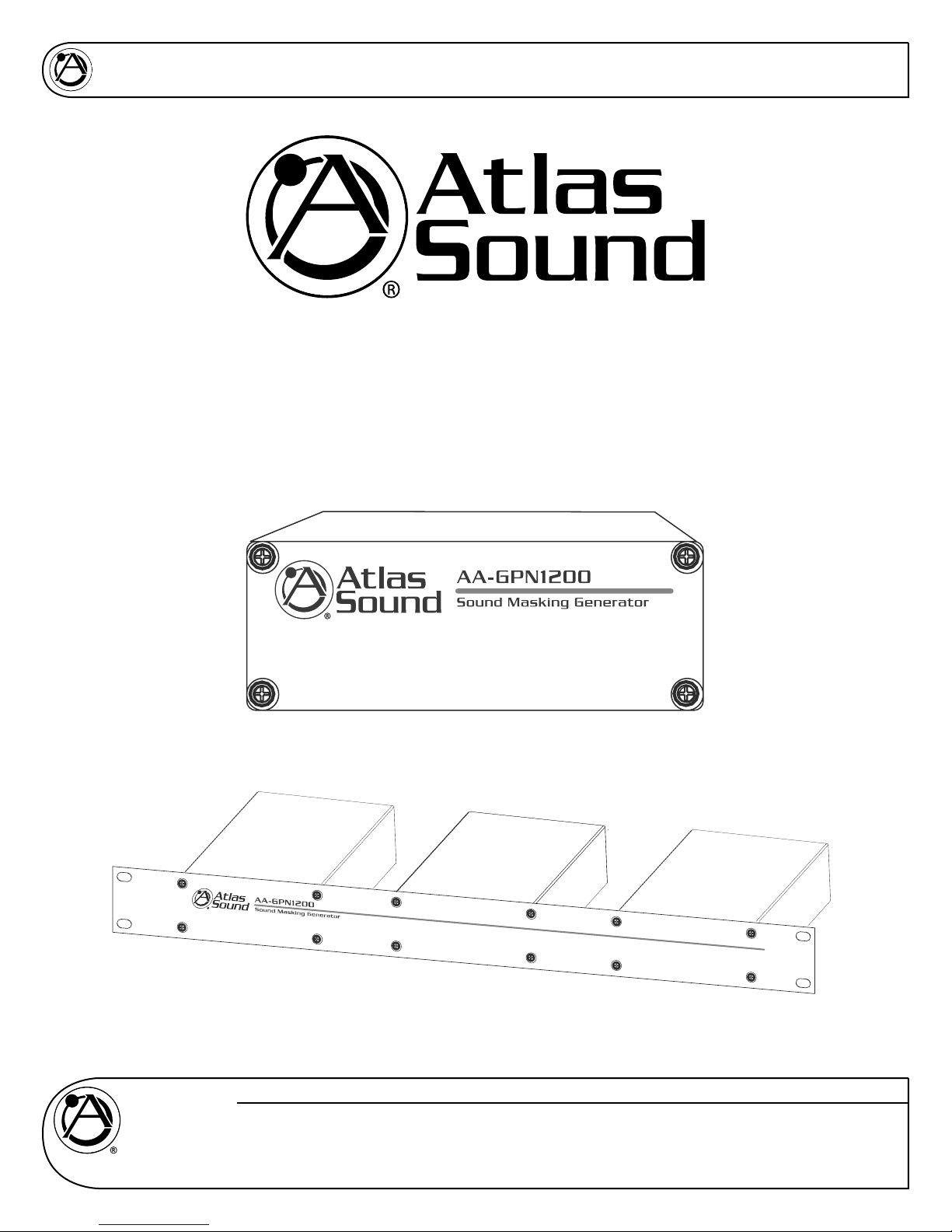

The AA-GPN1200 has two methods of installation. It can be used as a standalone unit
or mounted in a rack. The included 19" 1 RU rack mount panel can support from one to
three AA-GPN1200 units. To mount an AA-GPN1200 to the 19" rack panel, first remove
the four front panel screws and the AA-GPN1200 face plate and then mount the AA-
GPN1200 chassis to the 19" panel using the same four screws. Discard the unused panel,
if desired.

OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: [phone] • FAX: [phone]
© 2008 ATLAS SOUND LP Printed in U.S.A. ATS003064 RevA 3/08 7
AA-GPN1200
Rear Panel Description and Functions
TUPTUO
G
CDV 4 2
R EWO P
KNIPETIHW
QEN I AG
TSOP QE ERP LEVEL / QE
1. DC Power Input – An UL Certified external 24VDC power supply is supplied to
power the AA-GPN1200. Note: Only use this approved power supply or failure
may occur.
2. Power Indicator – A Blue LED will illuminate if the External DC power supply is
plugged into the receptacle and has AC power supplied.
3. White or Pink Nose Selection Switch – slide the switch to the desired type of
signal needed.
4 Screws
Per Unit
3 4 5 6
2
17

OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: [phone] • FAX: [phone]
© 2008 ATLAS SOUND LP Printed in U.S.A. ATS003064 RevA 3/08 8
AA-GPN1200
4. Gain Control – A gain control has been incorporated to adjust the level of the
signal. Clockwise increases the signal. Note: When the gain is turn fully counter
clockwise there will still be some signal present at the output.
5. EQ – This potentiometer allows one to adjust the noise parameter to meet a
basic masking spectrum. This Hi-Cut filter adjusts from 7 kHz to 1 kHz at 6 db
per octave. Note: If more equalization is necessary we suggest using an Atlas
EQM131, a 31 band graphic equalizer, after the AA-GPN1200 balanced output.
Note: For the EQ range control pot to be in effect, the EQ filter switch #6 must be
in the POST EQ position. See the illustration showing the frequency curves to get a
complete understanding of the EQ range.
6. Pre EQ & Post EQ – this slide switch allows one to select between Pre EQ and
Post EQ. POST EQ, the internal Hi-Cut filter is engaged limiting the frequency
bandwidth. In PRE EQ the internal EQ is bypassed allowing the full noise spectrum
at the output. See illustration on the next page.
7. Balanced Output – This removable Phoenix style connector is a electronic
balanced output. If an unbalanced signal is needed connect the (G) and the (-)
terminals together.
Suggested optional accessory EQM131 - For most sound masking systems the EQ
on the AA-GPN1200 is adequate. For systems requiring more fine tuning of equalization
we suggest using Atlas Sound EQM131.

OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: [phone] • FAX: [phone]
© 2008 ATLAS SOUND LP Printed in U.S.A. ATS003064 RevA 3/08 9
AA-GPN1200
White and Pink Noise Graphs
PRE EQ White Noise PRE EQ Pink Noise
-40
+20
-35
-30
-25
-20
-15
-10
-5
+0
+5
+10
+15
d
B
V
20 20k50 1002005001k 2k 5k 10k
Hz
POST EQ White Noise POST EQ Pink Noise
y
od3A B ndp s N rmalize
-20
+20
-17.5
-15
-12.5
-10
-7.5
-5
-2.5
+0
+2.5
+5
+7.5
+10
+12.5
+15
+17.5
d
B
V
20 20k50 1002005001k 2k 5k 10k
Hz
RdS3An Bandp s f
-40
+20
-35
-30
-25
-20
-15
-10
-5
+0
+5
+10
+15
d
B
V
20 20k50 1002005001k 2k 5k 10k
Hz
edSoli 3An r Ban ass!N rmalize
nSoli 3n r Band a s!N rmaliz
-50
+20
-45
-40
-35
-30
-25
-20
-15
-10
-5
+0
+5
+10
+15
d
B
V
20 20k50 1002005001k 2k 5k 10k
Hz

OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: [phone] • FAX: [phone]
© 2008 ATLAS SOUND LP Printed in U.S.A. ATS003064 RevA 3/08 10
AA-GPN1200
AA-GPN1200 SPECIFICATIONS
Filter Selection: White, Pink Noise
Gain Control: Variable, PRE EQ 500mV, POST EQ 1V
Line Output: Balanced, Phoenix type Connector
EQ Control: Variable Hi Cut 1 KHz – 7 KHz, By pass switch
Supply Voltage: UL Rated External 24VDC Power Supply
Panel Finish: Black
Dimensions: Chassis: 4" (100 mm) W., x 1.75" (45 mm) H. x 3.16" (80 mm) D
Rack Mount Panel: 19" (485 mm) W, 1.75" (45 mm) H
ARCHITECT AND ENGINEER SPECIFICATIONS
The analog noise generator shall be Atlas Sound Model AA-GPN1200. It shall be capable of
producing either pink or white noise with a minimum output level of .5V into 600 Ω. It shall
have a Hi-Cut filter adjustable from 7 kHz to 1 KHz at 6 dB per octave. The filter shall be
have a bypass switch. The generator shall have a external UL rated 24VDC power supply.
The Atlas AA-GPN1200 can be used as a stand alone unit or rack mounted with a 19"
1 RU panel. Panel is included. All controls shall be rear mounted to prevent unauthorized
tampering. The balanced output connection are via an three position Phoenix type
connector. Finish shall be black semi-gloss epoxy.

OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: [phone] • FAX: [phone]
© 2008 ATLAS SOUND LP Printed in U.S.A. ATS003064 RevA 3/08 11
AA-GPN1200
Notes:

OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: [phone] • FAX: [phone]
© 2008 ATLAS SOUND LP Printed in U.S.A. ATS003064 RevA 3/08 12
AA-GPN1200
Limited Warranty
All products manufactured by Atlas Sound are warranted to the original dealer/installer, industrial or
commercial purchaser to be free from defects in material and workmanship and to be in compliance
with our published specifications, if any. This warranty shall extend from the date of purchase for
a period of three years on all Atlas Sound products, including SOUNDOLIER brand, and ATLAS
SOUND brand products except as follows: one year on electronics and control systems; one year on
replacement parts; and one year on Musician Series stands and related accessories. Additionally,
fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or
repair free of charge defective parts or products when the product has been applied and used in
accordance with our published operation and installation instructions. We will not be responsible for
defects caused by improper storage, misuse (including failure to provide reasonable and necessary
maintenance), accident, abnormal atmospheres, water immersion, lightning discharge, or malfunctions
when products have been modified or operated in excess of rated power, altered, serviced or installed
in other than a workman like manner. The original sales invoice should be retained as evidence of
purchase under the terms of this warranty. All warranty returns must comply with our returns policy set
forth below. When products returned to Atlas Sound do not qualify for repair or replacement under our
warranty, repairs may be performed at prevailing costs for material and labor unless there is included
with the returned product(s) a written request for an estimate of repair costs before any nonwarranty
work is performed. In the event of replacement or upon completion of repairs, return shipment will be
made with the transportation charges collect.
EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF
CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY, ATLAS SOUND SHALL NOT BE LIABLE IN
TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE
ARISING OUT OF THE INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE
ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Atlas Sound does not assume, or does it authorize any other person to assume or extend on its behalf,
any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may
have other rights which vary from state to state.
Service
Should your AA-GPN1200 require service, please contact the
Atlas Sound warranty department at
1-877-689-8055, ext. 277 to obtain an RA number.
Atlas Sound Tech Support can be reached at 1-800-876-3333.
Visit our website at www.AtlasSound.com to see other Atlas products
