Five
Micro Infrared Repeaters & Flashers
M-1A Series Atlas Sound IR repeaters allow the operation of virtually any IR-controlled A/V component from multiple
room locations. The M-1A repeater will receive the IR signal and rebroadcast it to the small F-1 flasher LED positioned
on the front of each A/V component. The F-1 forwards the signal to the source component's IR receiver.
These micro repeaters feature an attractive, flush, white lens that blends with any white surface. Their high sensitivity
enables use within a 40 foot range with fast reaction time and minimal interference. Repeaters are available installed
on a white decorator-style subplate (cover plate not included) or separately for flush-mounting in a ceiling, wall,
cabinet or speaker grille.
F-1 Series Small F-1 flasher LEDs are shipped with an adhesive backing and 1⁄8" phone plugs for connection to
all IR-controlled A/V components. Up to six flasher units may be connected to a single M-1A repeater using two
M-1CB4B connector blocks or any standard adapter (by others).
Note: some high-end A/V components are equipped to accept hard-wired IR signals. In this case, F-1 flashers would not be necessary.
Model Description Current Draw Style Color
M-1A IR Repeater 12 mA Flush Mount White Lens
M-1AJW IR Repeater 12 mA Wall Mount, Supplied on Decorator Subplate* White Lens,
White Subplate
F-1 Flasher .05 mA Surface Mount Black Lens, Black Cord
* Order Sound decorator-style cover plate separately.
** Order Model M-1A separately.

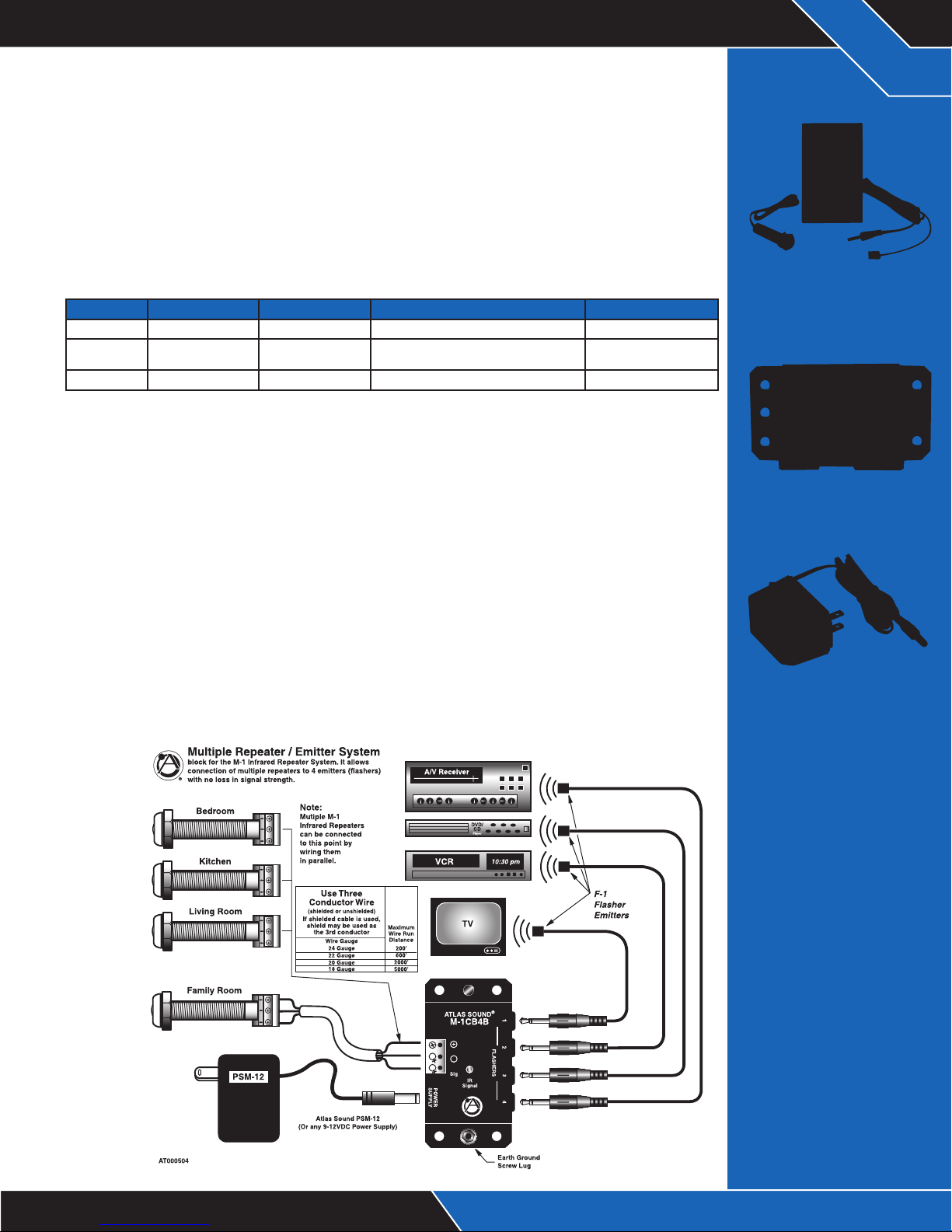

Stand-Alone IR Repeater System
M-1CB4B For installation flexibility, the M-1CB4B amplified connector block is offered as a plug-in interface device
that provides connections for an M-1A Series repeater, four F-1 flashers, and power supply Model PS-M12. This con-
figuration allows IR operation of up to four A/V components from up to four room locations. The M-1CB4B offers 1⁄8"
mini jacks for power supply Model PS-M12 and up to four F-1 flashers; it also provides terminals for wiring up to four
M-1A repeaters (rooms) in parallel fashion and a data jack for connecting a mini-pin IR source or another M-1CB4B.
The unit's amplified circuit design supplies clear, strong IR data to source components.
This stand-alone IR repeater system requires: one M-1A repeater in each remote room location, one M-1CB4B for
every four A/V components, a PS-M12 power supply, and one F-1 flasher for each A/V component. For installations
which require control of more than four components or transmission from more than four rooms, multiple M-1CB4B
blocks may be used.
Note: each M-1A repeater can control a maximum of six F-1 flashers.
PS-M12 A compact UL-listed 12VDC, 200 mA power supply with a 6' cord. The required input voltage is 120V. Supply
includes a 1⁄8" mini-plug for direct connection to the M-1CB4B connector block (powers up to four F-1 flashers) or for
use with up to two switched WhisperTouch® volume controls.
Remote
Range:
Maximum 40'
at 30˚off axis.
M-1CB4B
PS-M12
F-1 M-1AJW* M-1A
*(Shown with cover plate,
Sold separately.)
Atlas Sound Infrared Repeater System & Devices

AtlasSound.com
58
AtlasSound.com

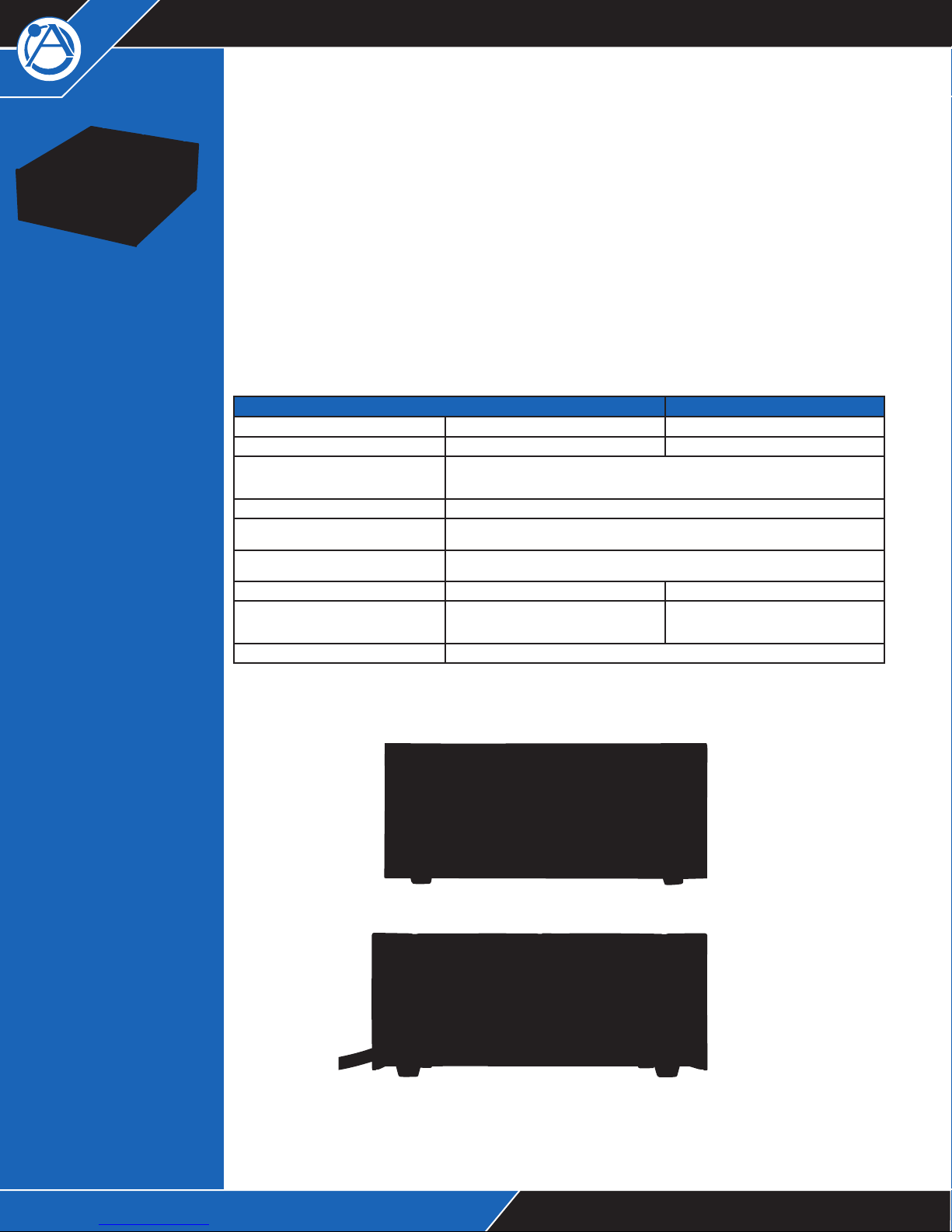

AA35 / AA60
• 1 Mic Input w/ Phantom Power
• 2 Stereo Line Inputs
• Dual Line Out
• Pre Out / Power in Patch
• Remote and Vox Activated Mute
• Route Any Source Combination or Entire Mix Bus to Zone 2 (MOH Out)
• Special Low Cut Filter is 6 dBu / Octave at 400 Hz and Also Bypasses Front Panel Bass Control to Allow use with
Paging Horns like APX40TN and AP-15T
• UL Listed 60065
The AA35 & AA60 are 3 input mixer amplifiers designed for distributed business paging and background music (BGM)
systems, small to medium speech privacy systems and in applications where music on hold (MOH) plus paging is
required. With one microphone input and two stereo line inputs these units will accommodate a variety of input
sources including paging microphones, CD players and digital music receivers. A dip switch selectable matrix allows
the creation of a zone 2 mix from any or all of the input sources for music or messaging on hold applications. 25V,
70.7V, and 8 Ω outputs are provided. Output power will match nicely with Atlas Sound FAP, SM, SD, and GD series
loudspeakers. In fact, in an 11' ceiling application, the AA35 will provide power for up to 117 SD72W loudspeakers
tapped at .25 watts each while providing upwards of 84 dB in the direct sound field at ear height!
AA60 available Q3 2008.
AA35 AA60
Power Rating 35 watts RMS 60 watts RMS
Output 25V / 70.7V / 100V & 8 Ω25V / 70.7V / 100V & 4 Ω
Inputs Input 1 Mic .316 ~ 3.16 mV (-50 ~ -70 dBV)
Input 1 Telephone / Line 316mV (-10 dBV) 10k Ω (optional 600 Ω transformer available)
Input 2/3 316 mV (10 dBV) 10k Ω
Frequency Response 50 Hz – 20 kHz
Distortion .5% or less, at 1 kHz, rated output
.1% or less, at 1 kHz, 5 watts output
Outputs Main: Transformer coupled, balanced, 8 Ω, 25V, and 70.7V
Zone 2- 8 Ω Unbalanced 1 watt, Zone 2- 600 Ω Balanced 1.5V
Power Consumption 90 watts
Dimensions Width: 8.27" (210 mm)
Height: 2 RU, 3.66" (94 mm)
Depth: 10.87" (276 mm)
Width: 8.27" (210 mm)
Height: 2 RU, 3.66" (94 mm)
Depth: 14" (357 mm)
Optional Rack Mount Kit AARMK2-5
AA Series Mixer Amplifiers
AA35

AtlasSound.com
AtlasSound.com 800.876.3333 59
Five

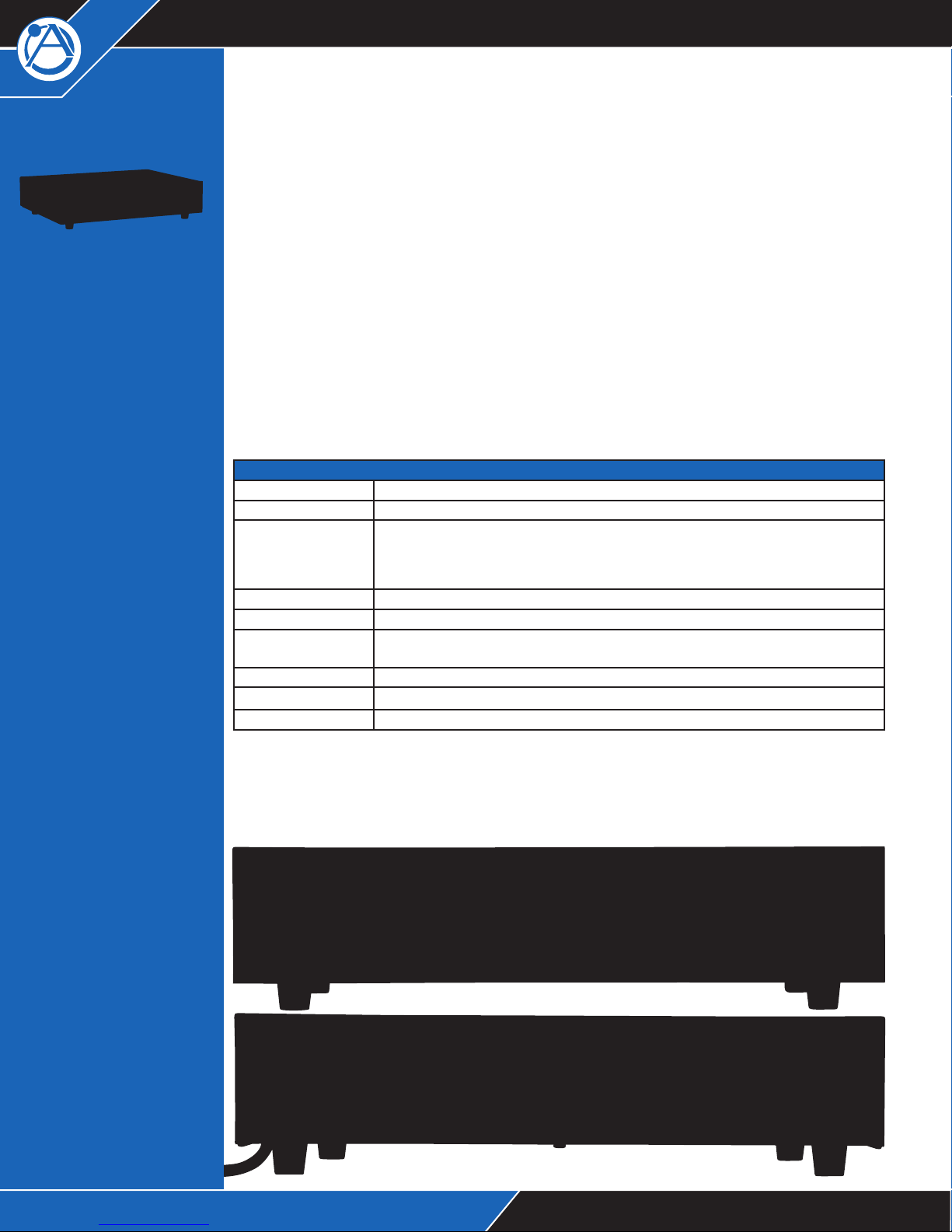

AA120 / AA240
• 6 Channel Mixer Amp (120 and 240 Watt Versions Respectively)
• 5 Mic / Line Inputs with Phantom Power and 1 Stereo Summing Aux Input
• Remote or VOX Mute Capabilities
• Zone 2 MOH Out From CH6 Line Source
• Special Low Cut Filter is 6 dBu / Octave at 400 Hz and Also Bypasses Front Panel Bass Control to Allow use with
Paging Horns Like APX40TN and AP-15T
• Bridge In / Out Circuit with Balanced Link / Internal Relay to Engage Circuit is Perfect for Small Room Combining
Systems - Eliminating the Need for External Electronics
• VCA Control Assignable to Input 6 Line Level (BGM) Input or Global for the Mix Bus
• Pre Out / Power Amp in for Patching External Processors
• UL Listed 60065
Looking for an amplifier to suit a large retail, commercial, or industrial paging and background music application?
Look no further than the Atlas Sound AA120 amplifier. This powerful 120 watt amplifier was engineered with unique
features to assist the contractor or installer in today's commercial business audio environment. This six input unit
features extensive muting and output options along with a very unique bridge in/out feature to allow combining of
multiple amplifiers in ballroom applications without the need for external relays. VCA control is included which may
be assigned to the BGM input or globally for the entire amplifier. For higher output requirements, the model AA240 is
available with the same preamp section as the AA120, but with a larger 240 watts power amp section.
AA120/AA240 AA120 AA240
Power Rating 120 watts RMS 240 watts RMS
Output 25V / 70.7V / 100V & 8 Ω25V / 70.7V / 100V & 8 Ω
Inputs Input 1 Line/Tel 316mV (-10 dBV) 10k Ω (600 Ω w optional/transformer)
Mic .316mV~3.16mV (-50 dBV~ -70 dBV)
Inputs 2-5 Line 316mV (-10 dBV) 10k Ω
Mic .316mV~3.16mV (-50 dBV~ -70 dBV)
Input 6 Line 300mV/100mV (-10 dBV/-20 dBV) Selectable
Frequency Response 50 Hz – 20 kHz ±3 dB
Distortion <1% at rated power (1 kHz)
Outputs Main: Transformer coupled, balanced, 8 Ω, 25V, and 70.7V
Zone 2 8 Ω Unbalanced 1 watt, Zone 2 600 Ω Balanced 1.5V
Power Consumption 300 watts 500 watts
Dimensions Width: 16.54" (420 mm)
Height: 2 RU, 3.66" (94 mm)
Depth: 14.06" (357 mm)
Optional Rack Mount Kit AARMK2-0
AA Series Mixer Amplifiers
AA120
AA240

AtlasSound.com
60
AtlasSound.com

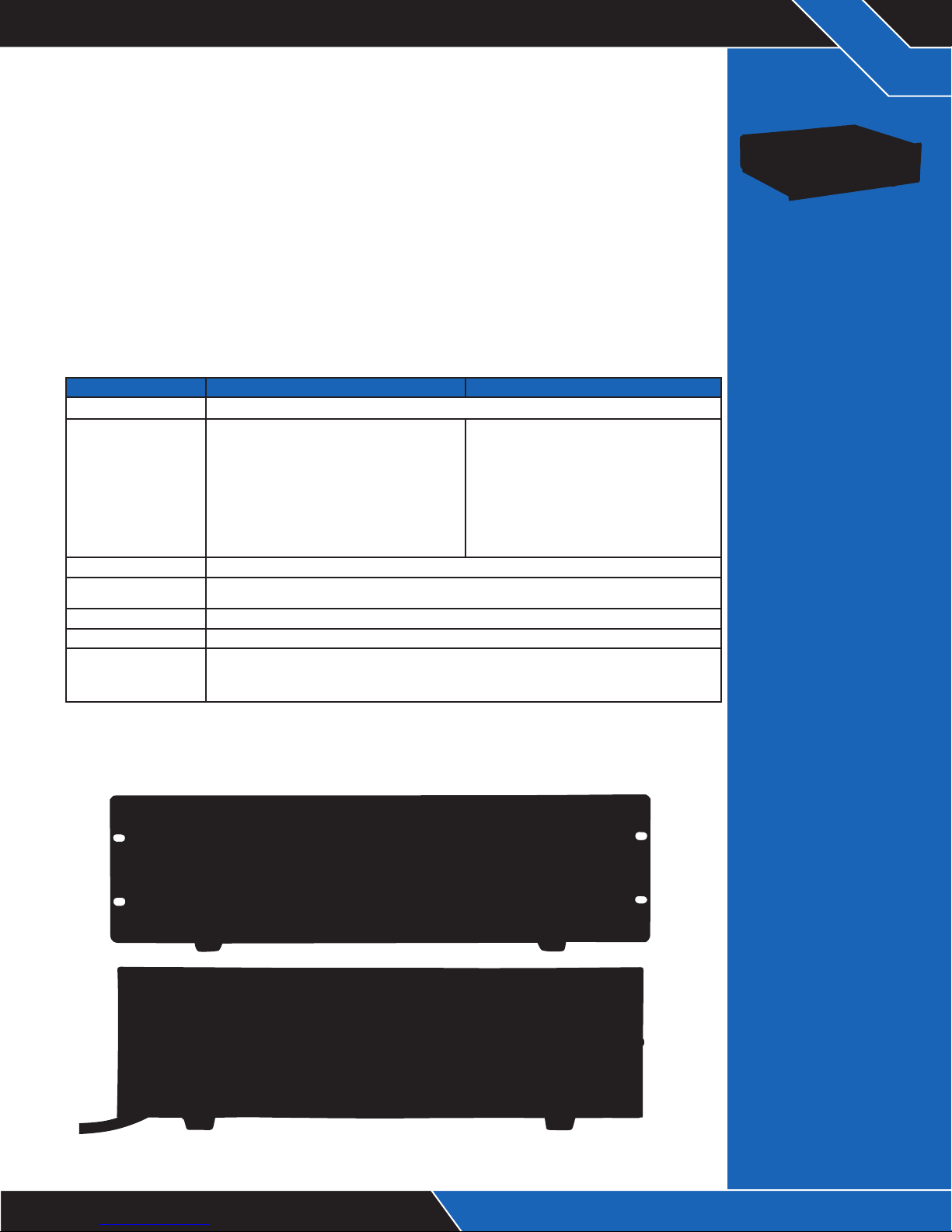

AA120M
• 4 Mic Inputs
• 1 Stereo Line (BGM) Input
• 1 Module Input
• Input Trim Control per Channel
• Channel 2 – 5 Can be Configured for Mute Receive or Mute Send
• Separate Zone 2⁄3 Matrix Per Channel
• Module Input Features Mix Bus or "Amp Direct" Routing (Perfect for Sound Masking as Masking Source is not
Affected by Front Panel EQ Settings and Treble Control Can be Used for Adding High Frequency to Page in
Masking Systems)
• VOX Mute and Contact Closure Mute May be Assigned Separately for Virtual Dual Level Mute Priority Via Internal
Jumpers
• VCA Control Assignable To CH5 BGM Input or Main Mix Bus
• Bridge I/O with Relay Like AA120 / AA240
• Zone 2 / 3 Output (Line Level and 1 watt 8 Ω)
• 24VDC Output and Patchable Relay Assignable to CC or VOX Mute Circuit (Allows Use of Atlas Priority
Attenuators Without any Additional Hardware)
• UL Listed 60065
Atlas Sound's AA120M is possibly the most versatile mixer / amplifier on the market today. True 3 zone matrixing
(main 120 watt output, 1 watt output and line level output), 24VDC output with relay sync to the mute bus, bridge in /
out with built-in relay control, one industry standard module input with direct to mix bus or direct to amp assignment,
global or BGM input VCA control and multiple mute bus configuration options round out the unit's extensive feature
set. The AA120M is ideal for applications like sound masking, industrial paging, retail and BGM, commercial PA, prior-
ity volume control applications and hotel ballrooms / meeting rooms just to name a few.
AA120M
Power Rating 120 watts RMS
Output 25V / 70.7V / 100V & 8 Ω
Inputs Input 1 Line 316mV (-10 dBV) 10k Ω / Mic .316mV~3.16mV (-50 dBV~ -70 dBV)
Inputs 2-4 Line 100mV (-20 dBV) 10k Ω / Mic .316mV~3.16mV (-50 dBV~ -70 dBV)
Input 5 Line 316mV/100mV (-10 dBV / -20 dBV) Selectable
Input 6 Module Input
Frequency Response 50 Hz – 20 kHz ±3 dB
Distortion <1% at rated power
Outputs Main: Transformer coupled, balanced, 8 Ω, 25V, and 70.7V
Zone 2 8 Ω Unbalanced 1 watt, Zone 2 600 Ω Balanced 1.5V
Power Consumption 300 watts
Dimensions Width: 16.54" (420 mm) Height: 2 RU, 3.66" (94 mm) Depth: 14.06" (357 mm)
Optional Rack Mount Kit AARMK2-0
OPPTIONAL MODULES FOR USE WITH MODEL AA120M
AA-TG 3 tone chime generator module
AA-ML Mic / Line input module with remote volume (VCA)
AA-SMG Sound masking generator module with EQ and patch point for external processors
AA Series Mixer Amplifiers
AA120M

AtlasSound.com
AtlasSound.com 800.876.3333 61
Five
PA601
• Simple Clean Power
• 60 Watts Single Input Power Amp
• 1 Balanced Input
• 1 Unbalanced Input
• 1 Unbalanced Line Output
• Loudness Contour Switch (+4 dBu @ 100 Hz and 10 kHz)
• UL Listed 60065
The PA601 is the perfect choice for distributed Background Music (BGM) systems when the requirement is simple
amplification without Music On Hold (MOH) or advanced mix functionality. The PA601 features 60 watts of pure
power in a compact package with simple rear mounted RCA & Phoenix Inputs and RCA Outputs plus a unique loud-
ness contour control which provides just the right amount of bass enhancement for low level listening environments.
PA601
Power Rating 60 watts RMS
Inputs Balanced Line ("Phoenix") 500mV (–6 dBV) 20k Ω
Unbalanced (RCA) 500mV (–6 dBV) 20k Ω
Frequency Response 50 Hz – 20 kHz ±3 dB
Distortion .5% or less, at 1 kHz, rated output
.1% or less, at 1 kHz, 5 watts output
Outputs Main Transformer coupled, balanced, 4 Ω, 70.7V, and 100V
Line Out Unbalanced 600 Ω
AC Mains 120VAC / 240VAC (Switchable)
Dimensions Width: 8.27" (210 mm)
Height: 2 RU, 3.66" (94 mm)
Depth: 14" (357 mm)
Optional Rack Mount Kit AARMK2-5
PA Series Amplifiers
PA601

AtlasSound.com
62
AtlasSound.com
PA702
• Includes Feature Sets Perfectly Suited for Projection Systems
• Innovative, Patent Pending Through Chassis Pole Mounting System Simplifies Installation and Secures the
Amplifier
• Proven Bash™ Class A/B Amplifier Design Provides Years of Trouble Free Operation
• 2 X 70 Watts @ 8 Ω
• AC Current Sense & Audio Sense Turn-On
• Balanced or Unbalanced Inputs
• UL Listed 60065
• RoHS Compliant
The PA702 pole-mount amplifier system from Atlas Sound provides an innovative solution for display systems that
require local sound reinforcement.
Since the first projector was pole mounted in a ceiling, there has been a real quandary about how to best provide local
amplification. The PA702 pole mount amplifier is a very elegant solution to solve this issue.
The PA702 includes a unique (patent pending) mounting pole installation process via a sealed hole incorporated into
the chassis design. Simply install the projector mounting pole, align the amplifier chassis hole with the 1.5" mounting
tube, and clamp the unit at the desired height above the projector mount with the innovative pole clamp system
included with the PA702. Afterwards, install the projector as normal. As a side benefit, the chassis "hole" mounting
system provides the necessary security to help deter theft.
Output is a strong 70 watts x 2 from the efficient rail tracking Class A/B and switch mode power supply technology.
The PA702 includes a host of other innovative features including an accessory outlet with AC current sense that
allows the amplifier to respond instantly from stand-by mode when the projector is powered on remotely. Also
featured are separate audio sense turn-on, balanced phoenix style and unbalanced RCA input connections, front panel
status LEDs, and recessed screwdriver adjustable tone and level controls.
The slim profile chassis is also designed to work in a rack mount configuration. An optional rack mount kit,
PA702-RMK allows single or dual mounting of the PA702 in a 1 RU high configuration.
PA702
Power Rating 70 watts RMS per channel @ 8 Ω
Inputs Unbalanced (RCA) 10k Balanced ("Phoenix") 20k
Frequency Response 30 Hz –20 kHz (±3 dB)
Power Consumption 16 watts sleep mode
Dimensions Width:8.5" (216 mm)
Height: 1 RU, 1.75" (45 mm)
Depth: 13.5" (343 mm)
Optional Rack Mount Kit PA702-RMK
Pole Mount Amplifier
Projector Not included
PA702

AtlasSound.com
AtlasSound.com 800.876.3333 63
Five
CP700 / CP400
• Commercial Duty Stereo Power Amplifiers
• Two High Quality Internal Toroidal Transformers Provide Isolation in 25V, 70.7V, 100V Stereo or 140V / 200V
Bridge Mode Operation
• 30-Position Rear Panel Stepped Input Gain Controls
• Terminal Block and XLR Input
• Automatic, Dual Speed, High Efficiency Fan Cooling
• Short Circuit, Thermal, and DC Offset Protection
• UL Listed
Professional grade audio power amplifiers specifically designed for demanding contractor applications feature an
esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding
reliability as well as extended frequency response (-3 dB @ 30 Hz - 70.7V output through transformer). Now you can
have the peace of mind that systems will have true transformer output isolation, a feature that previously may have
not been affordable due to the cost of quality external transformers. Independent channels are driven by separate
power supplies to ensure maximum channel separation and ultra low distortion figures while providing years or
faithful service. Whether your application is a large distributed constant voltage sound system or a high SPL sound
reinforcement system, the Atlas Sound CP Series is the perfect answer for high power / low cost amplification needs.
CP400 & CP700 certified by ETL to UL 813 standard.
CP700 / CP400 CP400 CP700
Outputs (Below) Power Rating (Below)
25V Stereo*
70.7V Stereo*
100V Stereo*
140V Bridged Mono*
200V Bridged Mono*
8 Ω Stereo**
4 Ω Stereo**
2 Ω Stereo**
8 Ω Bridged Mono***
4 Ω Bridged Mono***
175 watts x2
200 watts x2
200 watts x2
400 watts
400 watts
160 watts x2
240 watts x2
270 watts x2
500 watts
600 watts
280 watts x2
350 watts x2
350 watts x2
700 watts
700 watts
240 watts x2
400 watts x2
550 watts x2
850 watts
1100 watts
Inputs Balanced/Unbalanced 20k / 10k Ω
Frequency Response Direct Outputs (±3 dB) 30 Hz – 50 kHz
Transformer Outputs (±3 dB) 30 Hz – 16 kHz
Distortion 8 Ω, 1 kHz, 240 watts per channel < .05%
Signal To Noise 8 Ω per Channel @ 240 watts > 100 dB
Dimensions 3 RU,
Height: 5.19 (132 mm)
Width: 18.9" (480 mm)
Depth: 16.85" (428 mm)
*Max Average Power @ 35 Hz – 20 kHz with 0.1% THD (10 – 80 K Filter)
**0.1% THD
*** 1 kHz, 1% THD
Amplifier Accessories
CP700

AtlasSound.com
64
AA-PPRC
Features
• Two In by Two Out Priority Page Relay Controller
• Normally Open and Normally Closed Relay Outputs
• Power rating of 350 W / Channel @ 70.7V
• High Level Audio Trigger Input (3V – 45V)
• Line Level Audio Trigger Input (10mV – 3V)
• DC Trigger Input (5V – 24V)
• Contact Closure Trigger Input
• Relay Recover Adjustment 1 - 30 Seconds
• Phoenix Type I/O Connectors
• Durable, Compact Black Metal Housing
• Dimensions: Height: 1.5" (38 mm), Width: 4" (114 mm), Length: 4.5" (114 mm)
• 12VDC UL Listed Power Supply (Included)
The AA-PPRC Priority Page Relay Controller is a two-input, by two-output speaker level switch system rated at 350
watts per channel. Inserting unit into the signal path between an amplifier's output and the speaker load allows sys-
tem muting based upon a variety of external trigger sources including speaker level audio (3V to 45V), line level audio
(10mV to 3V), external contact closure or 5 to 24 volts DC.
A typical classroom installation would utilize the AA-PPRC inserted between the presentation system amplifier and
loudspeakers with a trigger input from the school's 25V paging / intercom system loudspeaker located in the same
classroom. When a page occurs the presentation system will be muted for the duration of the announcement and
will resume when the page is complete. Other applications include zone page management for new or existing
systems and priority switching of line-level audio sources. Release time of the relay control is variable from 0 to 30
seconds.
Typical Classroom Installation for the AA-PPRC
AAIT-600 600 Ω isolation input transformer for all AA series
AARMK2-0 Rack Mount Kit for one AA120 / AA240 or one AA120M
AARMK2-5 Rack Mount kit for one or two AA35, AA60 or PA601
PA702-RMK Rack Mount Kit for one or two PA702.
AAVCC-5 5 piece Security cover kit for all AA Series
AAVC-10K 10K Linear pot on Decora plate for VCA use with AA120 / AA240, AA120M
(includes white and ivory inserts, knobs and trim ring)
AA-PPRC Priority Page Relay Controller
AARMK2-5
AAIT-600
AAVCC-5
AAVC-10K
AA-PPRC
25V SPEAKER LEVEL
FROM SCHOOL PAGING SYSTEM
PARALLEL OUTPUT
ATLAS PA702 OR OTHER PRESENTATION SYSTEM AMPLIFIER
PRESENTATION SPEAKER
PRESENTATION SPEAKER
Amplifier Accessories
AA-PPRC
(Back)
AA-PPRC
(Front)

AtlasSound.com 800.876.3333 65
Five
Regulated DC Power Supply with 1⁄2 Amp Output
RPS24-05 Compact 24VDC model is offered for use where small, economical power supplies are required. RPS24-05
is recommended for telecommunication installations including small telephone systems and intercom / annunciator
applications in industrial, institutional, service and educational facilities. Unit is fuse-protected in the primary, includes
barrier strip terminals and has a 6' AC power cord. Finished in black epoxy.
Model Input Output (Nom.) Ripple @ Full Load Regulation
0 V Full Load
Size L X W X H
RPS24-05 117VAC 60 Hz, 26 watts 24VDC 1⁄2 Amp 0.5mV 500mV Length: 63⁄4" (171 mm)
Width: 35⁄8" (92 mm)
Height: 2" (51 mm)
Regulated DC Power Supplies with 2 & 4 Amp Output
PS24-2R / PS24-4R Assemblies with varying amp service are provided for applications that require excellent regula-
tion and extremely low ripple including transistorized and solid-state control equipment and alarm / warning systems.
Models are fuse-protected in the primary, include barrier strip terminals and have a 6' power cord. Finished in black
epoxy; larger models include a ventilated cover finished in textured black epoxy.
Model Input Output (Nom.) Ripple @ Full Load Regulation
0 - Full Load
Size
L X W X H
PS24-2R 105 - 125VAC
60 Hz, 110 watts
24VDC
2 Amp
0.5mV 500mV Length: 61⁄4" (337 mm)
Width: 31⁄4" (159 mm)
Height: 23⁄4" (121 mm)
PS24-4R 105 - 125VAC
60 Hz, 110 watts
24VDC
4 Amp
1mV 300mV
Heavy-Duty DC Power Supply with 5 Amp Output
PS24-50A. Model offers 24VDC for applications that require a high-current DC supply including many types of
telephone, annunciator and industrial paging systems, and installations with large numbers of relays. Unit is fused at
the input and includes barrier-type terminals, keyhole mounting slots, ventilated cover and 6' AC line cord. Finished in
black epoxy.
Model Input Output (Nom.) Ripple @ Full Load Regulation
0 - Full Load
Size
L X W X H
PS24-50A 117VAC 60 Hz, 170
watts
24VDC
5 Amp
Less Than 2.5% 29 - 23V Length:131⁄4" (337 mm)
Width: 61⁄4" (159 mm)
Height: 43⁄4" (121mm)
General Purpose DC Power Supplies (2 Amp Output)
PS24-20. Compact, multi-voltage unit is designed for a variety of general applications. Voltage selection is accom-
plished through a plug-in lead. Assembly is complete with fused-transformer primary, 6' power cord, and black epoxy
finish.
TS242. UL Listed unit is used for a variety of applications that do not require a regulated supply. Model includes a
117VAC unswitched outlet, neon pilot lamp, barrier-type terminals, and 6' power cord.
UL Model Input Output (Nom.) Ripple @ Full Load Regulation
0 - Full Load
Size
L X W X H
PS24-20 117VAC
60 Hz,
70 watts
24, 12, 6 VDC
2 Amp
Less Than 2.5% 27-22V Length: 63⁄4" (171 mm)
Width: 35⁄8" (92 mm)
Height: 4" (102 mm)
2017 TS242 105 - 125VAC
60 Hz,
74 watts
24VDC
2 Amp
Less Than 0.5% 28-22.4V Length: 37⁄8" (98 mm)
Width: 107⁄8" (276 mm)
Height: 6" (152 mm)
Power Supplies / Electronic Accessories
PS24-20
PS24-2R
(Front View)
PS24-2R PS24-50A PS24-4R
PS24-2R
(REAR VIEW)
PS24-2R PS24-50A PS24-4R
TS242
RPS24-05

AtlasSound.com
66
AtlasSound.com

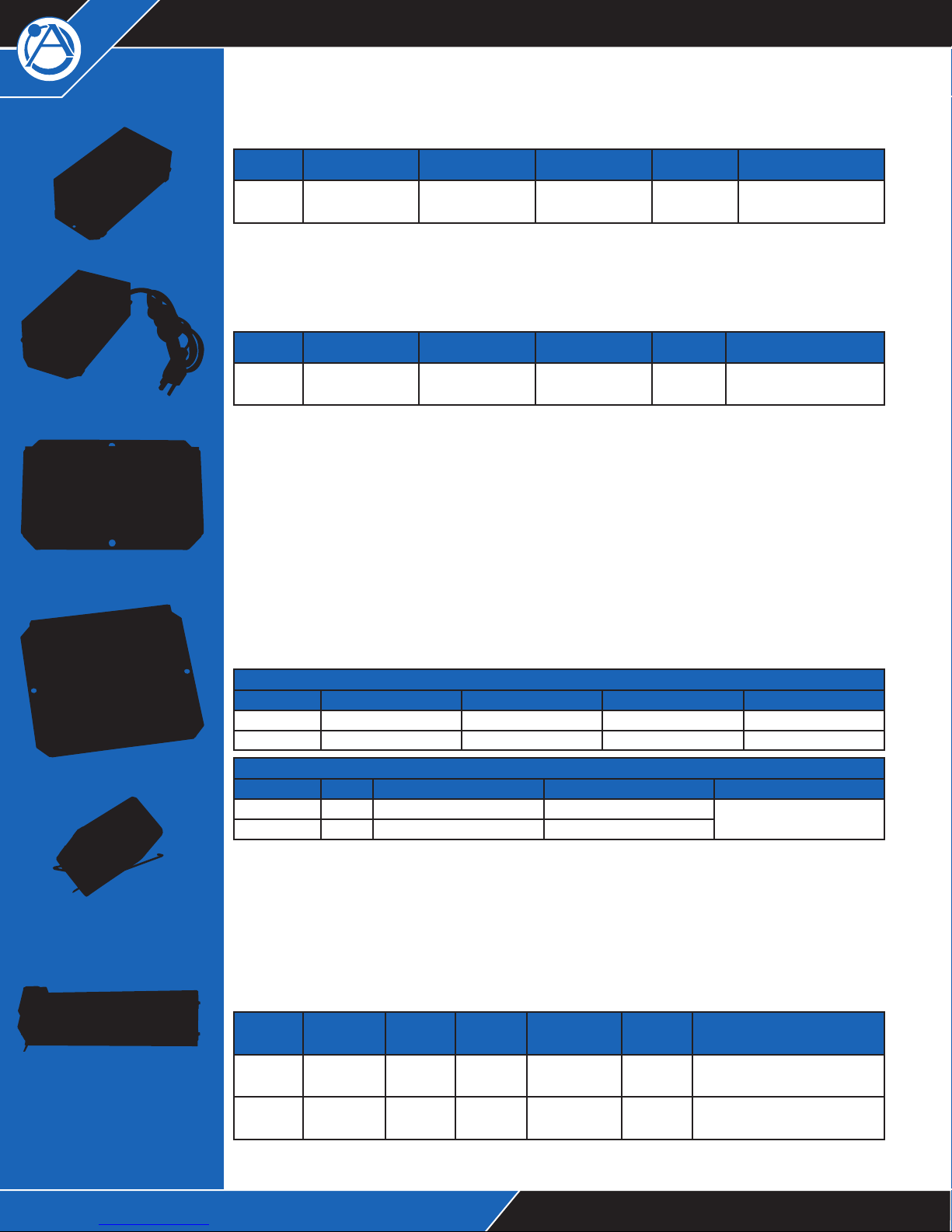

Power Pack
PS24-075 Compact supply is designed to power the RPM/RLM Series DC relays and may also be used in a variety
of annunciator applications. Includes positive, negative, and ground terminals with the negative terminal isolated from
the ground. Complete with 6' power cord and black epoxy finish.
Model Input Output (Nom.) Ripple @ Full Load Regulation
0 - Full Load
Size
L X W X H
PS24-075 117VAC
60 Hz, 26 watts
24VDC
3⁄4 Amp
Less than 1.5mV 26 – 22V Length: 63⁄4" (171 mm)
Width: 35⁄8" (92 mm)
Height: 2" (51 mm)
Telephone Power Supply
TPS24-05. Unit is a combination 24VDC / TALK voltage power supply engineered to power most common-talk
telephone intercom systems (see Section 8). Finished in black epoxy and complete with 6' power cord. For
information on common-talk intercom applications, see SL8-1433 available on AtlasSound.com.
Model Input Output (Nom.) Ripple @ Full Load Regulation
0 - Full Load
Size
L X W X H
TPS24-05 117VAC
60 Hz, 26 watts
24VDC
1⁄2 Amp
Talk Line
0.5mV 500mV Length: 63⁄4" (171 mm)
Width: 35⁄8" (92 mm)
Height: 2" (51 mm)
Rack-Mount Power Supply Shelf
PS-RK Accessory shelf provides convenient installation of Atlas Sound power supplies in 19" cabinets. Shelf supports
up to four 63⁄4" L supplies or one 131⁄4" L unit. CRS assembly is finished in black textured epoxy and includes knockouts
for line cords, front viewing hole for power indicator, and viewing hole plug.
Size: 19" W x 8" D x 51⁄4" H (483 mm x 203 mm x 133 mm).
DC Relay Packs
RPM/RLM Series Modular chassis with individual plug-in relays provides configuration and expansion flexibility for
application wherever a 24VDC, DPDT relay is required including zone paging, intercom, and telephone systems.
Chassis is available in two sizes with 2 and 4 relay sockets. Plug-in DPDT relays prevent long-term oxidation prob-
lems and are offered in 3 and 5 amp versions (order separately). To eliminate bussing, one size of each relay coil is
connected to a common terminal. Chassis is painted with black epoxy and includes a printed circuit board with barrier
type terminals.
Relay Pack Chassis Modules (Without Relays)
Model Relay Socket Quantity Length Width Height
RPM-2 2 43⁄4" 31⁄8"15⁄16"
RPM-4 4 51⁄2" 43⁄4"15⁄16"
Plug In Relays (Ordered Relays)
Model Type Contact Material Contact Rating Power
RLM-24 DPDT Fine, Silver, Gold Plated 1mA tp 3 Amp 24VDC @ 35 mA
RLM-24-5 DPDT Silver Cadmium Oxide 500mA to 5 Amp
Zone Page Powered Relay Packs
PSR Series. DPDT relay with internal 24VDC power supply is available with six or twelve factory-wired relays for
application with MPC Series communications control center. To facilitate the addition of external relays or lights, the
power supply output is also connected at the terminal strip. Relays may be easily converted to an all page function
by connecting the off bus to the selected relay switch output. Models include silk screened terminal diagram and 6'
power cord. Black epoxy finish. Separate amplifiers needed for both paging and background music.
Model Input
Power
Power
Supply
Output
Relay
Qty / Type
Relay
Power Req.
Contact
Rating
Size
L X W X H
PSR-212 117VAC
60 Hz, 24 watts
24VDC
@ 1 Amp
12 Qty.
24VDC,
DPDT
24VDC, 35mV 3 Amps Length: 131⁄4" (337 mm)
Width: 61⁄4" (159 mm)
Height: 43⁄4" (121 mm)
PSR-206 117VAC
60 Hz, 12 watts
24VDC
@ 500 Amp
6 Qty.
24VDC,
DPDT
24VDC, 35mV 3 Amps Length: 131⁄4" (337 mm)
Width: 61⁄4" (159 mm)
Height: 43⁄4" (121 mm)
Power Supplies / Electronic Accessories
PSR-212
TPS24-05
RPM-2 without Relays Installed
RPM-4 without Relays Installed
RLM-24 and RLM-24-5
PS24-075
