Atlas 12AWFSL User manual

Replace This With Cover PDF

Read this entire manual before operation begins.
Record below the following information which is located on the serial number
data plate.
Serial No.
Model No.
Date of Installation

Contents
General Information. . . . . . . . . . 5
Product Identification . . . . . . . . . 8
Packing, Transport, Storage . . . . . . 10
Product Description . . . . . . . . . . 12
Technical Specification. . . . . . . . . 14
Safety . . . . . . . . . . . . . . . . 24
Installation . . . . . . . . . . . . . . 28
Operation And Use . . . . . . . . . . 39
Maintenance . . . . . . . . . . . . . 48
Troubleshooting. . . . . . . . . . . . 50
Parts List . . . . . . . . . . . . . . . 53
Warranty . . . . . . . . . . . . . . . 82

4
12AWFSL
PRINTING CHARACTERS AND SYMBOLS
Throughout this manual, the following symbols and printing characters are used
to facilitate reading:
Indicates the operations which need proper care
Indicates prohibition
Indicates a possibility of danger for the operators
Indicates the direction of access for motor vehicles to the lift
BOLD
TYPE Important information
WARNING: before operating the lift and carrying out any
adjustments, read chapter 7 “installation” where all proper
operations for a better functioning lift are shown.

General Information 5
12AWFSL
General Information
This chapter contains warning instructions to operate the lift properly and
prevent injury to operators or objects.
This manual has been written to be used by shop technicians in charge of the lift
(operator) and routine maintenance technician (maintenance operator).
The operating instructions are considered to be an integral part of the machine
and must remain with it for its whole useful life.
Read every section of this manual carefully before operating the lift and
unpacking it since it gives helpful information about:
• SAFETY OF PEOPLE
• SAFETY OF THE LIFT
• SAFETY OF LIFTED VEHICLES
The company is not liable for possible problems, damage, accidents, etc.
resulting from failure to follow the instructions contained in this manual.
Only skilled technicians of AUTHORIZED DEALERS or SERVICE CENTERS
AUTHORIZED by the manufacturer shall be allowed to carry out lifting, transport,
assembling, installation, adjustment, calibration, settings, extraordinary
maintenance, repairs, overhauling and dismantling of the lift.
THE MANUFACTURER IS NOT RESPONSIBLE FOR POSSIBLE DAMAGE TO
PEOPLE, VEHICLES OR OBJECTS IF SAID OPERATIONS ARE CARRIED OUT
BY UNAUTHORIZED PERSONNEL OR THE LIFT IS IMPROPERLY USED.
Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.

General Information 6
12AWFSL
1.1 Manual Keeping
For a proper use of this manual, the following is recommended:
• Keep the manual near the lift, in an easily accessible place.
• Keep the manual in an area protected from the damp.
• Use this manual properly without damaging it.
• Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.
This manual is an integral part of the lift: it shall be given to the new owner if
and when the lift is resold.
1.2 Obligation In Case Of Malfunction
In case of machine malfunction, follow the instructions
contained in the following chapters.
1.3 Cautions For The Safety Of The Operator
Operators must not be under the influence of sedatives, drugs or alcohol when
operating the machine.
Before operating the lift, operators must be familiar with
the position and function of all controls, as well as with the
machine features shown in the chapter “Operation and use”.

General Information 7
12AWFSL
1.4 Warnings
Unauthorized changes and/or modifications to the machine
relieve the manufacturer of any liability for possible damages to
objects or people. Do not remove or make inoperative the safety
devices, this would cause a violation of safety at work laws and
regulations.
Any other use which differs from that provided for by the
manufacturer of the machine is strictly forbidden.
The use of non genuine parts may cause damage to people or
objects.
1.5 Scrapping
When your machine’s working life is over and it can no longer be used, it must
be made inoperative by removing any connection to power sources. These
units are considered as special waste material, and should be broken down into
uniform parts and disposed of in compliance with current laws and regulations. If
the packing are not polluting or non-biodegradable, deliver them to appropriate
handling station.
DECLARATION OF WARRANTY
AND LIMITATION OF LIABILITY
The manufacturer has paid proper attention to the preparation of this manual.
However, nothing contained herein modifies or alters, in any way, the terms
and conditions of manufacturer agreement by which this lift was acquired, nor
increase, in any way, manufacturer’s liability to the customer.
TO THE READER
Every effort has been made to ensure that the information contained in this
manual is correct, complete and up-to date. The manufacturer is not liable for
any mistakes made when drawing up this manual and reserves the right to make
any changes due the development of the product, at any time.

Product Identification 8
12AWFSL
Product Identification
The identification data of the machine are shown in the label placed on the
control unit.
LOGO
Type: ……………
Model: ……………
Serial Number: ……………
Year of manufacturing: ……………
Capacity: ……………
Voltage: ……………
Power: ……………
Use the above data both to order spare parts and when getting
in touch with the manufacturer (inquiry). The removal of this
label is strictly forbidden.
Machines may be updated or slightly modified from an aesthetic point of view
and, as a consequence, they may present different features from these shown,
this without prejudicing what has been described herein.
2.1 Warranty Certificate
The warranty is valid for a period of 12 months starting from the date of
the purchase invoice. The warranty will come immediately to an end when
unauthorized modifications to the machine or parts of it are carried out. The
presence of defects in workmanship must be verified by the Manufacturer’s
personnel in charge.

Product Identification 9
12AWFSL
2.2 Technical Servicing
For all servicing and maintenance operations not specified or shown in these
instructions, contact your Dealer where the machine has been bought or the
Manufacturer’s Commercial Department.
Only skilled personnel who are familiar with the lift and this manual shall
be allowed to carry out packing, lifting, handling, transport and unpacking
operations.

Packing, Transport, Storage 10
12AWFSL
Packing, Transport, Storage
3.1 Packing
The packing of the lift is delivered in following components:
• No. 2 base units, each one with a runway equipped with 2 hydraulic cylinders
• No. 1 jack beam with an air pedal pump
• No. 1 control unit and containing hydraulic unit, hydraulic hoses, air hoses,
anchor bolts, rubber blocks and the technical files.
• No. 2 turntable recess covers
• No. 2 drive-on ramps, 2 drive-off ramps, and 4 hose protective covers if
the lift is ordered for on-floor installation
(If requested, optional accessories are available to satisfy each customer’s
requirements).
3.2 Lifting And Handling
When loading/unloading or transporting the equipment to the site, be sure to
use suitable loading (e.g. cranes, trucks) and hoisting means. Be sure also to
hoist and transport the components securely so that they cannot drop, taking
into consideration the package’s size, weight and center of gravity and it’s fragile
parts.

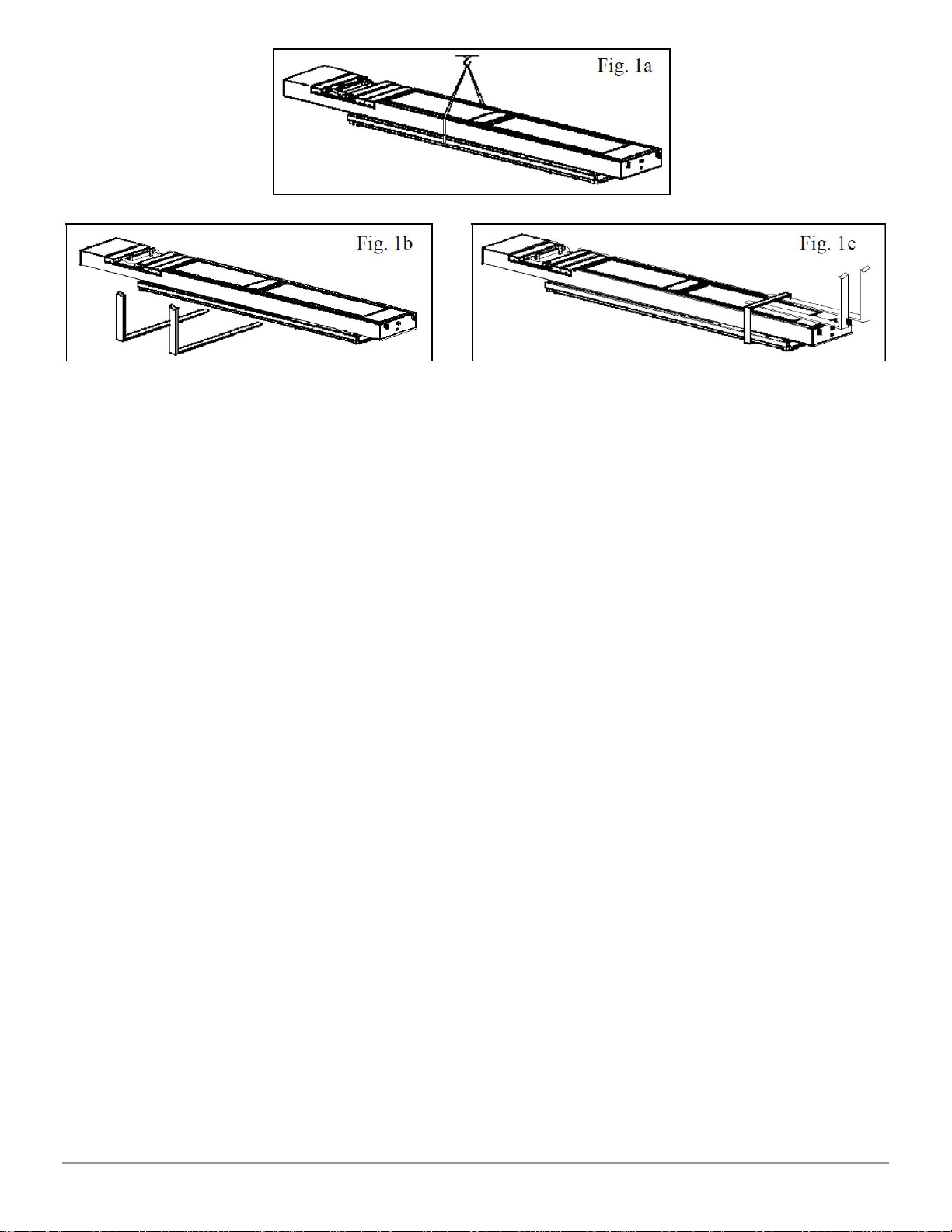

In Figure 1 there are the correct indications for the lifting of the runways:
Hoist and handle only one package at a time.

Packing, Transport, Storage 11
12AWFSL
Figure 1 – Loading/Unloading Runway
3.3 Storage And Stacking Of Packages
Packages must be stored in a covered place, out of direct sunlight and in low
humidity, at a temperature between -10°C and +40°C.
Stacking is not recommended: the package’s narrow base, as well as its
considerable weight and size make it difficult and hazardous.
3.4 Delivery And Check Of Packages
When the lift is delivered, check for possible damages due to transport and
storage; verify that what is specified in the manufacturer’s confirmation of order
is included. In case of damage in transit, the customer must immediately inform
the carrier of the problem.
Packages must be opened paying attention not to cause damage to people (keep
a safe distance when opening straps) and parts of the lift (be careful the objects
do not drop from the package when opening).

Product Description 12
12AWFSL
Product Description
4.1 Lift Description (Ref. Figure 2)
This lift has been designed for the lifting of motor-vehicles for wheel alignment
and maintenance. The lift can be mounted either on surface or in pit (flush
mounted).
The maximum lifting weight is as specified on the serial plate.
All mechanical frames, such as platforms, extensions, base frames and arms
have been built in steel plate to make the frame stiff and strong while keeping a
low weight. The electro hydraulic operation is described in detail in chapter 8.

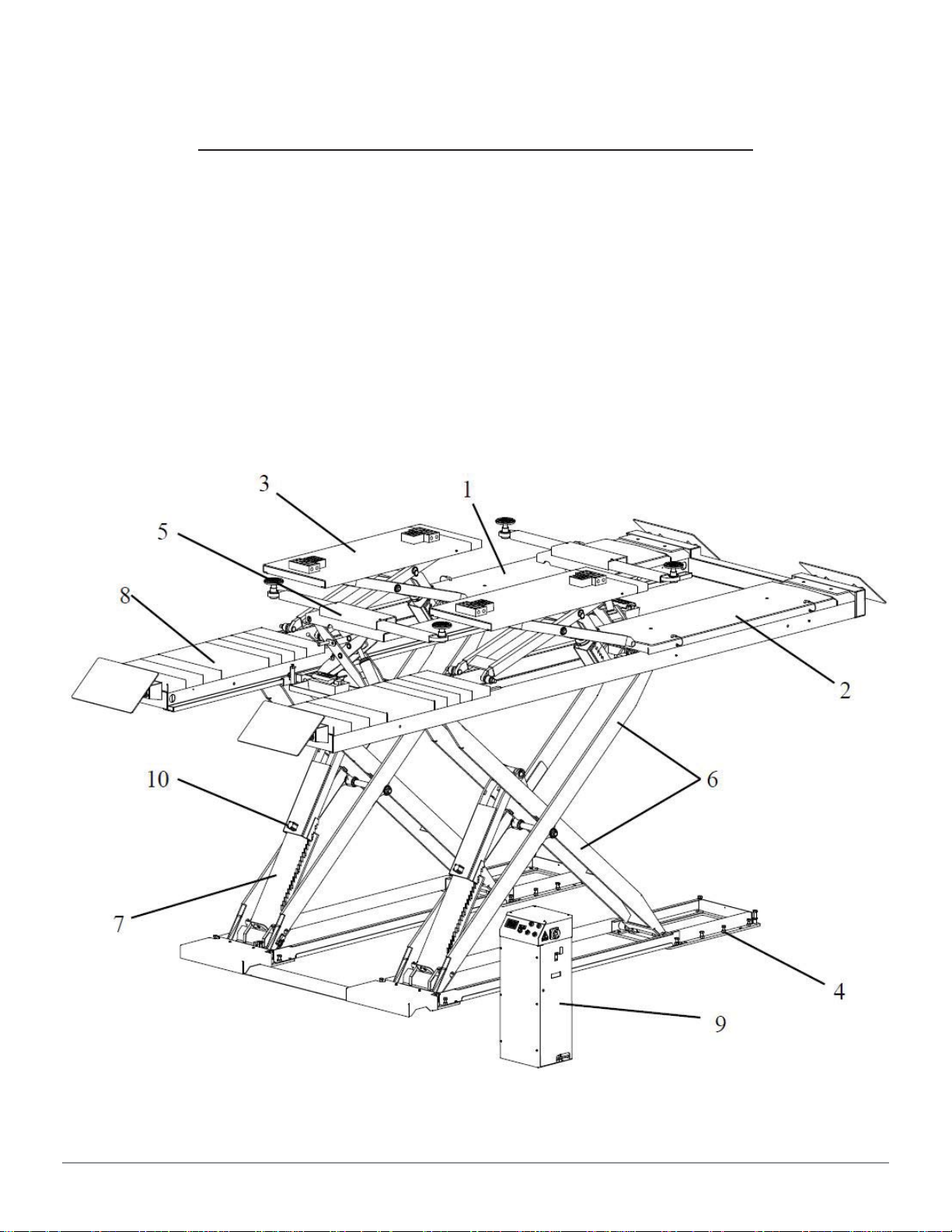

Figure 2 – Lift

Product Description 13
12AWFSL
This chapter describes the lift’s principal elements, allowing the user to be
familiar with the machine. As shown in figure 2, the lift is composed of two
runways: P1(1) and P2 (2) with two wheel free jacks (3), anchored to the
ground by means of its base (4). At a special request, two jack beam (5) can be
supplied and operated by an air-hydraulic pedal pump.
Runways are linked to the base by means of a scissors lifting system. The lifting
system of each runway is composed of scissor arms (6) and a hydraulic cylinder
(7). Turntable recess cover (8) is supplied with the lift in case for non-alignment
purpose. Lifting and lowering motion of lift and wheel free jacks is carried out by
operation of a control unit (9) placed next to the lift.
The leveling system of the lift is carried out manually by operation of the leveling
cocks in the power unit. The mechanical safety operating by a pneumatic
cylinder (10) is built under each runway and wheel free jack for engagement and
release. Two limit switches are installed in the P1 base: for top position limit and
for the safety height limit.
4.2 Operation
Lift lifting is carried out by the hydraulic unit which acts upon the cylinders.
The platforms are raised simultaneously owing cross feeding of the hydraulic
cylinders. Lowering, even though electrically controlled, is carried out by the
weight of both the platforms and the load lifted. Lowering motion of the wheel
free jacks with load less can be sped up by means of pneumatic action in the
chamber of its slave cylinder. The hydraulic system is protected by a max
pressure valve thus preventing pressure from exceeding the maximum fixed
safety limit.
Lifting and lowering motion of the lift is controlled by the push buttons on the
control panel. The synchronization of the platforms is guaranteed by a master/
slave circuit. Whenever the lift has to be lowered to the ground and the lowering
button is pressed, the lift will stop at about 18” from the ground. In this way, the
operator must verify that neither persons nor objects are within the safety area.
If so, the final lowering button can be pressed and the lift be lowered. A beep
sound is heard during the last travel.

Technical Specification 14
12AWFSL
Technical Specification
5.1 Size And Main Features (Ref. Figure 3)
Capacity 12000 LBS (5000kg)
Capacity of wheel free jacks 8800 lbs (4000kg)
Capacity of jacking beam 6000 lbs (2500kg)
Max. primary lifting height 85”
Max. secondary lifting height 17 2/3”
Jack beam lifting height with no extension 1 1/4” - 15 3/4”
Min. lowered height 11 1/2”
Length of the runway 196 7/8”
Adjusted length of the wheel free jack table 63” – 74”
Adjusted length of the jack beam arm 30” – 64”
Width of platform 24”
Suggested free width between runways 38 7/8”
Lifting time 60s
Lowering time 60s
Compressed air pressure 6 bar – 8 bar
Noise level 80 dB(A)/1m
Working temperature -10 °C ÷ 40 °C
Package weight 5900 lbs including all
5.2 Electric Motor
Type ML90L2
Voltage 220V-1Ph
Power 2.2 KW
N° Poles 2
Speed 2800 rpm
Motor enclosure type B14
Insulation class IP 54

Technical Specification 15
12AWFSL
Motor connection must be carried out referring to the attached wiring diagrams
(Figure 6). The motor direction of rotation is shown in the label placed on the
motor.
Before use of the lift, make sure to check if the motor specification shown in the
nameplate of the motor conforms to the local electric supply.
If there is over 10% fluctuation on the electrical power supply, it is suggested to
use the voltage stabilizer to protect the electrical components and system from
overloading.
5.3 Pump
Type Gear
Flow rate 1.3 cm3/g
Continuous working pressure 260 bar
Peak pressure 280 bar

Technical Specification 16
12AWFSL
Figure 3A – Layout For In-Ground Installation

Technical Specification 17
12AWFSL
Figure 3B – Layout For On-Ground Installation

Technical Specification 18
12AWFSL
5.4 Hydraulic Unit
The hydraulic power unit is equipped with
Figure 4 – Hydraulic Power Unit

Technical Specification 19
12AWFSL
5.5 Oil
Use wear proof oil for hydraulic drive, in conformity with ISO 6743/4 rules (HM
class). The oil with features similar to those shown in the table is recommended.
TEST STANDARDS FEATURES VALUE
ASTM D 1298 Density 20°C 0.8 kg/l
ASTM D 445 Viscosity 40°C 32 cSt
ASTM D 445 Viscosity 100°C 5.43 cSt
ASTM D 2270 Viscosity index 104 N°
ASTM D 97 Pour point ~ 30 °C
ASTM D 92 Flash point 215 °C
ASTM D 644 Neutralization number 0.5 mg KOH/g
CHANGE HYDRAULIC OIL AT 1 YEAR INTERVALS

Technical Specification 20
12AWFSL
1 Master runway cylinder P1 10 Pressure gauge
2 Slave runway cylinder P2 11 Non return valve
3 Master jack cylinder P2 12 Pressure overload valve
4 Slave jack cylinder P1 13 Lowering solenoid valve
5 Parachute valves (optional) 14 Lowering control valve
6 Leveling cutoff cock 1 - runways 15 Motor
7 Leveling cutoff cock 2 – jacks 16 Gear pump
8 Switching solenoid valve - runways 17 Oil filter
9 Switching solenoid valve – jacks 18 Emergency hand pump
Figure 5 –
Hydraulic Plan
